CFUSHOW1A-01

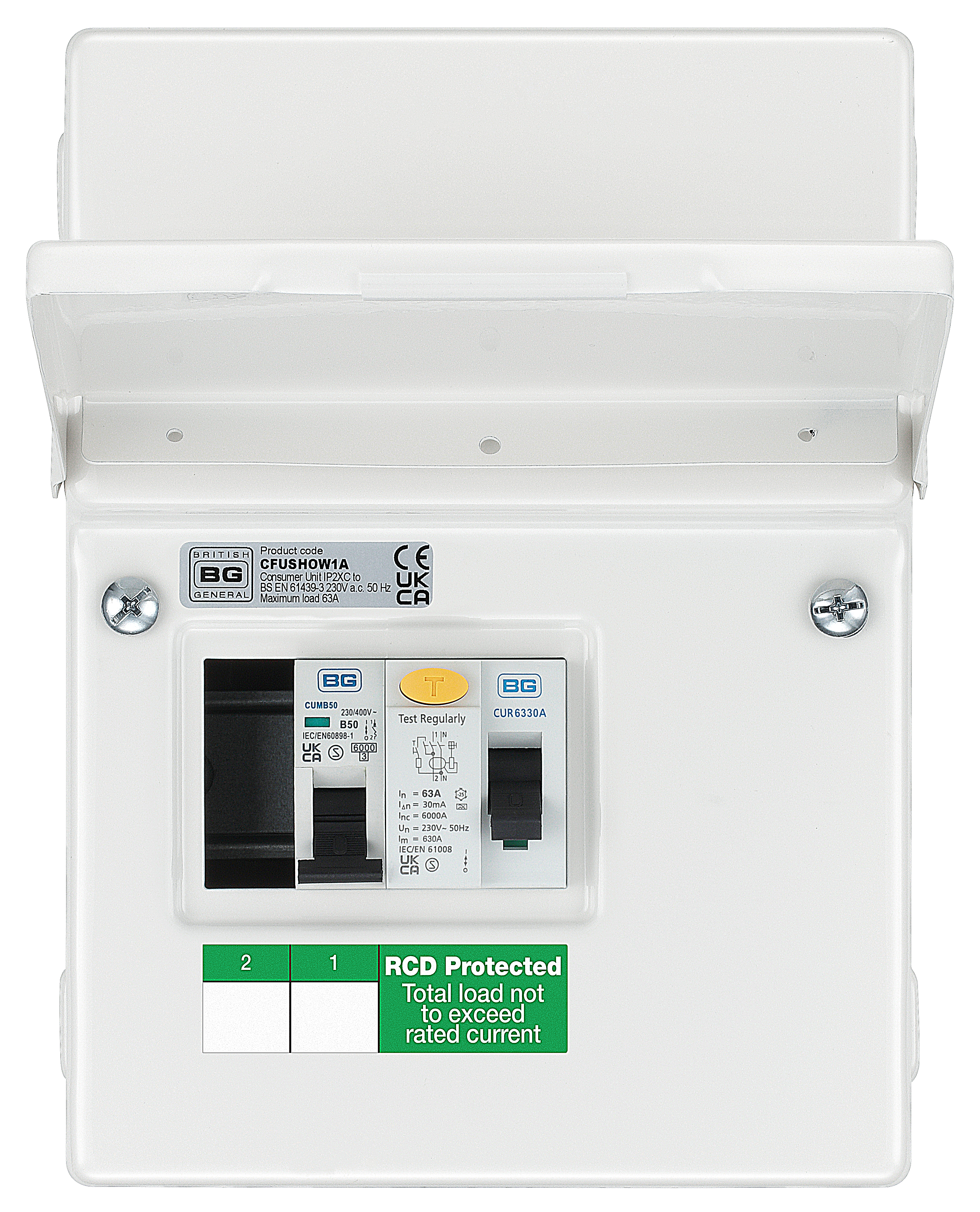

4 Module Populated Garage Kit c/w 63A 30mA Type RCD, 50A MCB
Integrated spirit Level
Non-Weatherproof

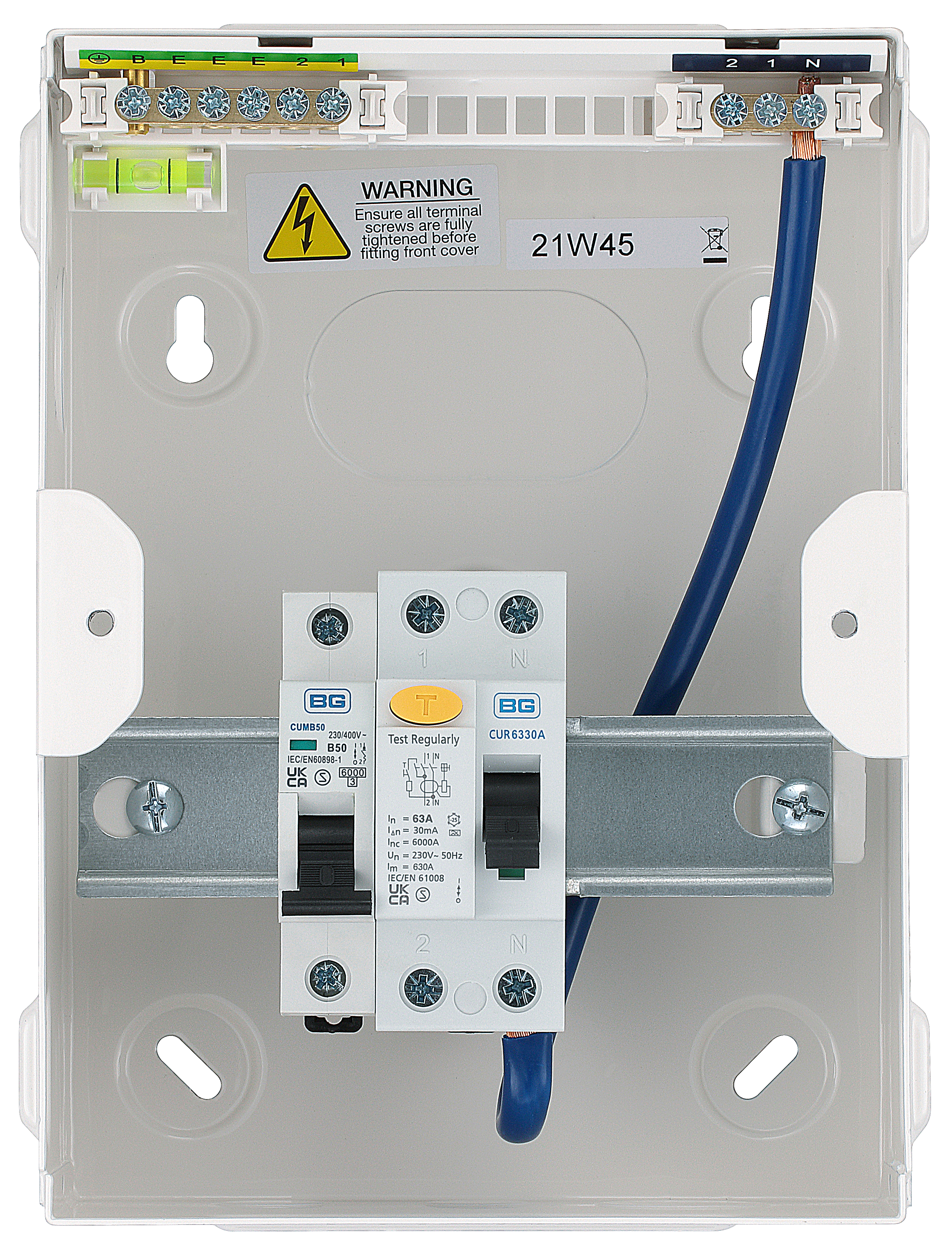

Enclosure kit supplied with devices DIN rail Neutral cable, Neutral and Earth terminals, labels busbar and cover blanks

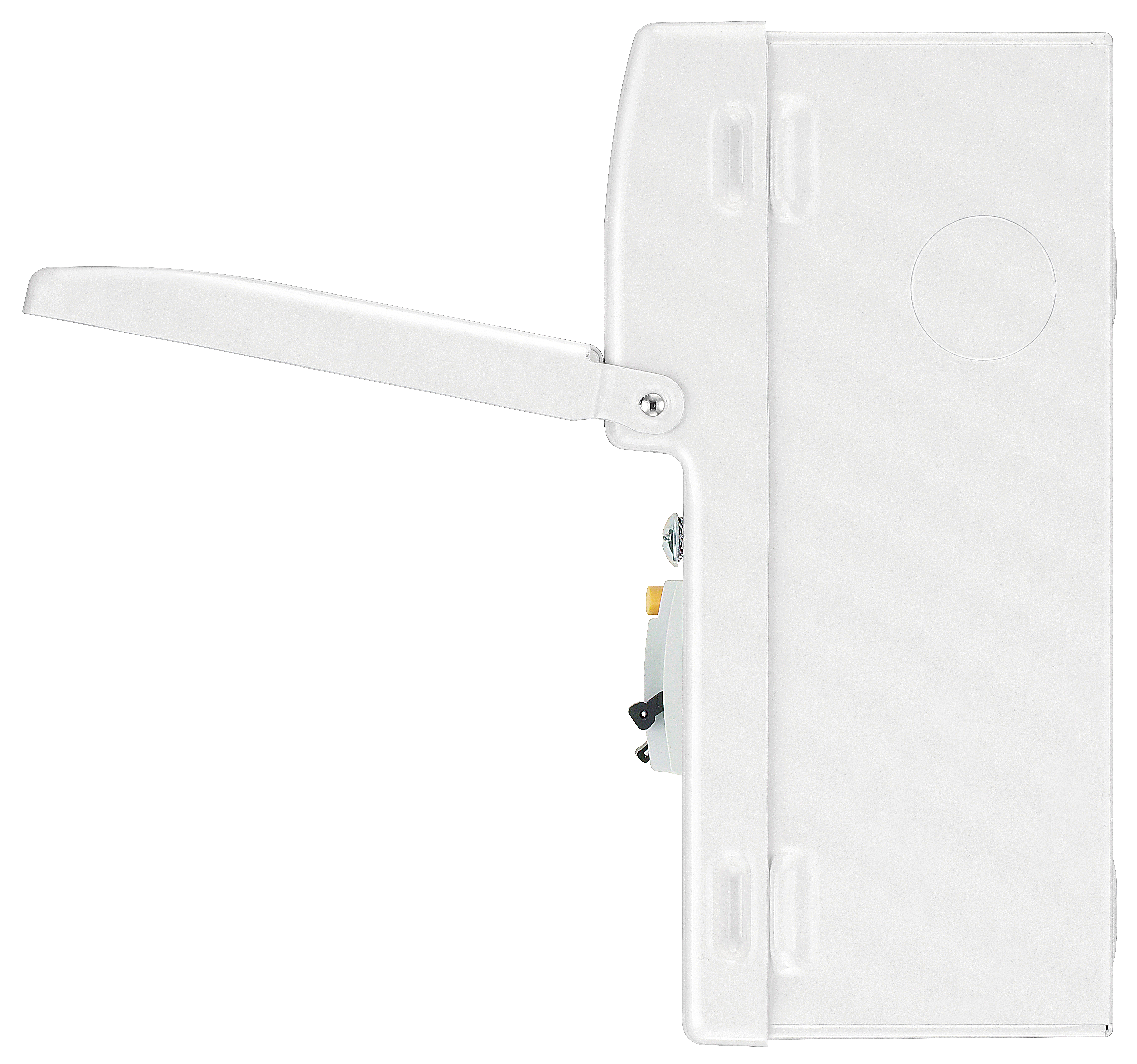

Up-opening front cover
1 x 63A Type A RCD
1 x 50A MCB
Backed out and retained terminal screws
Gloss white finish to match BG White wiring accessories
Easy Installation
Populated
| Front Plate Material | Cast Aluminium -ADC12 |
| General Colour | White |
| Fixing Screws Supplied | No |
| Modules | 4 |
| Number of Cable Entries | 9 |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Cable Entry Type | Knockout |
| Details per face (Size/number) | Top -2 x 20mm, 1 x 32mm, Bottom - 2 x 20mm, 1 x 32mm, L-1 x 32mm, R - 1 x32mm (sides) 1 x 90 x 35mm (Base) |

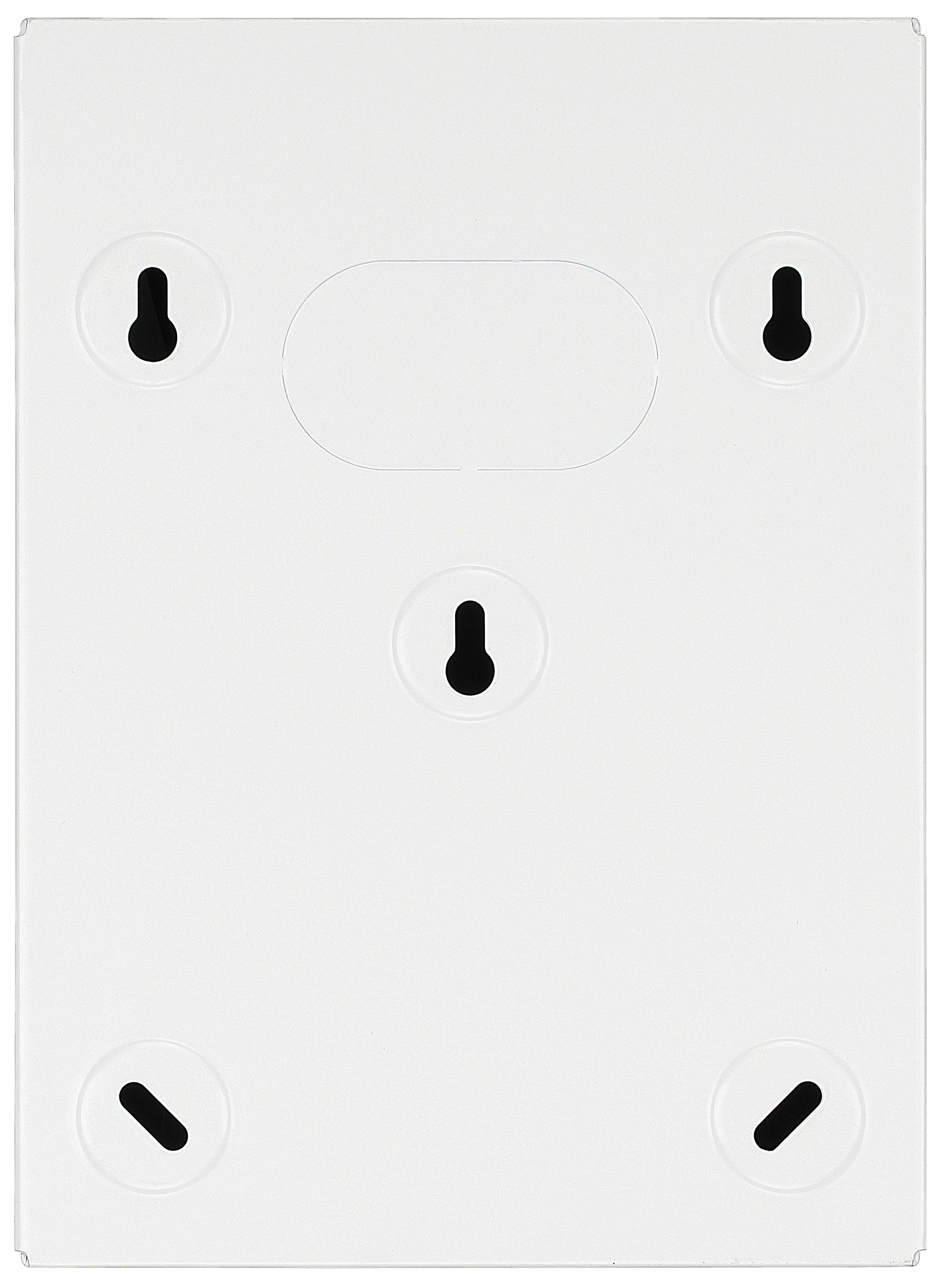

| Number Of Wall Fixing Positions | 5 |
| Fitted Lock | No |
| Installation Method(s) | Surface |
| Spirit Level | N/A |
| Terminal Type | Screw |
| Ways | 3 |
| Knockouts | 6 |
| Mounting Type | Surface |
| IP Rating | IP20 |
| Terminal Screw Type | Combi |
| Rated Sensitivity (mA) | 30mA |
| RCD Mechanism Type | Electro/Mechanical |
| Max Load (A) | 63 |
| MCB's | 2 |
| Frequency (Hz) | 50 |
| Warranty (years) | 10 |
