CFUGAR2-01
4 Module, Garage Kit c/w 100A Main Switch , 6A+16A MCB
Integrated spirit Level
Non-Weatherproof
Enclosure kit supplied with devices DIN rail Neutral cable, Neutral and Earth terminals, labels busbar and cover blanks

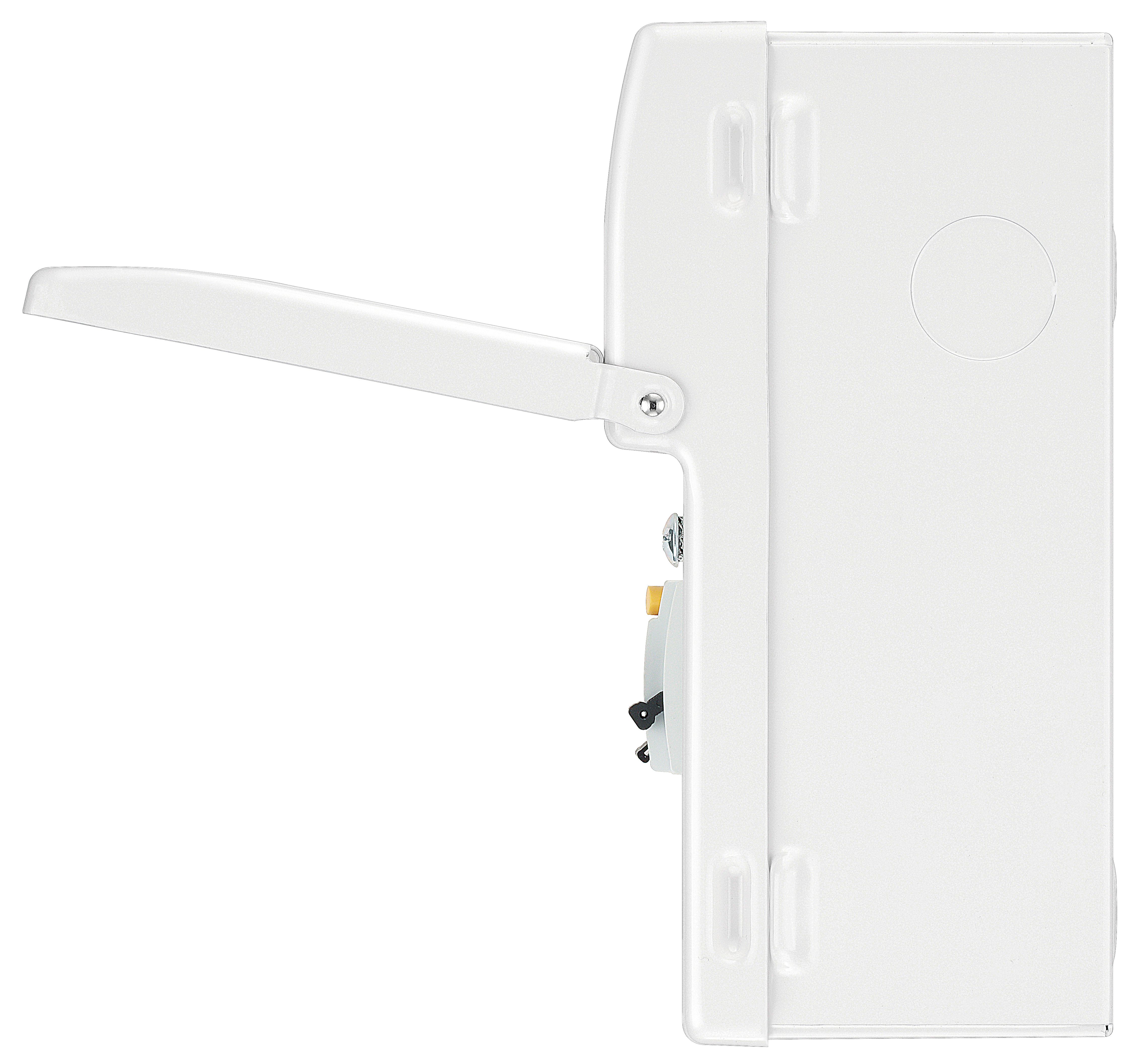

Up-opening front cover

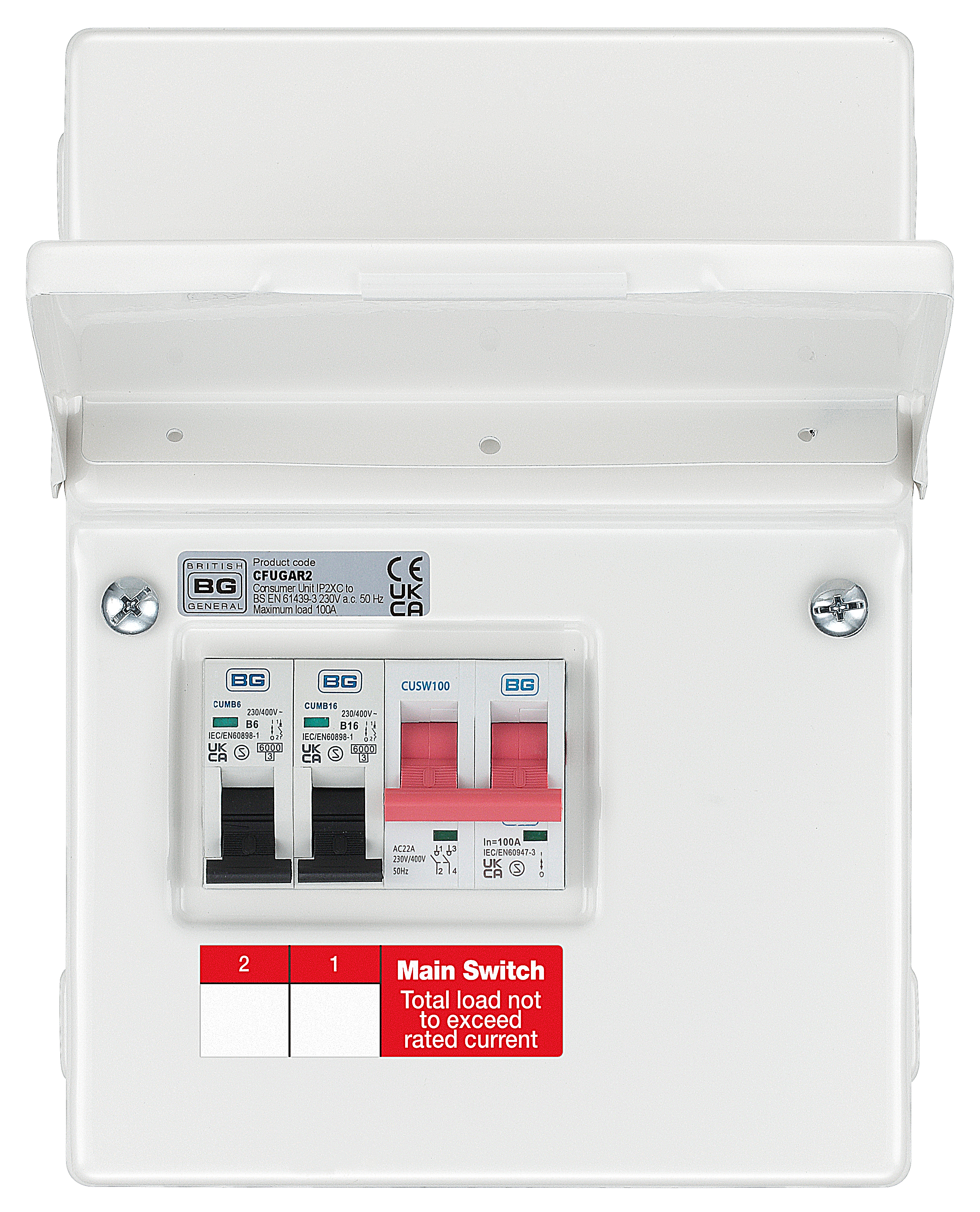

1 x 100A main switch
1 x 6A 1 x 16A MCB
Backed out and retained terminal screws
Gloss white finish to match BG White wiring accessories
Easy Installation
Populated
| Front Plate Material | Cast Aluminium -ADC12 |
| General Colour | White |
| Fixing Screws Supplied | No |
| Modules | 5 |
| Number of Cable Entries | 6 |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Cable Entry Type | Knockout |
| Details per face (Size/number) | 6 - 3 x M20-32 2 x M20-32 (side) 1 x M20-32 (Base) |
| Number Of Wall Fixing Positions | 4 |
| Fitted Lock | No |
| Installation Method(s) | Surface |
| Spirit Level | N/A |
| Terminal Type | Screw |
| Ways | 2 |
| Knockouts | 6 |
| Mounting Type | Surface |
| IP Rating | IP20 |
| Terminal Screw Type | Combi |
| Terminal Torque (Nm) | Earth/Neutral Terminals 2Nm, MS 2.5Nm, MCB 2Nm |
| Rated Sensitivity (mA) | N/A |
| RCD Mechanism Type | Mechanical |
| Trip Speed (mS) | N/A |
| Max Load (A) | 100 |
| MCB's | 2 |
| Frequency (Hz) | 50 |
| Warranty (years) | 10 |
