CFUGAR1A-01
4 Module Populated Garage Kit c/w 40A 30mA Type RCD, 6A+32A MCB
Integrated spirit Level
Non-Weatherproof

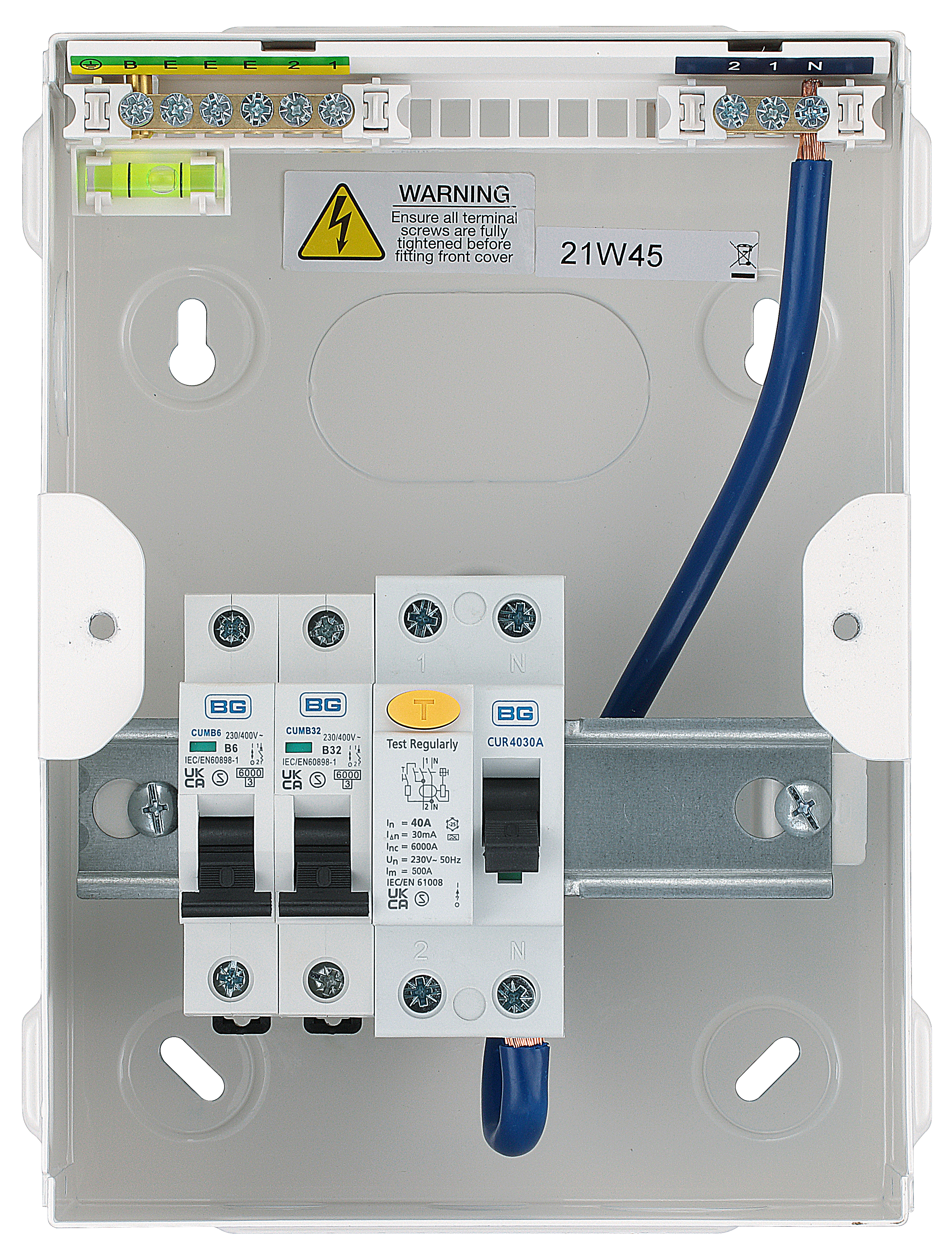

Enclosure kit supplied with devices DIN rail Neutral cable, Neutral and Earth terminals, labels busbar and cover blanks

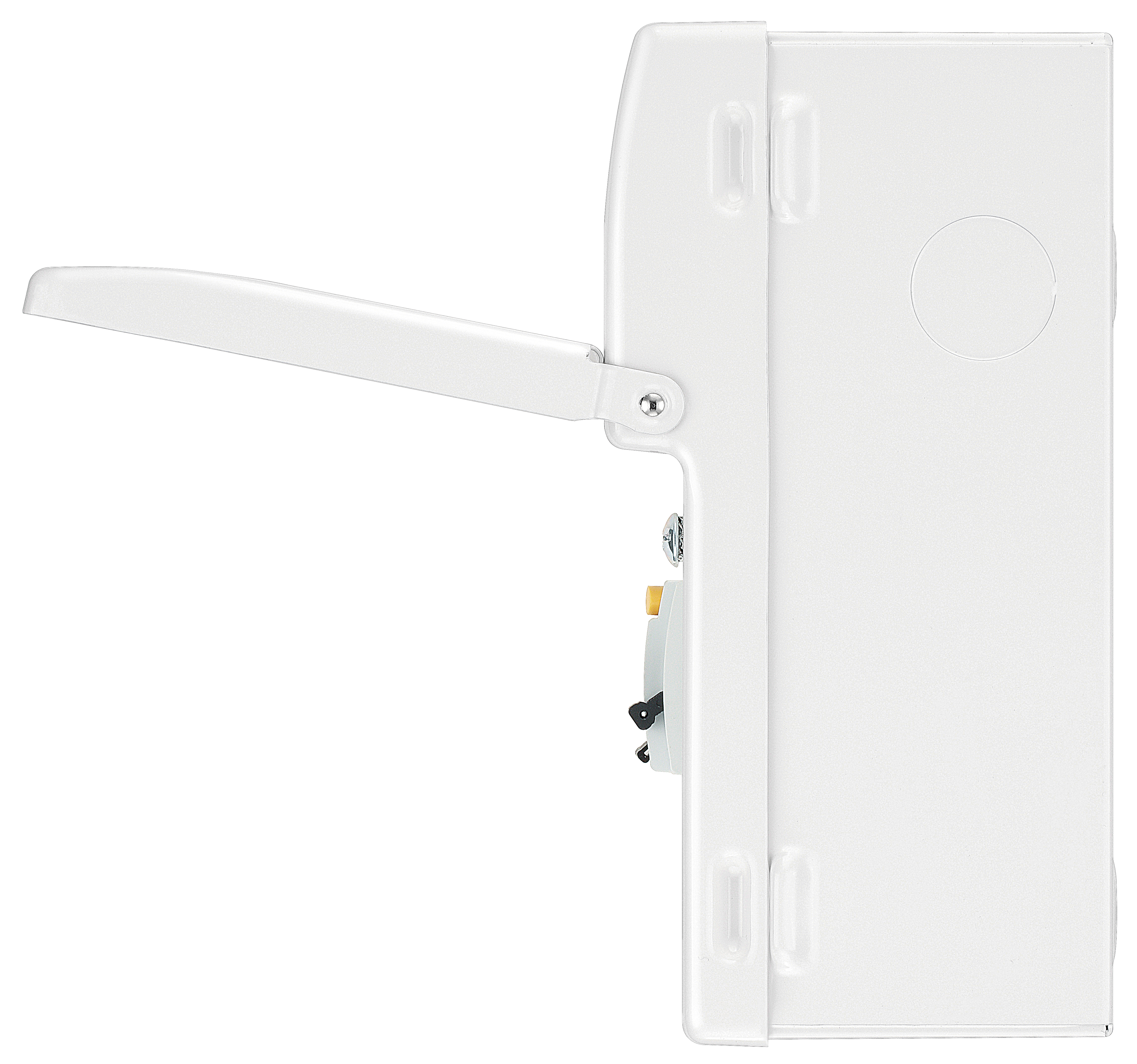

Up-opening front cover

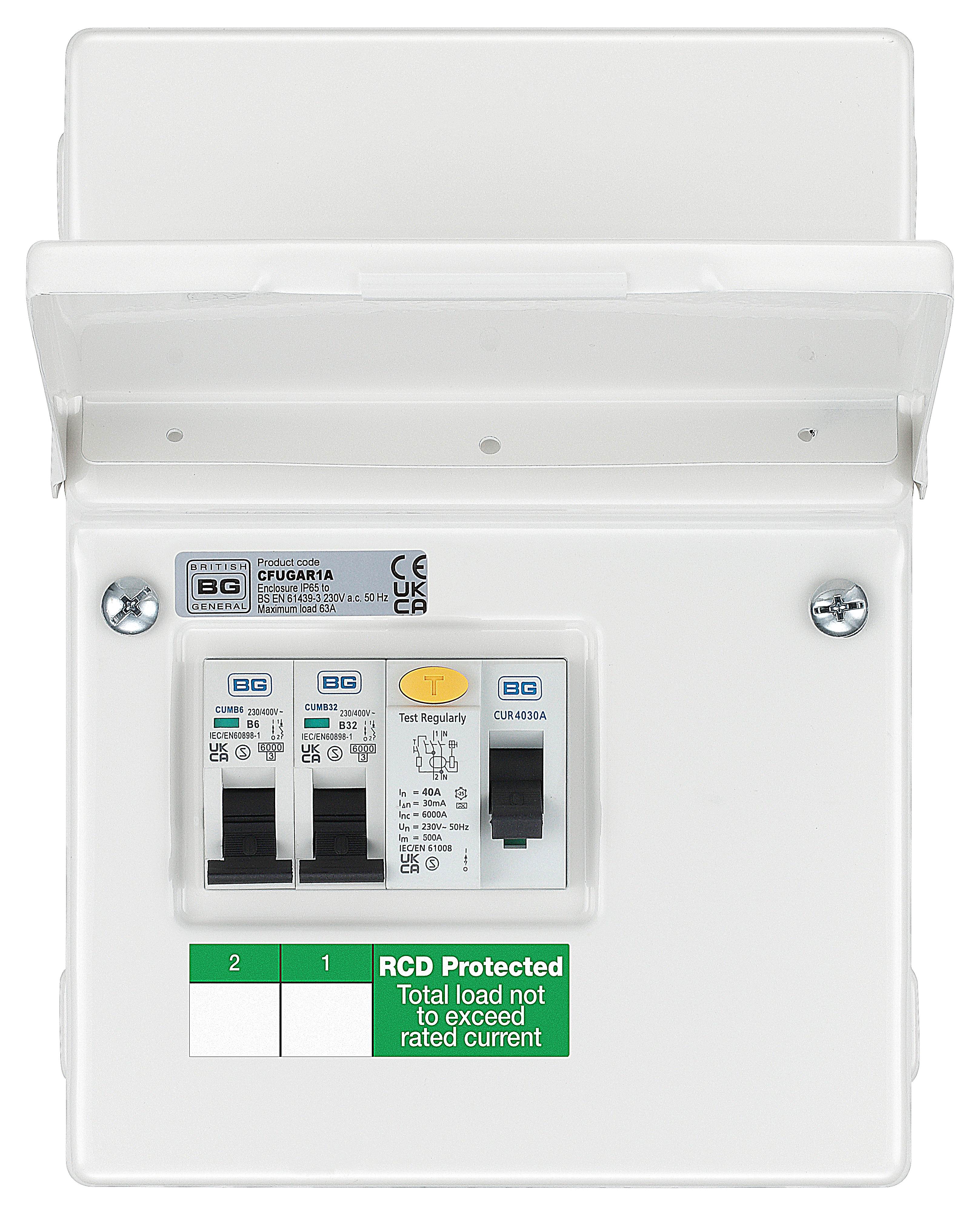

1 x 40A Type A RCD
1 x 6A 1 x 32A MCB
Backed out and retained terminal screws

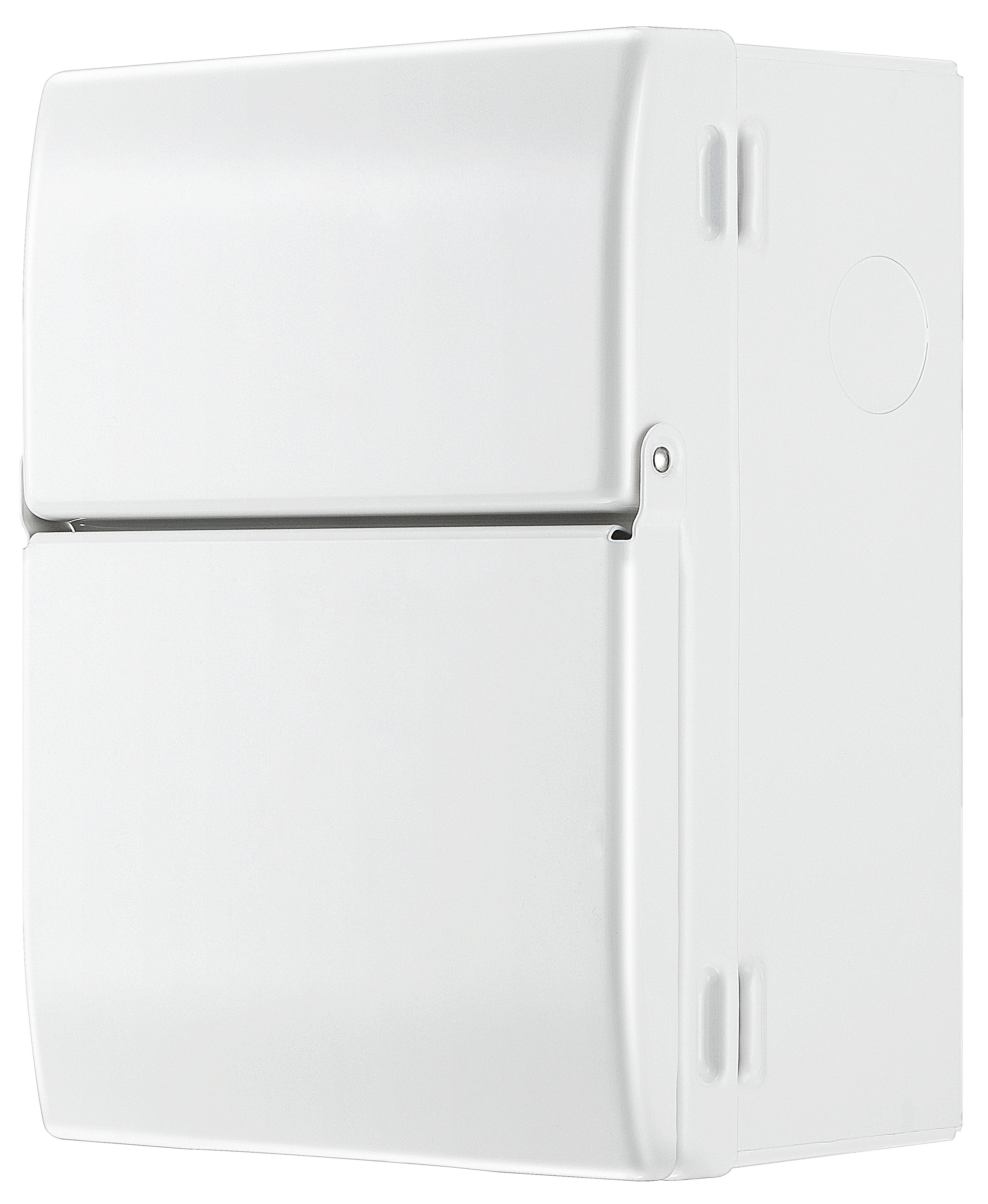

Gloss white finish to match BG White wiring accessories
Easy Installation
Populated
| Front Plate Material | Cast Aluminium -ADC12 |
| General Colour | White |
| Fixing Screws Supplied | No |
| Modules | 5 |
| Number of Cable Entries | 6 |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Cable Entry Type | Knockout |
| Details per face (Size/number) | 6 - 3 x M20-32 2 x M20-32 (side) 1 x M20-32 (Base) |

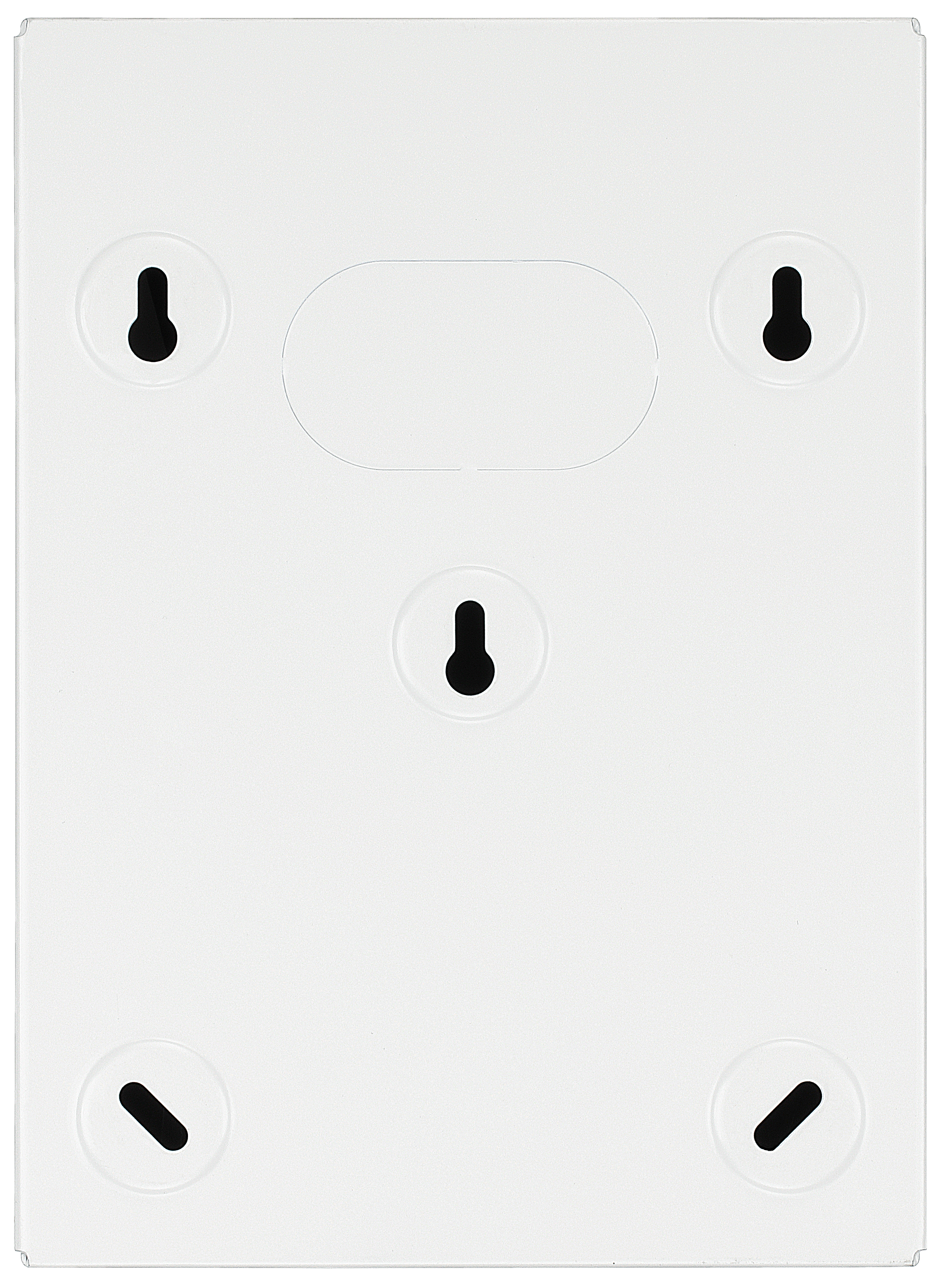

| Number Of Wall Fixing Positions | 4 |
| Fitted Lock | No |
| Installation Method(s) | Surface |
| Spirit Level | N/A |
| Terminal Type | Screw |
| Ways | 2 |
| Number of Knockouts | 6 |
| Mounting Type | Surface |
| IP Rating | IP20 |
| Terminal Screw Type | Combi |
| Terminal Torque (Nm) | Earth/Neutral Terminals 2.0Nm, MS 2.5Nm, MCB 2Nm |
| Rated Sensitivity (mA) | 30mA |
| RCD Mechanism Type | Thermal/Electromagnetic |
| Trip Speed (mS) | <0.1s |
| Max Load (A) | 40 |
| MCB's | 2 |
| Standard(s) | BS EN 60898-1:2019;BS EN 60947-3:2009+A2:2015;BS EN 61008-1:2012+A12:2017;BS EN 61009-1:2012+A12:2016;BS EN 61439-1:2011;BS EN 61439-3:2012;EN 60898-1:2019;EN 60947-3:2009+A2:2015;EN 61008-1:2012+A12:2017;EN 61009-1:2012+A12:2016;EN 61439-1:2011;EN 61439-3:2012 |
| Frequency (Hz) | 50 |
| Warranty (years) | 10 |
