RPCFUSE-01
BG Grid 13A Fuse Module Polished Chrome
Simple secure 'locate & clip' fitting to frame
Fuse holder modules supplied with a 13A fuse fitted to BS 1362
Captive backed out terminal screws for fast installation
Module to be installed with Grid frame and plate
Captive, backed out terminal screws for fast installation and to prevent screw loss

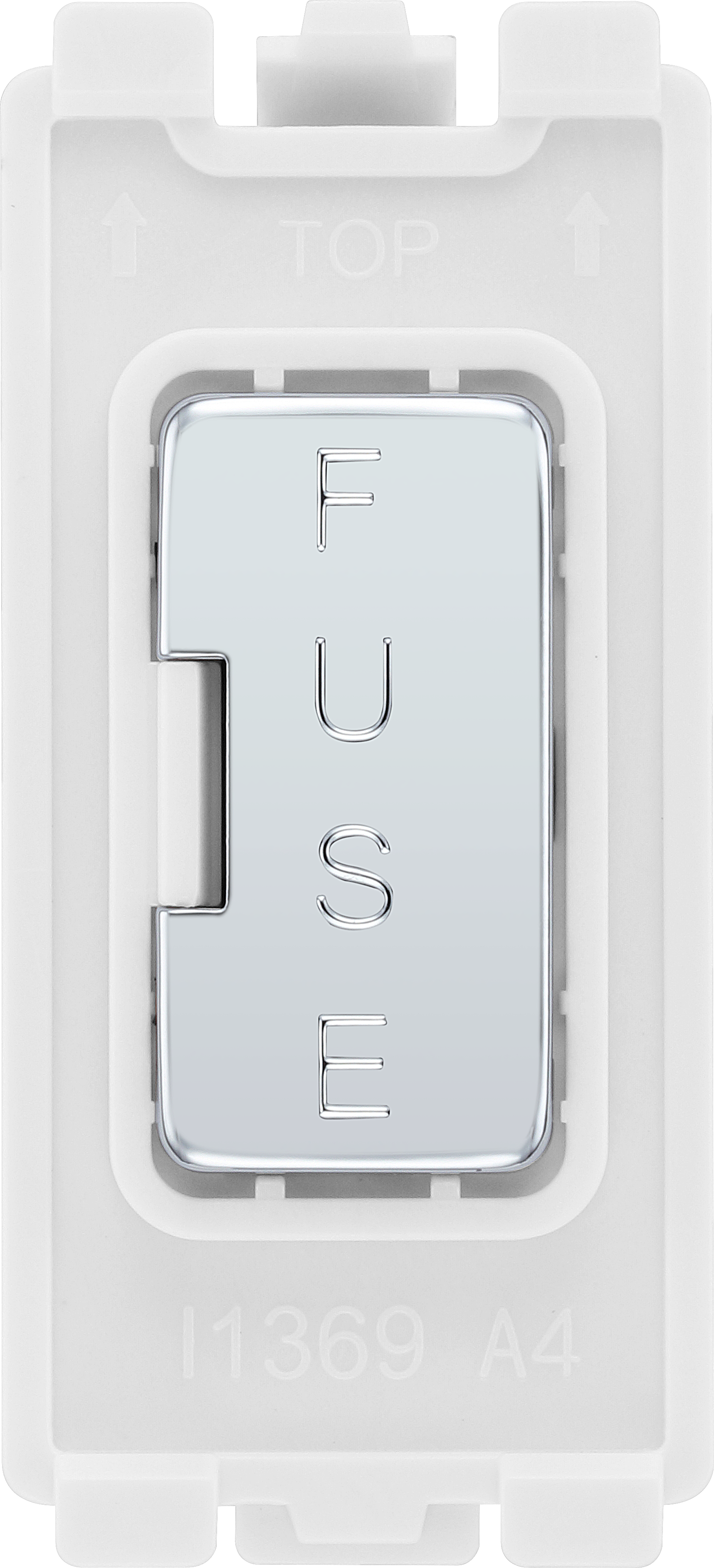

Embossed with 'Fuse' on the fuse cover
| General Colour | Polished Chrome |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Main Power Indicator | No |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (mm²) | 3 x 2.5mm² |
| Fused | Yes |
| Fused Holder Colour | Polished Chrome |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Flex Out | No |
| Flex Out Position | None |
| Supplied with Mounting Box | No |
| Cable Outlet | No |
| Fixing Screws Supplied | N/A |
| Number of Earth Terminals | 0 |
| Terminal Arrangement | Angled terminals |
| Terminals with Colour Coding Print | No |
| Number of Switches | 0 |
| Screw Caps | N/A |
| Switch Type (Ways & Poles) | N/A |
| IP Rating | IP20 |
| Operating Voltage (V) | 250 |
| Warranty (years) | 25 |
