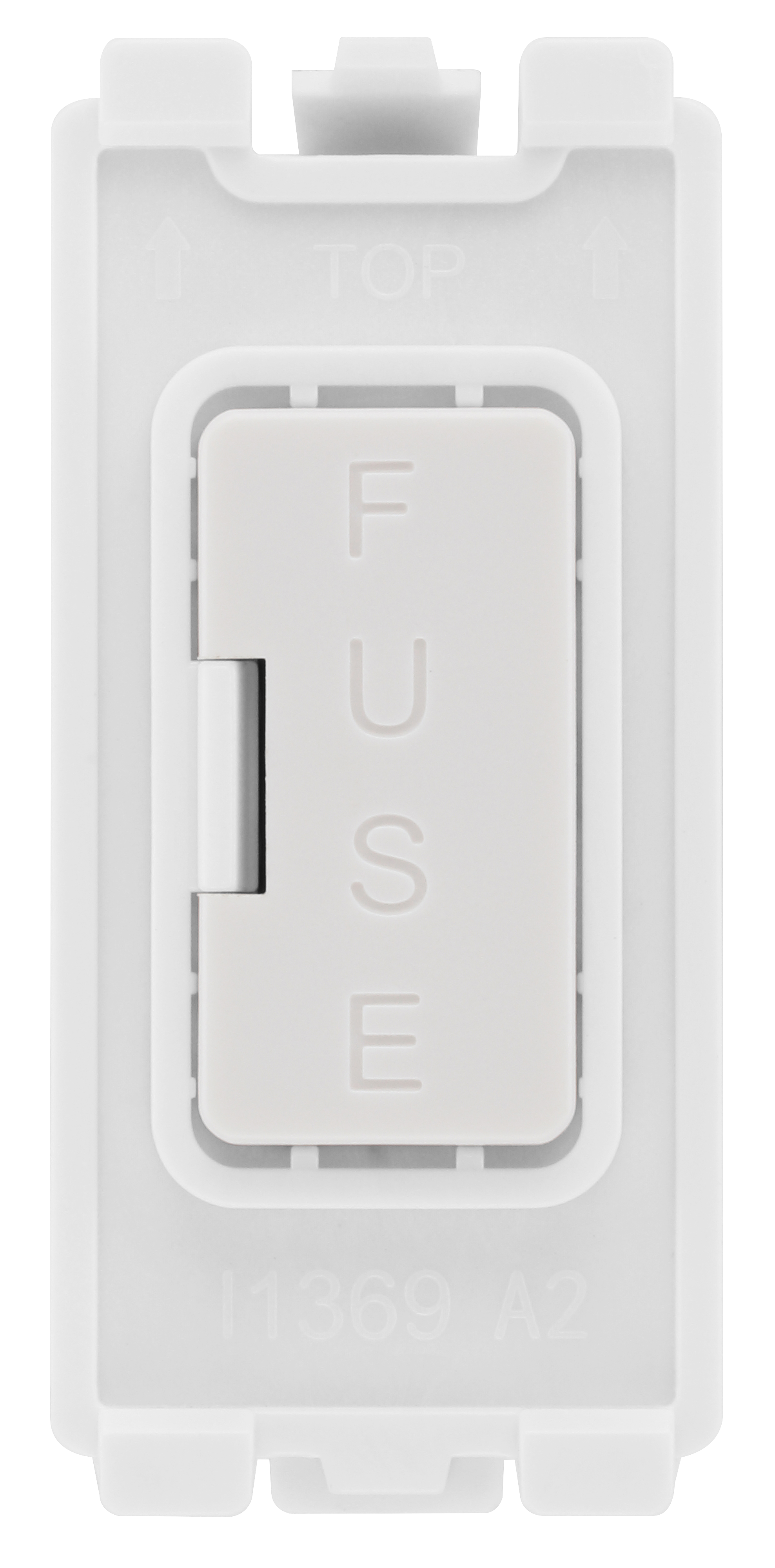

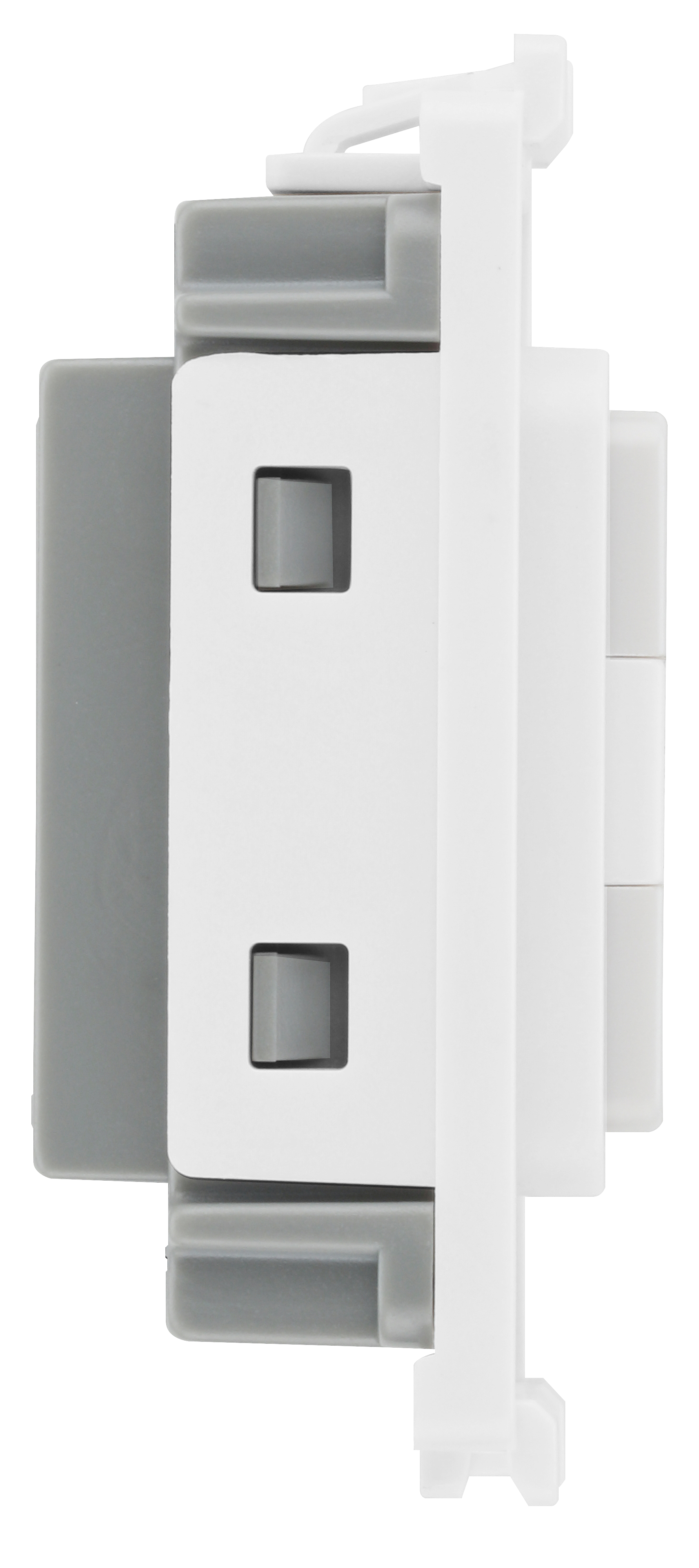

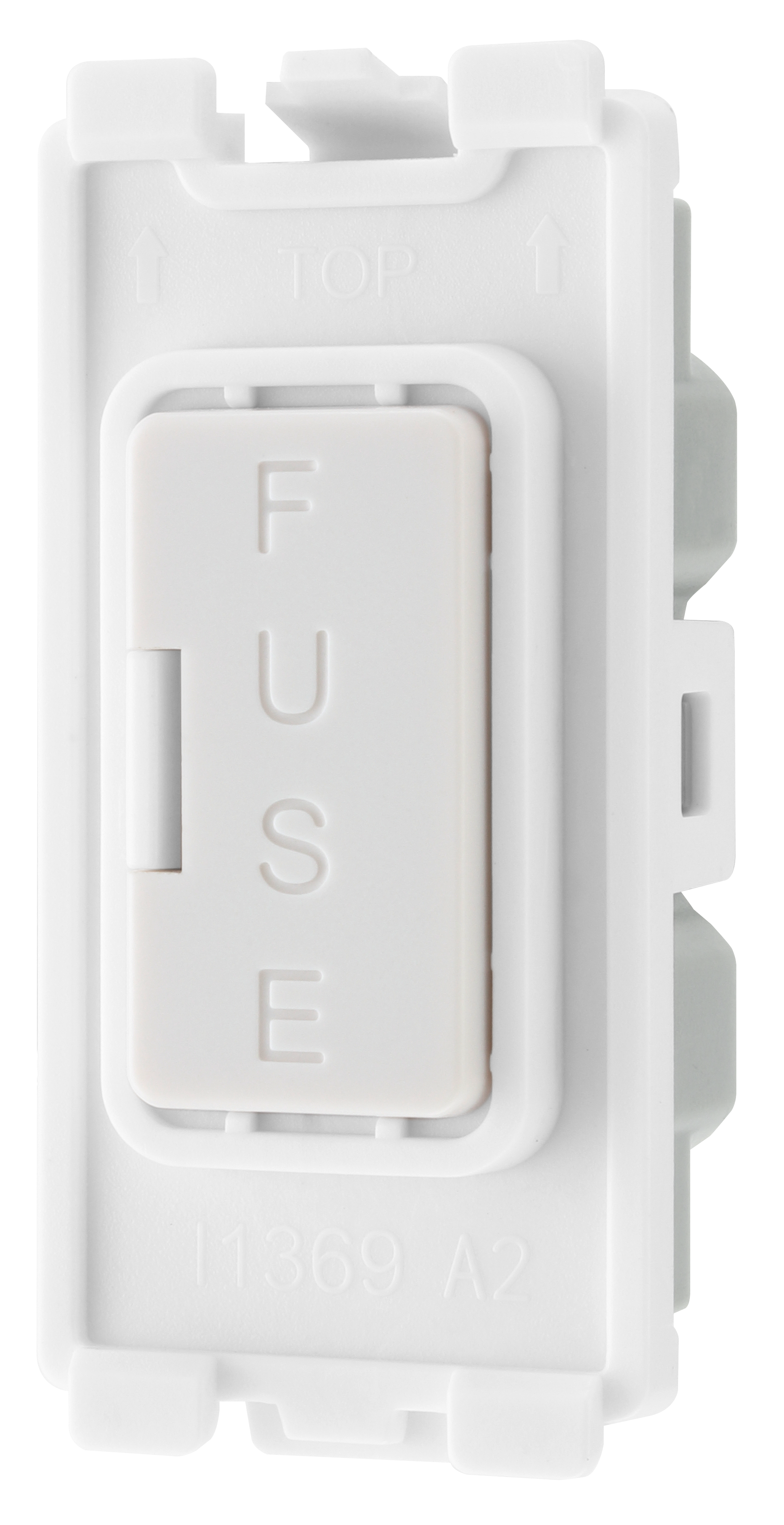

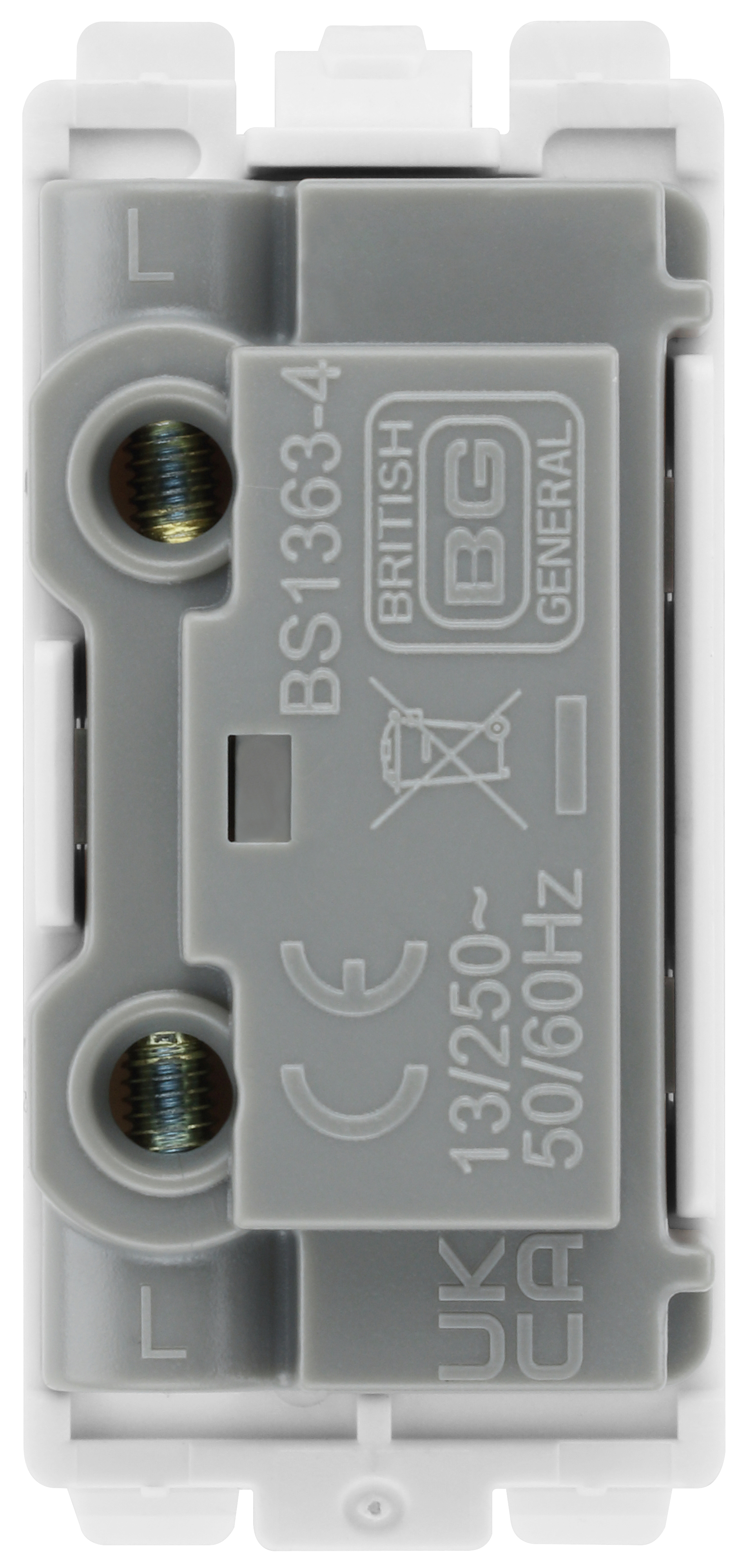

RFUSE-01
BG Grid 13A Fuse Module White
Simple secure 'locate & clip' fitting to frame
Fuse holder modules supplied with a 13A fuse fitted to BS 1362
Captive backed out terminal screws for fast installation
Module to be installed with Grid frame and plate
Captive, backed out terminal screws for fast installation and to prevent screw loss
Embossed with 'Fuse' on the fuse cover
| General Colour | White |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (mm²) | 4 x 1.0mm², 4 x 2.5mm², 2 x 2.5mm², 1 x 4mm² |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Supplied with Mounting Box | No |
| Fixing Screws Supplied | N/A |
| Number of Earth Terminals | 0 |
| Terminal Arrangement | N/A |
| Terminals with Colour Coding Print | No |
| Number of Switches | 0 |
| Screw Caps | N/A |
| Switch Type (Ways & Poles) | N/A |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 25 |
