RPCDBFUSE-01

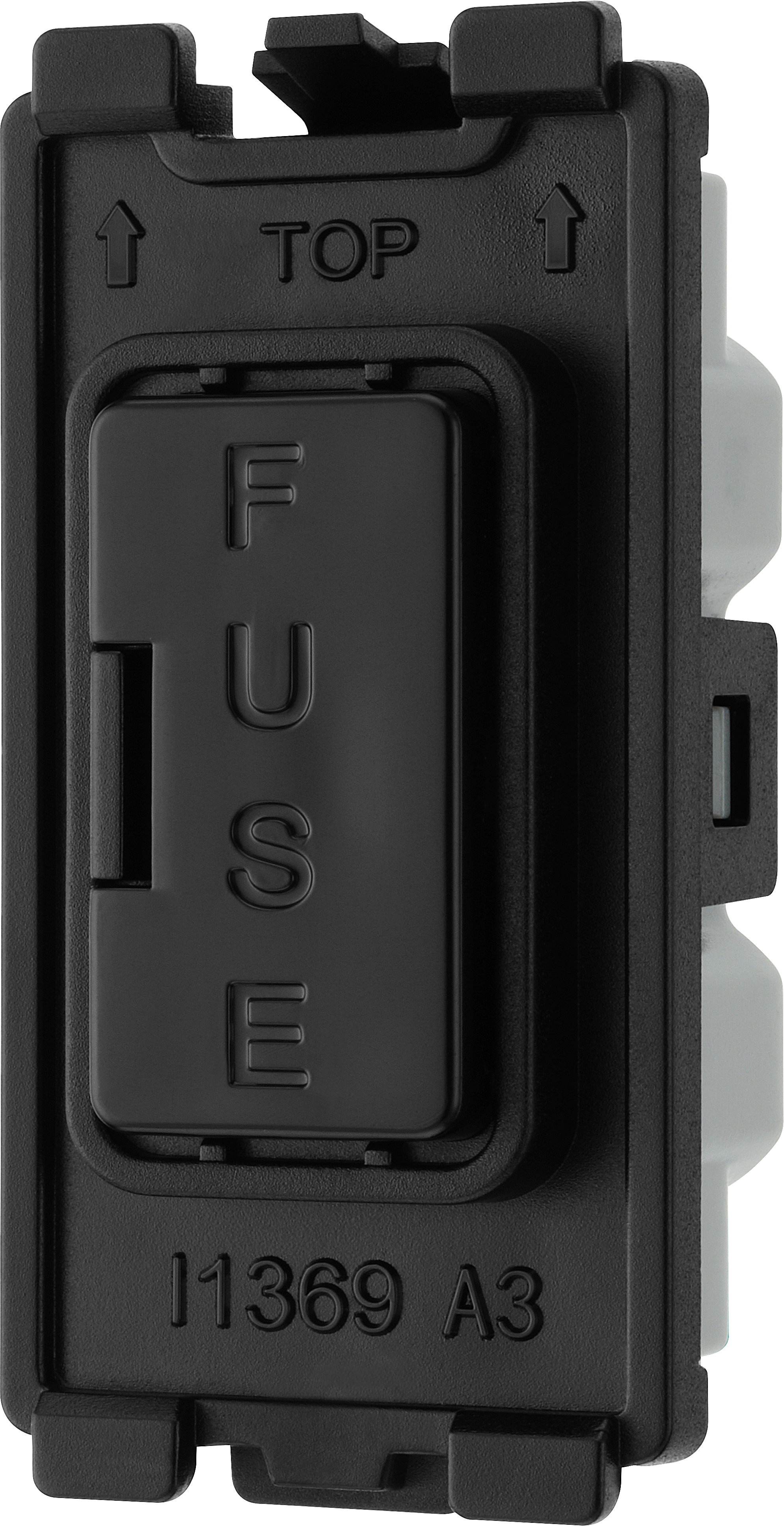

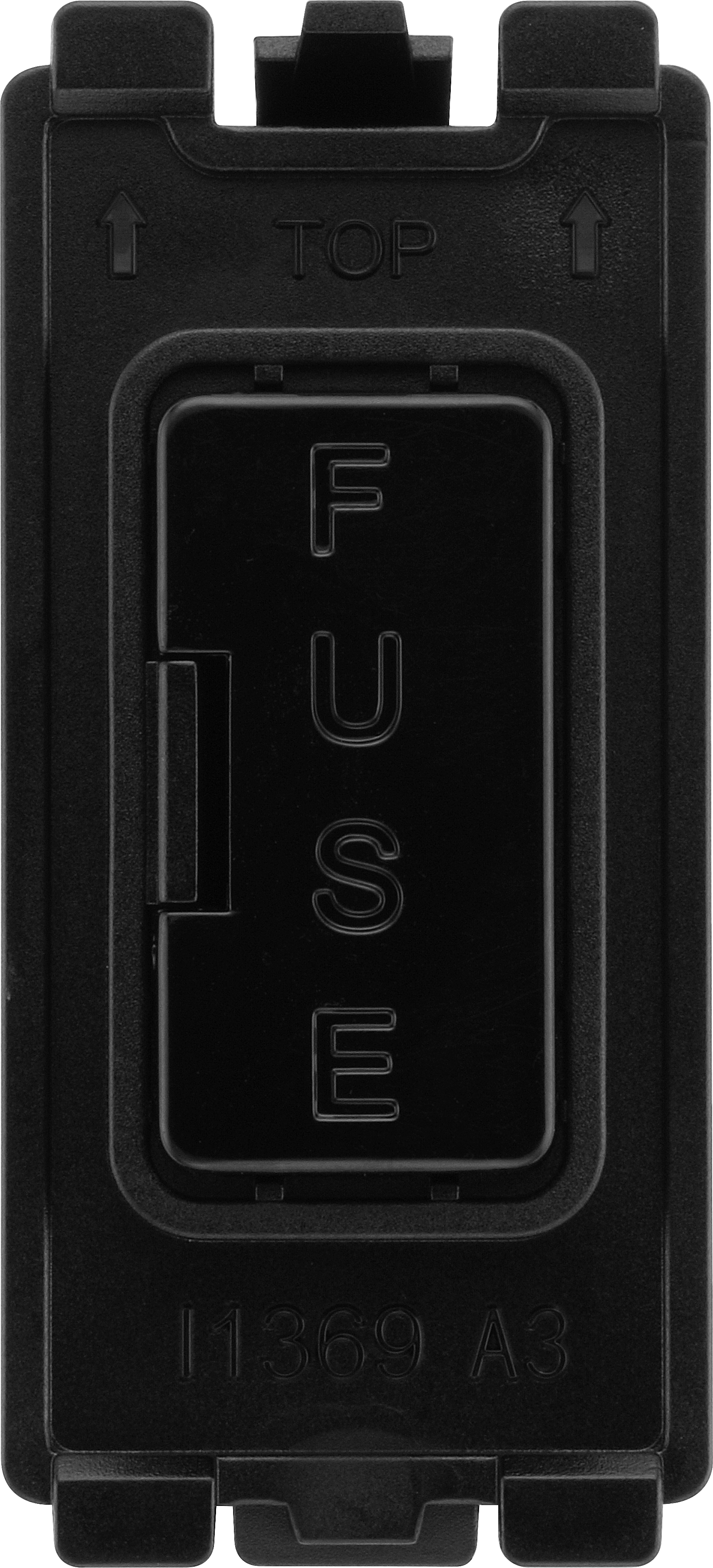

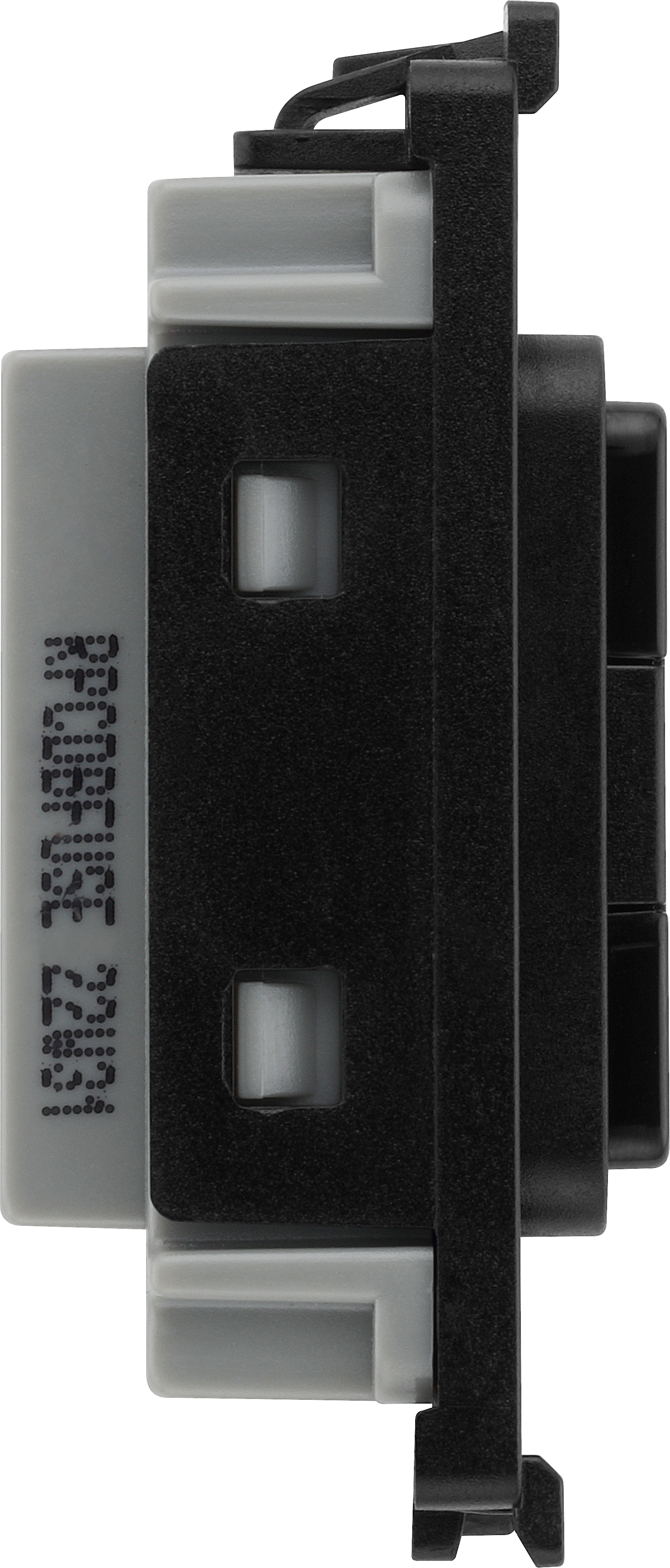

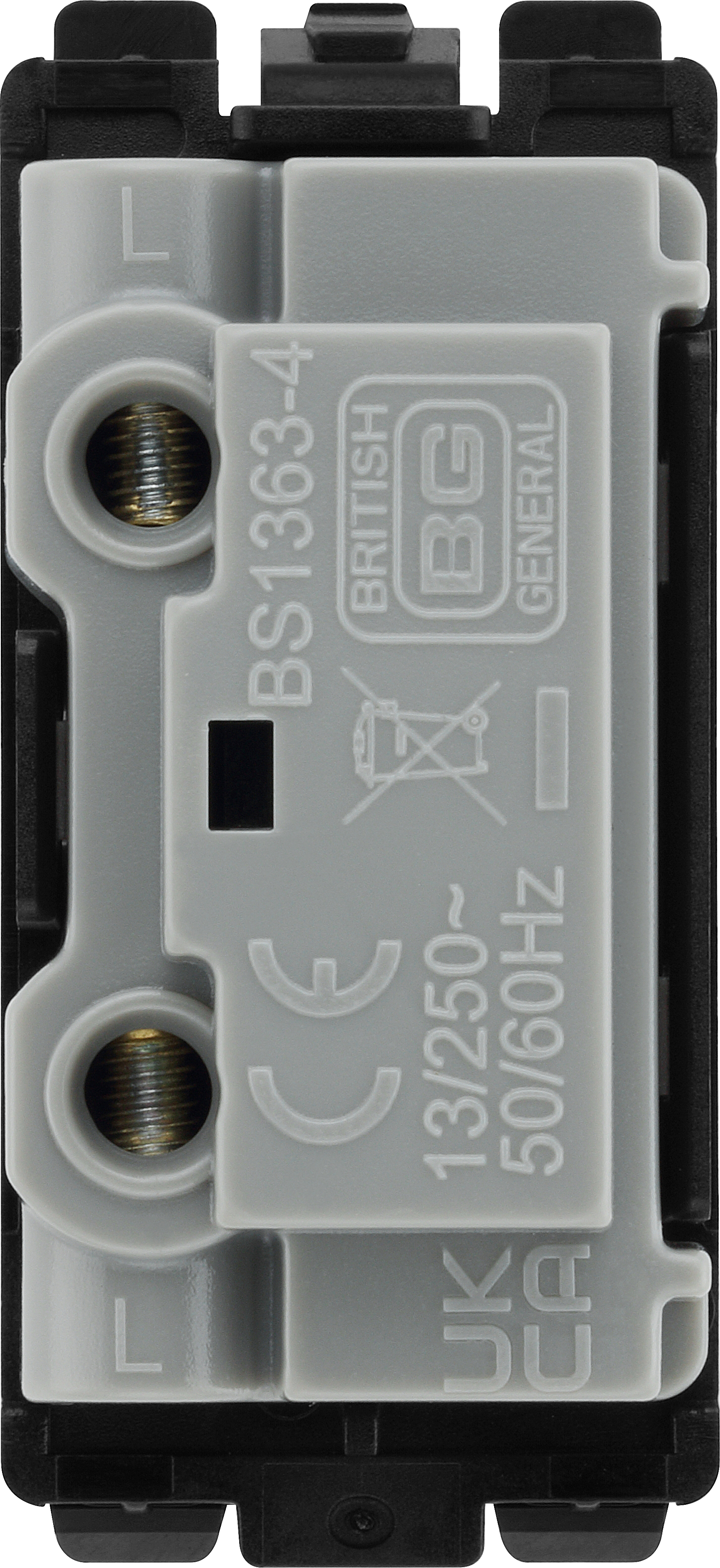

BG Grid 13A Fuse Module, Evolve Black
Simple secure 'locate & clip' fitting to frame
Fuse holder modules supplied with a 13A fuse fitted to BS 1362
Captive backed out terminal screws for fast installation
Module to be installed with Grid frame and plate
| General Colour | Black |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Main Power Indicator | No |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (mm²) | 3 x 2.5mm² |
| Fused | Yes |
| Fused Holder Colour | Black |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Flex Out | No |
| Flex Out Position | None |
| Supplied with Mounting Box | No |
| Cable Outlet | No |
| Fixing Screws Supplied | N/A |
| Number of Earth Terminals | 0 |
| Terminal Arrangement | Angled terminals |
| Terminals with Colour Coding Print | No |
| Number of Switches | 0 |
| Screw Caps | N/A |
| Switch Type (Ways & Poles) | N/A |
| IP Rating | IP20 |
| Operating Voltage (V) | 250 |
| Warranty (years) | 25 |
