EMSW13G-01

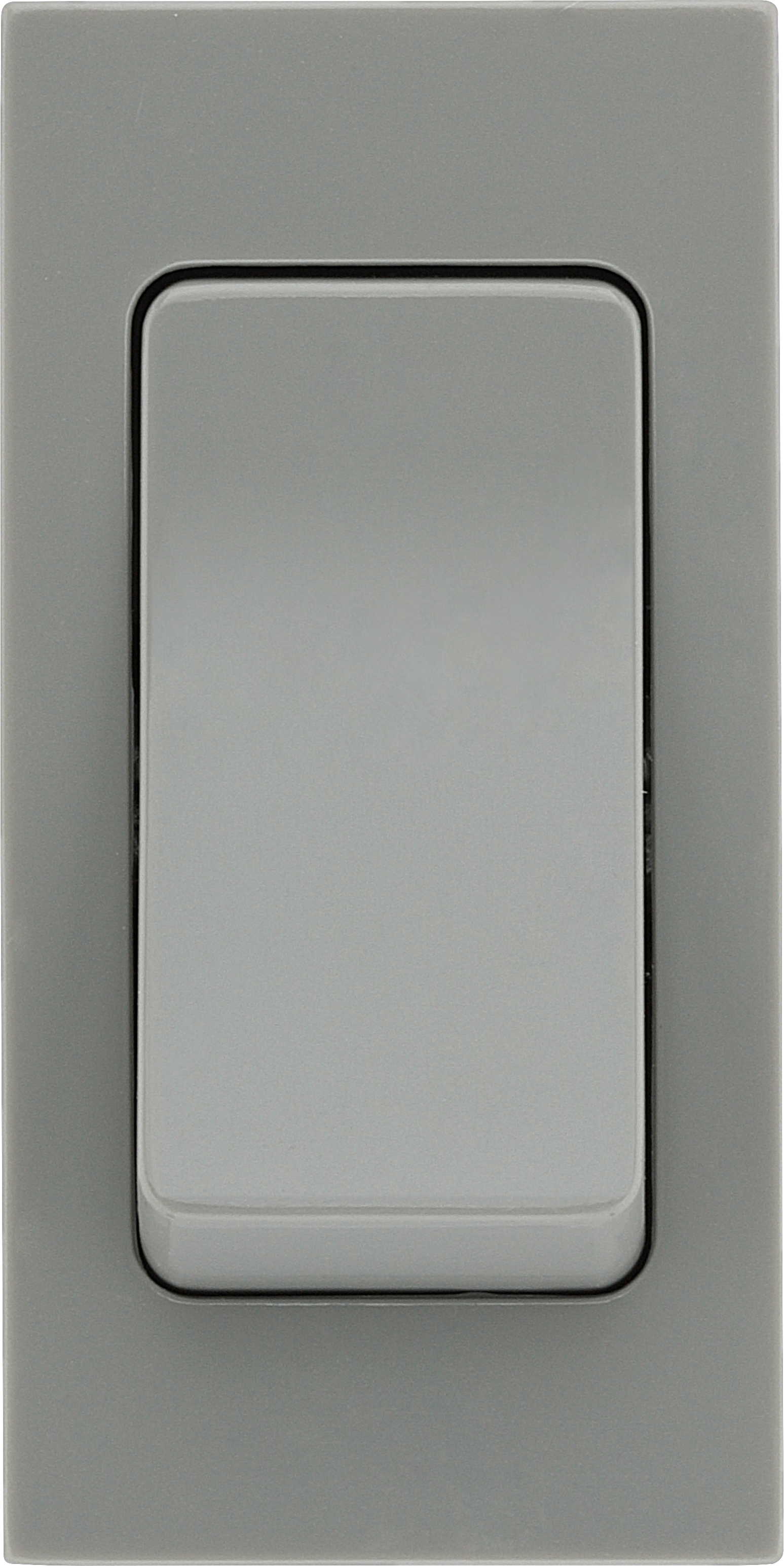

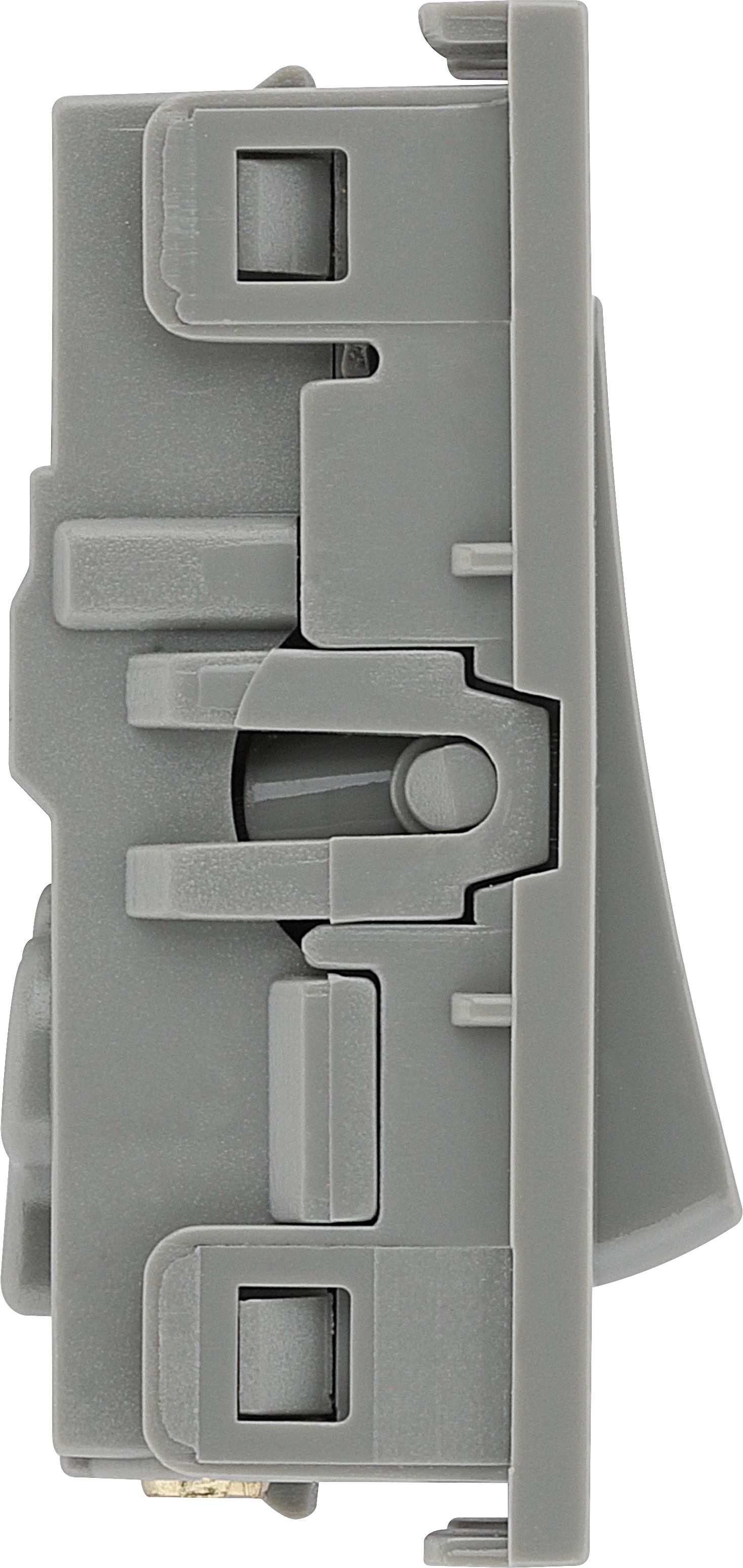

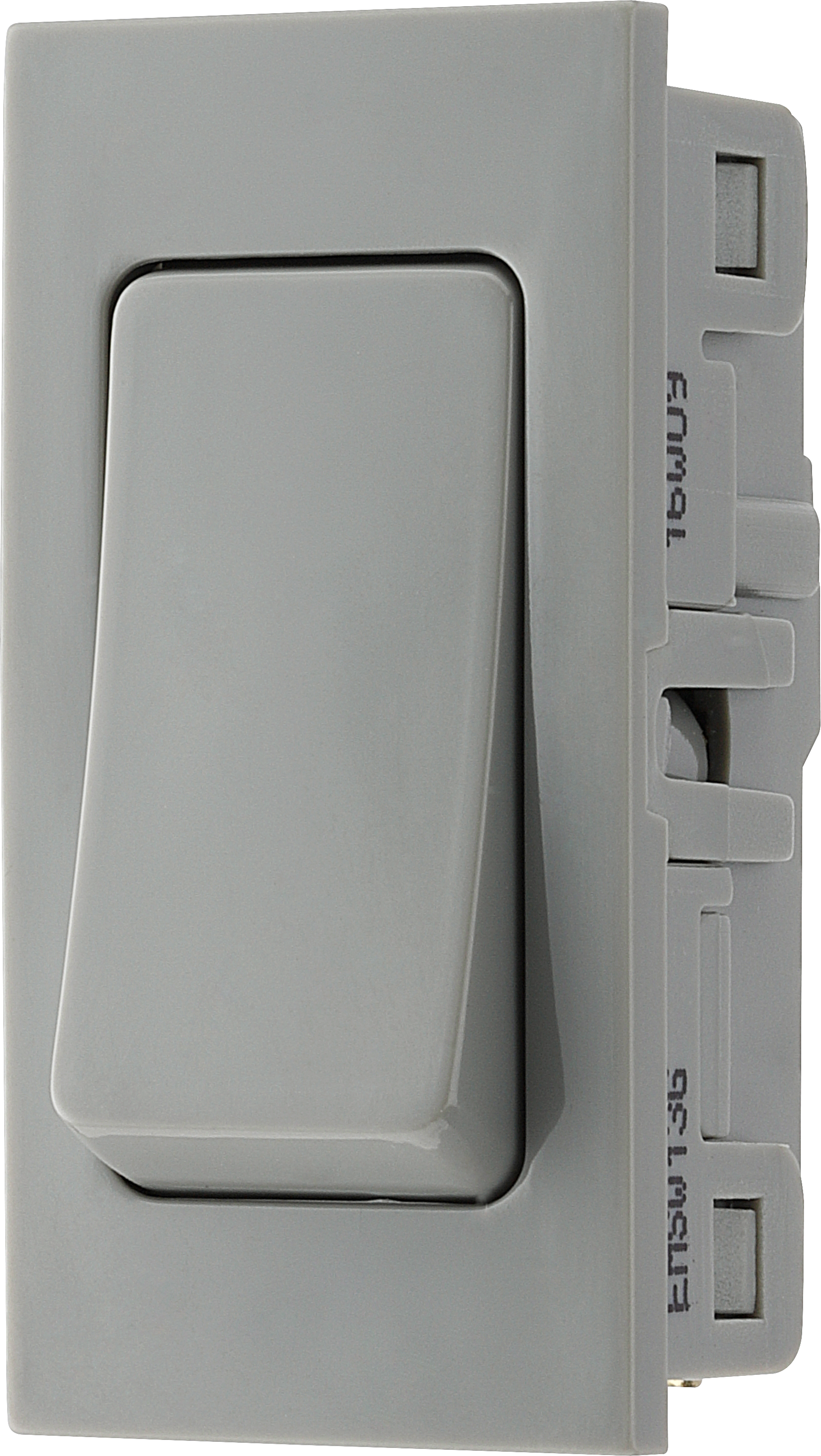

BG Euro Module 20A 16AX Intermediate Switch, Grey
20A 16AX Rated
Module clips in to Euro Module front plate
Module fits front plate aperture of 25x50mm
Intermediate switch allows for more than 2 switches in a circuit
Captive backed out terminal screws for fast installation and to prevent screw loss
Minimum mounting box depth 25mm
Certified to BS EN 60669-1
| General Colour | Grey |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |

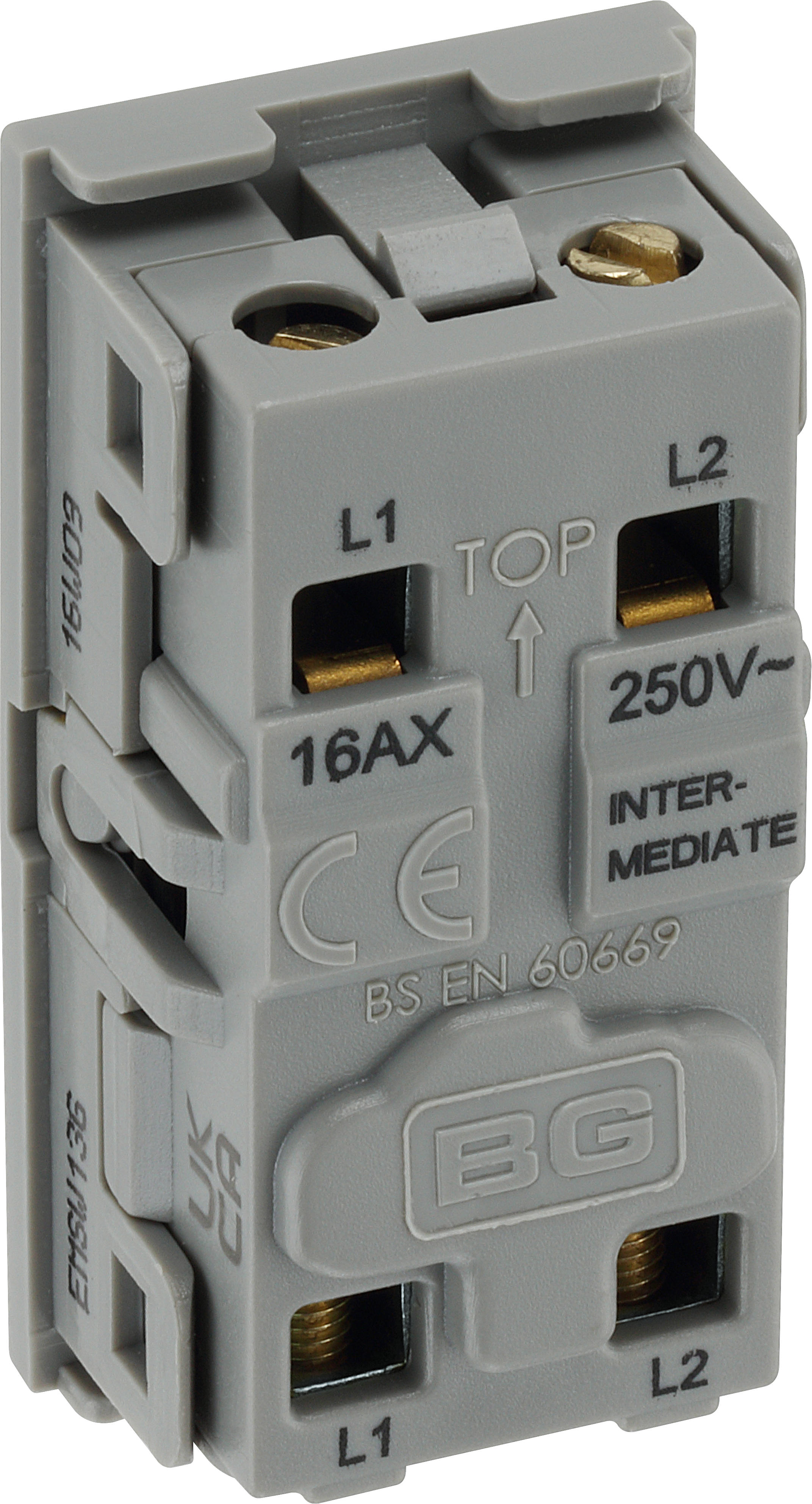

| Terminal Capacity (mm²) | 4 x 1.0mm², 4 x 2.5mm², 2 x 2.5mm², 1 x 4mm² |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | No |
| Terminal Arrangement | N/A |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Intermediate |
| Switch Location Position | Wall |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
