EMSW12B-01
BG Euro Module, 20AX Switch, 2-Way, Black
20AX Rated
Module clips in to Euro Module front plate
Module fits front plate aperture of 25x50mm
2 way switching allows for a second switch position in a circuit

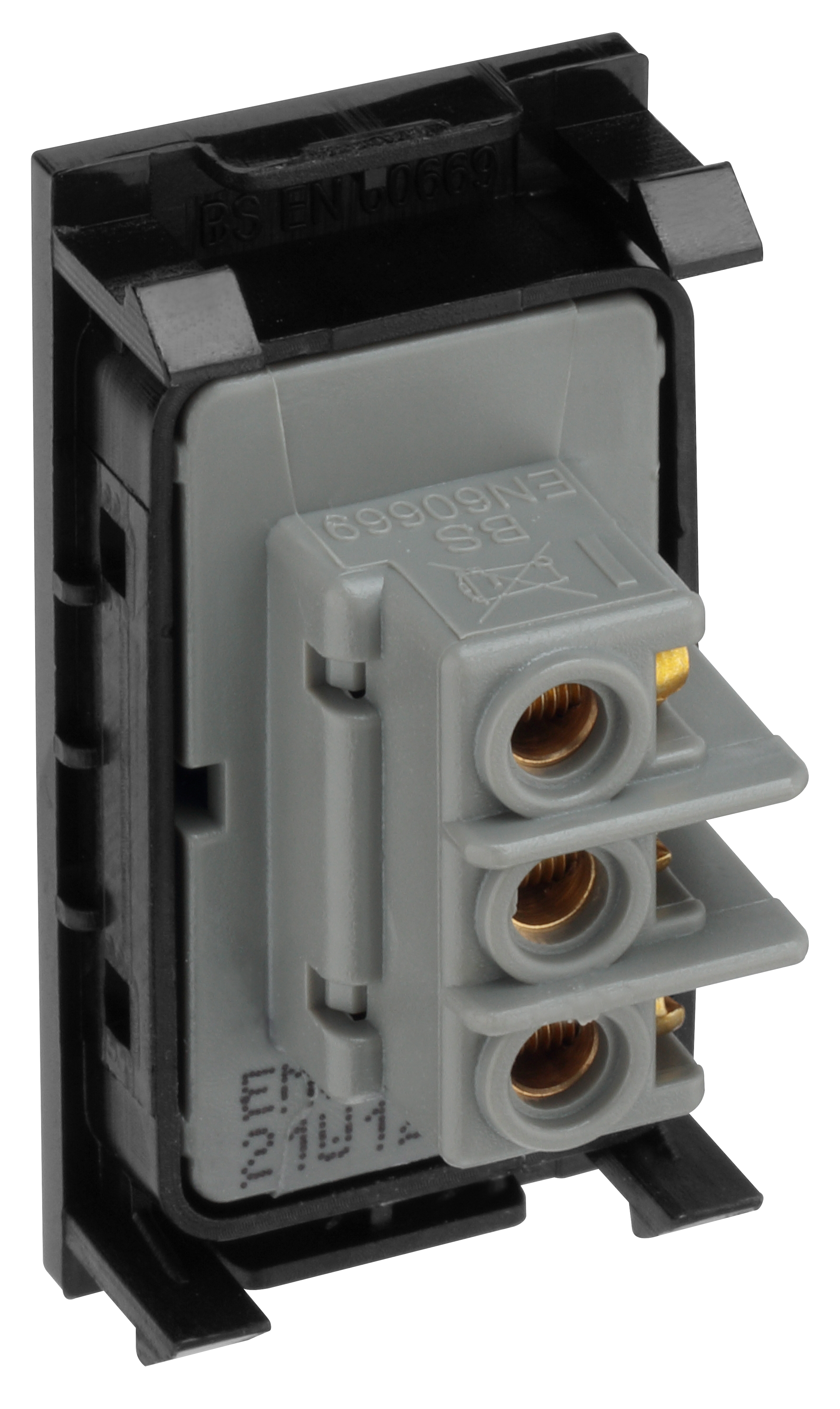

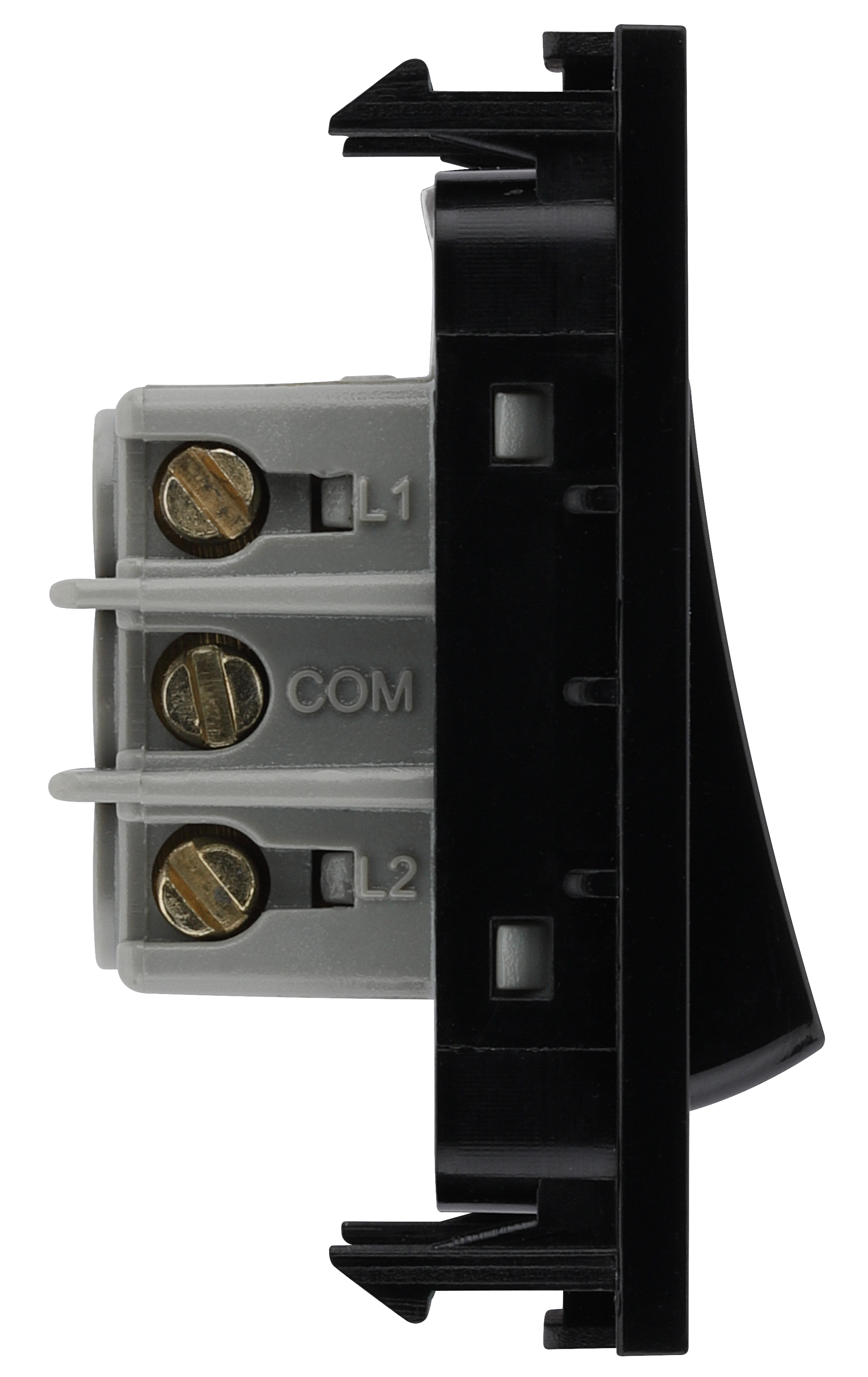

Captive backed out terminal screws for fast installation and to prevent screw loss
Minimum mounting box depth 25mm
Certified to BS EN 60669-1
| General Colour | Black |
| Captive Terminal Screws | No |
| Backed-out Terminal Screws | No |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (mm²) | 4 x 1.0mm², 4 x 2.5mm², 2 x 2.5mm², 1 x 4mm² |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | No |
| Terminal Arrangement | N/A |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Two Way |
| Switch Location Position | Wall |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
