8222EM8-01

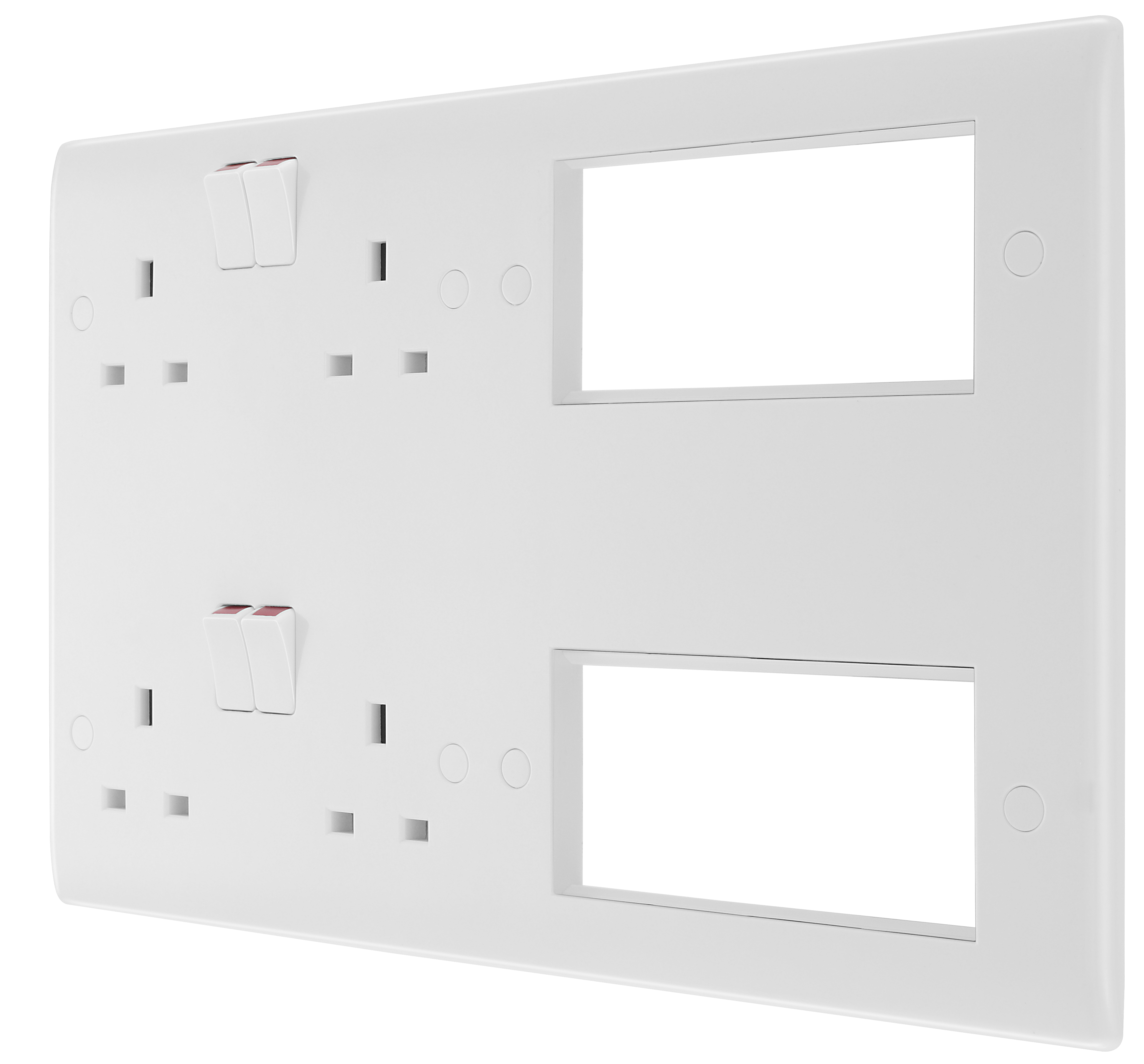

BG Nexus Series White Moulded Combination Plate 2 x 13A Switched Socket + 8 Module Aperture
13A Rated
Easy to install, supplied with fixing screws and installation instructions
Allows customisation of socket combinations including power, telecom, data and co-axial solutions
For use with the BG Electrical Euro Module range
Angled in-line colour coded terminals provide easy access for quick installation
Captive screws prevent screw loss
Screw covers for sleek appearance
Twin earth fitted as standard to allow a double earth facility for installations requiring high integrity protective connection Ref. BS 7671:2008
Minimum mounting box depth 47mm
Manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
| General Colour | White |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (mm²) | 3 x 2.5mm² |
| Front Plate Insert Colour | Not Applicable |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 4 |
| Terminal Arrangement | Angled-in line terminals |
| Terminals with Colour Coding Print | Yes |
| Number of Sockets | 4 |
| Socket Type | G-3P UK Ireland Hong Kong 220-240V 13A |
| Number of Switches | 4 |
| Screw Caps | Yes |
| Switch Type (Ways & Poles) | Single Pole |
| Fixing Centres (mm) | W-120.6 X H-100 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 30 |
