822EM4-01

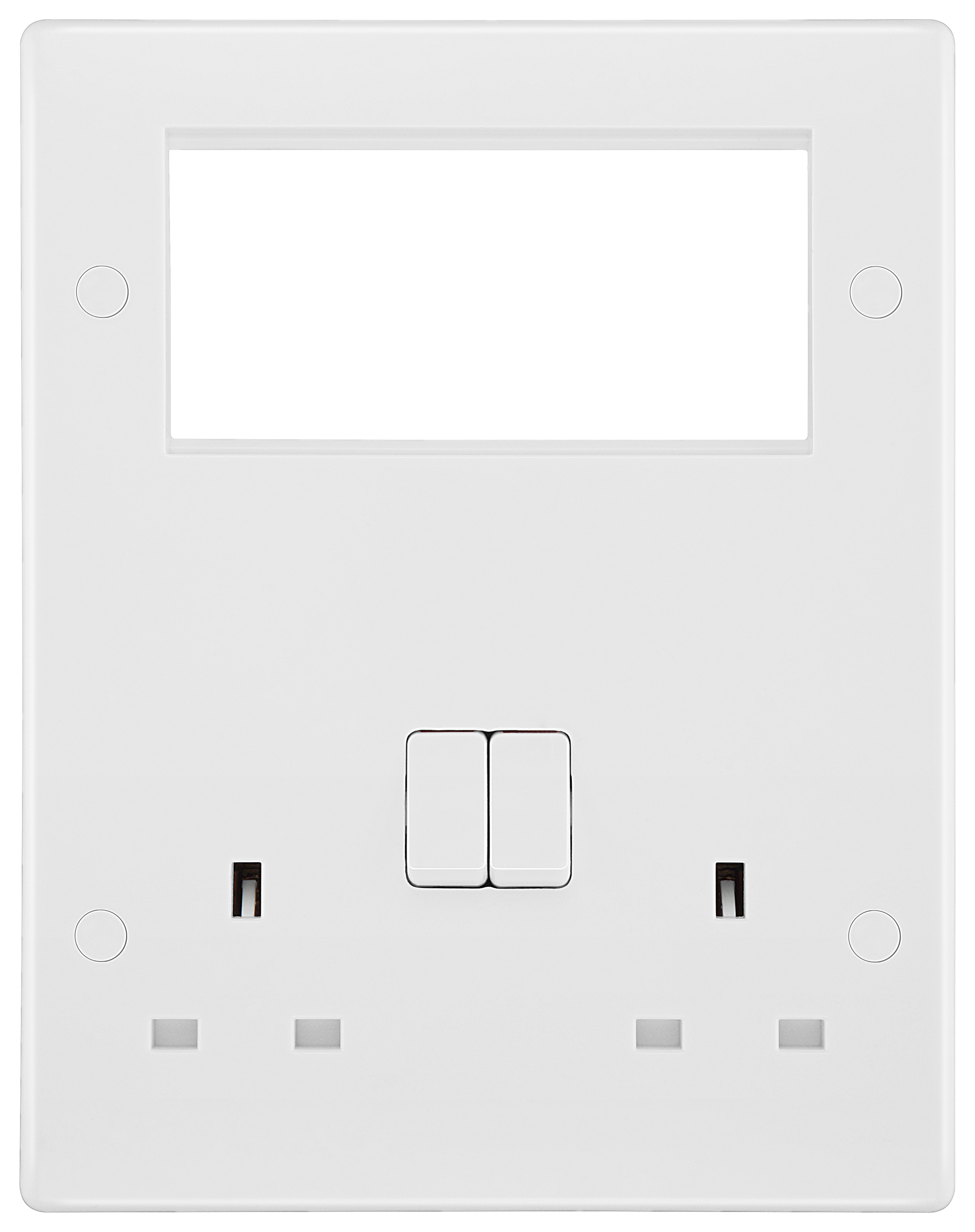

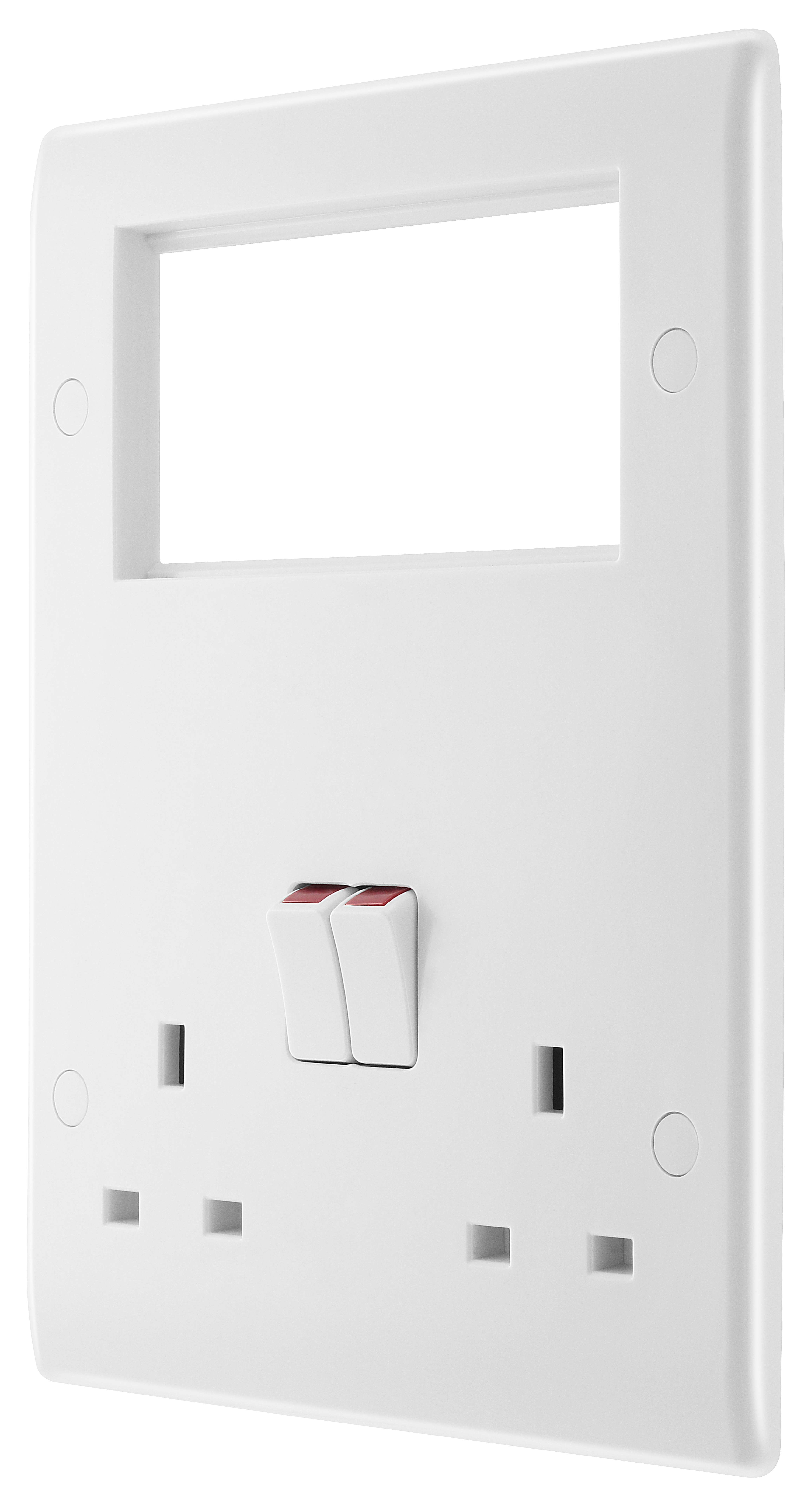

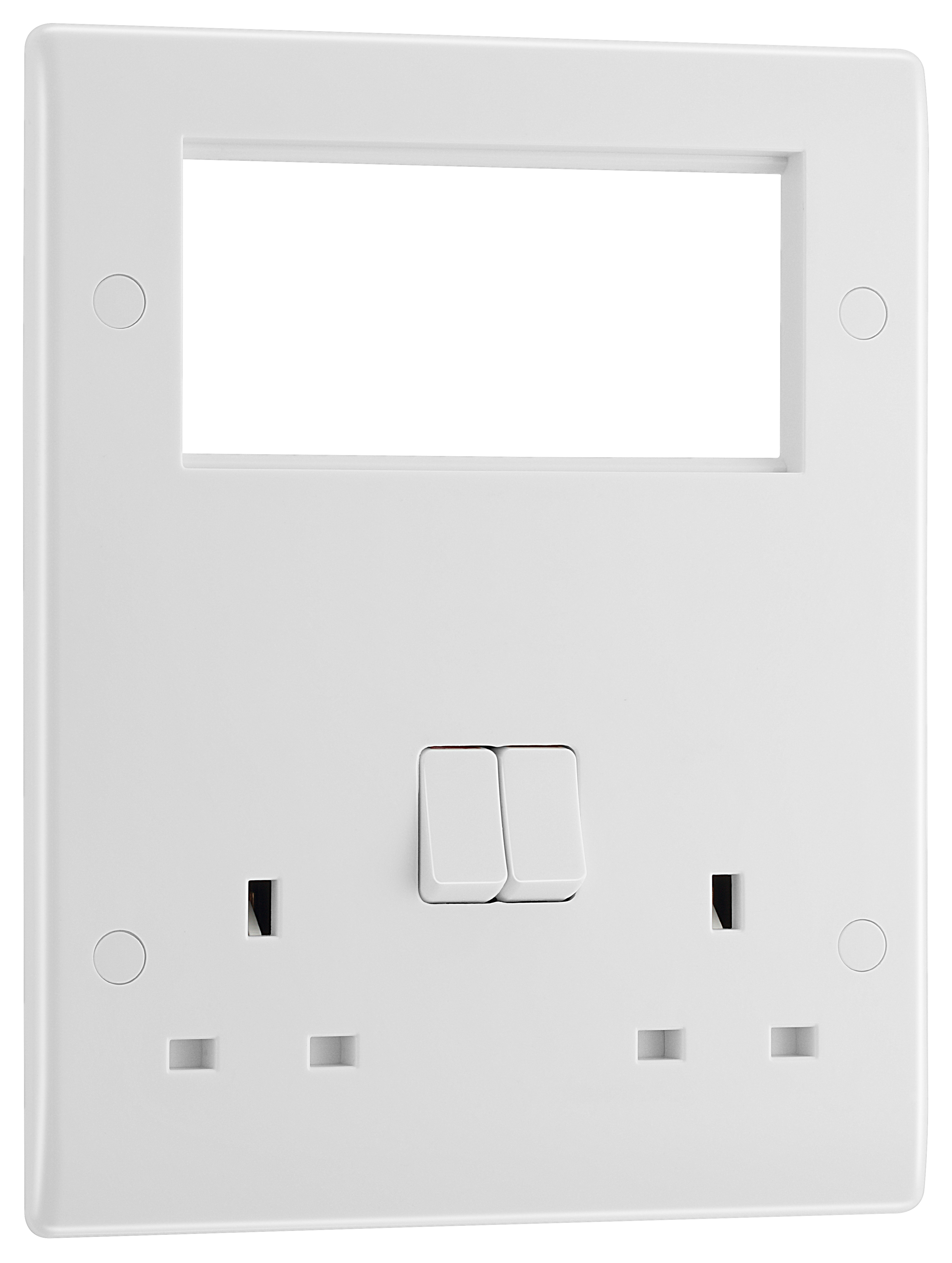

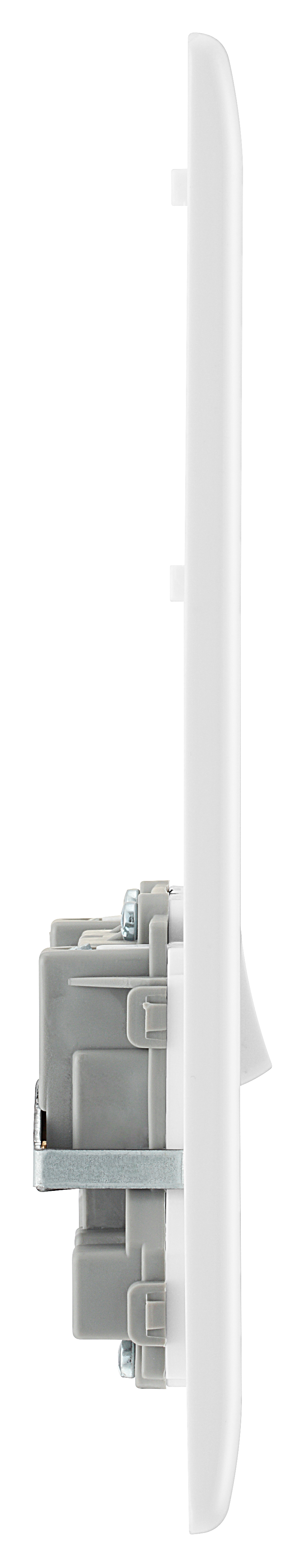

BG Nexus Series White Moulded Combination Plate 13A Switched Socket + 4 Module Aperture
13A Rated
Easy to install, supplied with fixing screws and installation instructions
Allows customisation of socket combinations including power, telecom, data and co-axial solutions
For use with the BG Electrical Euro Module range

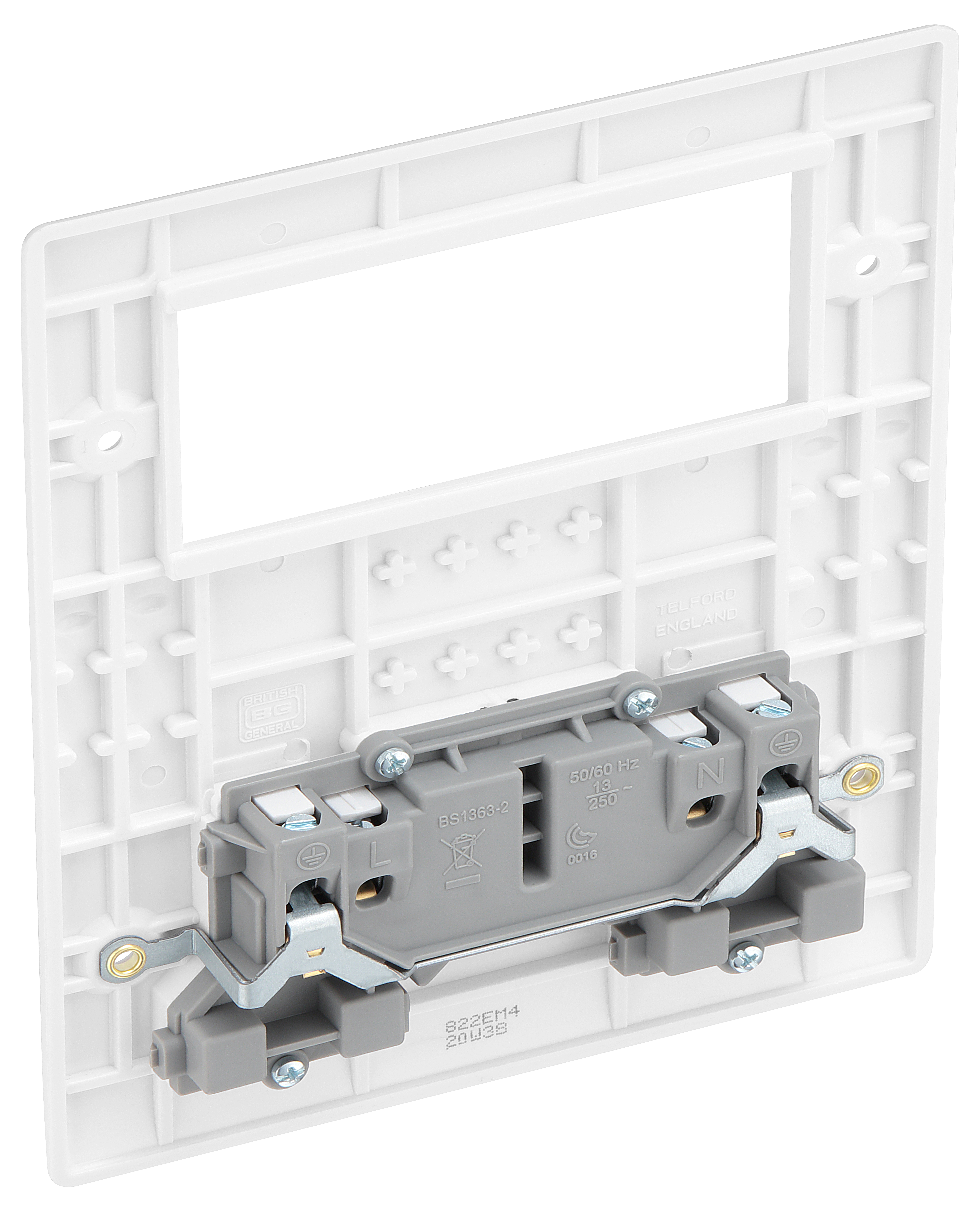

Angled in-line colour coded terminals provide easy access for quick installation
Captive screws prevent screw loss
Screw covers for sleek appearance
Twin earth fitted as standard
Moisture control gasket prevents tarnishing from new plaster
| General Colour | White |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 47 |
| Terminal Capacity (# x mm²) | 2 x 6.0, 3 x 2.5, 3 x 4 |
| Front Plate Insert Colour | Not Applicable |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled, Inline |
| Terminals with Colour Coding Print | Yes |
| Number of Sockets | 2 |
| Socket Type | G-3P UK Ireland Hong Kong 220-240V 13A |
| Number of Switches | 2 |
| Screw Caps | Yes |
| Switch Type (Ways & Poles) | Single Pole |
| Fixing Centres (mm) | W-60.3 X H-100 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 30 |
