CF22D88P16-01

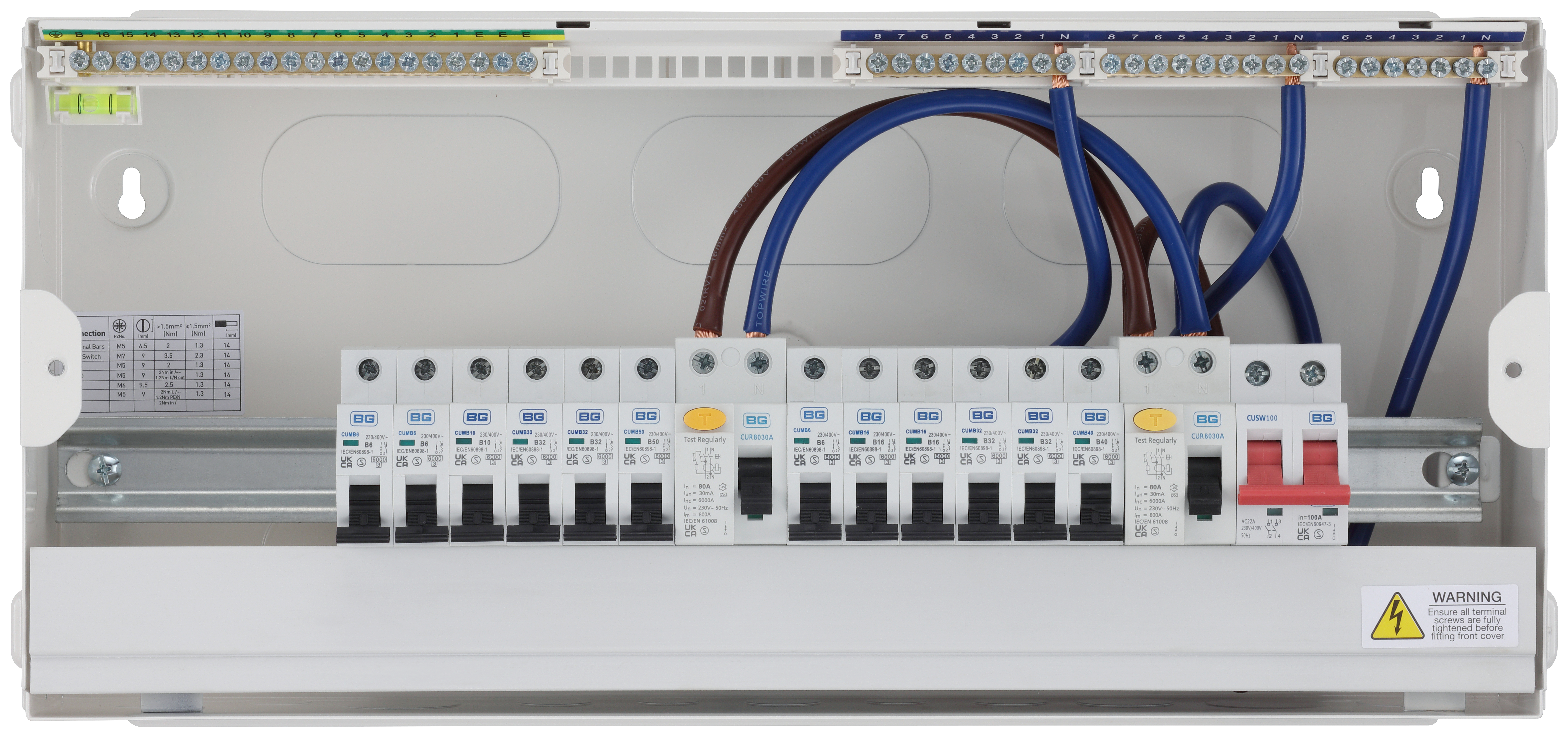

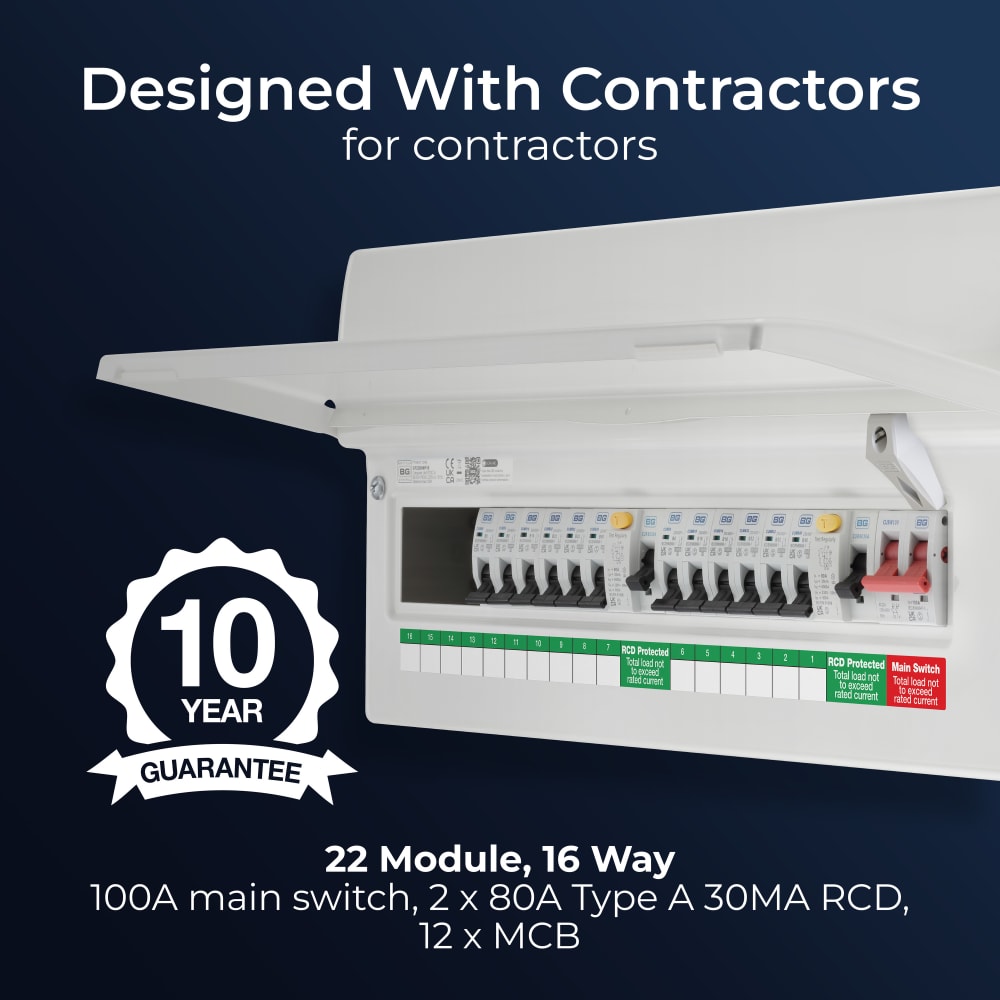

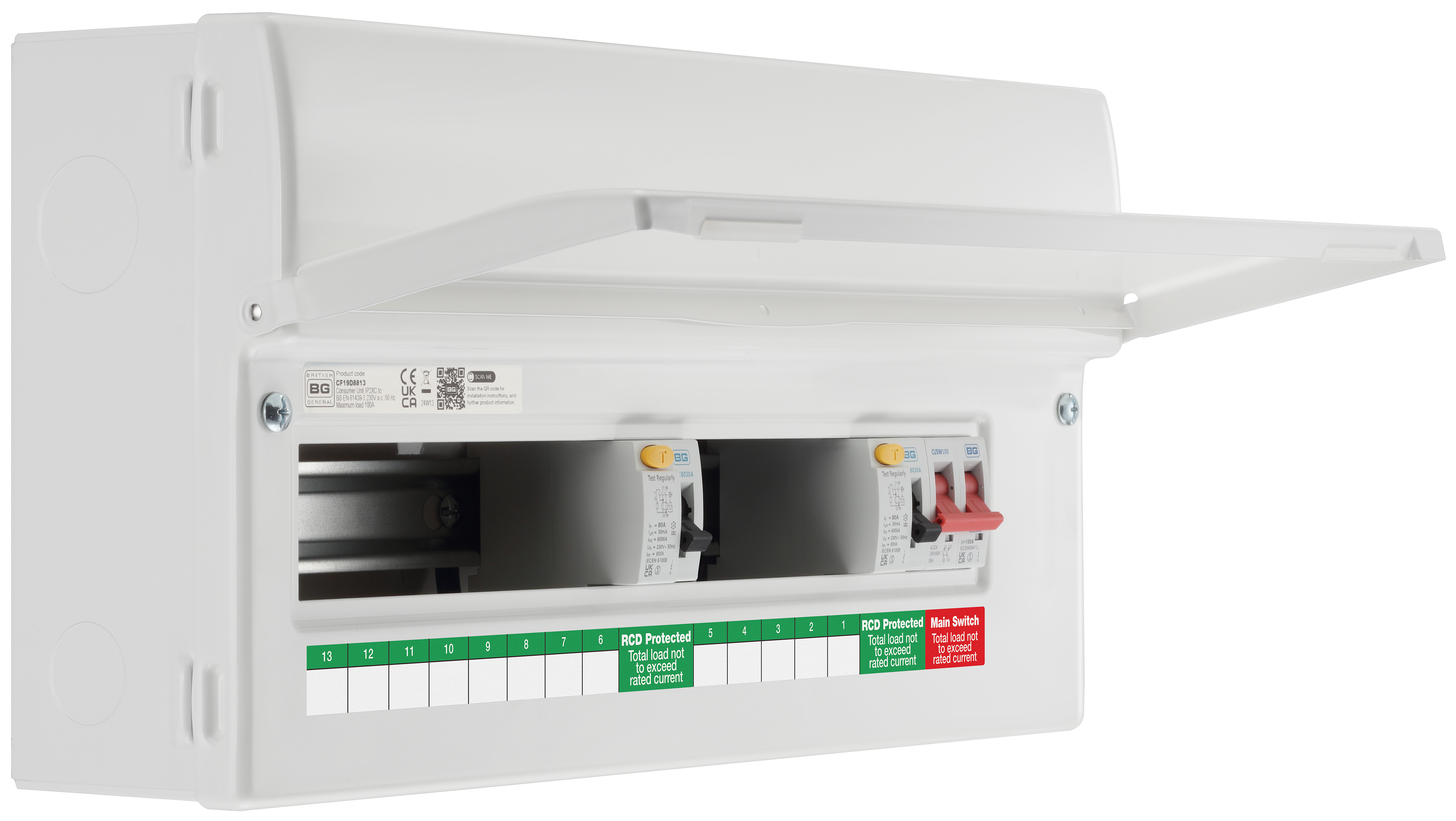

Consumer Unit, 22 Module, 16 Way, Populated, Dual RCD, 2 x 80A 30mA Type A RCD & 12 MCB's 6A x 3, 10A x 1, 16A x 2, 32A x 4, 40A x 1, 50A x 1
Integrated spirit Level
2 rows of rear knockouts
2 x 80A Type A RCD

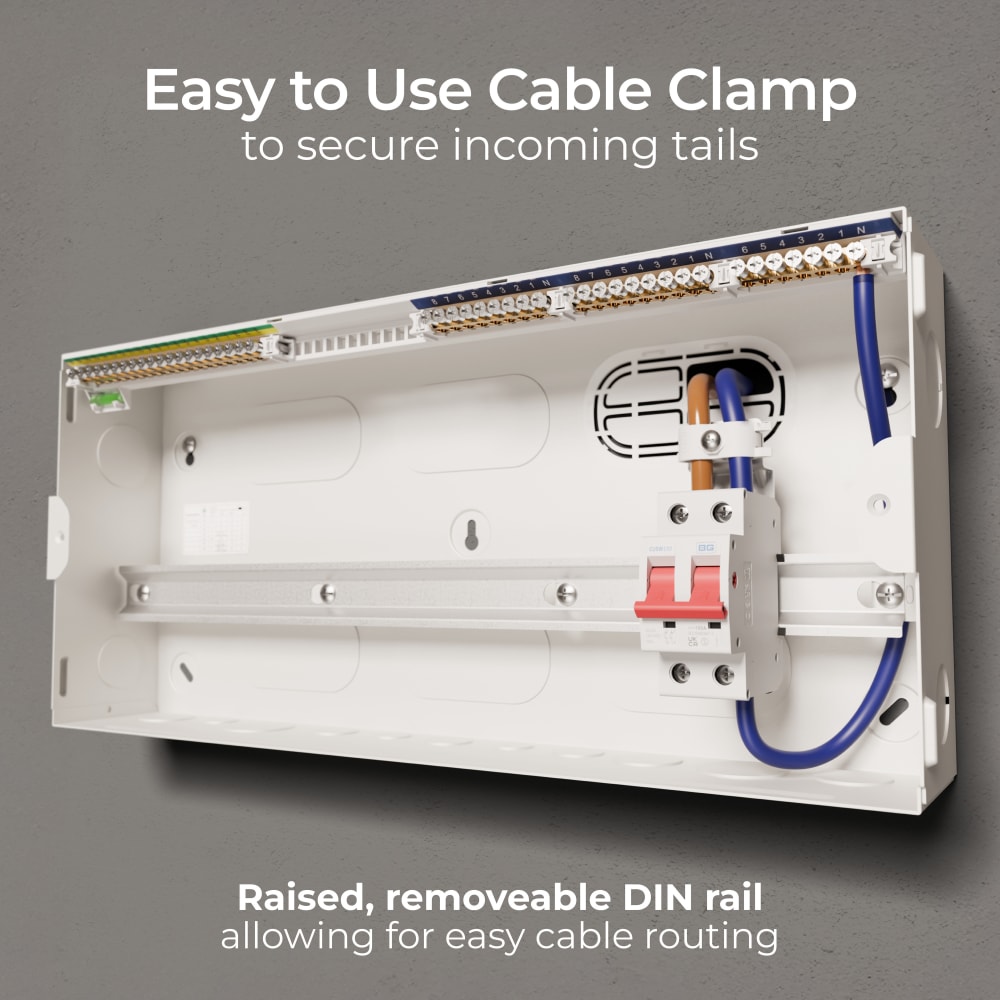

Optional cable clamp included
12 B Curve MCB's 6A x 3, 10A x 1, 16A x 2, 32A x 4, 40A x 1, 50A x 1
10 Year Guarantee

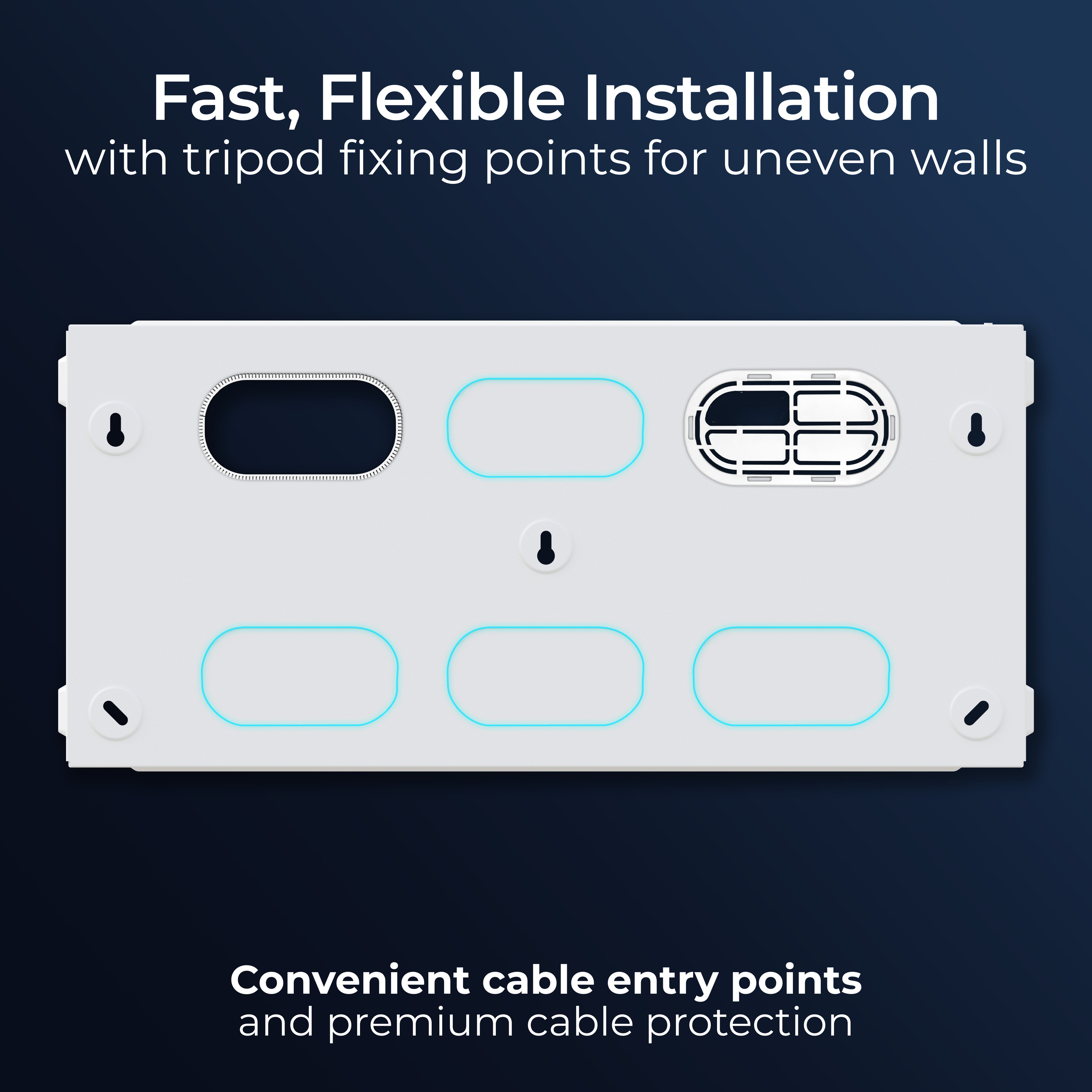

40mm knockouts in sides, top and bottom faces for incoming cables

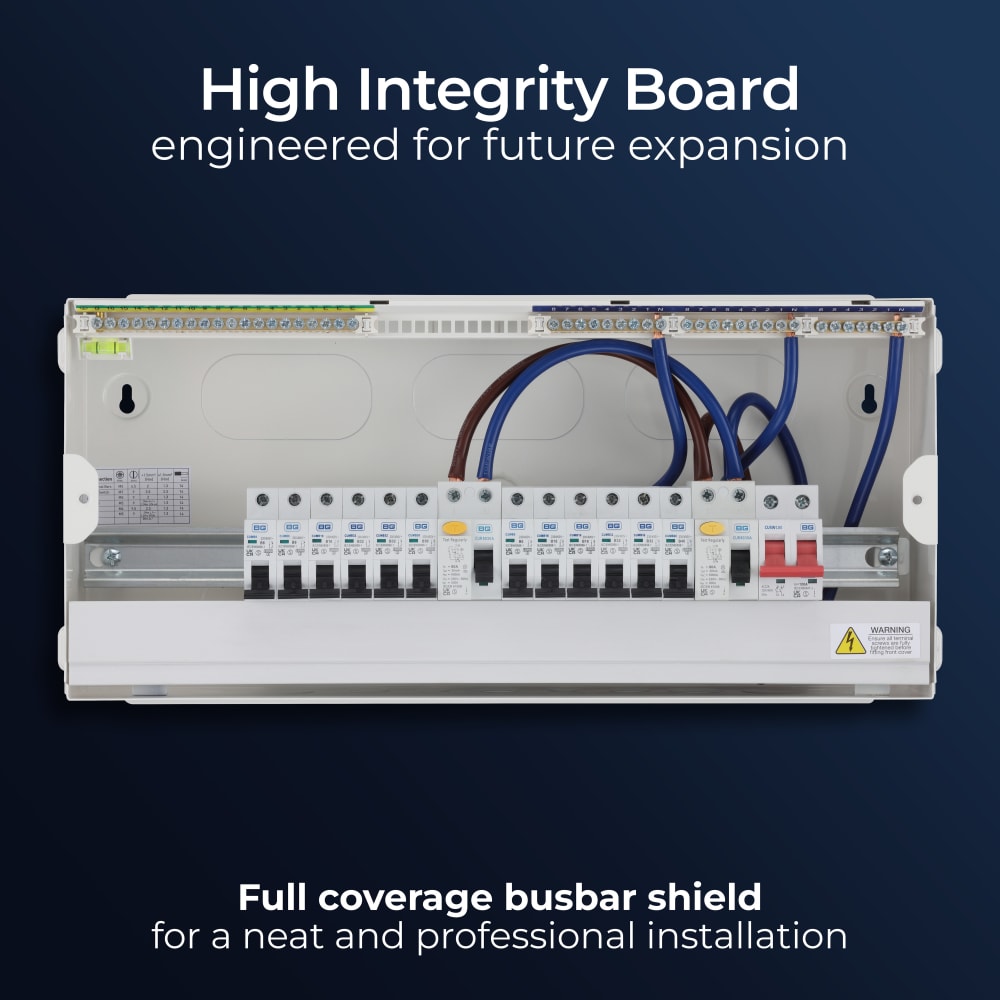

High integrity

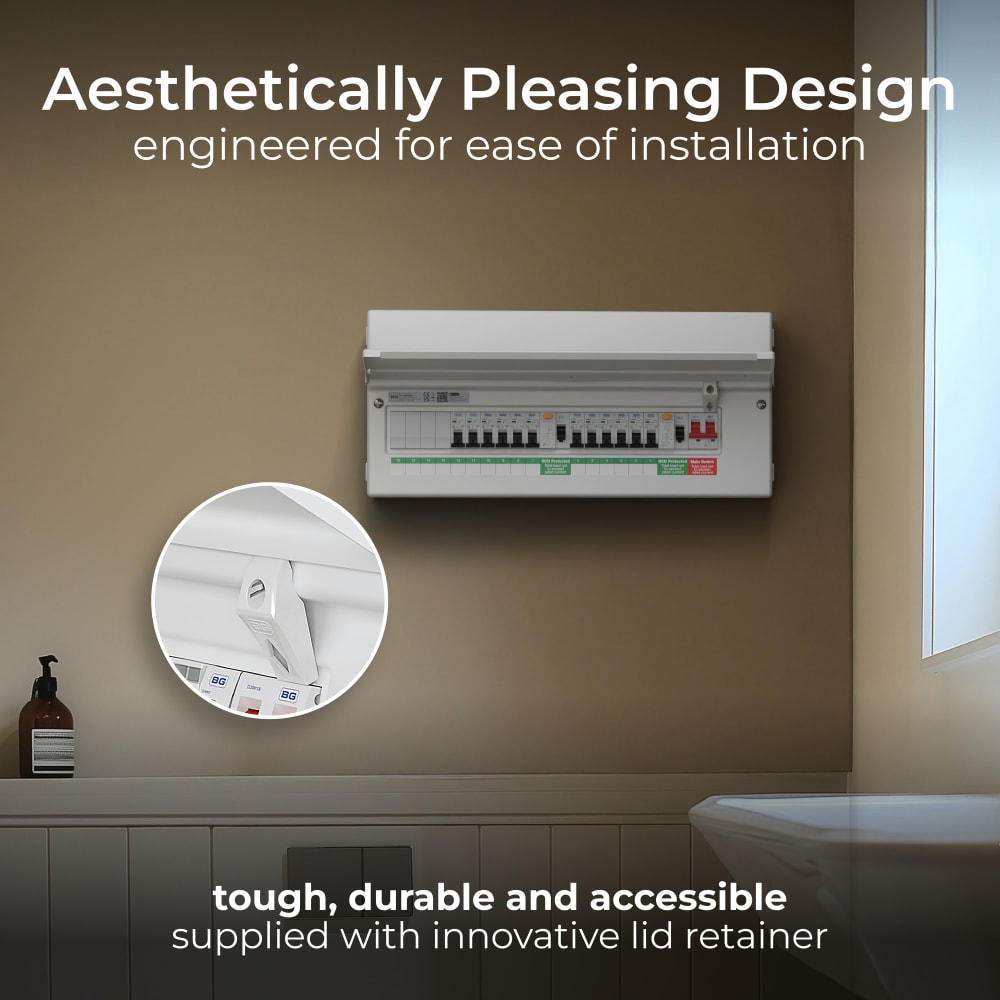

Supplied with 1 x lid retainer, 1 x rear clip in cable protector, 3 x grommet strip and 4 x cover blanks
Populated
| Front Plate Material | Steel 1.0mm - ST16 |
| General Colour | White |
| Fixing Screws Supplied | No |
| Modules | 22 |
| Number of Cable Entries | 32 |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Cable Entry Type | Knockout |
| Details per face (Size/number) | 32 - 7 x 32mm, 6 x 25mm, 6 x 20mm, 3 x 40mm (Top/Bott) 1 x 32mm, 1 x 40mm (sides) 6 x 100 x 50mm (Base) |

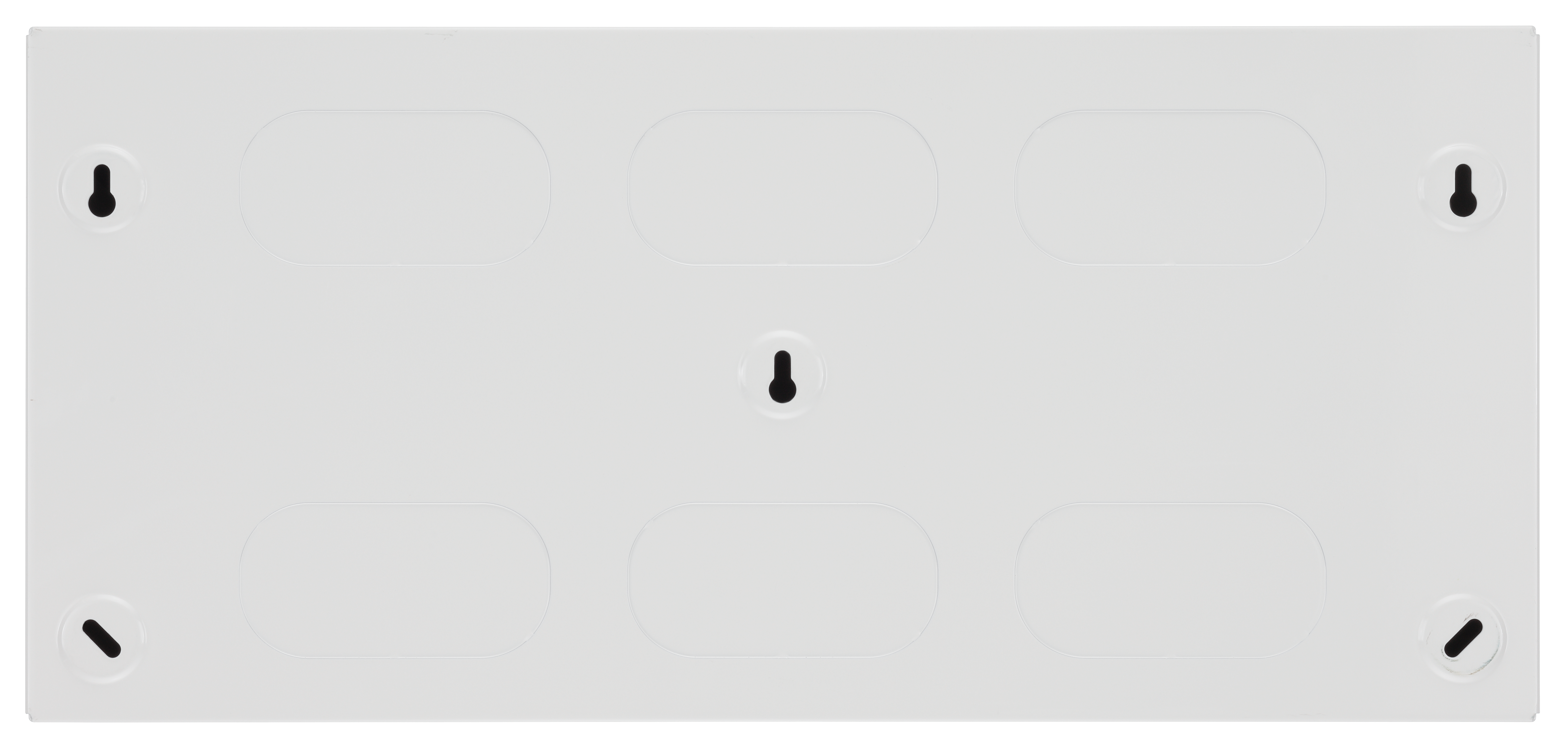

| Number Of Wall Fixing Positions | 5 |
| Fitted Lock | No |
| Installation Method(s) | Surface |
| Spirit Level | Yes |
| Terminal Type | Screw |
| Ways | 16 |
| Number of Knockouts | 32 |
| Mounting Type | Surface |
| IP Rating | IP2XC |
| Terminal Screw Type | Combi |
| Terminal Torque (Nm) | Earth/Neutral Terminals 2.0Nm, MS 2.5Nm, RCD 2.5Nm |
| Rated Sensitivity (mA) | 30mA |
| RCD Mechanism Type | Thermal/Electromagnetic |
| Trip Speed (mS) | <0.1s |
| Max Load (A) | 100 |
| MCB's | 12 |
| Frequency (Hz) | 50 |
| Warranty (years) | 10 |
