CF22D8816-01

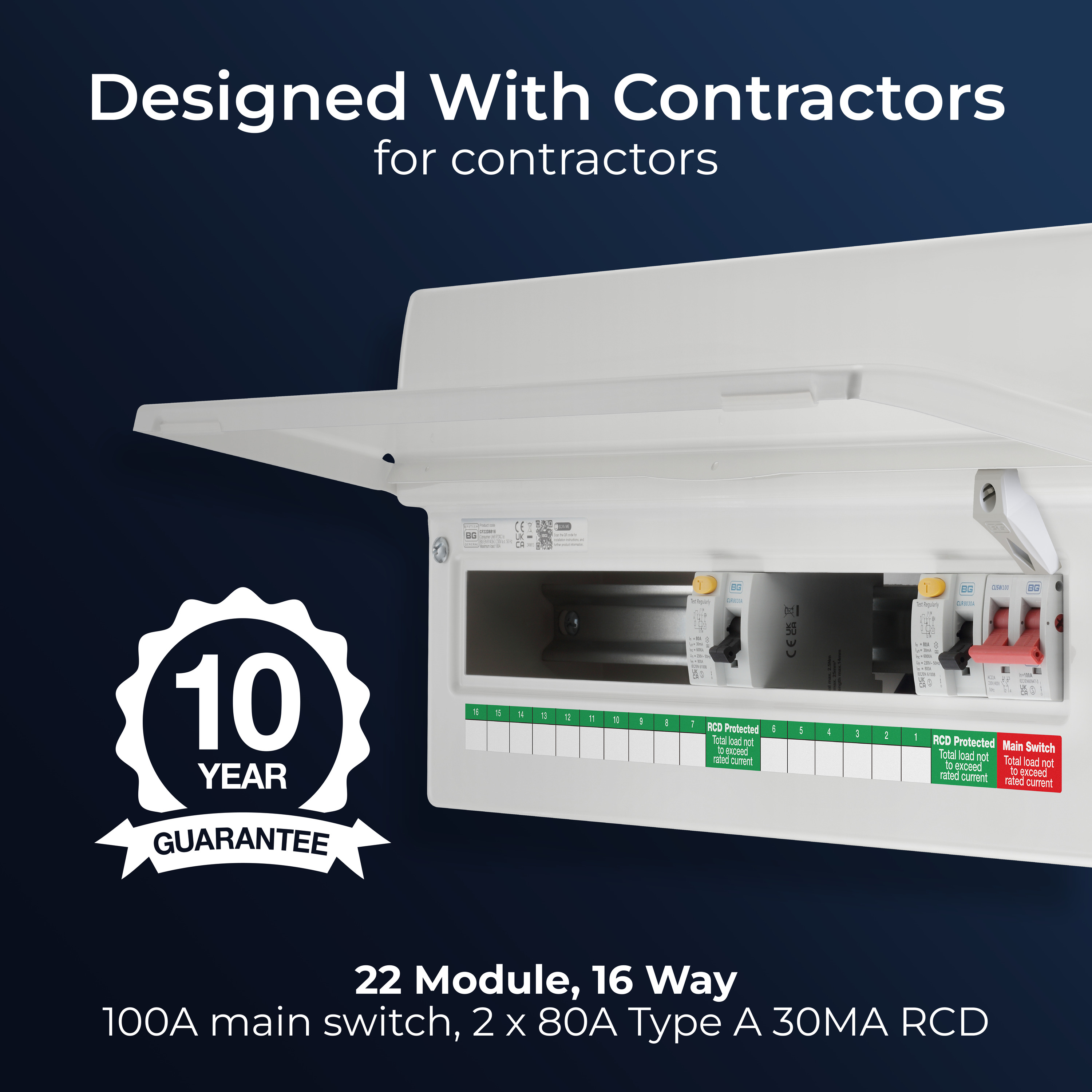

Consumer Unit, 22 Module, 16 Way, Unpopulated, Dual RCD, 2 x 80A 30mA Type A RCD
Integrated spirit Level

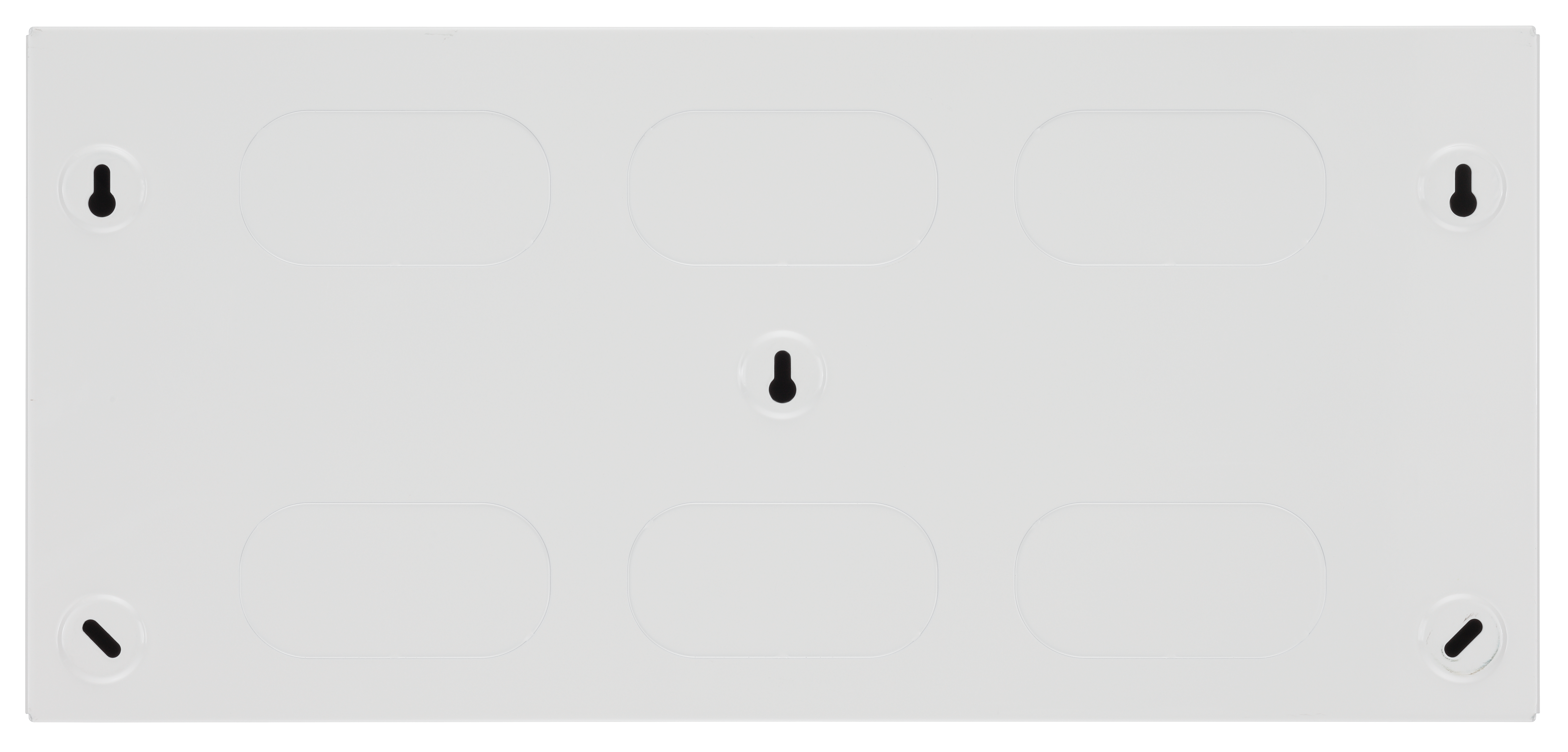

2 rows of rear knockouts

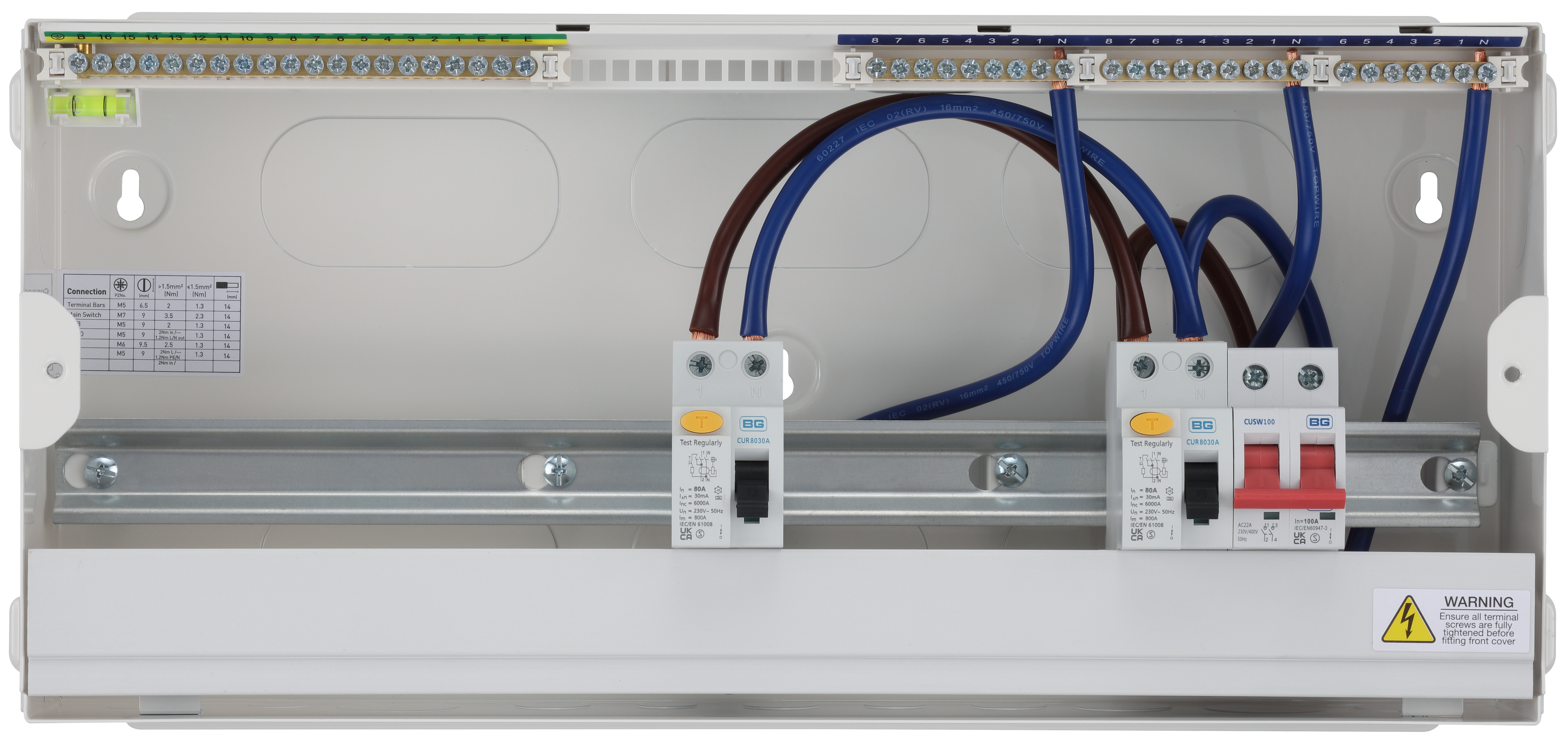

2 x 80A Type A RCD

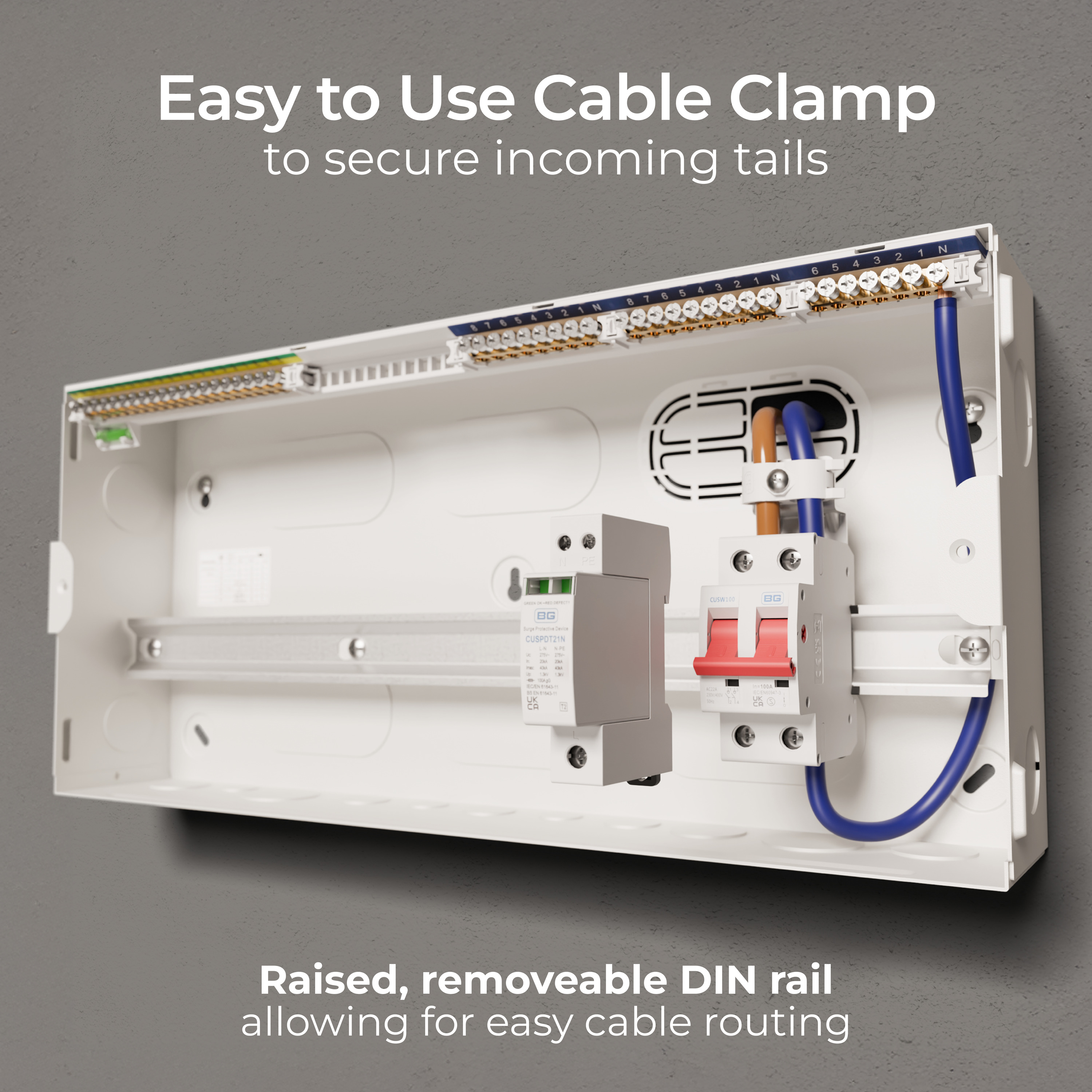

Optional cable clamp included

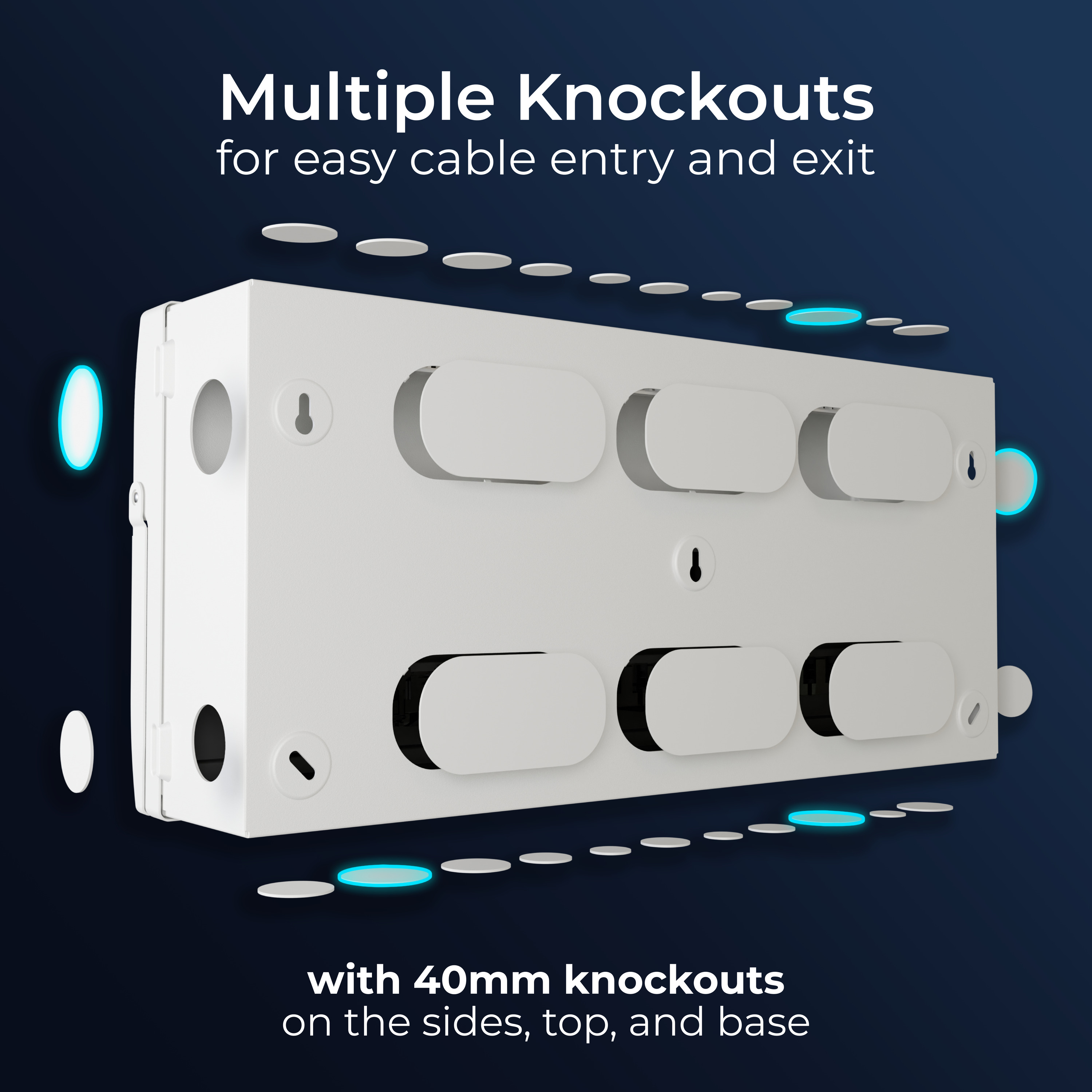

40mm knockouts in sides, top and bottom faces for incoming cables
10 Year Guarantee
Backed out and retained terminal screws

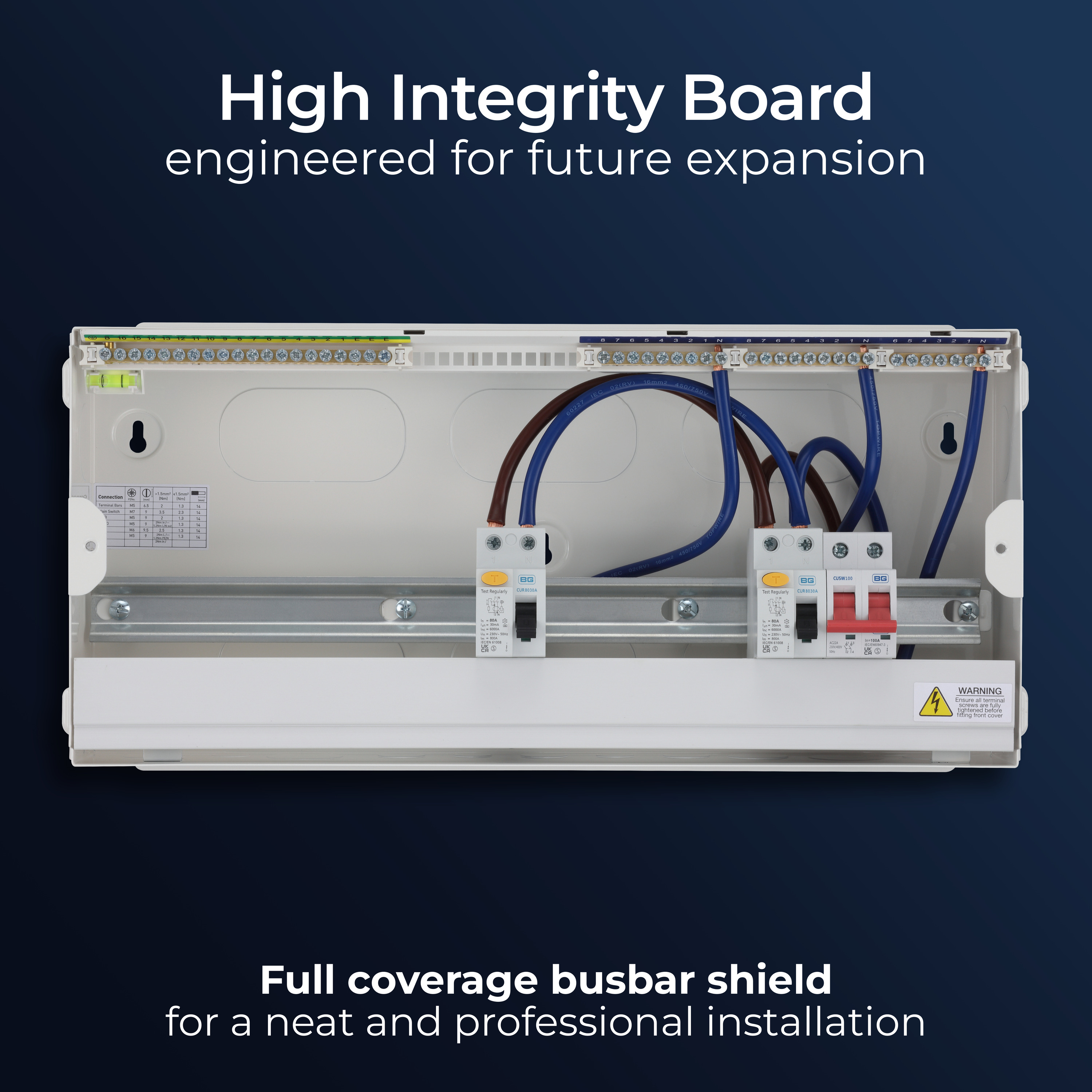

High integrity
Supplied with 1 x lid retainer, 1 x rear clip in cable protector, 3 x grommet strip and 4 x cover blanks
Unpopulated
| Front Plate Material | Steel 1.0mm - ST16 |
| General Colour | White |
| Fixing Screws Supplied | No |
| Modules | 22 |
| Number of Cable Entries | 32 |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Cable Entry Type | Knockout |
| Details per face (Size/number) | Top - 3 x 20mm, 3 x 25mm, 4 x 32mm, 1 x 40mm, Bottom - 3 x 20mm, 3 x 25mm, 3 x 32mm, 2 x 40mm L-1 x 32mm, 1 x 40mm R - 1 x 32mm 1 x 40mm (sides) 6 x 100 x 50mm (Base) |

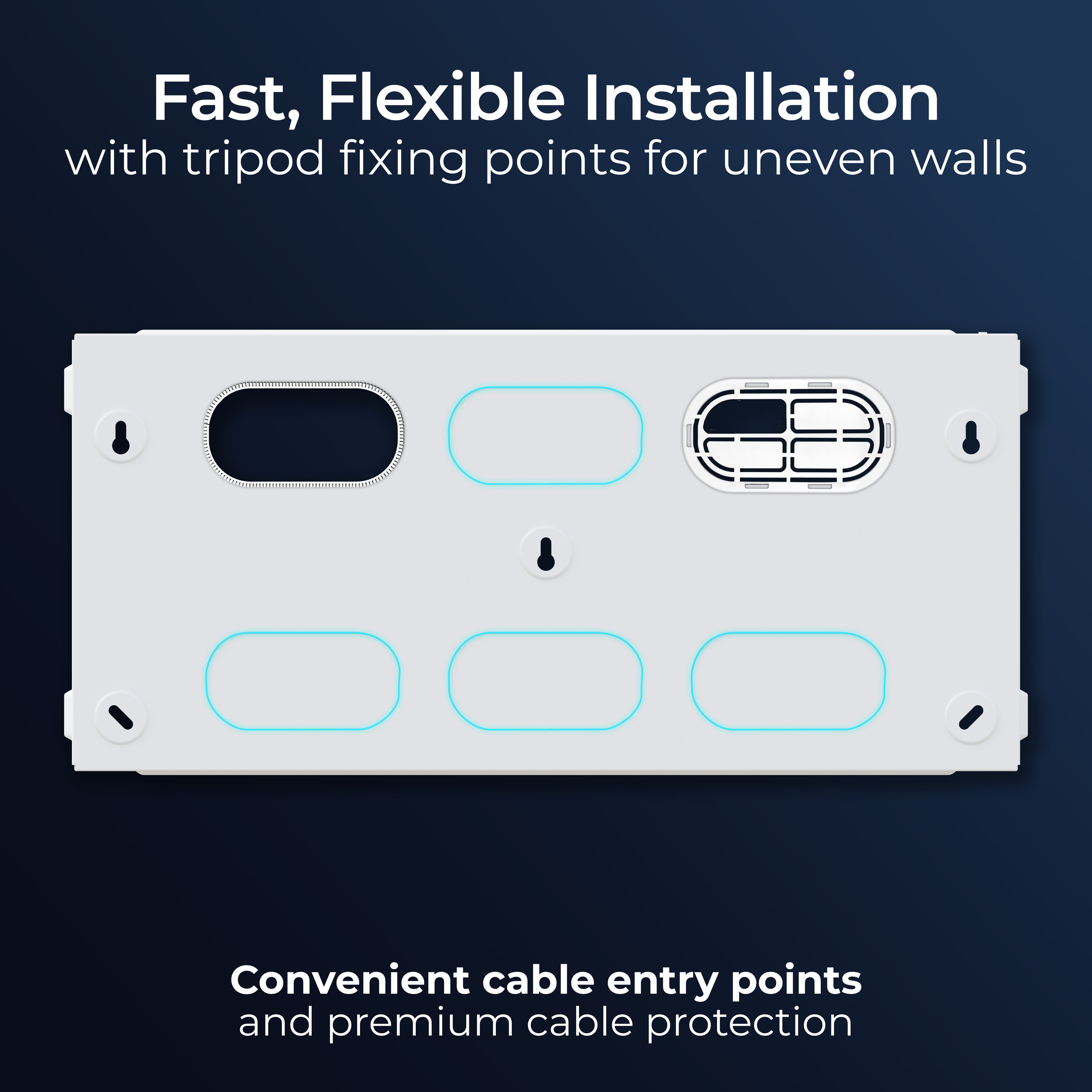

| Number Of Wall Fixing Positions | 5 |
| Fitted Lock | No |
| Installation Method(s) | Surface |
| Spirit Level | Yes |
| Terminal Type | Screw |
| Ways | 16 |
| Number of Knockouts | 32 |
| Mounting Type | Surface |
| IP Rating | IP2XC |
| Terminal Screw Type | Combi |
| Terminal Torque (Nm) | Earth/Neutral Terminals 2.0Nm, MS 2.5Nm, RCD 2.5Nm |
| Rated Sensitivity (mA) | 30mA |
| RCD Mechanism Type | Electro/Mechanical |
| Trip Speed (mS) | <0.1s |
| Max Load (A) | 100 |
| MCB's | 0 |
| Frequency (Hz) | 50 |
| Warranty (years) | 10 |
