CF22D11P16-01

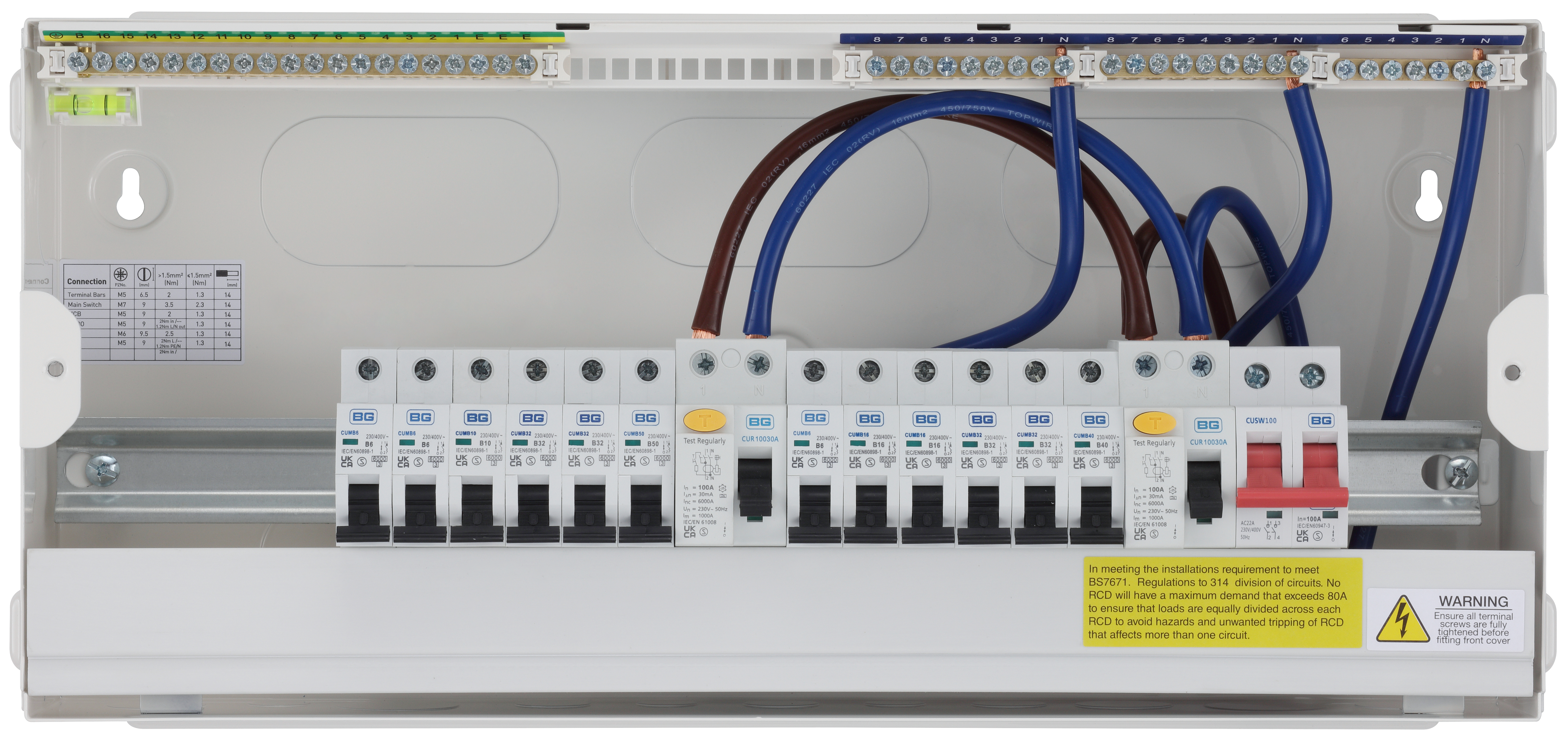

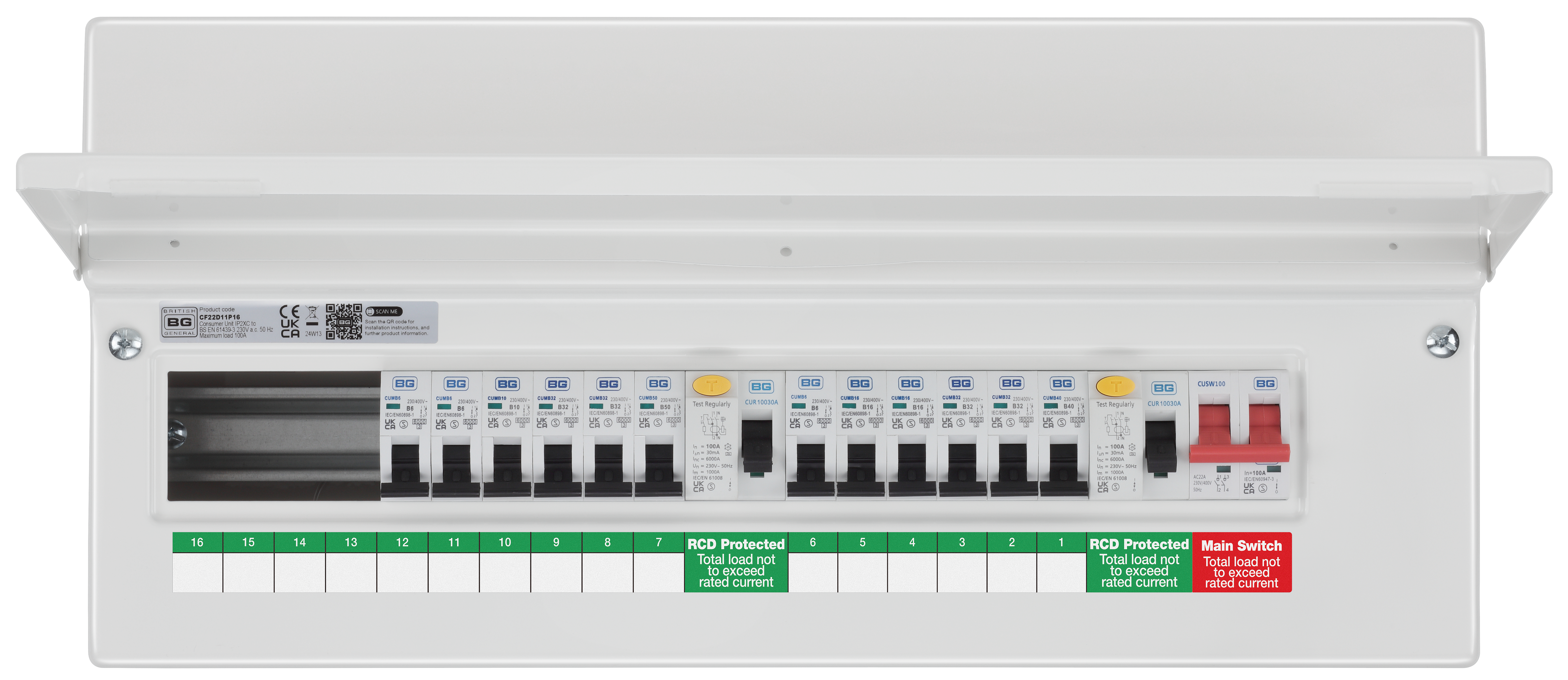

Consumer Unit, 22 Module, 16 Way, Populated, Dual RCD, 2 x 100A 30mA Type A RCD & 12 MCB's 6A x 3, 10A x 1, 16A x 2, 32A x 4, 40A x 1, 50A x 1

Integrated spirit Level

2 rows of rear knockouts

2 x 100A Type A RCD

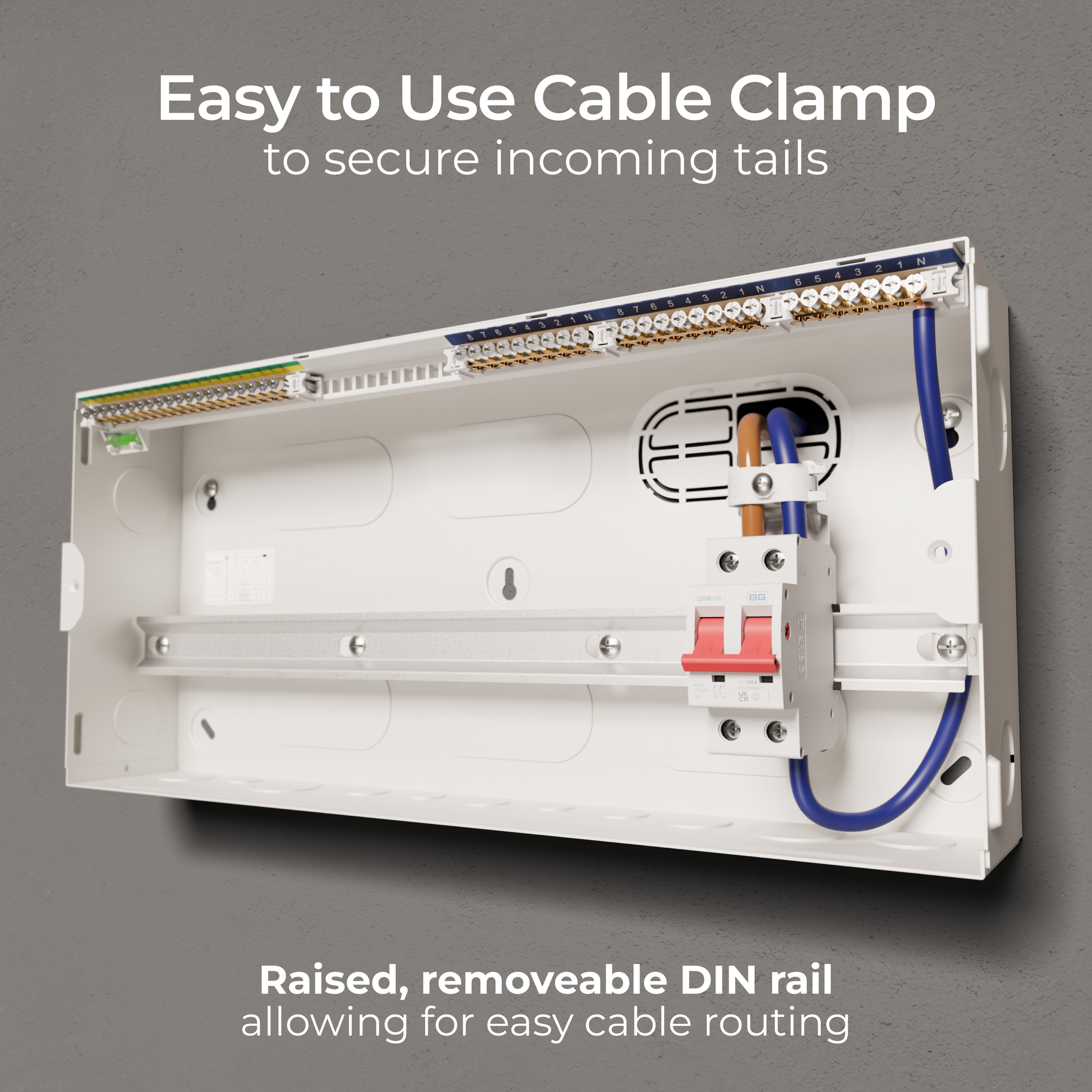

Optional cable clamp included

12 B Curve MCB's 6A x 3, 10A x 1, 16A x 2, 32A x 4, 40A x 1, 50A x 1

10 Year Guarantee

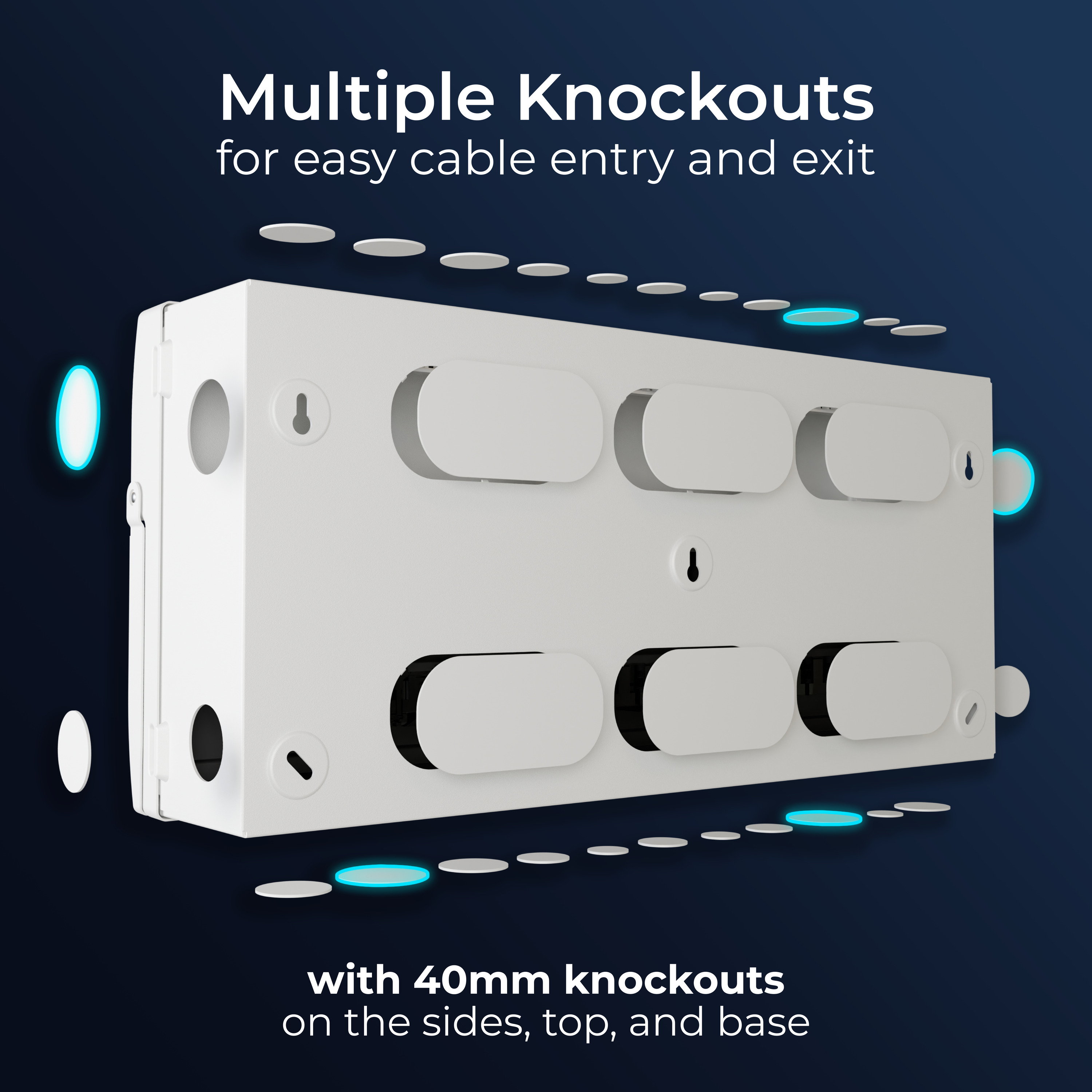

40mm knockouts in sides, top and bottom faces for incoming cables

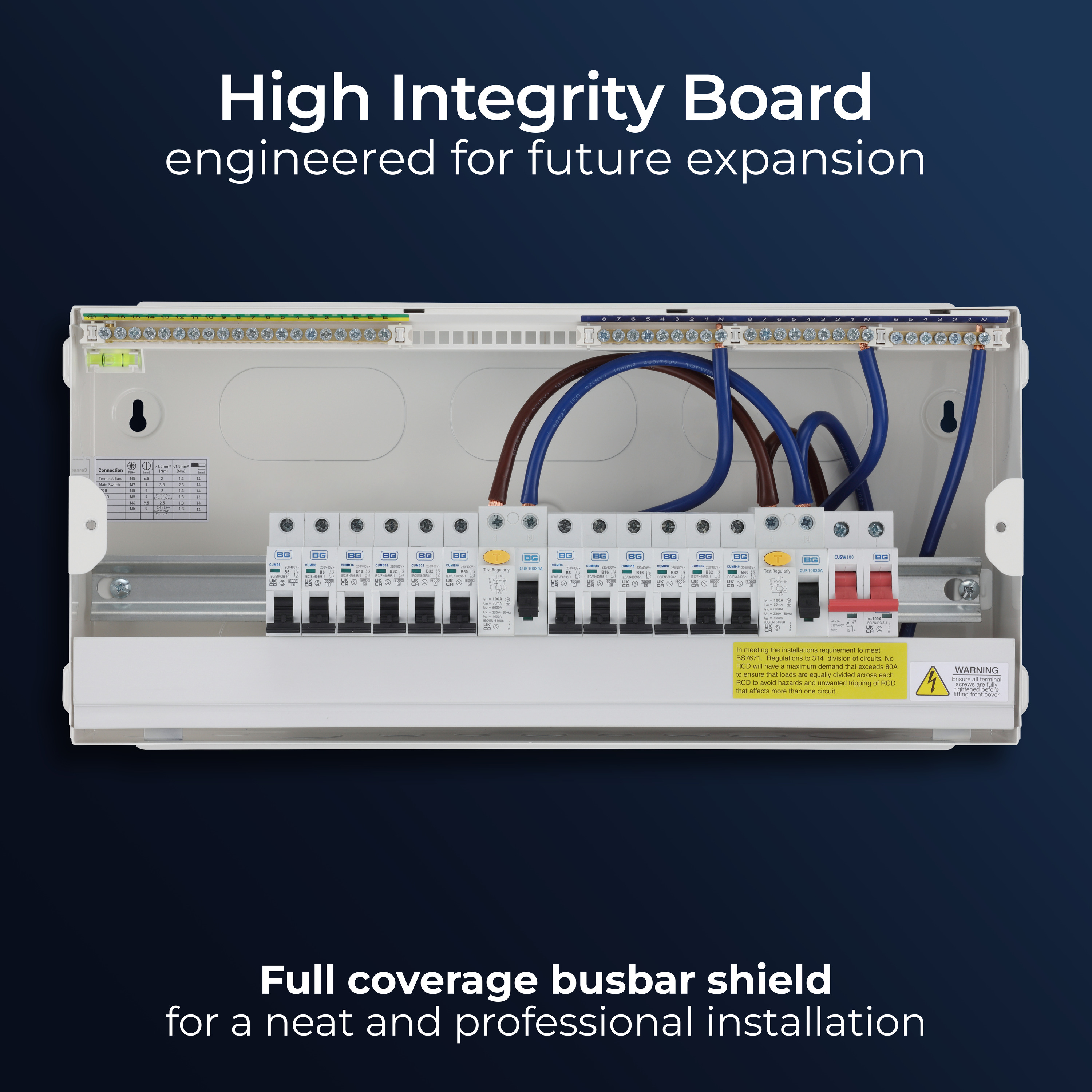

High integrity

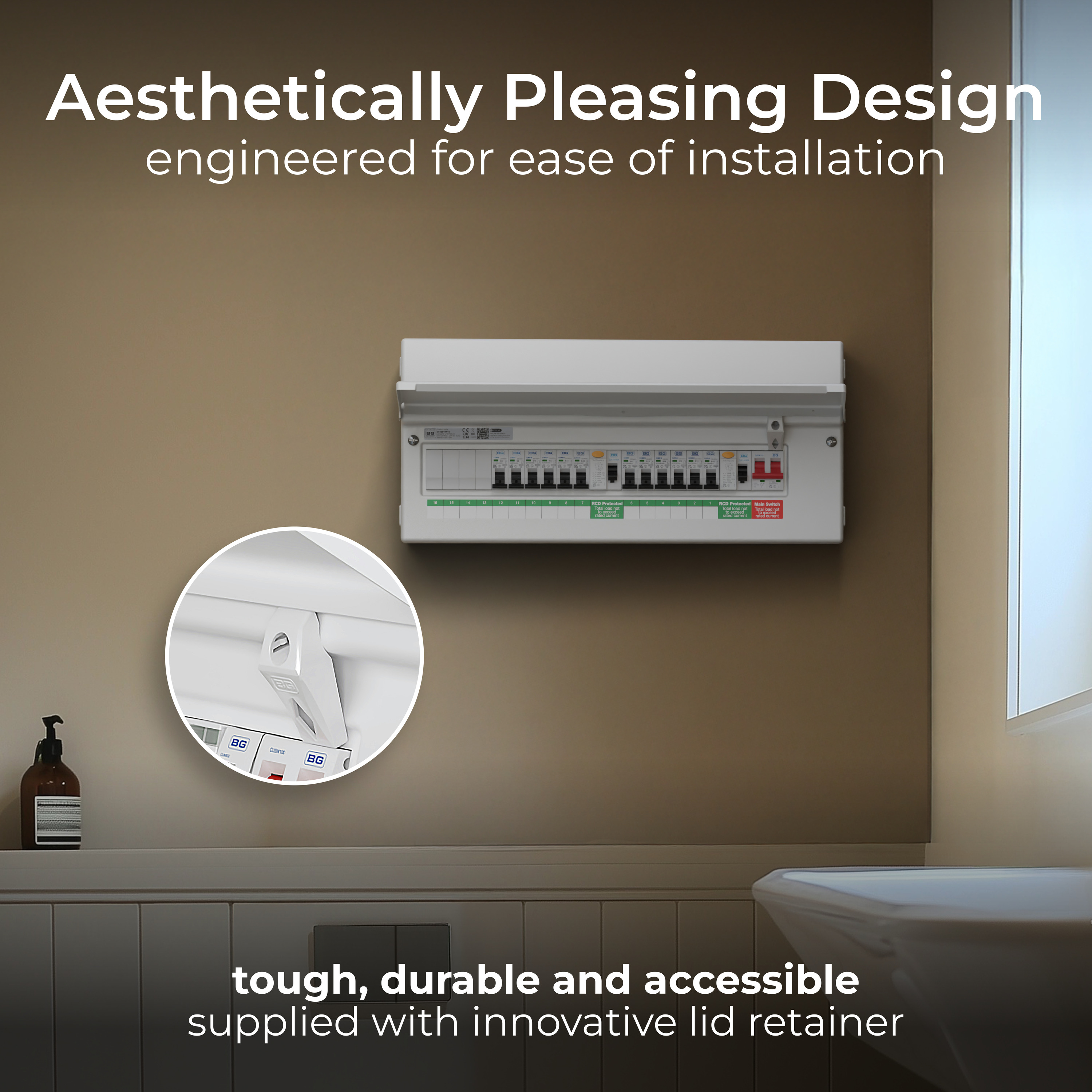

Supplied with 1 x lid retainer, 1 x rear clip in cable protector, 3 x grommet strip and 4 x cover blanks

Populated

Front Plate Material	Steel 1.0mm - ST16
General Colour	White
Fixing Screws Supplied	No
Modules	22
Number of Cable Entries	32
Captive Terminal Screws	Yes
Backed-out Terminal Screws	Yes
Cable Entry Type	Knockout
Details per face (Size/number)	Top - 3 x 20mm, 3 x 25mm, 4 x 32mm, 1 x 40mm, Bottom - 3 x 20mm, 3 x 25mm, 3 x 32mm, 2 x 40mm L-1 x 32mm, 1 x 40mm R - 1 x 32mm 1 x 40mm (sides) 6 x 100 x 50mm (Base)

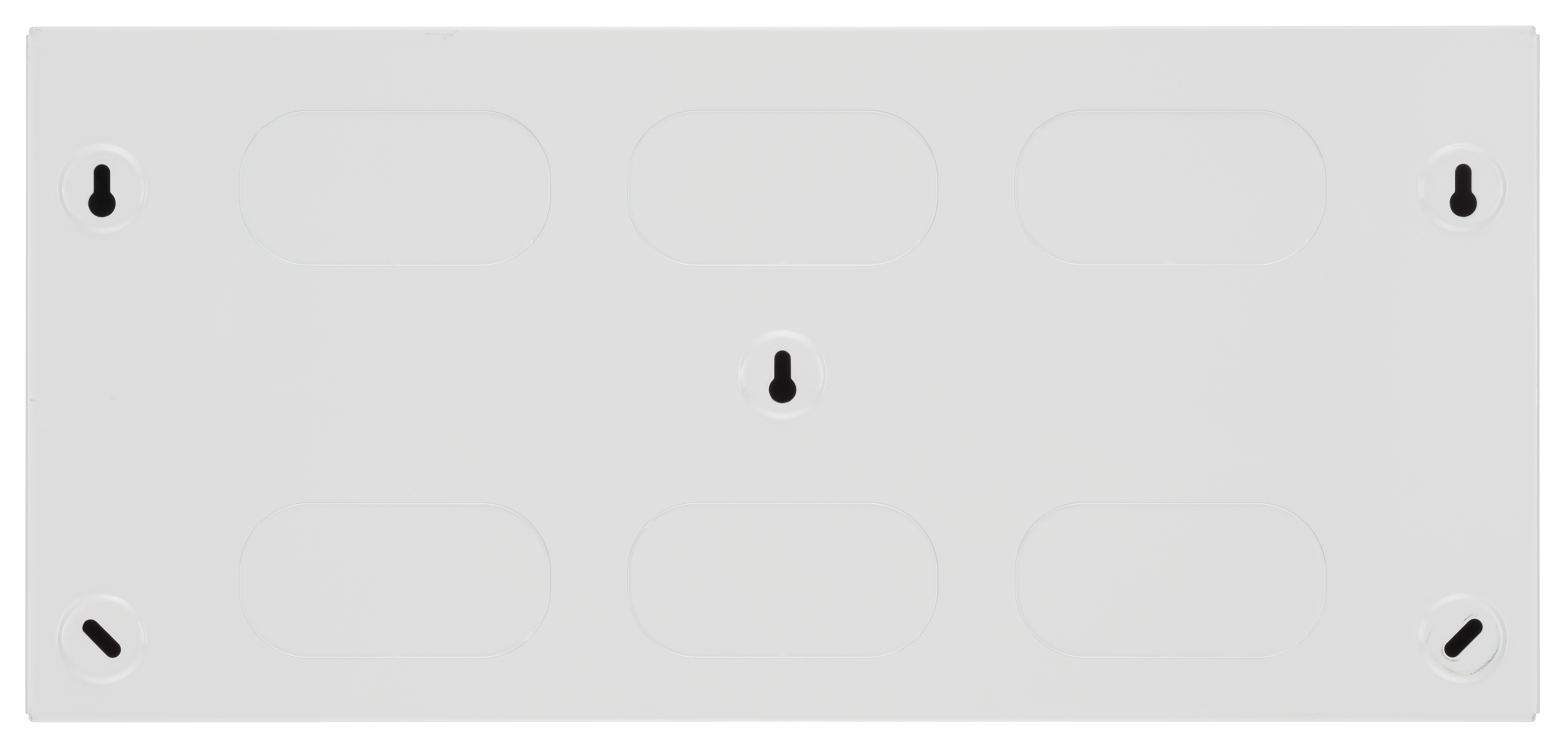

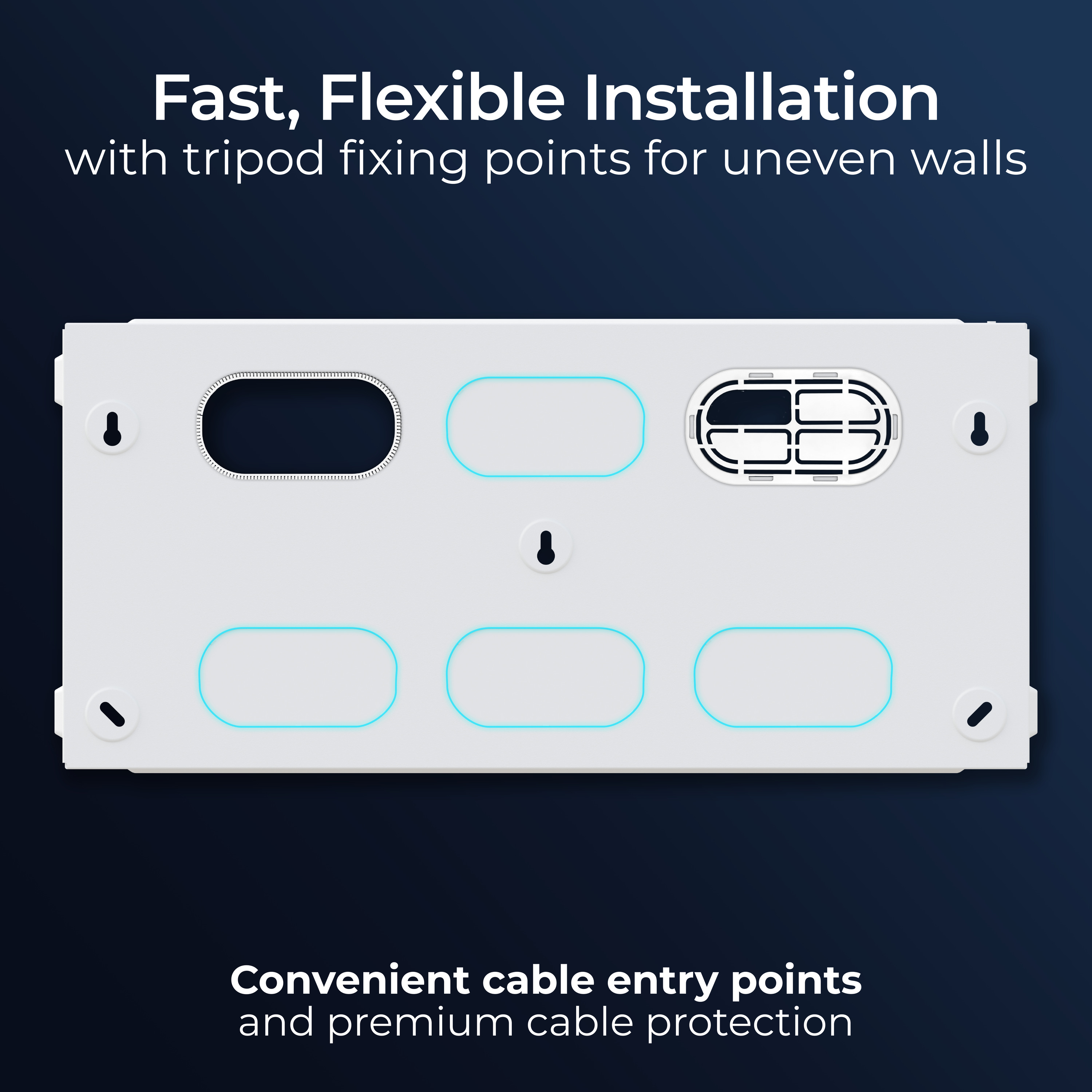

Number Of Wall Fixing Positions	5
Fitted Lock	No

Installation Method(s)	Surface
Spirit Level	Yes
Terminal Type	Screw
Ways	16
Knockouts	32
Mounting Type	Surface
IP Rating	IP2XC
Terminal Screw Type	Combi
Terminal Torque (Nm)	Earth/Neutral Terminals 2Nm, MS 2.5Nm, RCD 2.5Nm
Rated Sensitivity (mA)	30mA
