CFEV5RDA-01

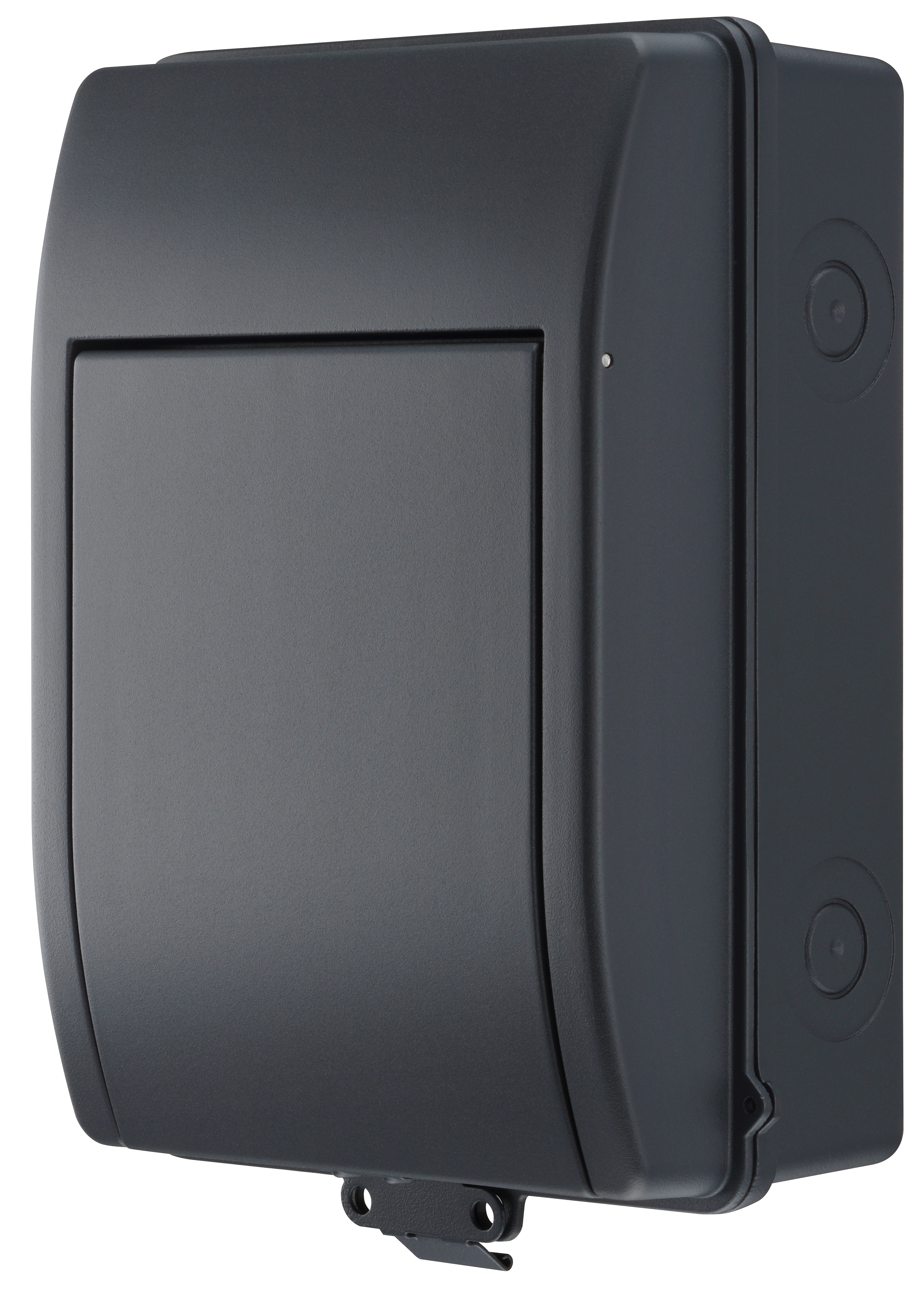

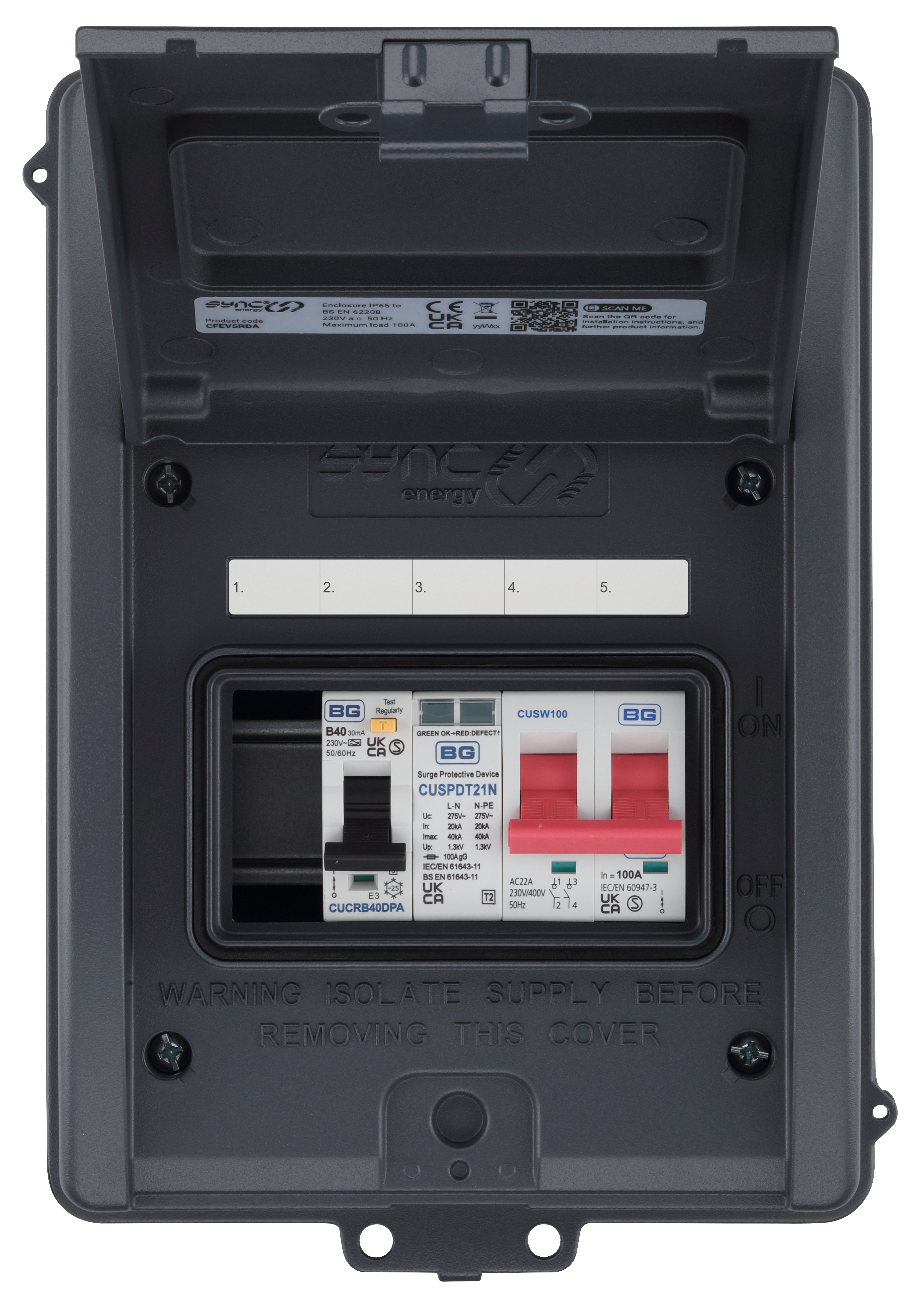

Sync Energy weatherproof IP65, Grey, 5 module populated EV kit c/w 100A main switch, 40A 30mA Double Pole RCBO Type A, type 2 SPD

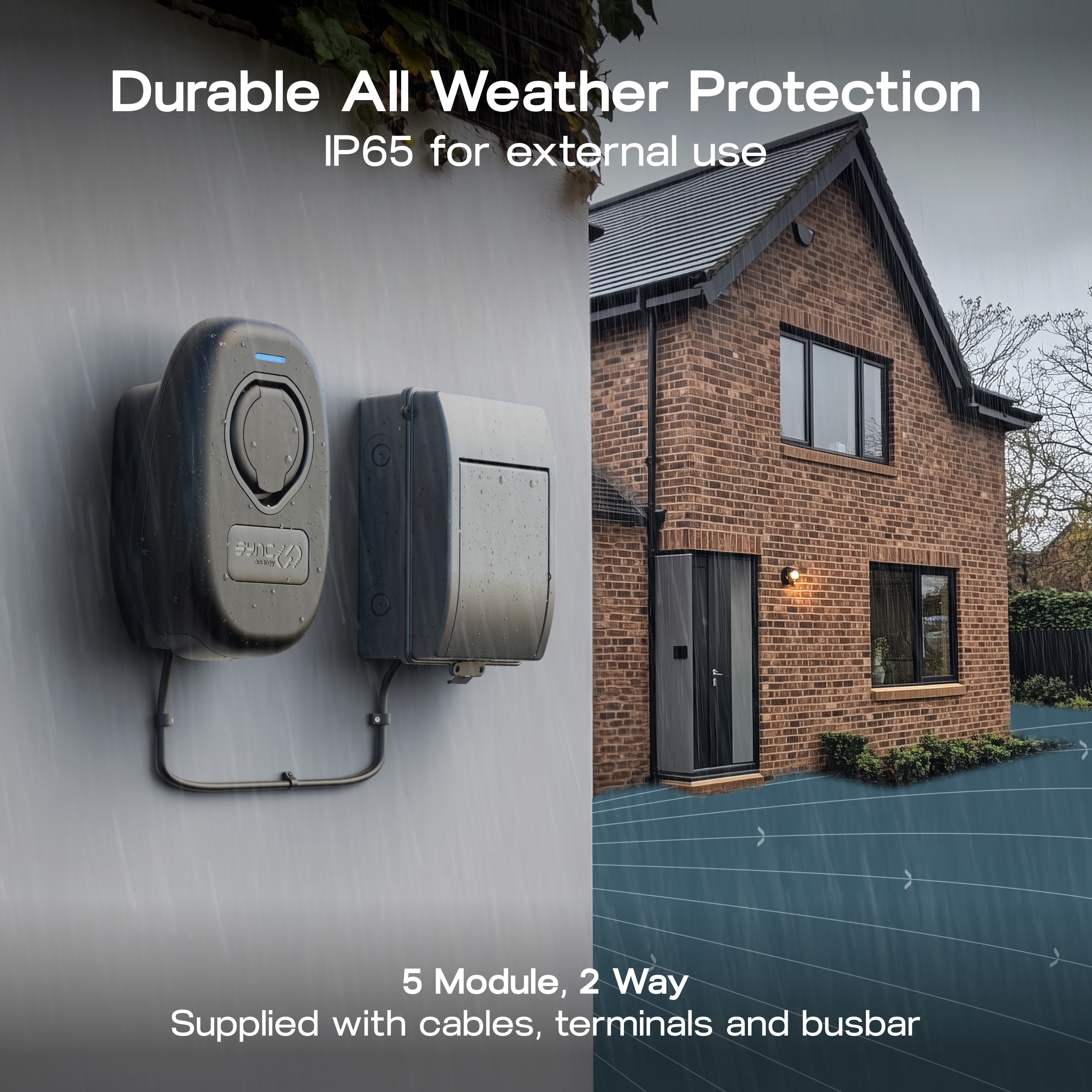

IP65 Weatherproof

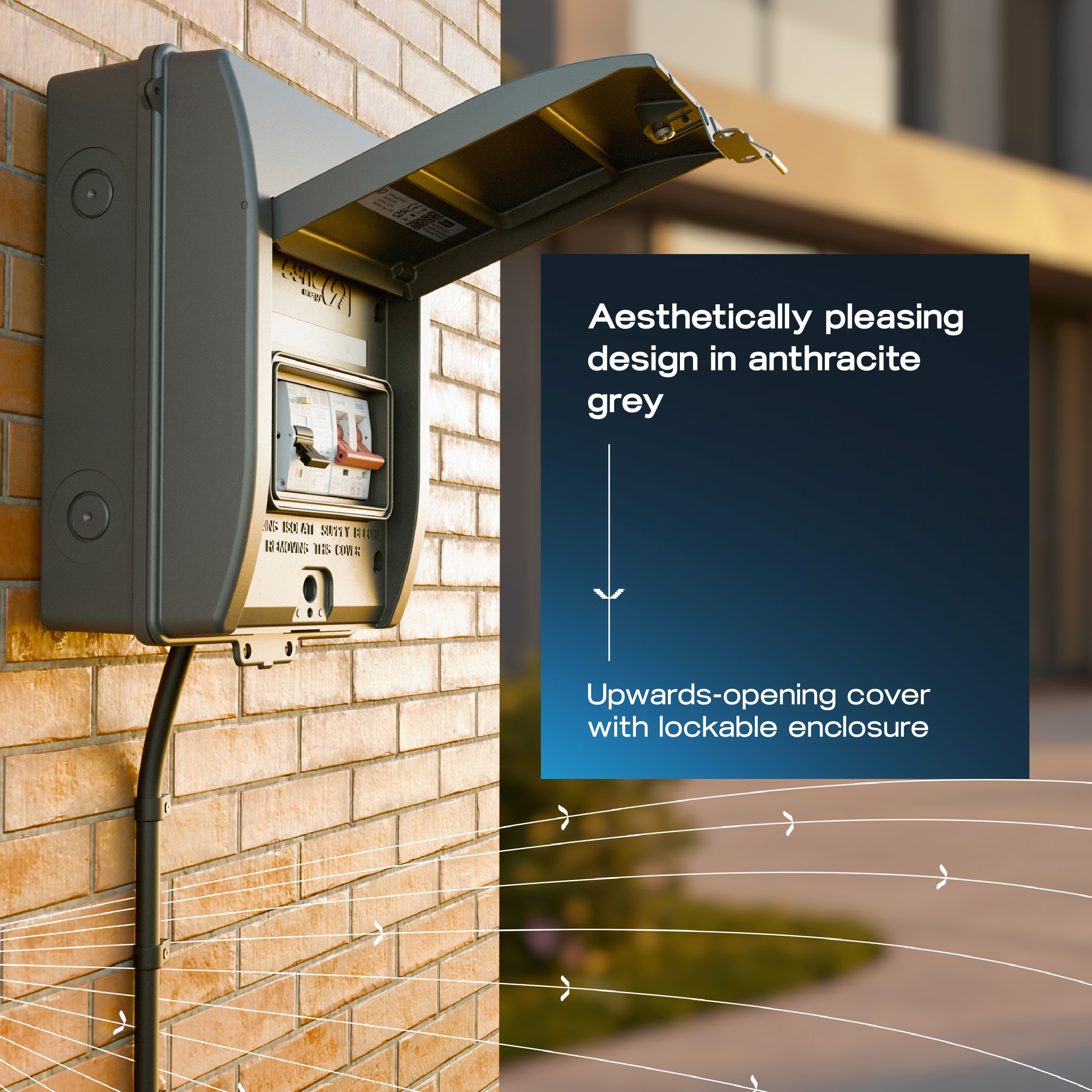

Padlock facility

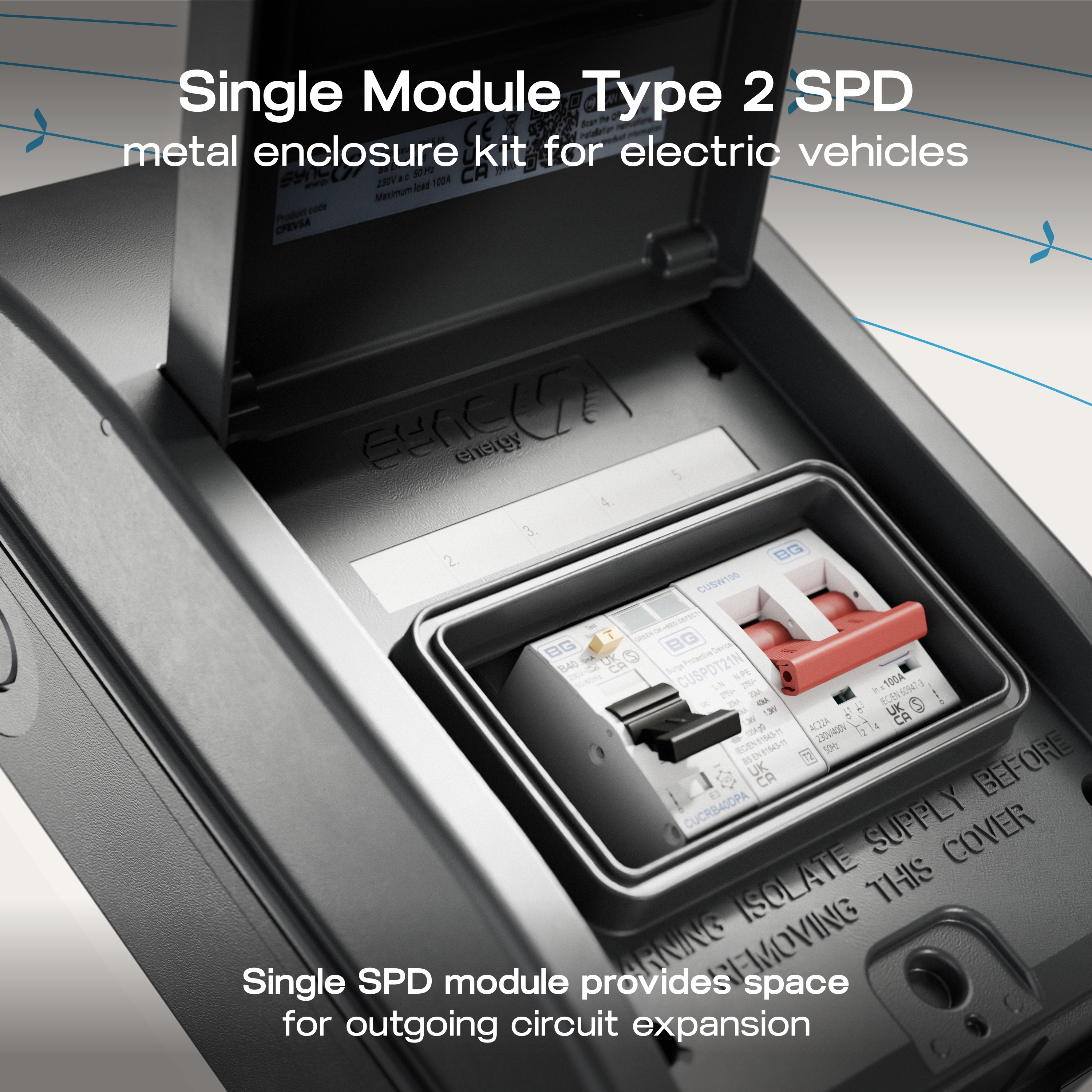

T2 SPD

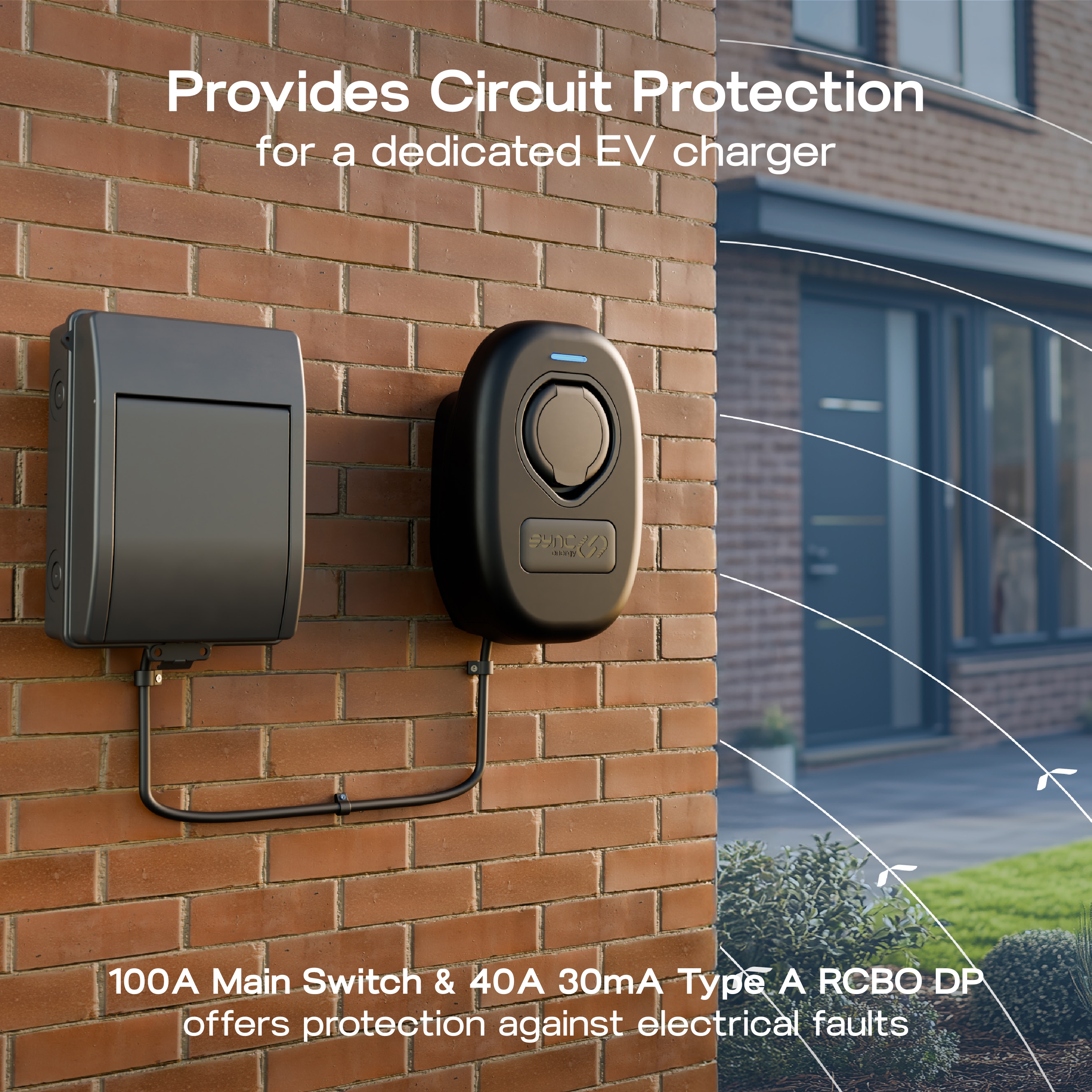

1 x 40A 30mA Type A RCBO Double Pole
100A Main Switch
For use when the EV charger supply cable does not have mechanical protection
Easy installation
Backed out and retained terminal screws
All metal construction

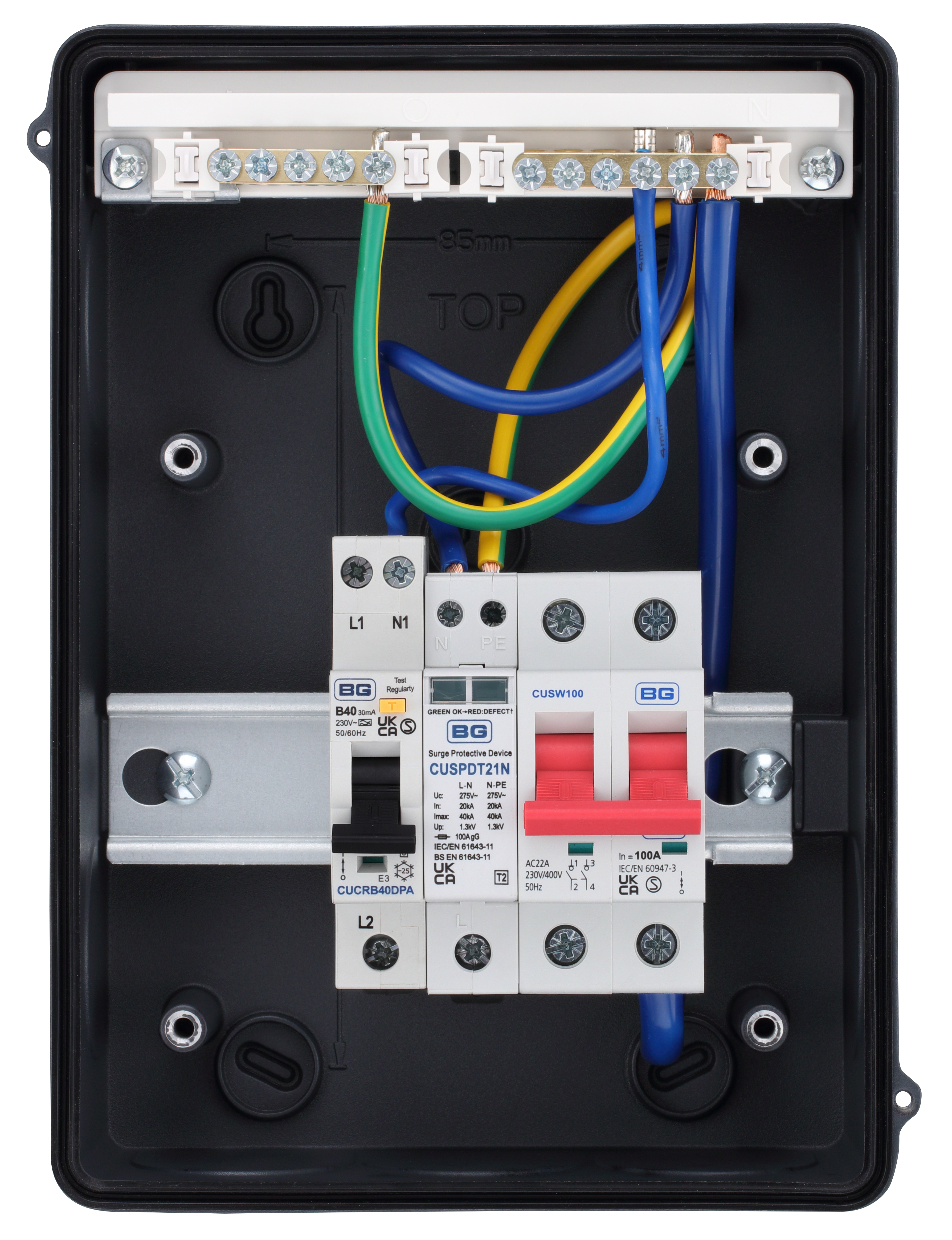

Enclosure kit supplied with devices DIN rail Neutral cable, Neutral and Earth terminals, labels busbar and cover blanks
| Front Plate Material | Cast Aluminium -ADC12 |
| General Colour | Grey |
| Fixing Screws Supplied | No |
| Modules | 5 |
| Number of Cable Entries | 11 |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Cable Entry Type | Knockout |

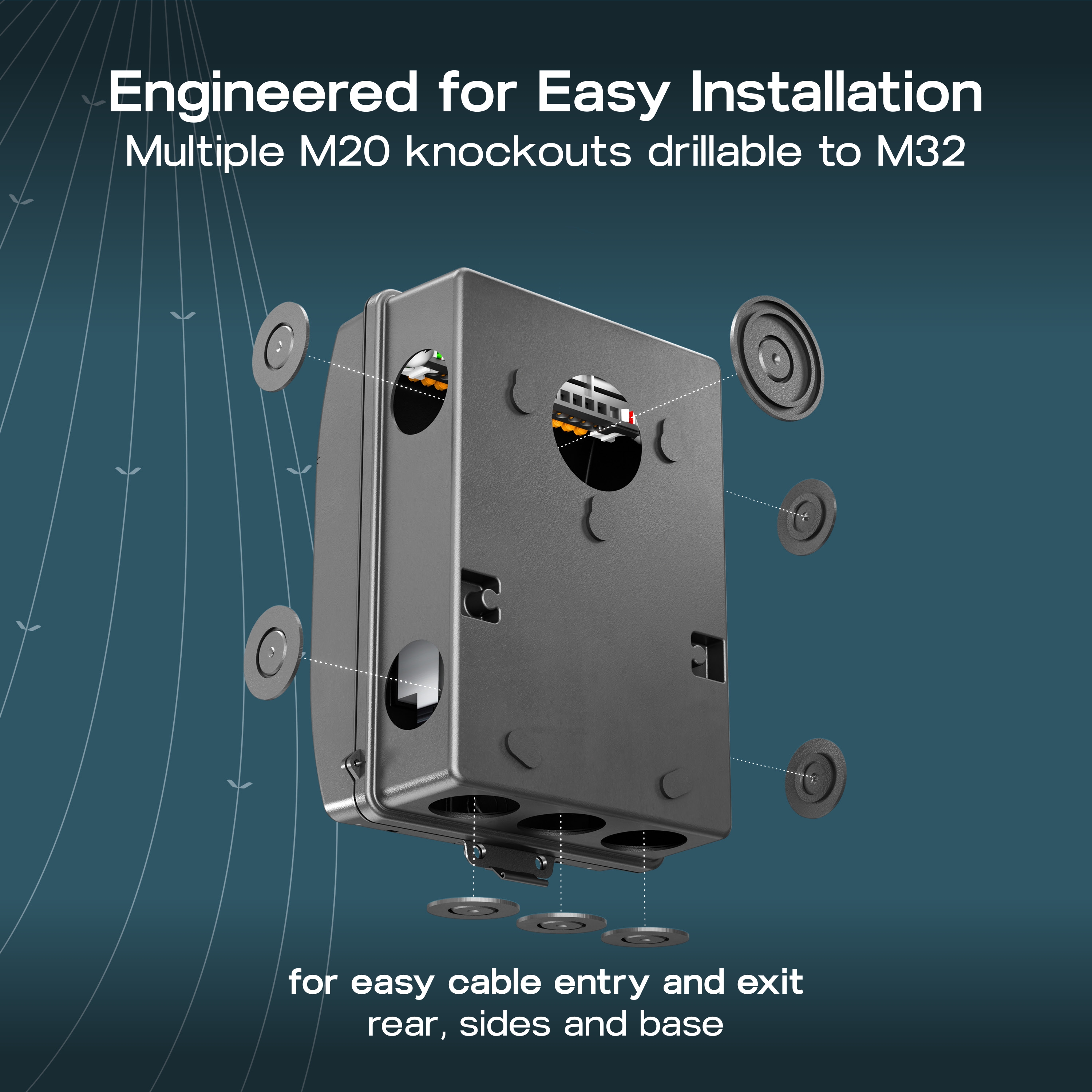

| Details per face (Size/number) | 6 - 3 x M20-32 2 x M20-32 (side) 1 x M20-32 (Base) |

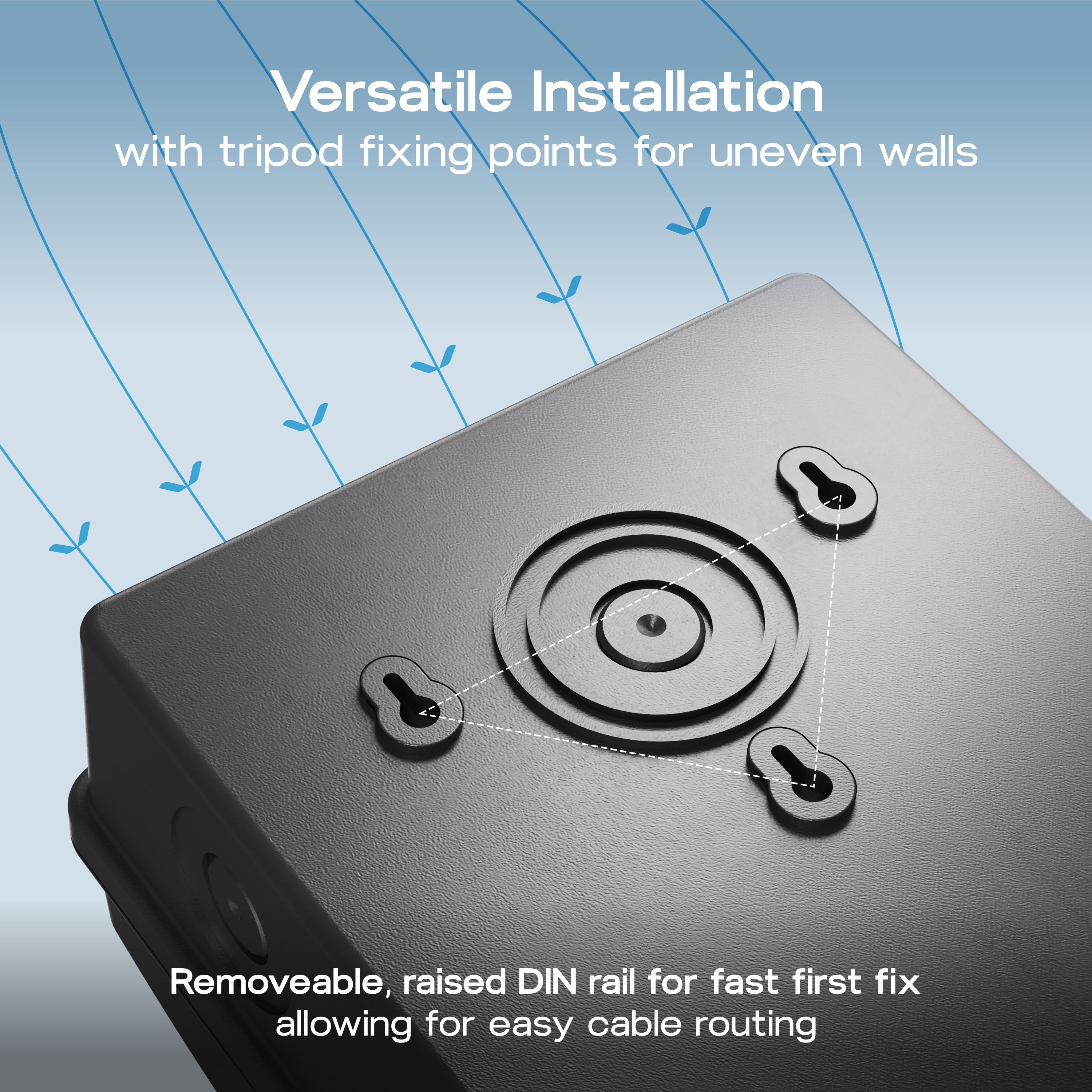

| Number Of Wall Fixing Positions | 4 |
| Fitted Lock | No |
| Installation Method(s) | Surface |
| Spirit Level | No |
| Knockouts | 11 |
| Mounting Type | Surface |
| IP Rating | IP65 |
| Terminal Screw Type | Combi |
| Rated Sensitivity (mA) | 30mA |
| RCD Mechanism Type | Electro/Mechanical |
| Trip Speed (mS) | <0.1s |
| Operating Voltage (V) | 230 |
| Current Rating (A) | 40 |
| Max Load (A) | 40 |
| MCB's | 0 |
| Operating Temperature (C) | -25°C to +40°C |
| Frequency (Hz) | 50 |
