CFEV5AW-01
Sync Energy weatherproof IP65, White, 5 module populated EV kit c/w 40A 30mA RCD Type A, 40A MCB, type 2 SPD

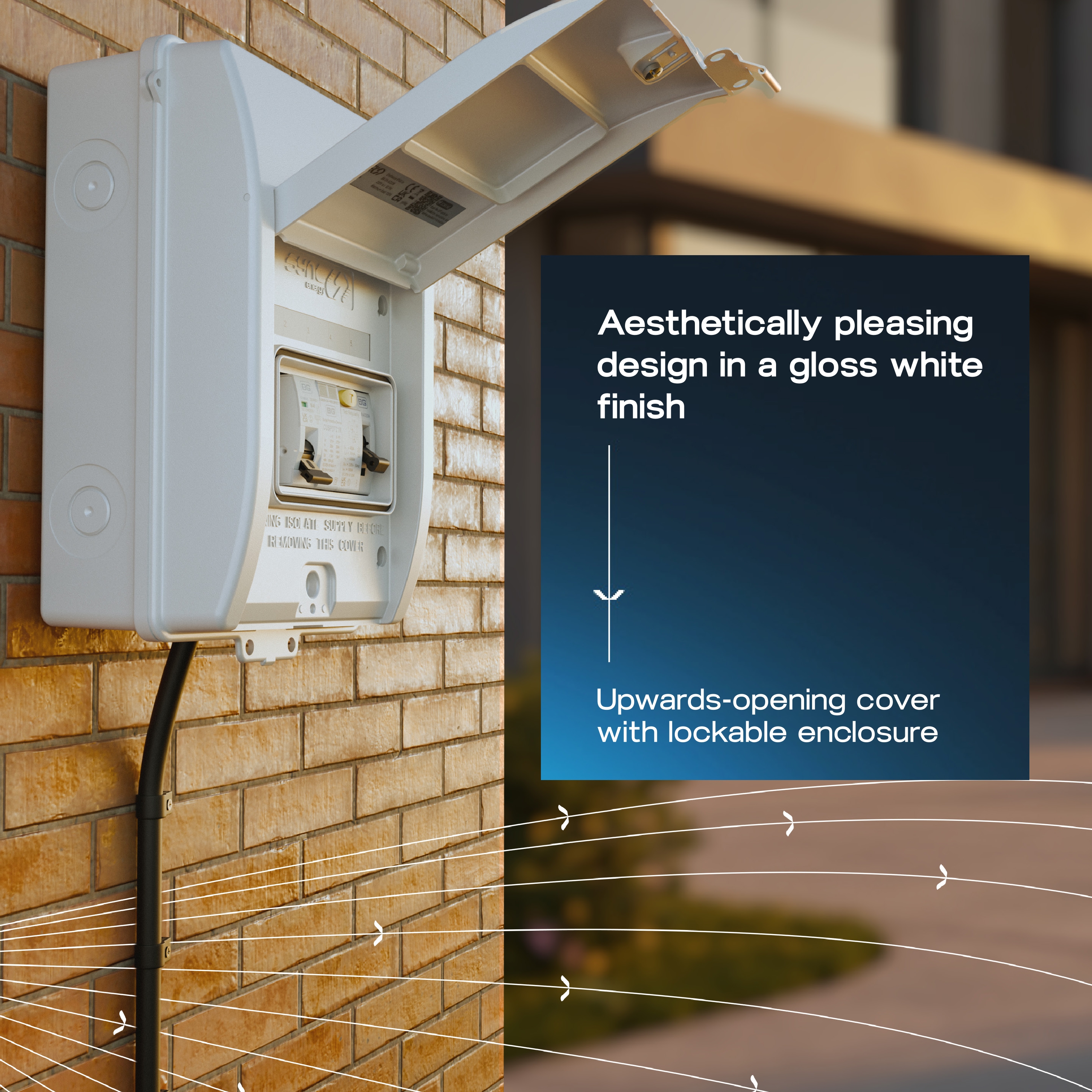

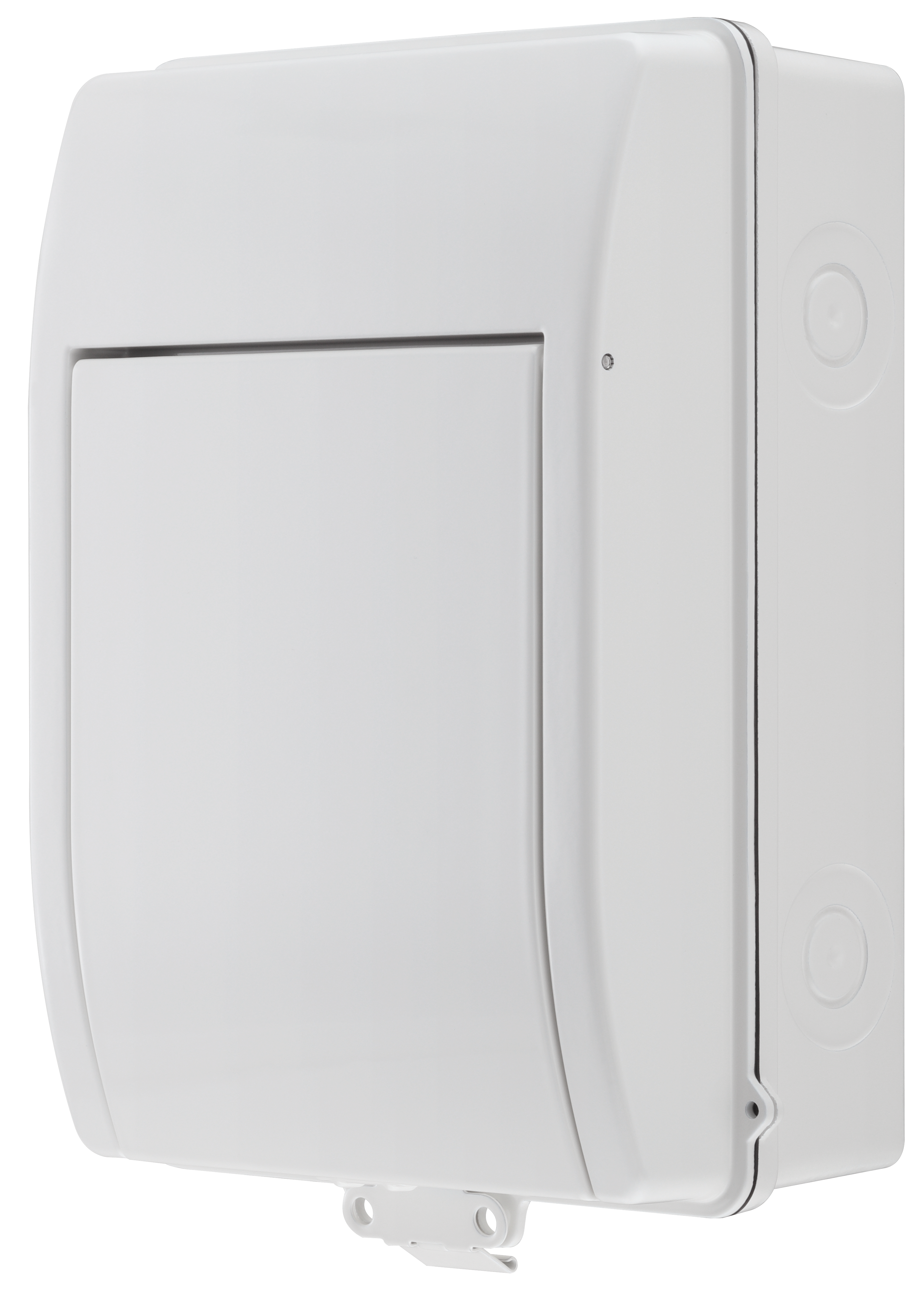

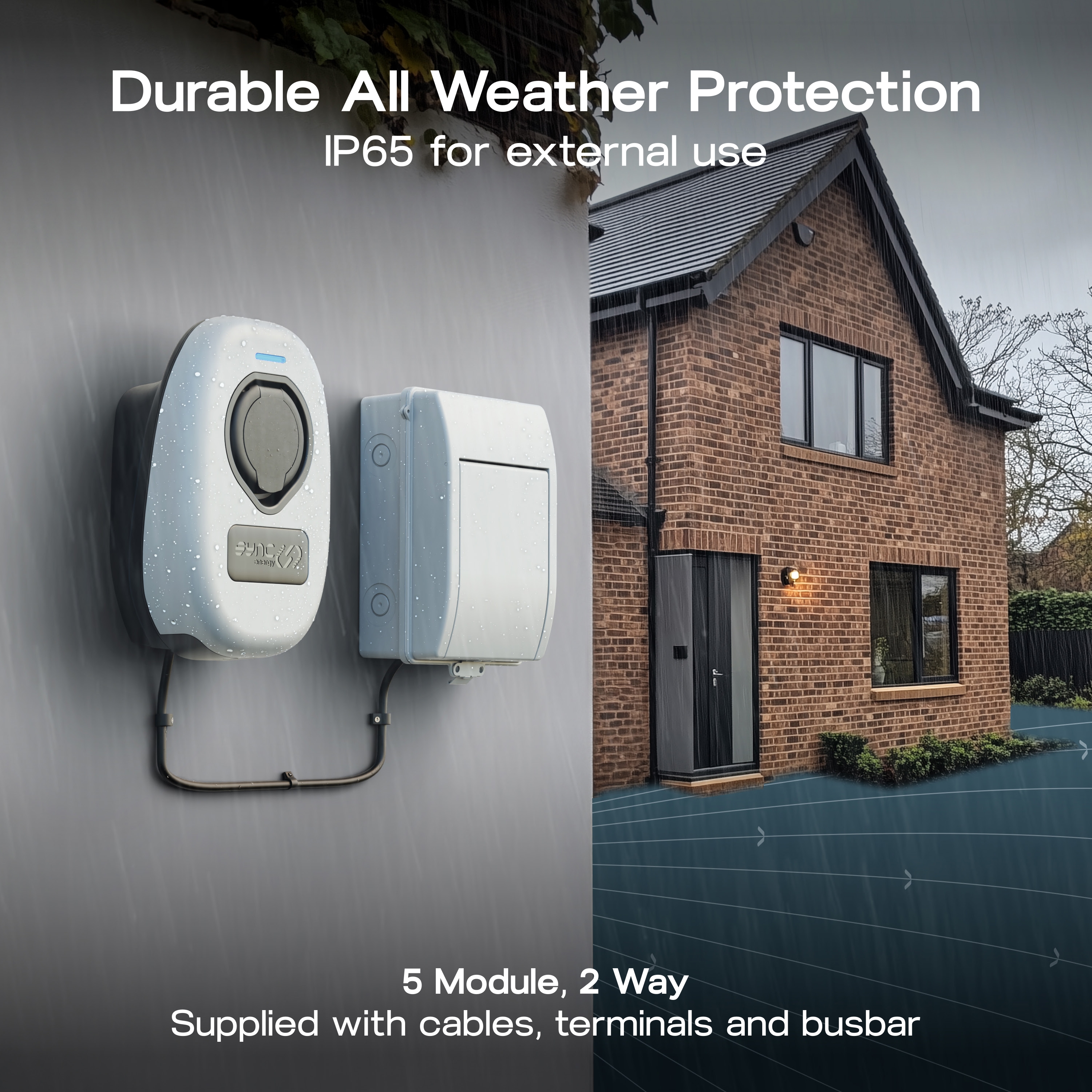

IP65 Weatherproof
Padlock facility

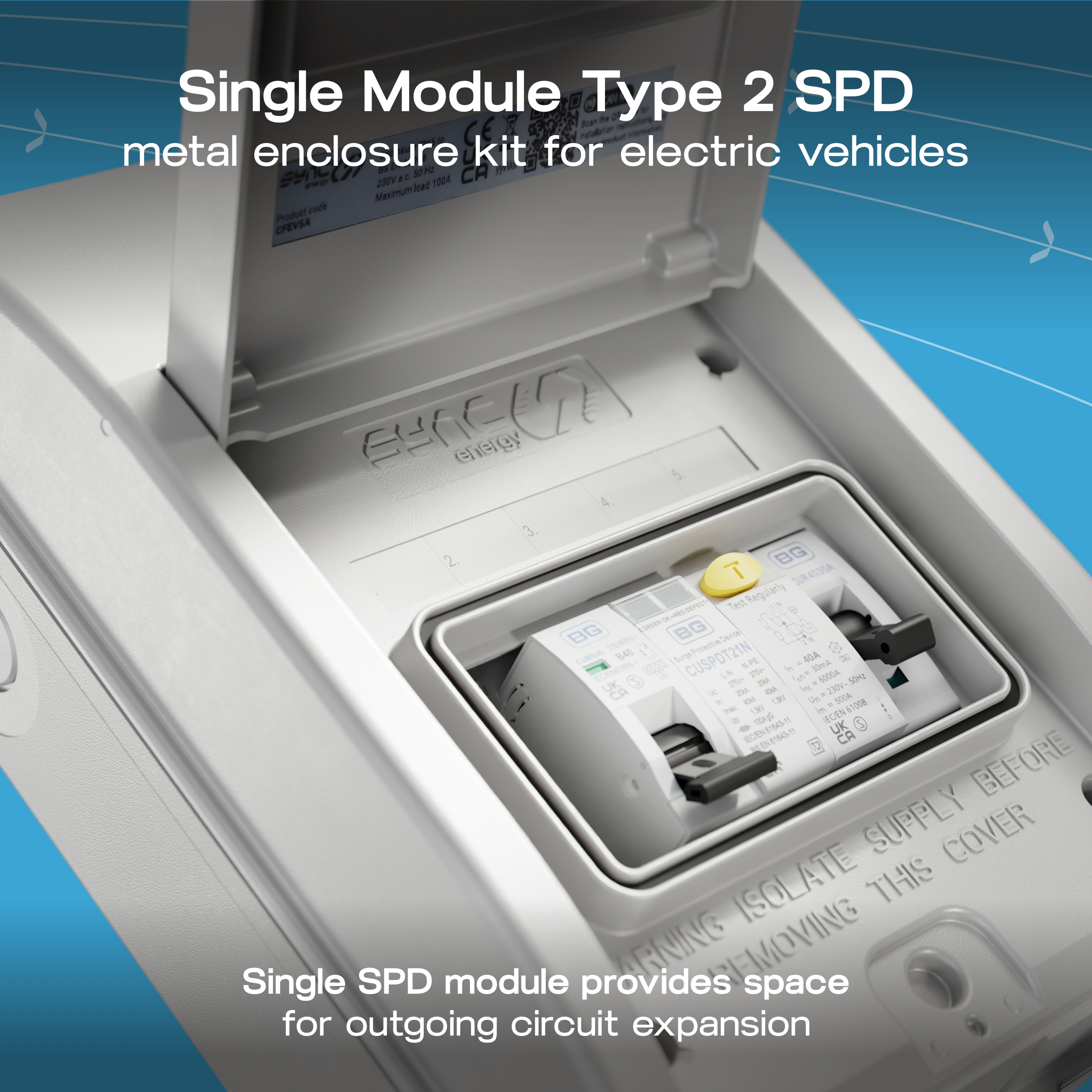

T2 SPD
40A MCB
1 x 40A 30mA Type A RCD

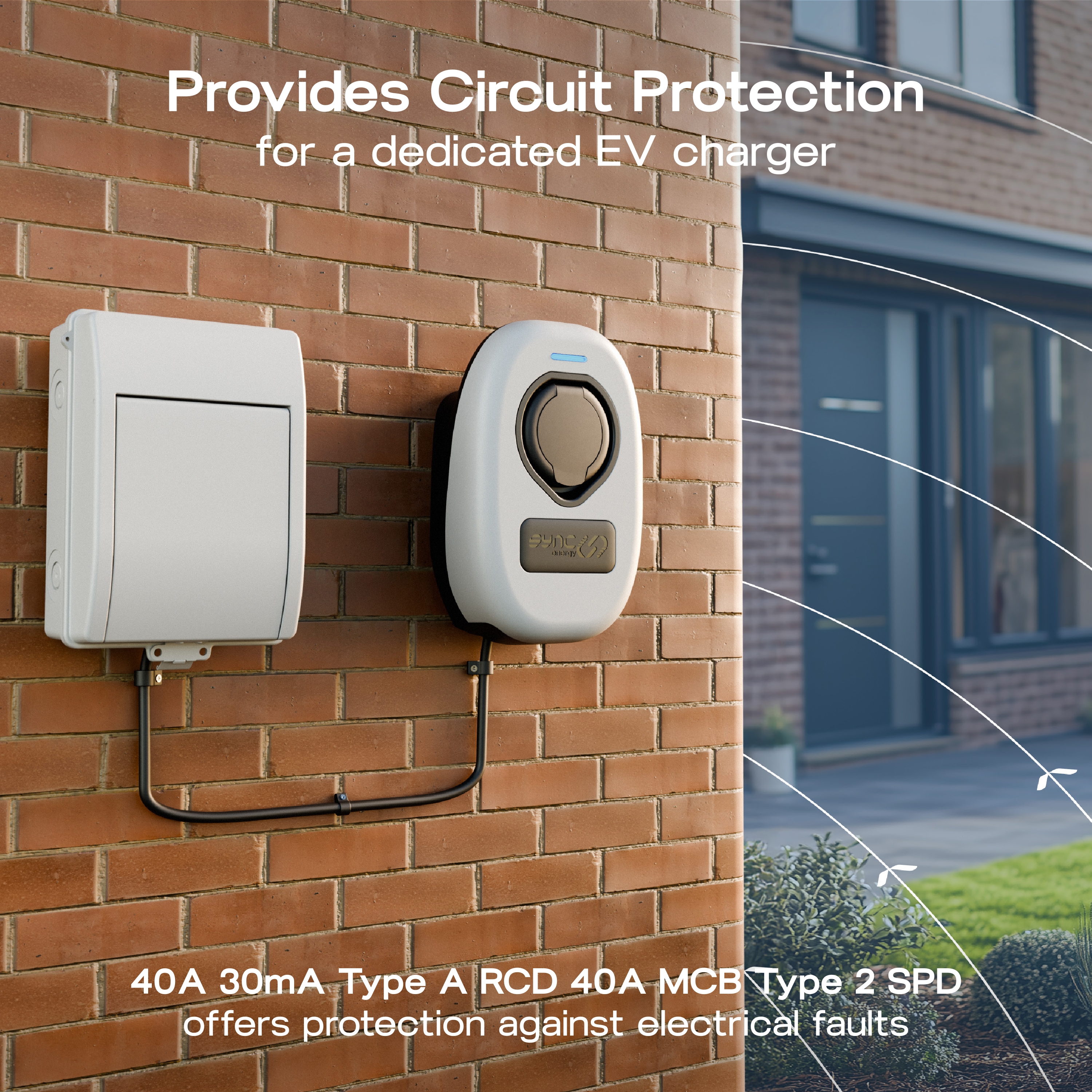

For use when the EV charger supply cable does not have mechanical protection
Easy installation
Backed out and retained terminal screws
All metal construction

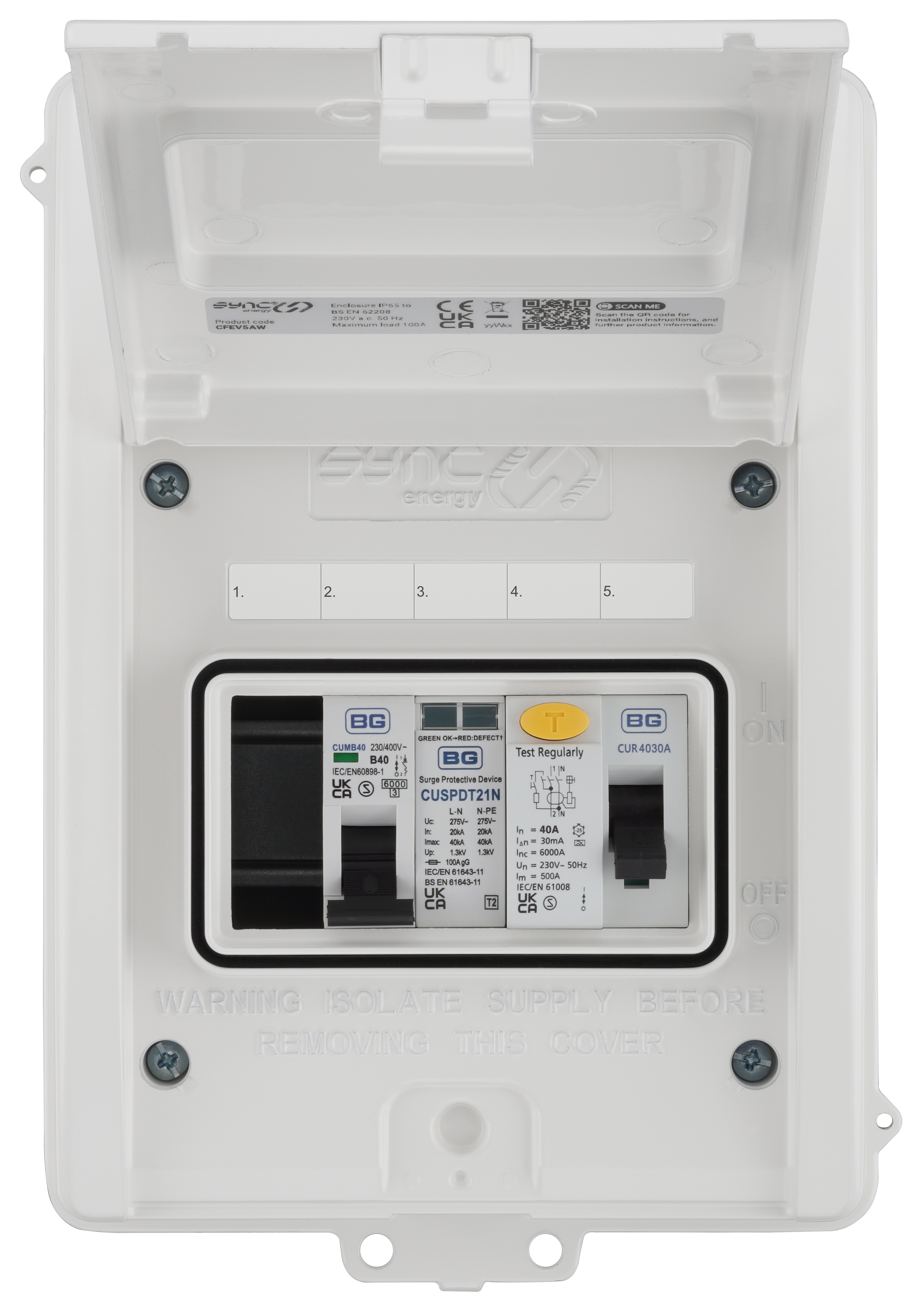

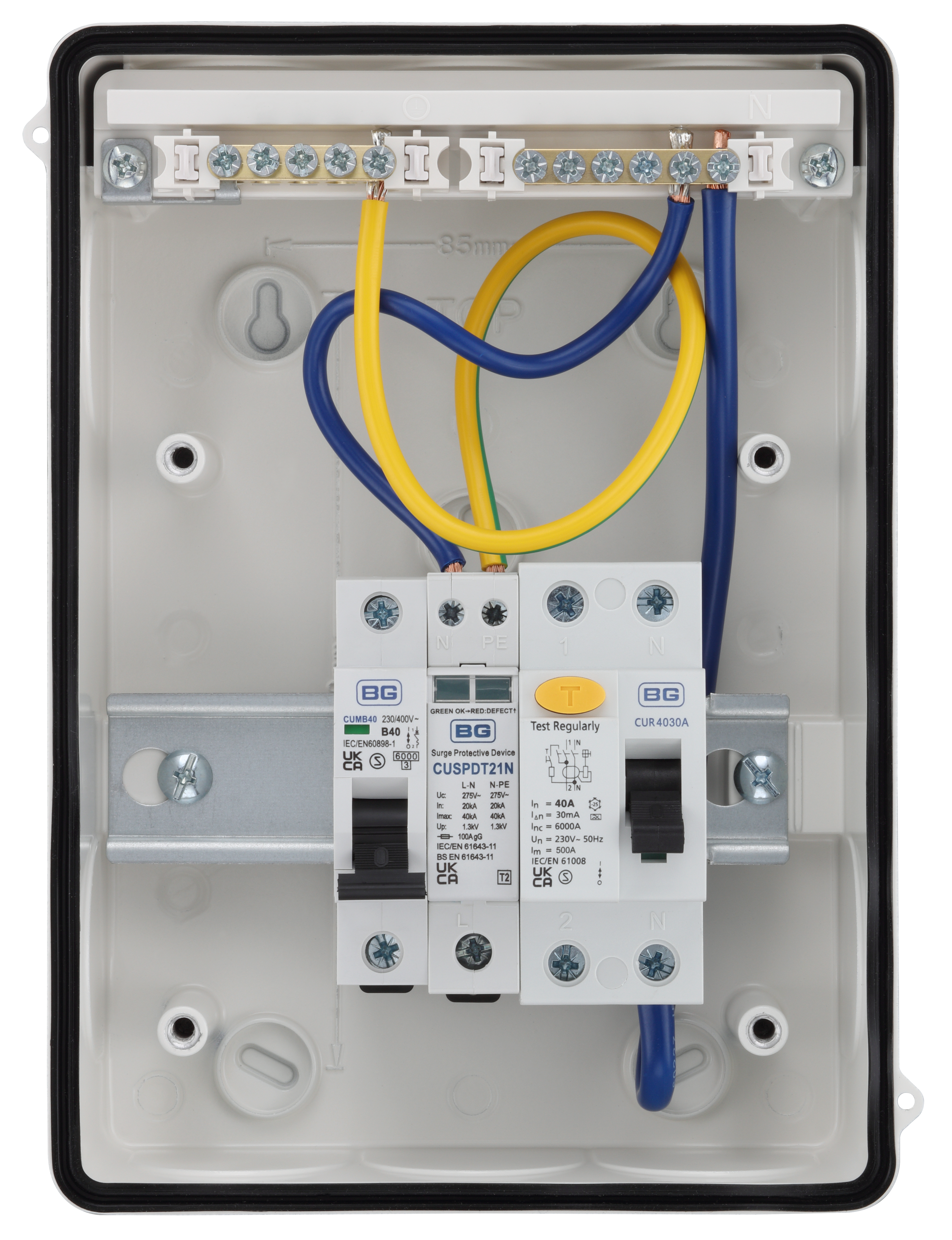

Enclosure kit supplied with devices DIN rail Neutral cable, Neutral and Earth terminals, labels busbar and cover blanks
| Front Plate Material | Cast Aluminium -ADC12 |
| General Colour | White |
| Fixing Screws Supplied | No |
| Modules | 5 |
| Number of Cable Entries | 11 |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Cable Entry Type | Knockout |

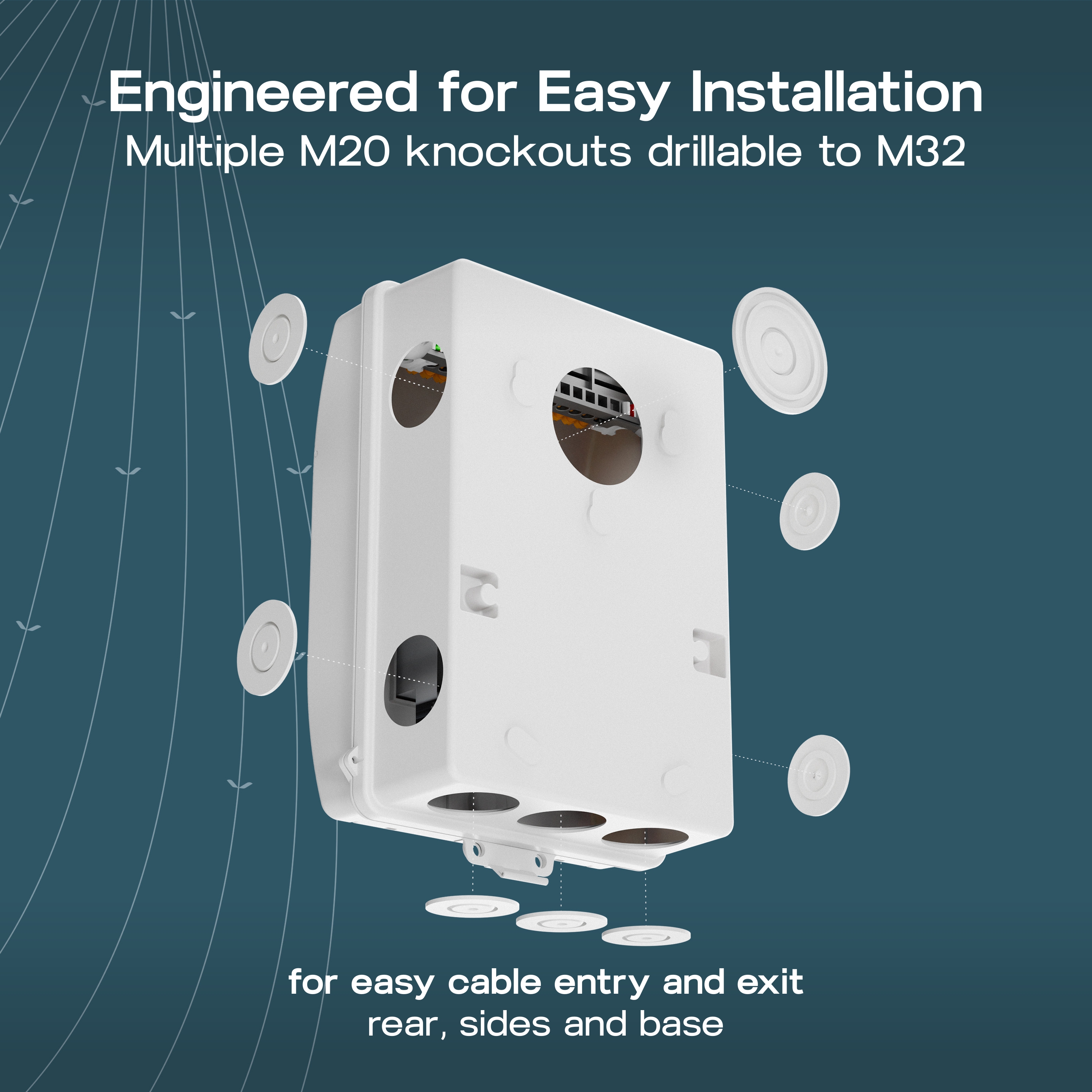

| Details per face (Size/number) | 6 - 3 x M20-32 2 x M20-32 (side) 1 x M20-32 (Base) |

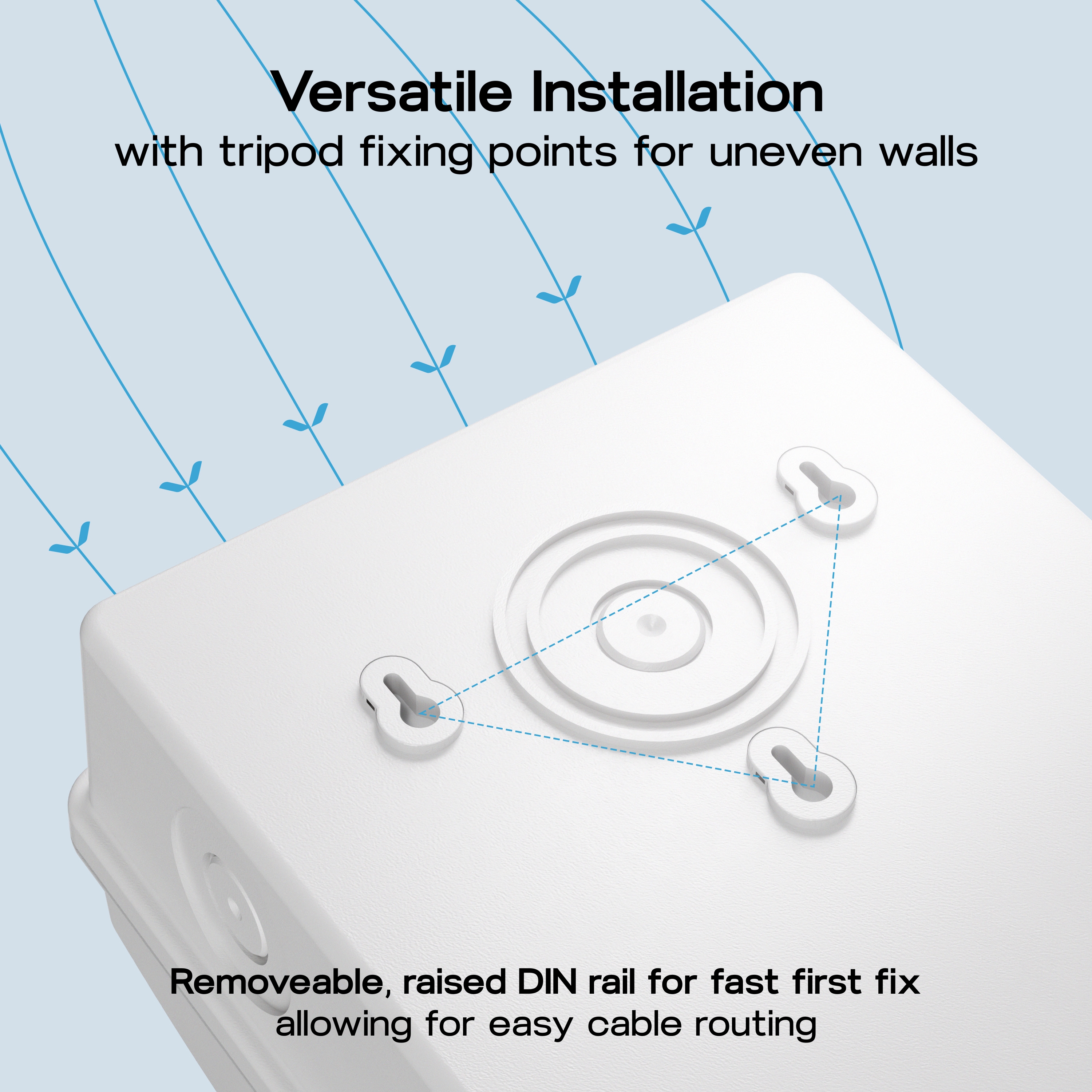

| Number Of Wall Fixing Positions | 4 |
| Fitted Lock | No |
| Installation Method(s) | Surface |
| Spirit Level | No |
| Knockouts | 11 |
| Mounting Type | Surface |
| IP Rating | IP65 |
| Terminal Screw Type | Combi |
| Rated Sensitivity (mA) | 30mA |
| RCD Mechanism Type | Electro/Mechanical |
| Trip Speed (mS) | <0.1s |
| Operating Voltage (V) | 230 |
| Current Rating (A) | 40 |
| Max Load (A) | 40 |
| MCB's | 1 |
| Operating Temperature (C) | -25°C to +40°C |
| Frequency (Hz) | 50 |
| Warranty (years) | 10 |
