871-01

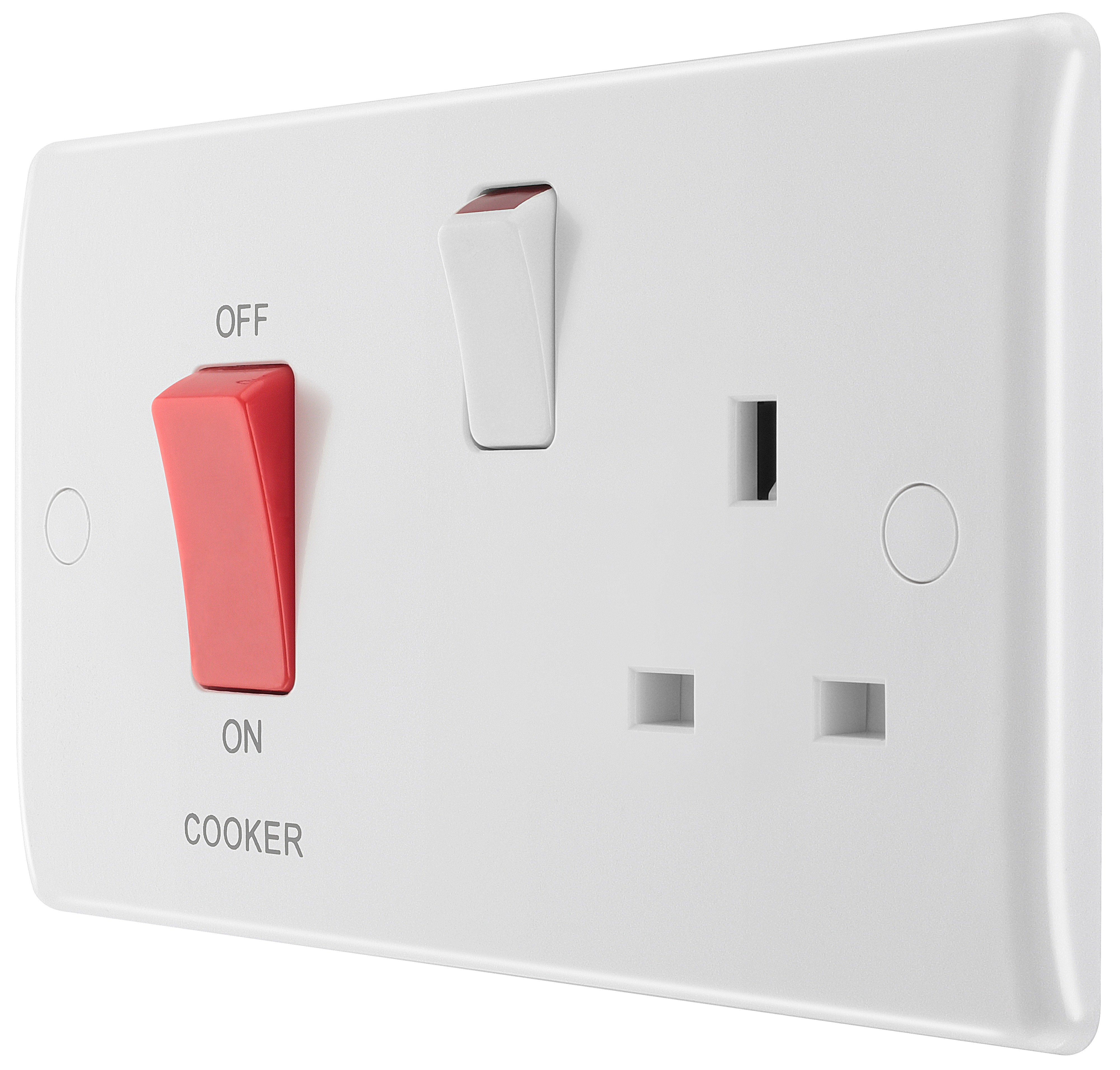

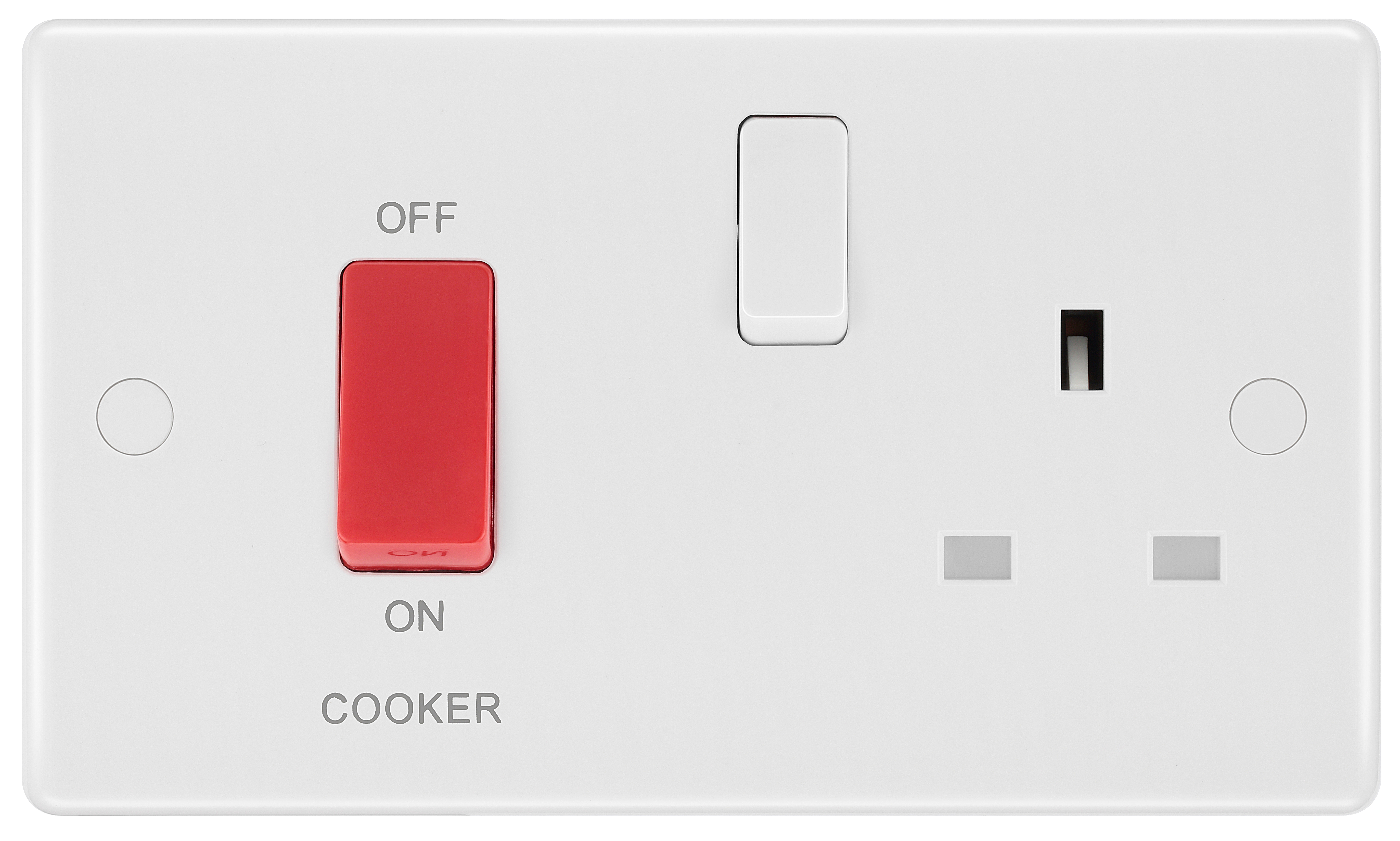

BG Nexus Series White Moulded 45A Cooker Control Unit With 13A Socket
45A and 13A Rated
Easy to install supplied with fixing screws and installation instructions
13A socket for additional appliance outlet
Double Pole switching for the peace of mind of a safer installation
Screw covers for sleek appearance

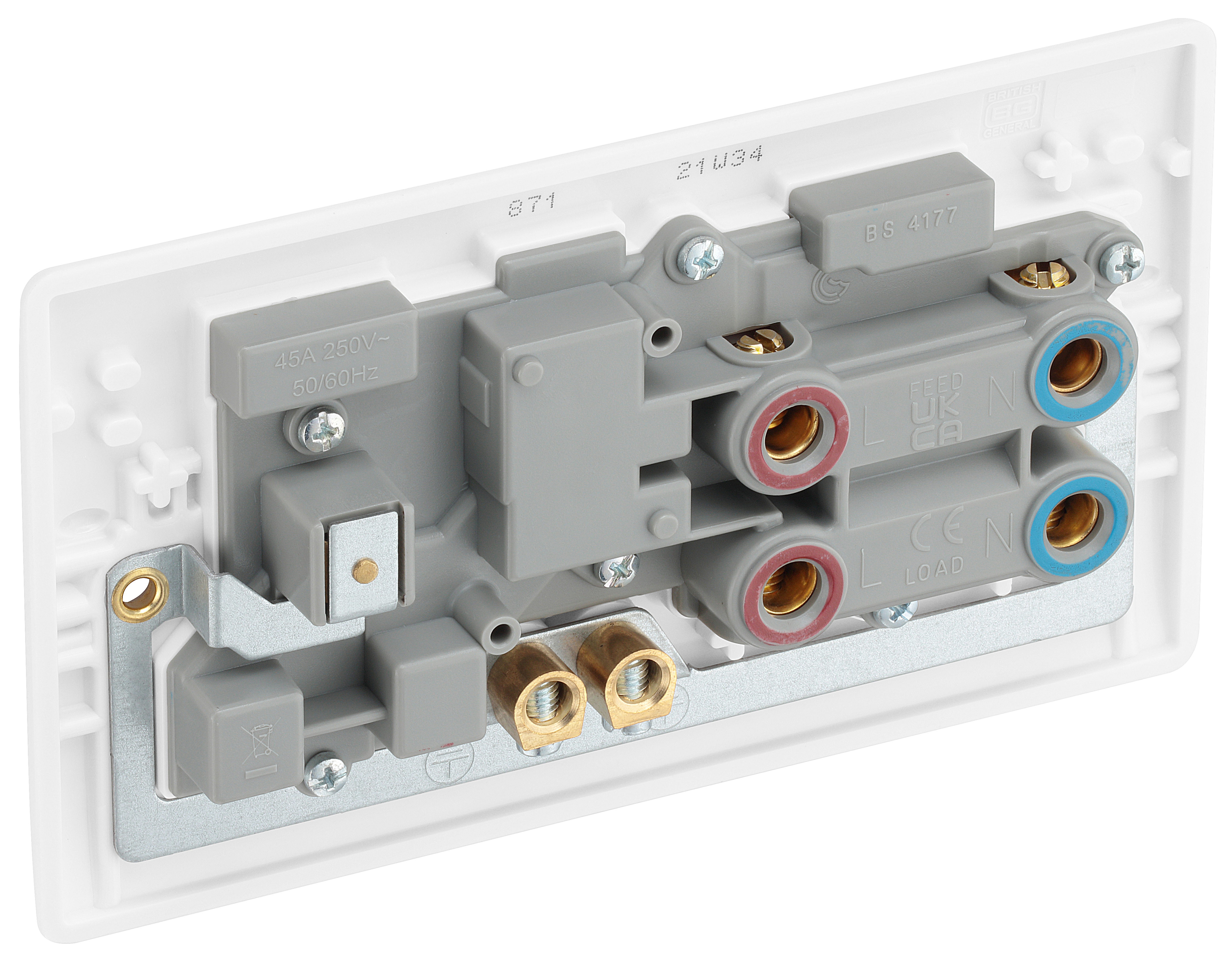

Twin earth fitted as standard to allow a double earth facility for installations requiring high integrity protective connection Ref. BS 7671:2008
Minimum mounting box depth 47mm
Manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
ASTA Licence number 1012
ASTA Licence number 1012
| General Colour | White |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Main Power Indicator | No |
| Minimum Box Depth (mm) | 47 |
| Terminal Capacity (mm²) | 4 x 4mm² |
| Front Plate Insert Colour | Not Applicable |
| Anti-microbial Property | Yes |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled terminals |
| Terminals with Colour Coding Print | Yes |
| Number of Sockets | 1 |
| Number of Switches | 2 |
| Screw Caps | Yes |
| Switch Type (Ways & Poles) | Double Pole |
| Fixing Centres (mm) | W-120.6 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 30 |
