3000x3000 20241028
PackageWarranty 30
ItemAntiMicrobial Yes
ItemMinimumboxdepth 47

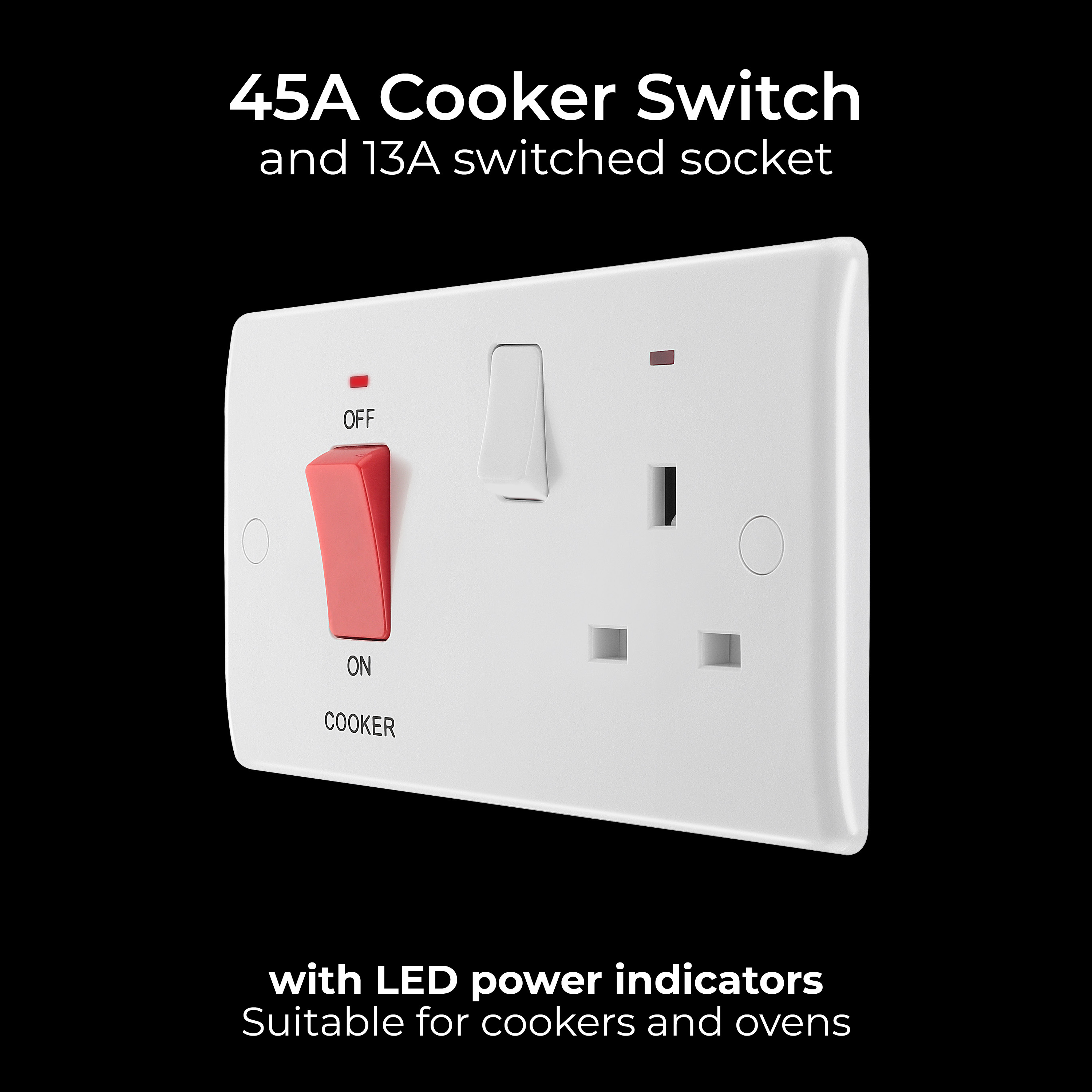

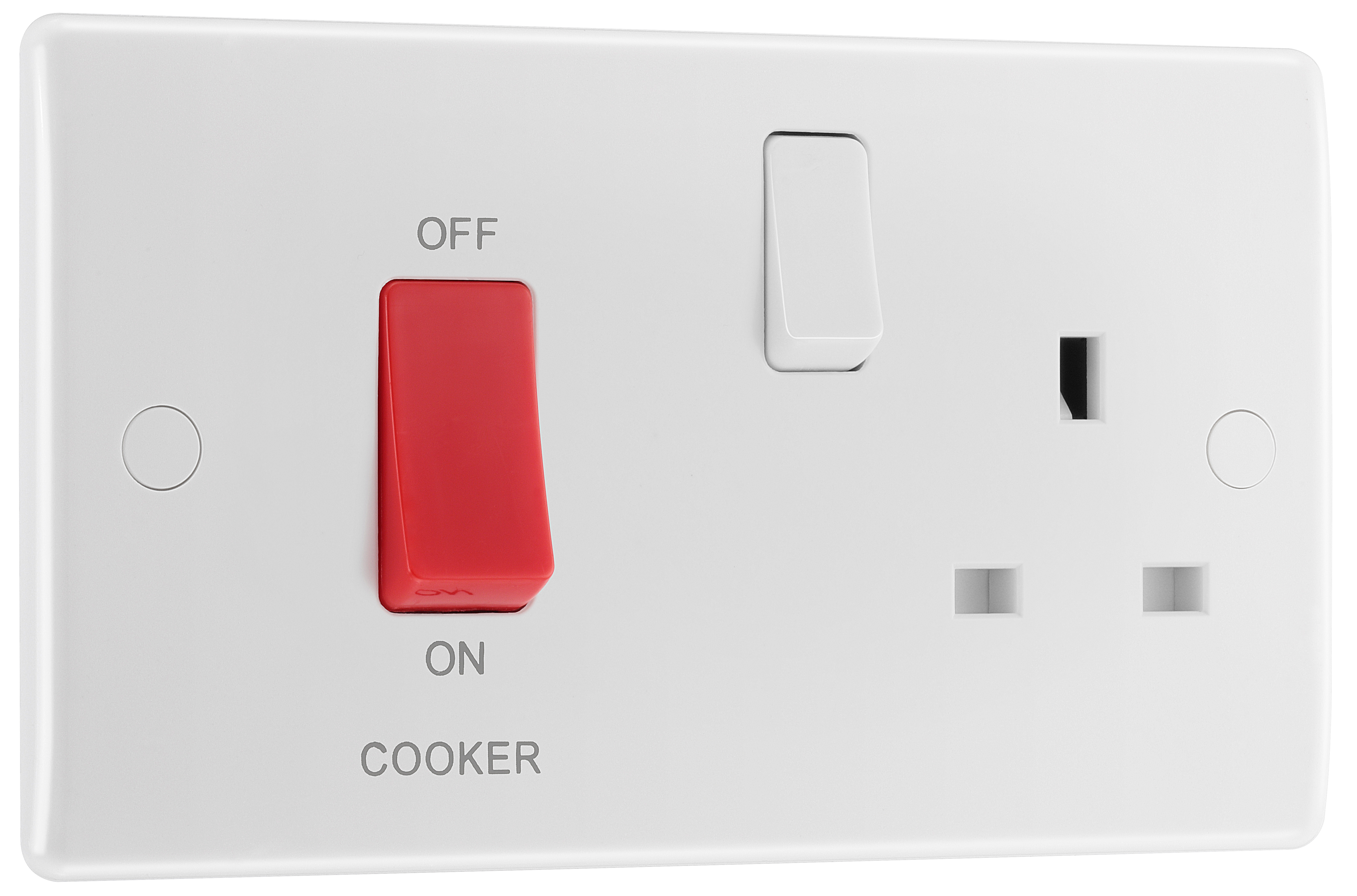

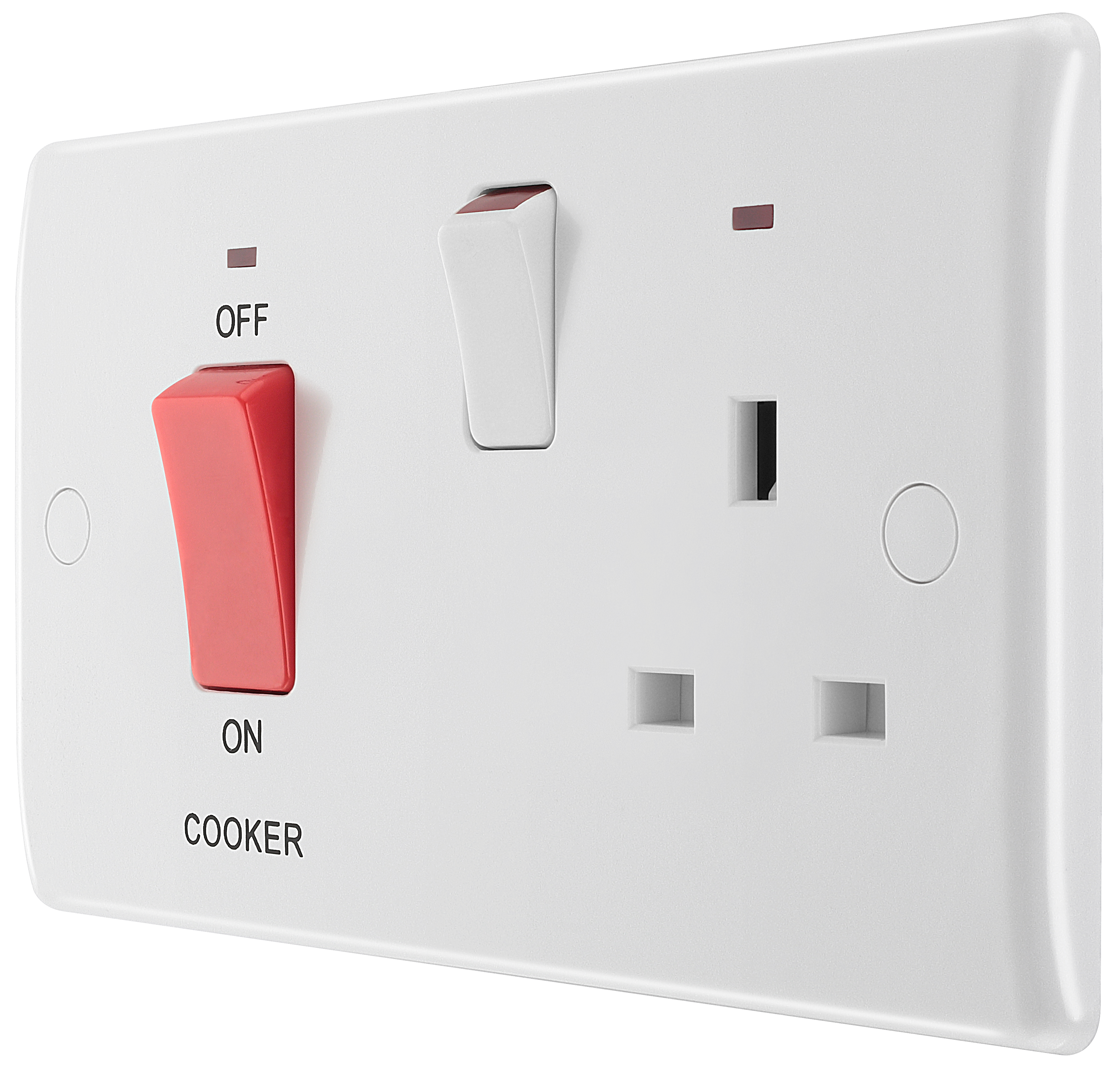

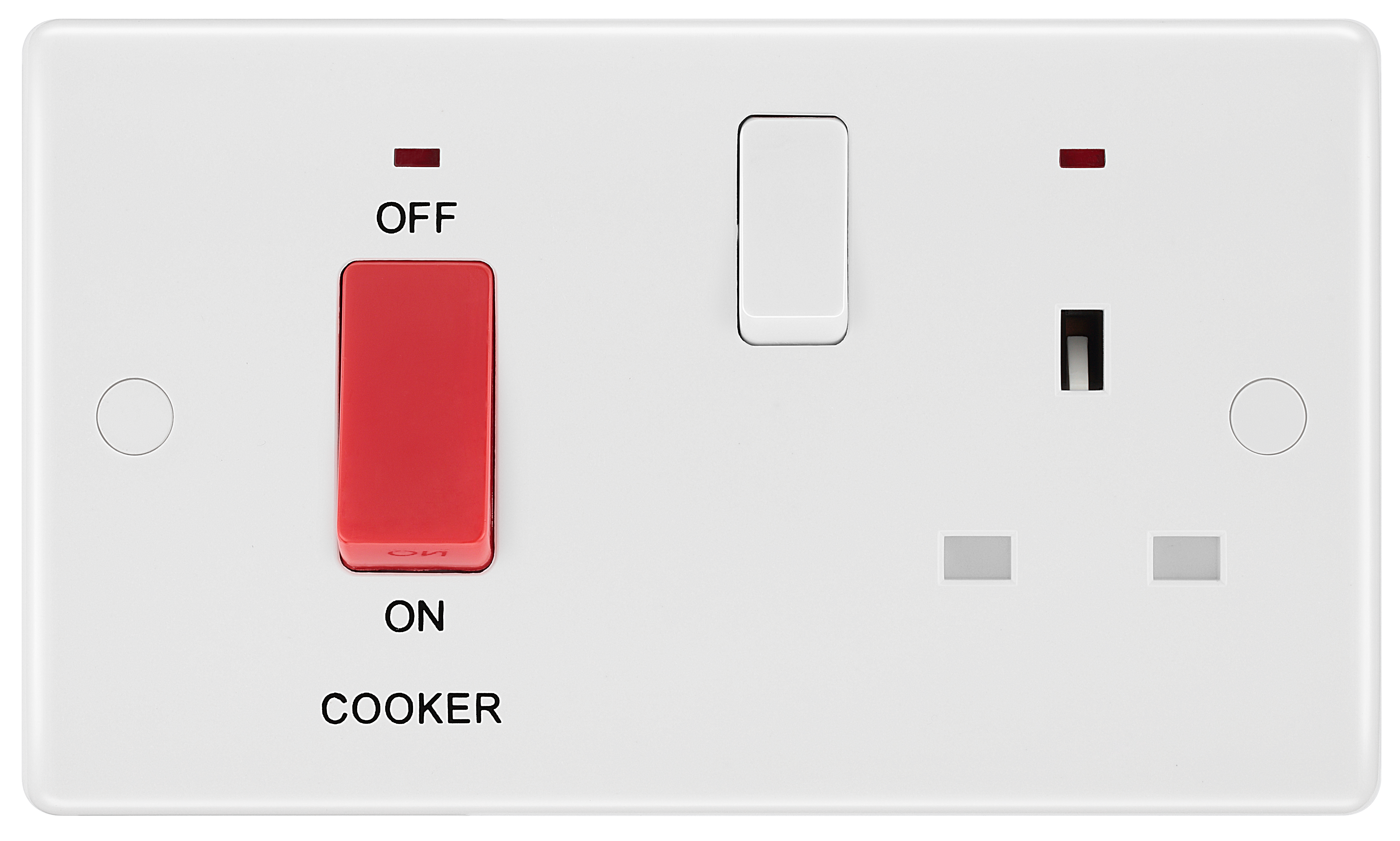

45A and 13A Rated

Easy to install supplied with fixing screws and installation instructions

13A socket for additional appliance outlet

Double Pole switching for the peace of mind of a safer installation

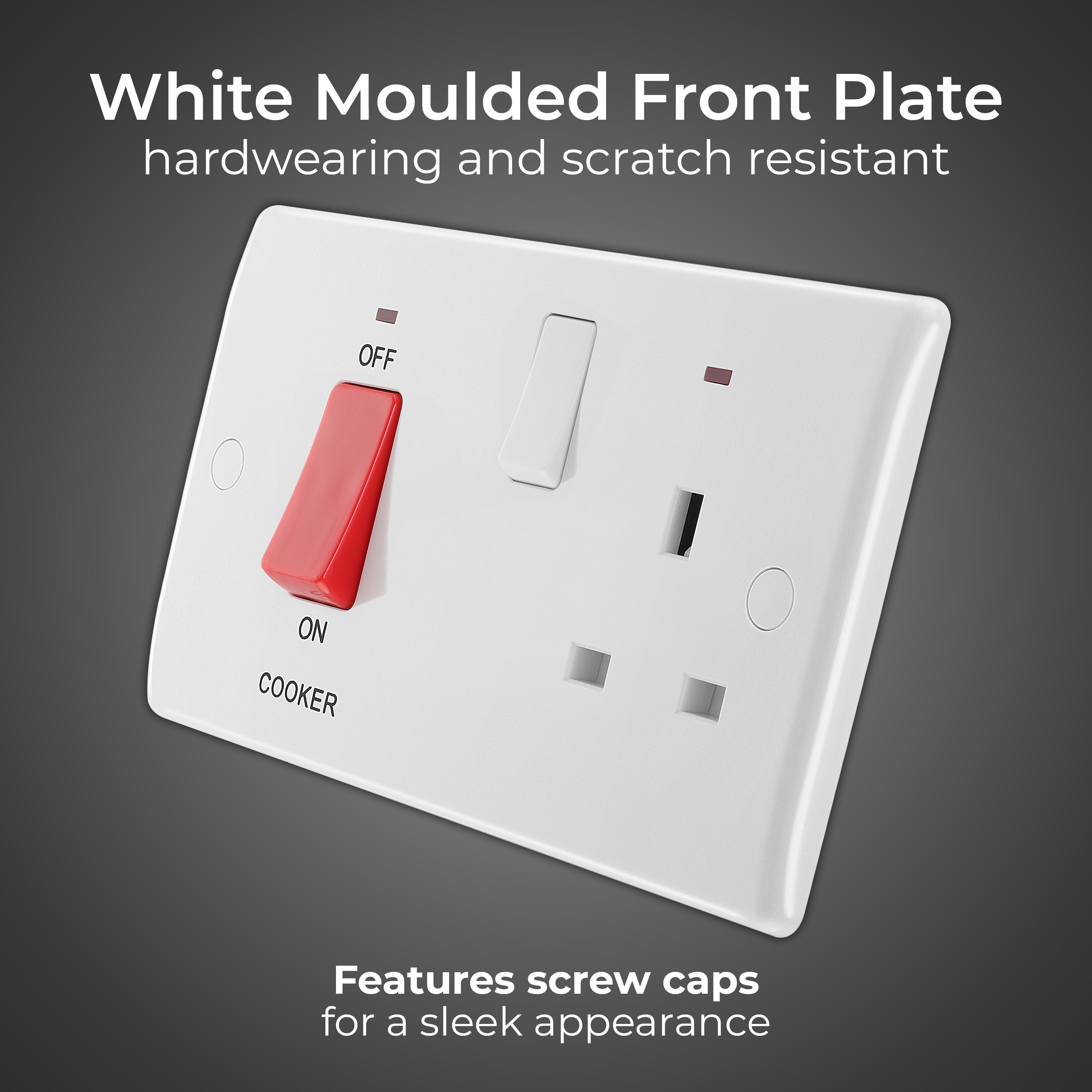

Screw covers for sleek appearance

LED power Indicator reliable and low power

Twin earth fitted as standard to allow a double earth facility for installations requiring high integrity protective connection Ref. BS 7671:2008

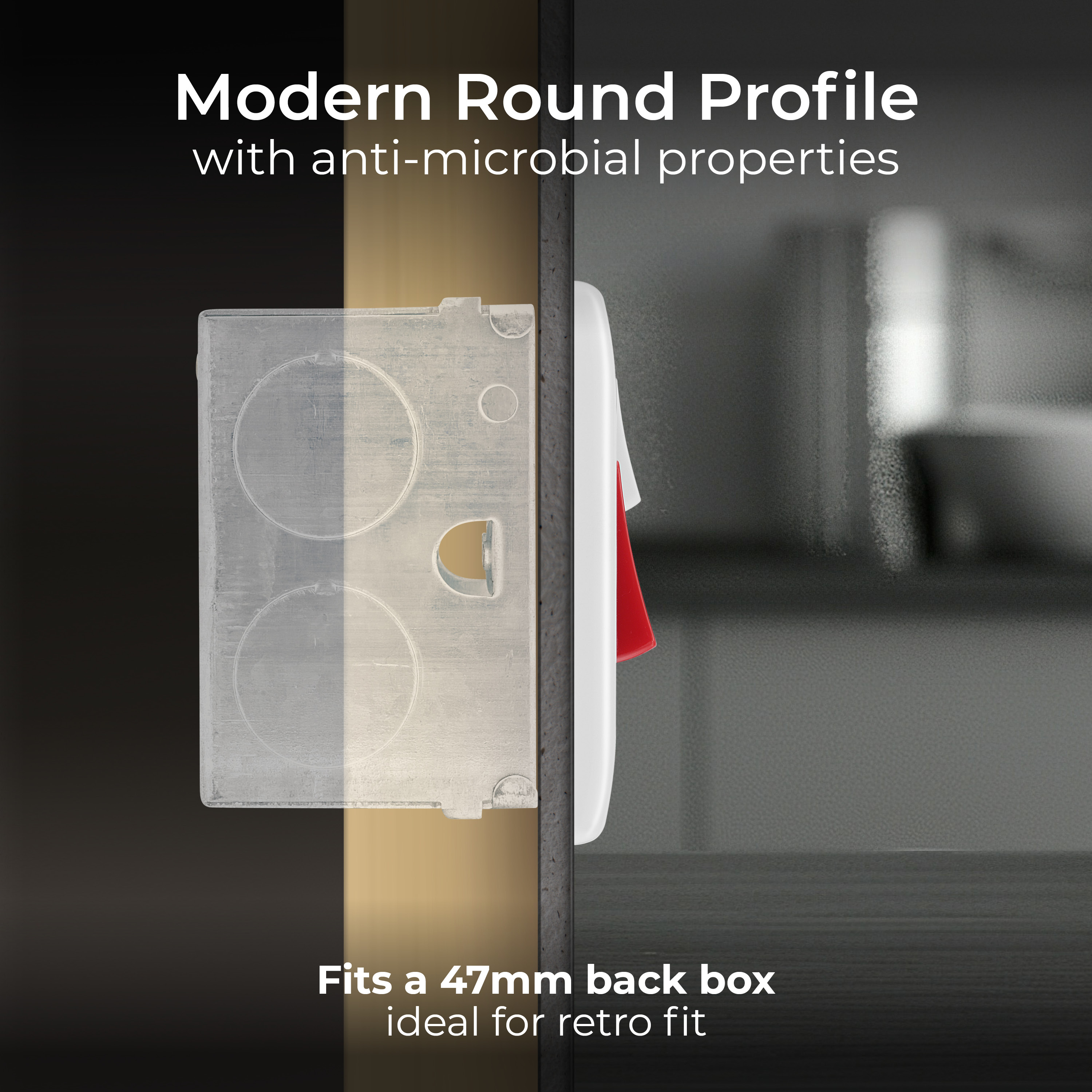

Minimum mounting box depth 47mm

Manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria

Manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria

0
General Colour White
Captive Terminal Screws Yes
Backed-out Terminal Screws Yes
Main Power Indicator Yes
Minimum Box Depth (mm) 47
Terminal Capacity (mm²) 4 x 4mm²
Front Plate Insert Colour Not Applicable
Anti-microbial Property Yes
Fixing Screws Supplied Yes
Number of Earth Terminals 2

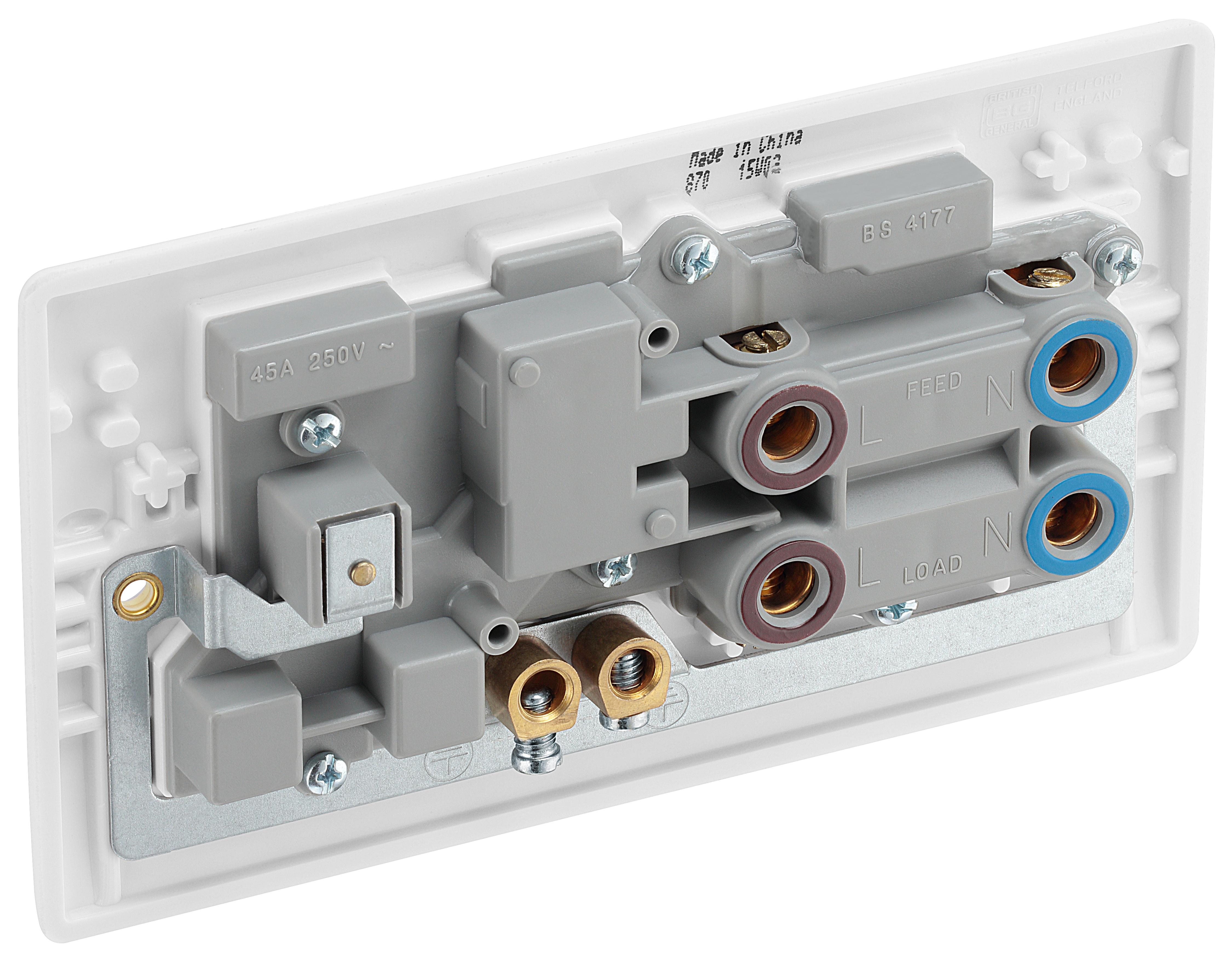

Terminal Arrangement Angled terminals

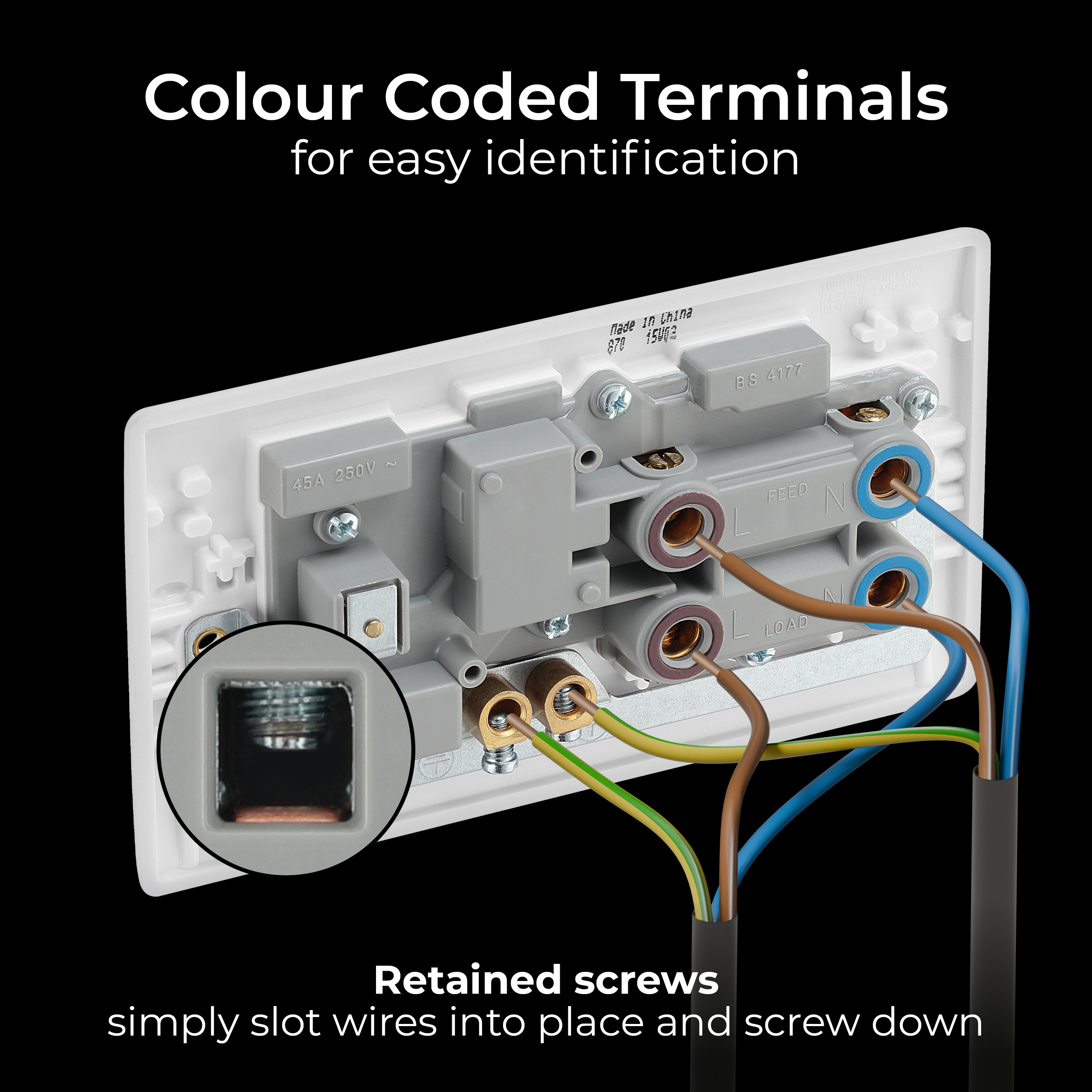

Terminals with Colour Coding Print Yes
Number of Sockets 1
Number of Switches 2
Screw Caps Yes
Switch Type (Ways & Poles) Double Pole
Fixing Centres (mm) W-120.6
Operating Voltage (V) 220-240
Warranty (years) 30

Technical Line Drawing
