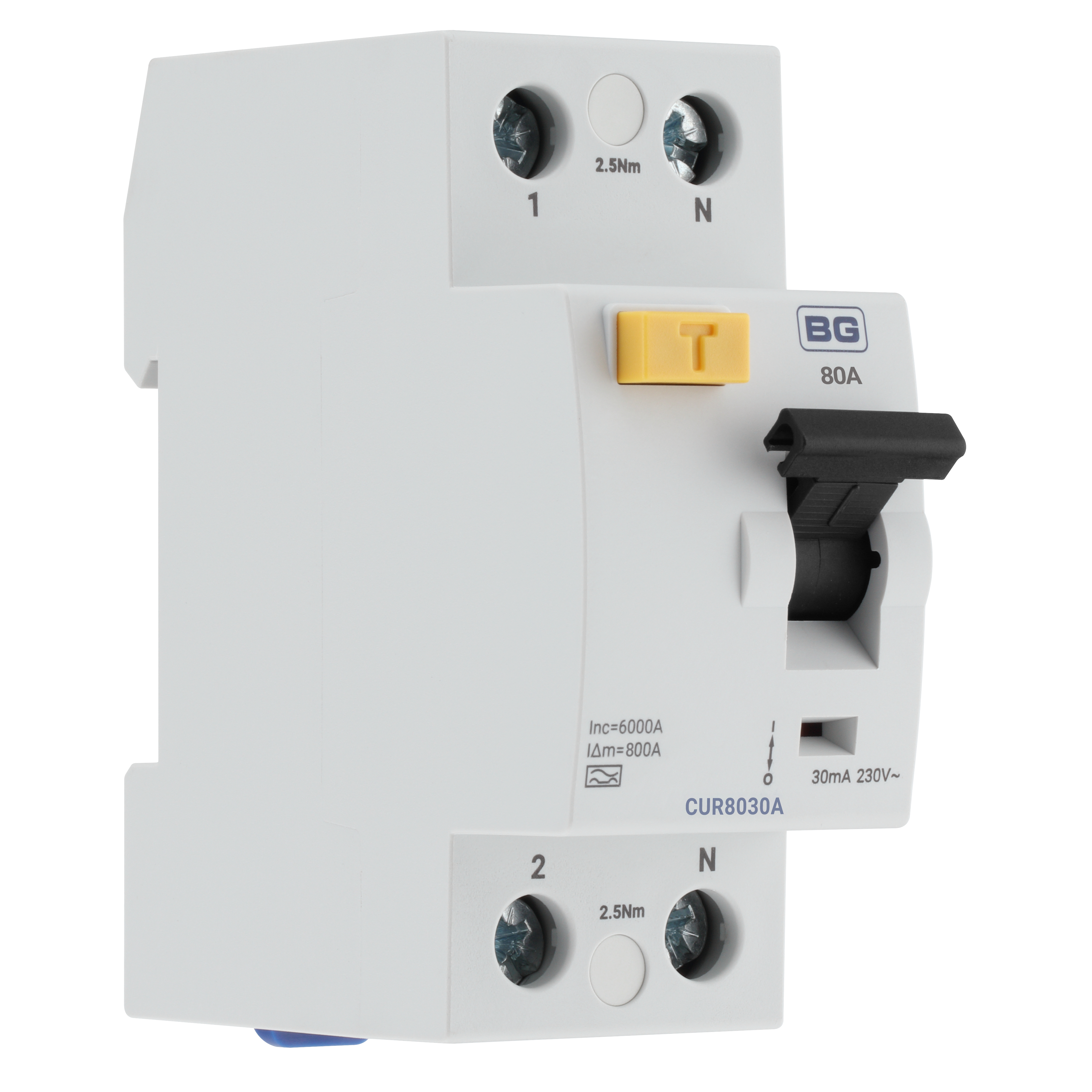

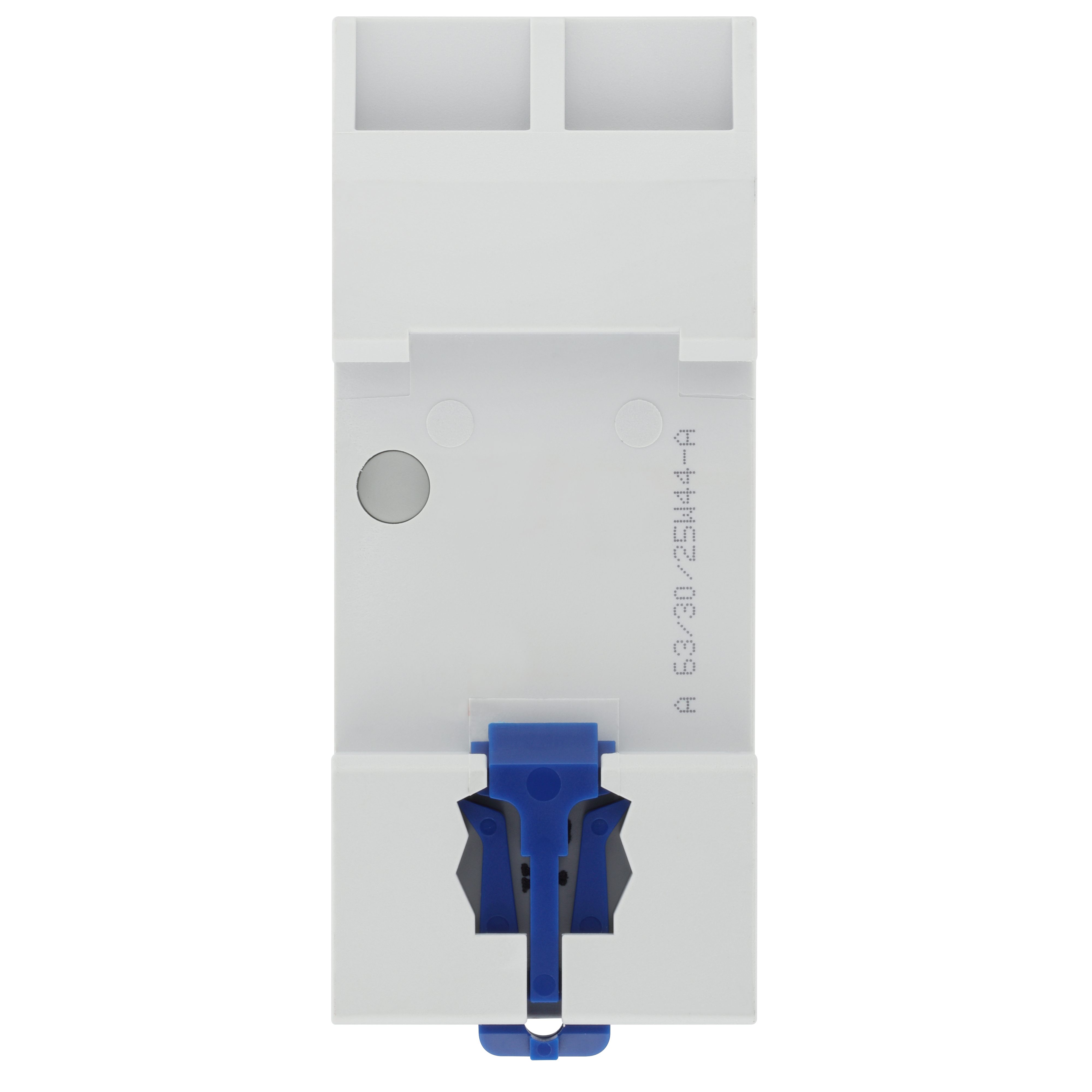

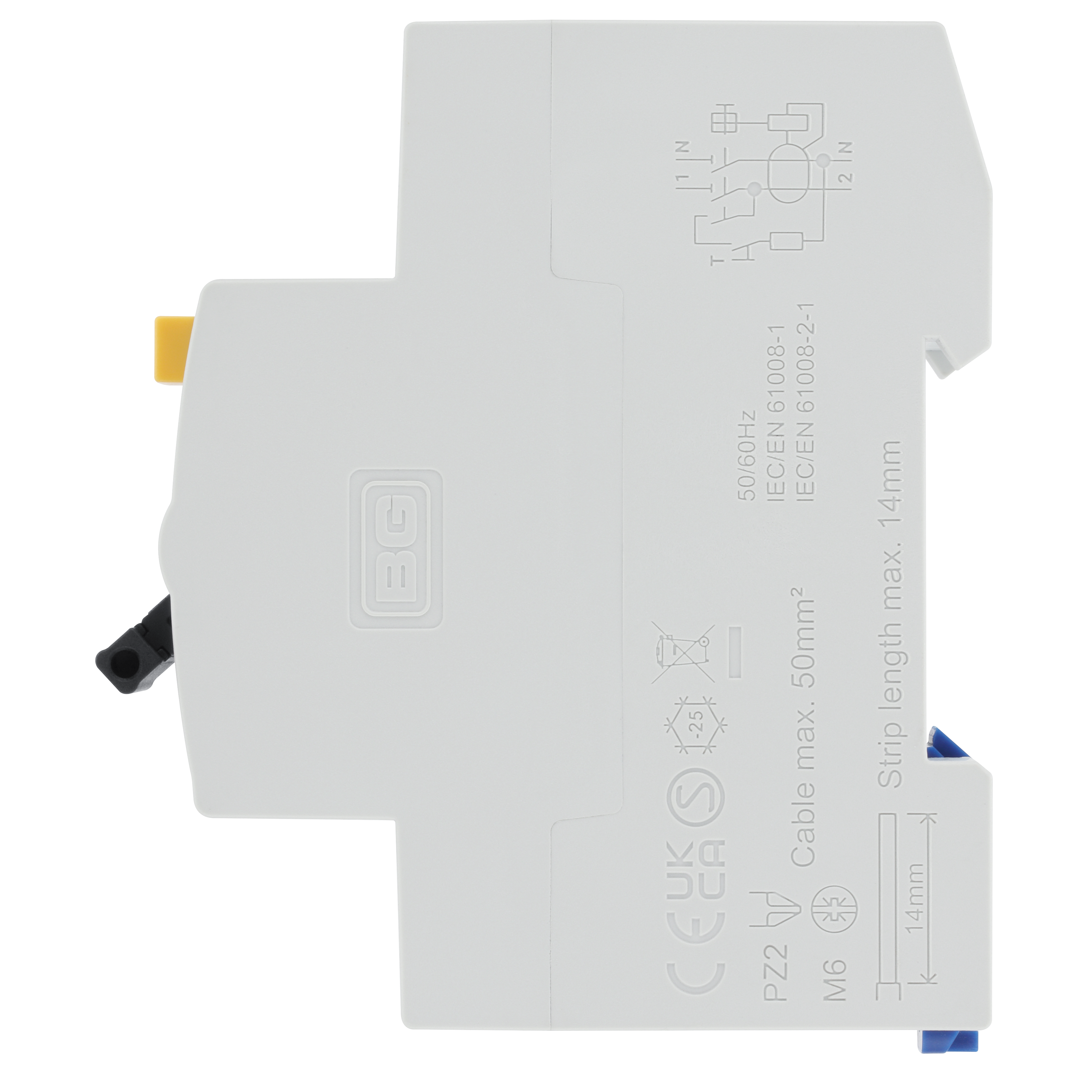

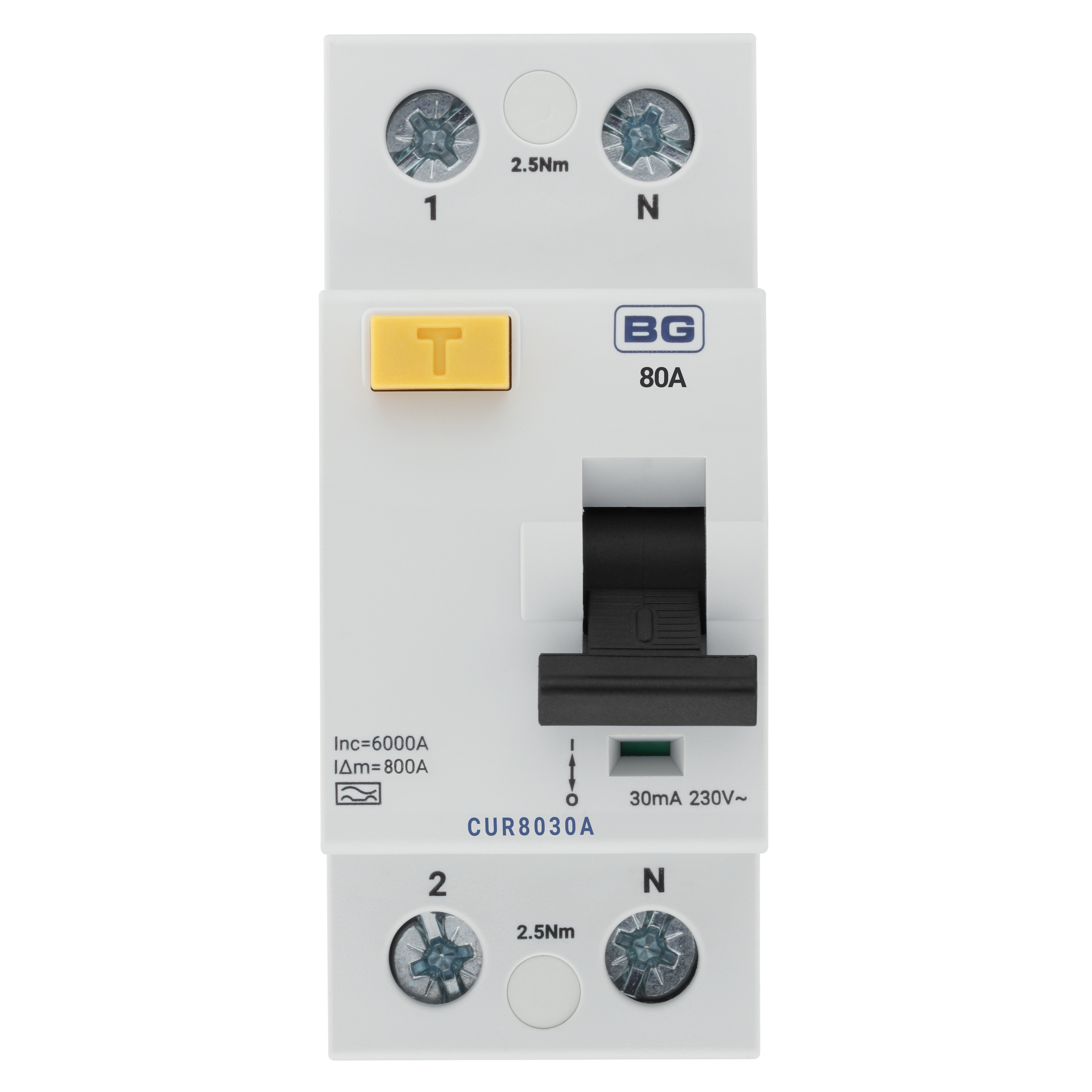

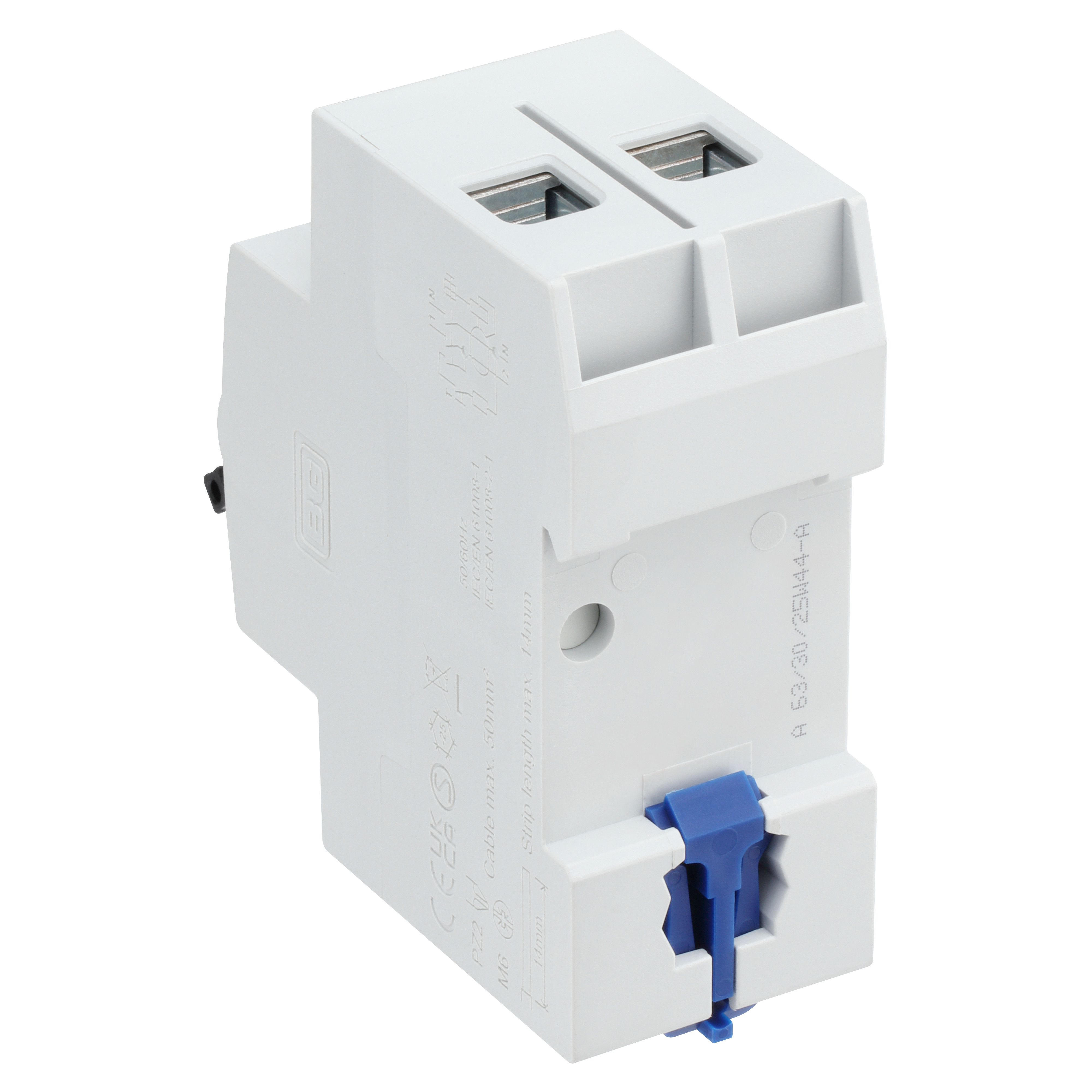

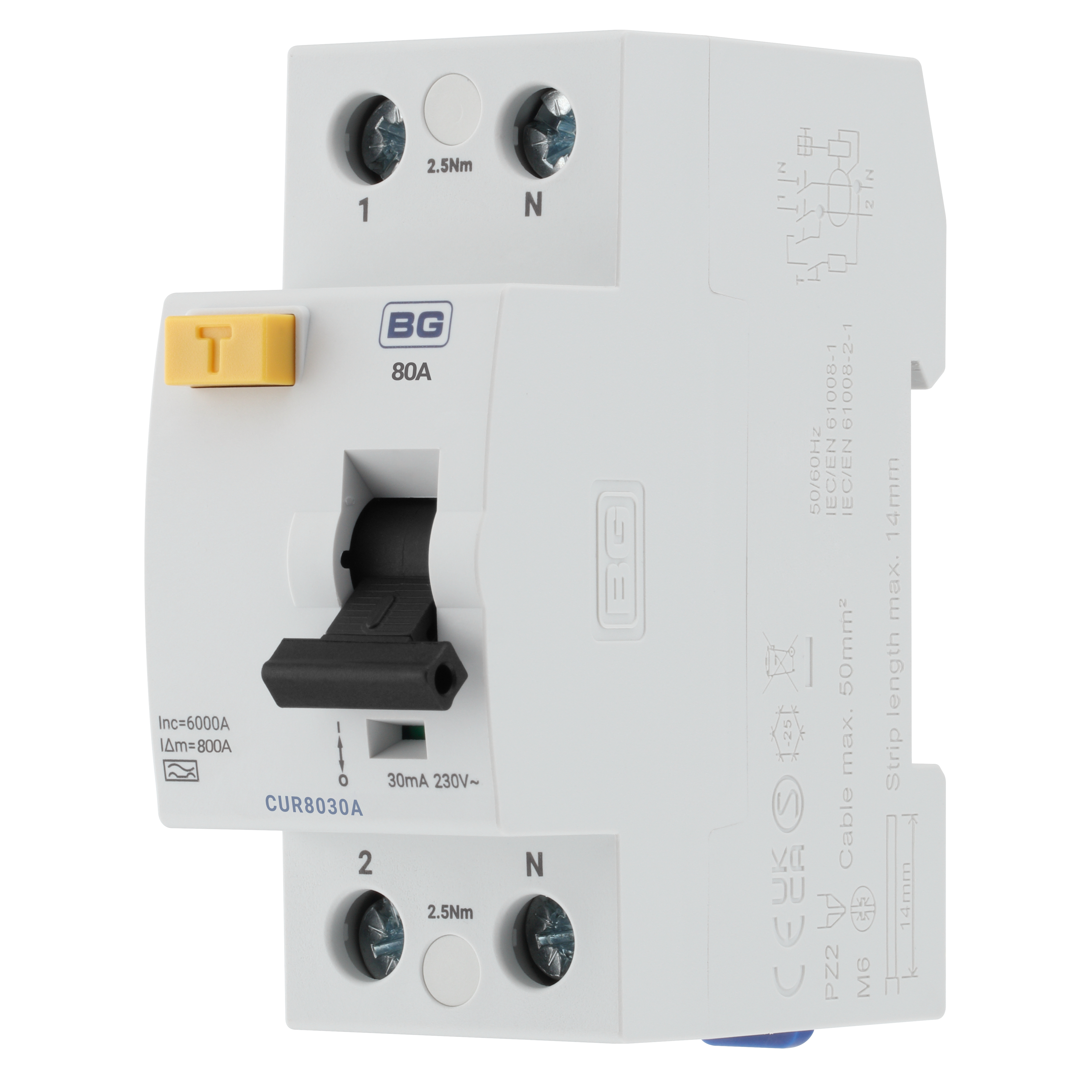

CUR8030A-02
Bidirectional 80A RCD Type A double pole 30mA 2 module
30mA Earth Leakage Protection
Type A RCD
Type A
2 Module
Bidirectional
DIN-Rail Mounted
80A Rated
Double Pole
| General Colour | Light Grey |
| Timer Override | Not Applicable |
| Timer Type | N/A |
| Endurance Operations - Electrical | 1000 |
| Endurance Operations - Mechanical | 2000 |
| Response Time (nS) | 0 |
| Surge Rating (kV) | N/A |
| Surge Uc | 0 |
| Surge Uoc | N/A |
| Surge Up | N/A |
| Rated Sensitivity (mA) | 30mA |
| RCD Mechanism Type | Electro/Mechanical |
| Trip Speed (mS) | <0.1s |
| RCD Type | Type A |
| Devices | RCD |
| Operating Voltage (V) | 240 |
| Current Rating (A) | 80 |
| Operating Temperature (°C) | -5 to +40 |
| Rated Trip Current (mA) | N/A |
| Switch State | On/Off |
| Surge Protection | No |
| Frequency (Hz) | 50 |
