CUR10030BHP-01
Bidirectional 100A RCD Type B double pole 30mA 2 module - heat pump specification

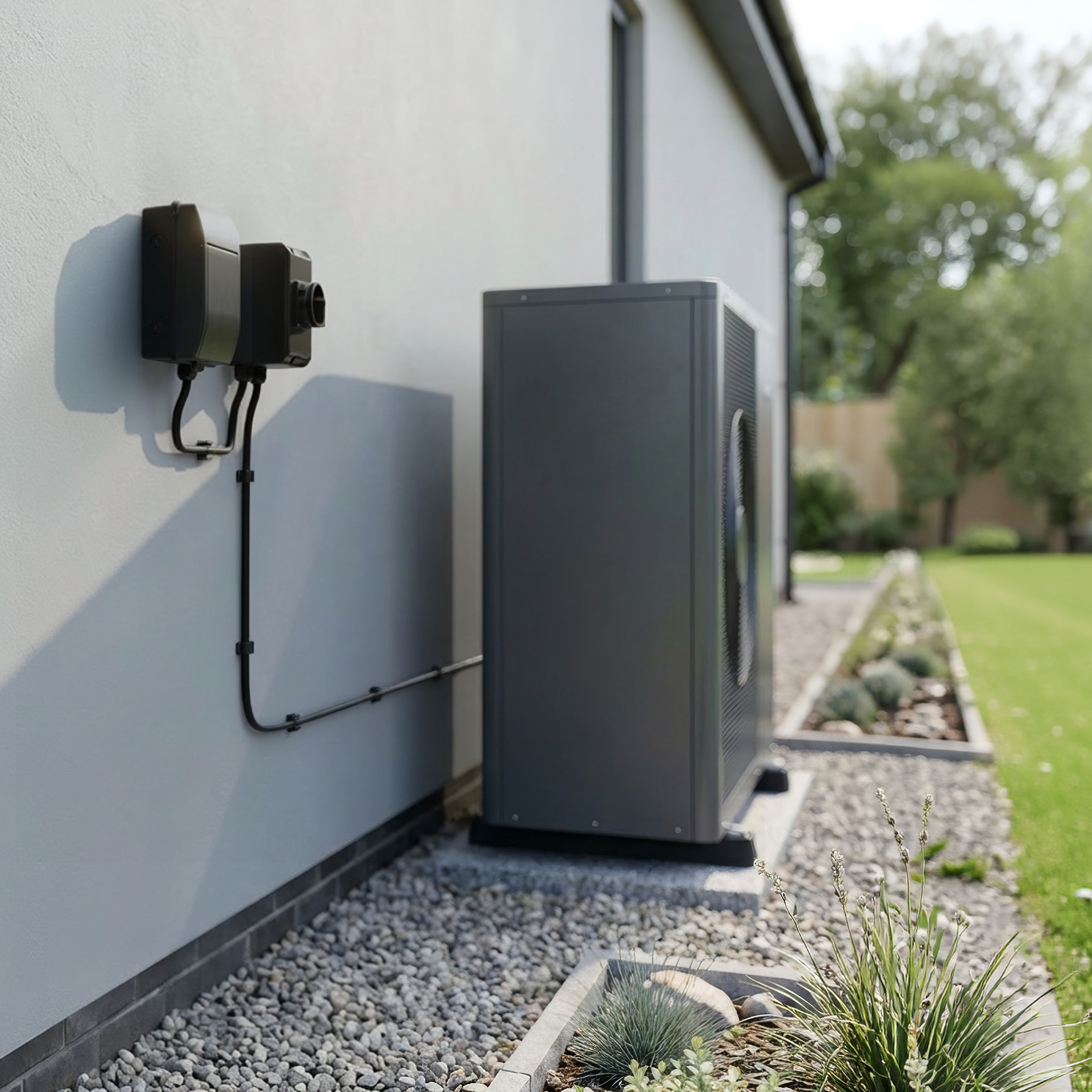

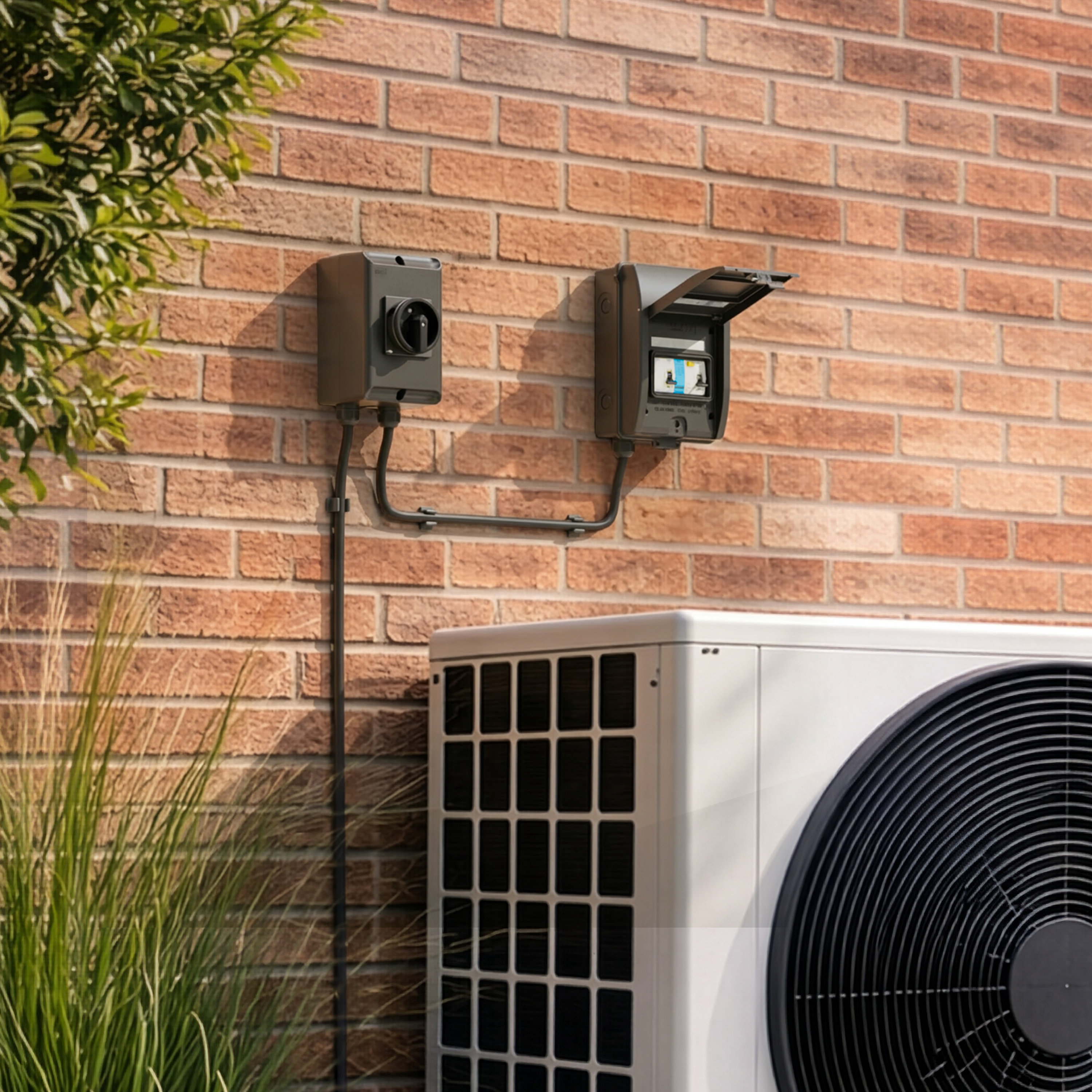

RCD type B+HP device, for heat pump installations.
Incorporates inbuilt surge to handle initial inverter start-ups
Detection capability: 20 kHz for high-frequency currents
Minimum trip threshold: 150 mA for high -frequency current >1 kHz
Compact 2-Module Design
Bidirectional
Type B+HP
Double Pole
| General Colour | Light Grey |
| Timer Override | Not Applicable |
| Module Width (mm) | 36 |
| Timer Type | N/A |
| Endurance Operations - Electrical | 4000 |
| Endurance Operations - Mechanical | 10000 |
| Response Time (nS) | 0 |
| Surge Rating (kV) | N/A |
| Surge Uc | 0 |
| Surge Uoc | N/A |
| Surge Up | N/A |
| Rated Sensitivity (mA) | 30mA |
| RCD Mechanism Type | Electro/Mechanical |
| Trip Speed (mS) | <0.1s |
| RCD Type | Type B |
| Devices | RCD |
| Operating Voltage (V) | 240 |
| Current Rating (A) | 100 |
| Operating Temperature (°C) | -25 to +40 |
| Rated Trip Current (mA) | N/A |
| Switch State | On/Off |
| Surge Protection | No |
| Frequency (Hz) | 50 |
