CF16D11S9-02

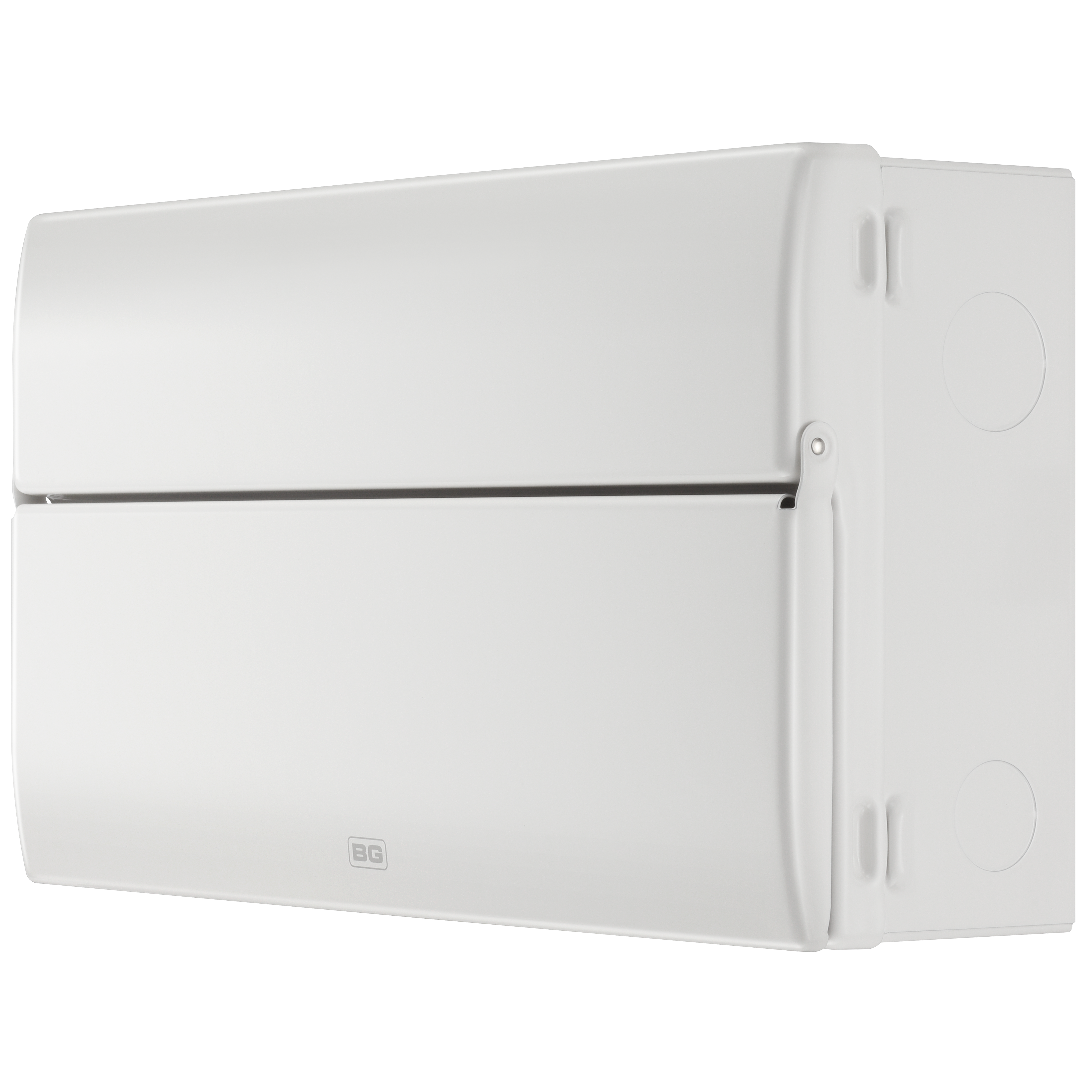

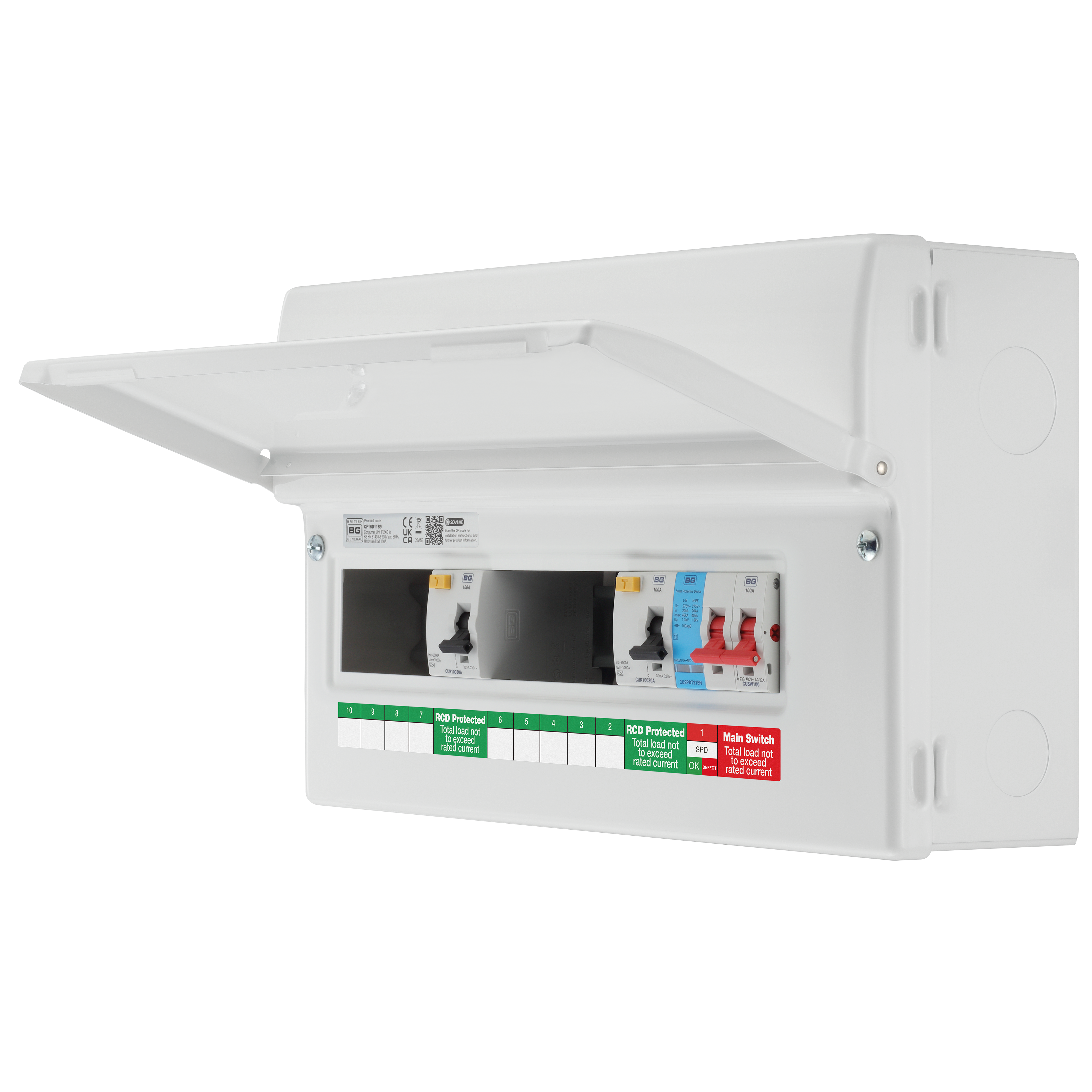

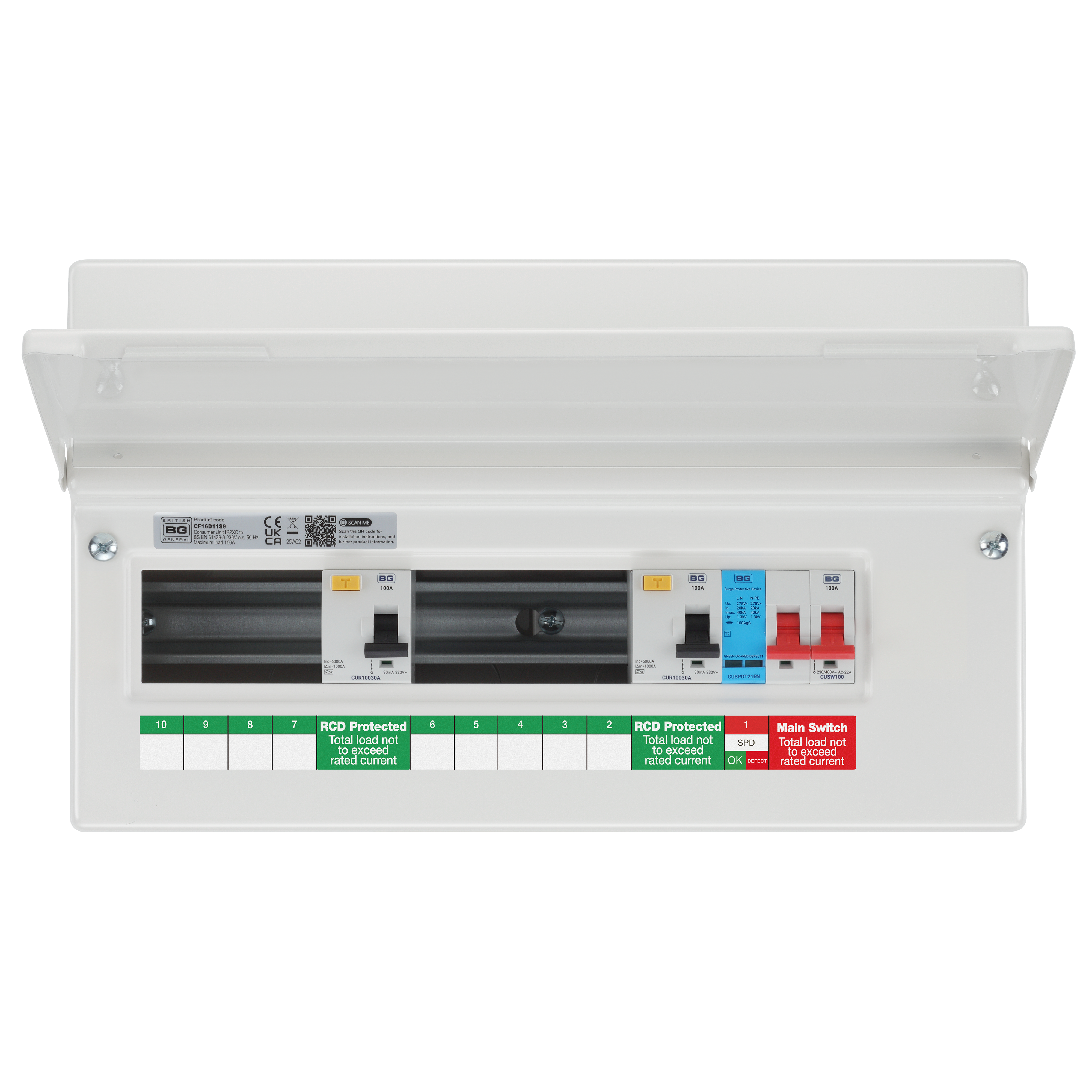

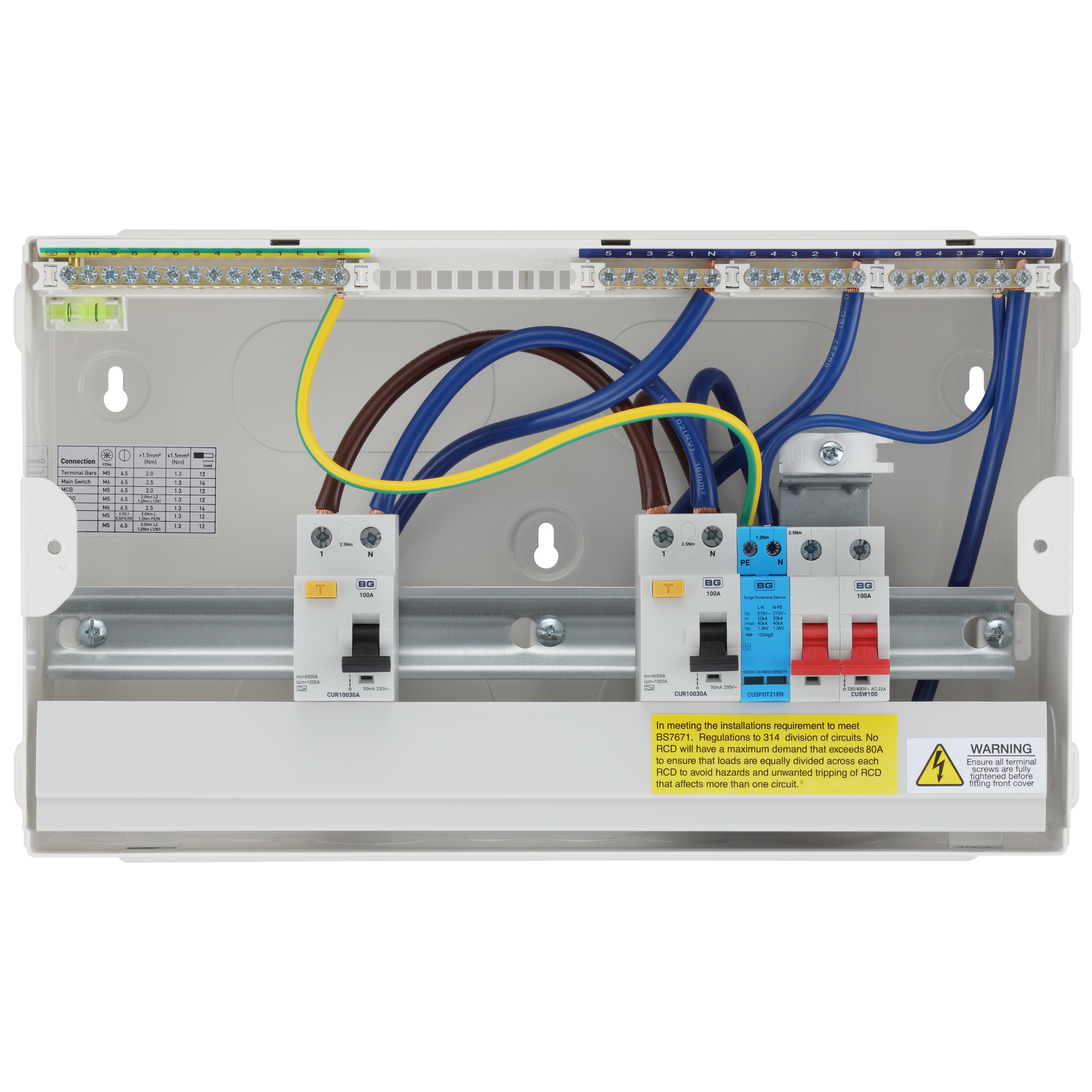

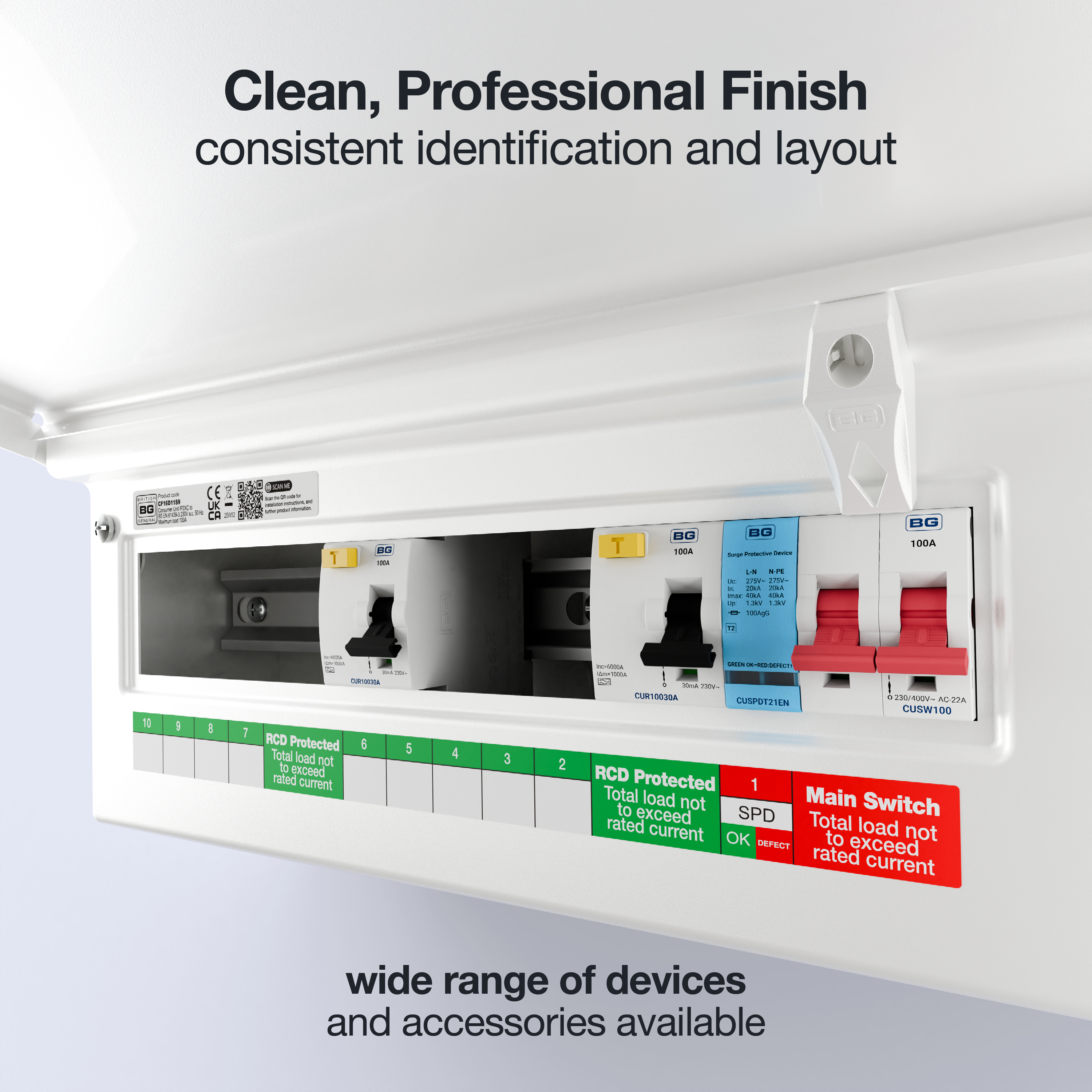

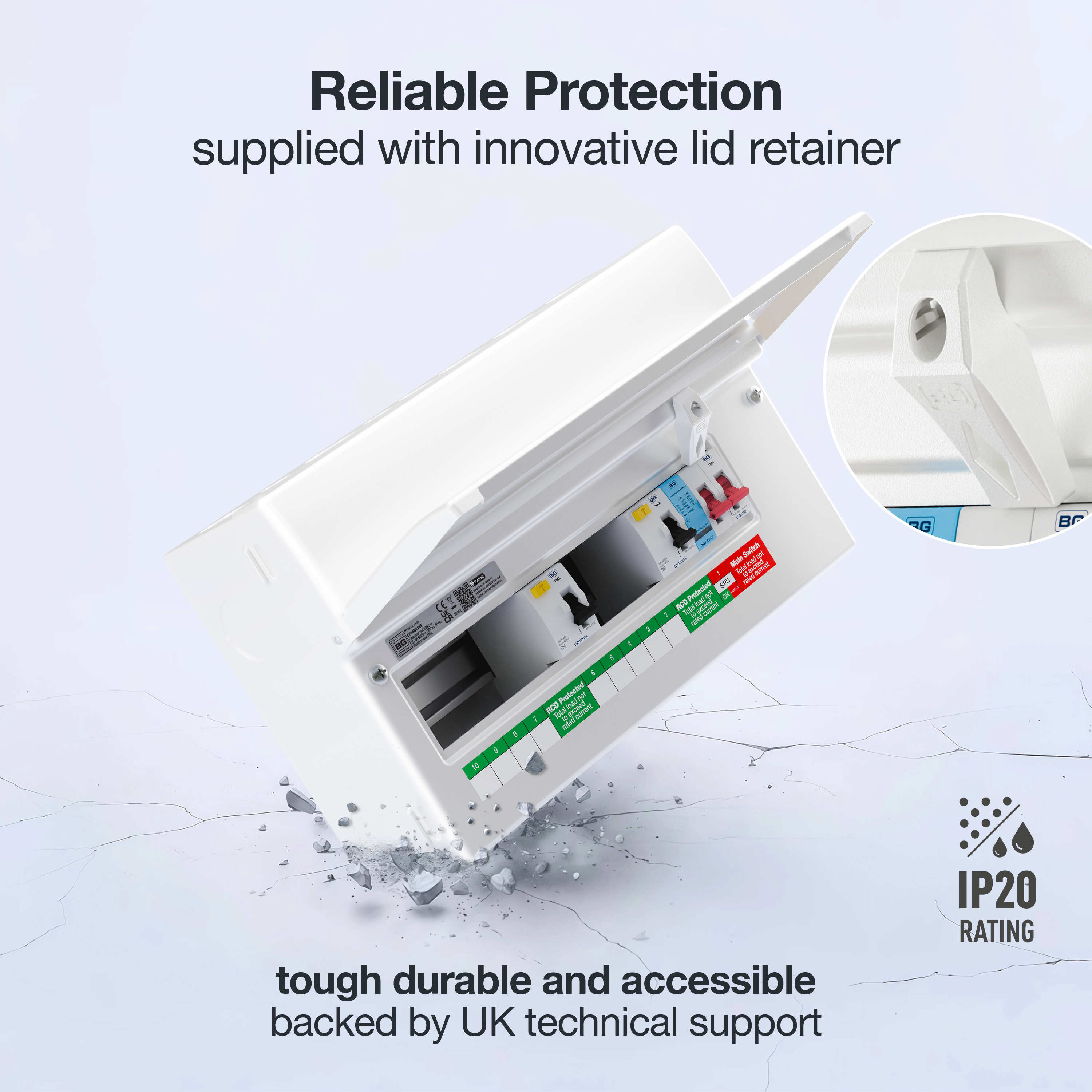

Consumer Unit 16 Module 9 Way Unpopulated with 100A Main Switch, 2 x 100A 30mA RCD & 1 x Type 2 Surge Protection Device
Unpopulated
Supplied with Type 2 Surge Protection Device
Supplied with 100A RCD
100A Main Switch
16 Module Capacity
9 Useable Ways
30mA Earth Leakage Protection
Type A
| Front Plate Material | Steel 1.0mm - ST16 |
| General Colour | White |
| Fixing Screws Supplied | No |
| Modules | 16 |
| Number of Cable Entries | 24 |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |

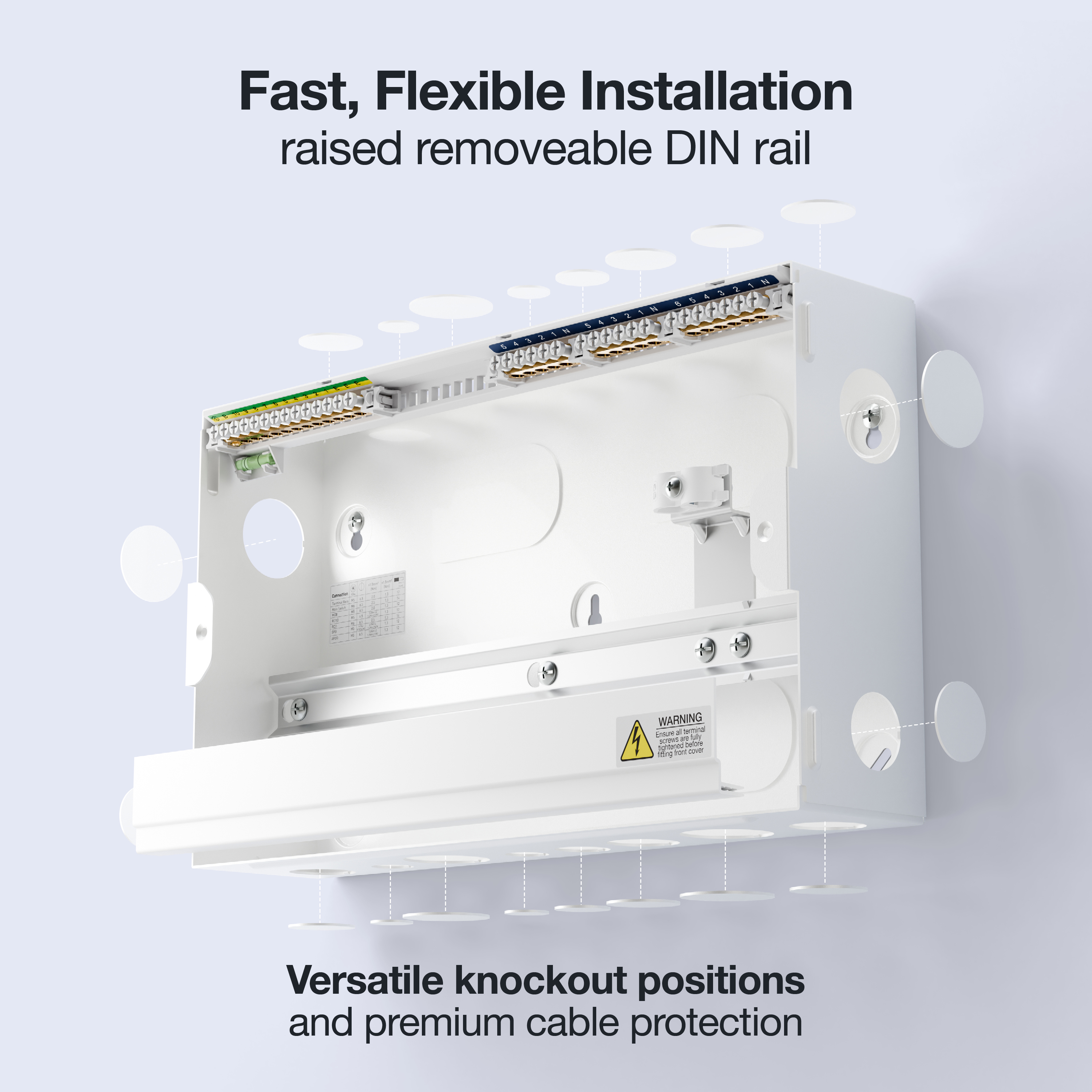

| Cable Entry Type | Knockout |

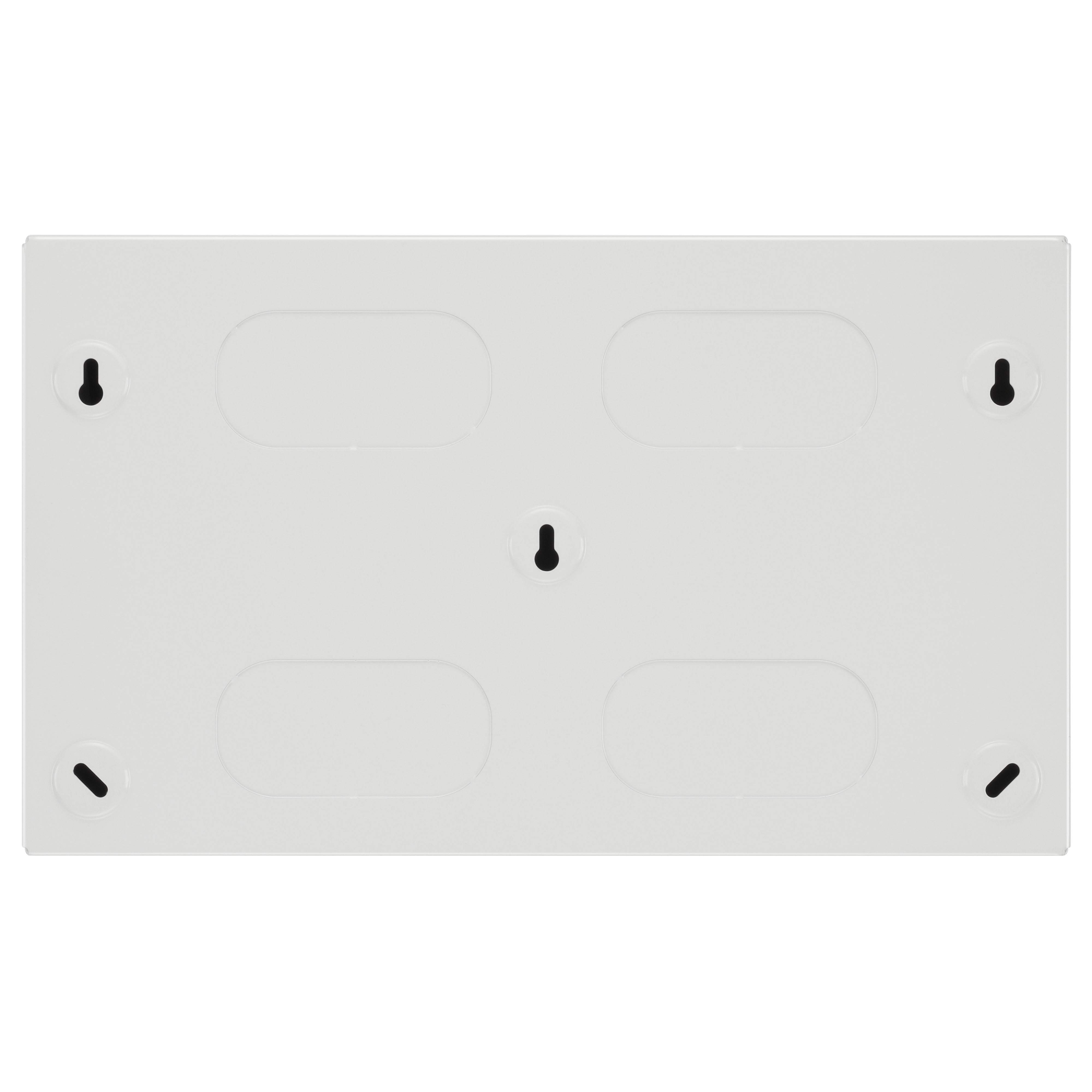

| Number Of Wall Fixing Positions | 5 |
| Fitted Lock | No |
| Installation Method(s) | Surface |
| Spirit Level | Yes |
| Terminal Type | Screw |
| Ways | 9 |
| Number of Knockouts | 24 |
| Mounting Type | Surface |
| IP Rating | IP2XC |
| Terminal Screw Type | Combi |
| Terminal Torque (Nm) | MS 2.5, 1.2 Live/Neutral 3 PE, Earth/Neutral Terminals 2.0 |
| Rated Sensitivity (mA) | 30mA |
| RCD Mechanism Type | Electro/Mechanical |
| Trip Speed (mS) | <0.1s |
| Max Load (A) | 100 |
| MCB's | 0 |
