CF16D11PS9-02

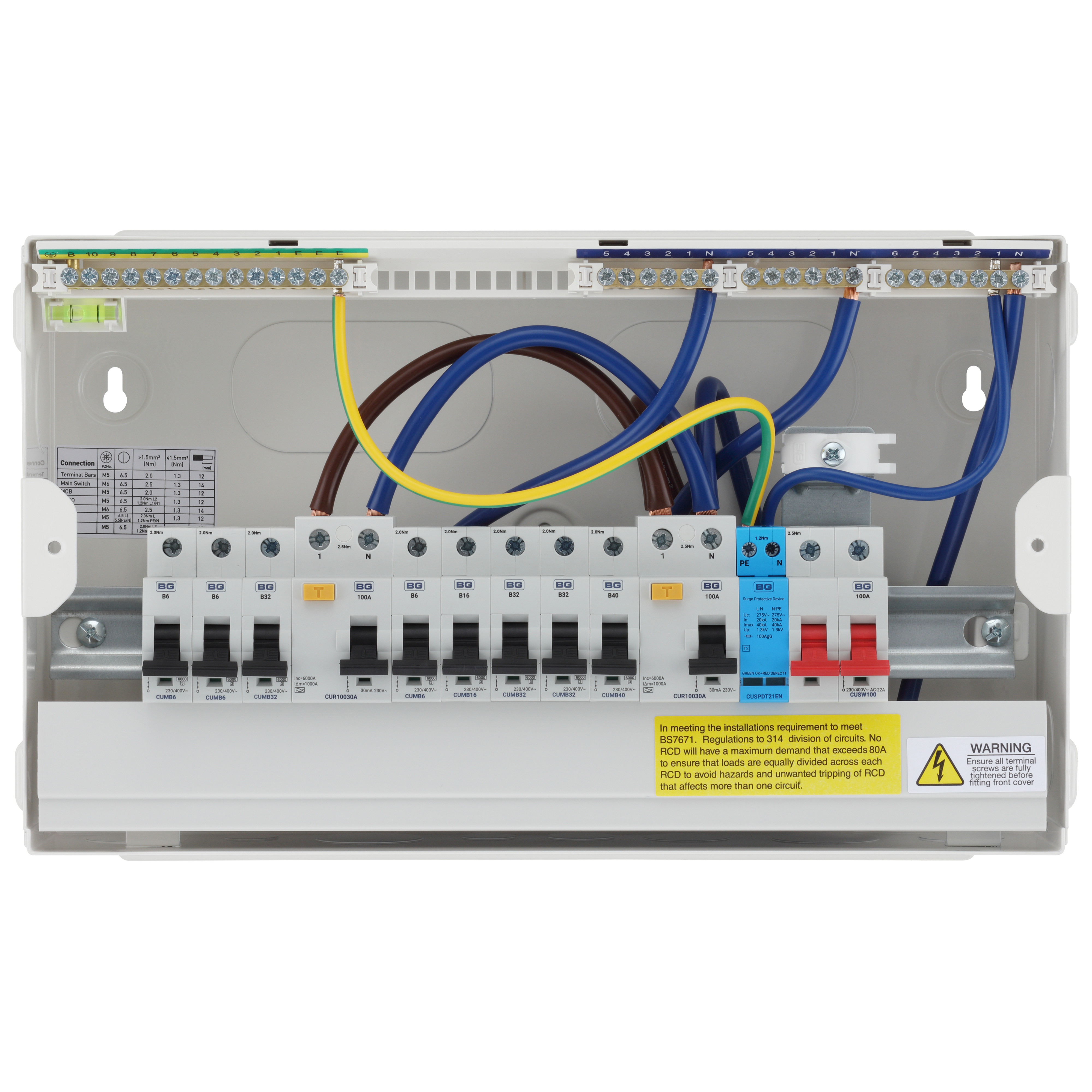

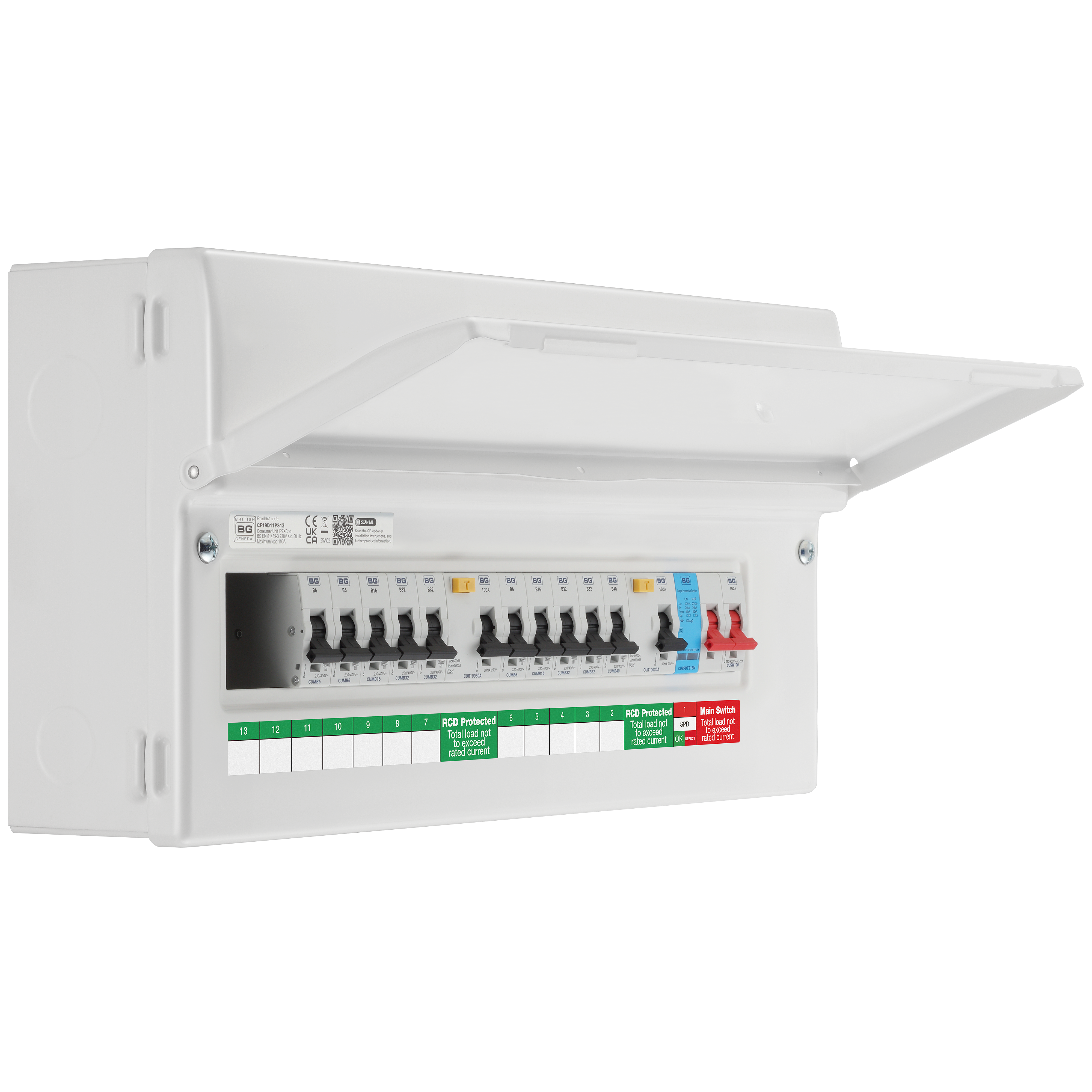

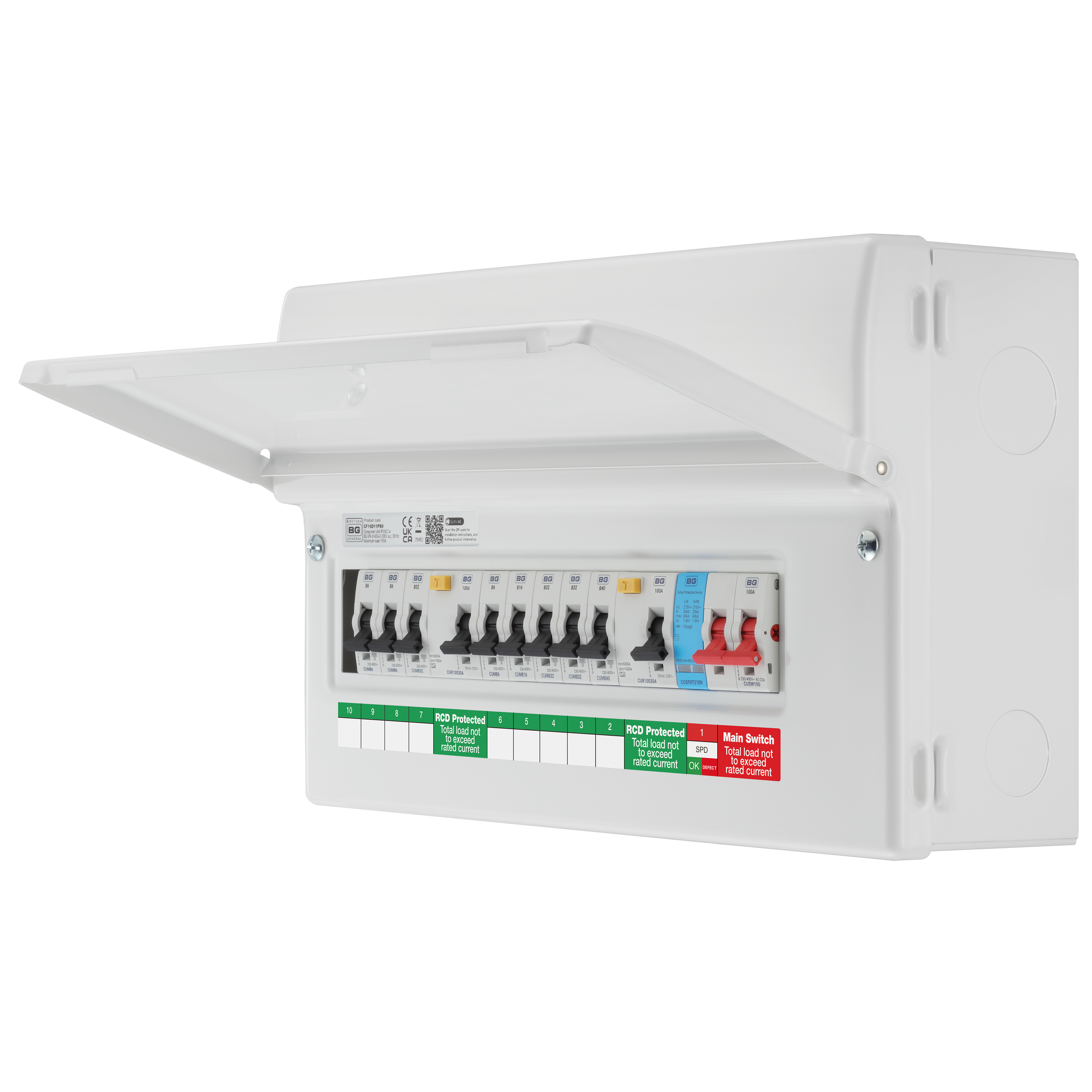

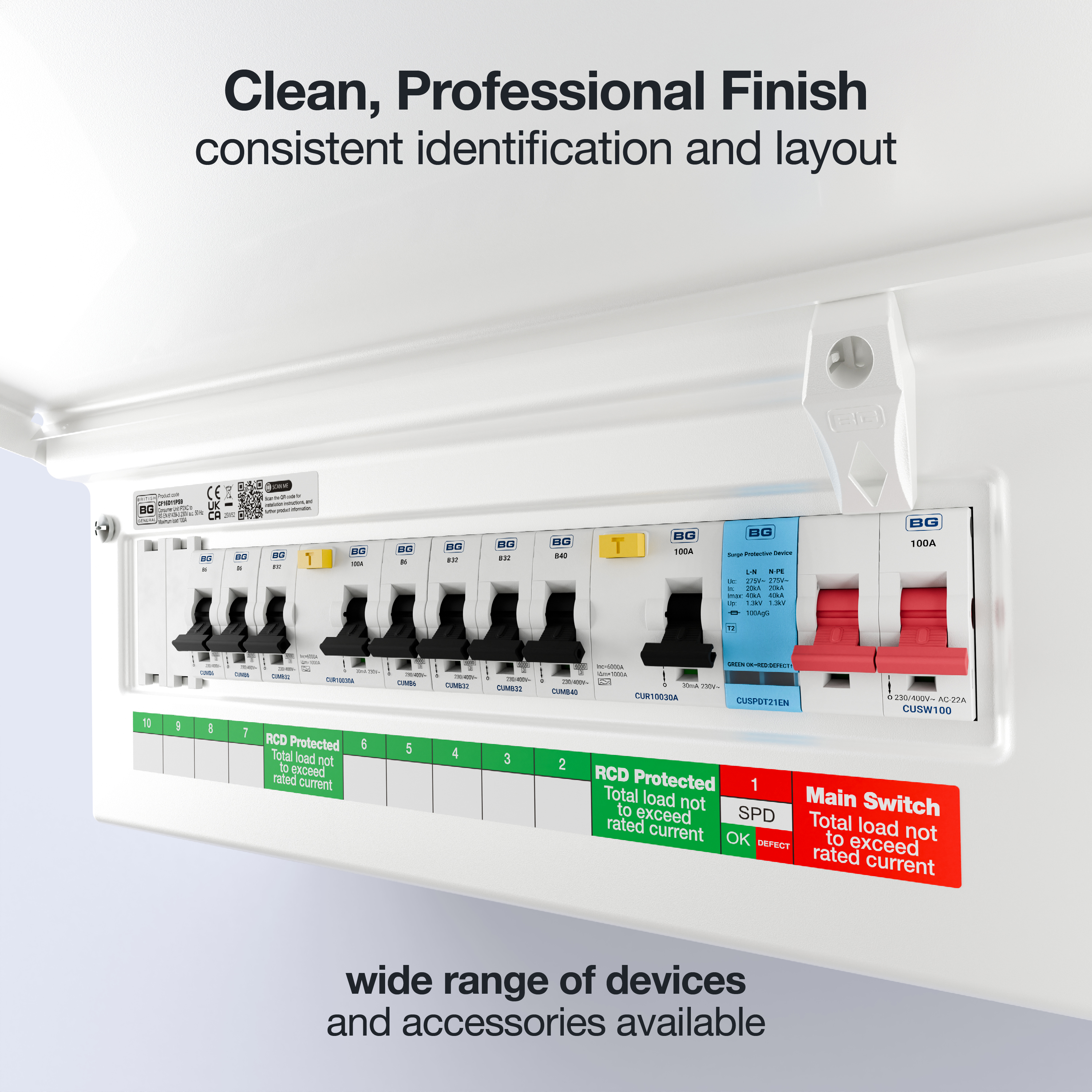

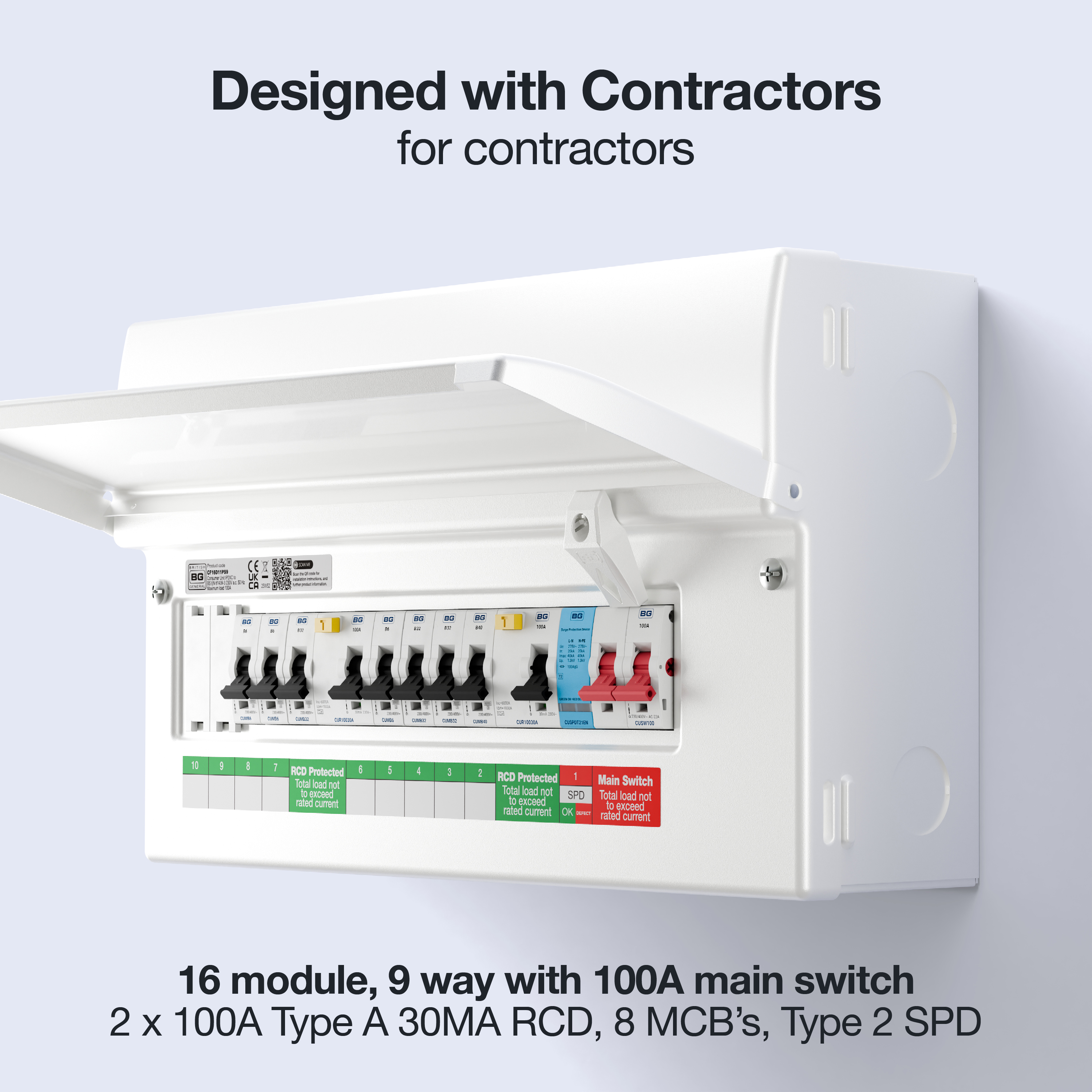

Consumer unit 16 module 9 way populated with 100A main switch, 2 x 100A 30mA RCD, 1 x Type 2 surge protection device and 8 x MCB - 6A x 3, 16A x 1, 32A x 3 and 40A x 1
Populated
Supplied with Type 2 Surge Protection Device
Supplied with 100A RCD
100A Main Switch
16 Module Capacity
9 Useable Ways
30mA Earth Leakage Protection
Type A
| General Colour | White |
| Fixing Screws Supplied | No |
| Modules | 16 |
| Number of Cable Entries | 24 |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |

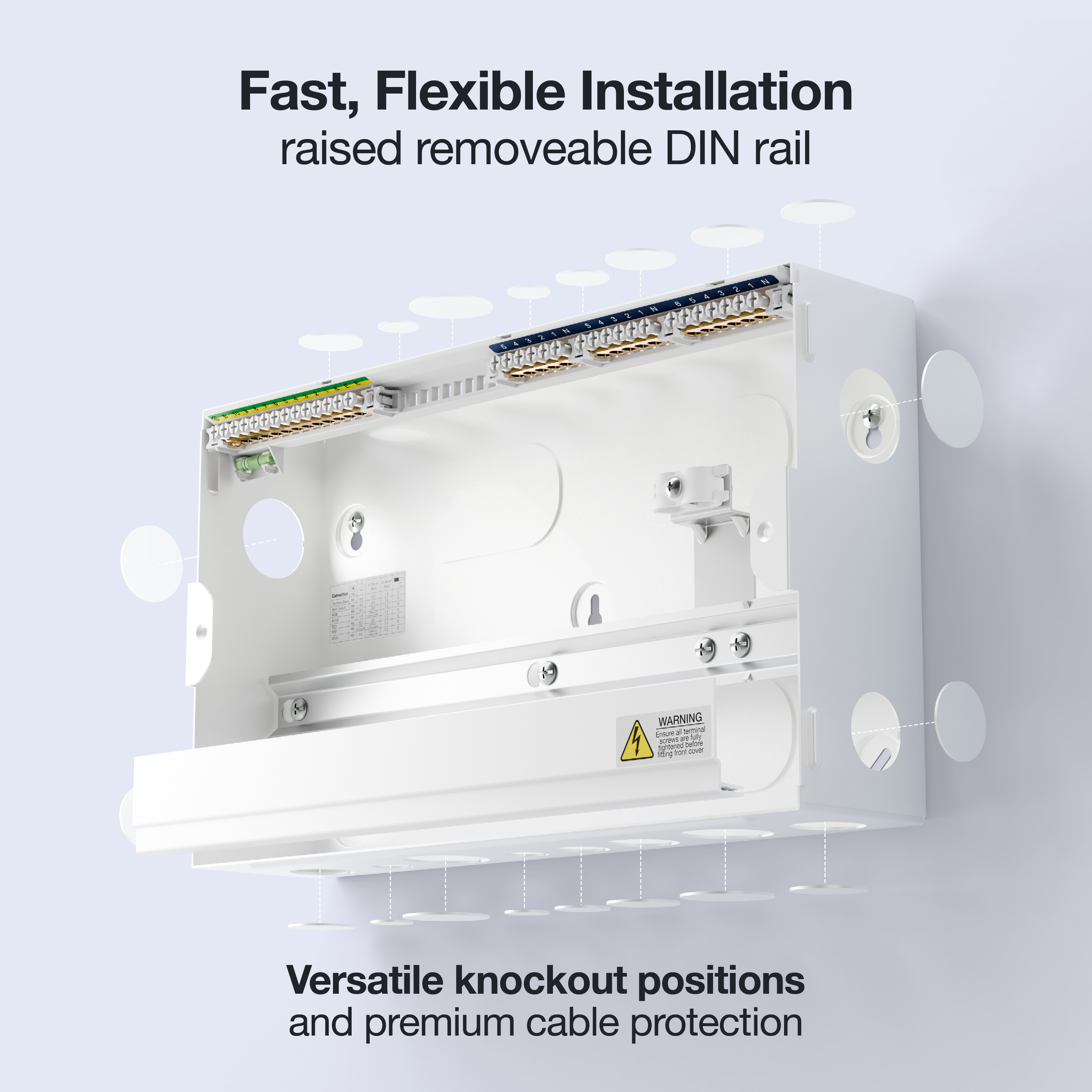

| Cable Entry Type | Knockout |

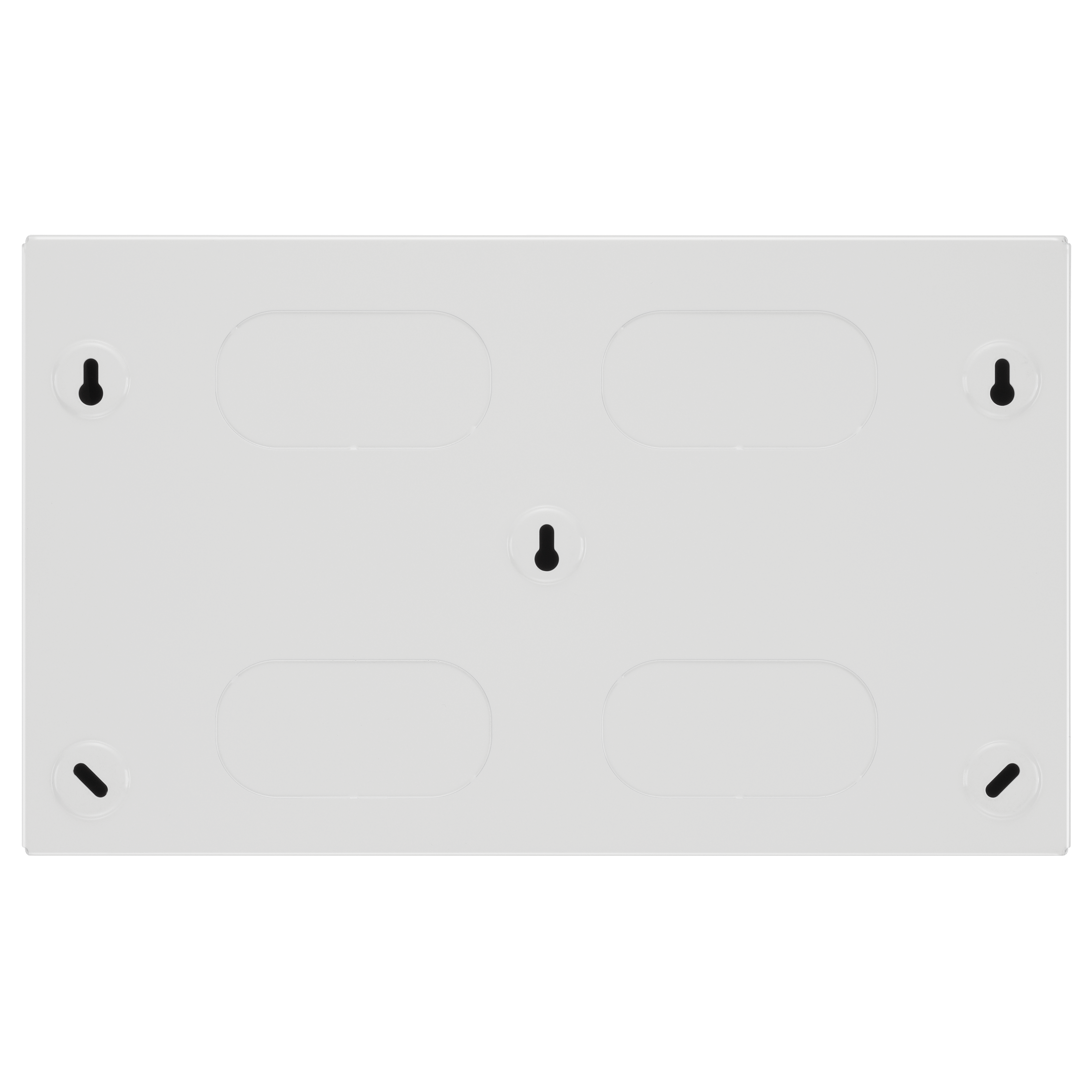

| Details per face (Size/number) | Top - 2 x 20mm, 1 x 25mm, 4 x 32mm, 1 x 40mm, Bottom - 2 x 20mm, 1 x 25mm, 3 x 32mm, 2 x 40mm L-1 x 32mm, 1 x 40mm R - 1 x 32mm 1 x 40mm (sides) 4 x 100 x 50mm (Base) |
| Number Of Wall Fixing Positions | 5 |
| Fitted Lock | No |
| Installation Method(s) | Surface |
| Spirit Level | Yes |
| Terminal Type | Screw |
| Ways | 9 |
| Number of Knockouts | 24 |
| Mounting Type | Surface |

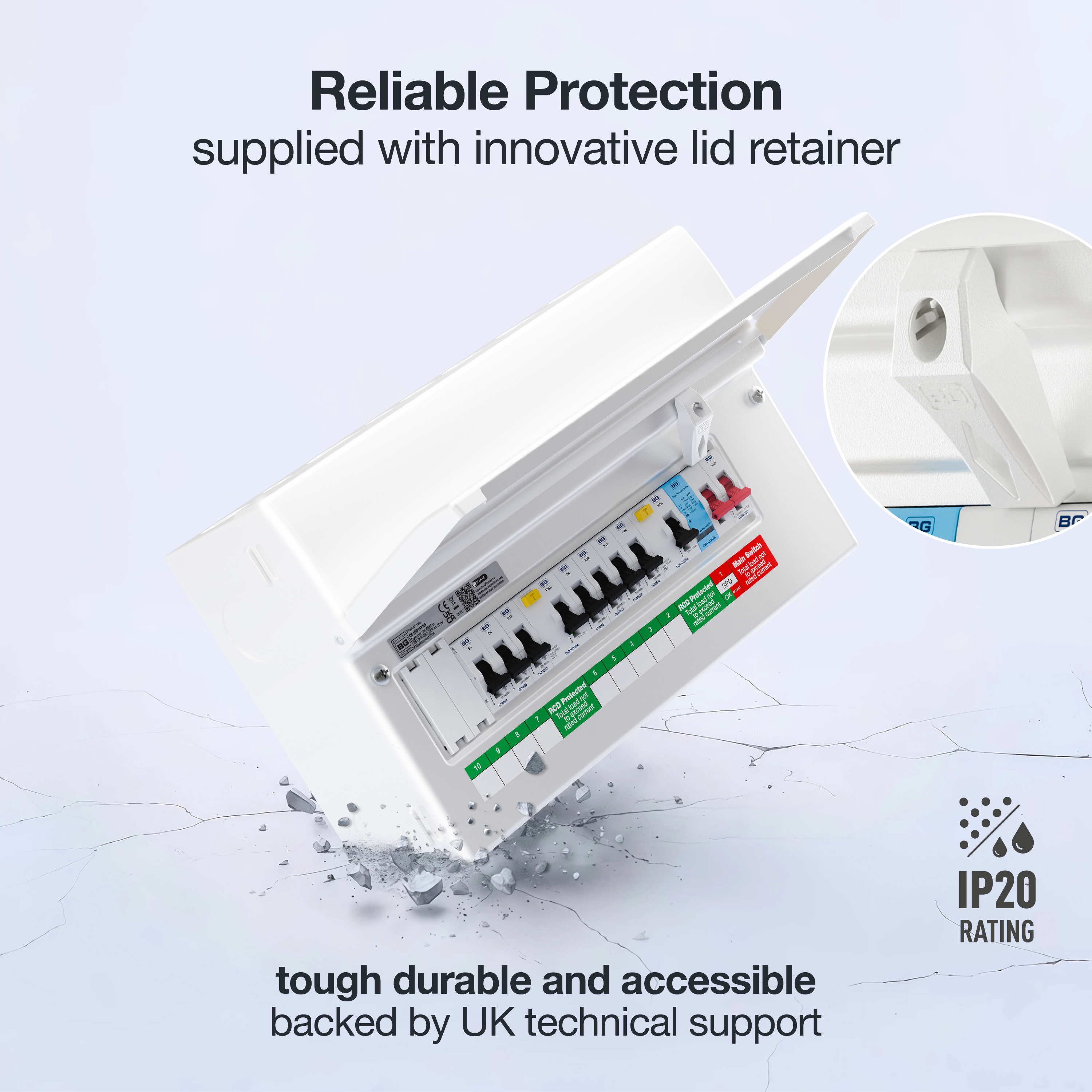

| IP Rating | IP2XC |
| Terminal Screw Type | Combi |
| Terminal Torque (Nm) | MS 2.5, MCB 2, SPD 1.2 L/N 3.0 PE, RCD 2.5, Earth/Neutral Terminals 2.0 |
| Rated Sensitivity (mA) | 30mA |
| RCD Mechanism Type | Thermal/Electromagnetic |
| Trip Speed (mS) | <0.1s |
| Operating Voltage (V) | 230 |
| Max Load (A) | 100 |
| MCB's | 8 |
| Frequency (Hz) | 50 |
