CFUEV6-01

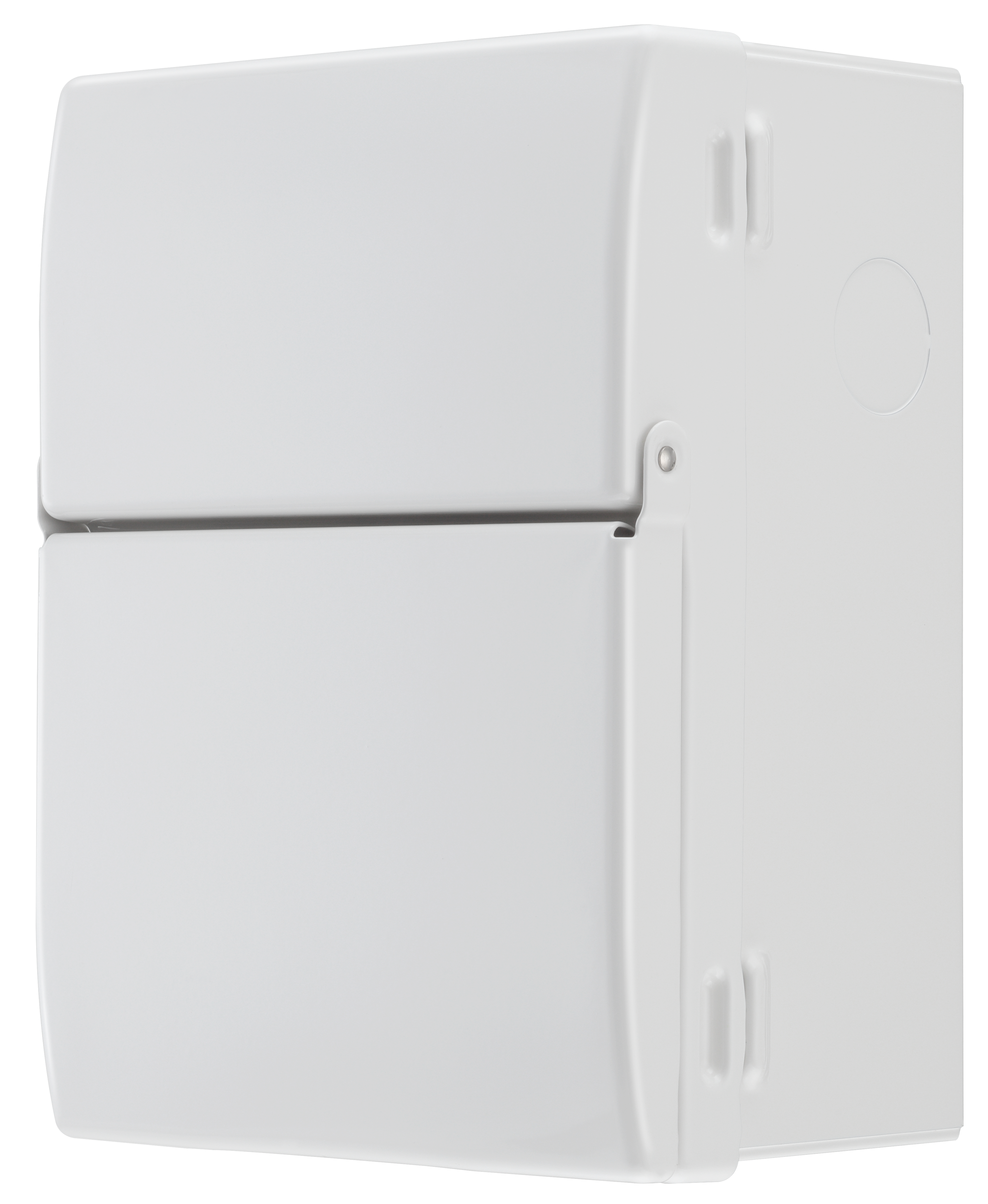

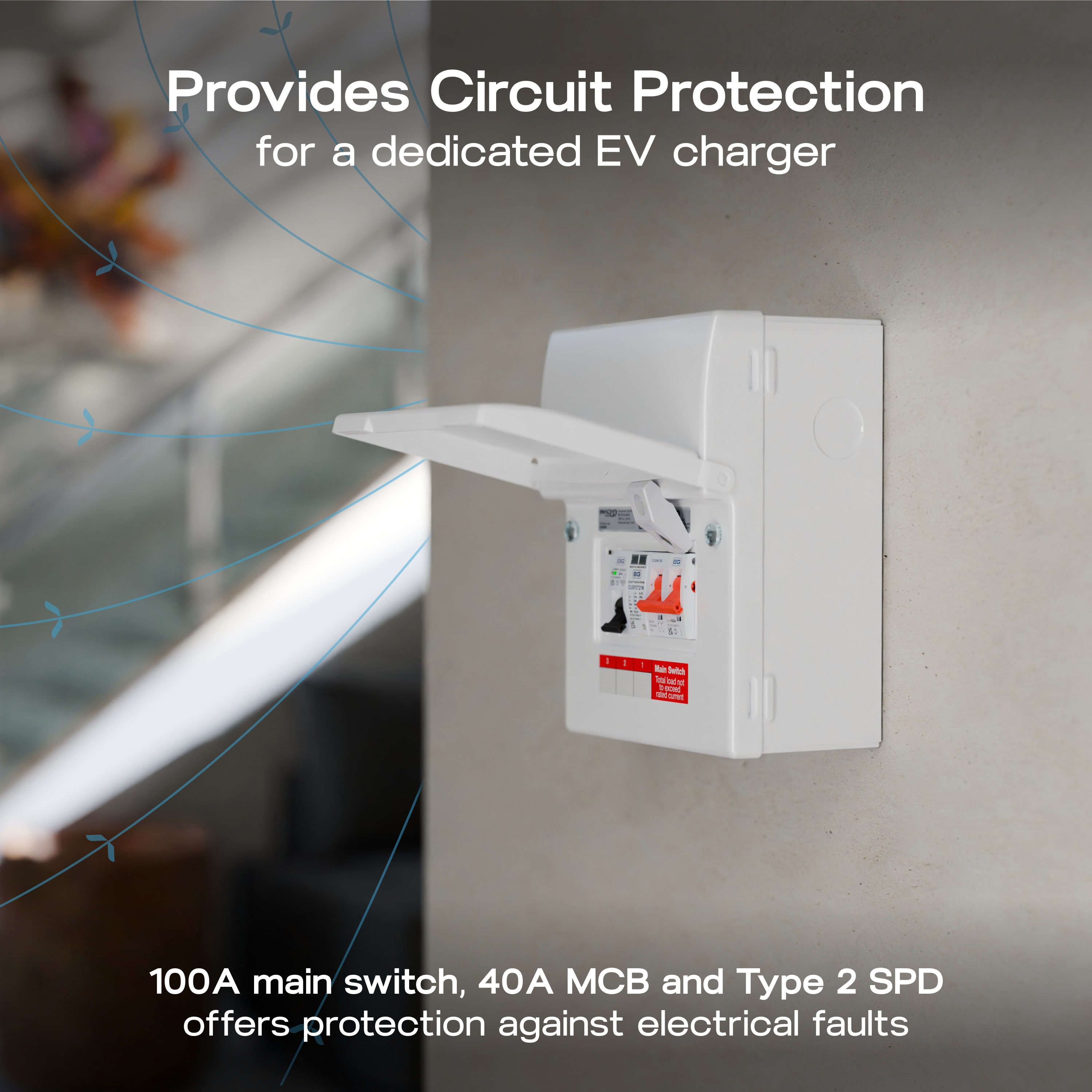

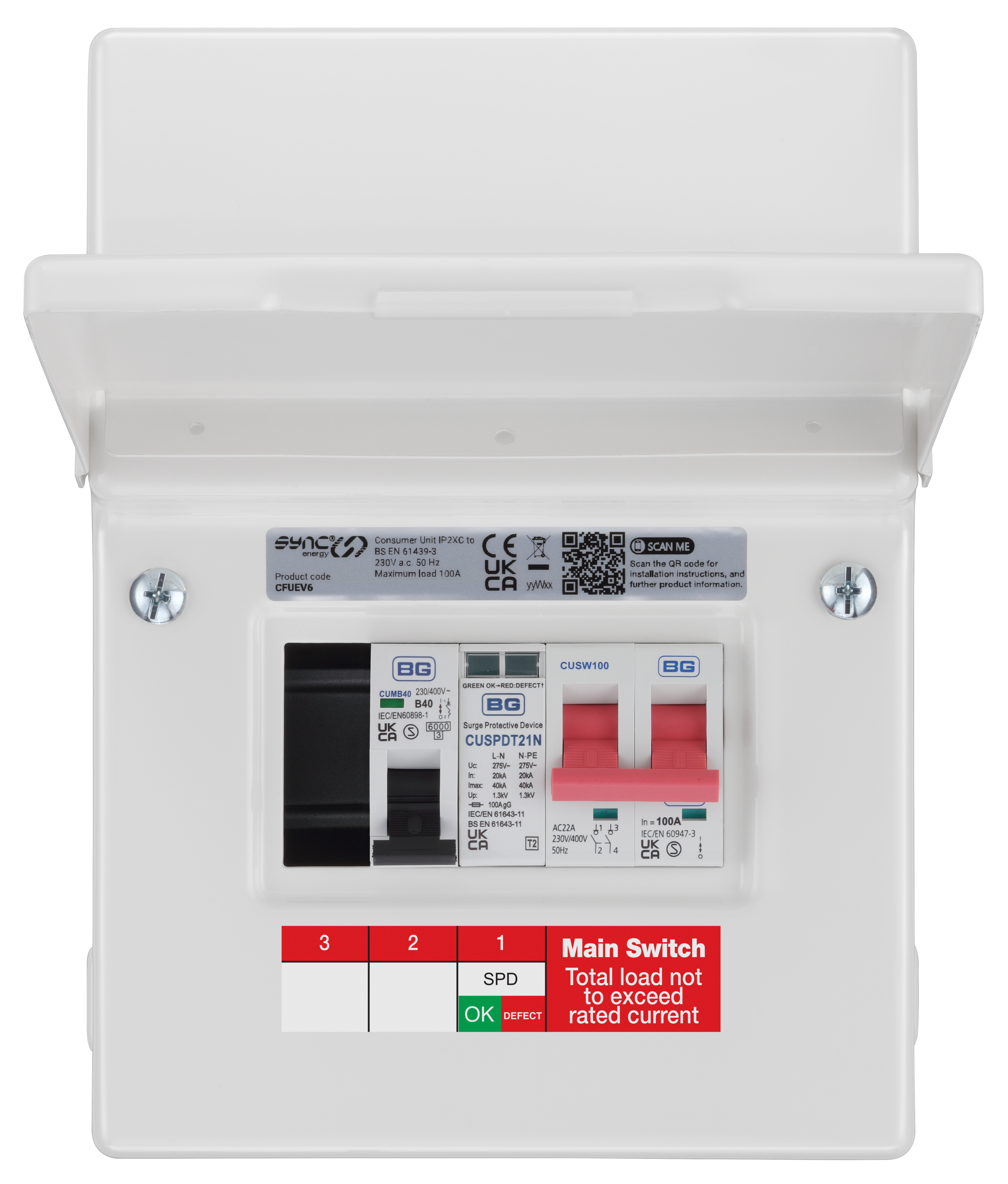

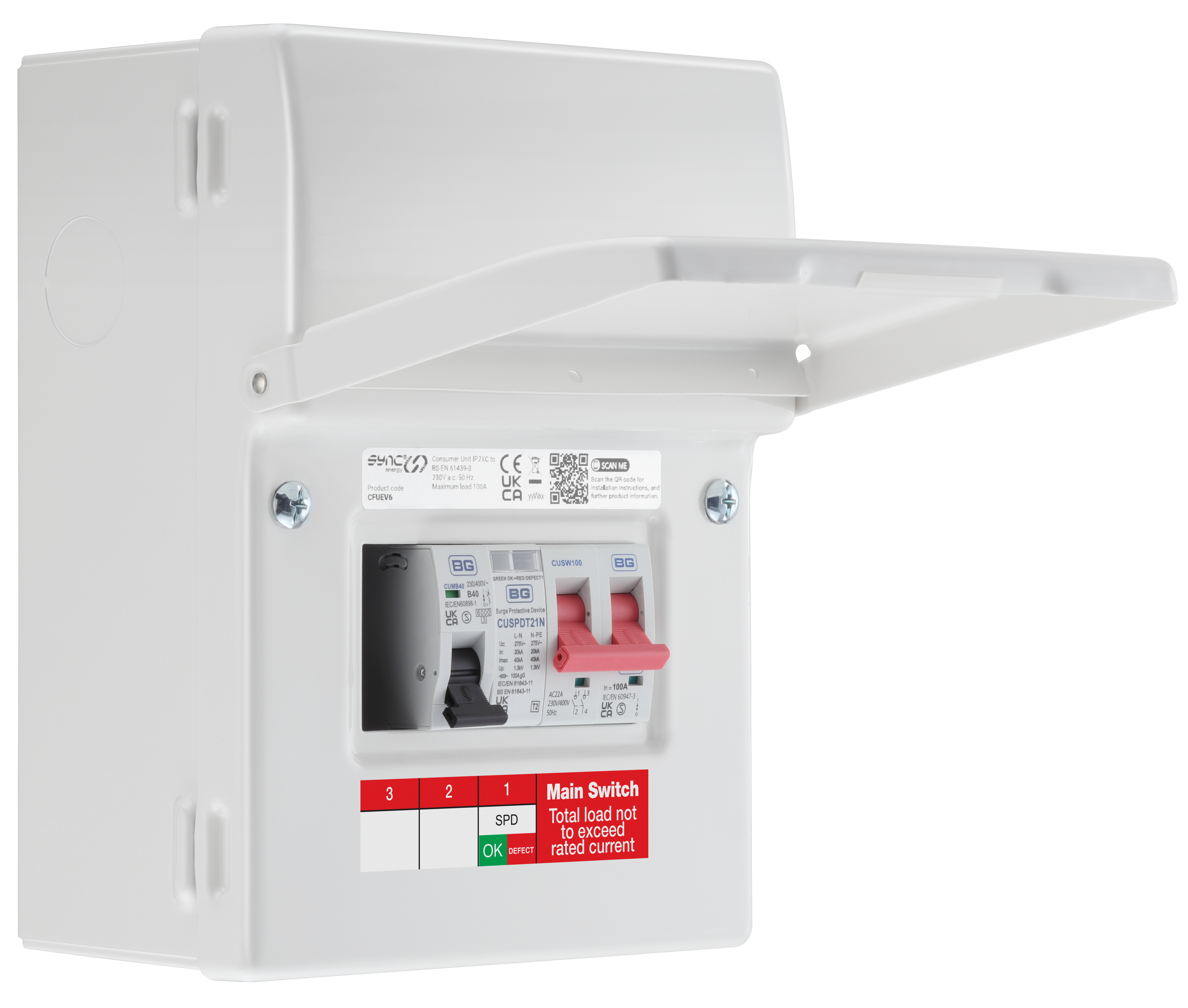

Sync Energy Non-Weatherproof IP20, White, 5 module populated EV kit c/w 100A main switch, 40A MCB, type 2 SPD
IP20 Non-Weatherproof
Integrated spirit Level

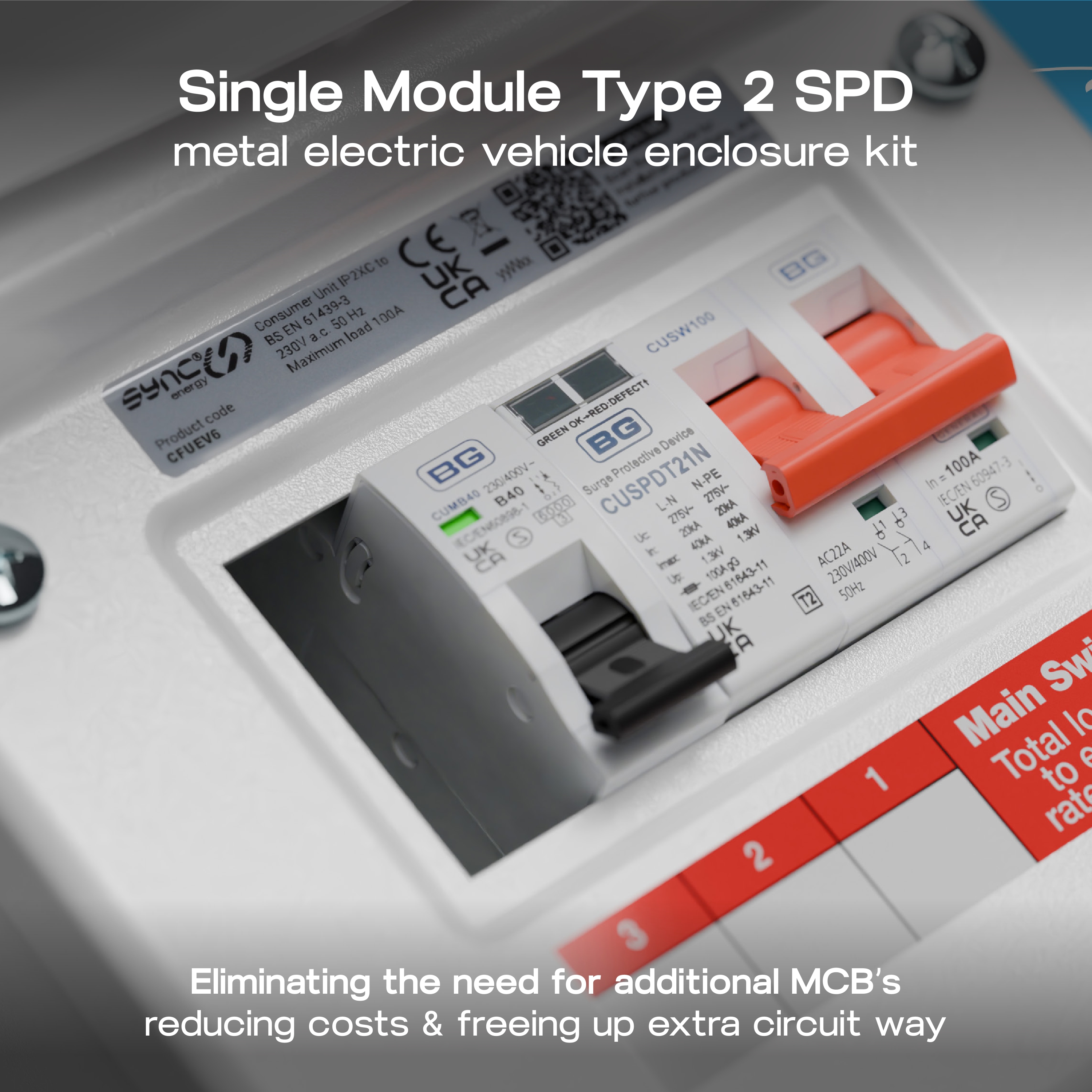

T2 SPD
40A MCB
100A Main Switch
For use when the EV charger supply cable does have mechanical protection
Easy Installation
Backed out and retained terminal screws

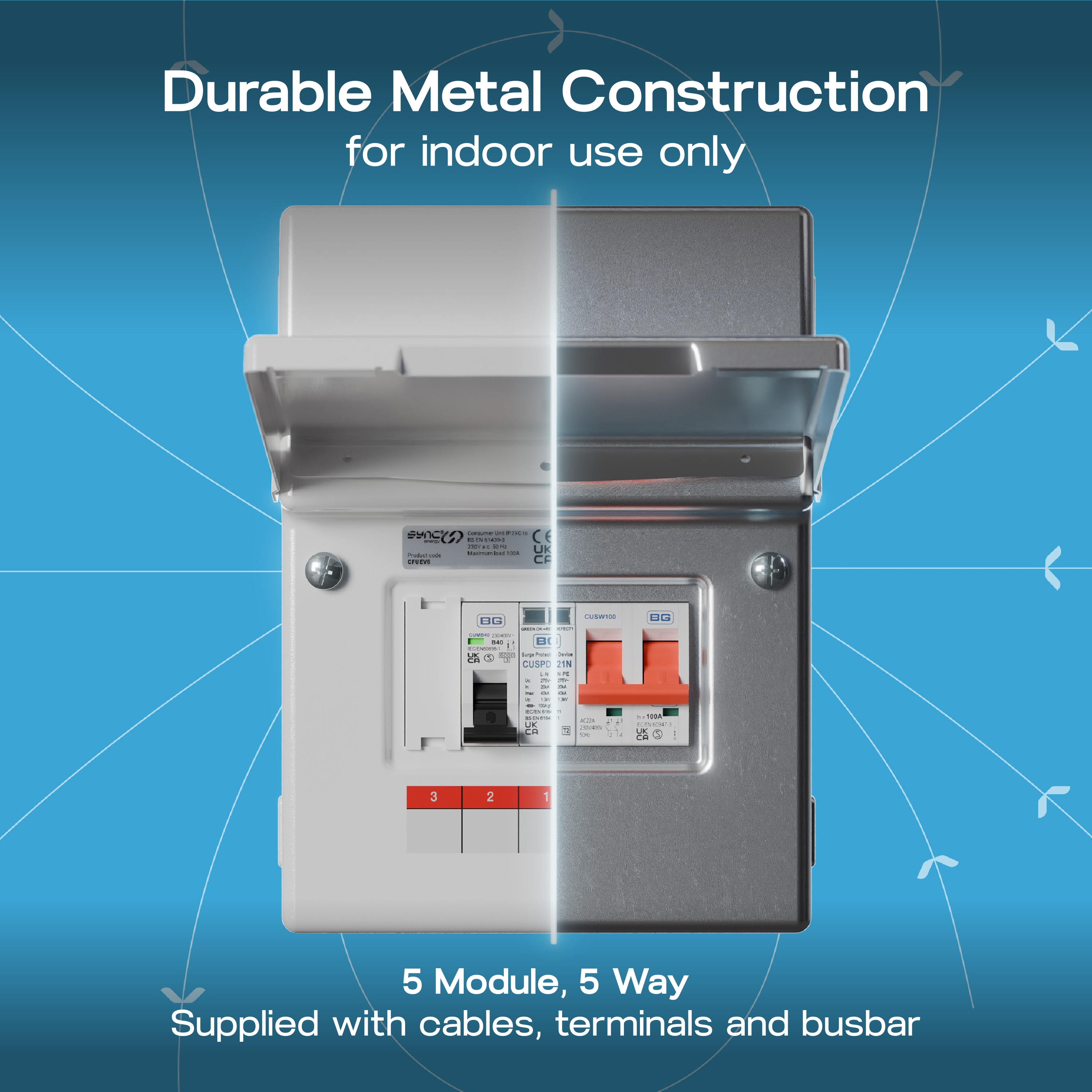

All metal construction

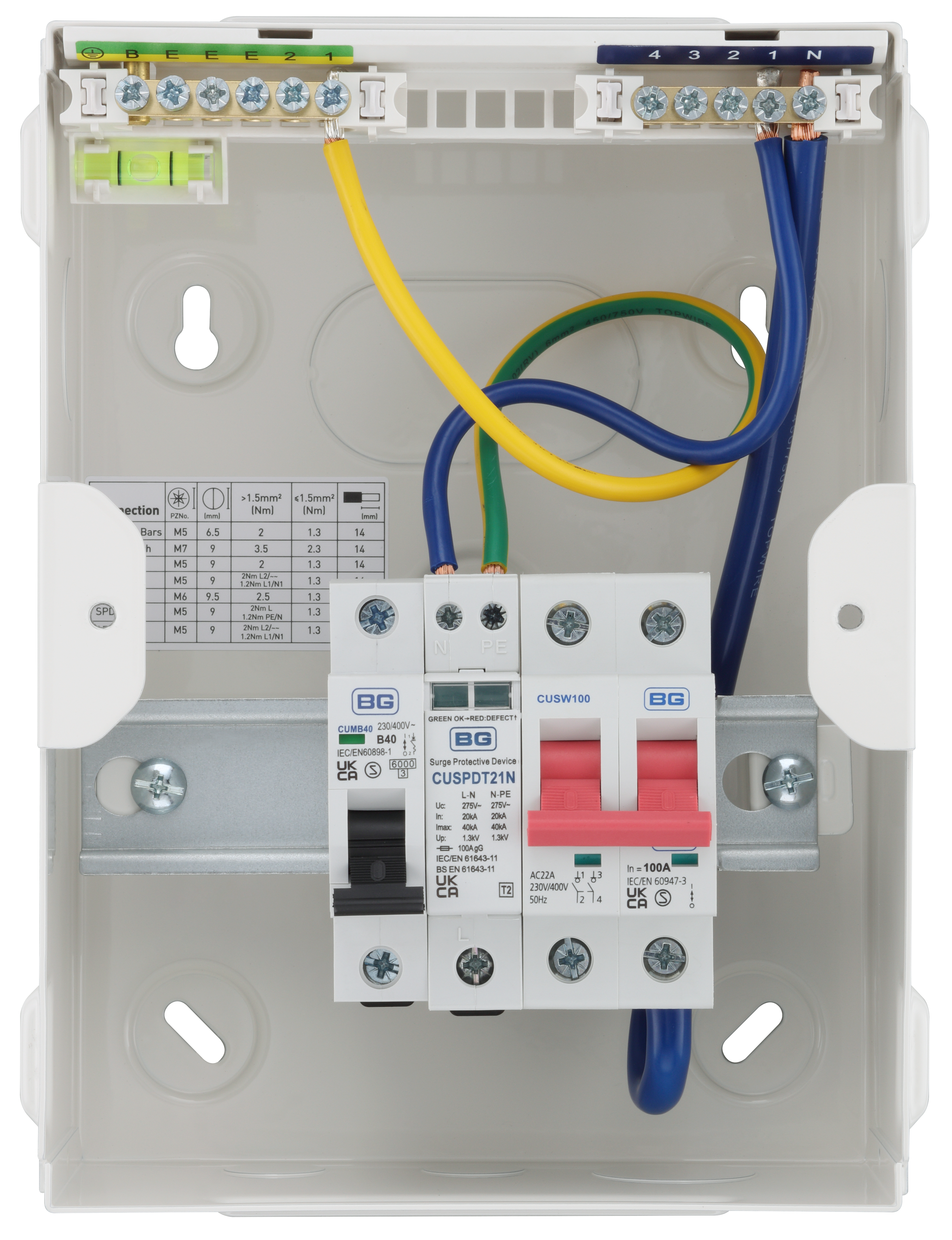

Enclosure kit supplied with devices DIN rail Neutral cable, Neutral and Earth terminals, labels busbar and cover blanks
| Front Plate Material | Steel 1.0mm - ST16 |
| General Colour | White |
| Fixing Screws Supplied | No |
| Modules | 5 |
| Number of Cable Entries | 9 |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |

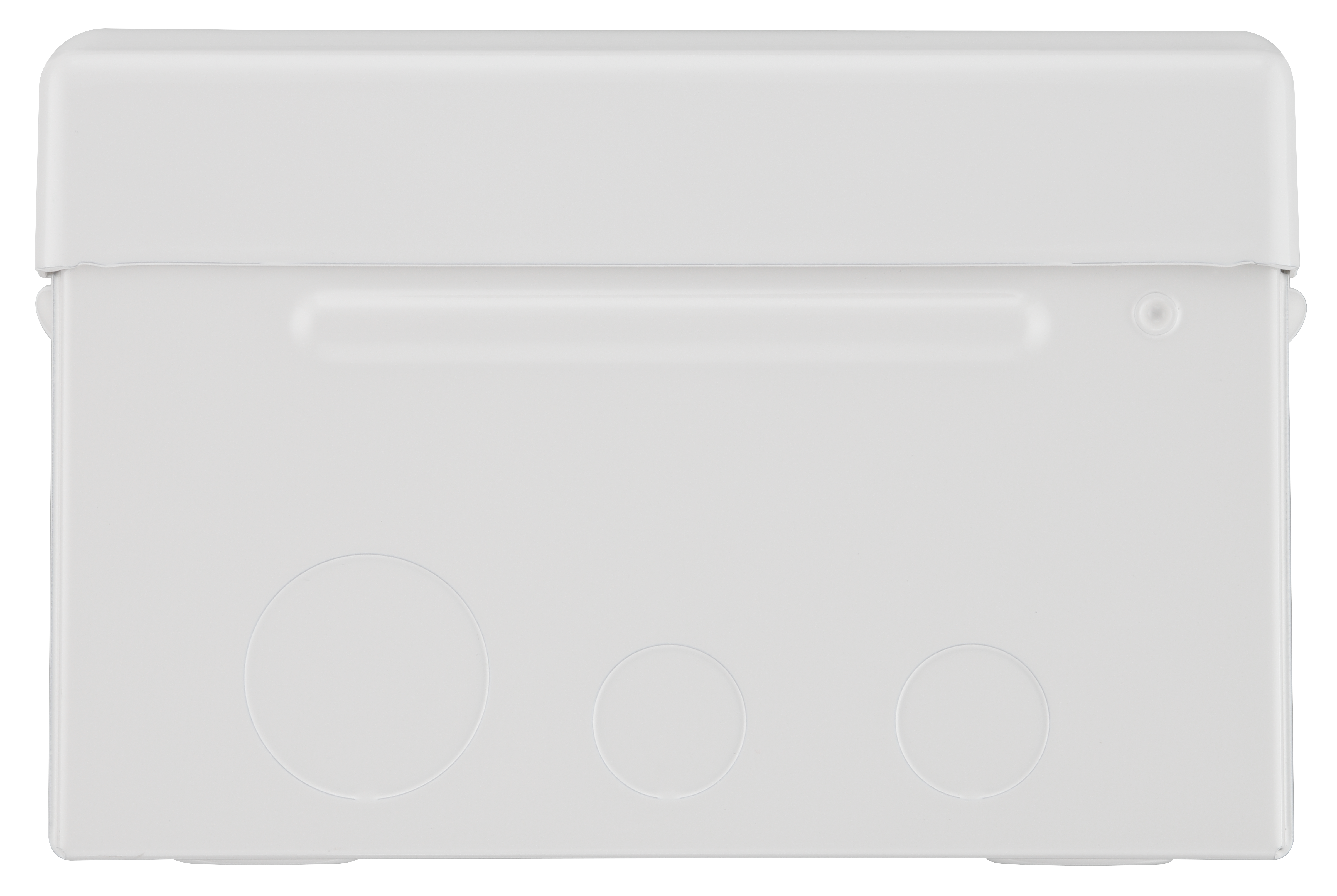

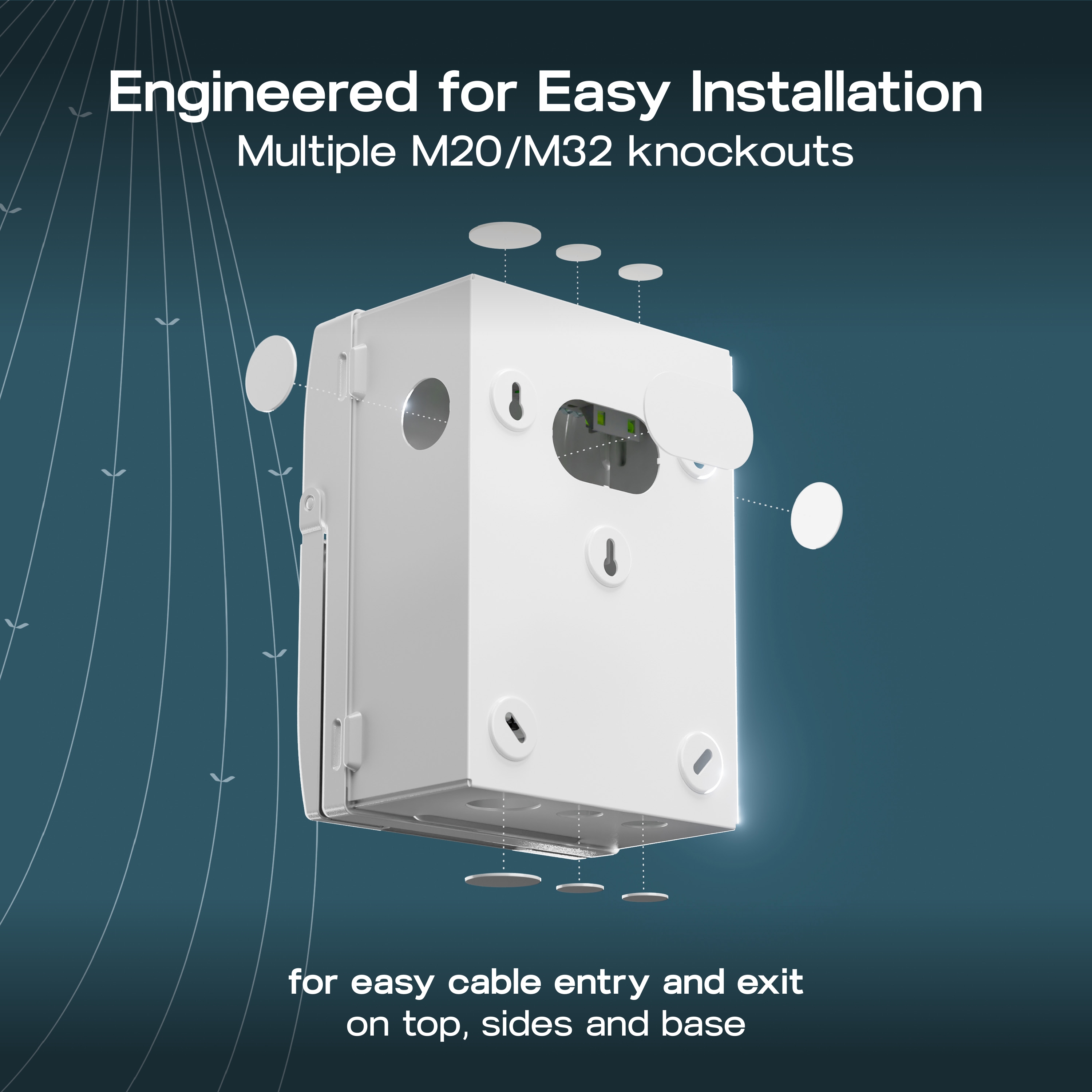

| Cable Entry Type | Knockout |
| Details per face (Size/number) | 6 - 3 x M20-32 2 x M20-32 (side) 1 x M20-32 (Base) |

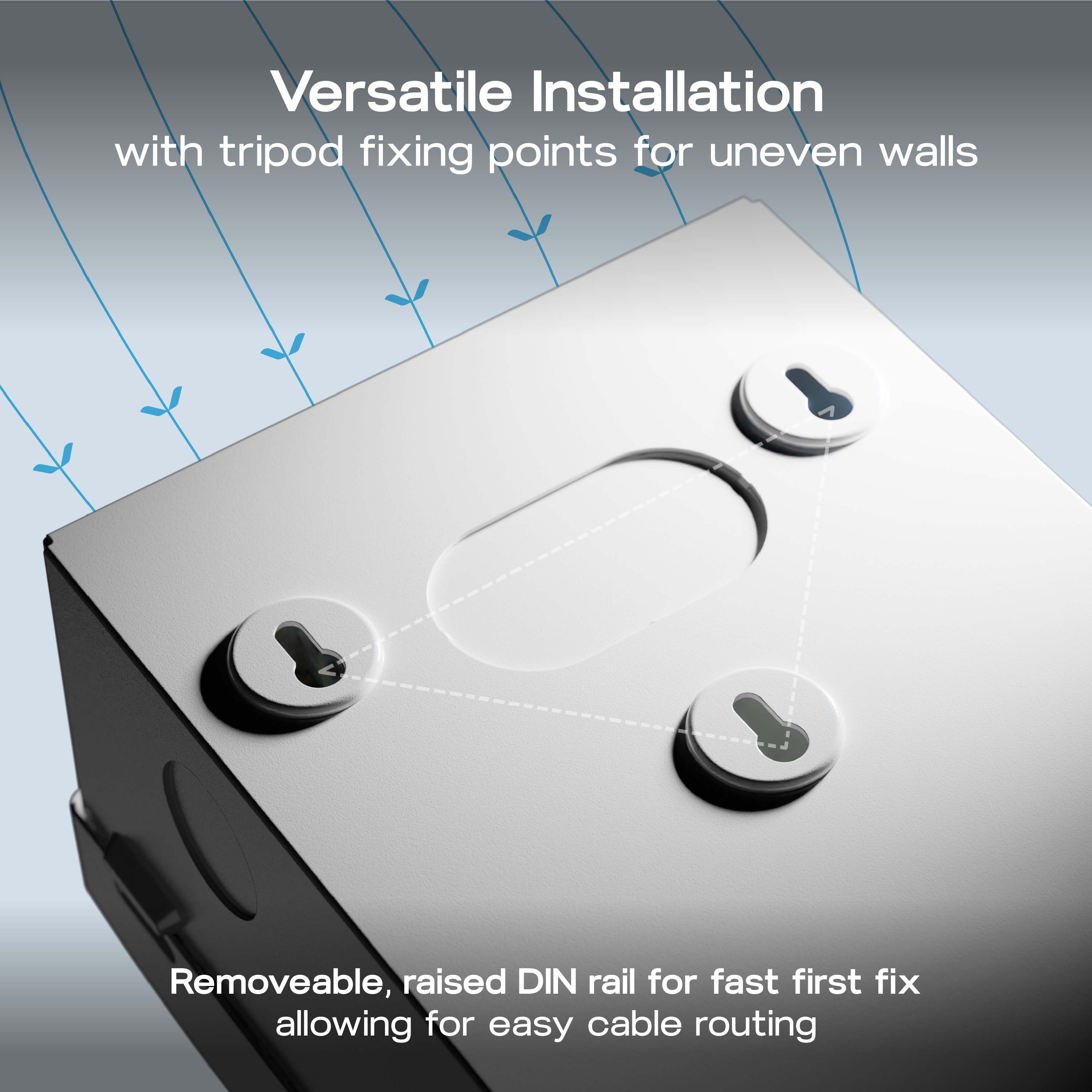

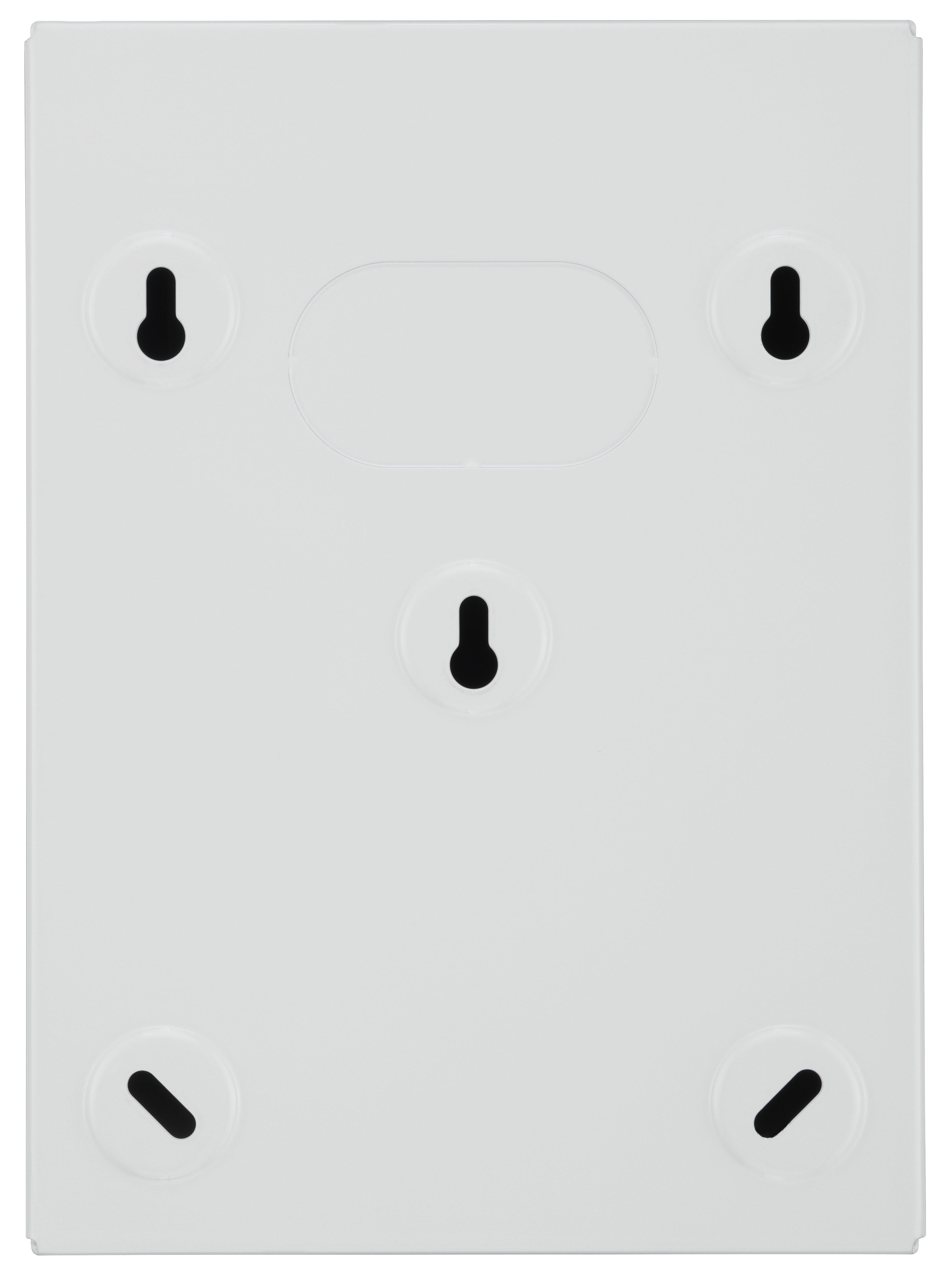

| Number Of Wall Fixing Positions | 4 |
| Fitted Lock | No |
| Installation Method(s) | Surface |
| Spirit Level | Yes |
| Ways | 5 |
| Knockouts | 9 |
| Mounting Type | Surface |
| IP Rating | IP20 |
| Terminal Screw Type | Combi |
| Operating Voltage (V) | 230 |
| Max Load (A) | 100 |
| MCB's | 1 |
| Operating Temperature (C) | -25°C to +40°C |
| Frequency (Hz) | 50 |
