CFUEV5A-01

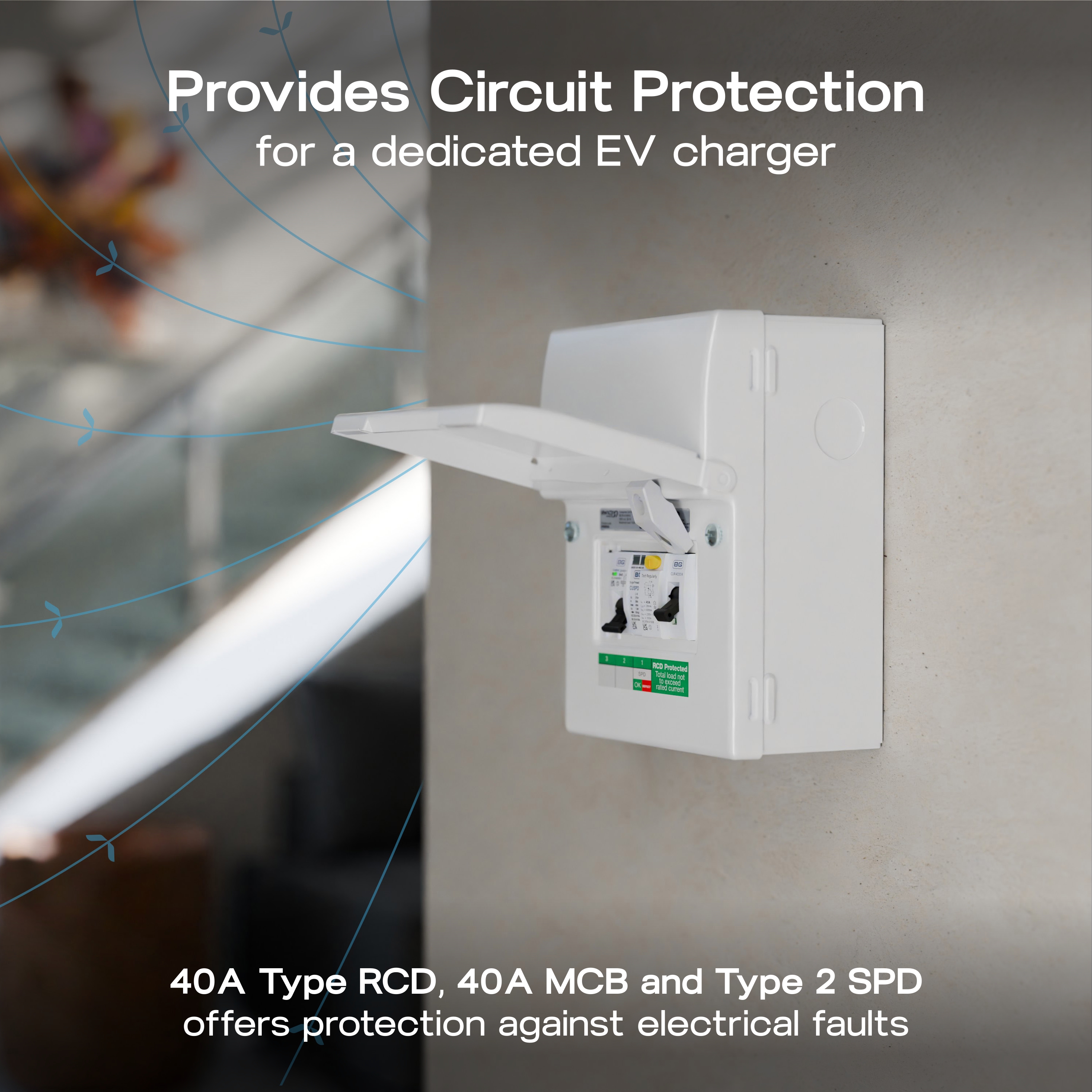

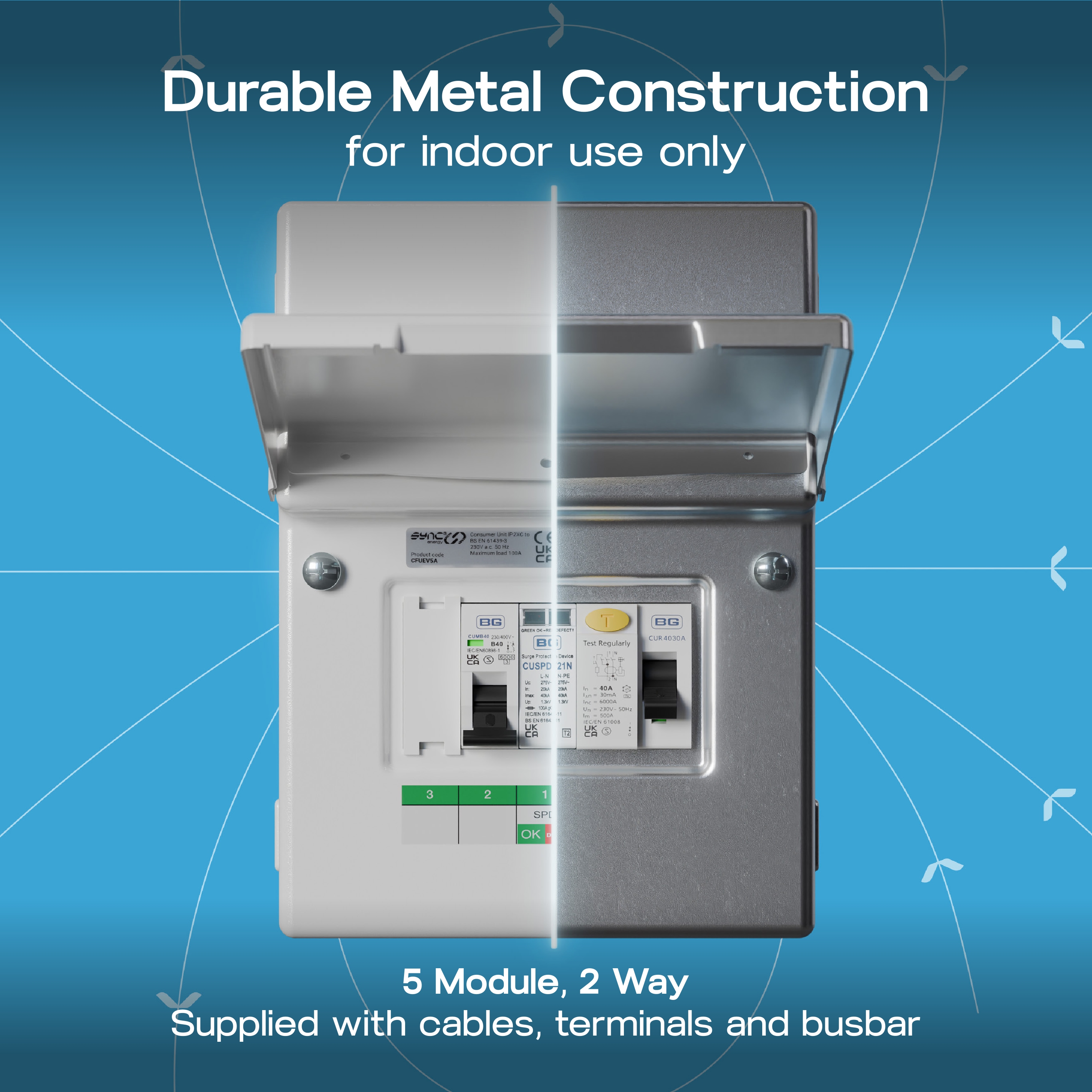

Sync Energy Non-Weatherproof IP20, 5 module populated EV kit c/w 40A 30mA RCD Type A, 40A MCB, type 2 SPD
IP20 Non-Weatherproof
integrated Spirit Level

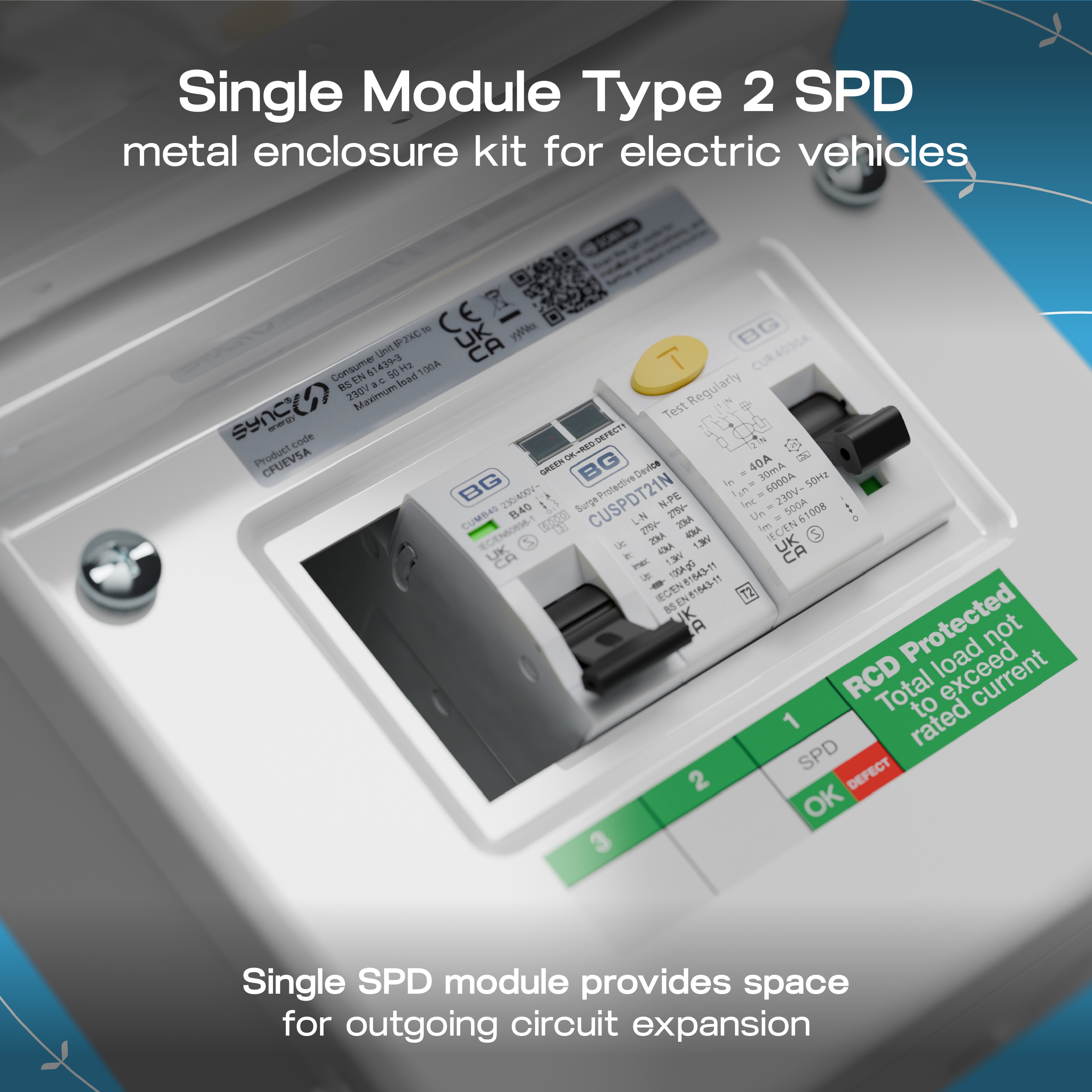

T2 SPD
1 x 40A Type A RCD
1 x 40A MCB
For use when the EV charger supply cable does not have mechanical protection
Easy installation
Backed out and retained terminal screws
All metal construction
Enclosure kit supplied with devices DIN rail Neutral cable, Neutral and Earth terminals, labels busbar and cover blanks
| Front Plate Material | Steel 1.0mm - ST16 |
| General Colour | White |
| Fixing Screws Supplied | No |
| Modules | 5 |

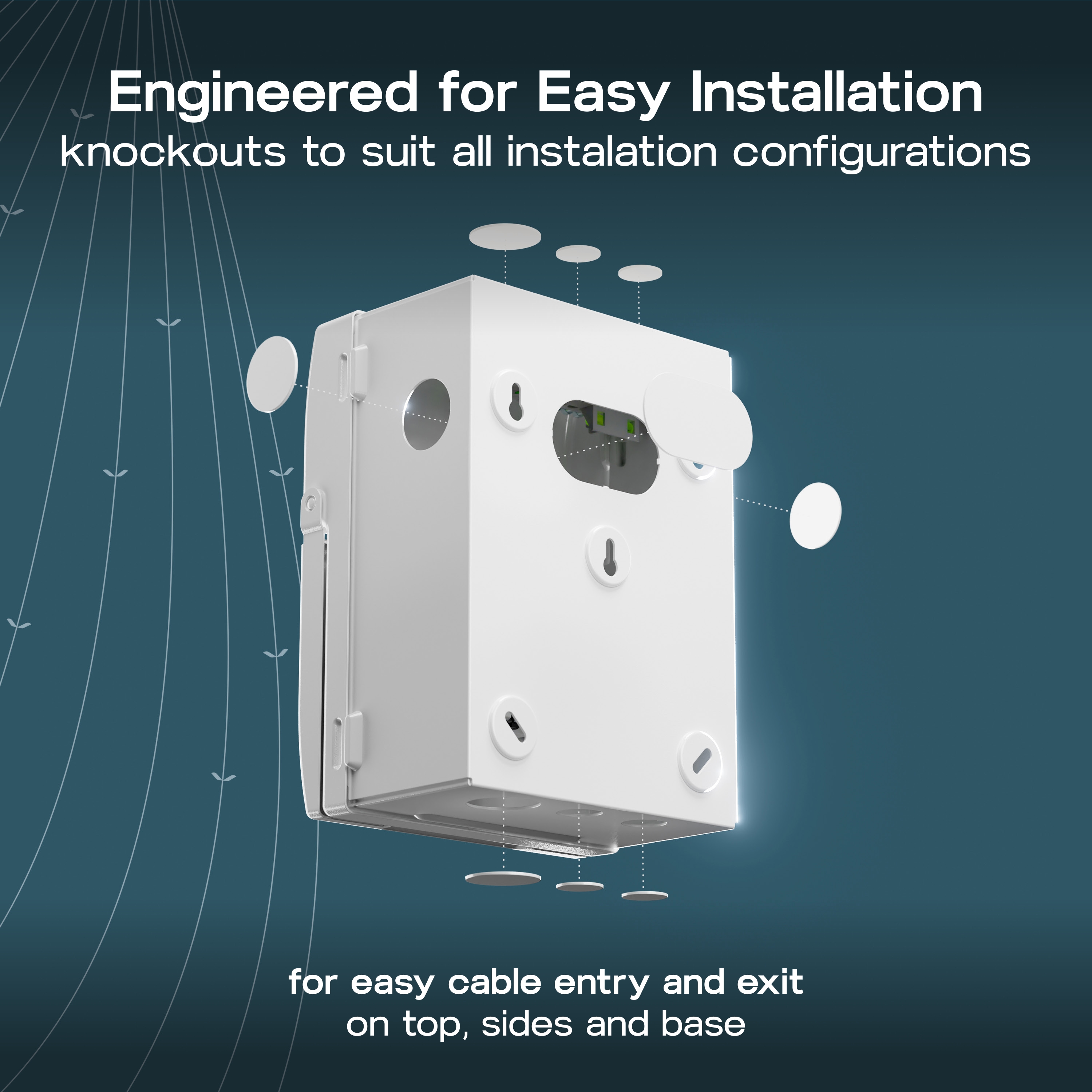

| Number of Cable Entries | 9 |
| Captive Terminal Screws | Yes |
| Cable Entry Type | Knockout |
| Details per face (Size/number) | 6 - 3 x M20-32 2 x M20-32 (side) 1 x 35 x 90 (Base) |

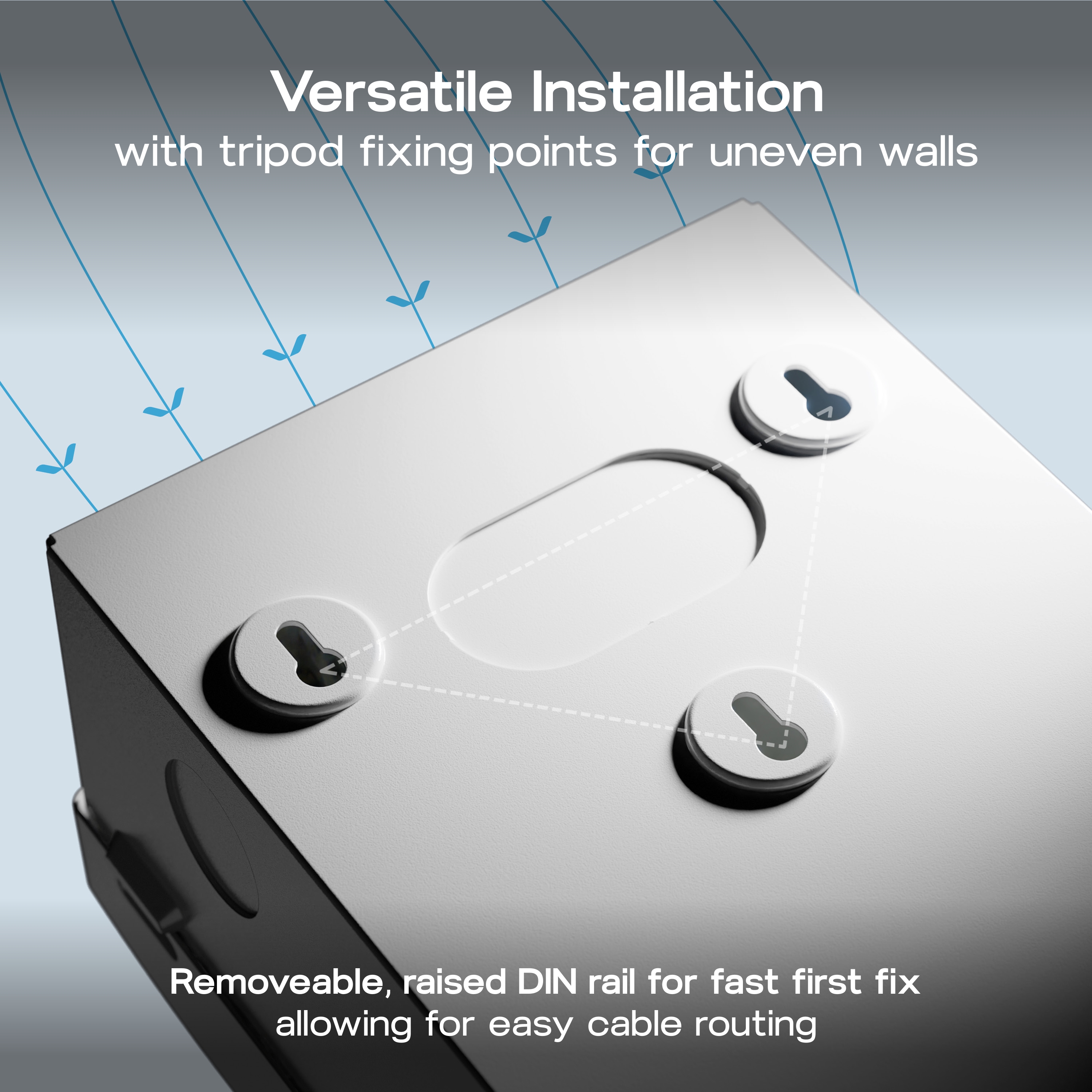

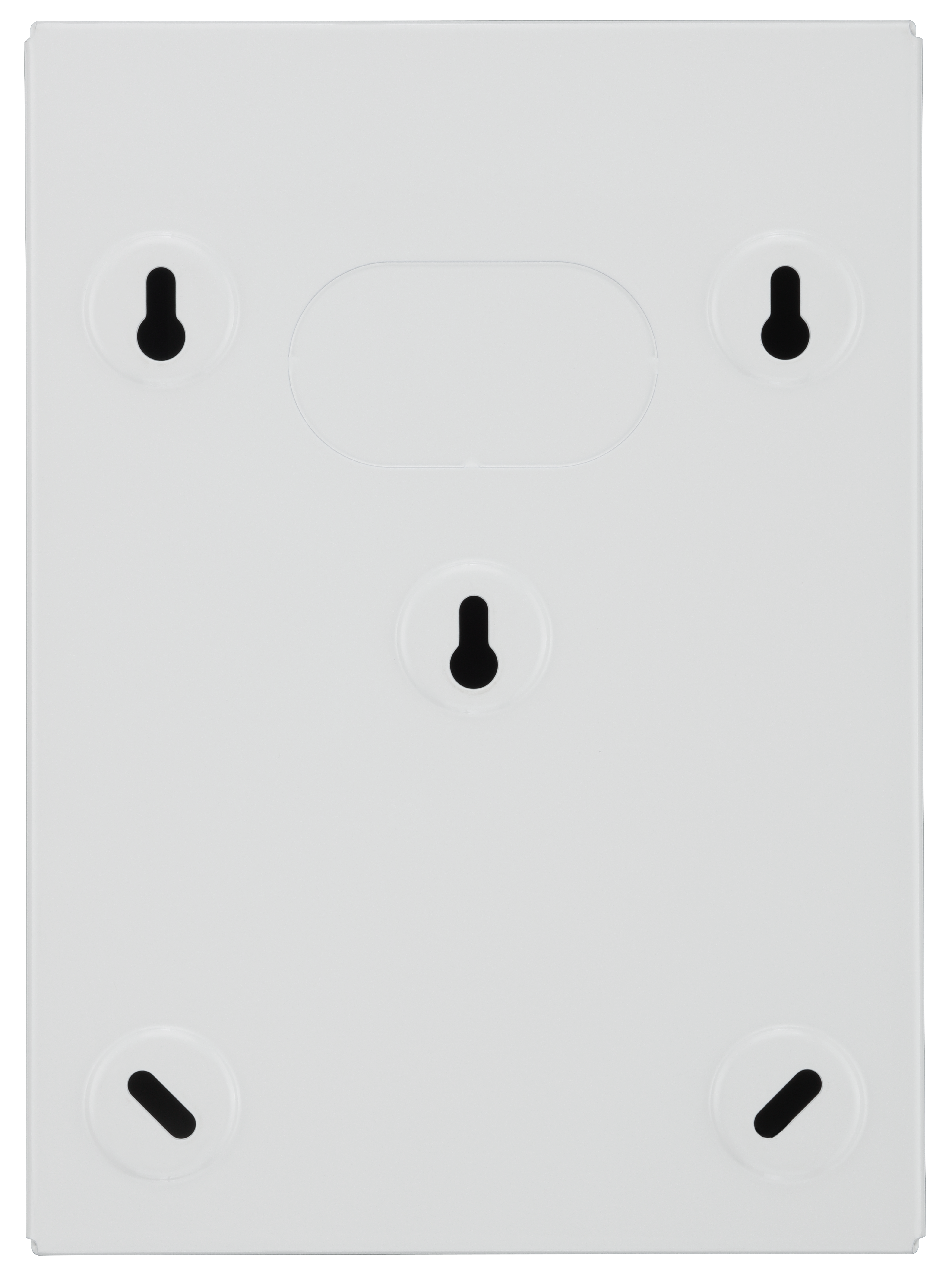

| Number Of Wall Fixing Positions | 4 |
| Fitted Lock | No |
| Spirit Level | Yes |
| Knockouts | 9 |
| Mounting Type | Surface |
| IP Rating | IP20 |
| Terminal Screw Type | Combi |
| Rated Sensitivity (mA) | 30mA |
| RCD Mechanism Type | Electro/Mechanical |
| Trip Speed (mS) | <0.1s |
| Operating Voltage (V) | 230 |
| Current Rating (A) | 40 |
| Max Load (A) | 40 |
| MCB's | 1 |
| Operating Temperature (C) | -25°C to +40°C |
| Frequency (Hz) | 50 |
