CF248MS43-02

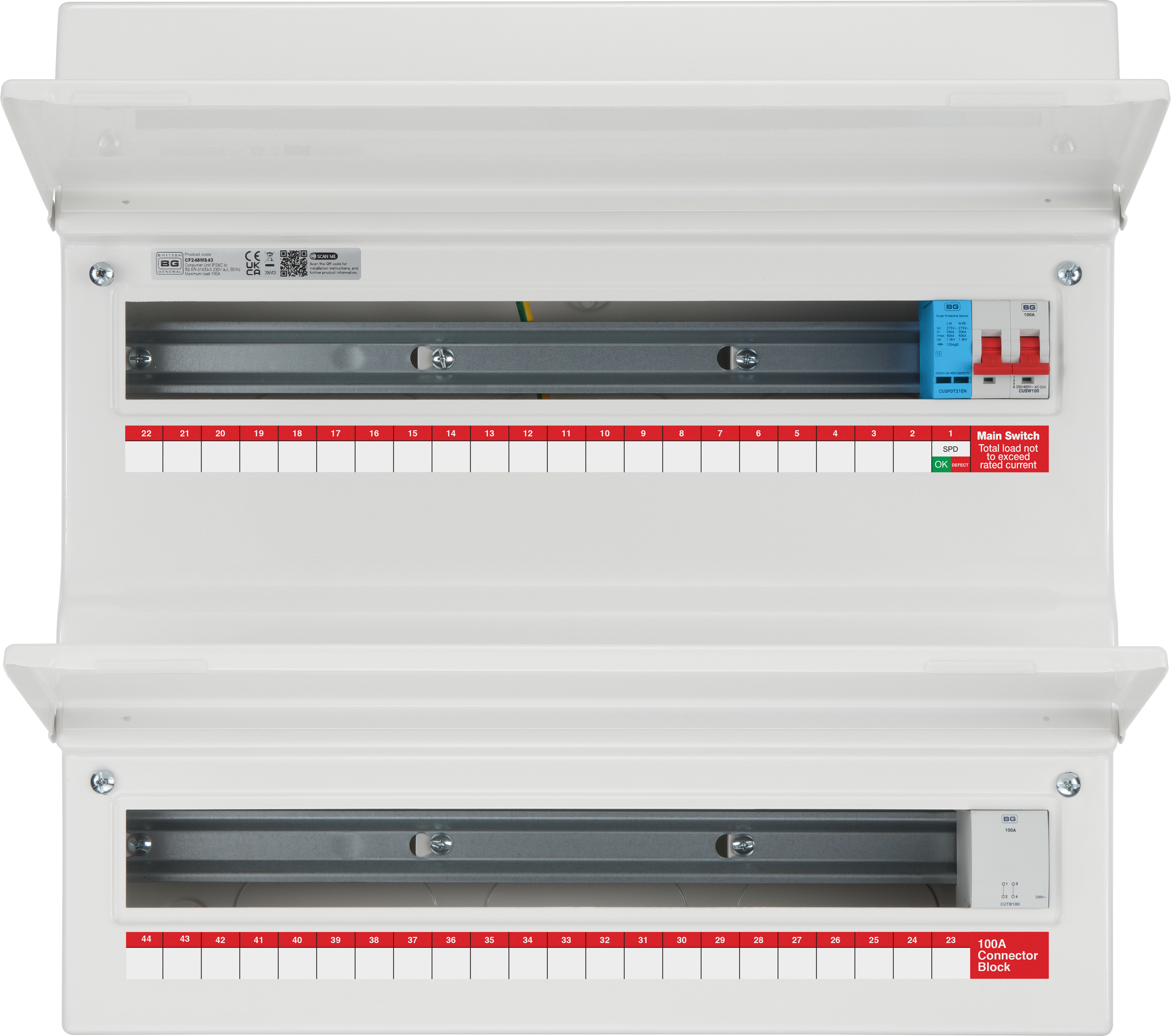

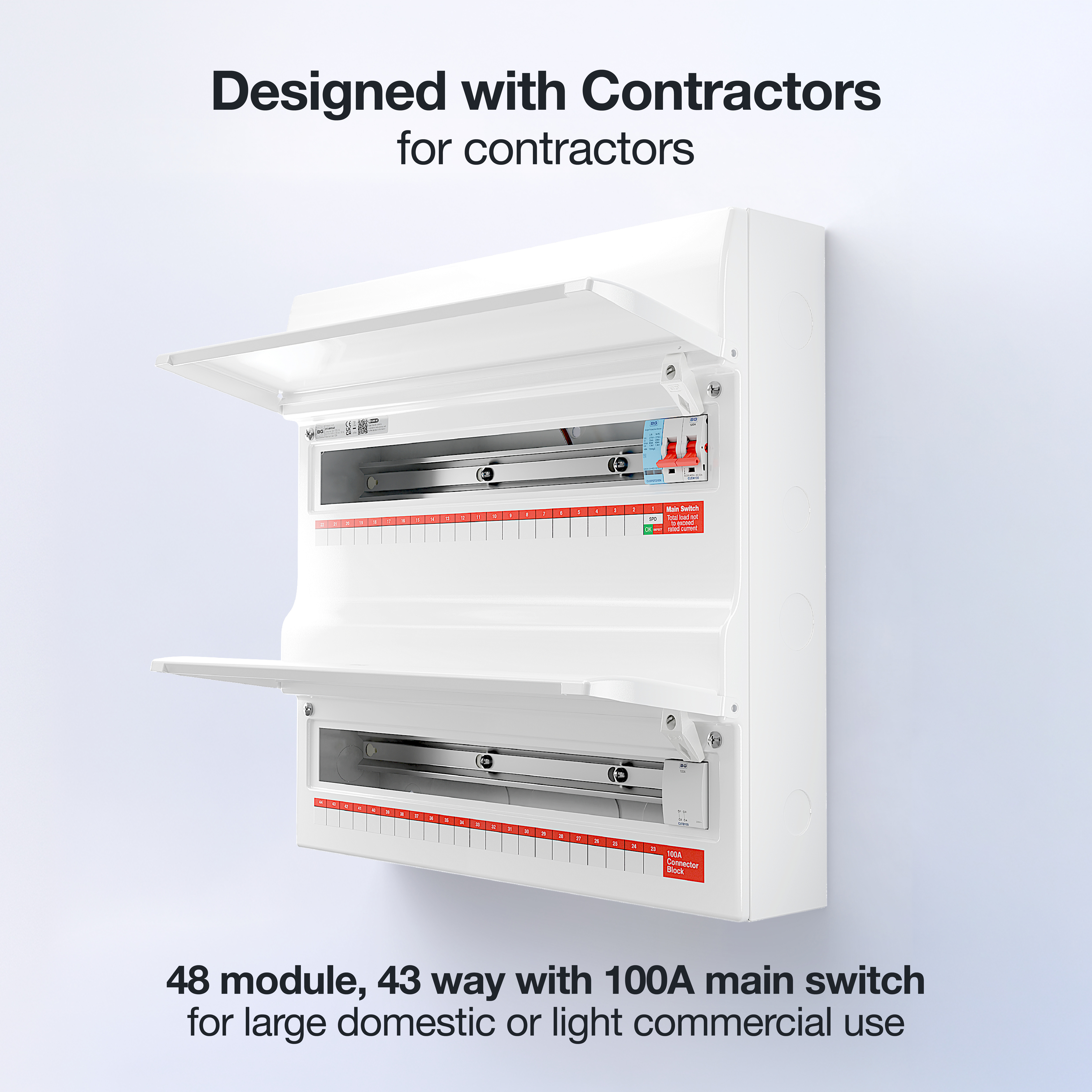

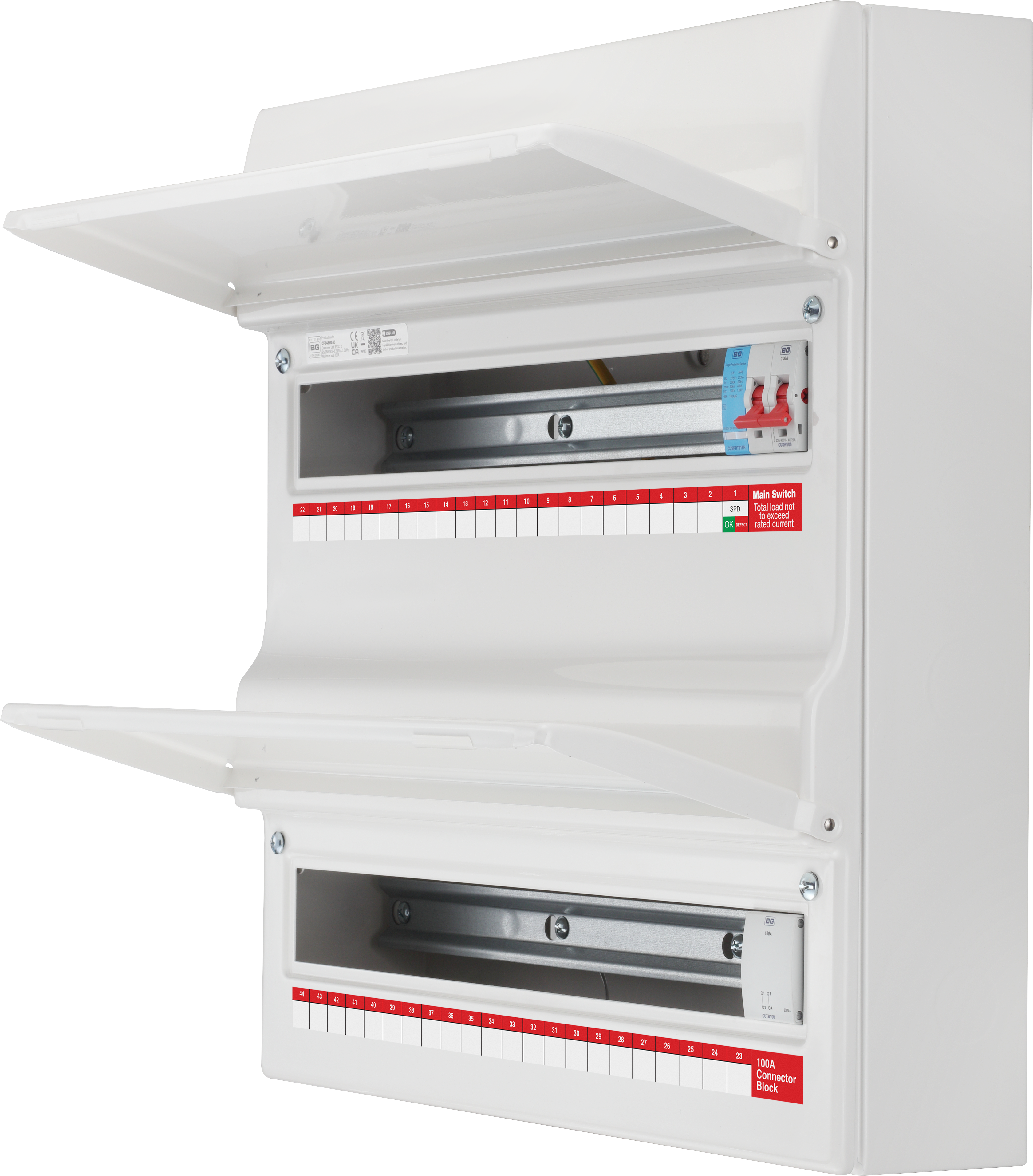

Consumer Unit Double Row 48 Module 43 Way Unpopulated with 100A Main Switch, 1 X 100A Connector Block & 1 x Type 2 Surge Protection Device
Unpopulated

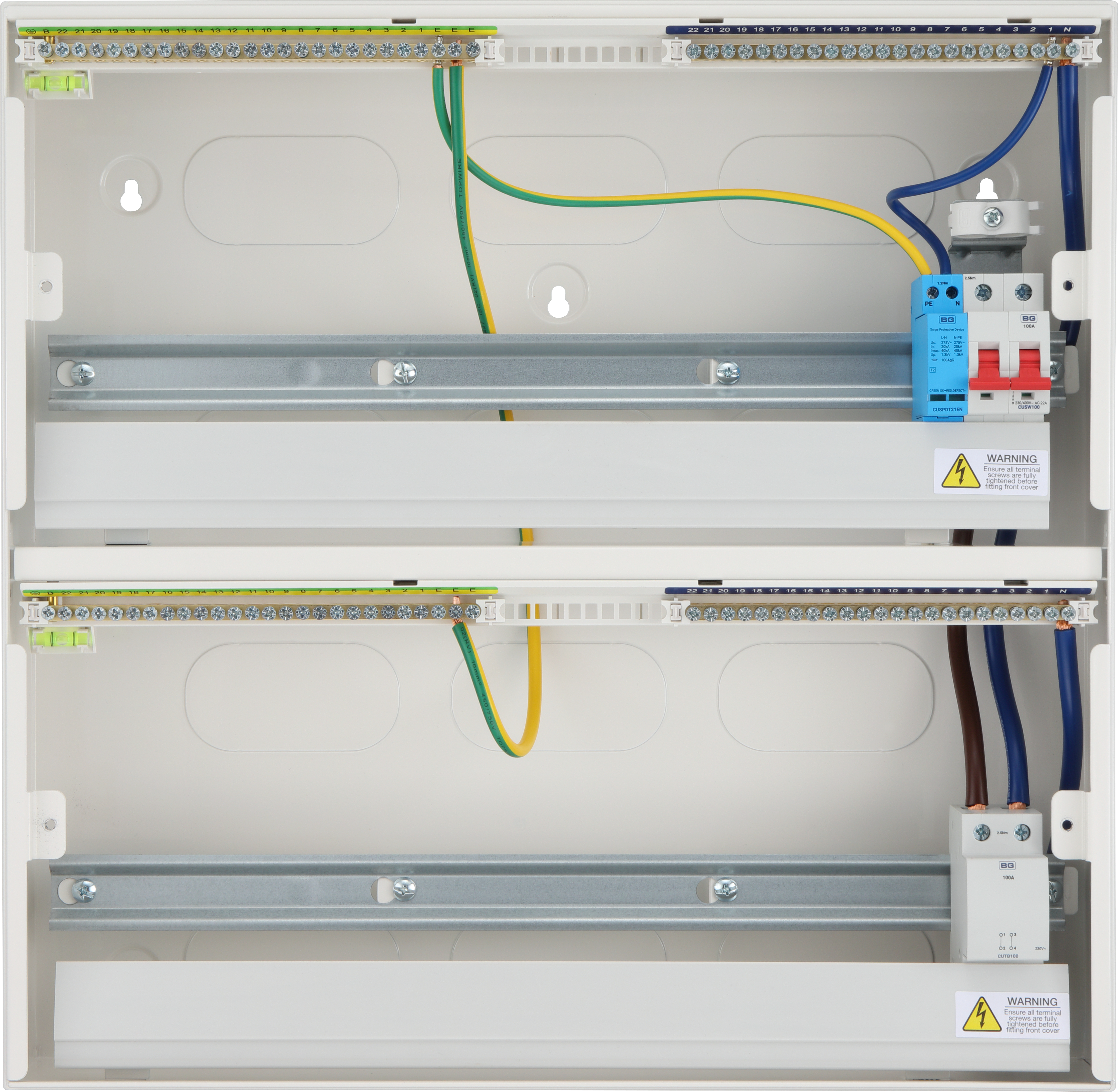

Supplied with Type 2 Surge Protection Device
100A Main Switch
48 Module Capacity
43 Useable Ways
| General Colour | White |
| Fixing Screws Supplied | No |
| Modules | 48 |
| Number of Cable Entries | 42 |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |

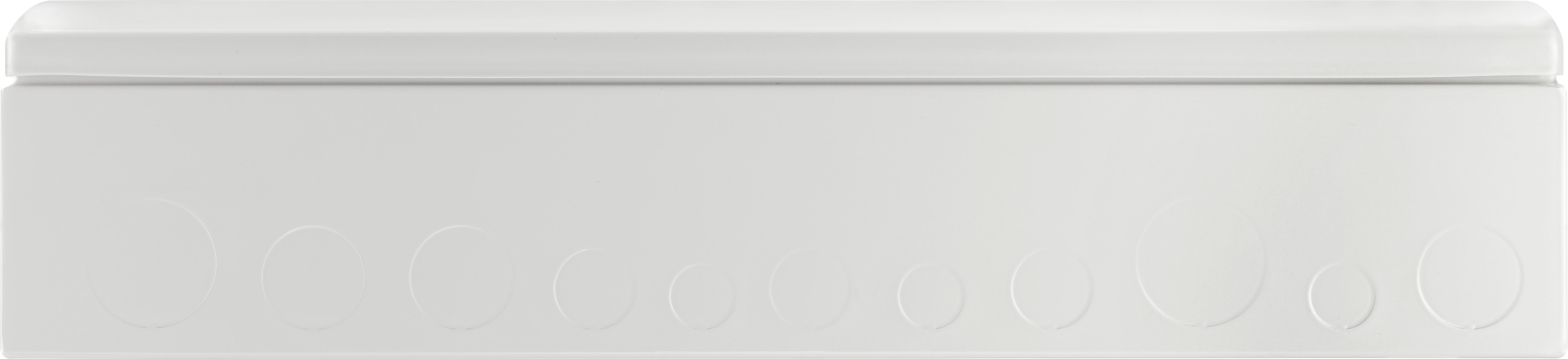

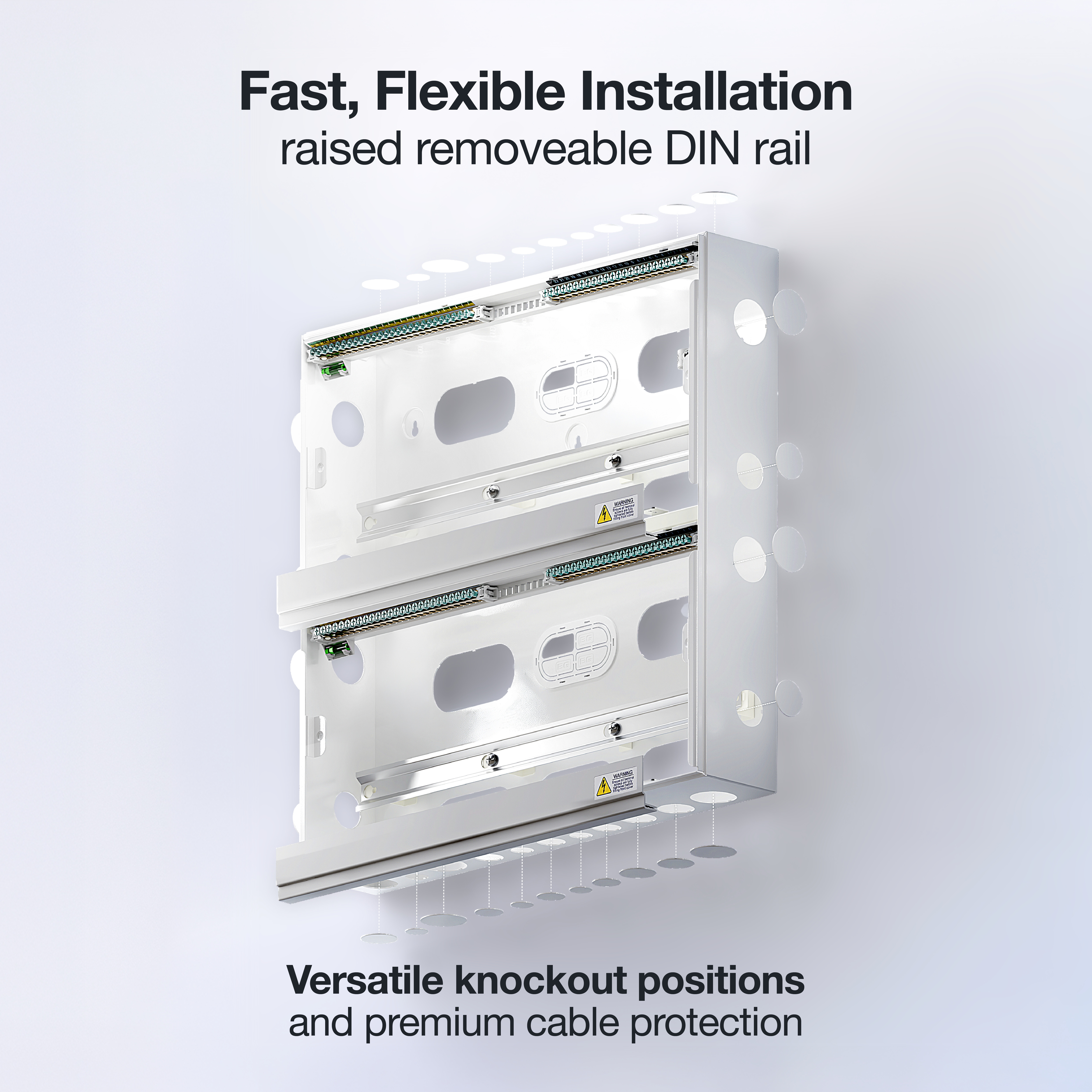

| Cable Entry Type | Knockout |

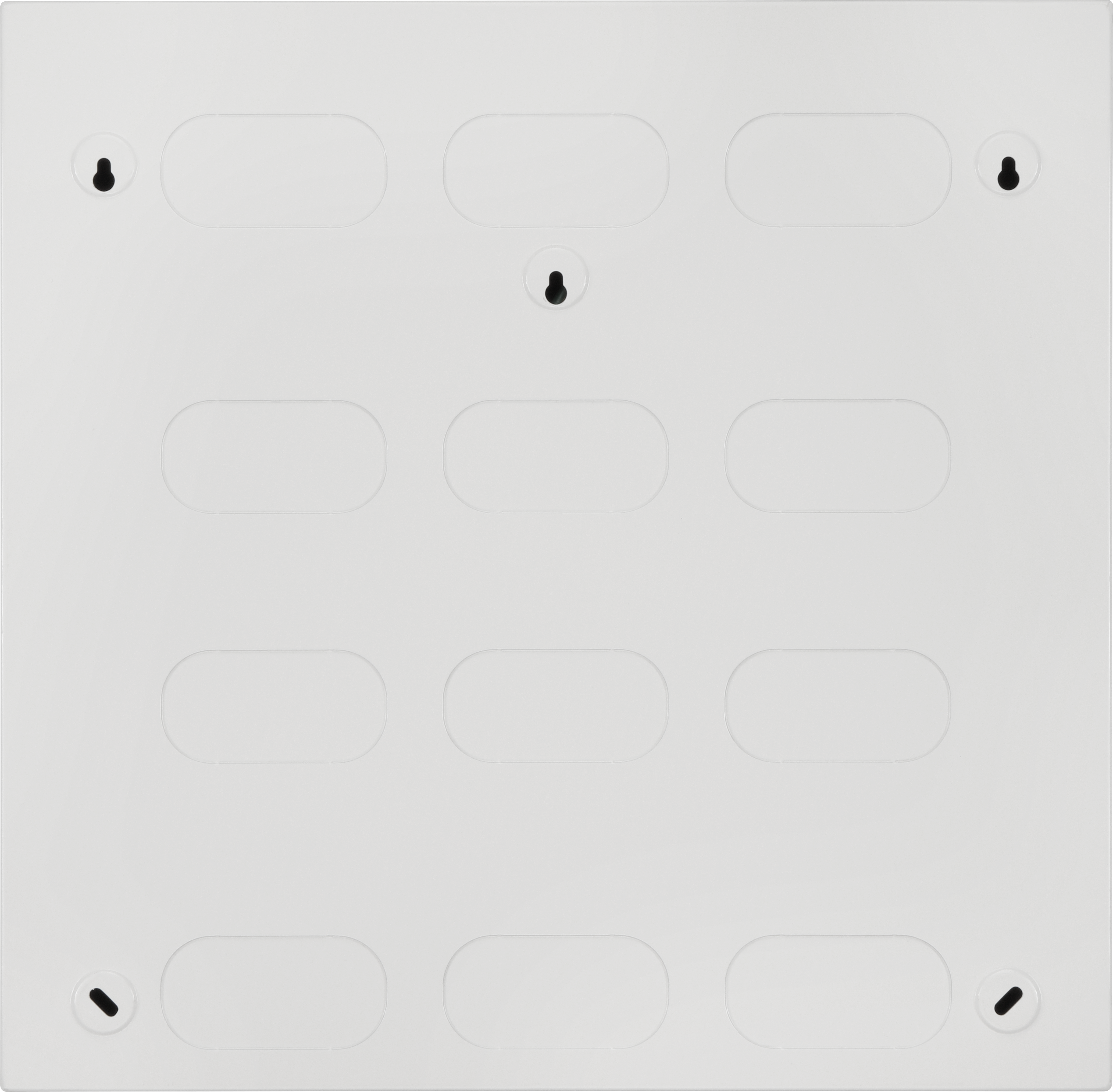

| Number Of Wall Fixing Positions | 5 |
| Fitted Lock | No |
| Installation Method(s) | Surface |
| Spirit Level | Yes |
| Terminal Type | Screw |
| Ways | 43 |
| Number of Knockouts | 42 |
| Mounting Type | Surface |
| IP Rating | IP2XC |
| Terminal Screw Type | Combi |
| Rated Sensitivity (mA) | N/A |
| RCD Mechanism Type | N/A |
| Trip Speed (mS) | N/A |
| Operating Voltage (V) | 230 |
| Max Load (A) | 100 |
| MCB's | 0 |
| Frequency (Hz) | 50 |
