CF236MS31-02

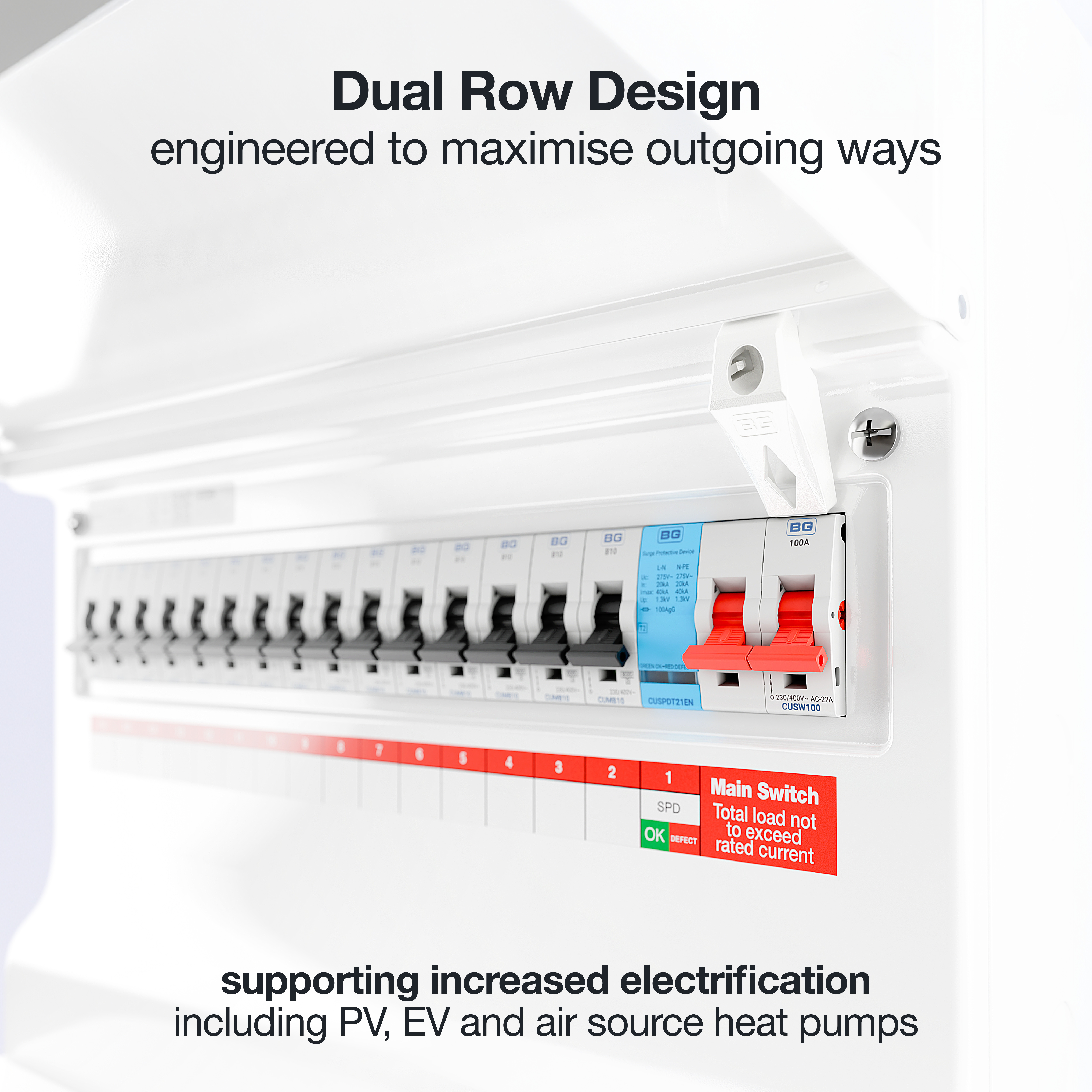

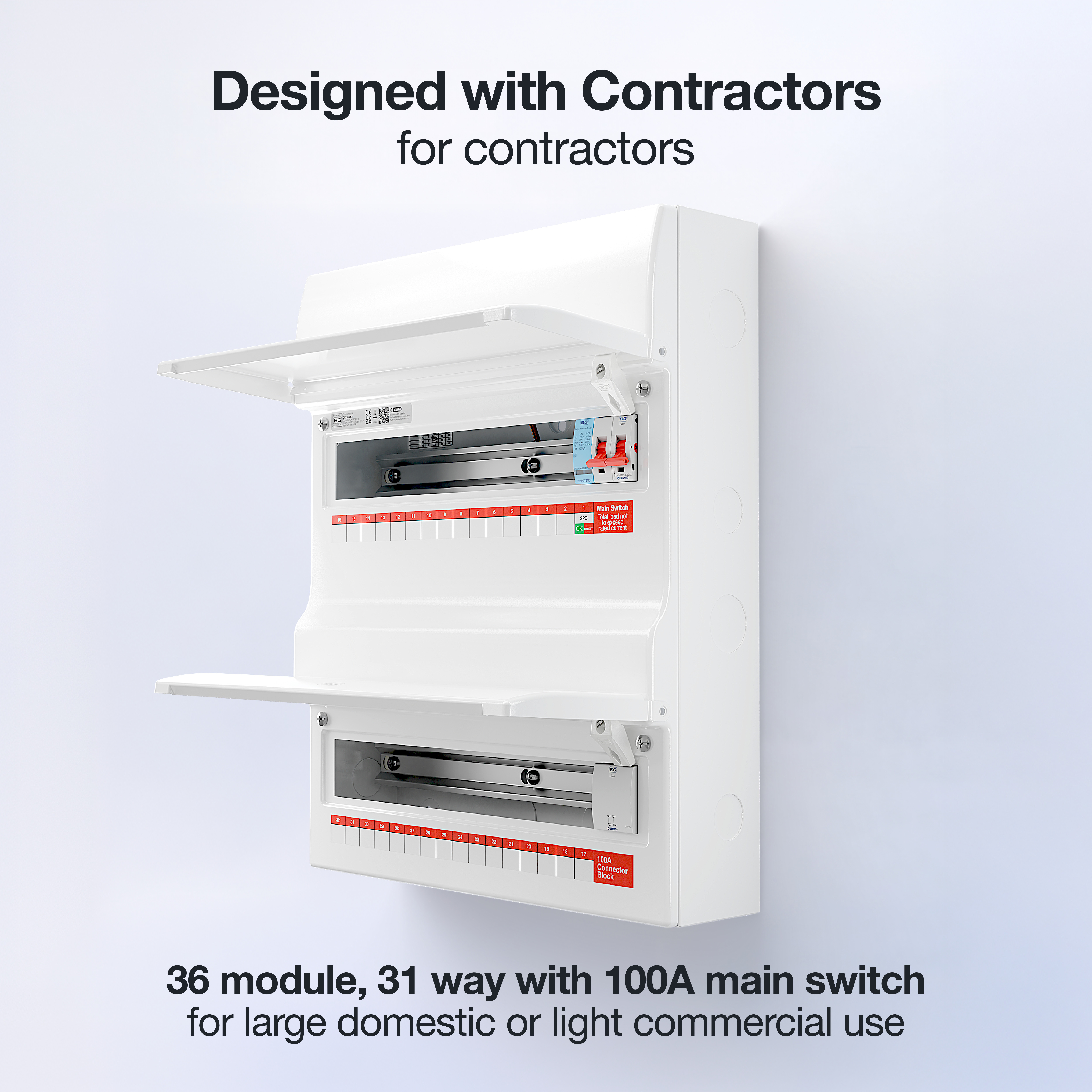

Consumer Unit Double Row 36 Module 31 Way Unpopulated with 100A Main Switch, 1 x 100A Connector Block & 1 x Type 2 Surge Protection Device

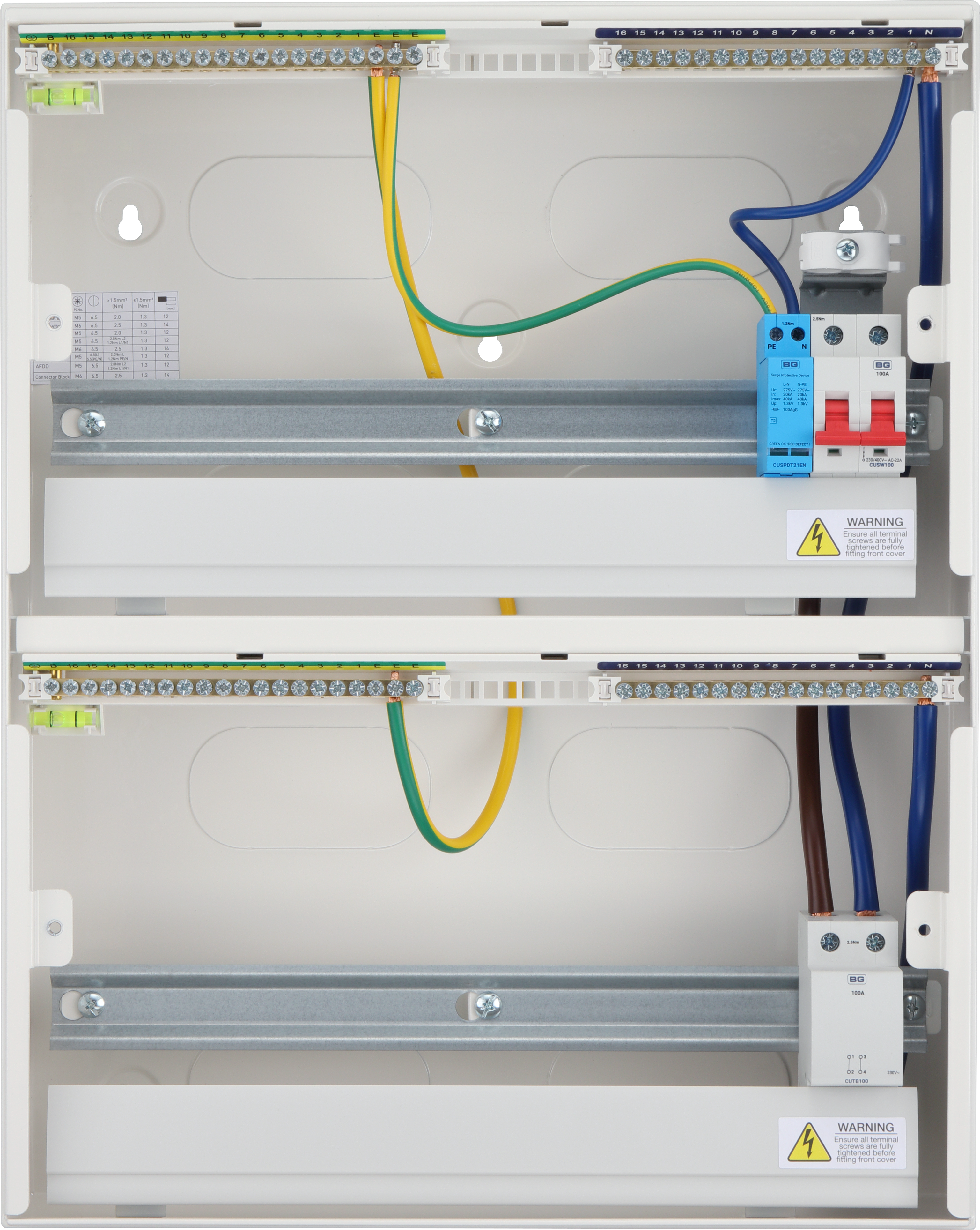

Unpopulated
Supplied with Type 2 Surge Protection Device
100A Main Switch
36 Module Capacity
31 Useable Ways
| General Colour | White |
| Fixing Screws Supplied | No |
| Modules | 36 |
| Number of Cable Entries | 32 |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |

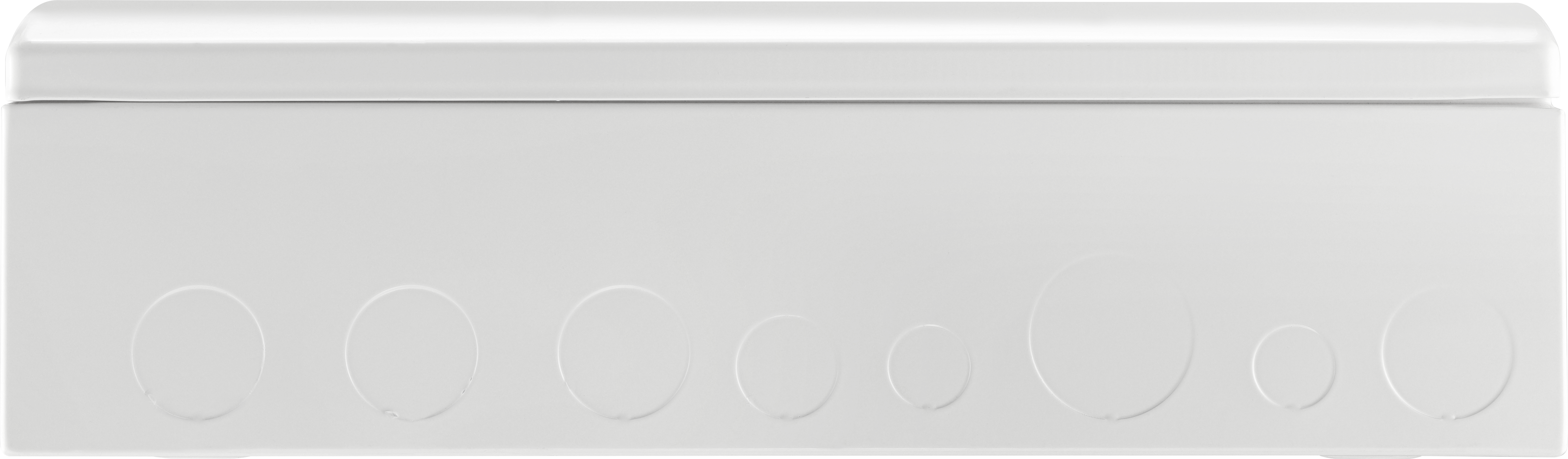

| Cable Entry Type | Knockout |

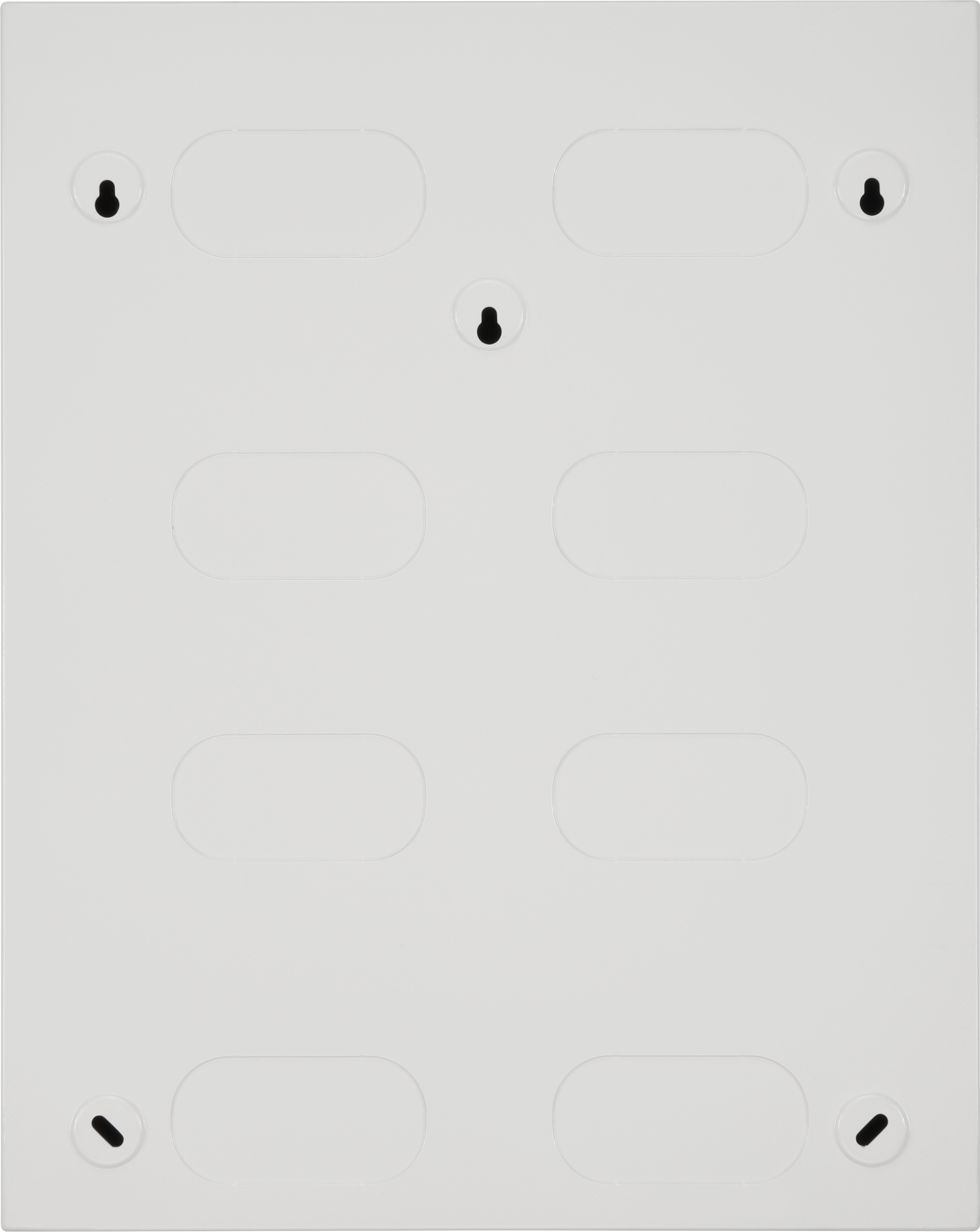

| Number Of Wall Fixing Positions | 5 |
| Fitted Lock | No |
| Installation Method(s) | Surface |
| Spirit Level | Yes |
| Terminal Type | Screw |
| Ways | 31 |

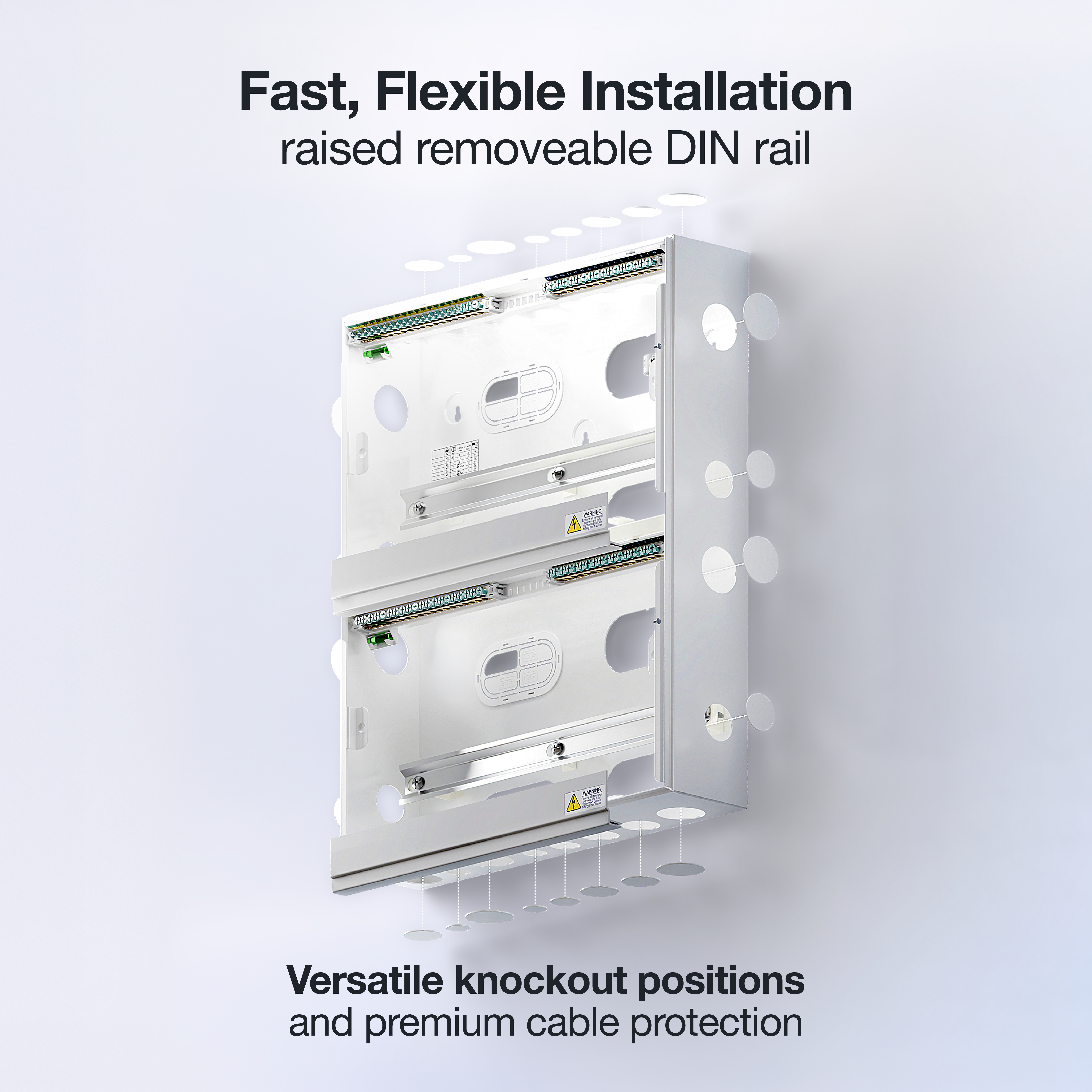

| Number of Knockouts | 32 |
| Mounting Type | Surface |
| IP Rating | IP2XC |
| Terminal Screw Type | Combi |
| Rated Sensitivity (mA) | N/A |
| RCD Mechanism Type | N/A |
| Trip Speed (mS) | N/A |
| Operating Voltage (V) | 230 |
| Max Load (A) | 100 |
| MCB's | 0 |
| Frequency (Hz) | 50 |
