WP55ARCD-02
BG Nexus Storm, Unswitched Fused Connection Unit with Latching Type A RCD, IP66
Weather and dust protection - IP66 (with cover closed)

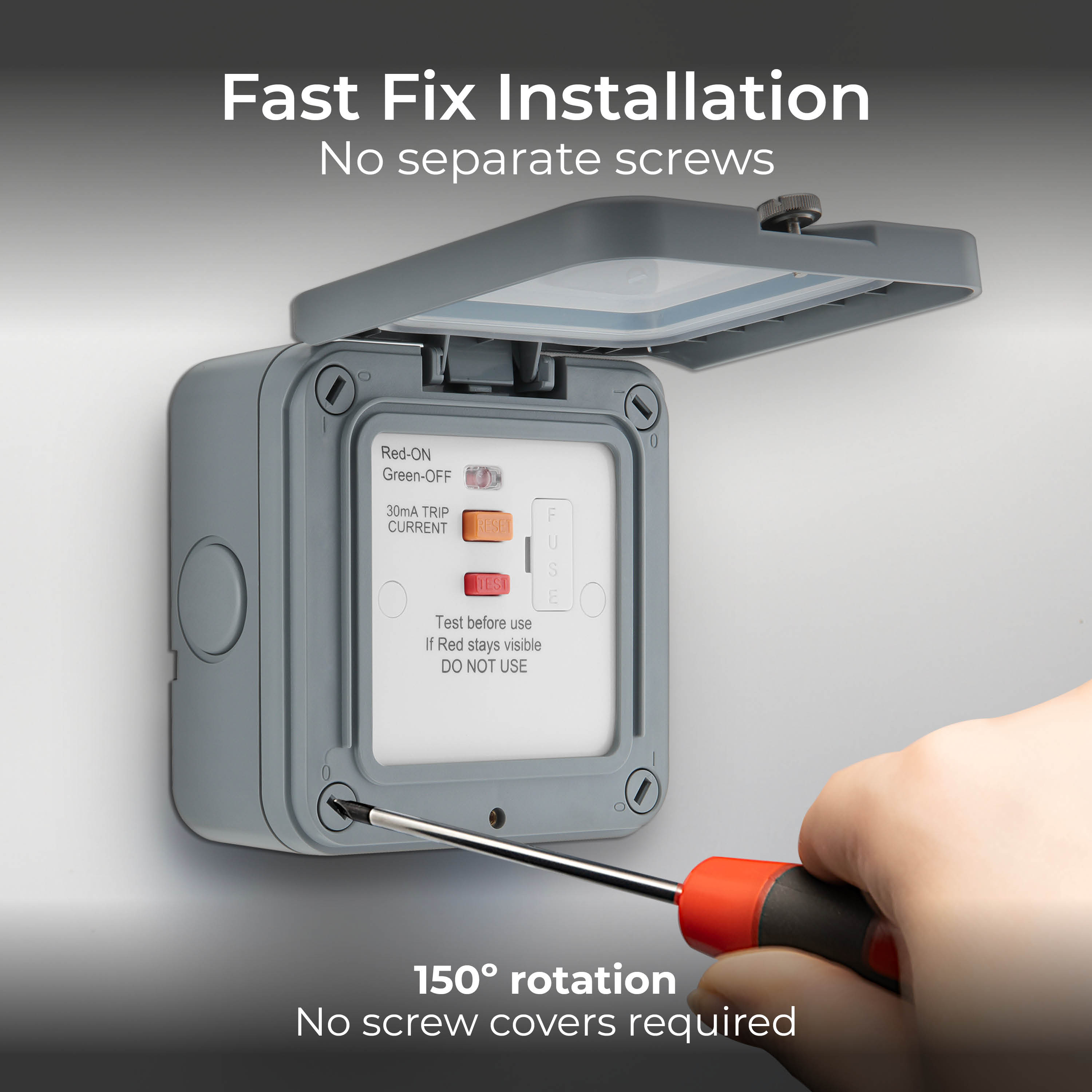

Fast fix - no separate screws, no screw covers, 150ยบ rotation
Flexible membrane - allows easy switch and power status indication without compromising IP rating

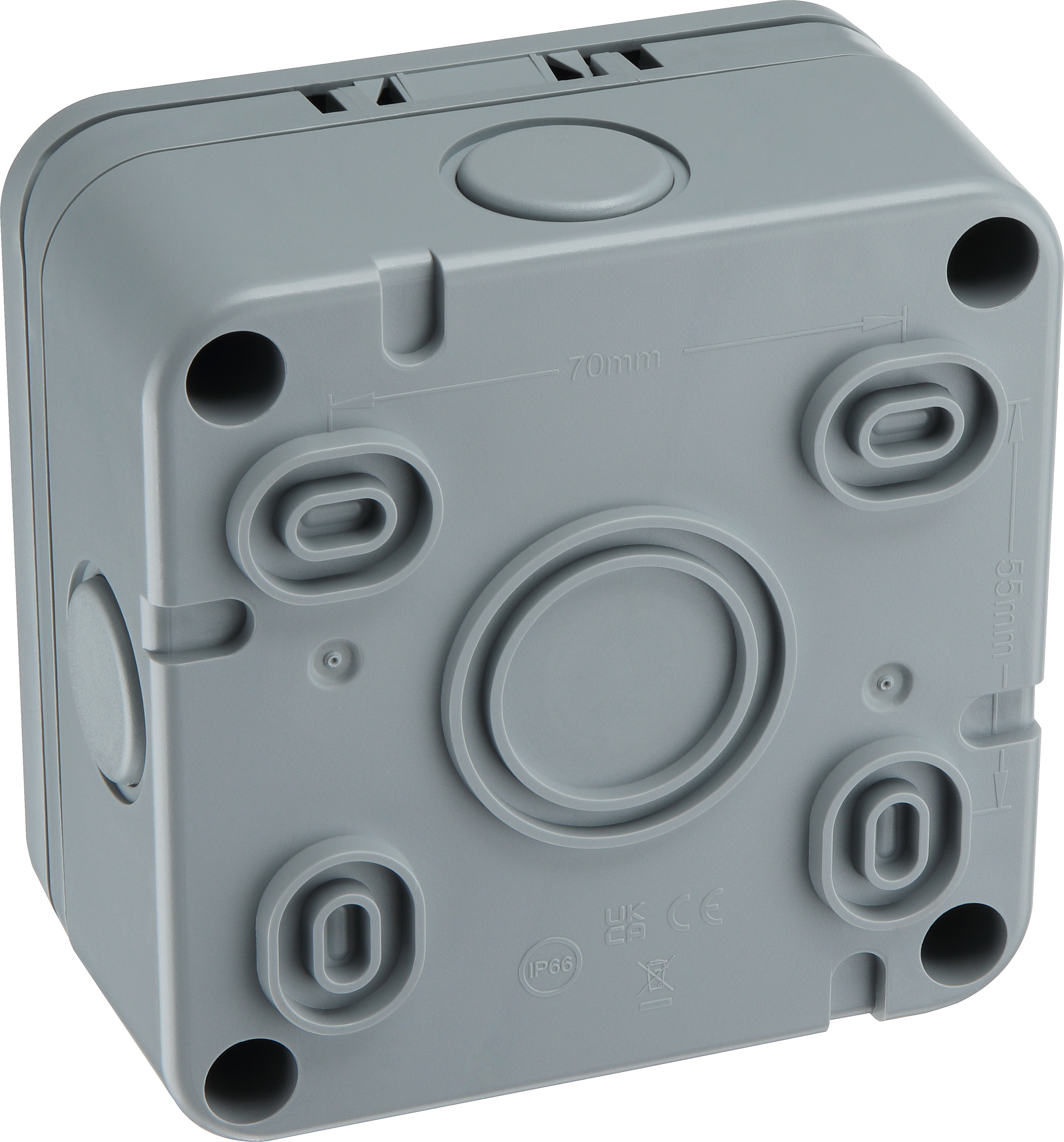

Multiple knockouts for versatility when installing - 5 x 20mm
RCD mechanism - latching (passive) - socket returns to original state when power is resumed
No need to reset after a loss of power
Angled in-line colour coded terminals with captive screws - for quick and easy installation

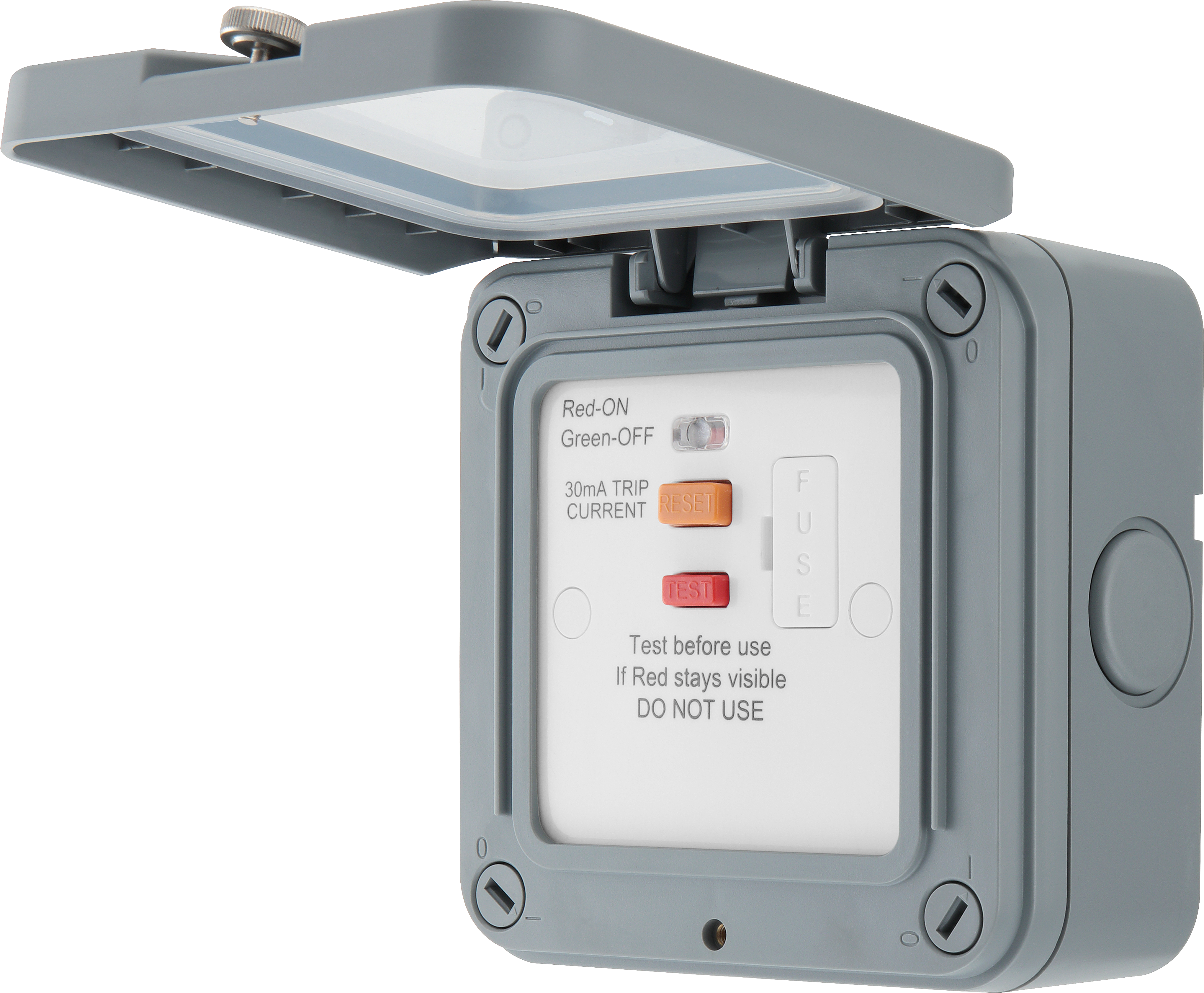

Hinged cover - with fixing screw provides access to the fuse
Robust construction - high impact polycarbonate housing
Trip current - 30mA trip current, 40mS trip speed
| General Colour | Grey |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Main Power Indicator | Yes |
| Terminal Capacity (mm²) | 3 x 2.5mm² |
| Fused | Yes |
| Flex Out | Yes |
| Flex Out Position | Bottom Edge |
| Supplied with Mounting Box | Yes |
| Fixing Screws Supplied | No |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled terminals |
| Terminals with Colour Coding Print | Yes |
| IP Rating | IP66 |
| Rated Sensitivity (mA) | 30mA |
| RCD Mechanism Type | Latching |
| Trip Speed (mS) | <40ms |
| RCD Type | Type A |
| Operating Voltage (V) | 240 |
| Warranty (years) | 25 |
