WPL22RCD-01

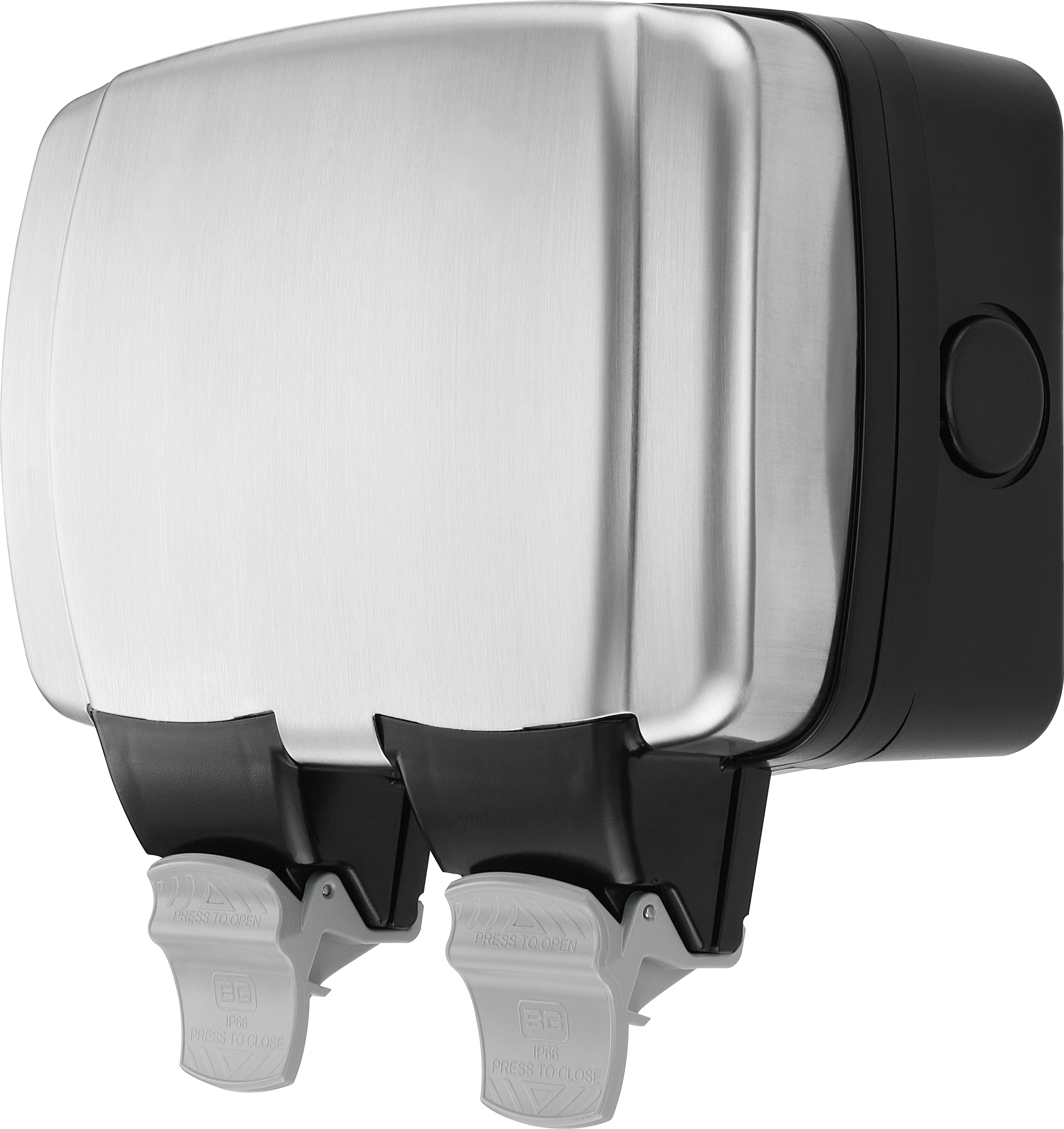

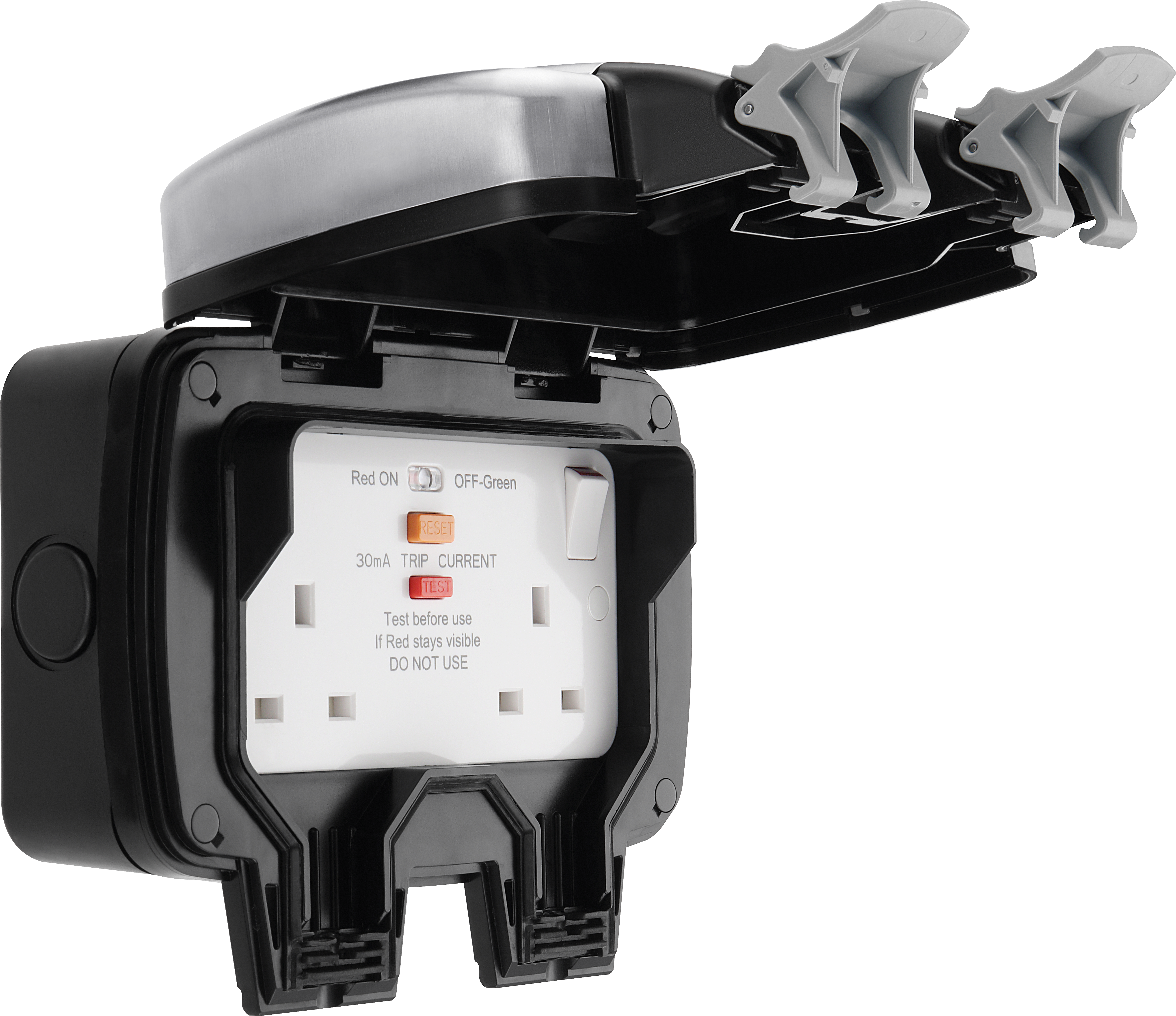

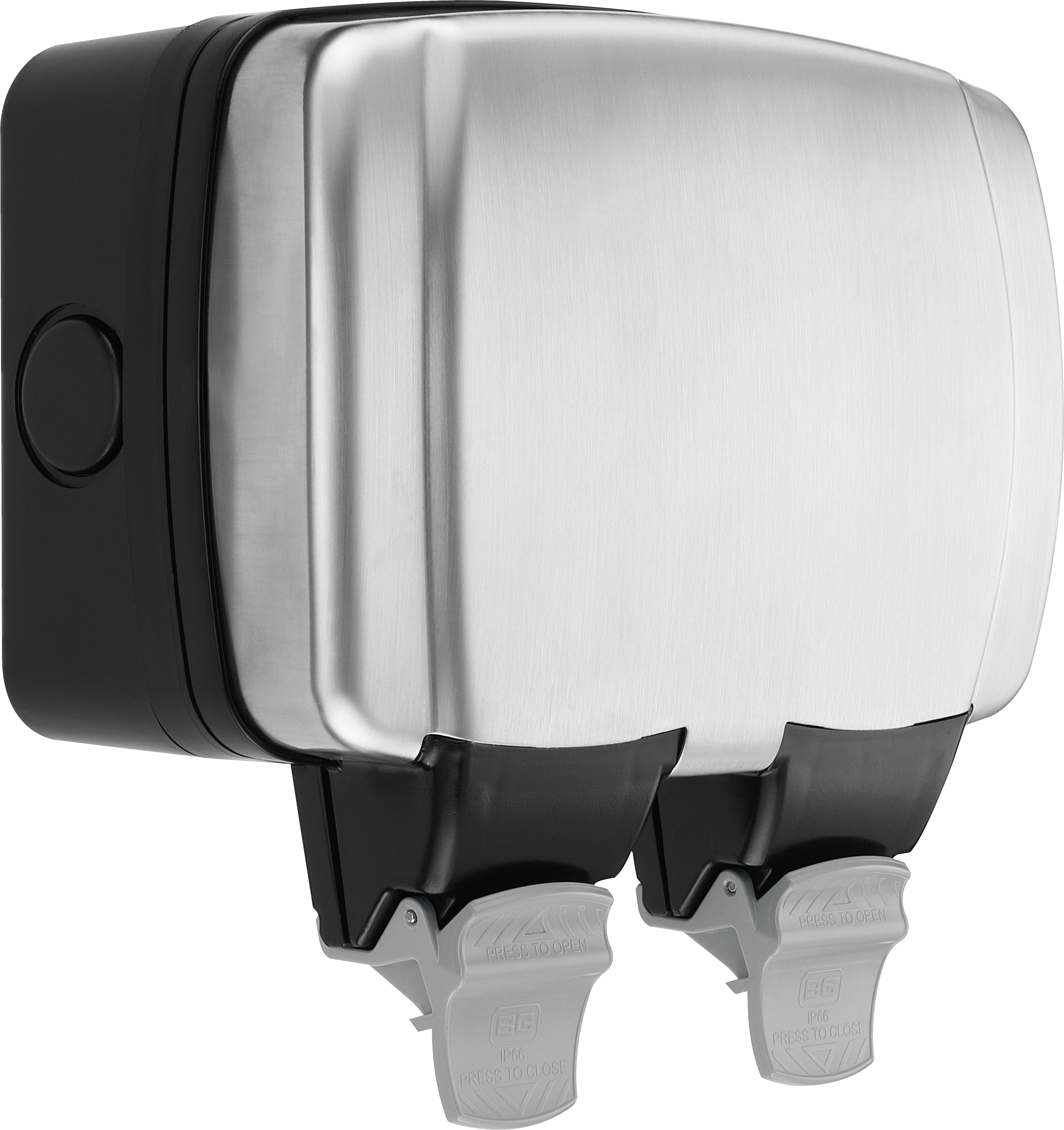

BG Decorative Weatherproof 13A Double Switched Socket with RCD, Double Pole, IP66
13A Rated
Easy to install supplied with installation instructions
Stylish stainless steel cover is IP66 Rated with plugs in use and cover sealed
Multiple gland entry positions:8 versatile entry options with M25 capability with an easy push out blank plug design and one cut out entry option on rear
Latched (passive) version if set, will retain closed contacts if the mains supply is interrupted
No need to reset after a loss of power
Angled in-line terminals provide easy access for quick installation
Colour coded terminals for easy identification
Captive screws prevent screw loss
Twin earth fitted as standard for high integrity circuits
| General Colour | Brushed Steel |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Main Power Indicator | Yes |
| Minimum Box Depth (mm) | N/A |
| Terminal Capacity (mm²) | 3 x 4mm² |
| Anti-microbial Property | No |
| Fixing Screws Supplied | No |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled-in line terminals |
| Terminals with Colour Coding Print | Yes |
| Number of Sockets | 2 |
| Number of Switches | 2 |
| Screw Caps | Yes |
| Switch Type (Ways & Poles) | Single Pole |
| Fixing Centres (mm) | W-130 |
| IP Rating | IP66 |
| Rated Sensitivity (mA) | 30mA |
| RCD Mechanism Type | Latching |
| Trip Speed (mS) | <40ms |
| RCD Type | Type AC |
| Operating Voltage (V) | 240 |
| Warranty (years) | 25 |
