PM22U3-01

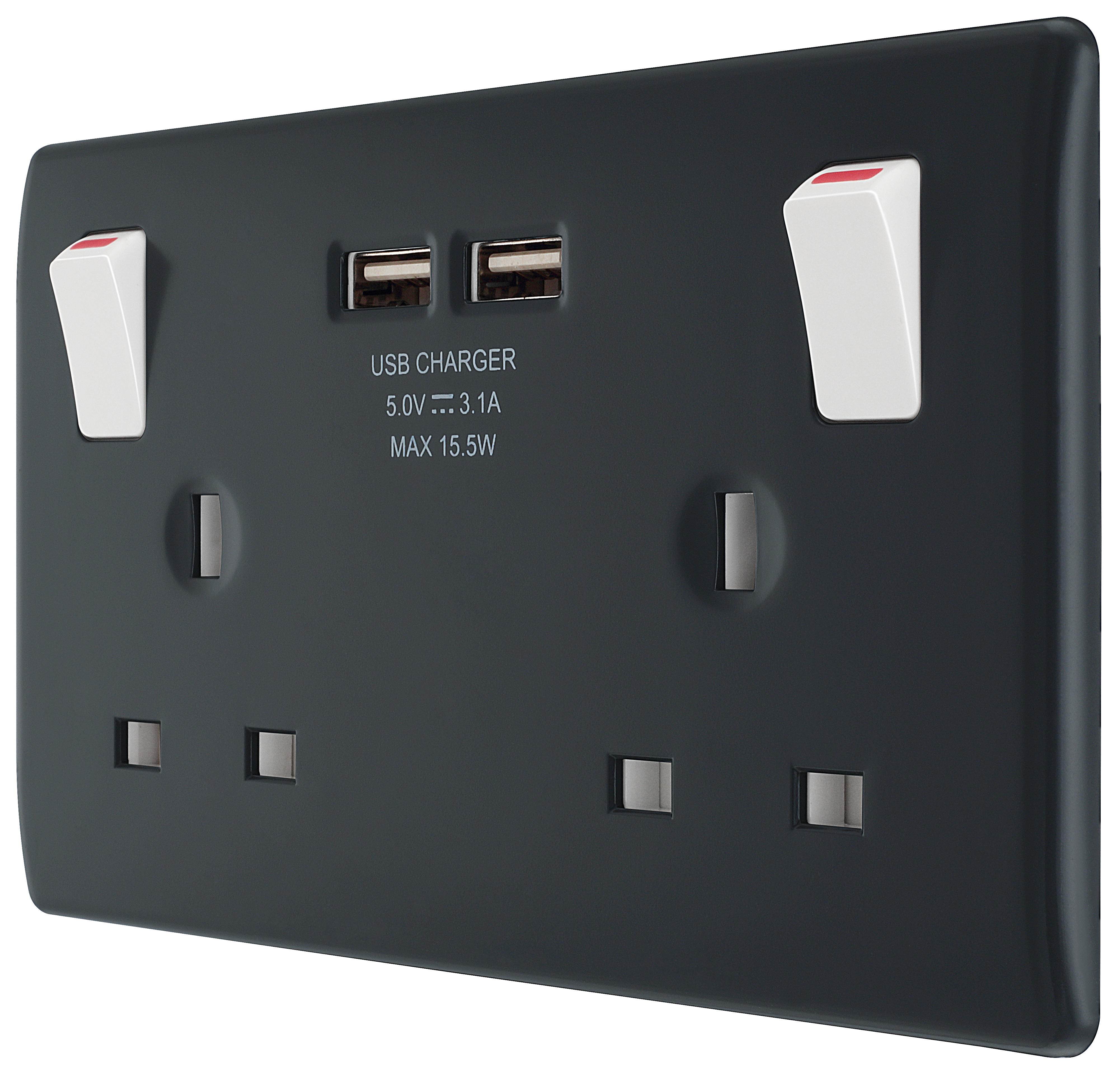

BG Part M 13A Double Switched Socket with 2 x USB A (3.1A)
13A Rated
Easy to install supplied with fixing screws and installation instructions
Free your sockets and charge all your devices - ideal for mobile phone tablets, MP3's and other USB chargeable devices
3.1A USB charging output with charge shared across two outlets. 2 Type A outlets, 3.1A, 5V
Smart USB - Standby mode when device is fully charged; AutoDetect's the USB device and adjusts charging pattern to suite; protective overload function

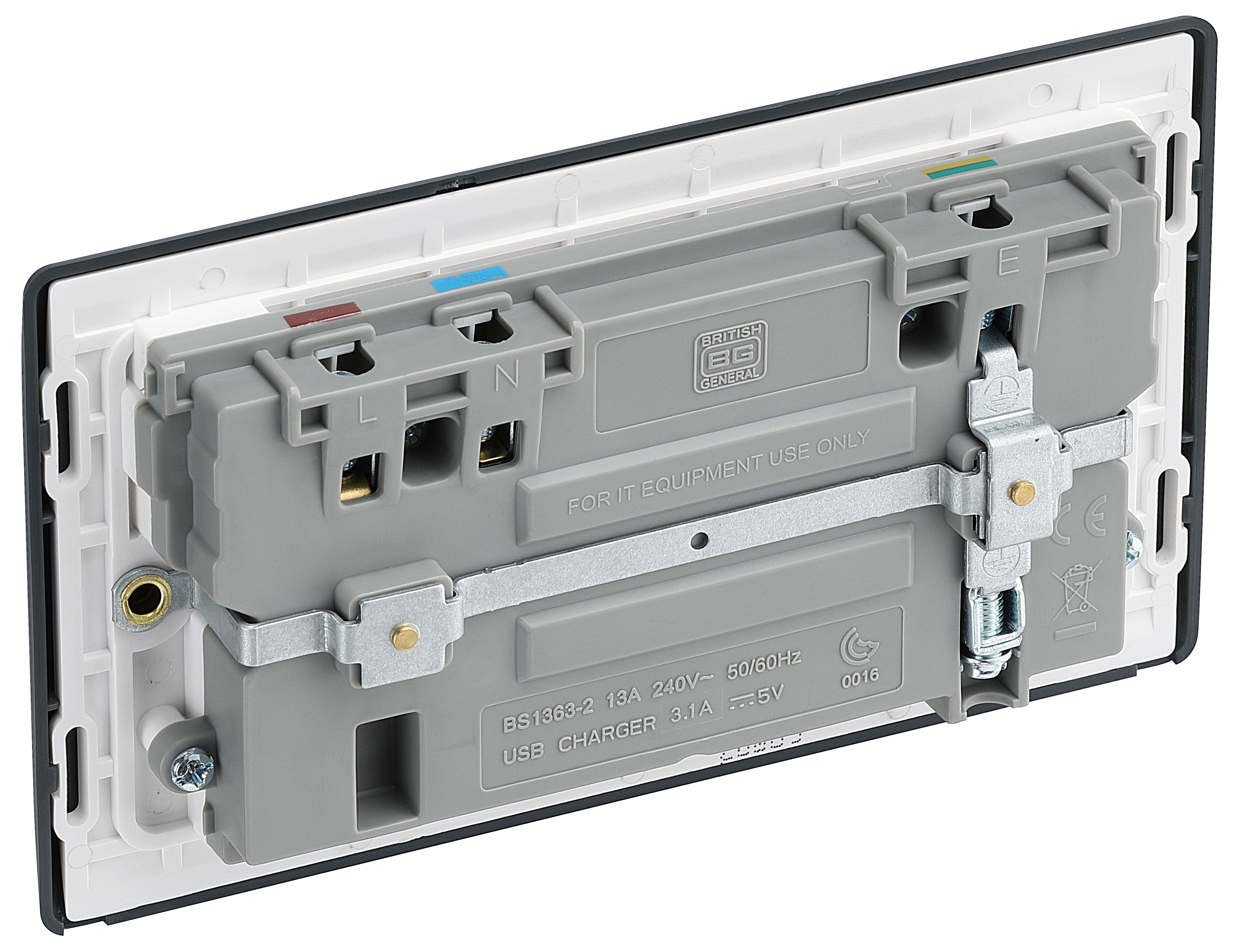

Angled in-line colour coded terminals with captive screws provide easy access for quick installation
Twin earth fitted as standard to allow a double earth facility for installations requiring high integrity protective connection Ref. BS 7671:2009
Minimum mounting box depth 25mm
Contrasting graphite and white design to aid the visually impaired
Part M Approved
| General Colour | Graphite |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (mm²) | 3 x 2.5mm² |
| Front Plate Insert Colour | Not Applicable |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled-in line terminals |
| Terminals with Colour Coding Print | Yes |
| Number of Sockets | 2 |
| Number of Switches | 2 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | Single Pole |
| USB Ports | 2 x Type A |
| Fixing Centres (mm) | W-120.6 |
| USB Output (Type & Rating) | Type A: 5V,3.1A |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 10 |
