PM74-01

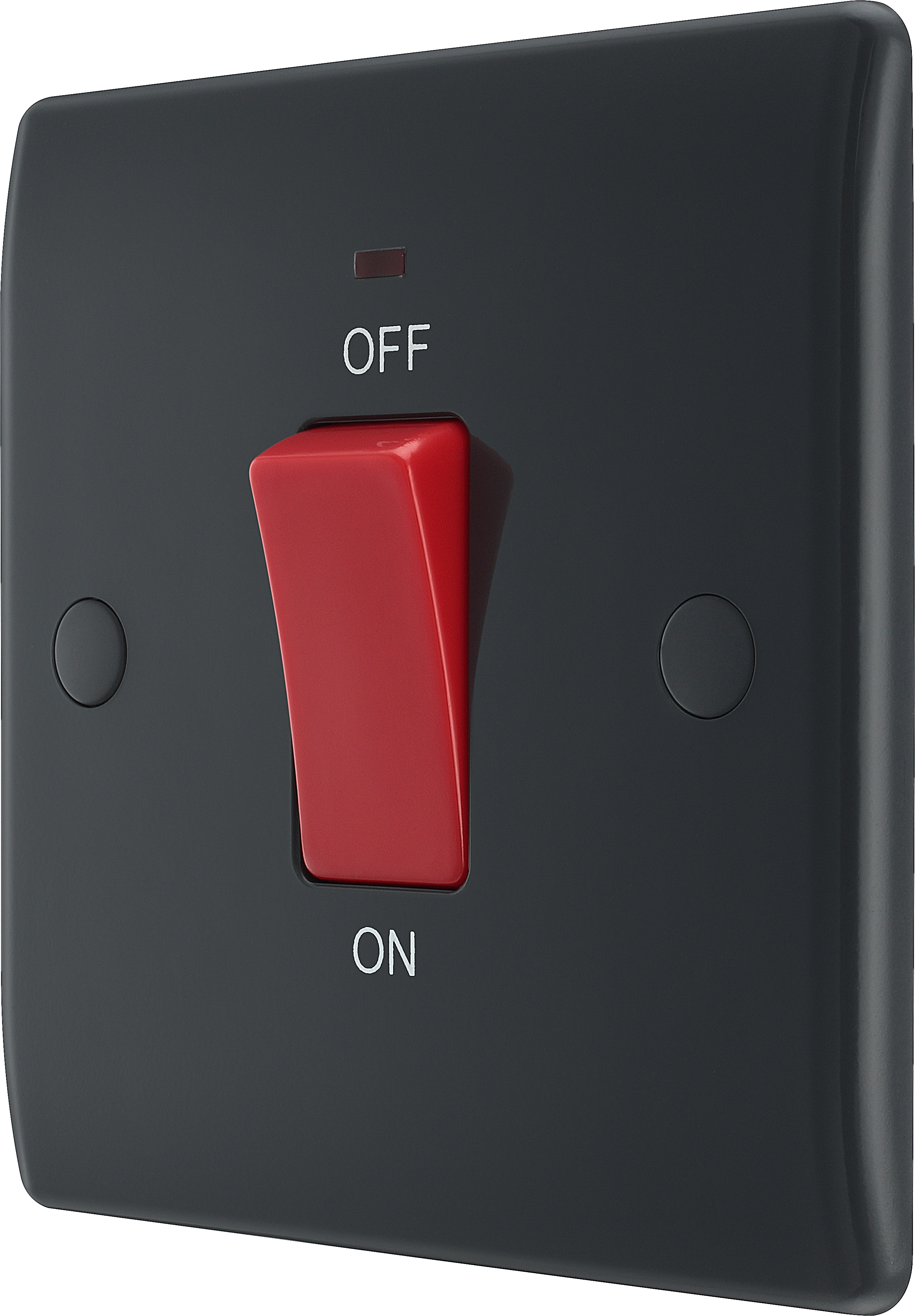

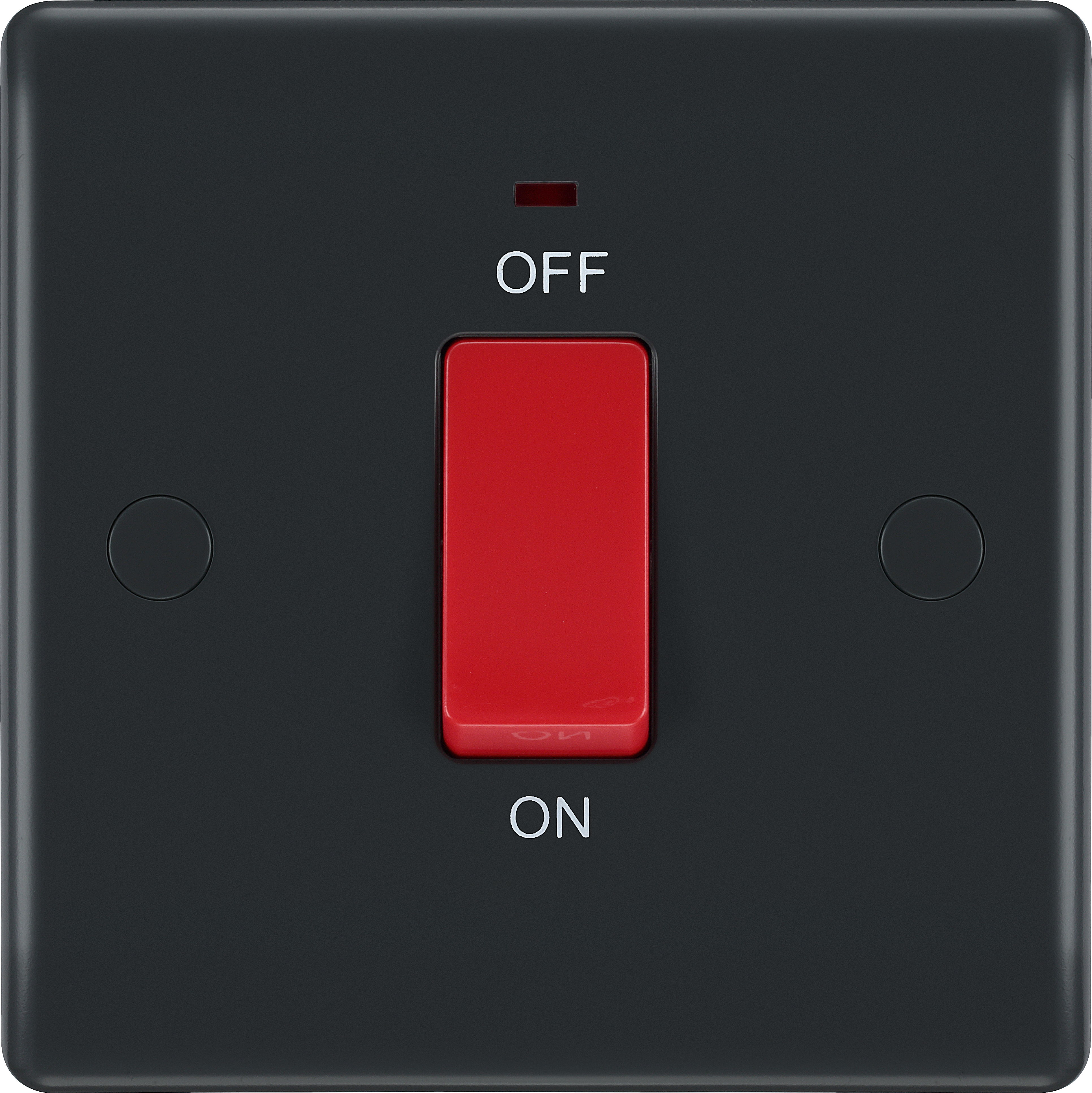

BG Part M 45A Square Plate Double Pole Switch With LED Indicator
45A Rated
Easy to install, supplied with fixing screws and installation instructions

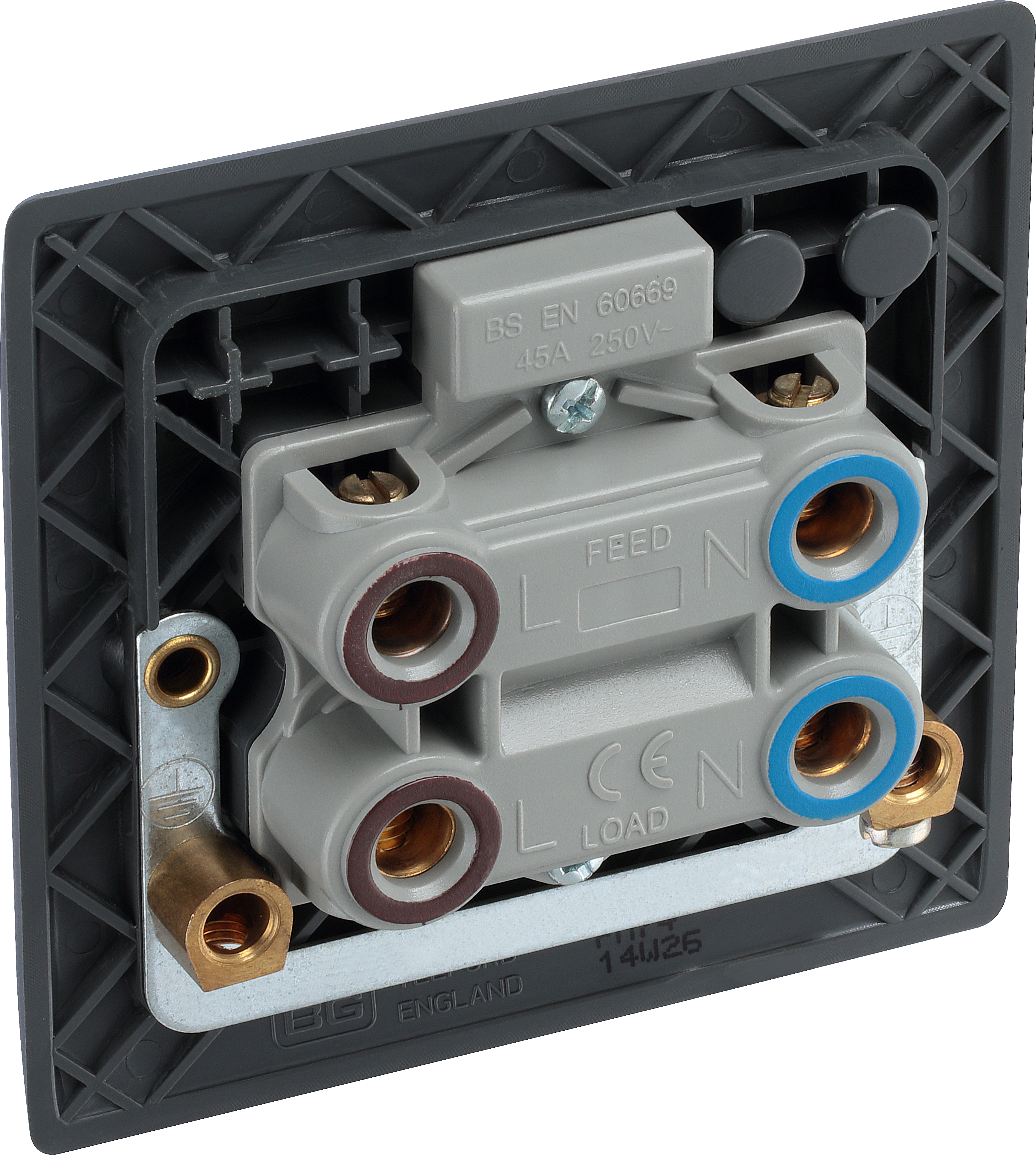

Angled terminals with captive screws provide easy access for quick installation
Slim and sleek polycarbonate front plate
LED power Indicator, reliable and low power
Twin earth fitted as standard to allow a double earth facility for installations requiring high integrity protective connection Ref. BS 7671:2008
Double Pole switching for the peace of mind of a safer installation
Minimum mounting box depth 47mm
Contrasting graphite and white design to aid the visually impaired
Part M Approved
| General Colour | Graphite |
| Captive Terminal Screws | No |
| Backed-out Terminal Screws | No |
| Minimum Box Depth (mm) | 47 |
| Terminal Capacity (mm²) | 4 x 4mm² , 3 x 6.0mm², 1 x 16mm² |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Terminal Arrangement | N/A |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Double Pole |
| Switch Location Position | Wall |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
