NBS81-01

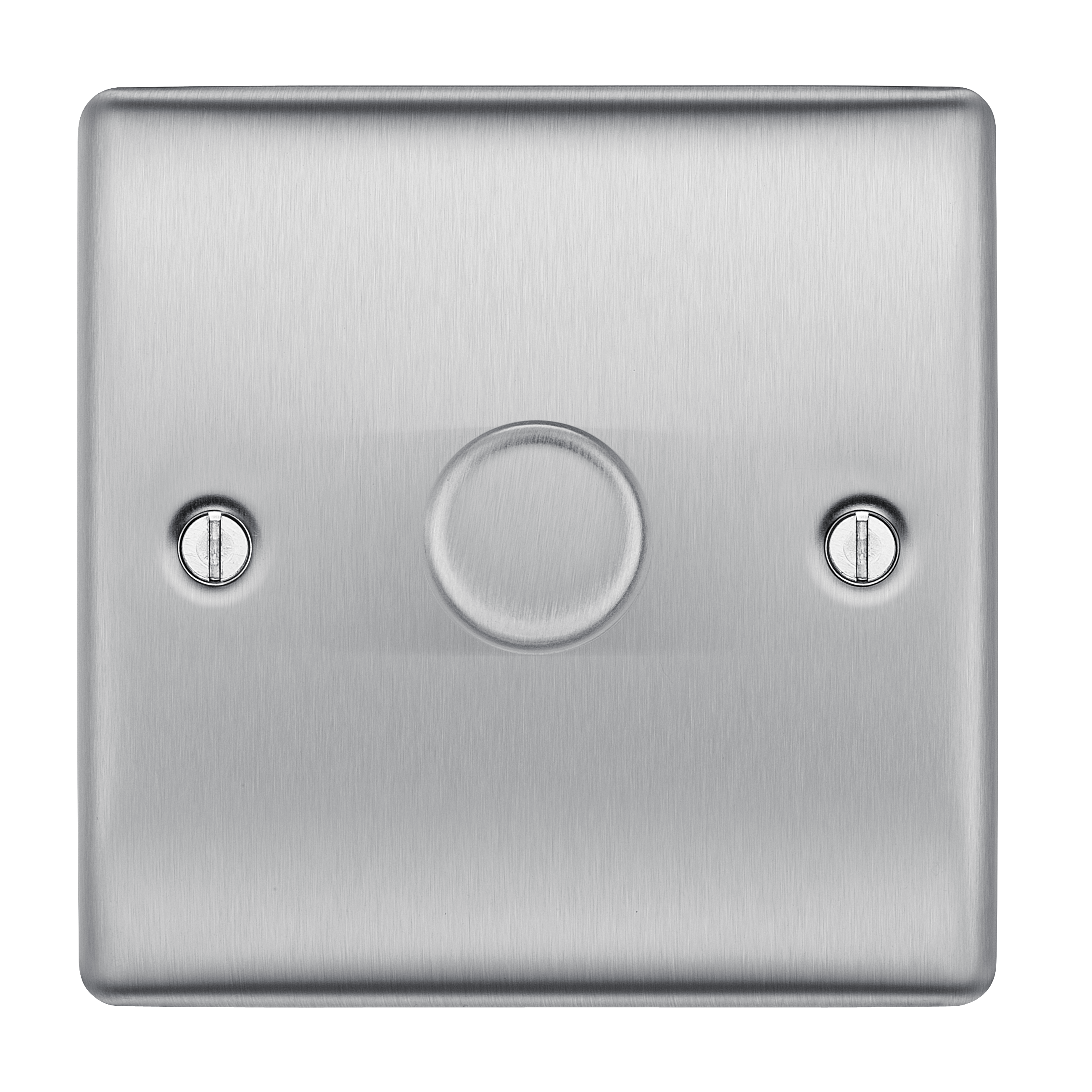

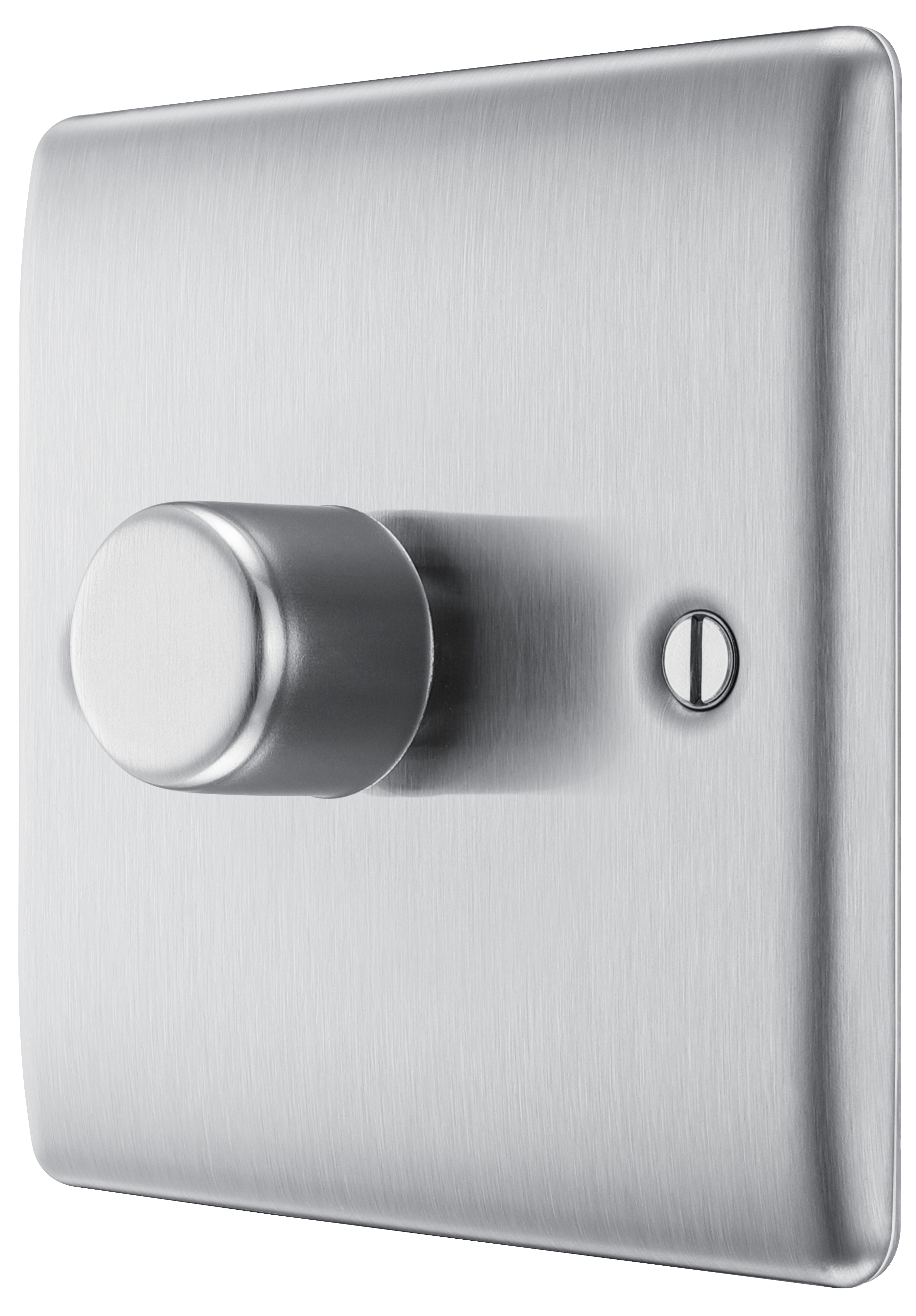

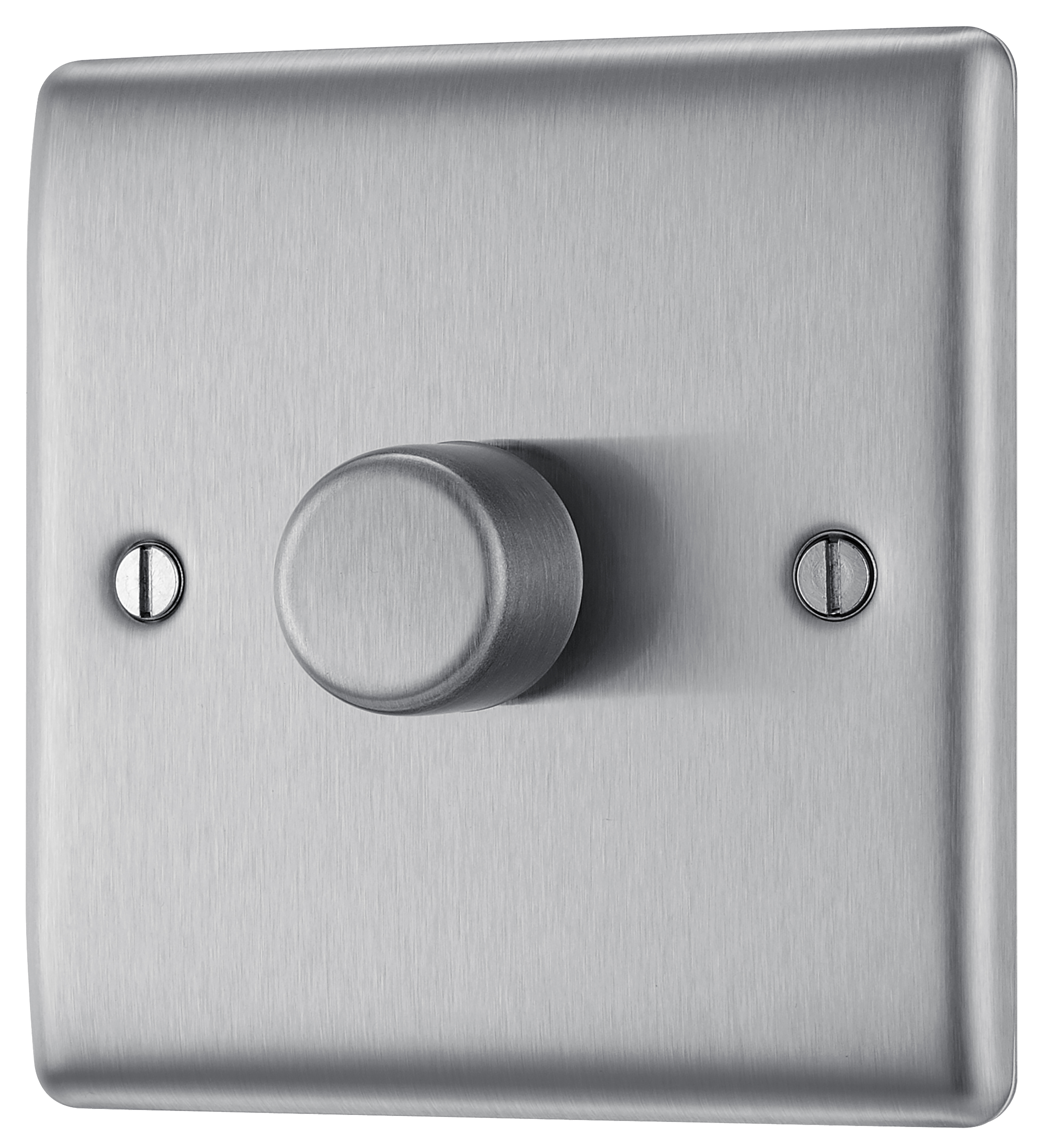

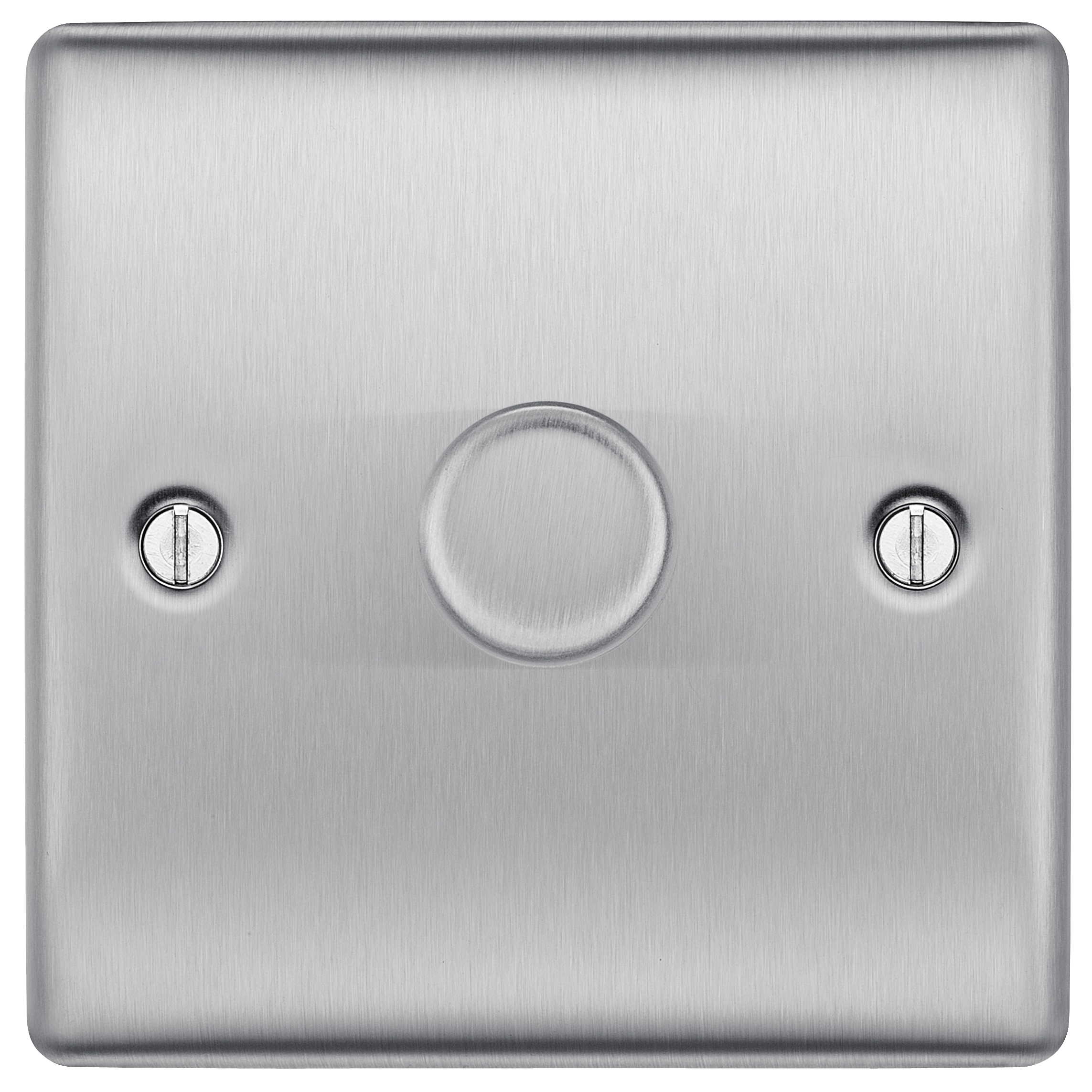

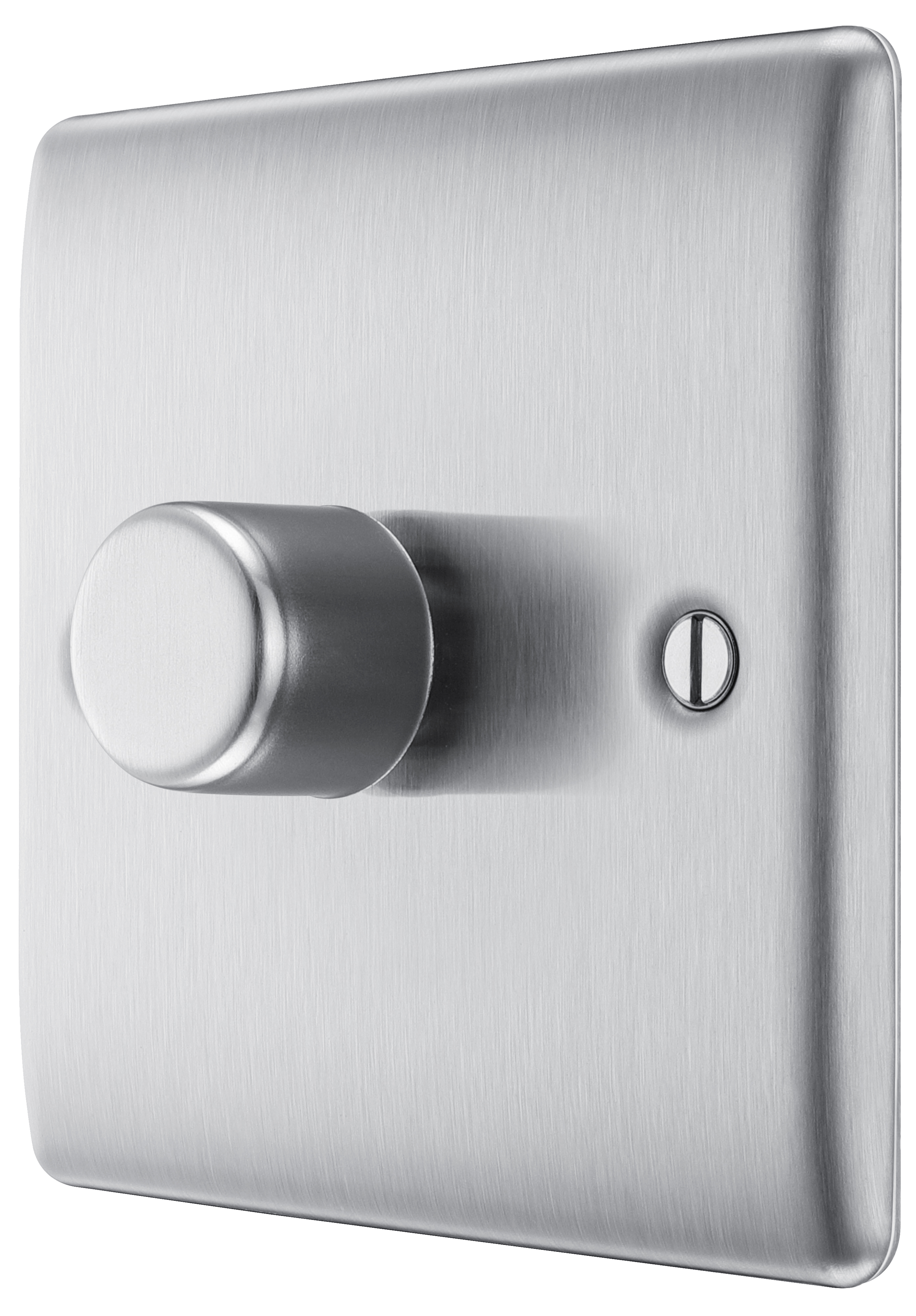

BG Nexus Metal, Brushed Steel, Single Dimmer Switch, 2 Way, Trailing Edge 200W
200W Rated (150W LED)
Easy to install supplied with fixing screws and installation instructions

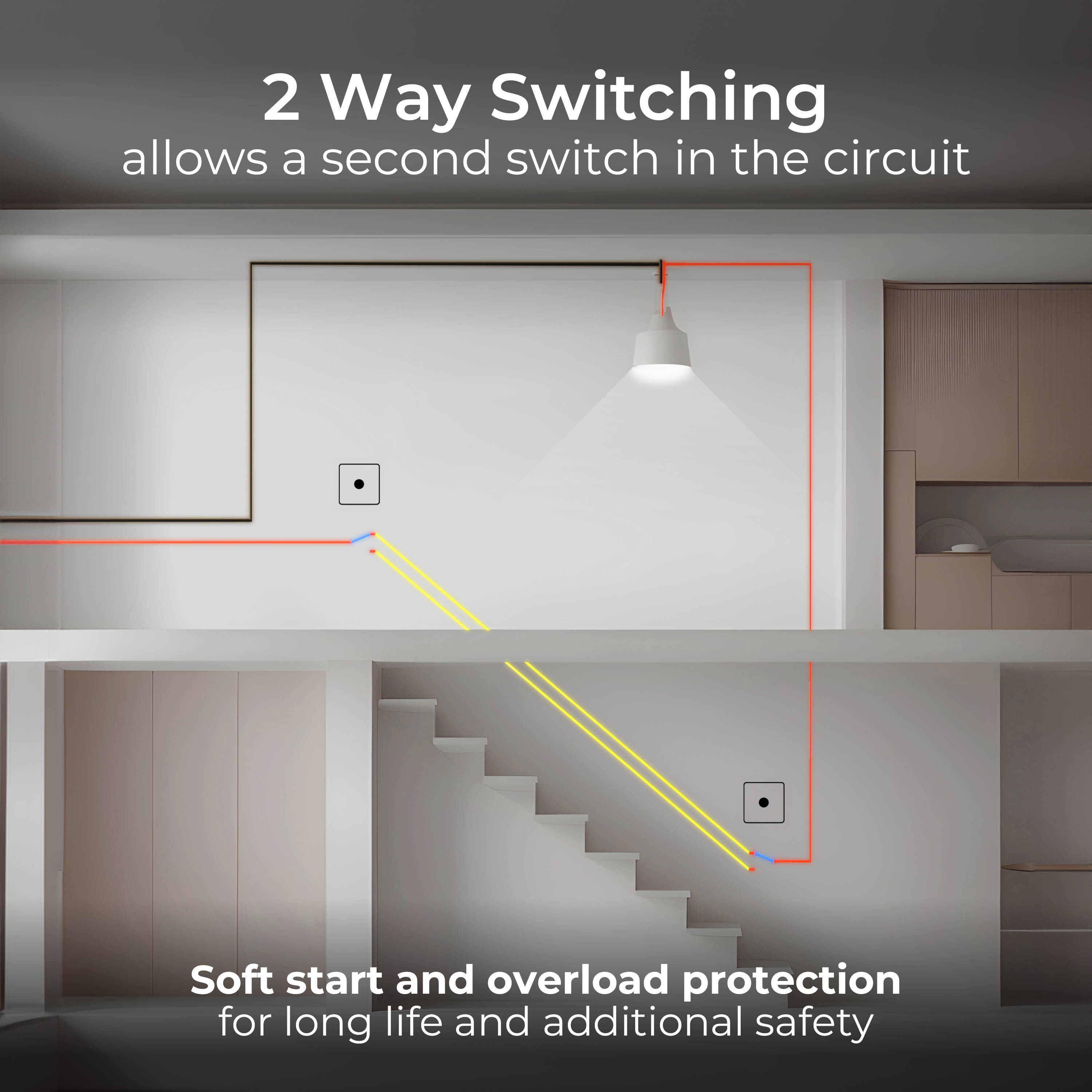

Adjust your light level for mood setting as well as energy saving with 2 way on/off

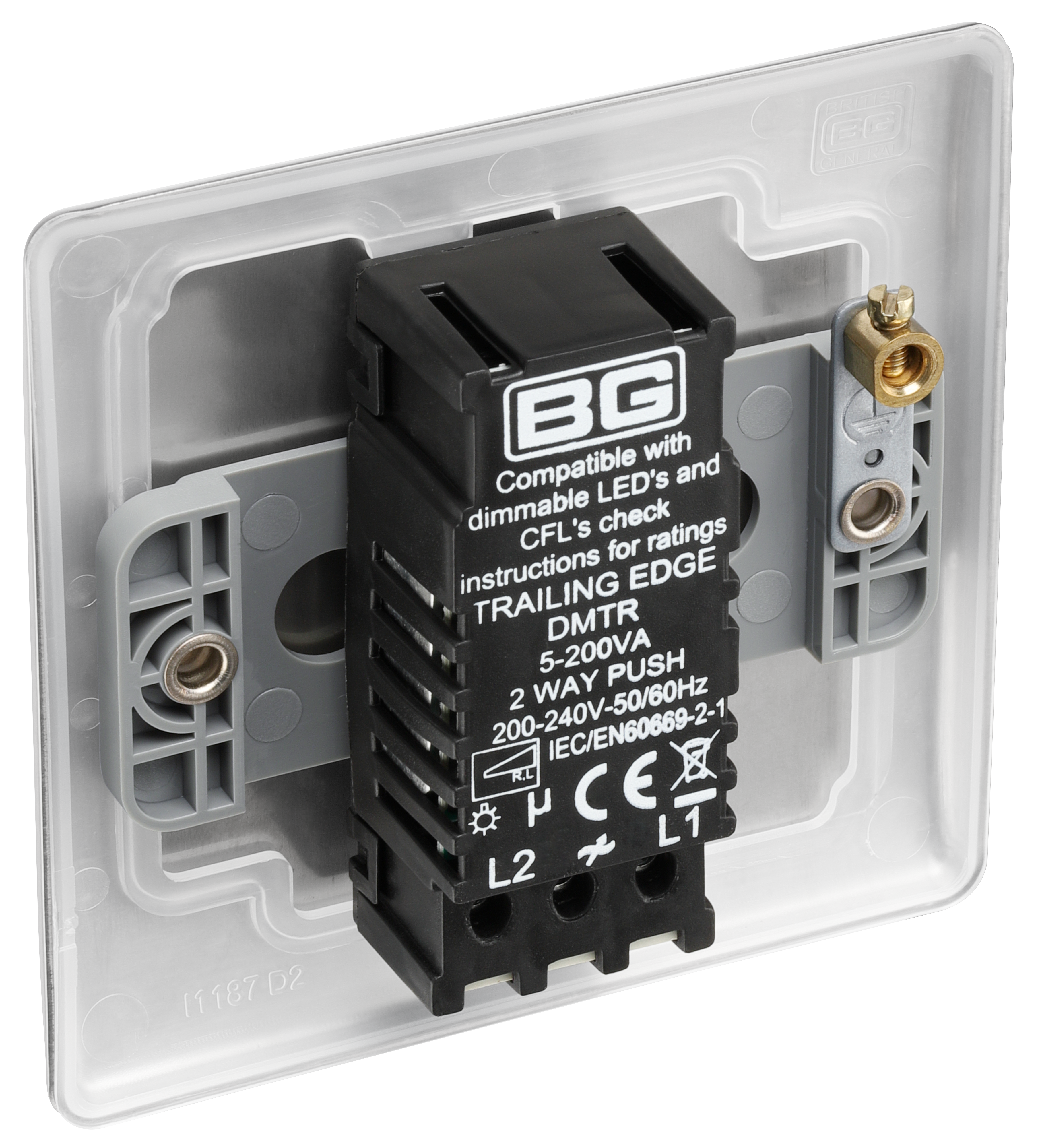

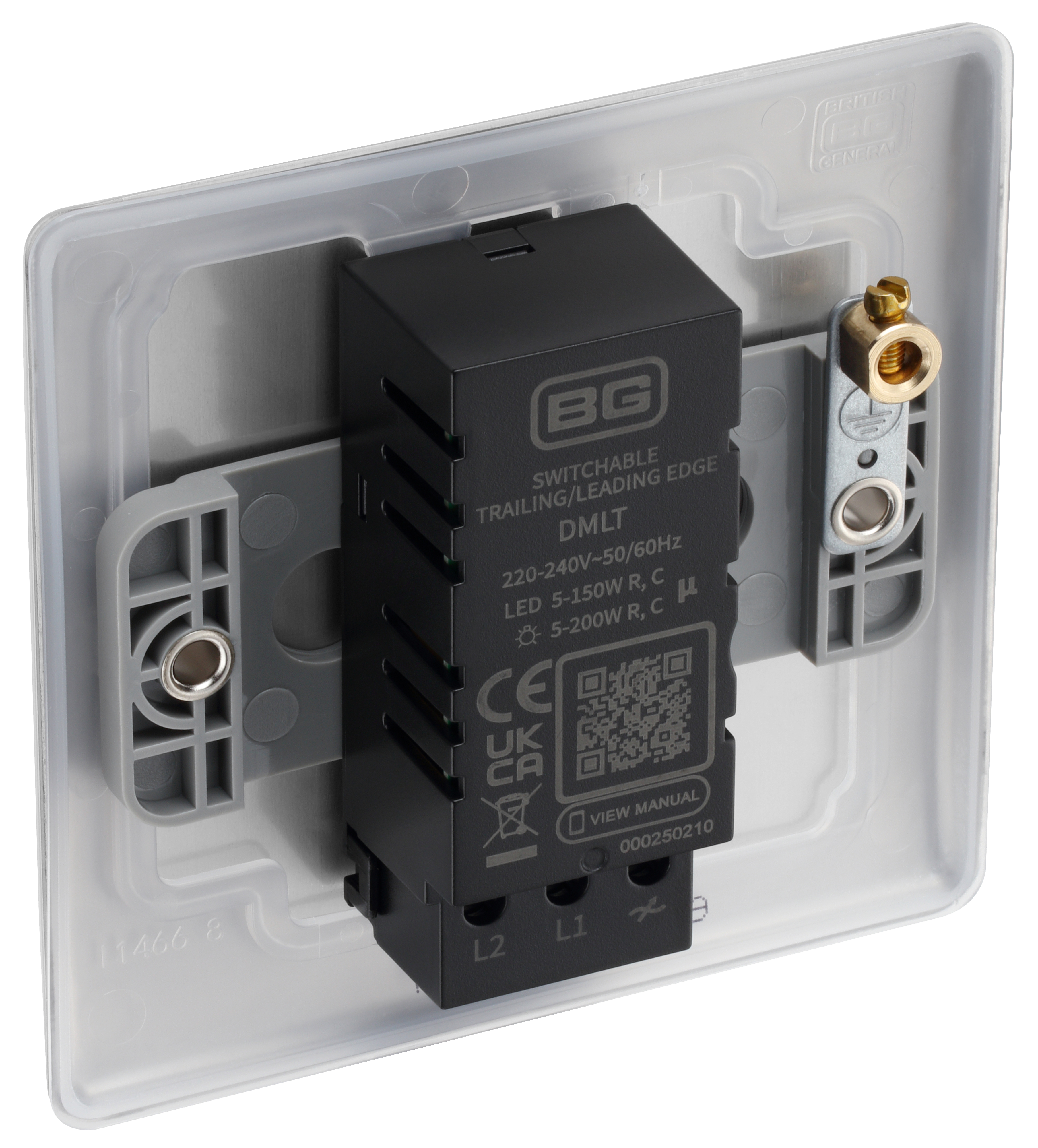

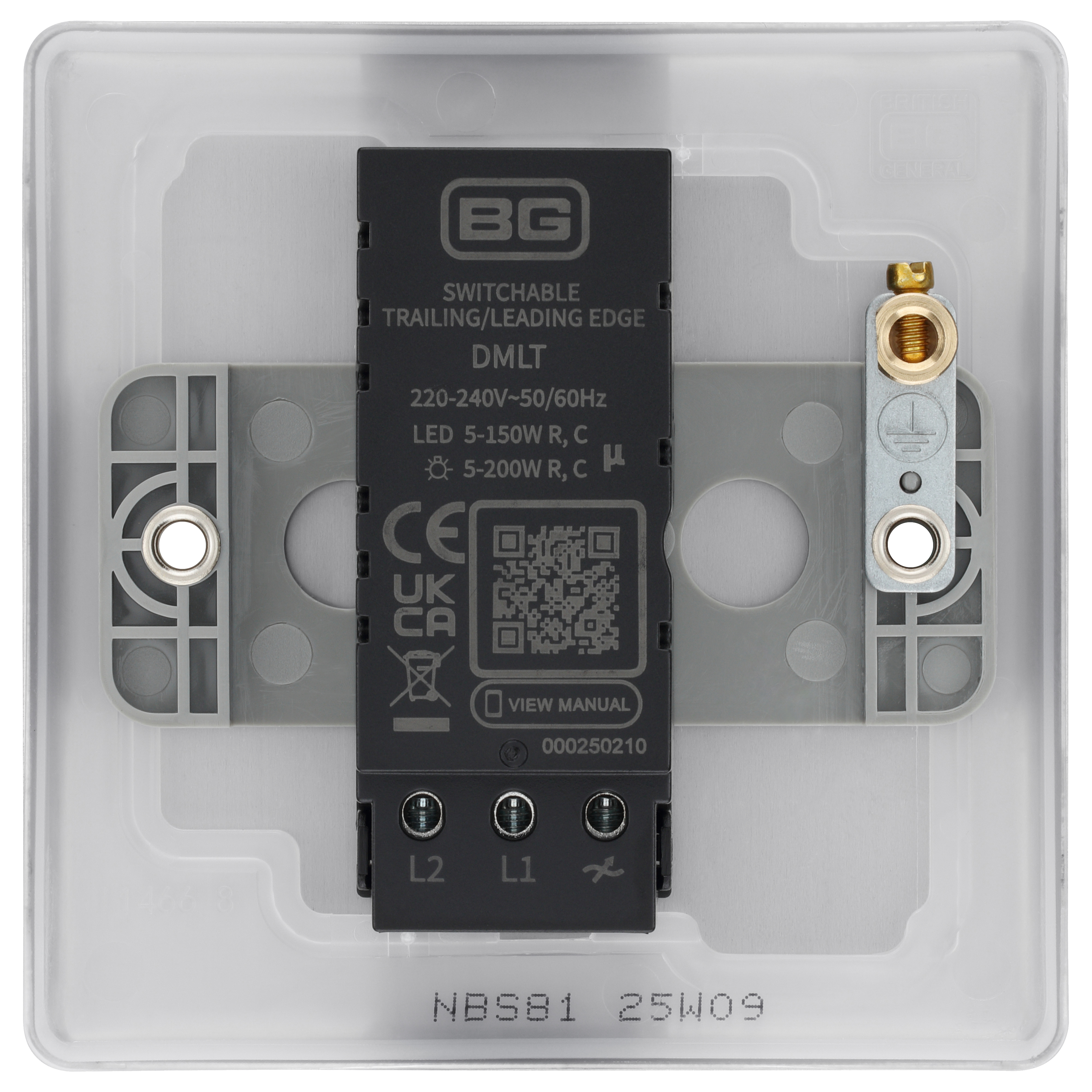

Switchable Dimmer module for choice of trailing or leading edge (set to trailing edge as default)
Soft start brings the lights to a set level in around 1 second and extends the life of lamps
Overload protection prevents failure if you mistakenly connect your dimmer to too many lights or transformers and will turn the lights down or off until the load is corrected
Silent operation - no noise when dimming
Support for lower wattage lamps eliminates flicker

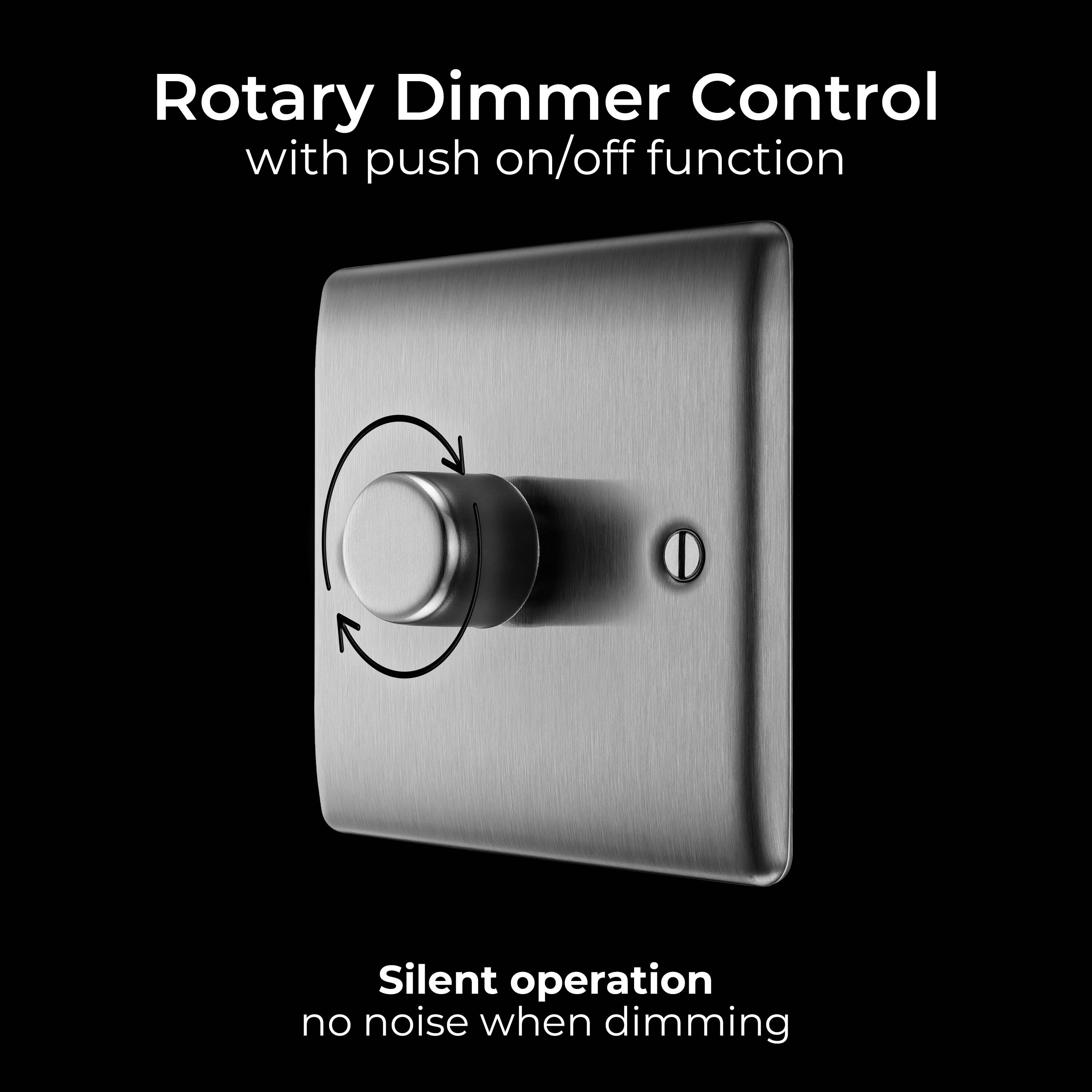

Rotary dimmer control with push on/off function

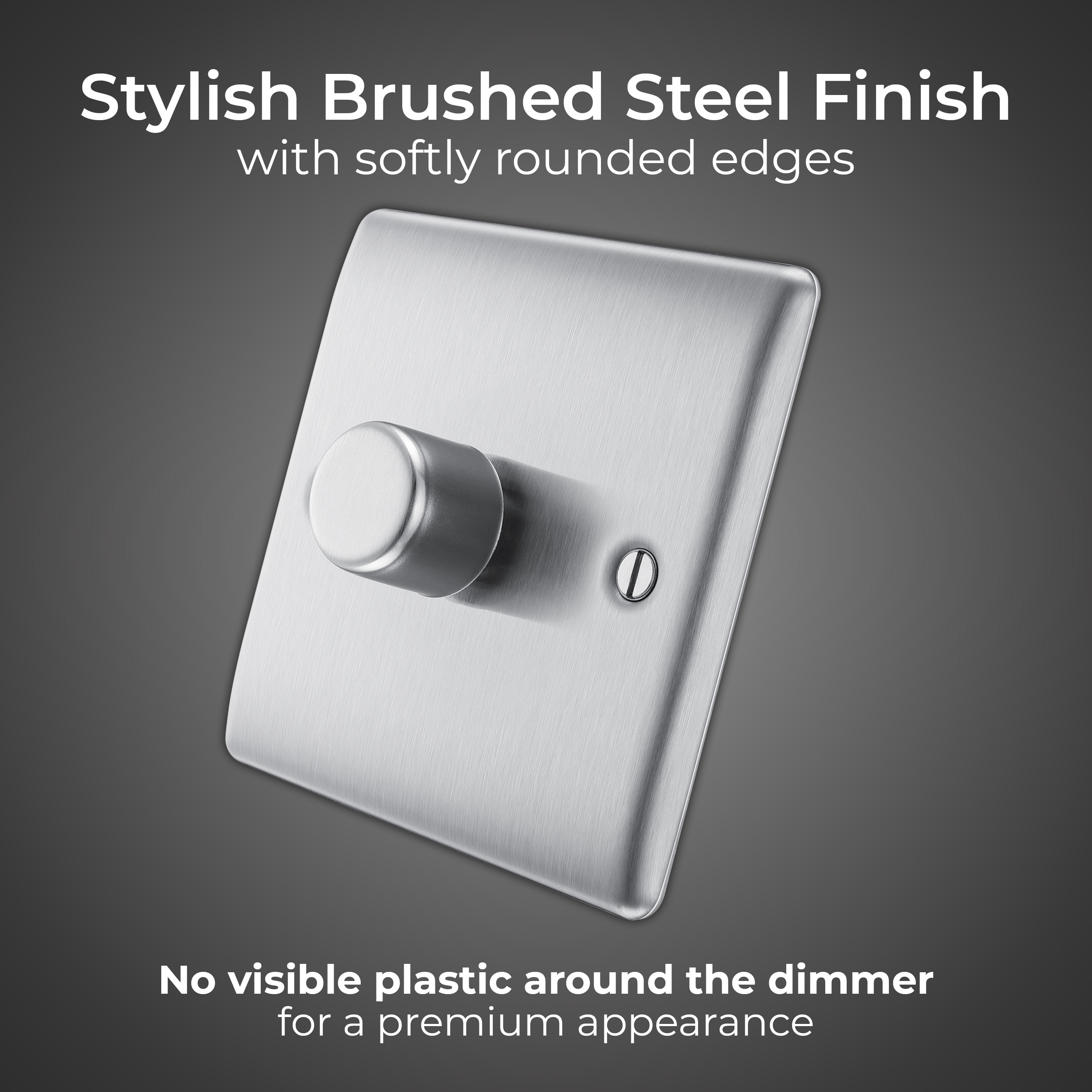

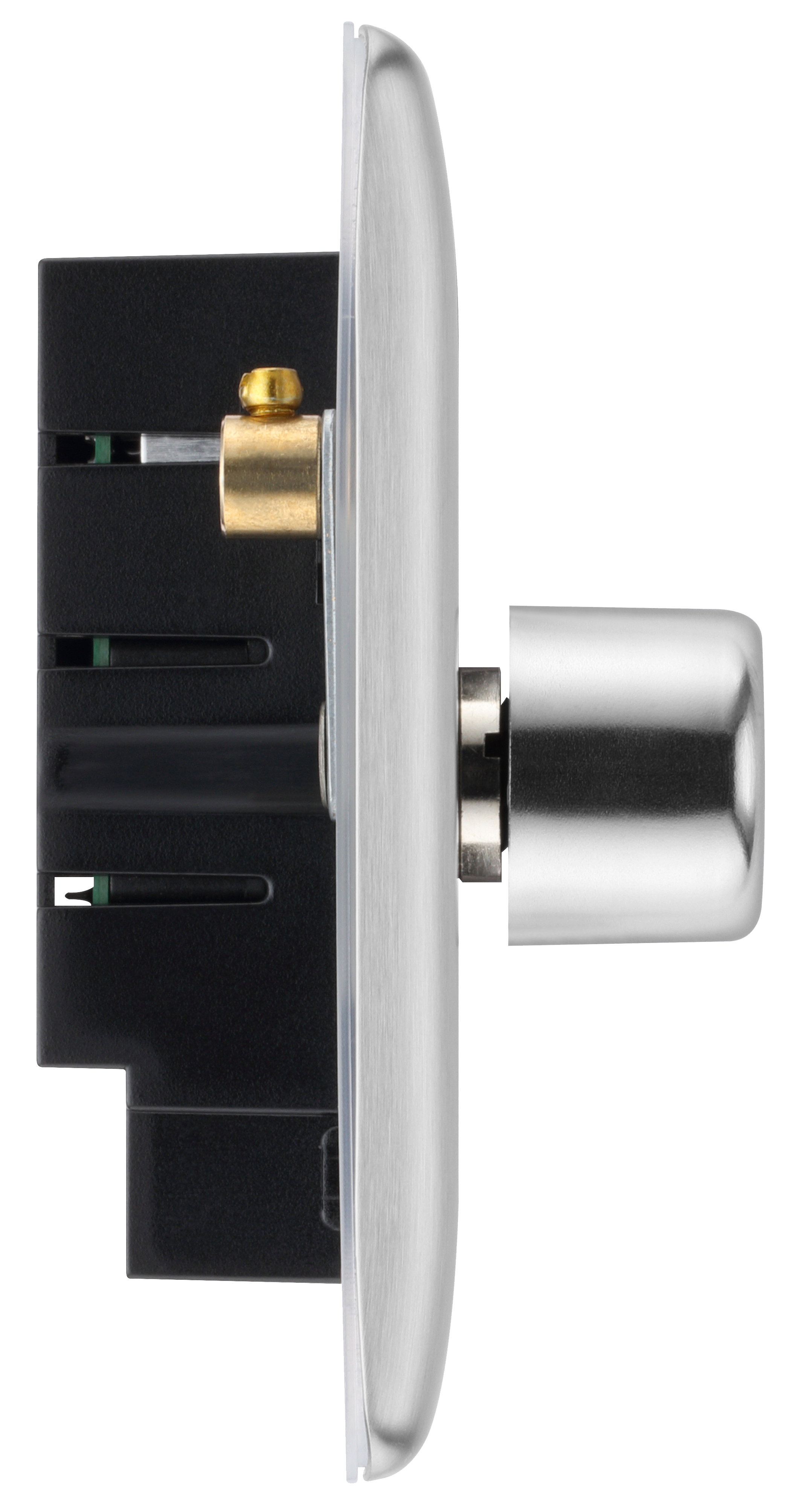

Sleek and slim profile with softly rounded edges
| General Colour | Brushed Steel |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |

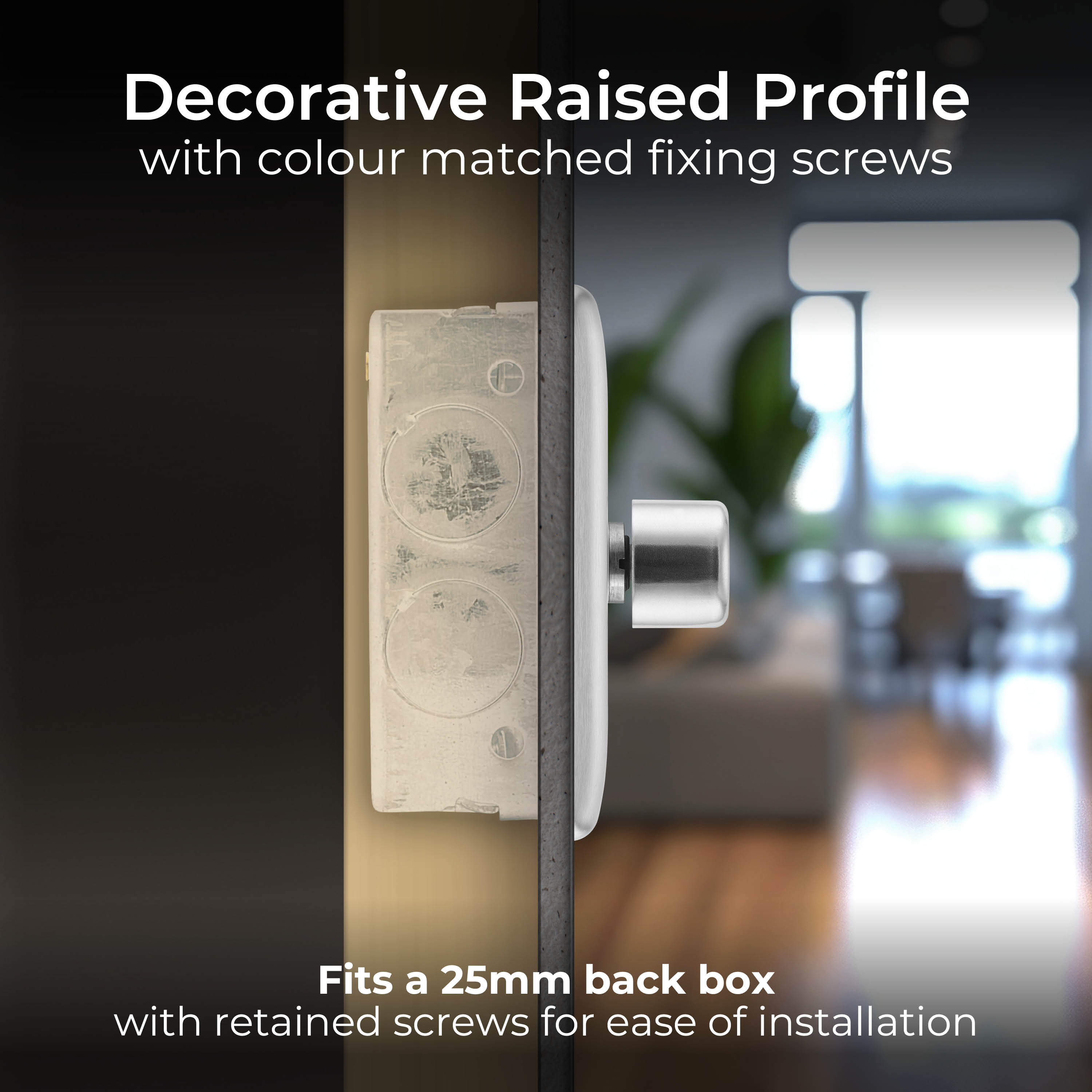

| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (N x mm²) | 2 x 1.0, 2 x 1.5 |
| Anti-fingerprint Lacquer | Yes |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Terminal Arrangement | Inline |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Style Type | Push |
| Switch Type (Ways & Poles) | Two Way |
| Fixing Centres (mm) | W-60.3 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 25 |
