MC570-01

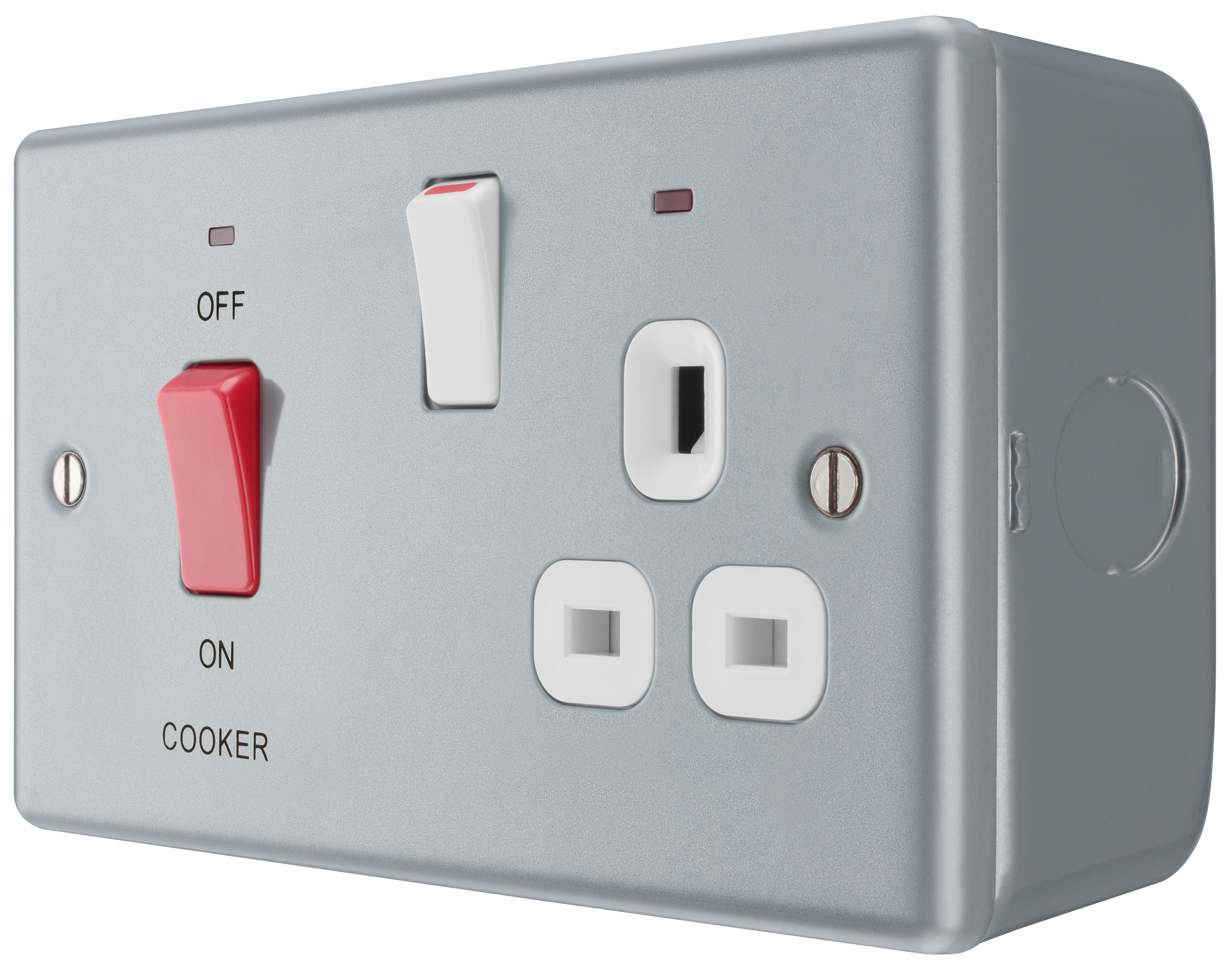

BG Metal Clad 45A Cooker Control Unit With 13A Socket And LED Indicators, Black Inserts
45A and 13A Rated
Easy to install supplied with fixing screws and installation instructions
13A socket for additional appliance outlet
Double Pole switching for the peace of mind of a safer installation
Twin earth fitted as standard for high integrity circuits
Colour coded terminals for ease of identification
Flush LED power Indicator above socket and switch
Manufactured in heavy gauge steel and finished with epoxy powder coating.
Rugged and scratch resistant suitable for everyday use in commercial and industrial environments
Double Pole switching for the peace of mind of a safer installation
| General Colour | Grey |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Main Power Indicator | Yes |
| Minimum Box Depth (mm) | N/A |
| Terminal Capacity (mm²) | 4 x 4mm² |
| Front Plate Insert Colour | White |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled |
| Terminals with Colour Coding Print | No |
| Number of Sockets | 1 |
| Number of Switches | 2 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | Double Pole |
| Fixing Centres (mm) | W-120.6 X H-44.5 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 25 |
