EMSCHSW-01

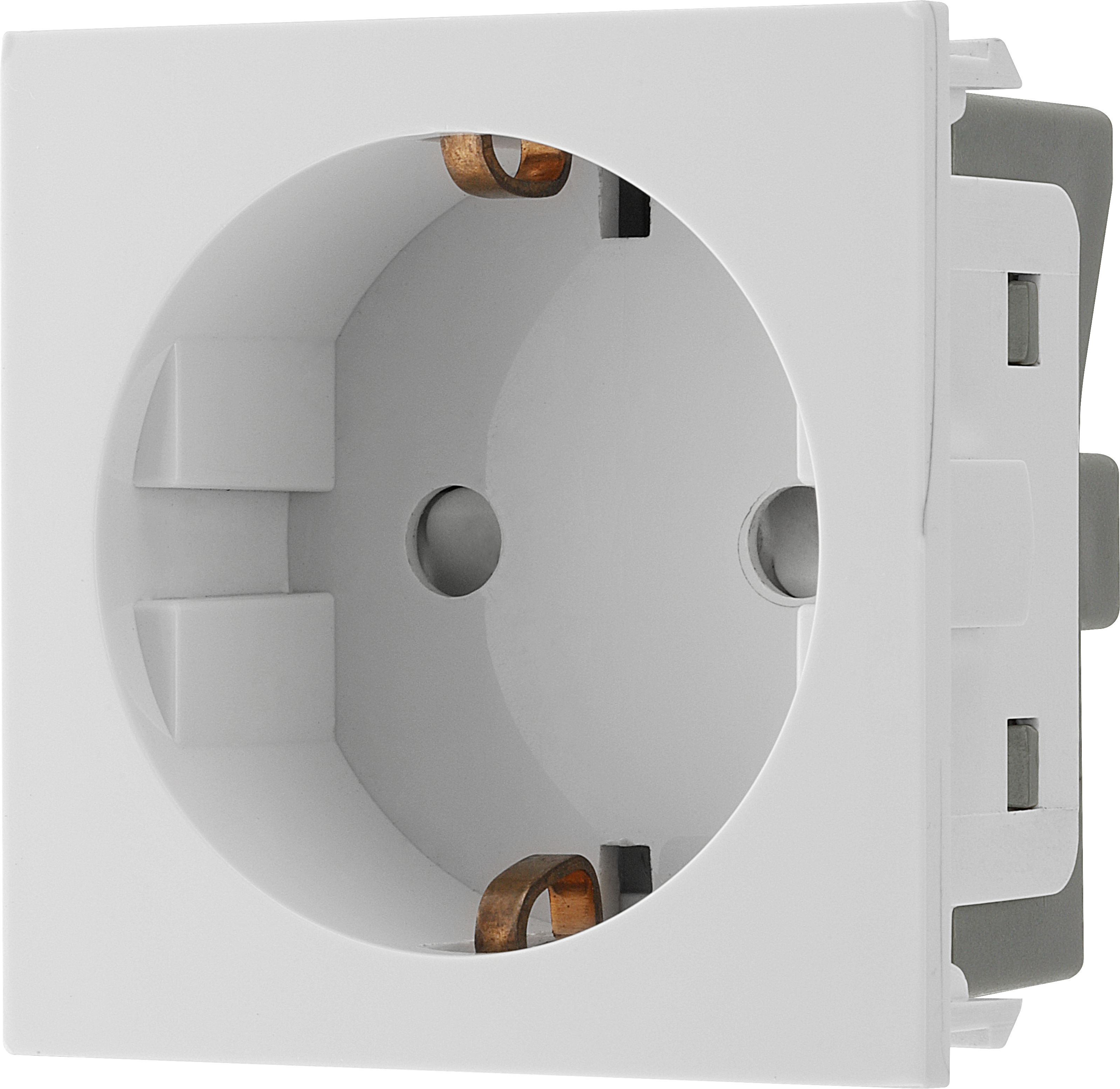

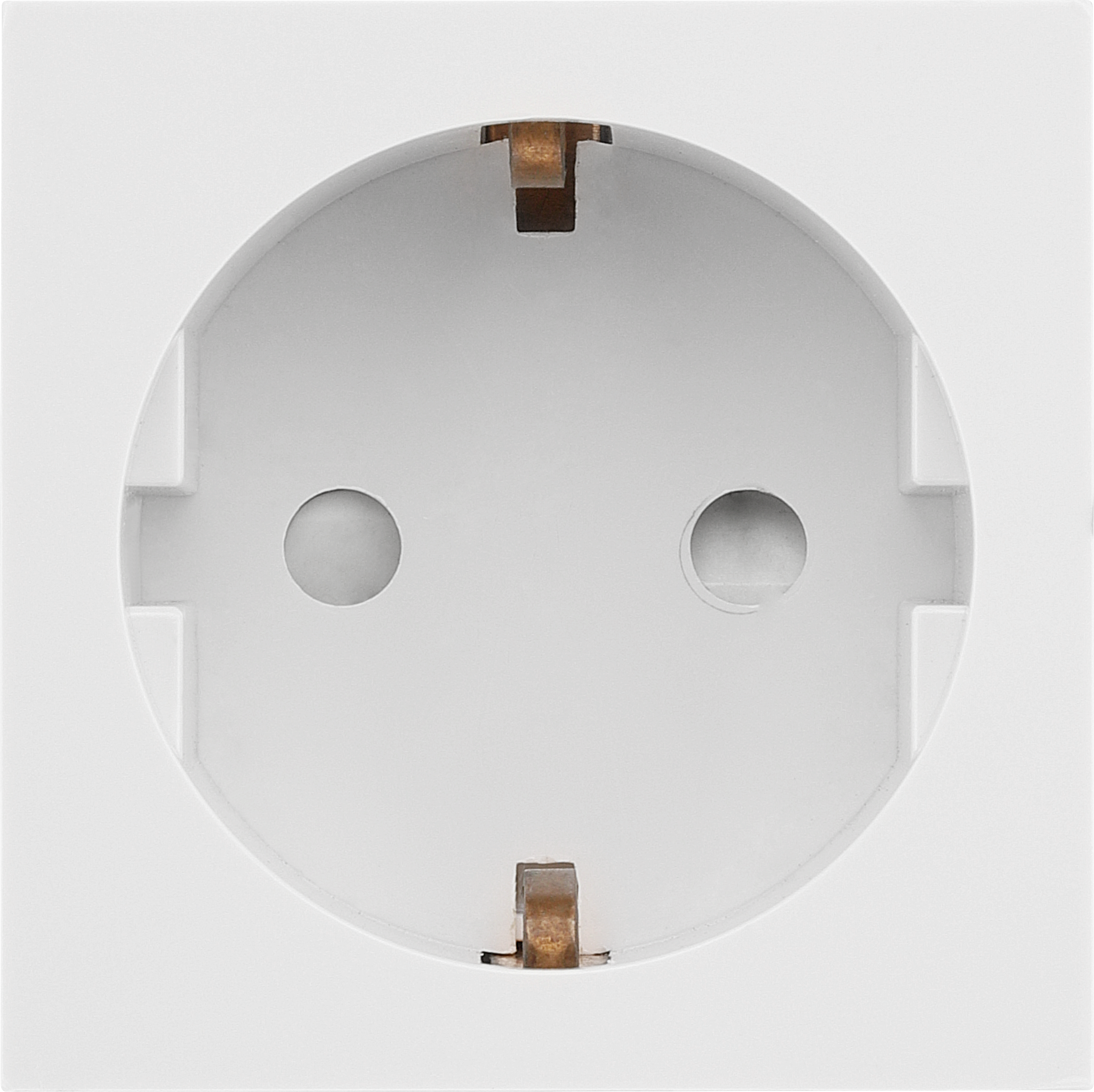

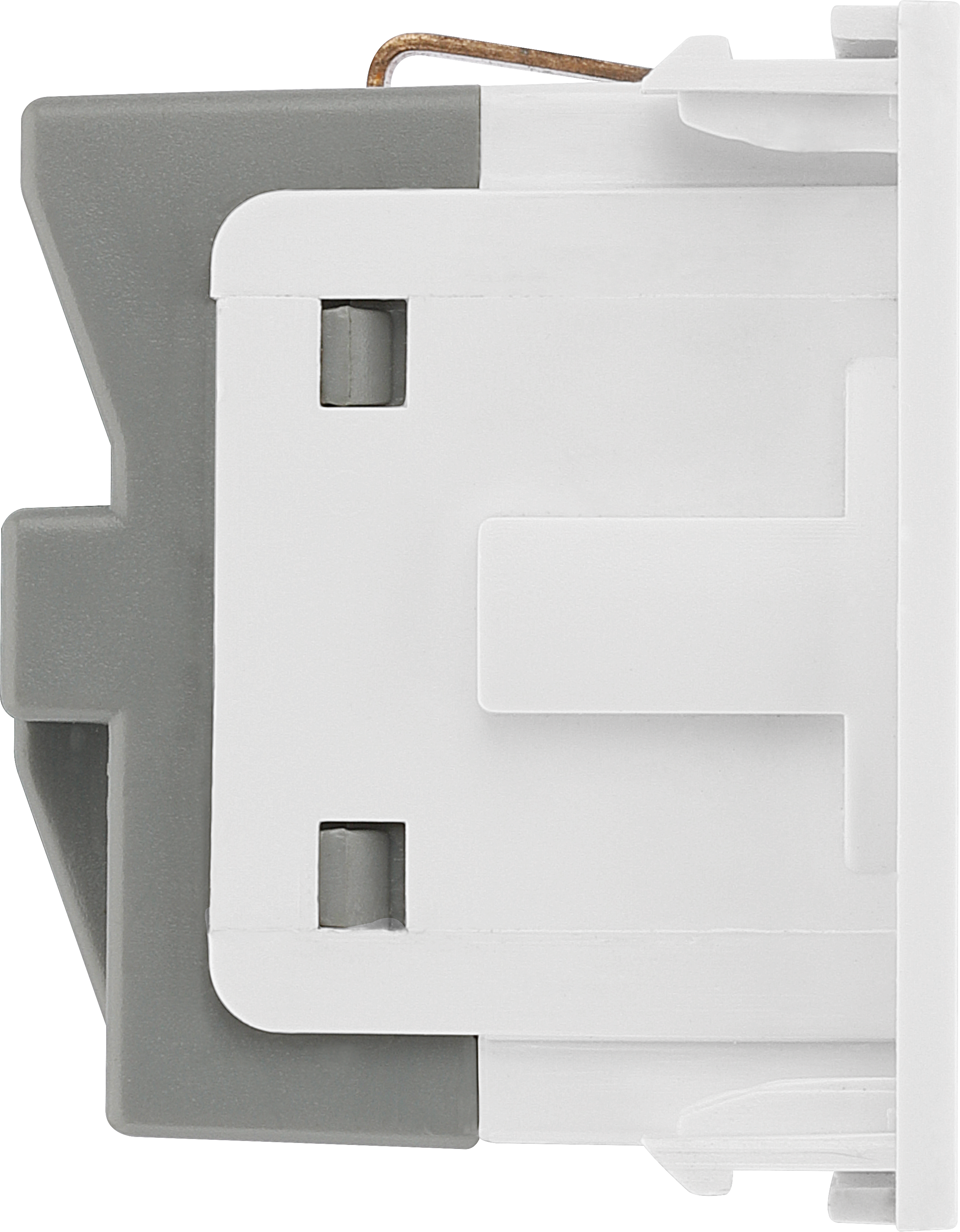

BG Euro Module 16A Schuko Socket, Unswitched, White
16A Rated
Module clips in to Euro Module front plate
Module fits front plate aperture of 50x50mm
Minimum mounting box depth 35mm
| General Colour | White |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 35 |
| Front Plate Insert Colour | Not Applicable |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | No |
| Number of Earth Terminals | 1 |
| Terminal Arrangement | Angled terminals |
| Terminals with Colour Coding Print | Yes |
| Number of Sockets | 1 |
| Socket Type | F-2P SCHUKO Europe Germany Russia 220-240V 16A |
| Number of Switches | 0 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | N/A |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 25 |
