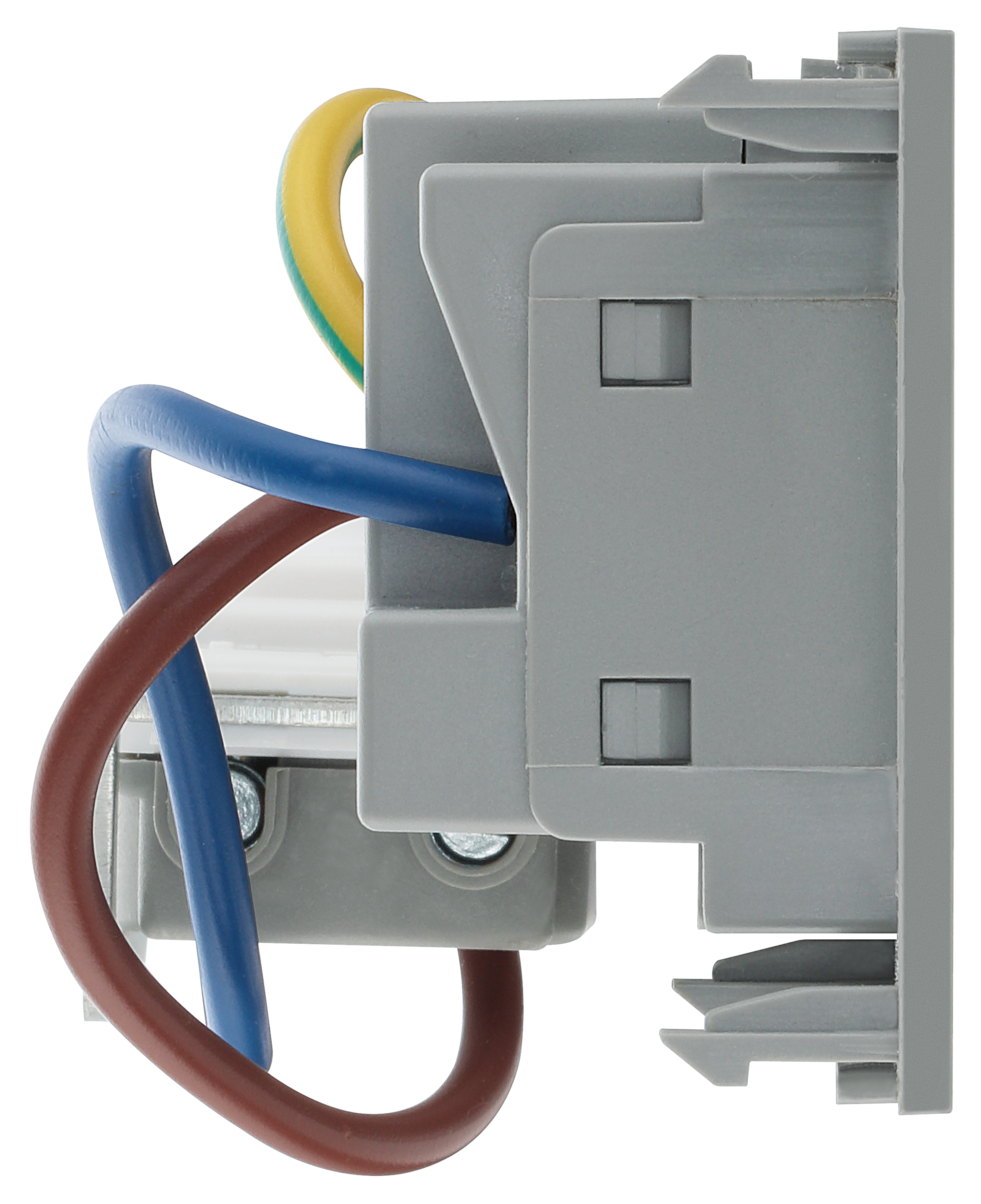

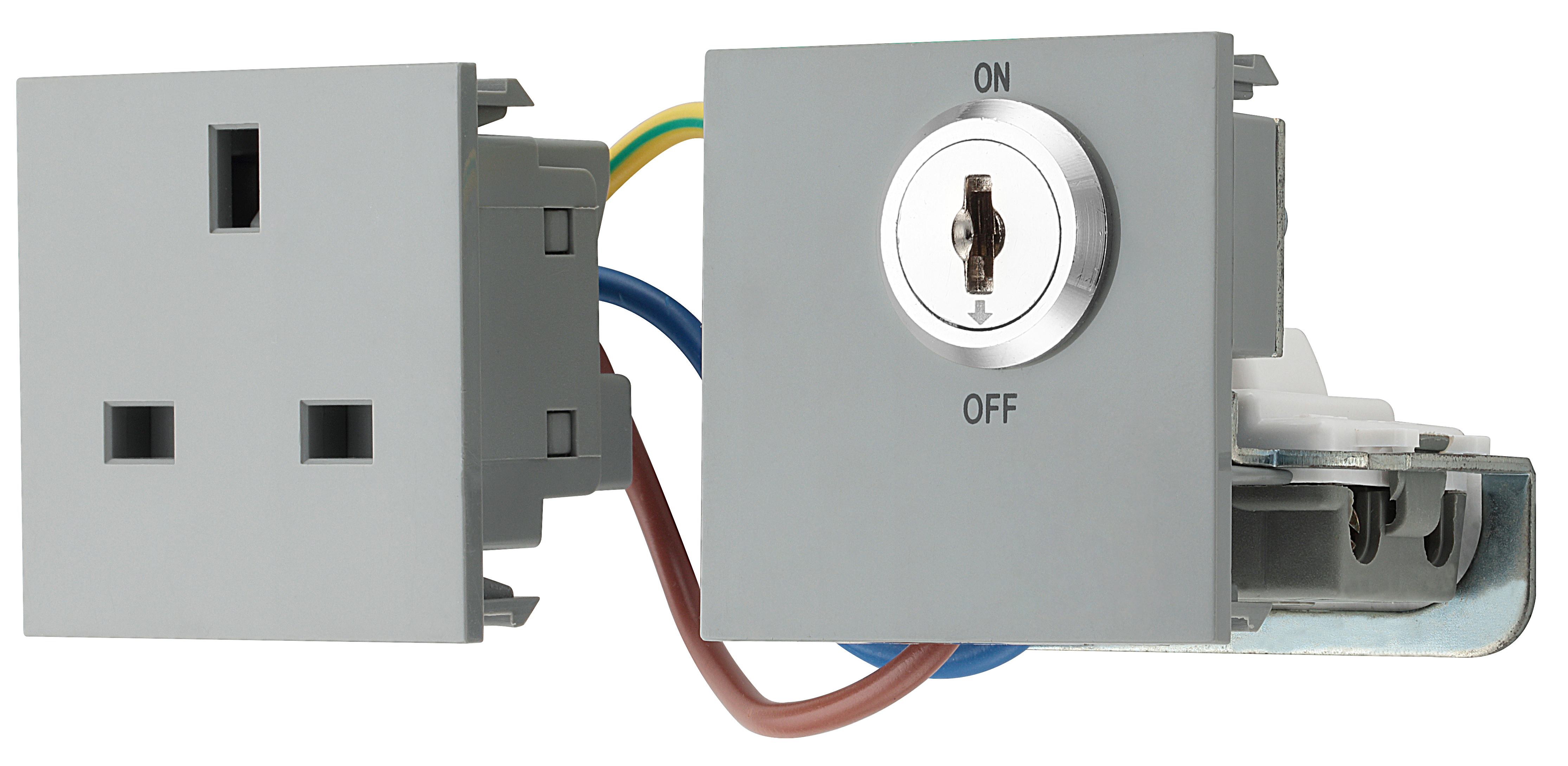

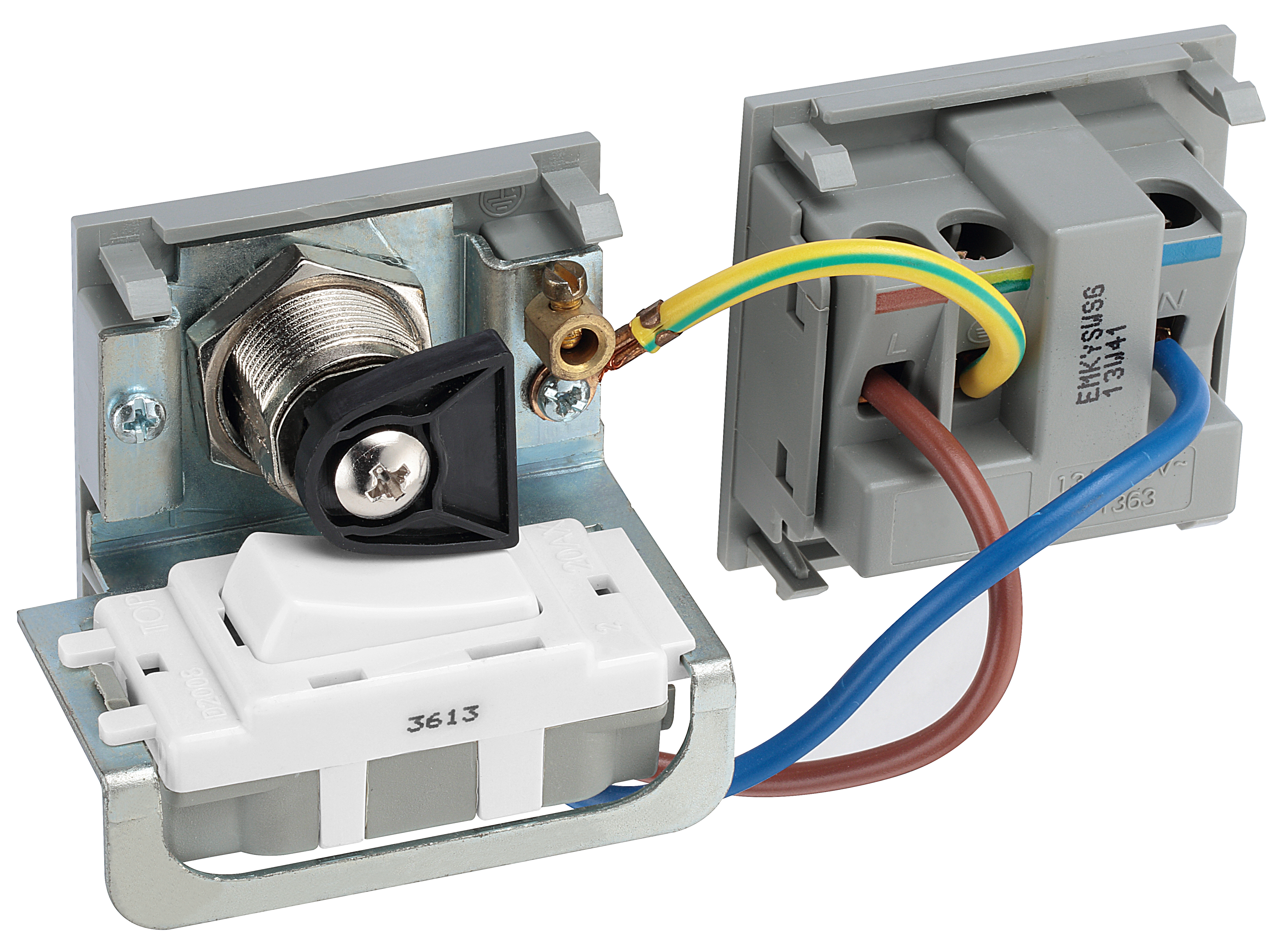

EMKYSWSG-01
BG Euro Module 13A Key Controlled Switched Socket, Double Pole, Grey
13A Rated
Module clips in to Euro Module front plate
Module fits front plate aperture of 100x50mm
Electrical supply to socket is controlled by key activated DP switch to prevent unauthorised access
Colour coded terminals for easy identification
Captive screws prevent screw loss
Double pole switching for the peace of mind of a safer installation
Minimum mounting box depth 47mm
Certified to BS 133-2 and BS EN 60669-2-1
| General Colour | Grey |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 47 |
| Terminal Capacity (mm²) | 3 x 2.5mm², 2 x 4mm² , 1 x 6mm² |
| Front Plate Insert Colour | Not Applicable |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | No |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | N/A |
| Terminals with Colour Coding Print | No |
| Number of Sockets | 0 |
| Socket Type | N/A |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | Double Pole |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 25 |
