850-01

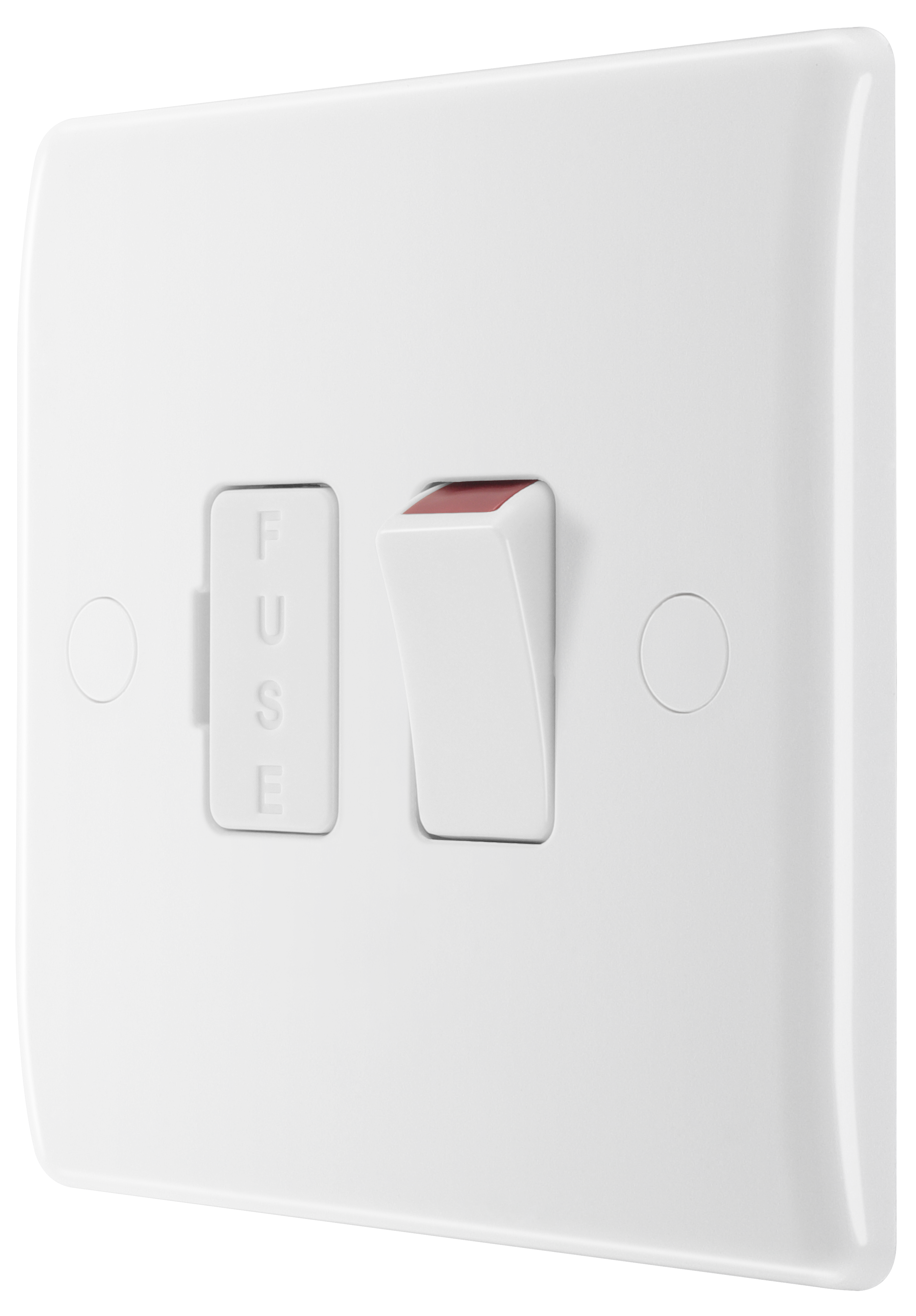

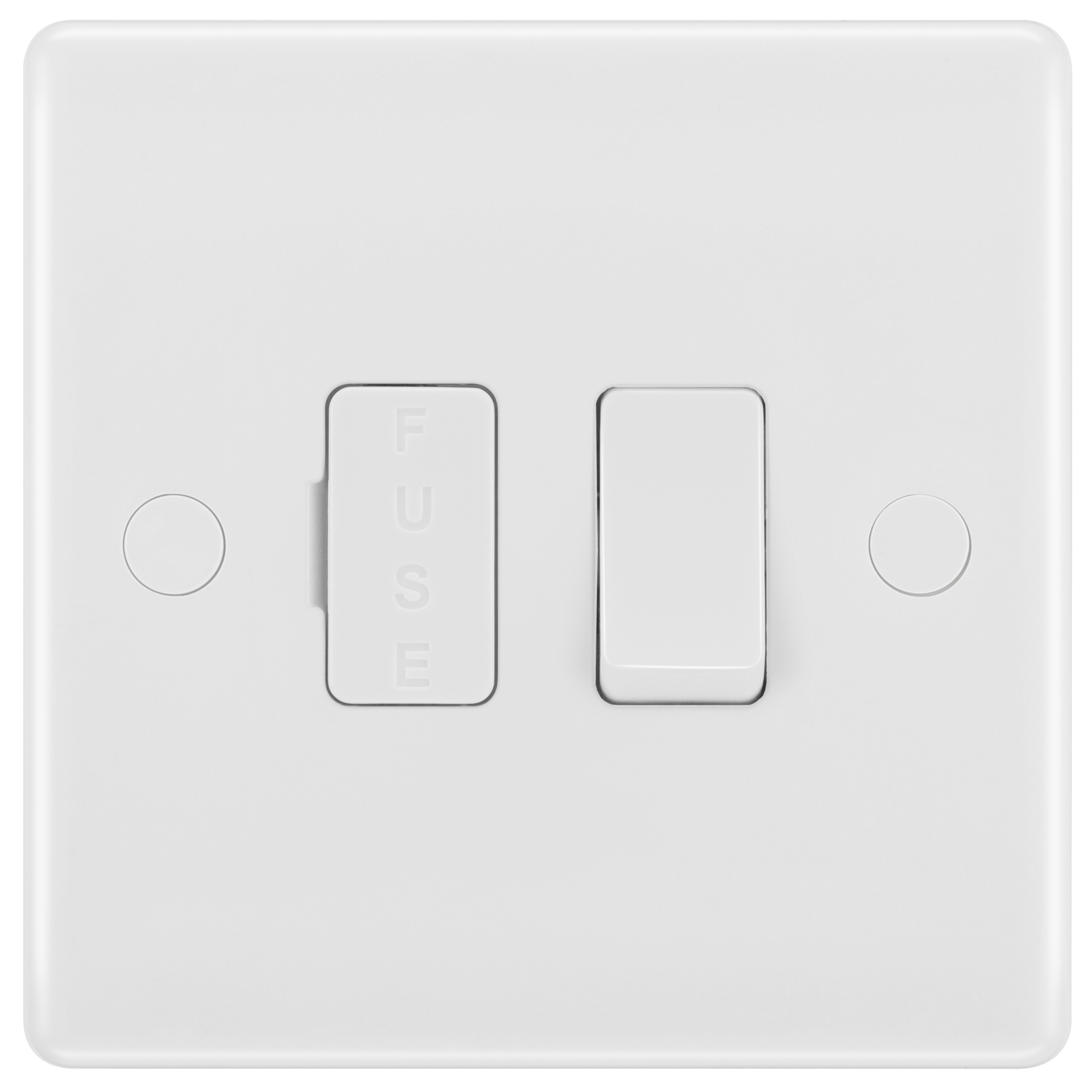

This Nexus 800 series white moulded switched and fused 13A connection unit from British General provides an outlet from the mains containing the fuse and is ideal for spur circuits and hardwired appliances. Its moulded white front-plate has a high resistance to fading, discolouration and scratches, with inherent anti-microbial properties proven to reduce bacterial development and inhibit the growth of infectious diseases. Finished with softly rounded edges and screw caps for a sleek appearance.
View Product Details
850 800 Part BG 850 0100 LA OFF

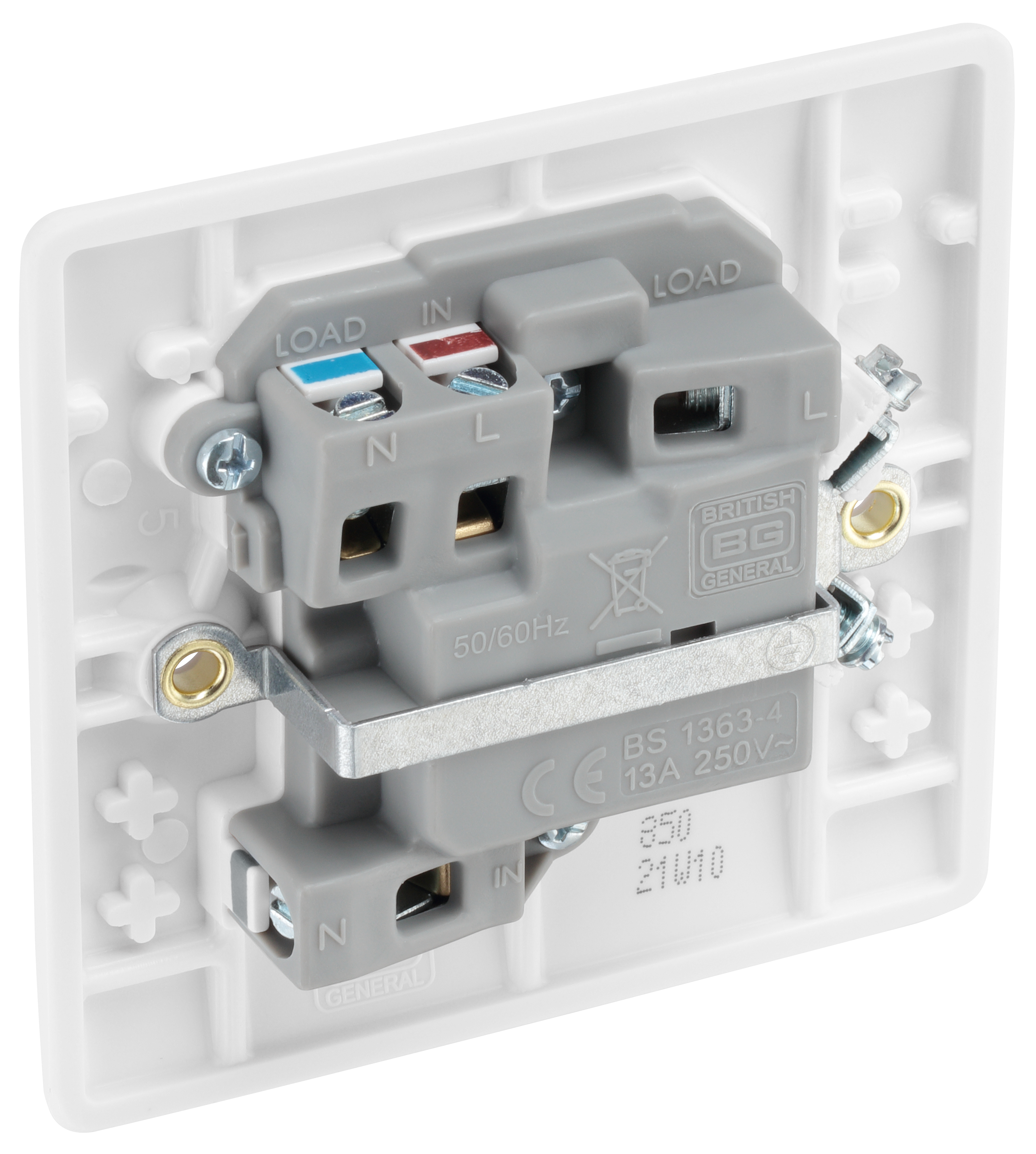

850 800 Part BG 850 0100 LA OFF 850 800 Part BG 850 0124 RA ANGLEON 850 800 Part BG 850 0141 BLA ELEVATION 850 800 Part BG 850 0170 LS OFF
850 800 Part BG 850 0100 LA OFF
PackageWarranty 30
ItemAntiMicrobial Yes
ItemIPRating IP20
ItemMinimumboxdepth 35
ItemRating 13

BG Electrical are confident in the quality of our workmanship and materials, the guarantee stated applies from the date of delivery. Please see our terms and conditions for more details

13A Rated

Easy to install supplied with fixing screws and installation instructions

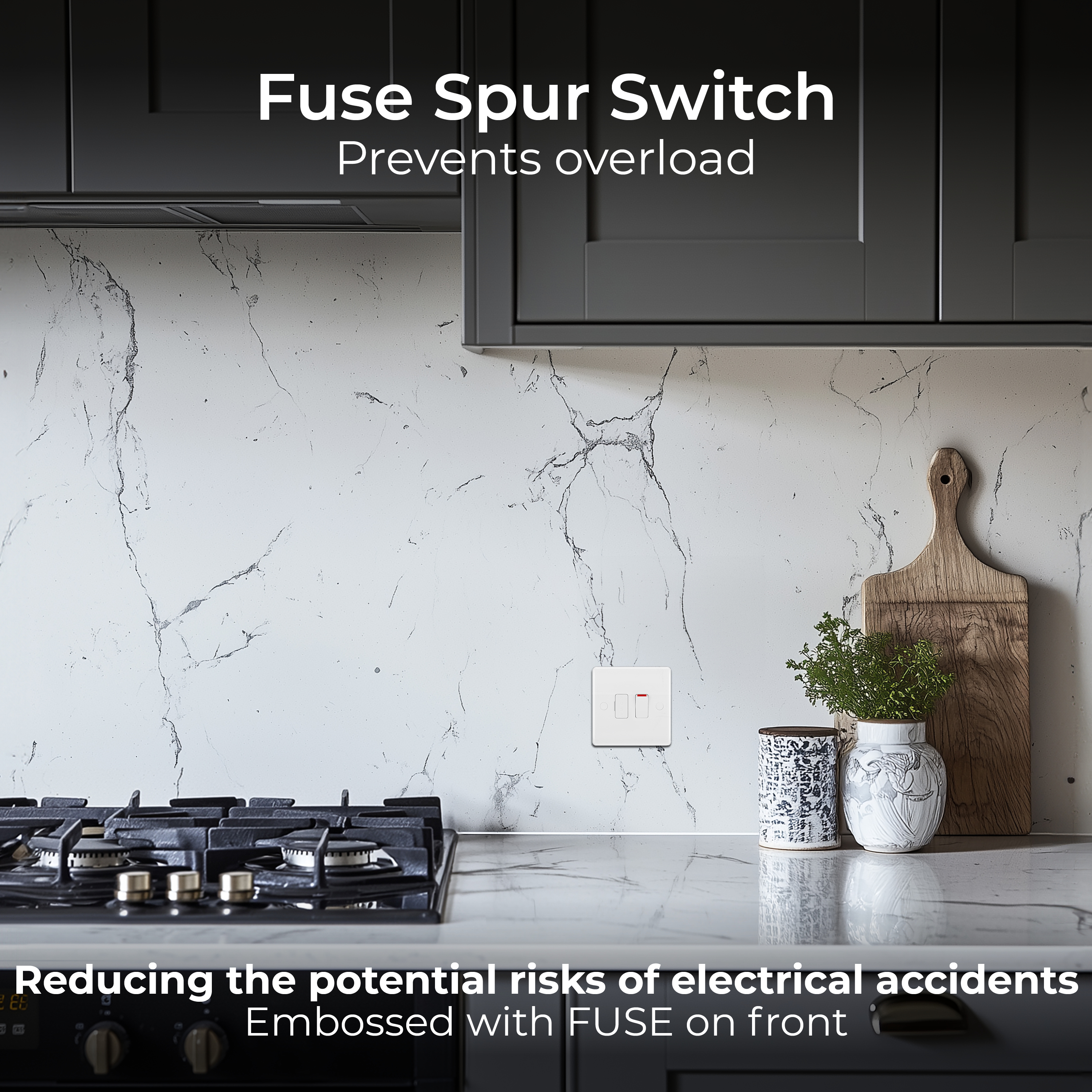

Ideal for spur circuits and hard wired power appliances

Angled colour coded terminals for ease of installation

Captive screws prevent screw loss

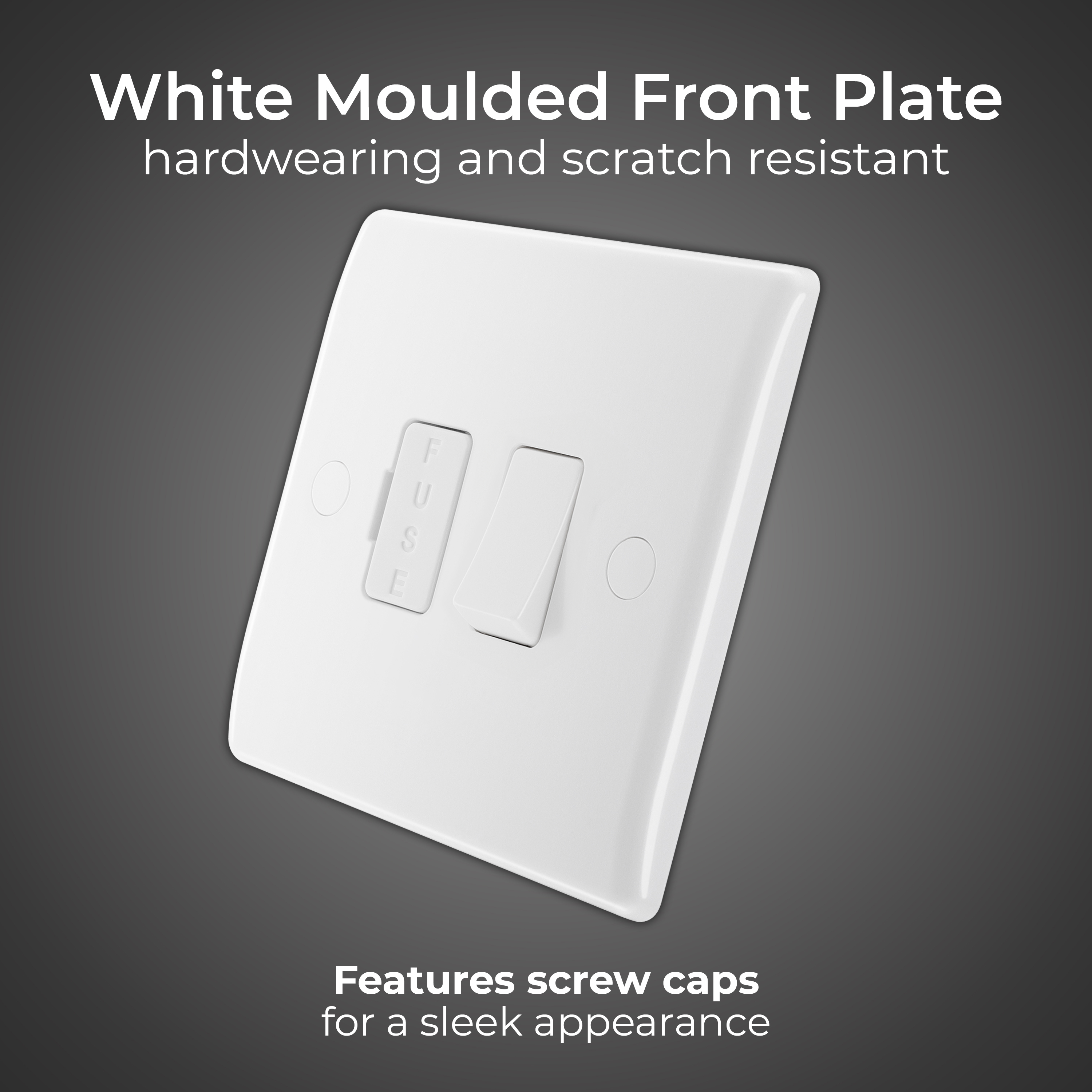

Screw covers for sleek appearance

Embossed with 'Fuse' on the fuse cover

Minimum mounting box depth 25mm

Anti-microbial certified - inhibits 99% of bacterial growth on touch point surfaces from infectious diseases including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria

ASTA Licence number 1015

0

Specification

Product Details

Dimensions

Unpacked Height (mm) 86
Unpacked Width (mm) 86
Unpacked Depth (mm) 29

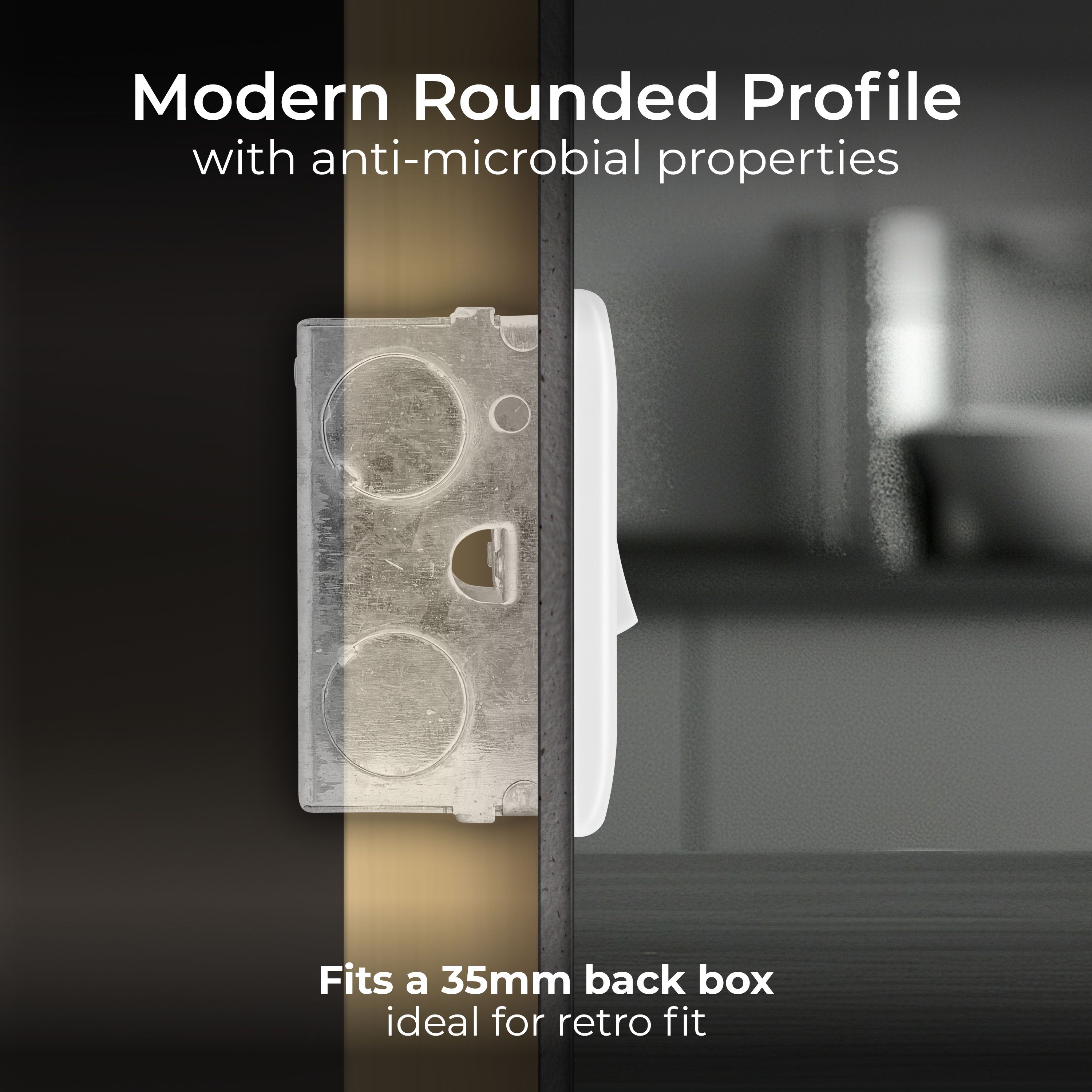

Minimum Box Depth (mm) 35
Front Plate Material Thickness (mm) 3
Front Plate Height (mm) 6.9

Pack

Packed Width (mm) 120
Packed Depth (mm) 31
Packed Height (mm) 170
Packed Gross Weight (kg) 0.08
Package Pack Type Printed Bag
Package Hanging Yes
Package EAN 5050765001212

Case

Inner

Unpacked Height (mm) 86
Unpacked Width (mm) 86
Unpacked Depth (mm) 29
Minimum Box Depth (mm) 35
Front Plate Material Thickness (mm) 3
Front Plate Height (mm) 6.9

Outer

Packed Width (mm) 120
Packed Depth (mm) 31
Packed Height (mm) 170
Packed Gross Weight (kg) 0.08
Package Pack Type Printed Bag
Package Hanging Yes
Package EAN 5050765001212

Container

Packed Width (mm) 120
Packed Depth (mm) 31
Packed Height (mm) 170
Packed Gross Weight (kg) 0.08
Package Pack Type Printed Bag
Package Hanging Yes
Package EAN 5050765001212

Technical Line Drawing

850
Full Screen

Downloads

Specification Sheet
800S FCU
pdf 1006KB
Download
Instruction Manual
Switched Fused Connection Unit
pdf 2.4MB
Download

Similar products

850 800 Part BG 850 0100 LA OFF

850-01

BG Nexus Series White Moulded 13A Switched Fused Connection Unit
852 800 Part BG 852 0100 LA OFF

852-01

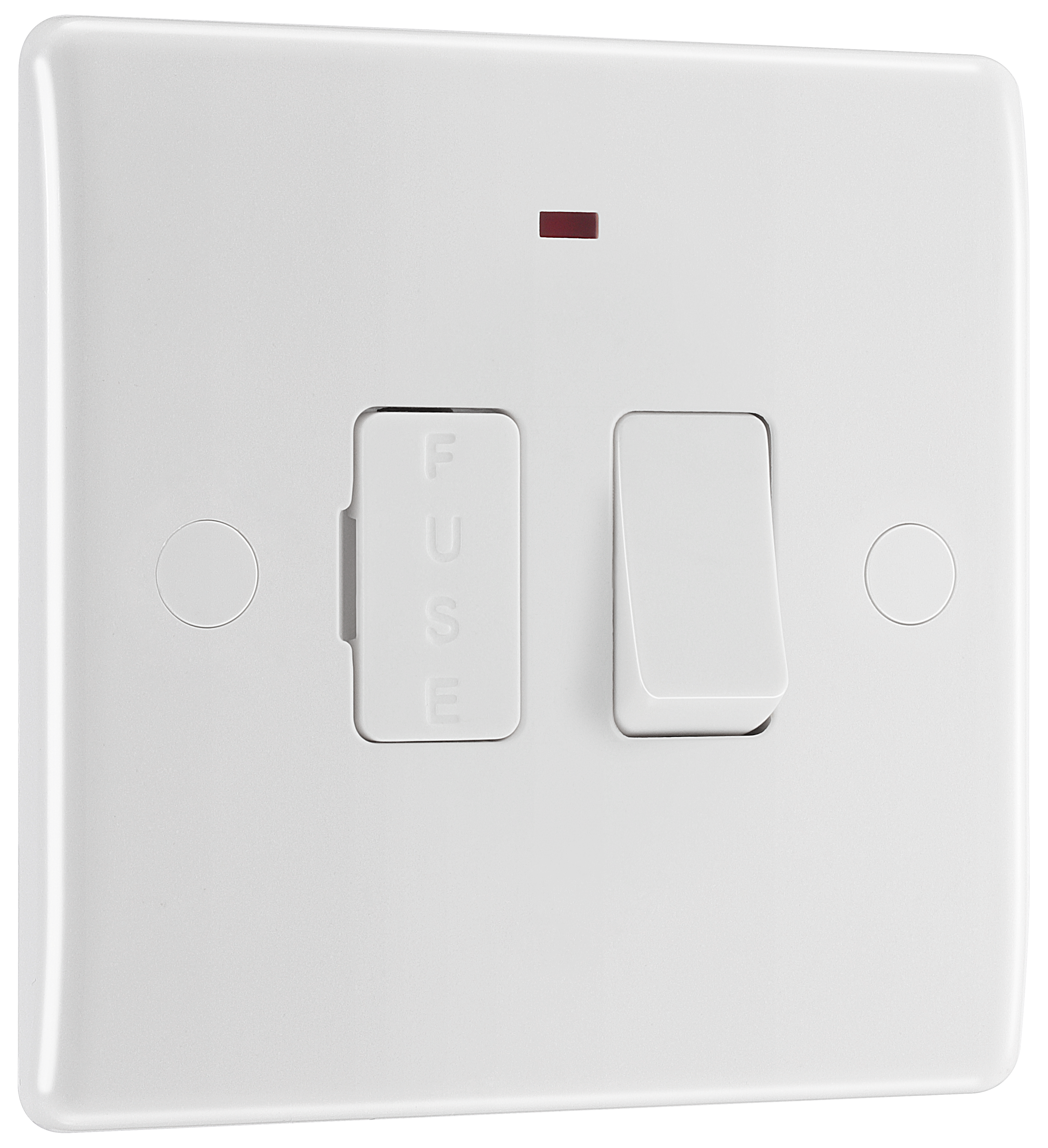

BG Nexus Series White Moulded 13A Switched Fused Connection Unit with LED Indicator
LA OFF

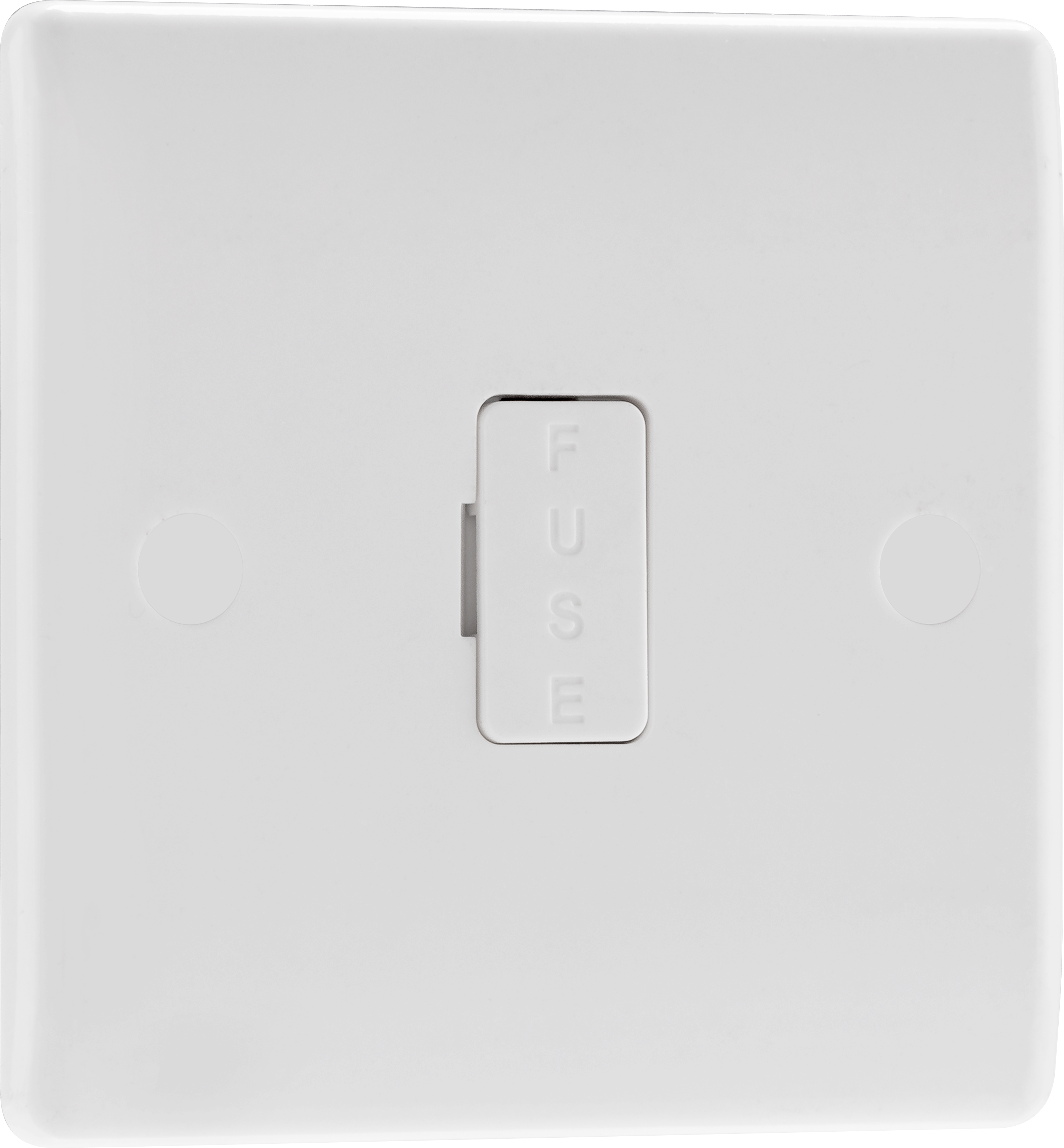

854-01

BG Nexus Series White Moulded 13A Unswitched Fused Connection Unit
856 800 Part BG 856 0100 LA BASE

856-01

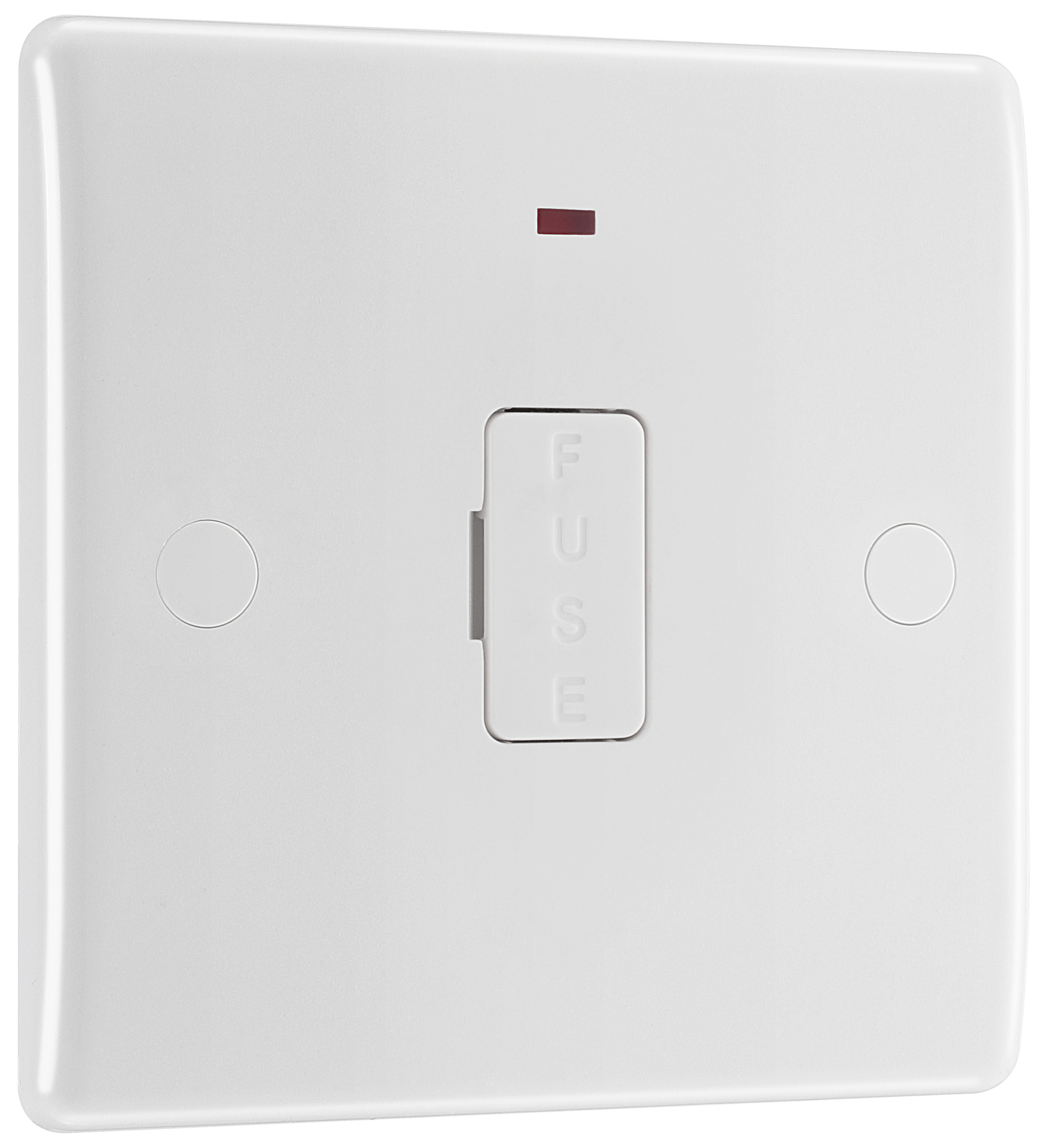

BG Nexus Series White Moulded 13A Unswitched Fused Connection Unit with LED Indicator
