822UWR-01
BG Nexus Series White Moulded 13A Double Switched Socket with Wi-Fi Extender
13A Rated
Easy to install, supplied with fixing screws and installation instructions
1x 2.1A USB outlet for charging your mobile devices
Improved Wi-Fi coverage throughout your home, works with all wireless broadband routers
Easy to install and setup with one touch WPS
Single band (2.4Ghz)

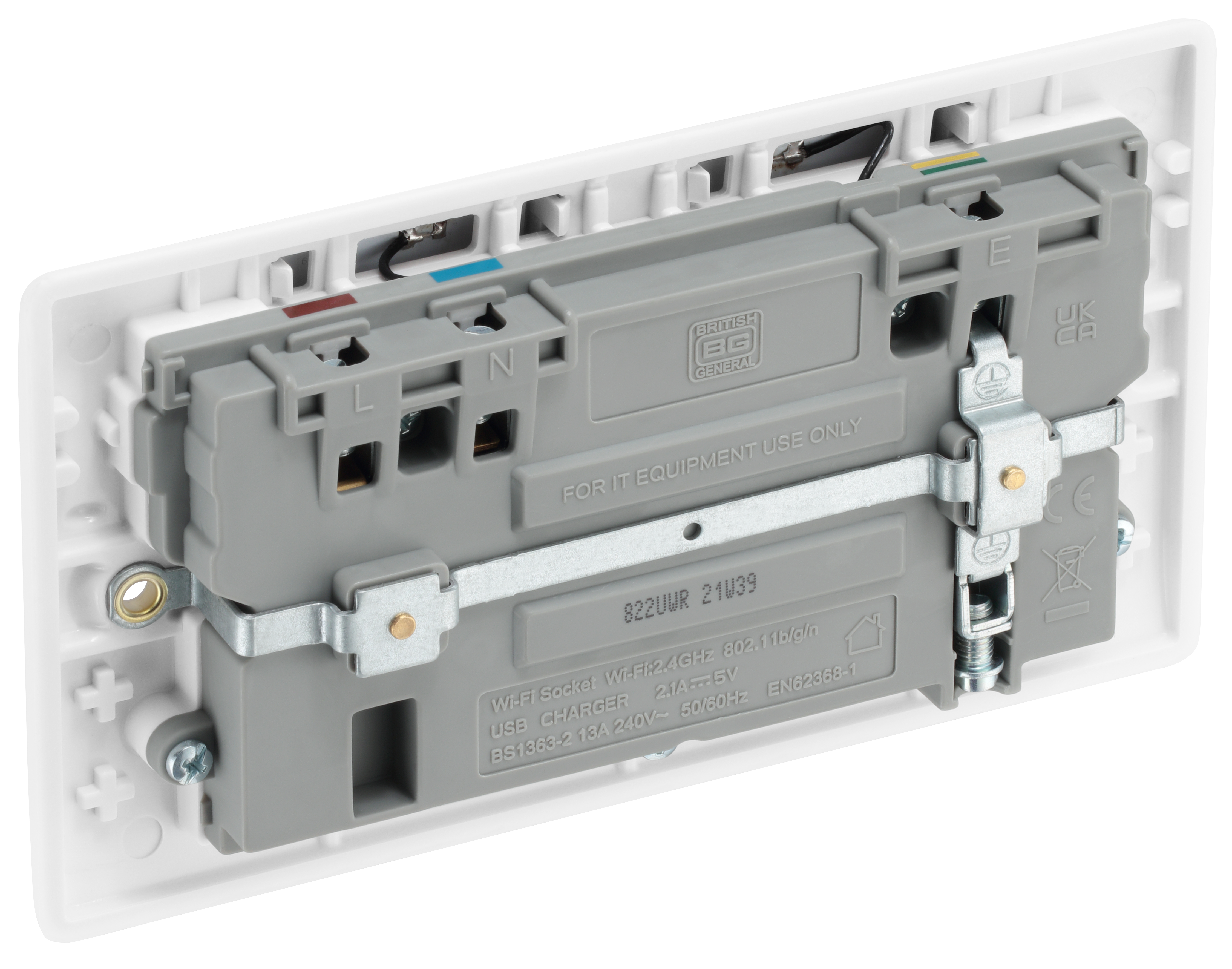

Angled in-line terminals with captive screws provide easy access for quick installation
Twin earth fitted as standard to allow a double earth facility for installations requiring high integrity protective connection Ref. BS 7671:2008

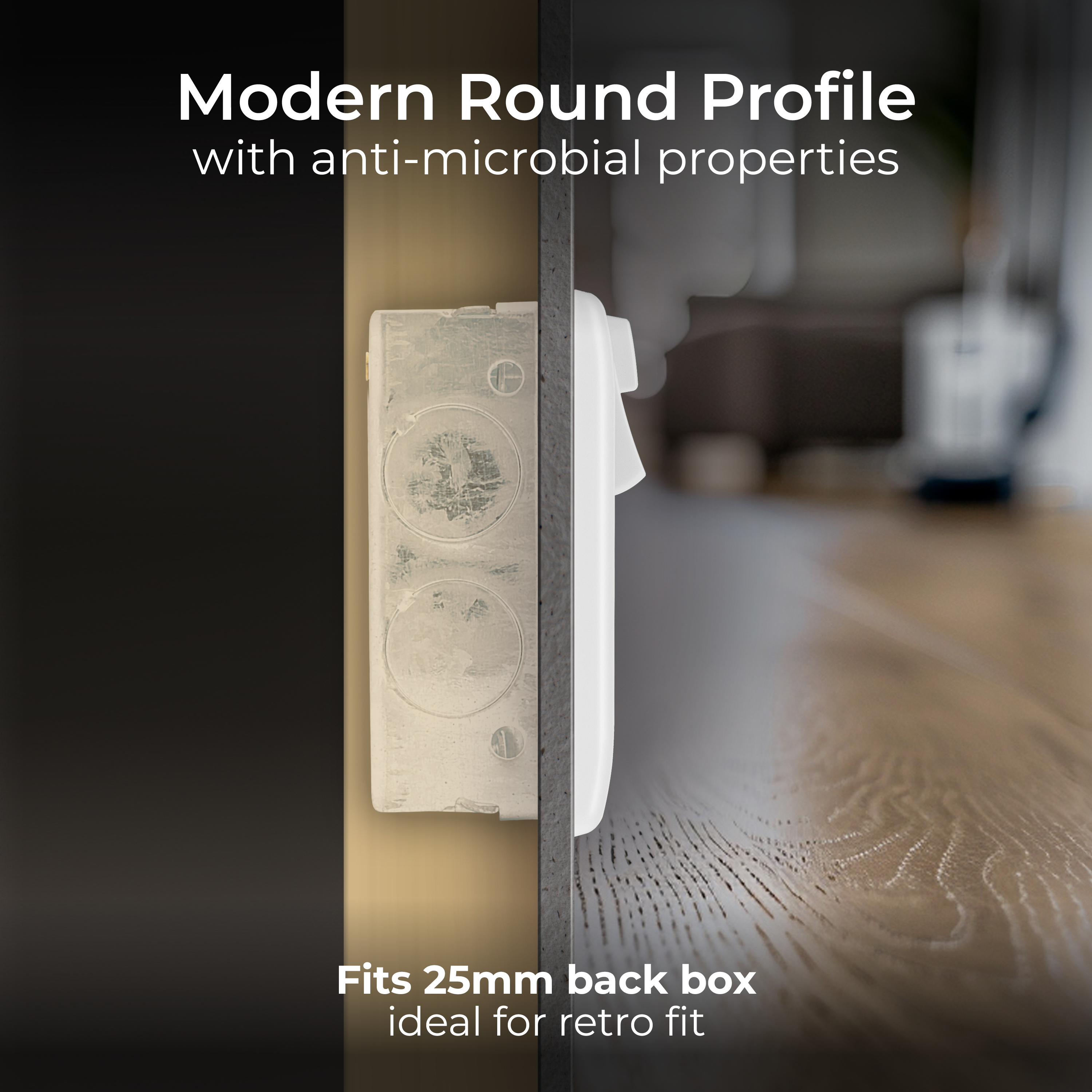

Minimum mounting box depth 25mm
Certified to BS1363-2
| General Colour | White |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (mm²) | 3 x 2.5mm² |
| Front Plate Insert Colour | Not Applicable |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled Inline |
| Terminals with Colour Coding Print | Yes |
| Number of Sockets | 2 |
| Number of Switches | 2 |
| Screw Caps | Yes |
| Switch Type (Ways & Poles) | Single Pole |
| USB Ports | 1 x Type A |
| Fixing Centres (mm) | W-120.6 |
| IP Rating | IP20 |
| USB Output (Type & Rating) | Type A: 5V,2.1A |
| Network Standards | 802.11 b/g/n |
| Link Rate Class | N300 |
| Radio Band (GHz) | 2.4 GHz |
| Max. Link Rate (Mbps) | 300 Mbps |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 10 |
