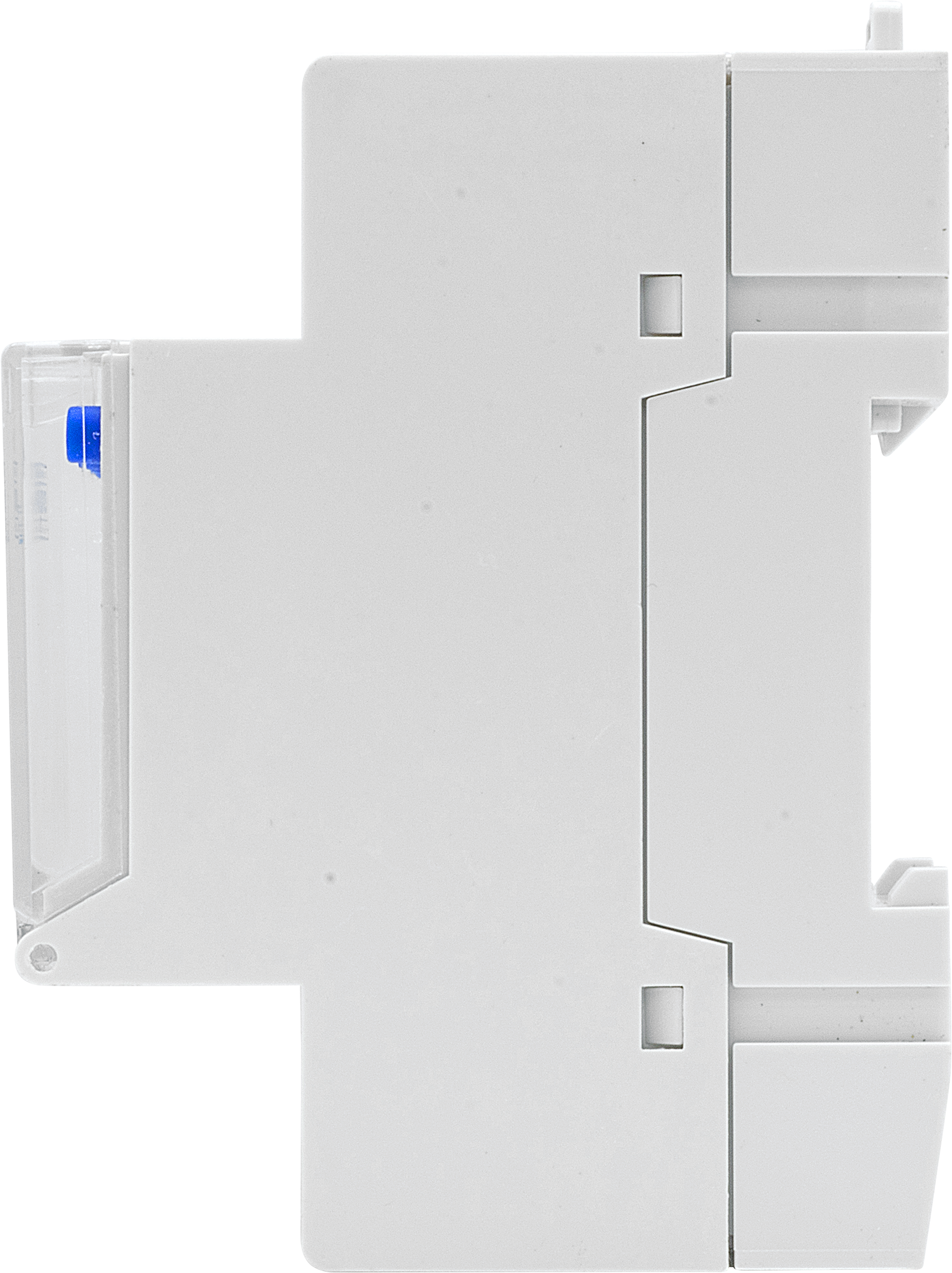

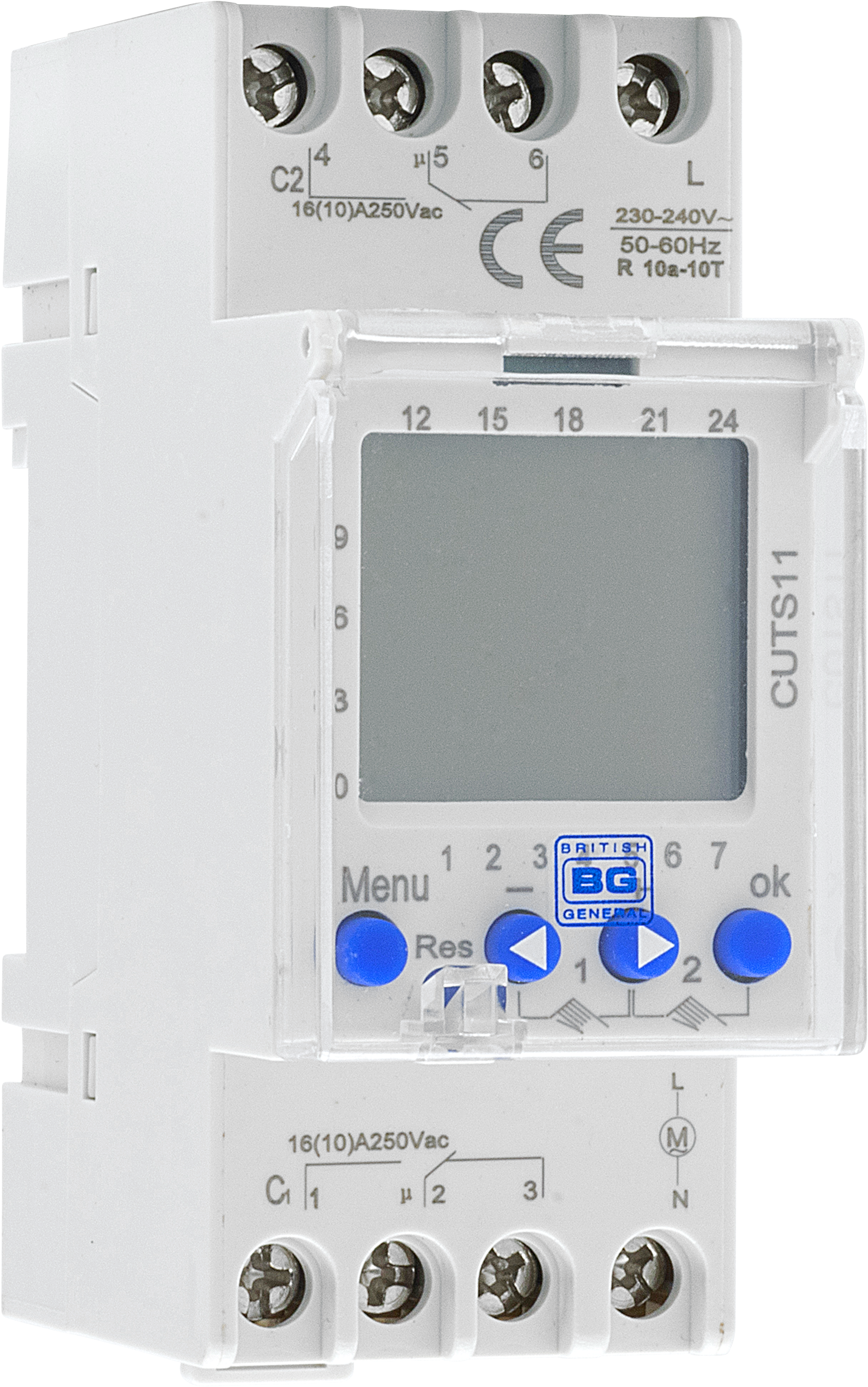

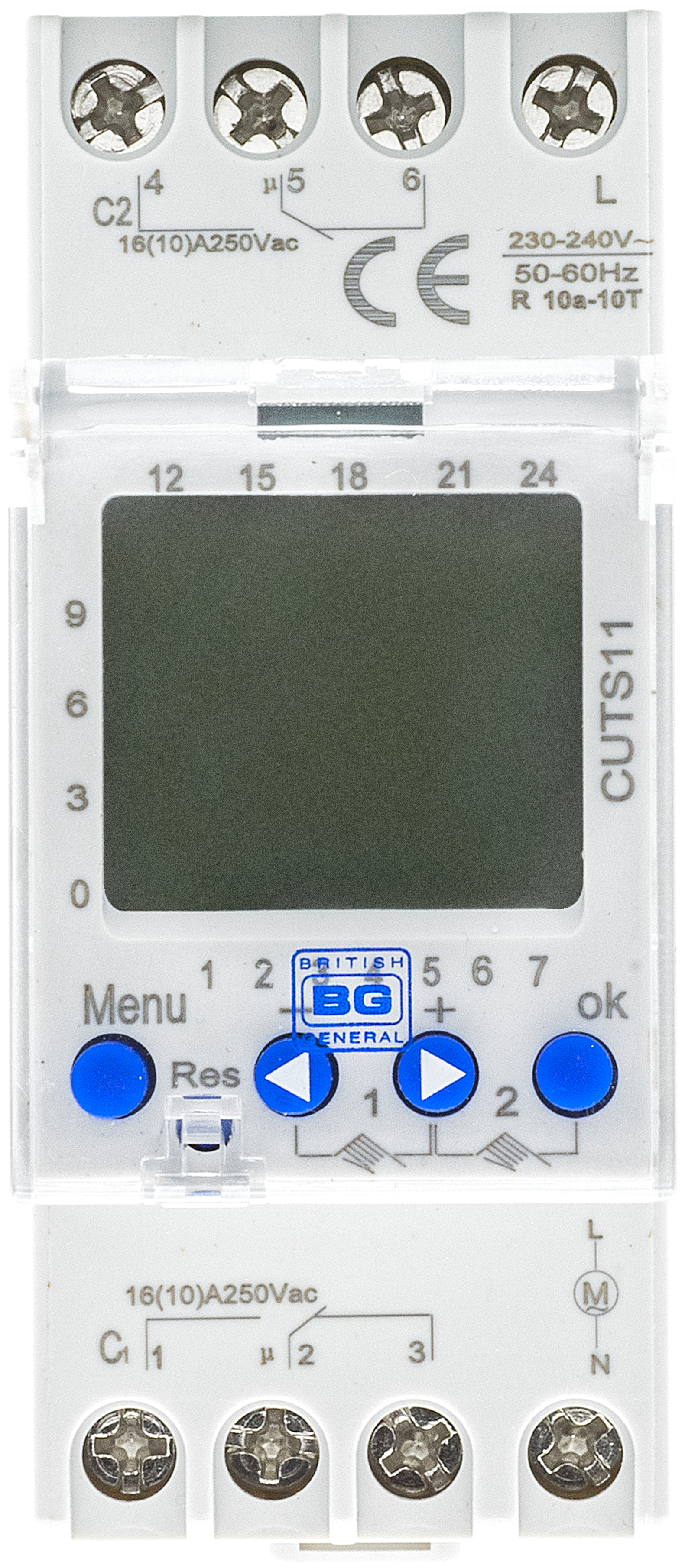

CUTS11-01
BG 7 Day Digital Timer 2 channel
7 day control
2 channel
2 Module
Din Rail Mountable
16A Switching power
For use with BG Fortress consumer units and enclosures
1 minute switching time
LCD display approx 4 years power reserve
Digital
Overide facility
| General Colour | Light Grey |
| Timer Override | Yes |
| Timer Type | Digital 7 Days |
| Endurance Operations - Electrical | 1000000 |
| Endurance Operations - Mechanical | 1000000 |
| Response Time (nS) | 0 |
| Surge Rating (kV) | N/A |
| Surge Uc | 0 |
| Surge Uoc | N/A |
| Surge Up | N/A |
| Rated Sensitivity (mA) | N/A |
| RCD Mechanism Type | N/A |
| Trip Speed (mS) | N/A |
| RCD Type | N/A |
| Device | Digital Timer 2 Channel |
| Operating Voltage (V) | 240 |
| Current Rating (A) | 16 |
| Operating Temperature (°C) | -5 to +40 |
| Rated Trip Current (mA) | N/A |
| Switch State | On/Off/permanent on |
| Surge Device | No |
| Standard(s) | undefined:STD156;undefined:STD298 |
| Warranty (years) | 10 |
