CP5R4PS1G-01

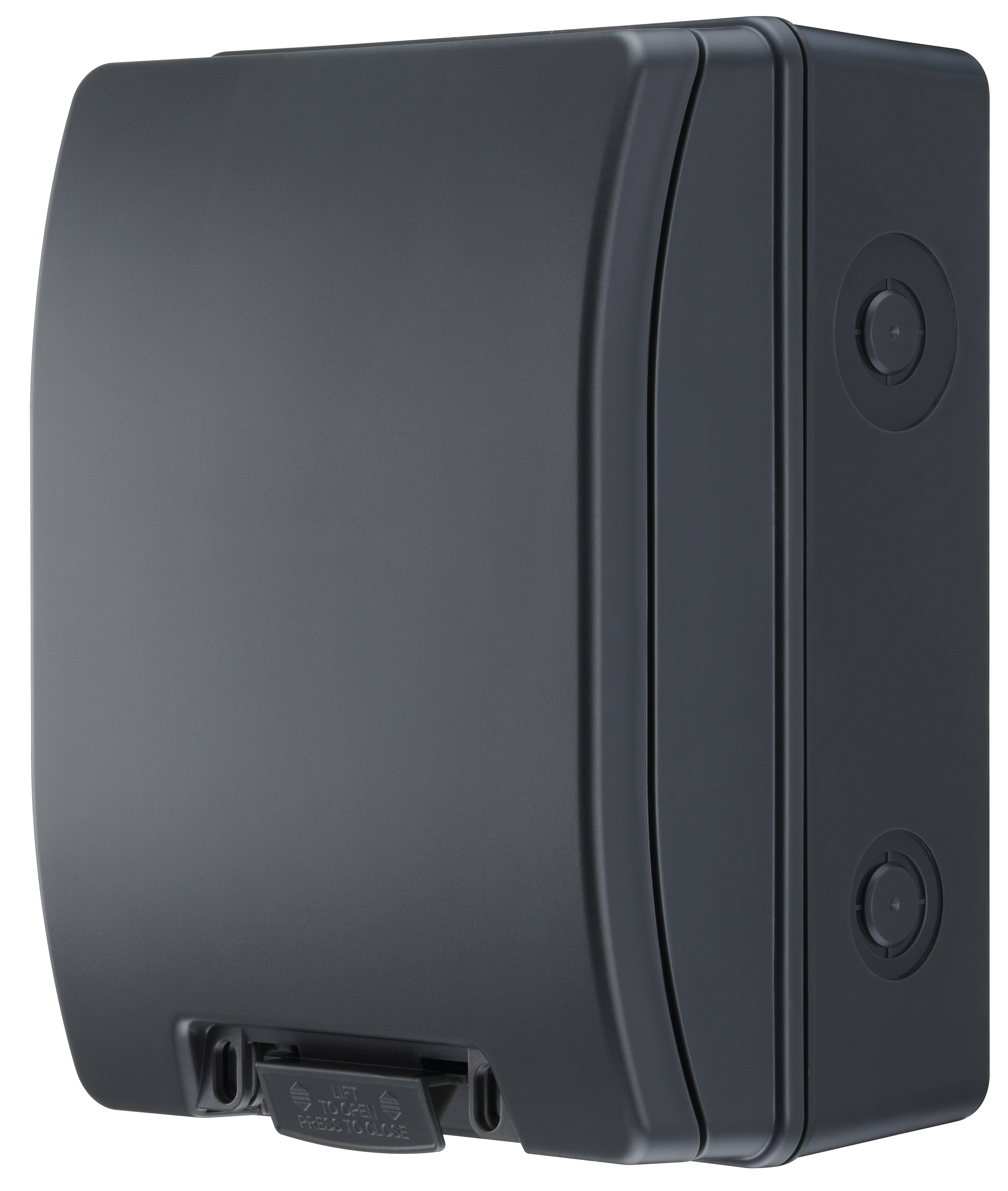

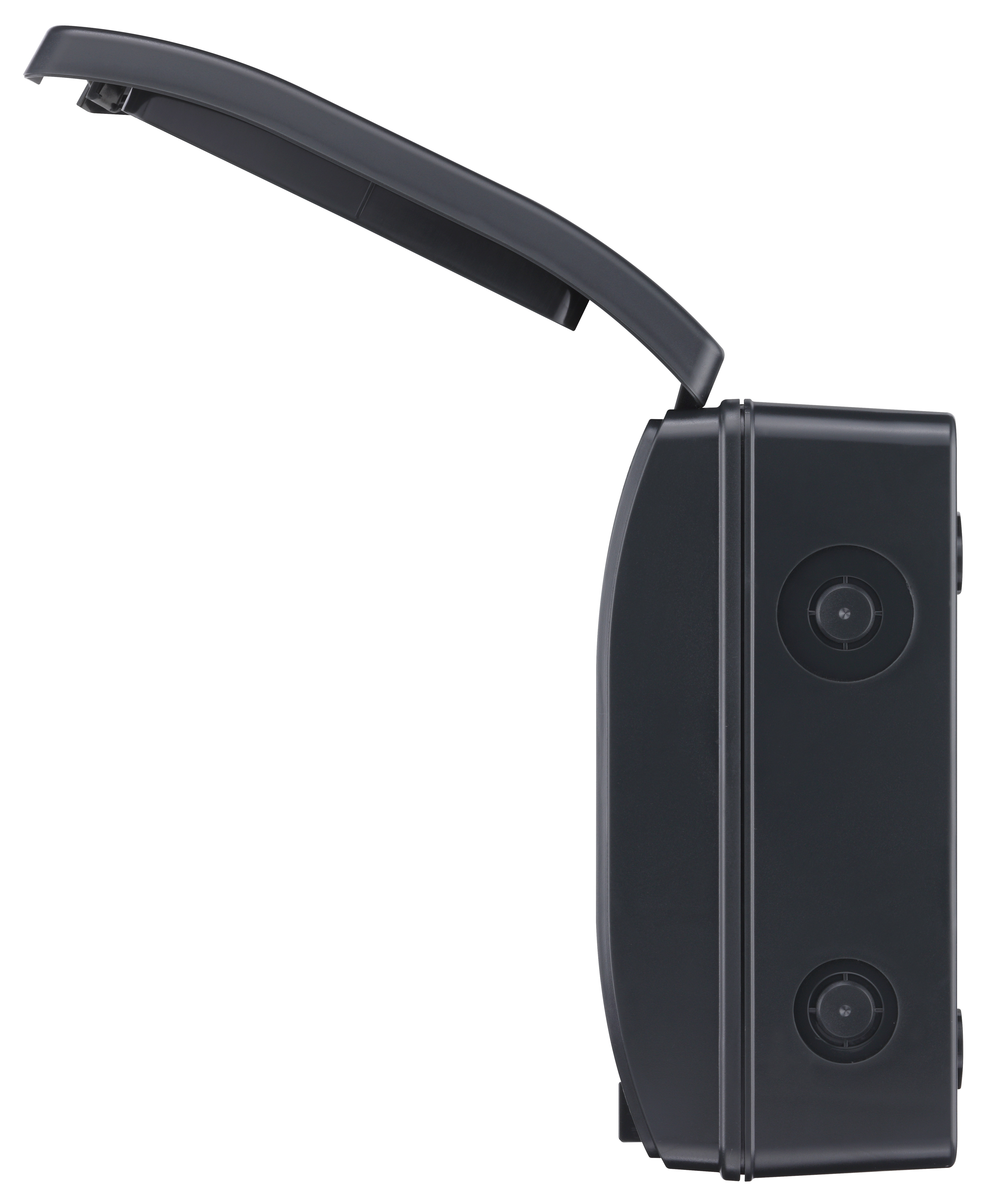

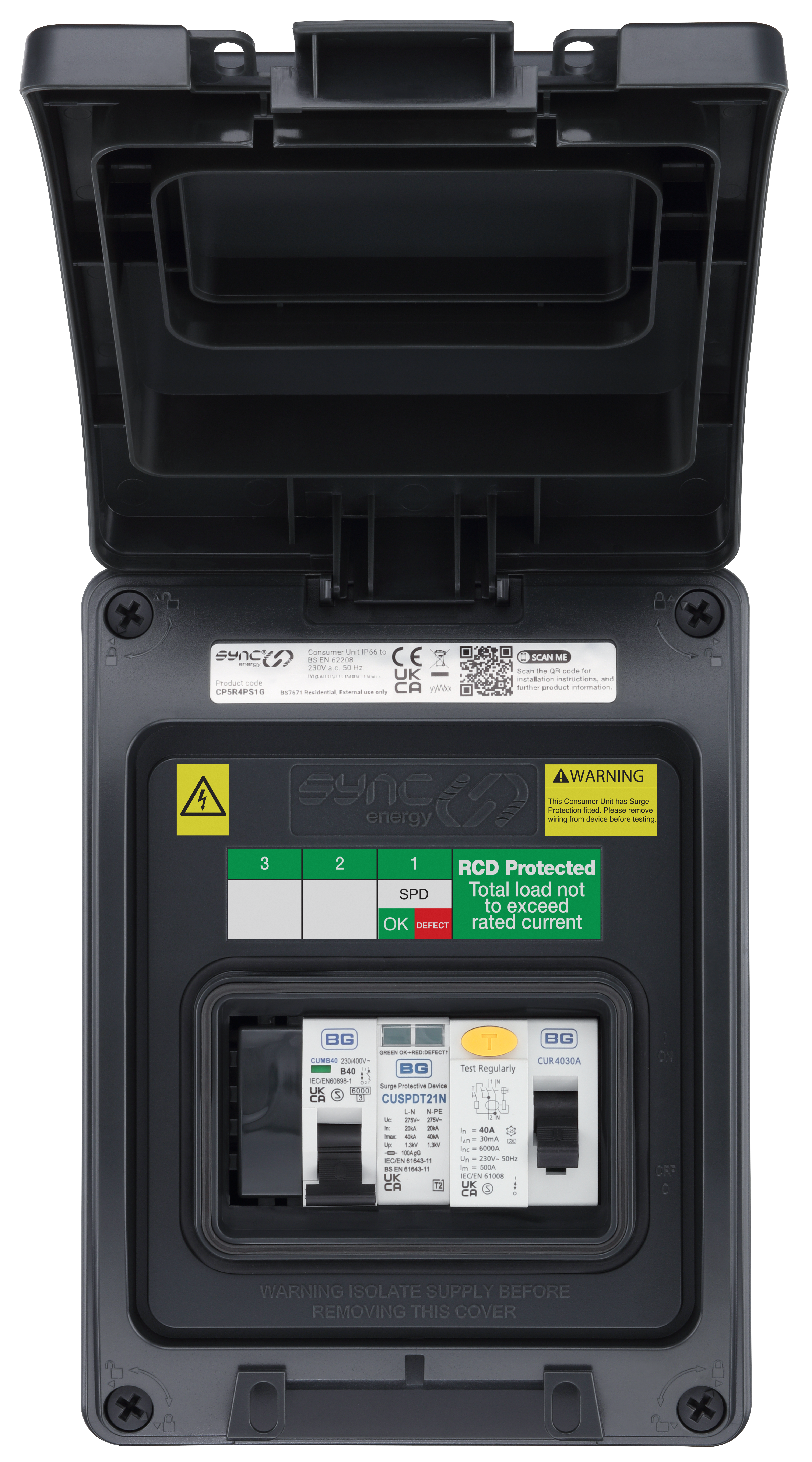

Electric Vehicle Kit - 5 Mod, IP66, Plastic, Weatherproof, Grey, 40A 30mA RCD Type A, 40A MCB, Type 2 SPD

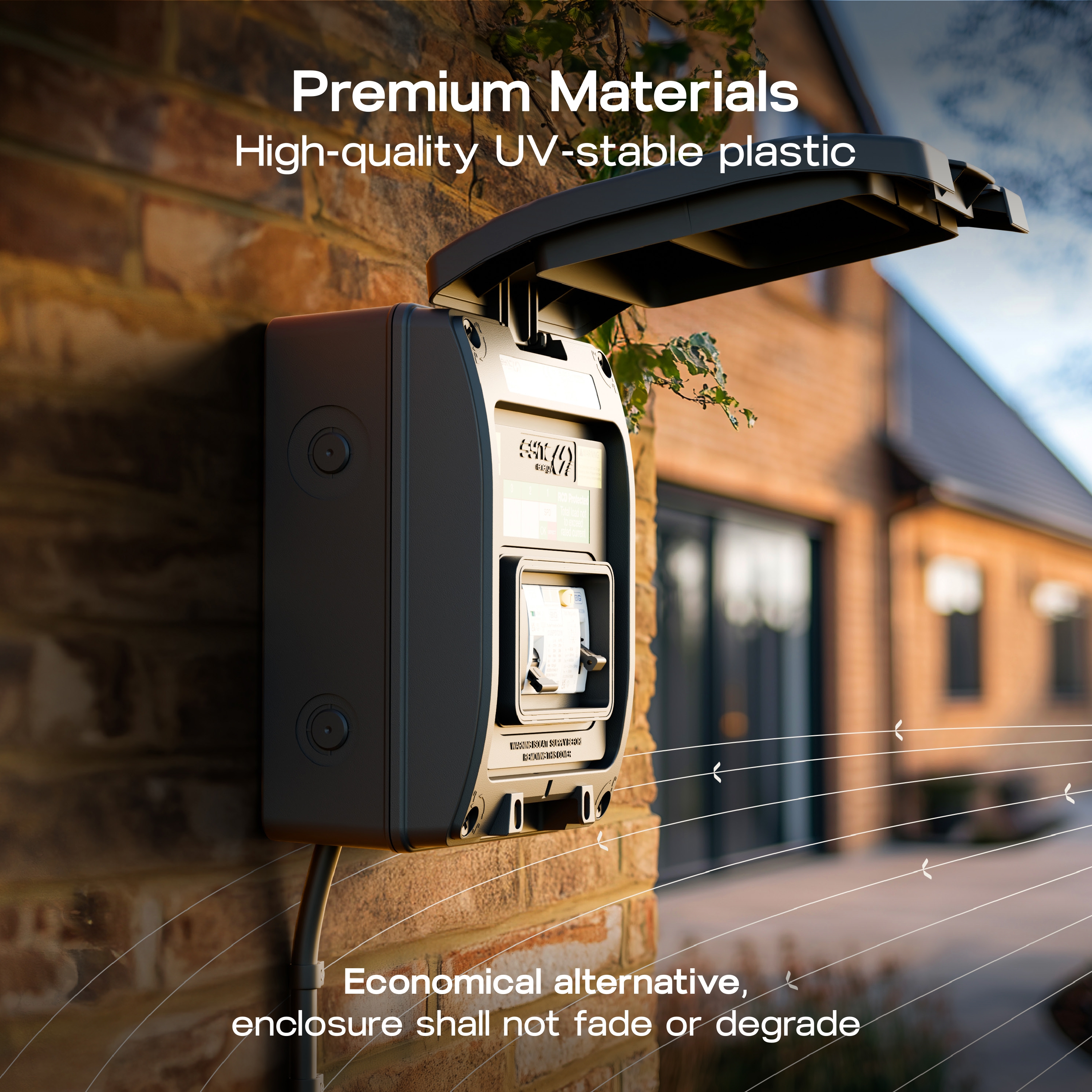

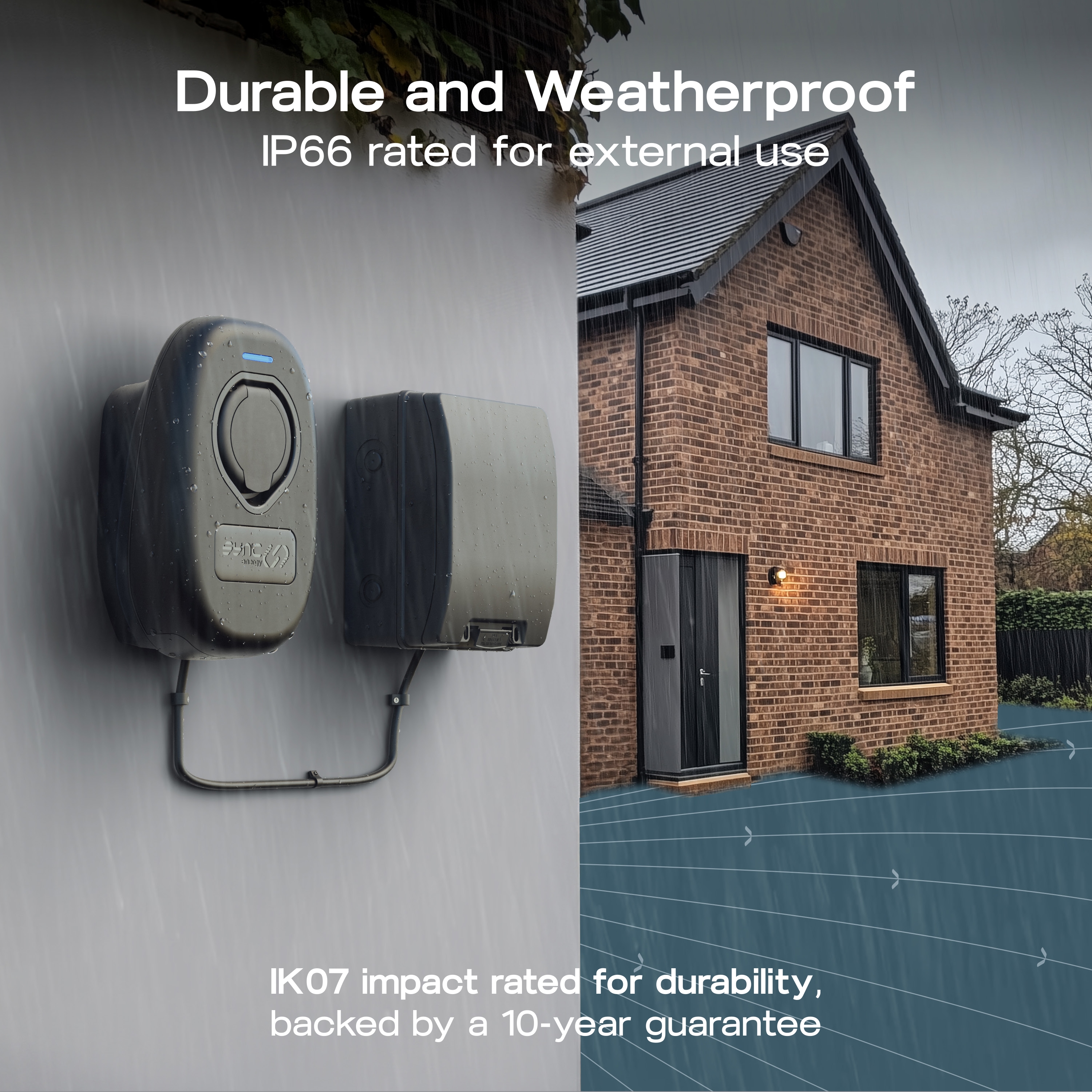

IP66 Weatherproof

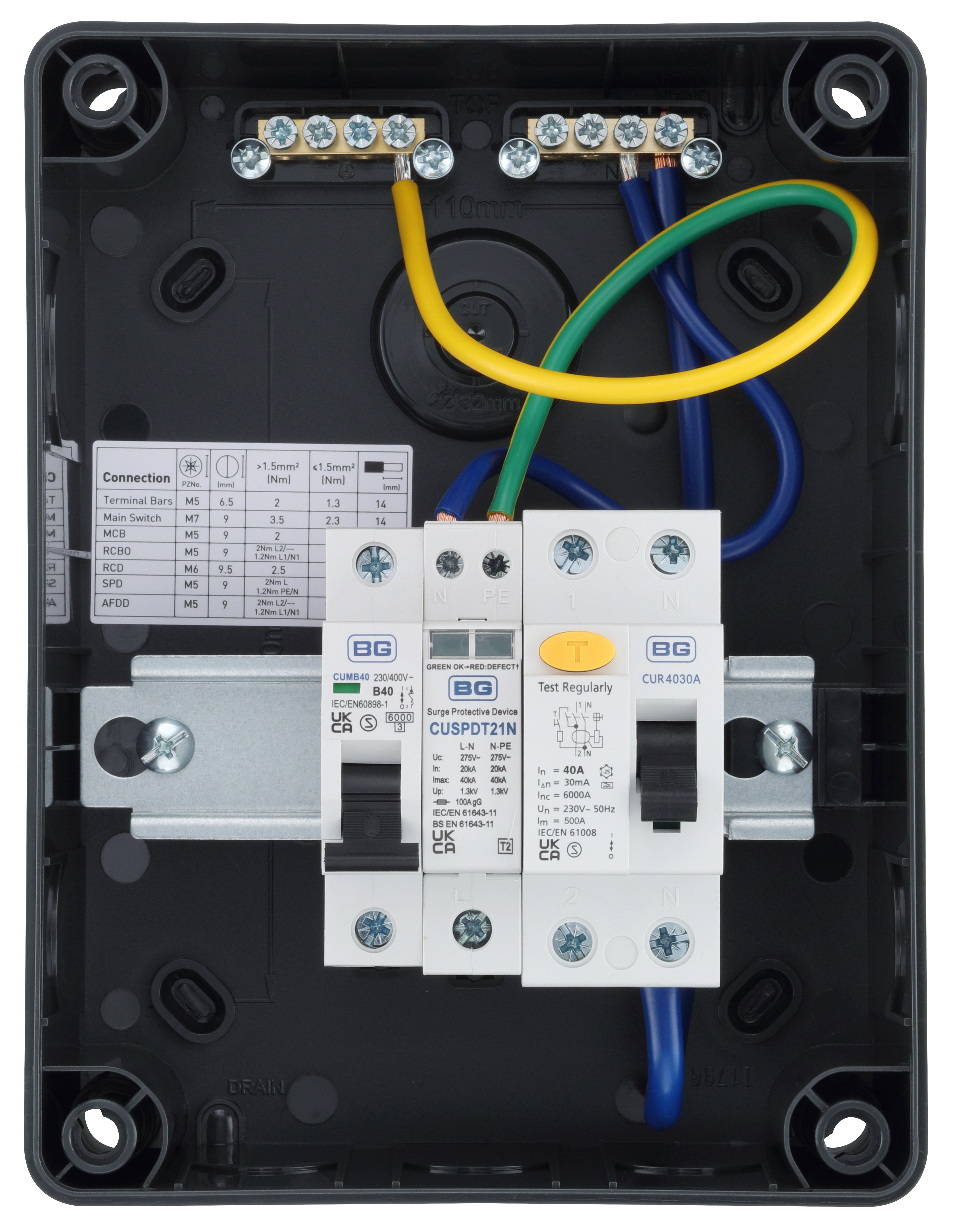

Type 2 SPD
40A MCB
40A 30mA Type A RCD
Padlock facility
Quarter turn cover screws

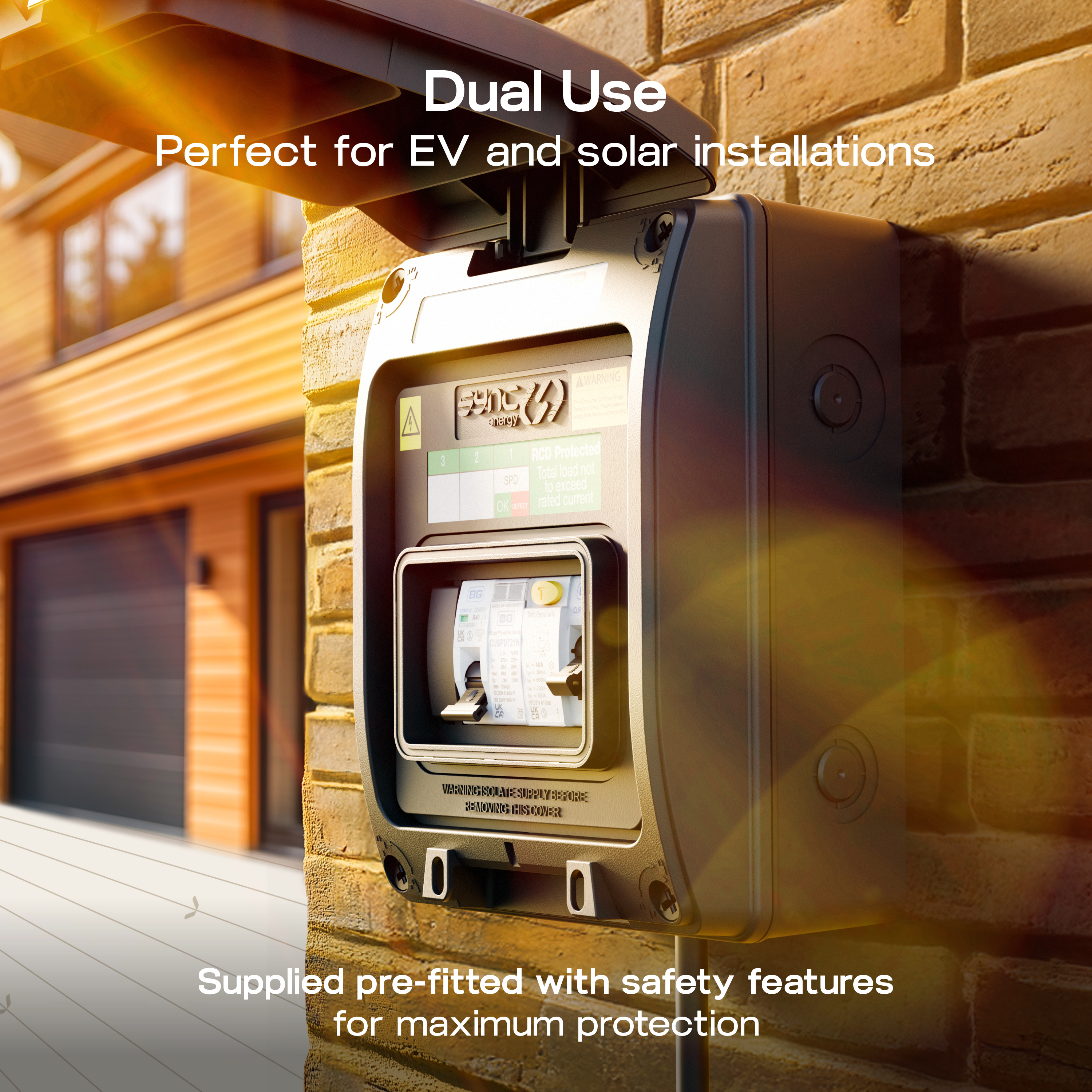

For use when the EV charger supply cable does not have mechanical protection

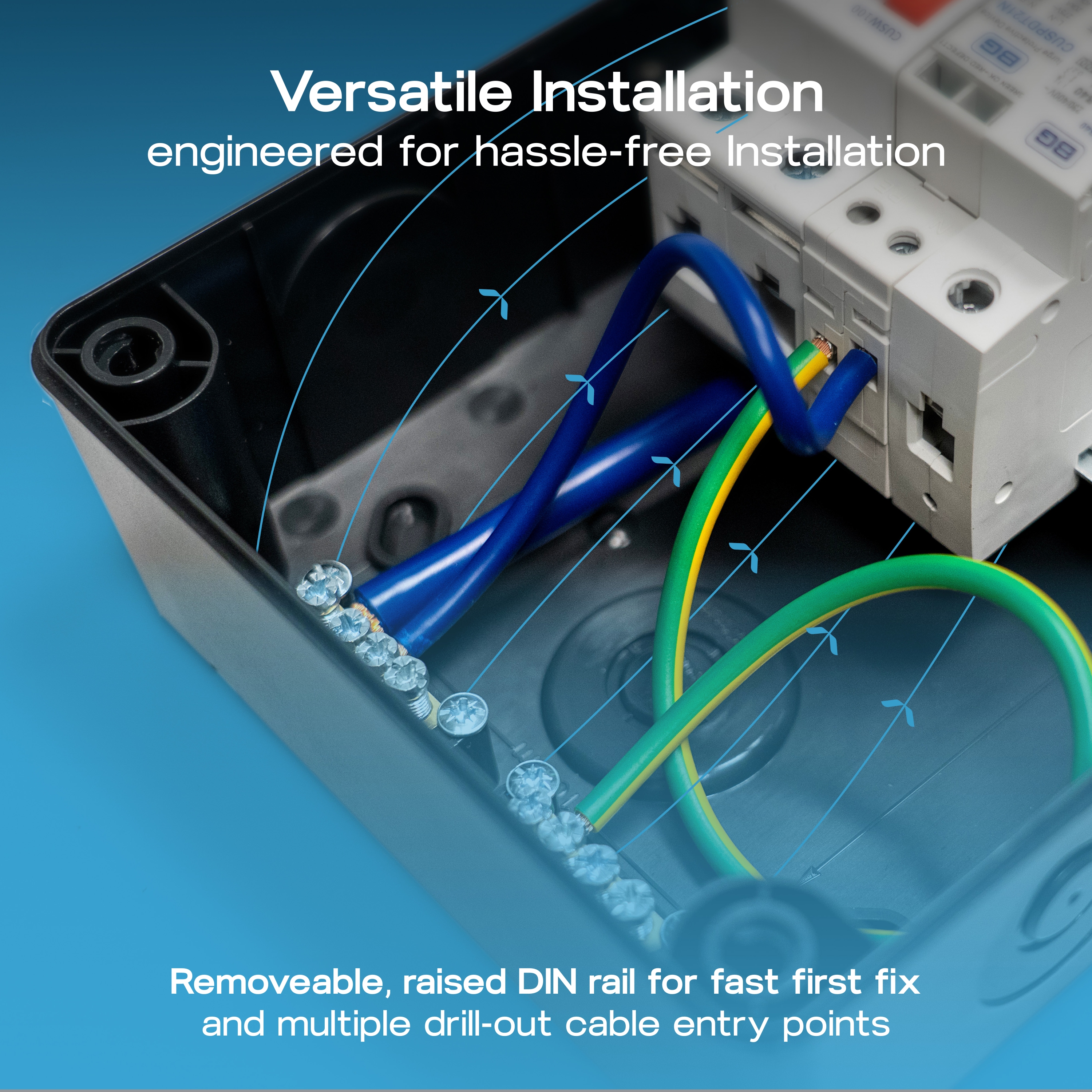

Easy installation
Backed out and retained terminal screws
| General Colour | Anthracite Grey |
| Fixing Screws Supplied | No |

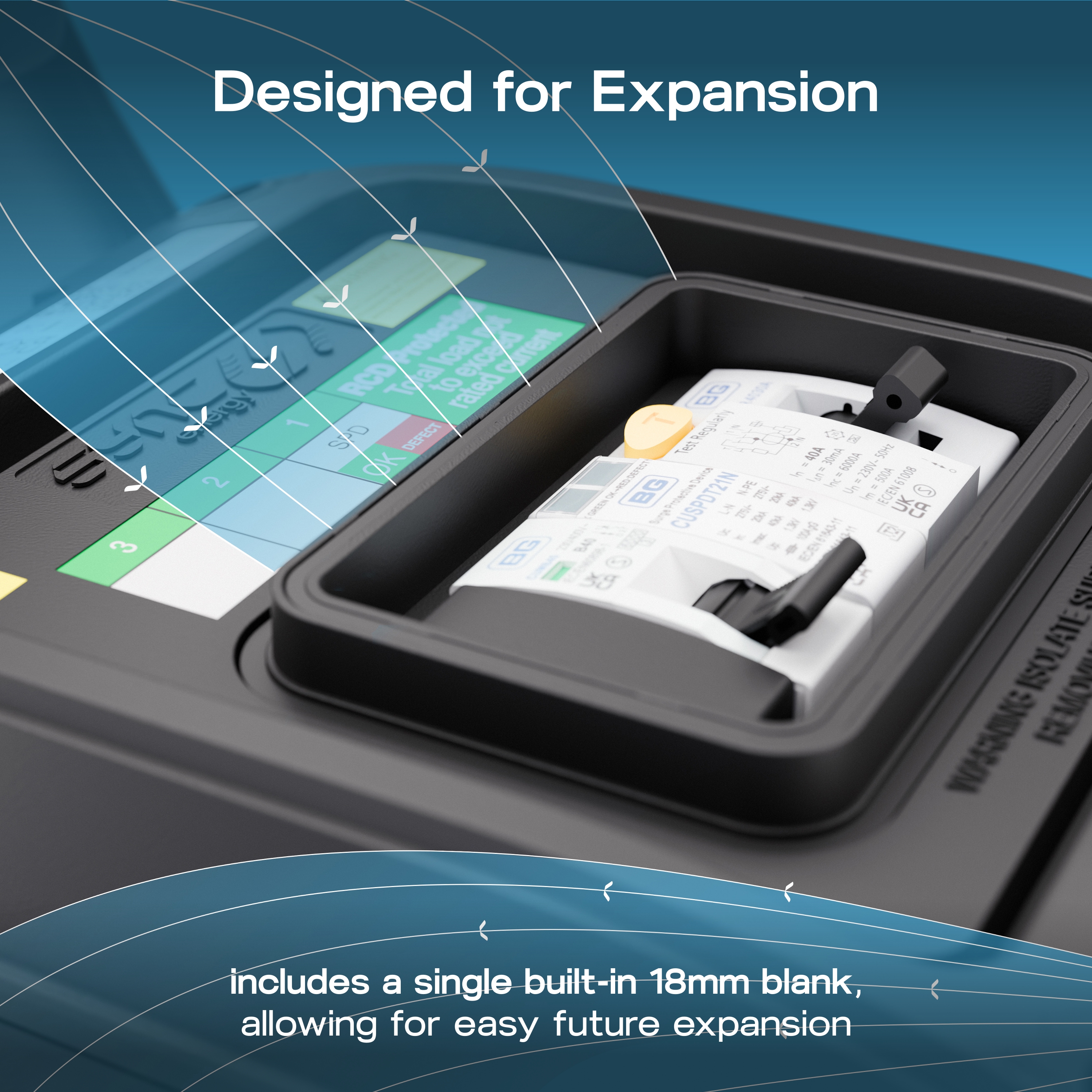

| Modules | 5 |
| Number of Cable Entries | 8 |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |

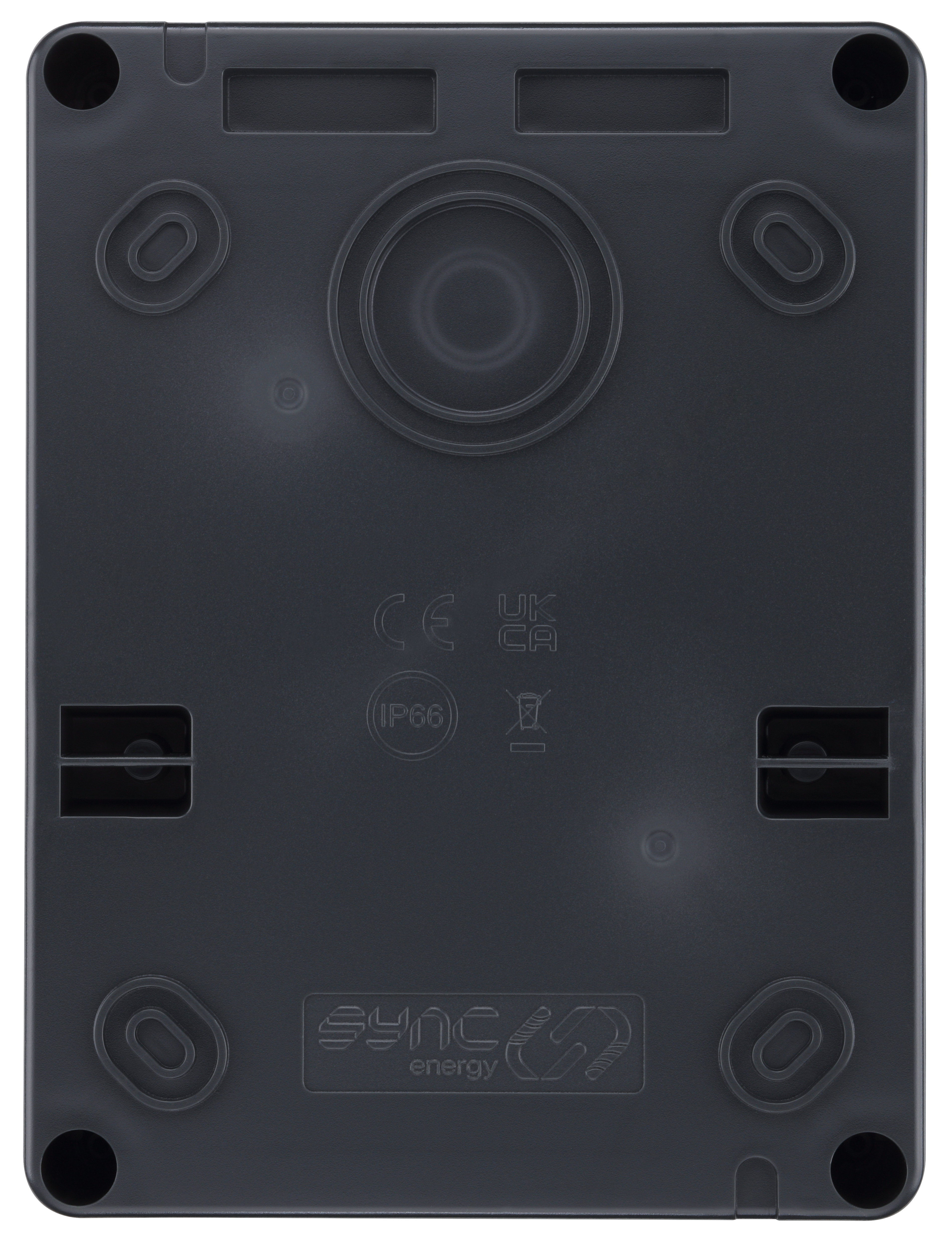

| Cable Entry Type | Knockout |
| Details per face (Size/number) | Side - 1 x 20-40mm 1 x 20-25mm, Bottom - 3 x 20-25mm, Base - 20-32mm |
| Number Of Wall Fixing Positions | 4 |
| Fitted Lock | No |
| Installation Method(s) | Surface |
| Spirit Level | No |
| Ways | 5 |
| Number of Knockouts | 8 |
| Mounting Type | Surface |
| IP Rating | IP66 |
| Terminal Screw Type | Combi |
| Rated Sensitivity (mA) | 30mA |
| RCD Mechanism Type | Electro/Mechanical |
| Operating Voltage (V) | 230 |
| Current Rating (A) | 40 |
| MCB's | 1 |
| Operating Temperature (C) | -25°C to +40°C |
| Frequency (Hz) | 50 |
