CP5MPS1G-01

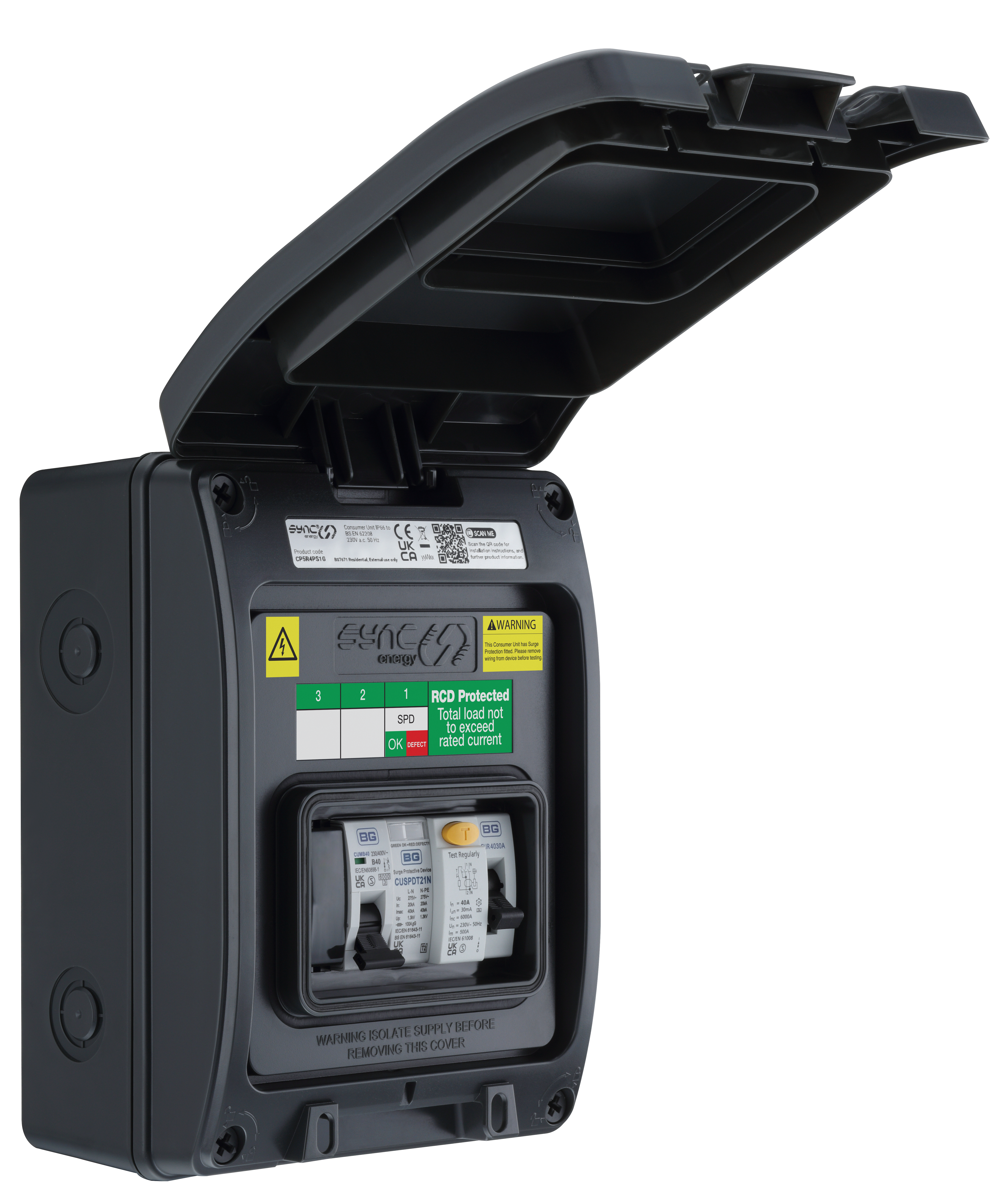

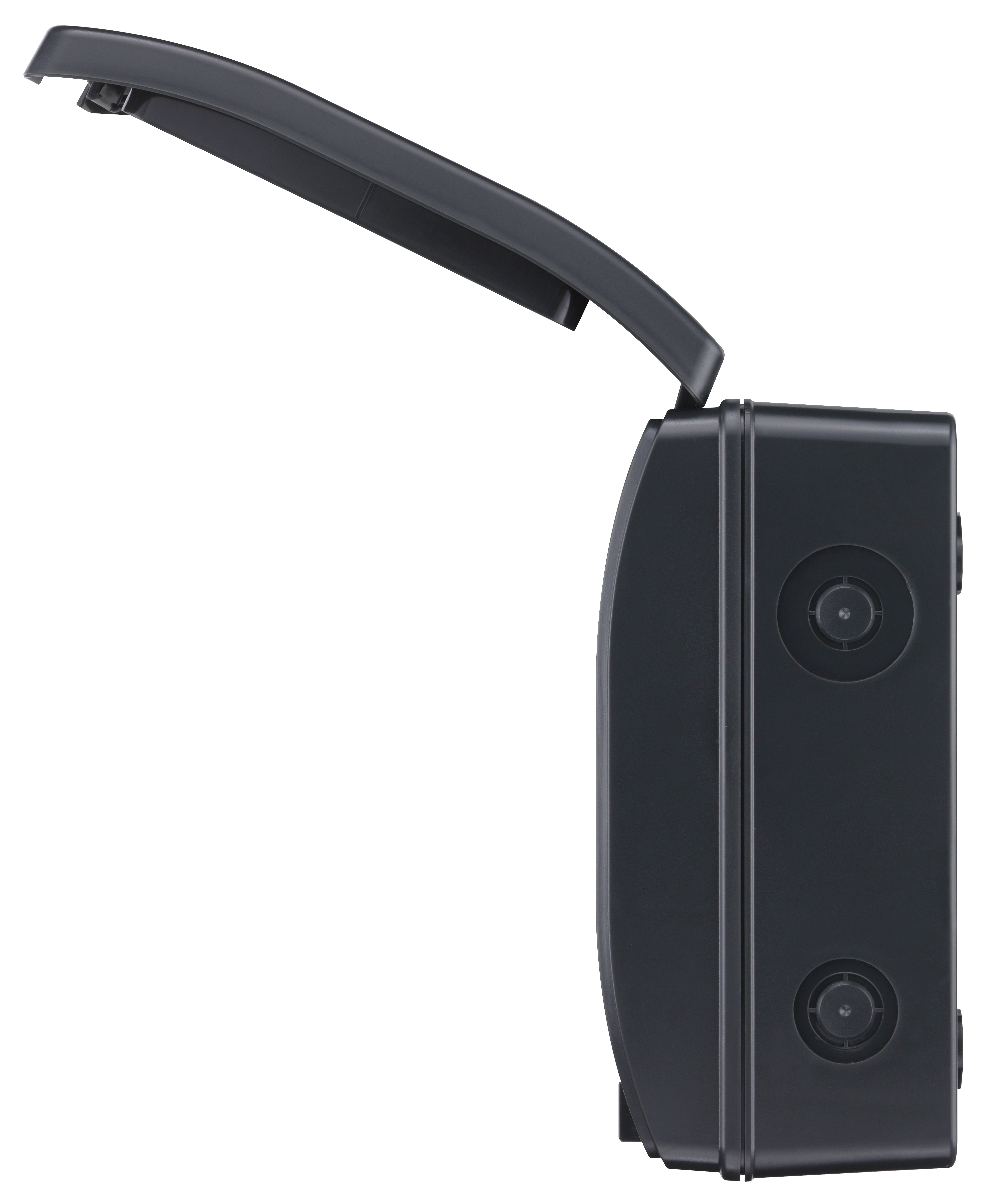

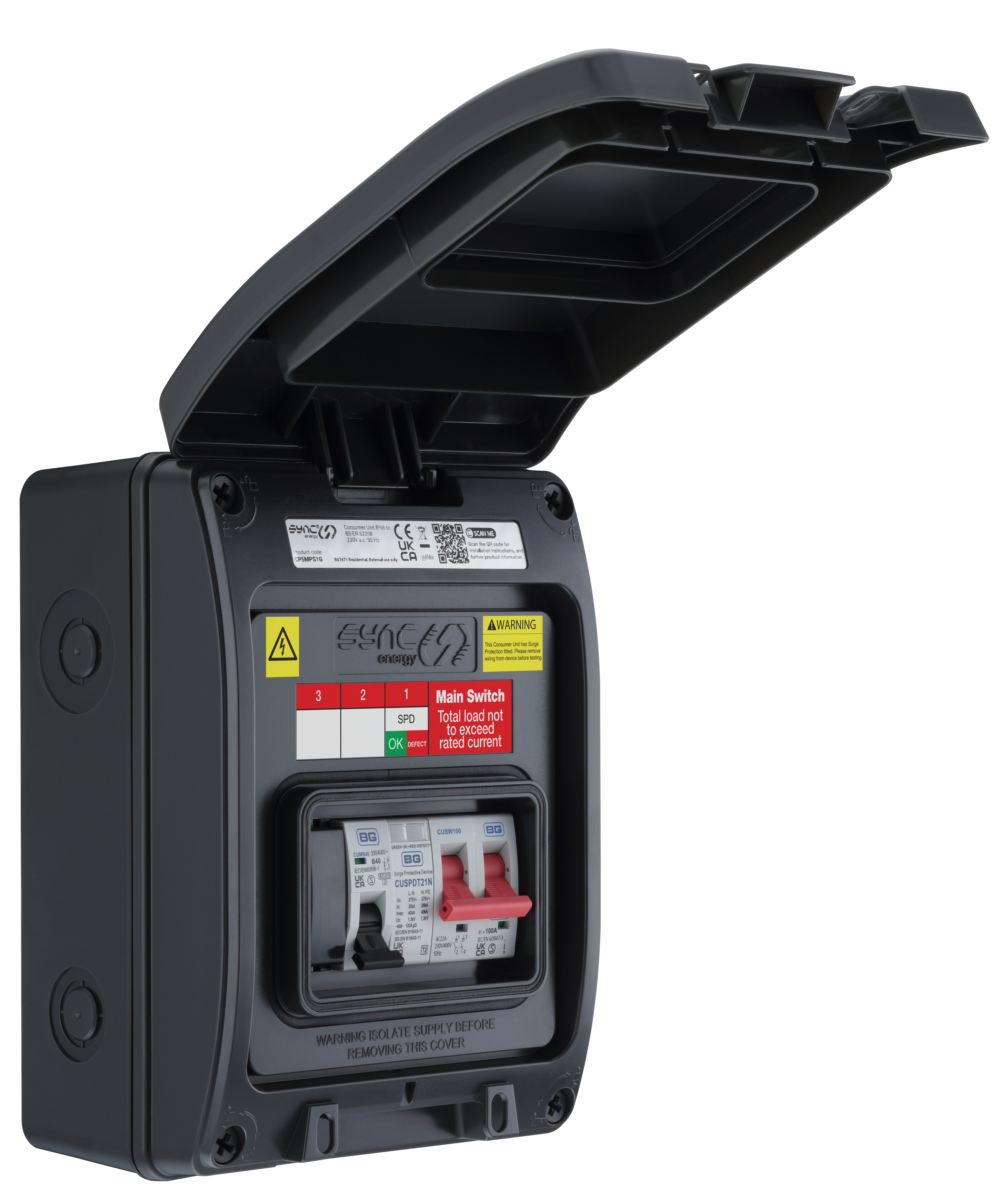

Electric Vehicle Kit - 5 MOD, IP66, Plastic, Weatherproof, Grey, 100A Main Switch, 40A MCB, Type 2 SPD

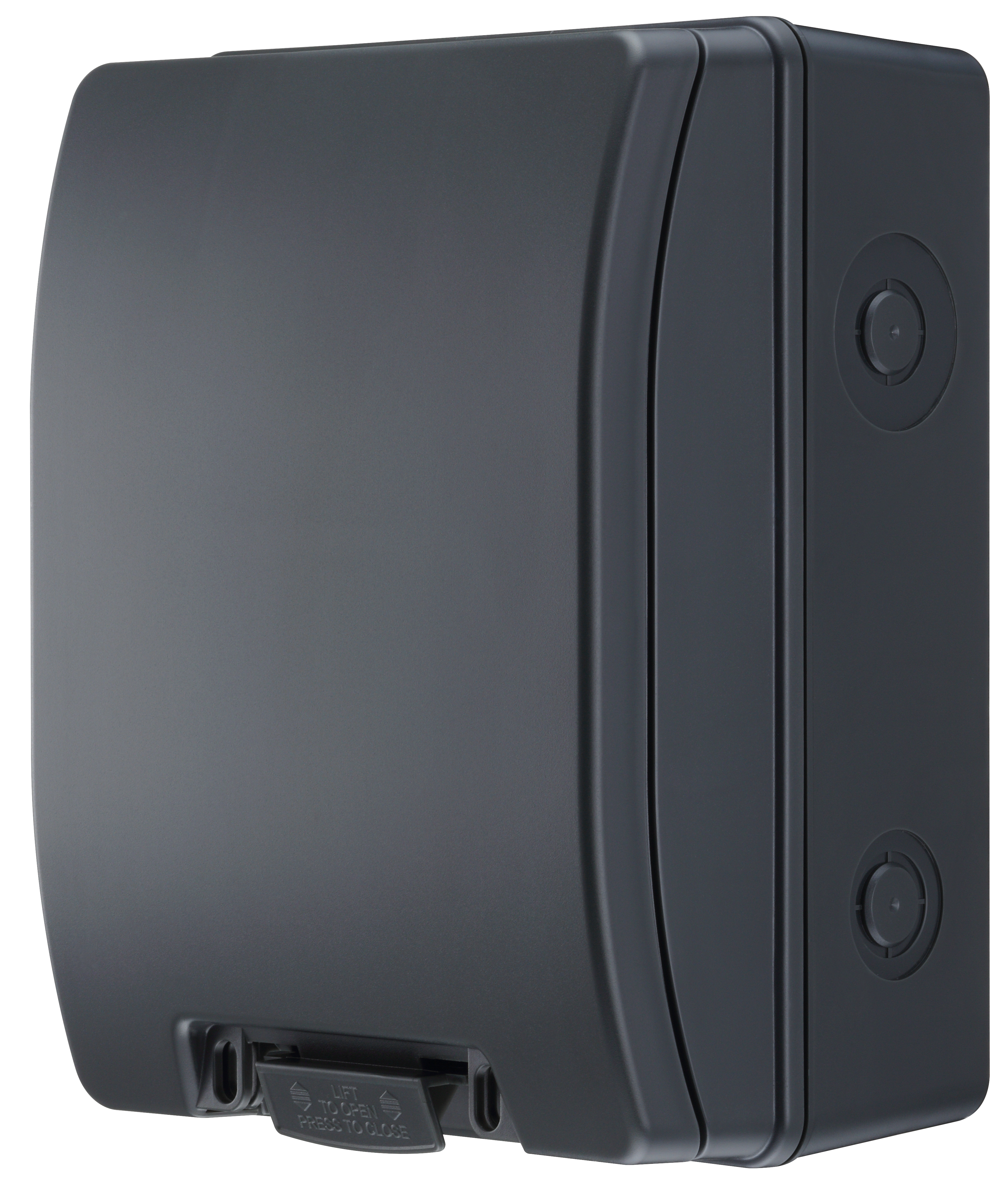

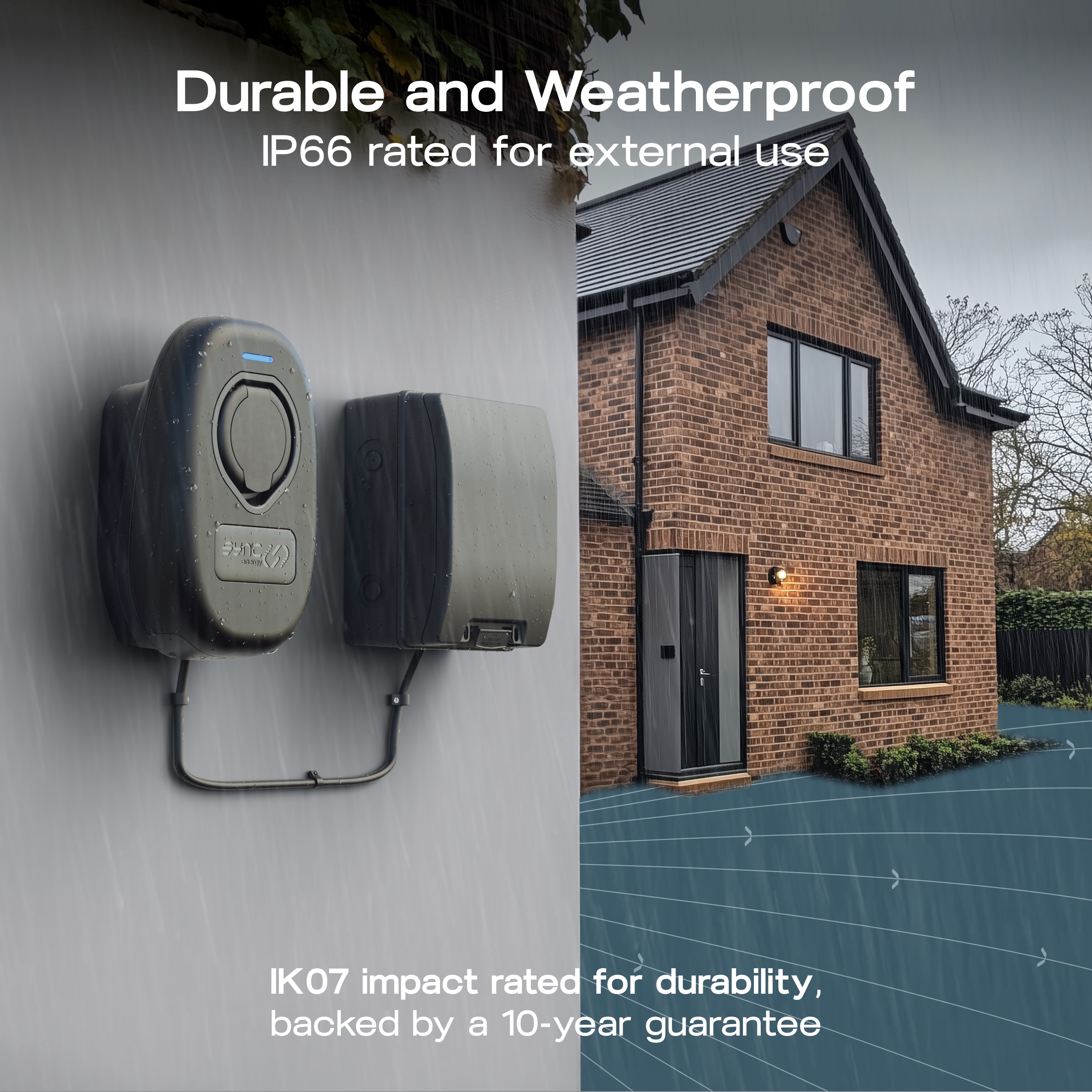

IP66 Weatherproof
Type 2 SPD
40A MCB
100A Main Switch

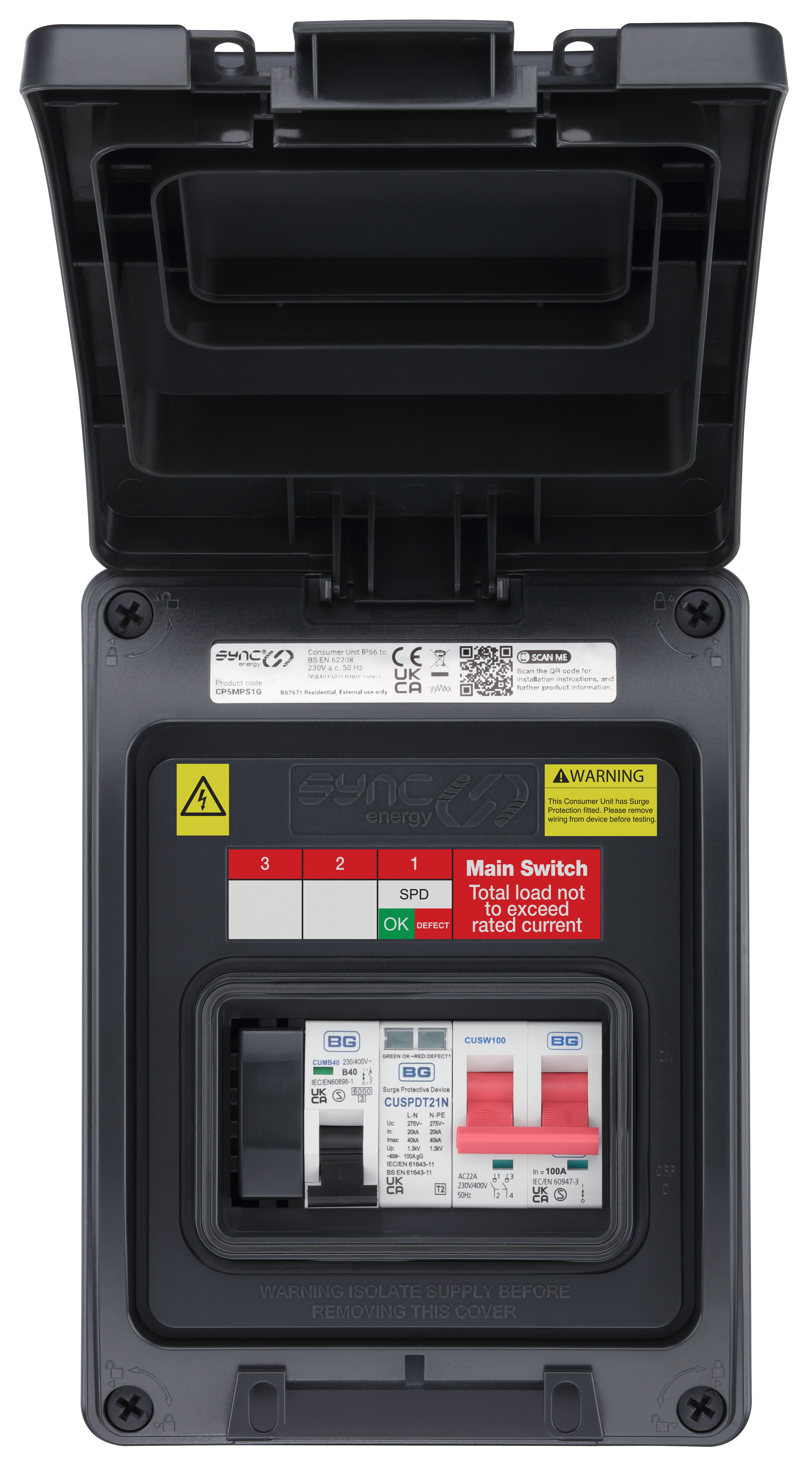

Padlock facility
Quarter turn cover screws
For use when the EV charger supply cable does have mechanical protection
Easy installation
Backed out and retained terminal screws

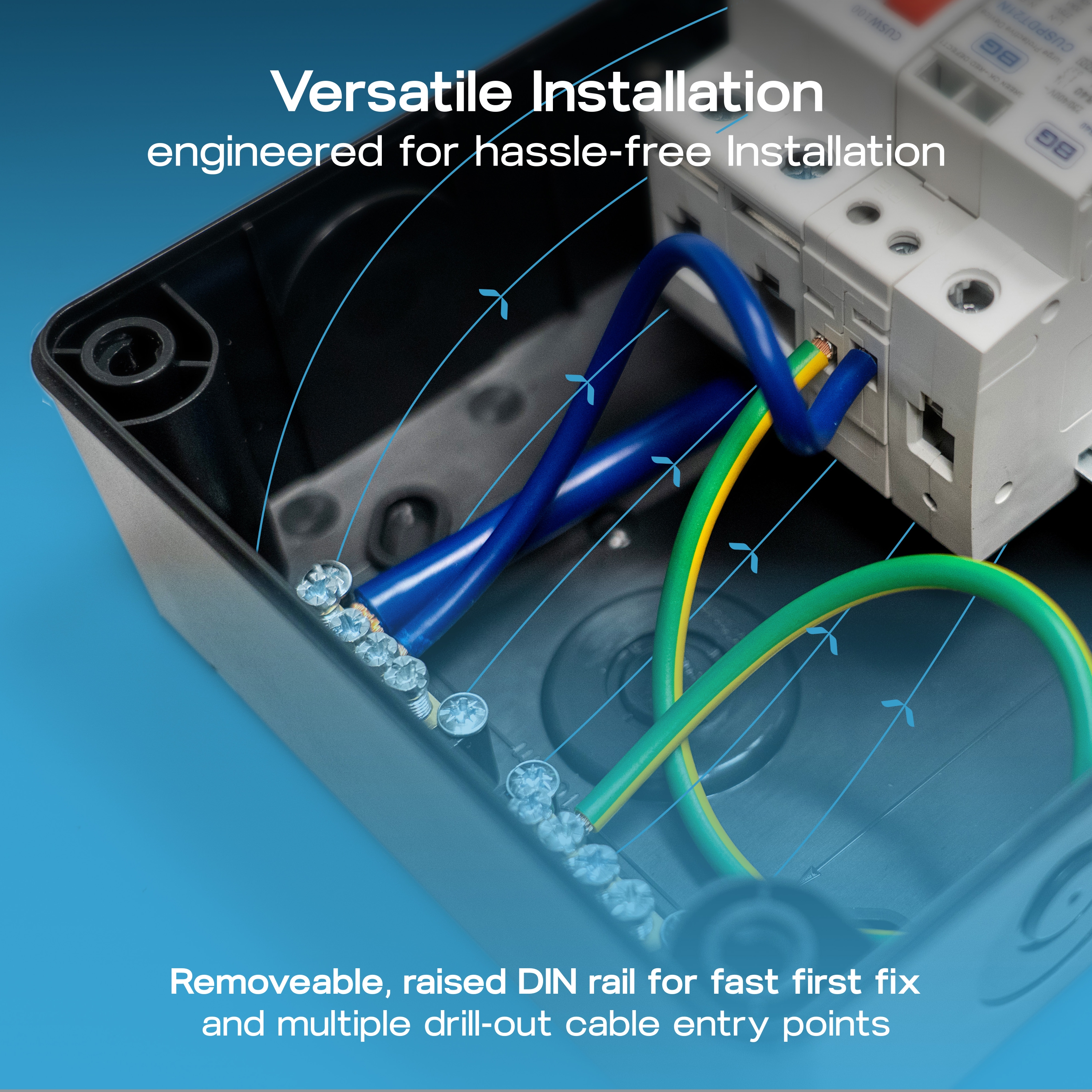

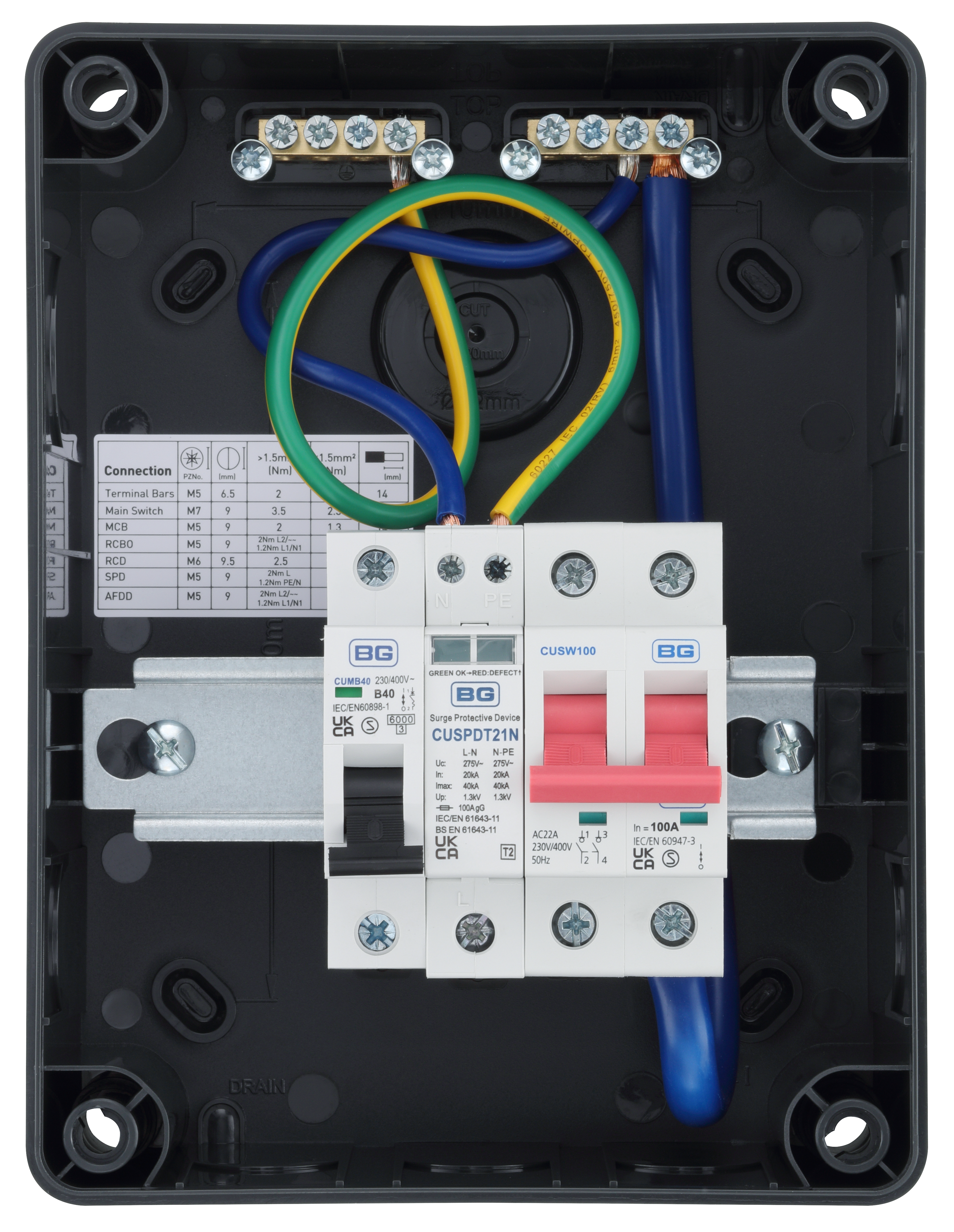

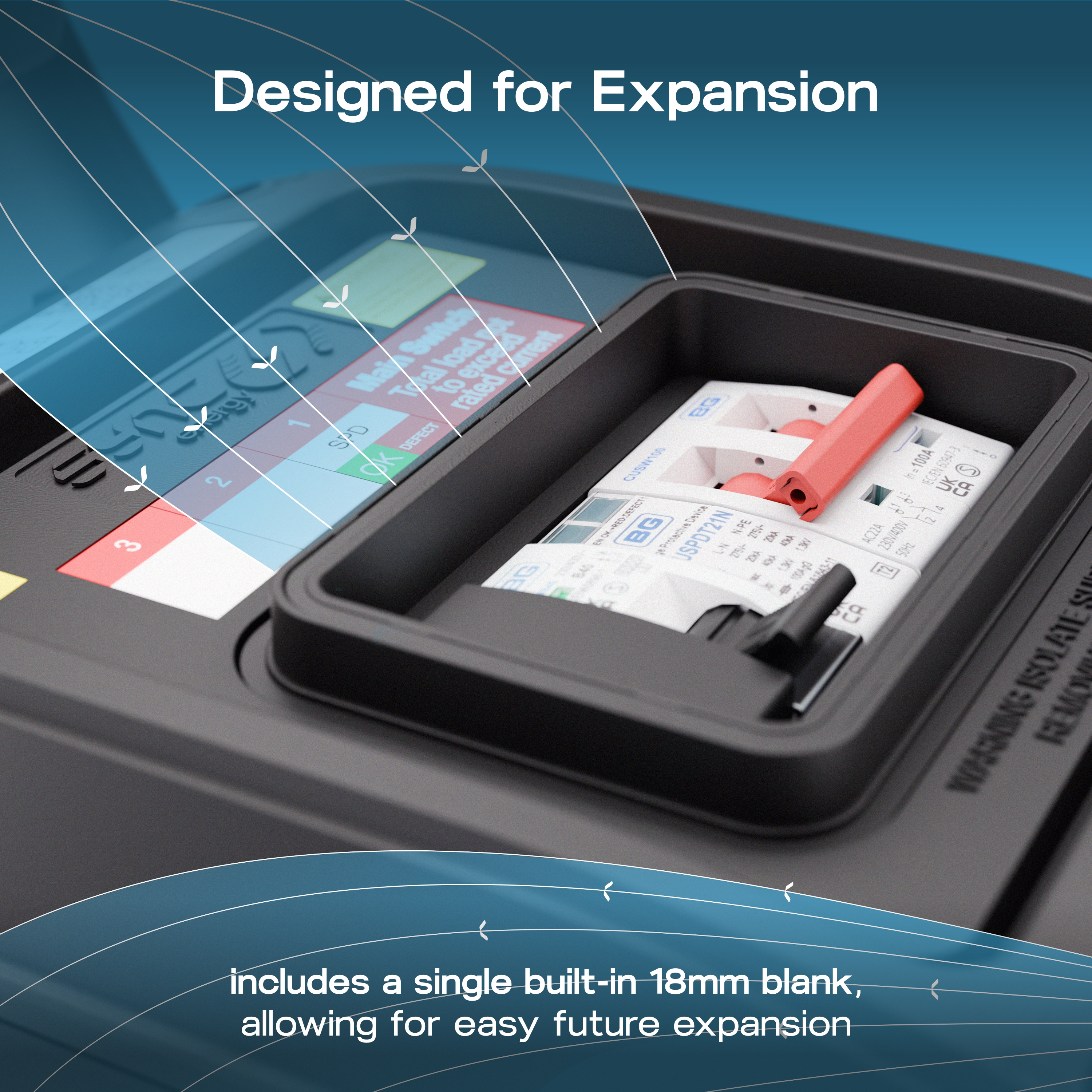

Enclosure kit supplied with devices DIN rail Neutral cable, Neutral and Earth terminals, labels busbar and cover blanks
| General Colour | Anthracite Grey |
| Fixing Screws Supplied | No |
| Modules | 5 |
| Number of Cable Entries | 8 |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Cable Entry Type | Knockout |
| Details per face (Size/number) | Side - 1 x 20-40mm 1 x 20-25mm, Bottom - 3 x 20-25mm, Base - 20-32mm |

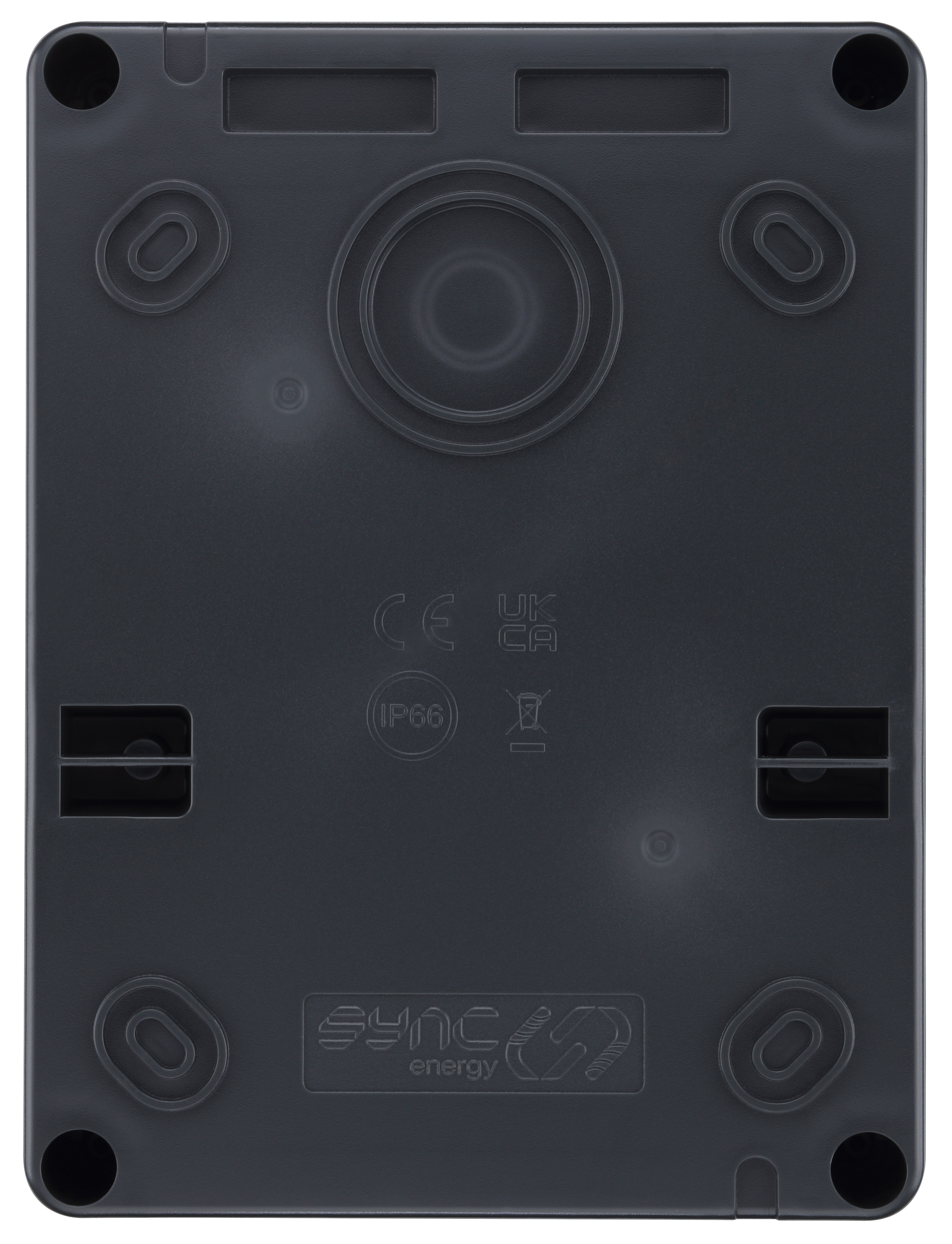

| Number Of Wall Fixing Positions | 4 |
| Fitted Lock | No |
| Installation Method(s) | Surface |
| Spirit Level | No |
| Ways | 5 |
| Number of Knockouts | 8 |
| Mounting Type | Surface |
| IP Rating | IP66 |
| Terminal Screw Type | Combi |
| Operating Voltage (V) | 230 |
| Current Rating (A) | 100 |
| Operating Temperature (C) | -25°C to +40°C |
| Frequency (Hz) | 50 |
