WPB50-01
BG Weatherproof Switched Fused Connection Unit, IP55
13A Rated
Easy to install supplied with fixing screws and installation instructions

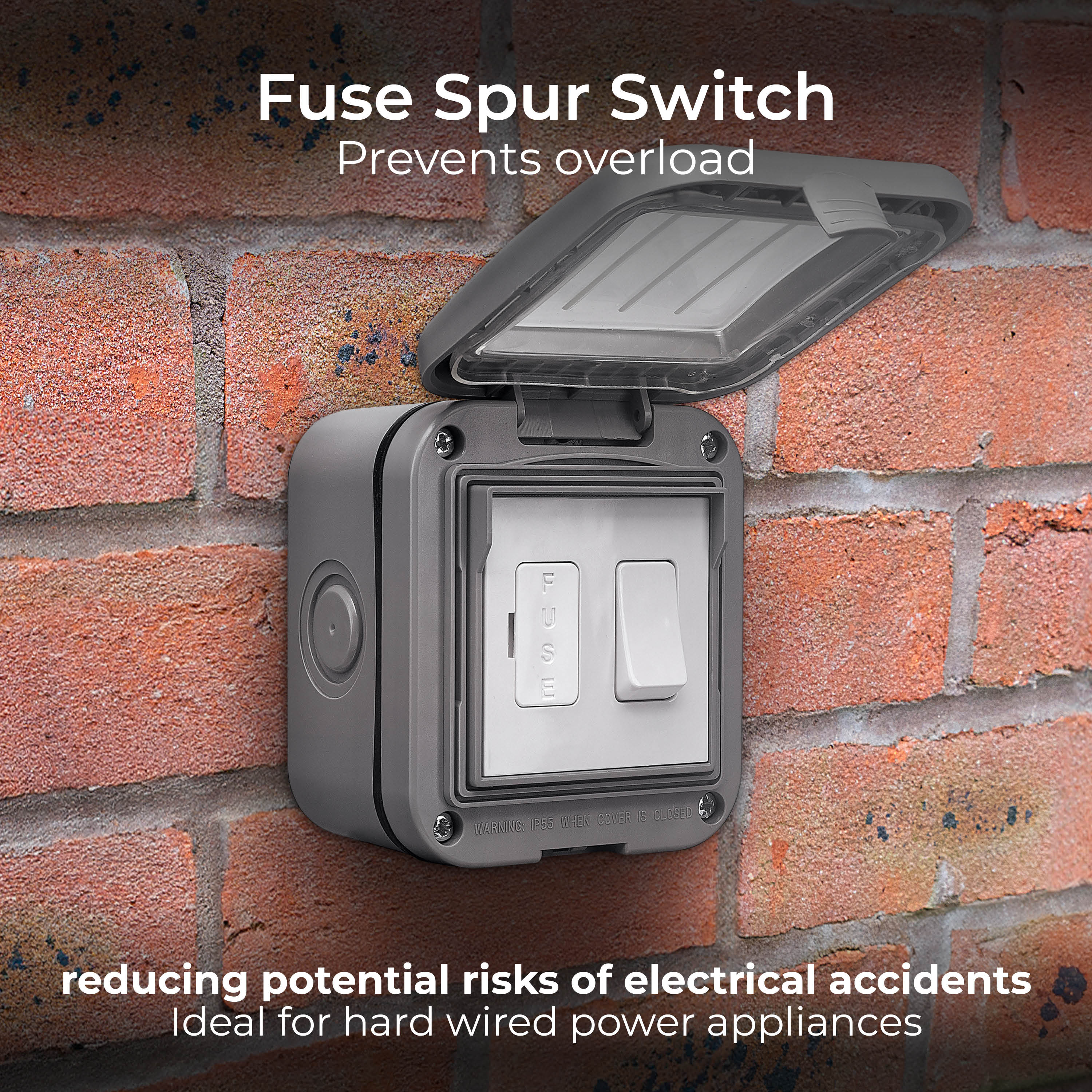

Ideal for spur circuits and hard wired power appliances
Captive screws prevent screw loss

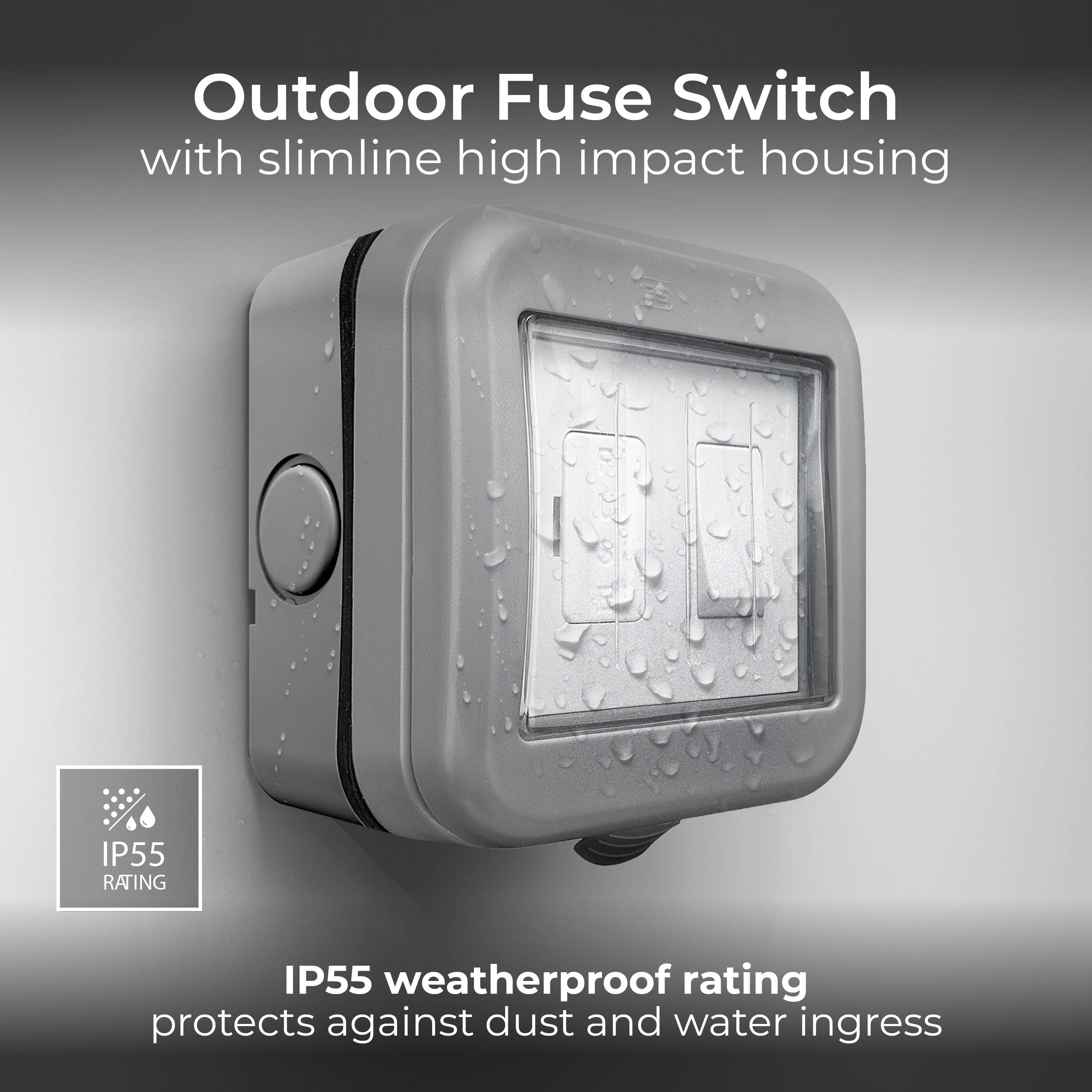

Robust and high impact IP55 rated case

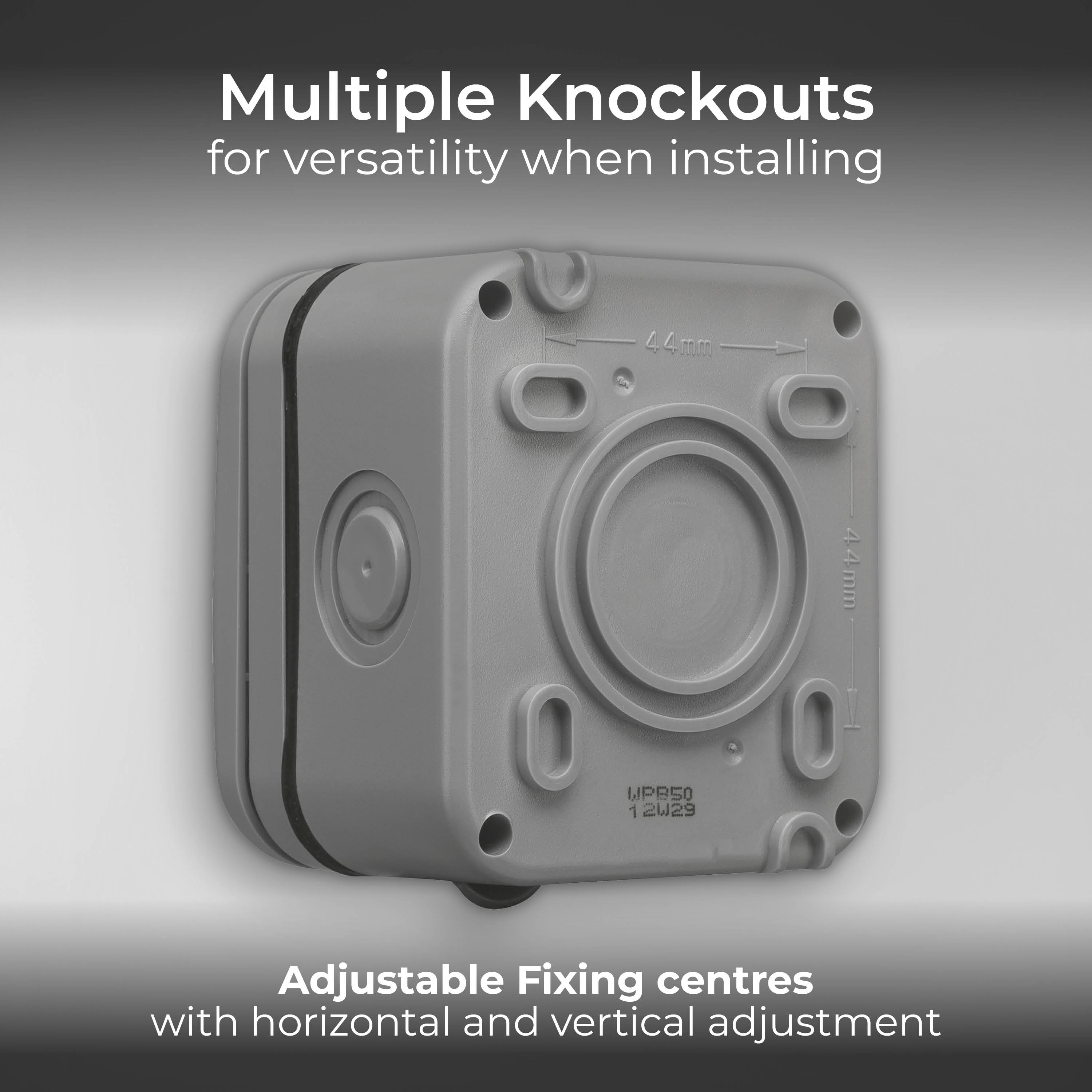

20mm & 25mm knock-outs in supplied mounting box
Fixing centres with horizontal and vertical adjustment
Twin earth fitted as standard for high integrity circuits
Embossed with 'Fuse' on the fuse cover

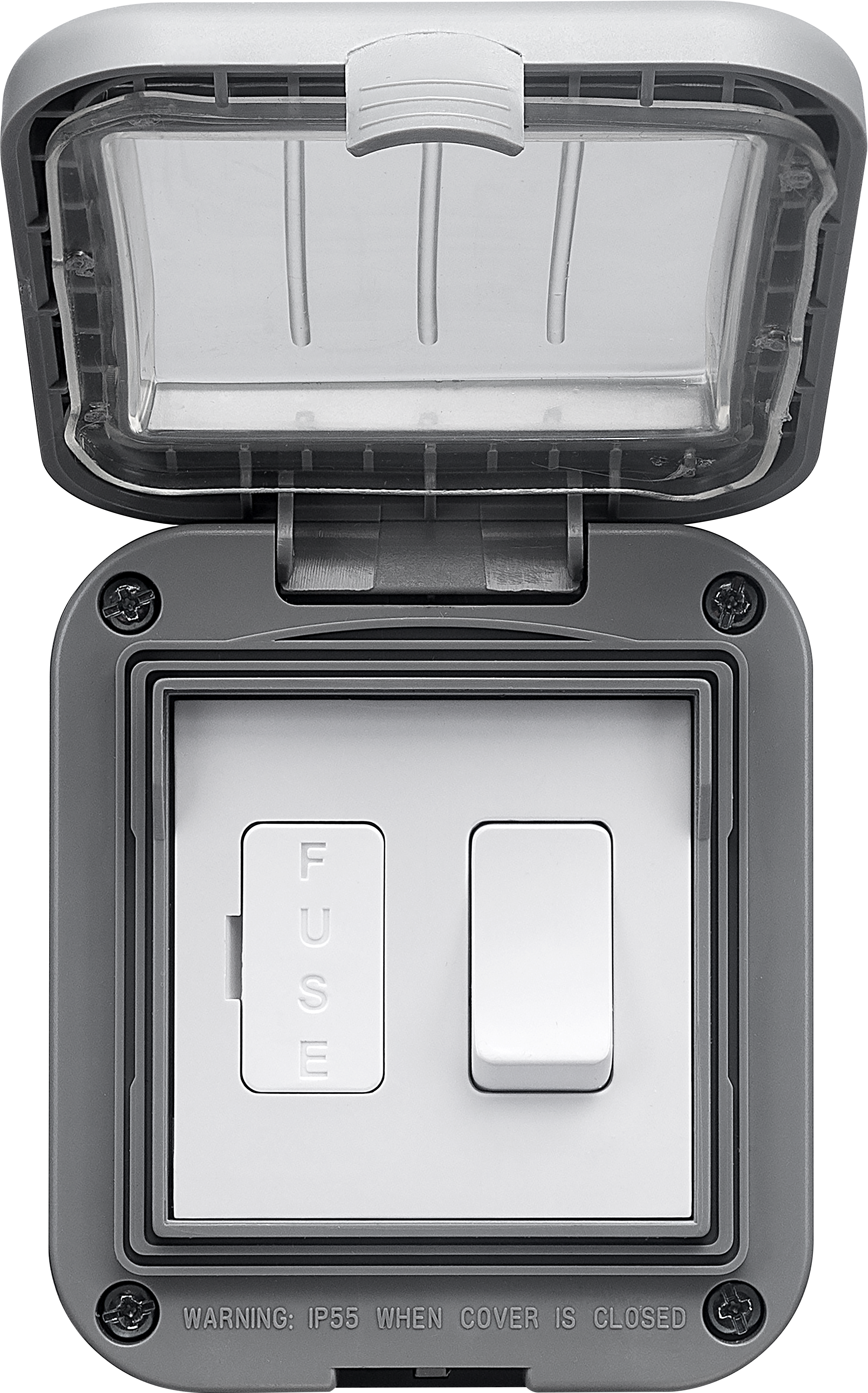

Switch can be operated without the need to open the cover
| General Colour | Grey |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Main Power Indicator | No |
| Minimum Box Depth (mm) | N/A |
| Terminal Capacity (mm²) | 3 x 2.5mm² |
| Fused | Yes |
| Fused Holder Colour | White |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Flex Out | No |
| Flex Out Position | None |
| Supplied with Mounting Box | Yes |
| Cable Outlet | No |
| Fixing Screws Supplied | No |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled terminals |
| Terminals with Colour Coding Print | Yes |
| Number of Switches | 0 |
| Screw Caps | Yes |
| Switch Type (Ways & Poles) | N/A |
| IP Rating | IP55 |
| Operating Voltage (V) | 250 |
| Warranty (years) | 25 |
