WPB21-01

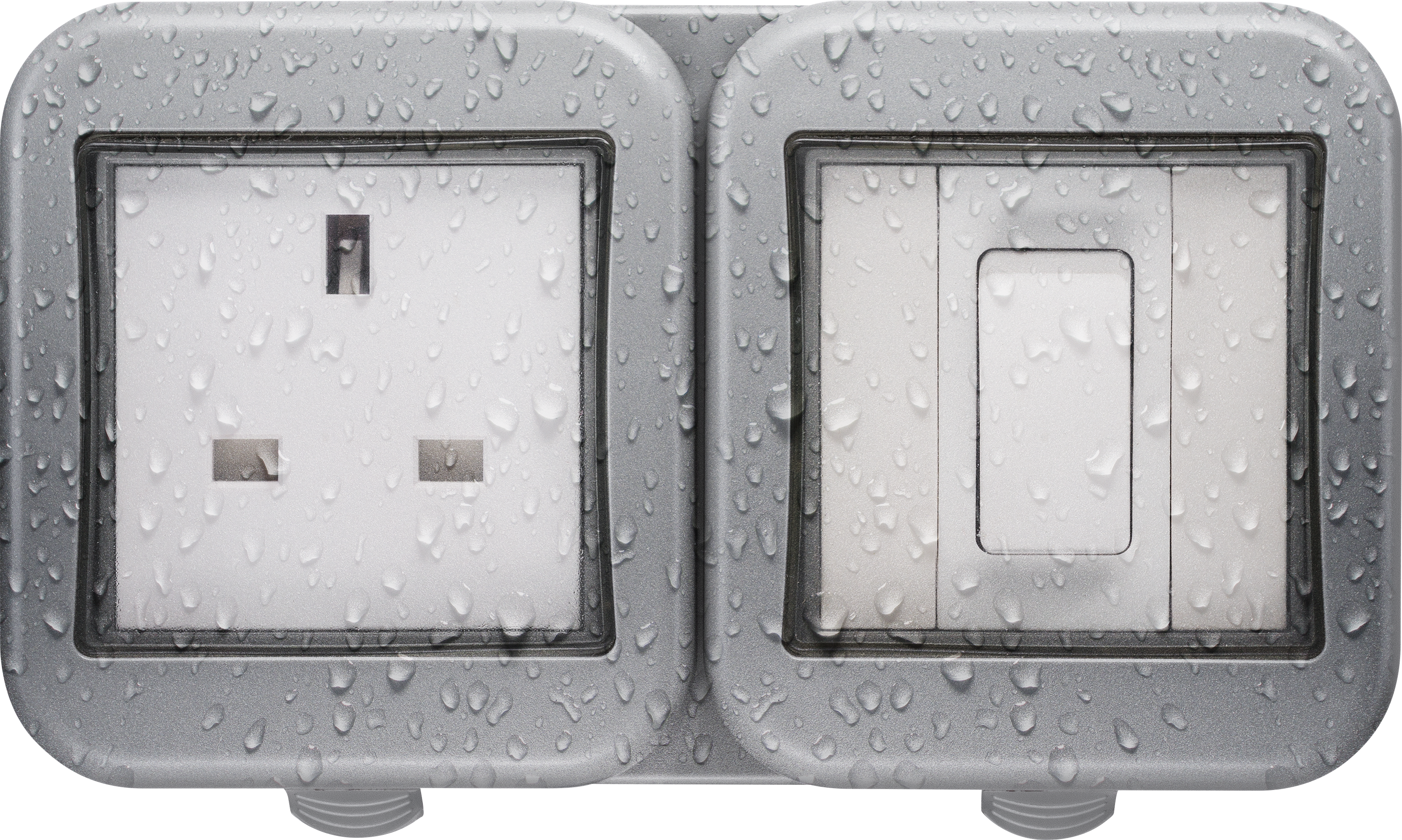

BG Weatherproof 13A Single Socket With Single Switch, IP55
13A Rated
Easy to install, supplied with installation instructions

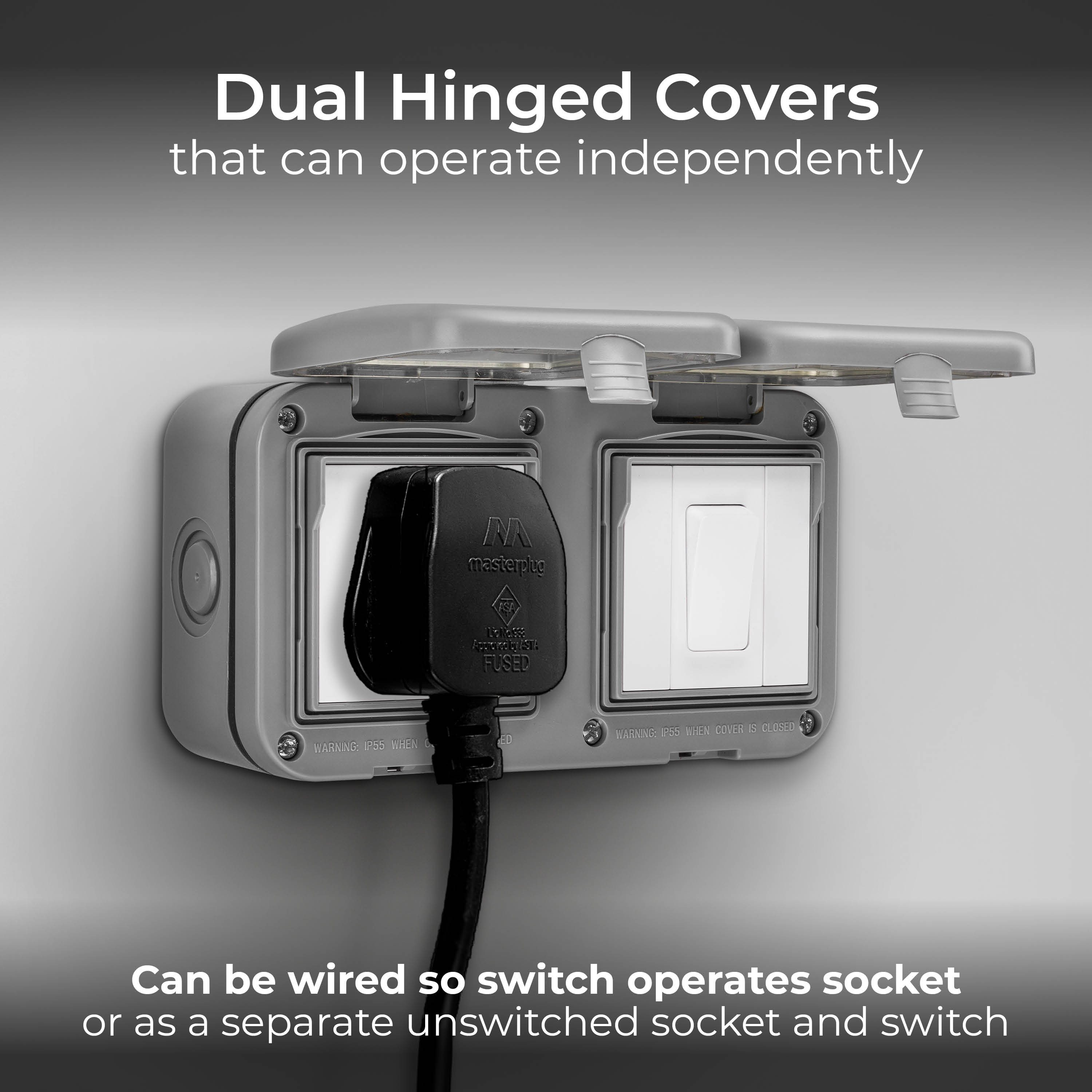

unswitched socket and 1 gang switch combination unit

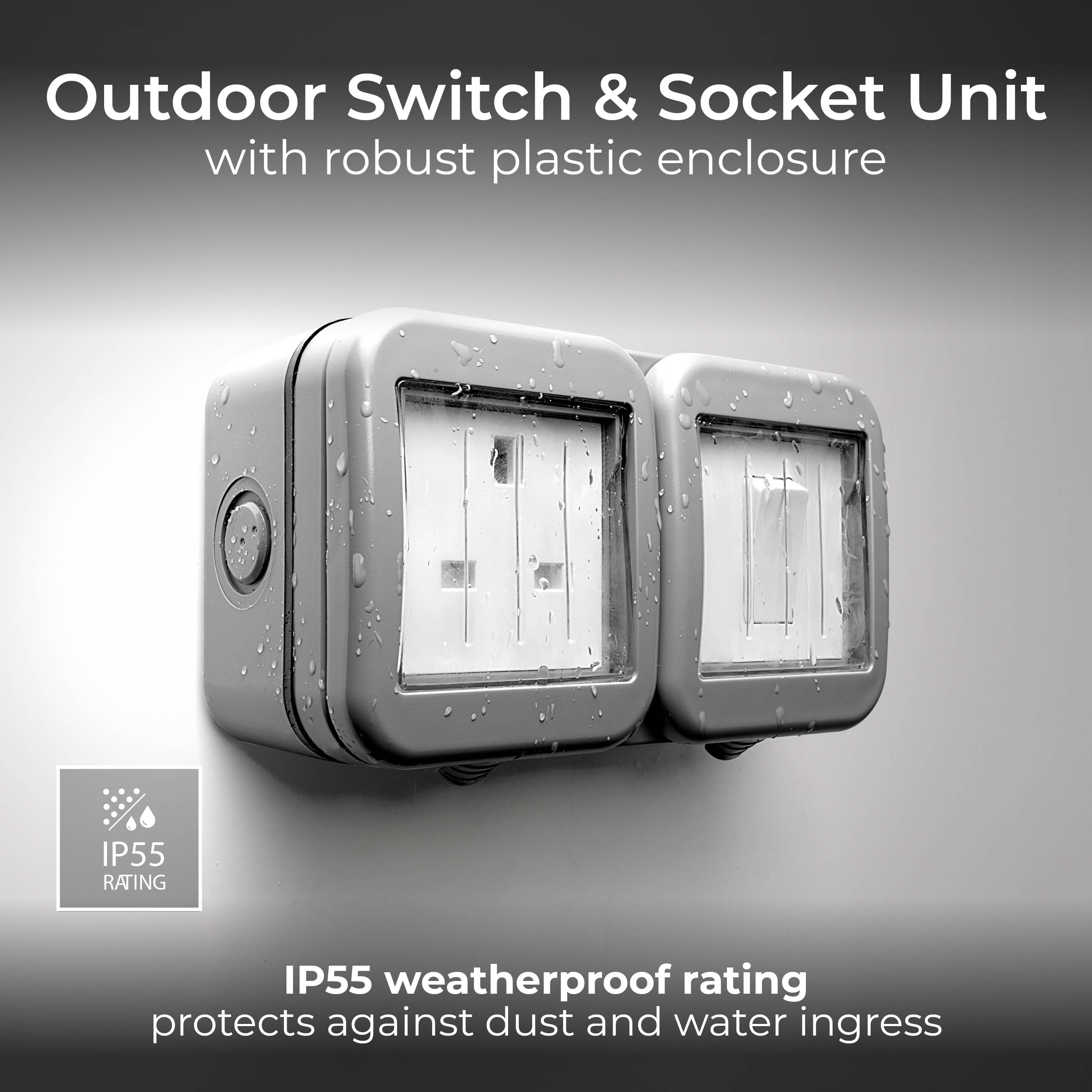

IP55 rated with the cover closed

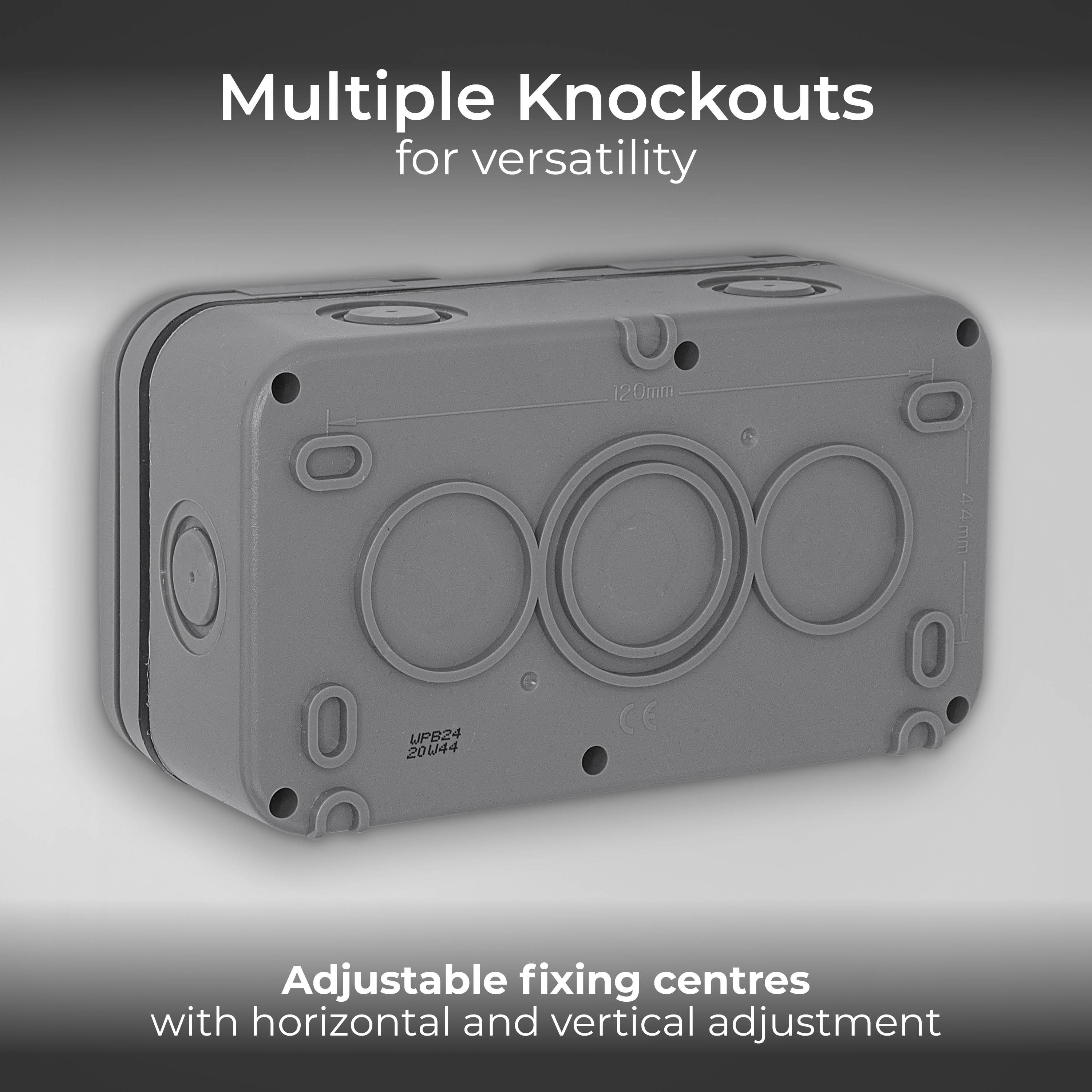

M20 + M25 knock-outs in supplied mounting box
Angled, colour coded in-line terminals provide easy access for quick installation
Captive, backed out terminal screws for fast installation
44m fixing centres with horizontal and vertical adjustment

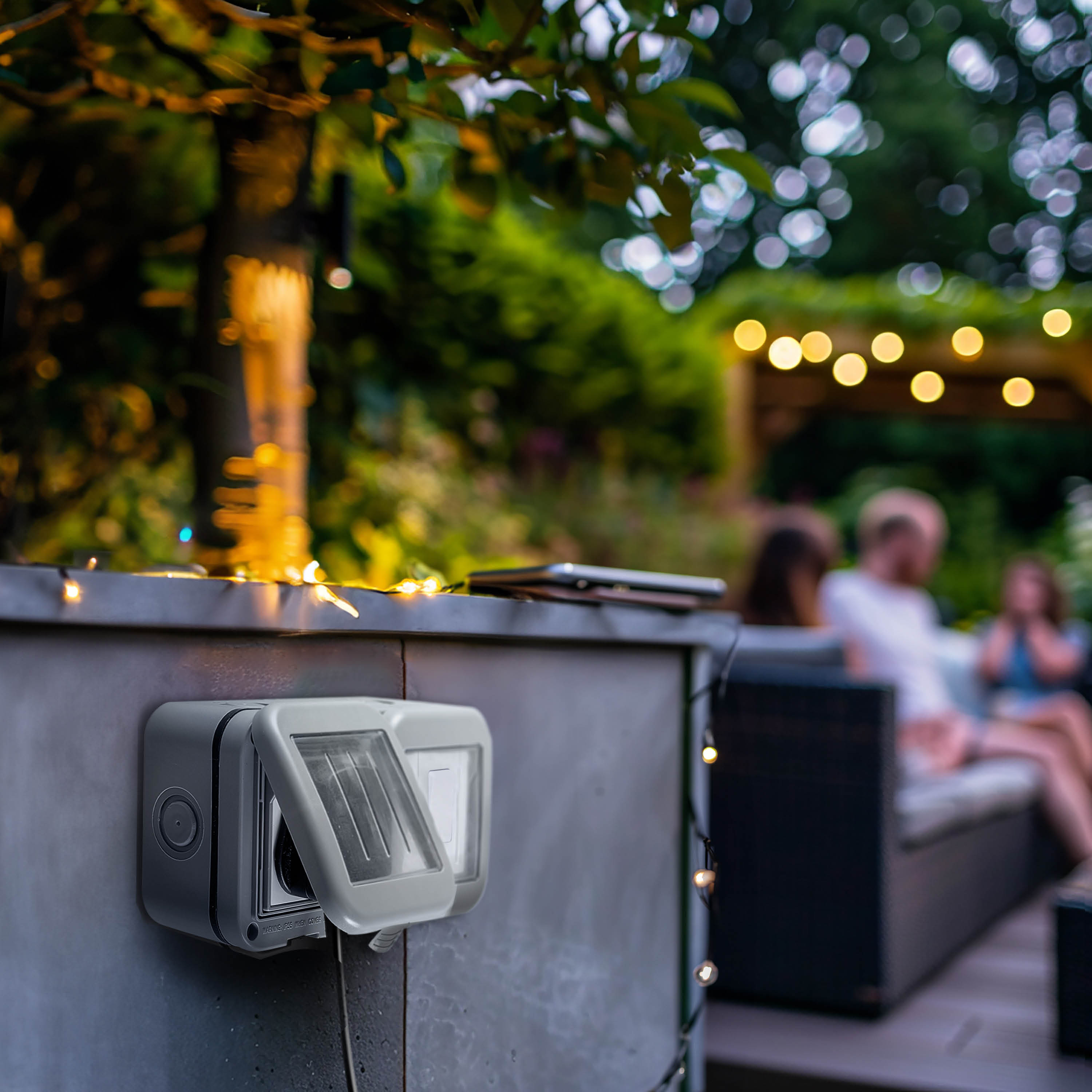

Suitable for installation in outdoor locations, garages and sheds
| General Colour | Grey |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | N/A |
| Terminal Capacity (mm²) | 4 x 1.0mm², 4 x 2.5mm², 2 x 2.5mm², 1 x 4mm² |
| Front Plate Insert Colour | White |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | No |

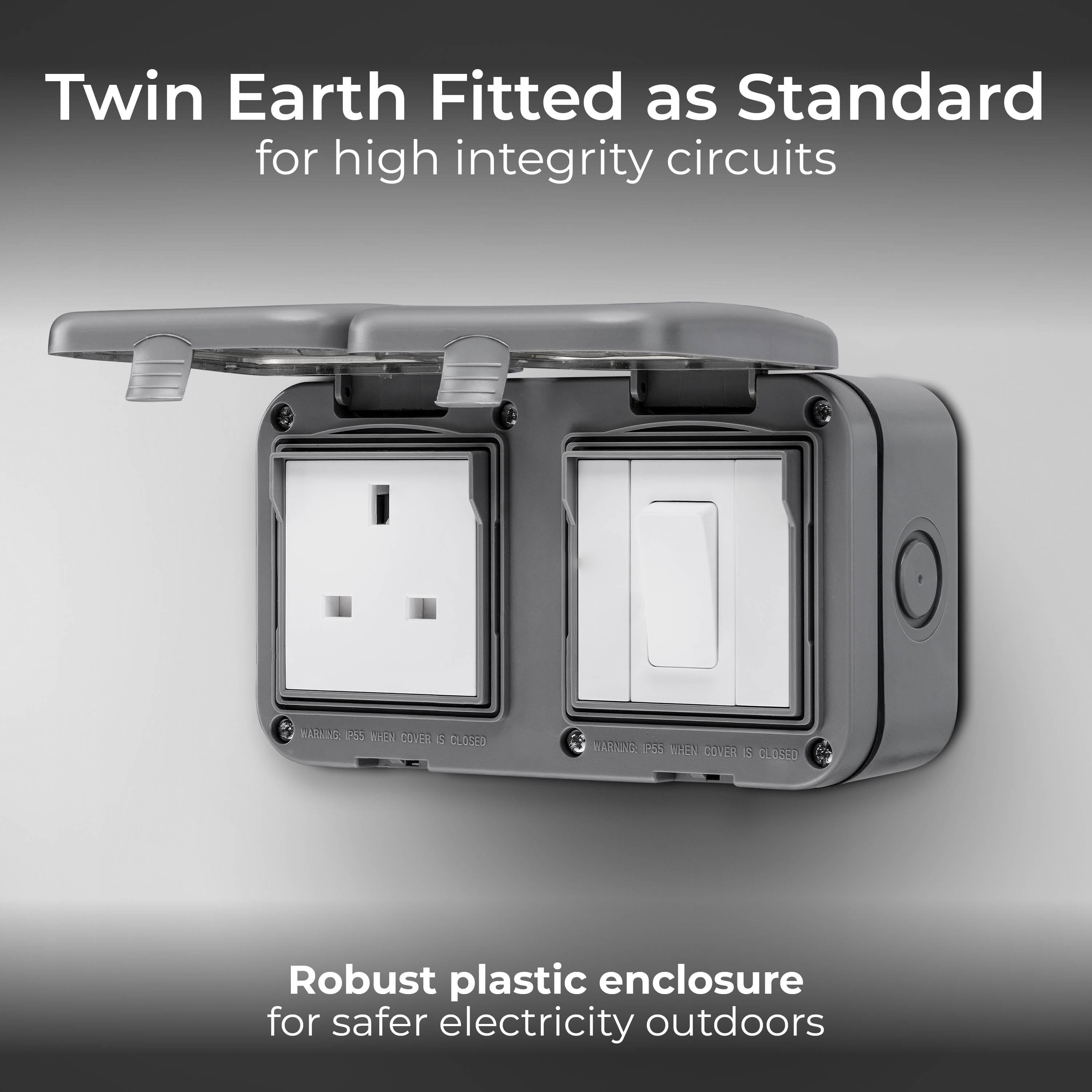

| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled-in line terminals |
| Terminals with Colour Coding Print | Yes |
| Number of Switches | 1 |
| Screw Caps | Yes |
| Switch Type (Ways & Poles) | Double Pole |

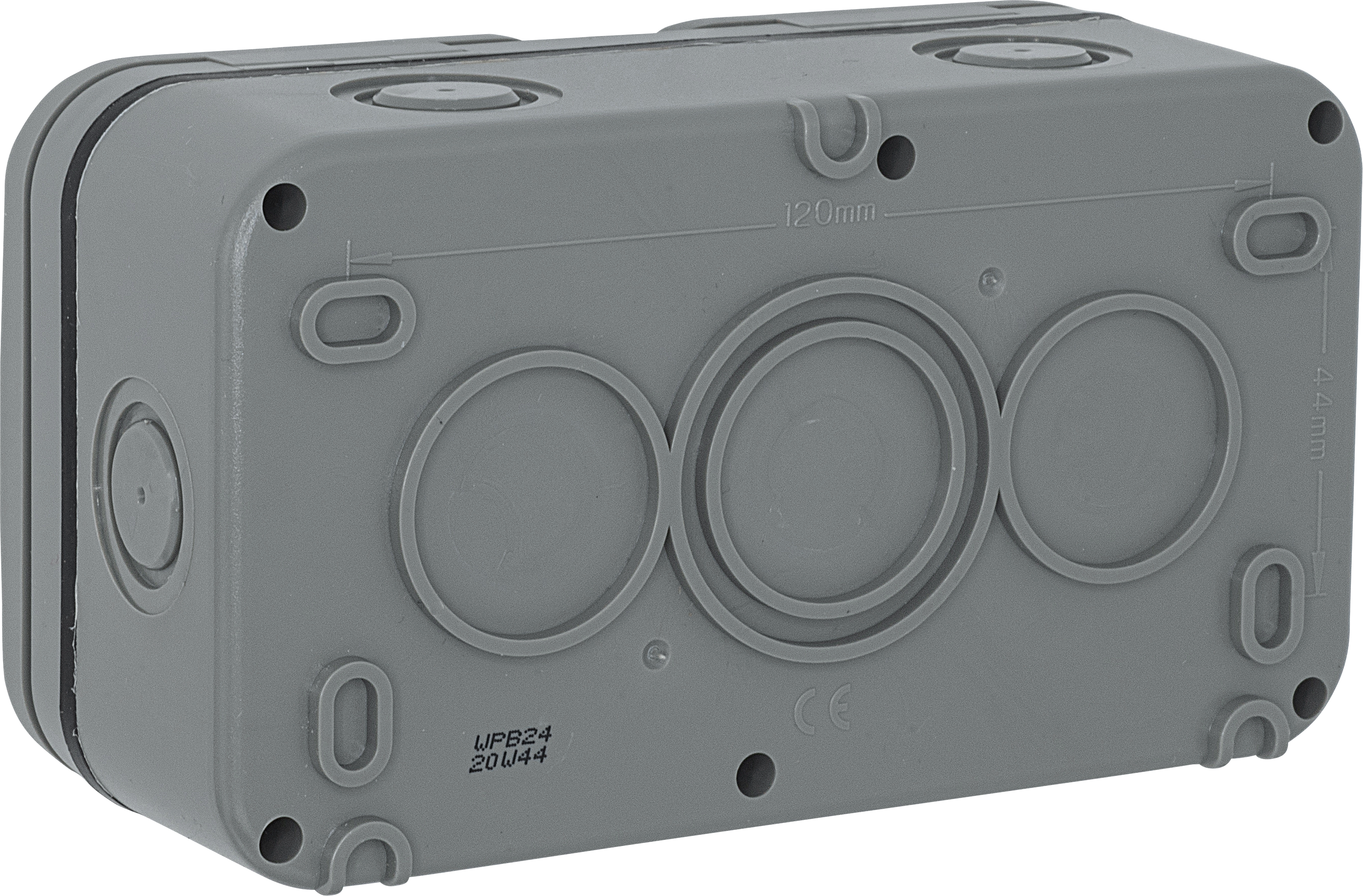

| Fixing Centres (mm) | W-120 x H-44 |
| IP Rating | IP55 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 25 |
