882M/HC-01

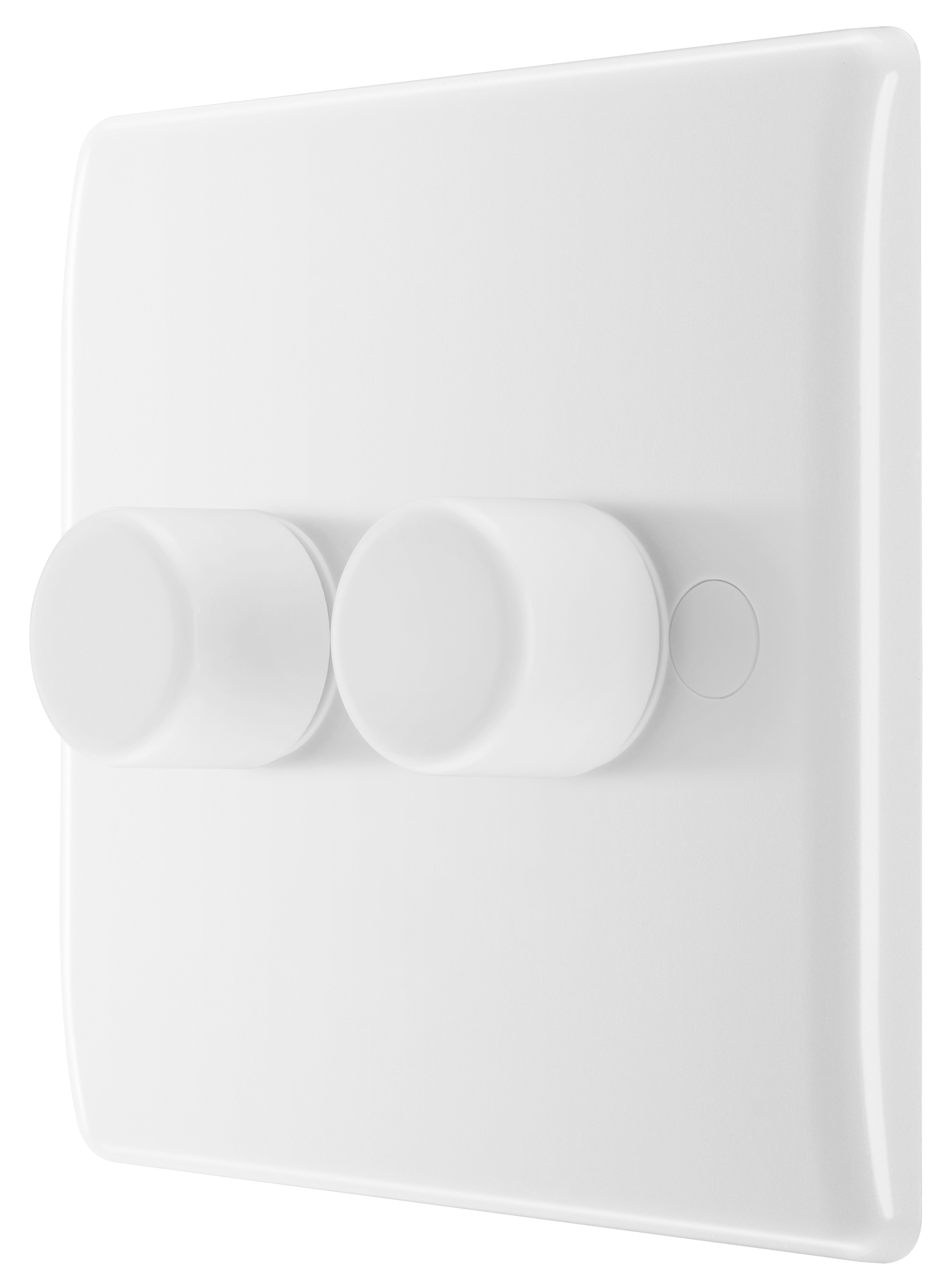

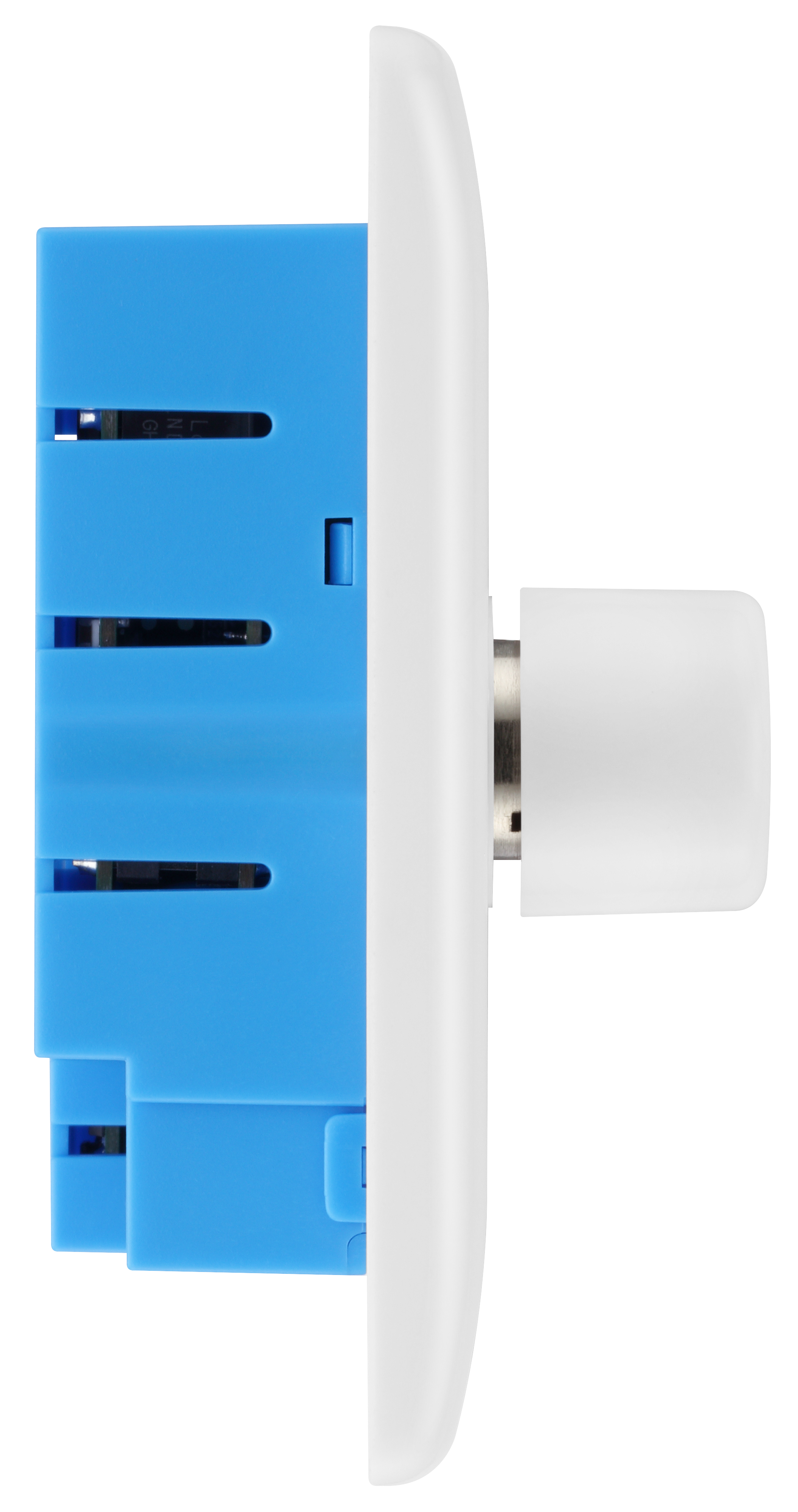

BG Nexus 800 Series White Moulded Double Master Smart Dimmer
Control, schedule and dim lighting in the home via touch, voice commands or the BG Smart App
2-way switch allows operation from a second location when used with a BG Smart secondary dimmer
Set timers, scenes, random operation and adjust the lighting level to set the mood
Pair via Bluetooth and connect to your home Wi-Fi (2.4GHz) - no hub or subscription required
Works with Alexa, Siri and Google for hands free voice control

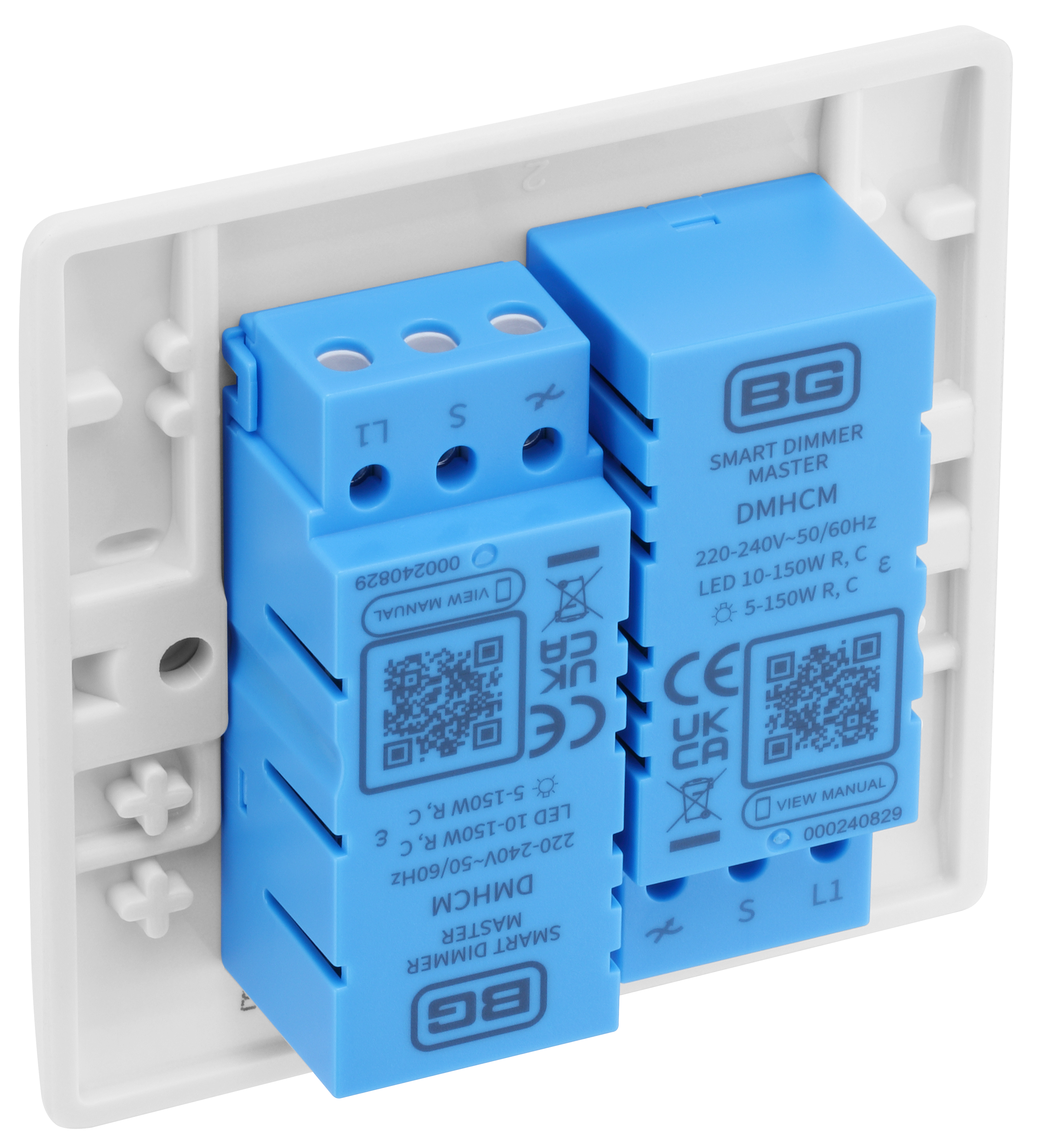

Straight forward installation with captive terminal screws and no neutral required, fits a 25mm back box
Overload protection protects lamps, with soft start and the ability to switch between trailing and leading edge in the App
Onboard your other BG Home devices with BG Connect, and control all your devices in one App
The dimmer can still be operated via the App even if the switch is turned off at the wall, providing an advantage over smart lamps
Compatible with incandescent, halogen and dimmable LED's (minimum 10W)
| Package Name | 882M/HC-01 |
| Anti-microbial Property | Yes |
| IP Rating | IP20 |
| General Colour | White |
| Number of Switches | 2 |
| Switch Type (Ways & Poles) | Two Way |
| Terminals with Colour Coding Print | No |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Fixing Screws Supplied | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Arrangement | In Line Terminals |
| Terminal Capacity (mm²) | 2 x 1.5mm², 1 x 2.5mm² |
| Fixing Centres (mm) | W-60.3 |
| Number of Earth Terminals | 0 |
| Operating Voltage (V) | 220-240 |

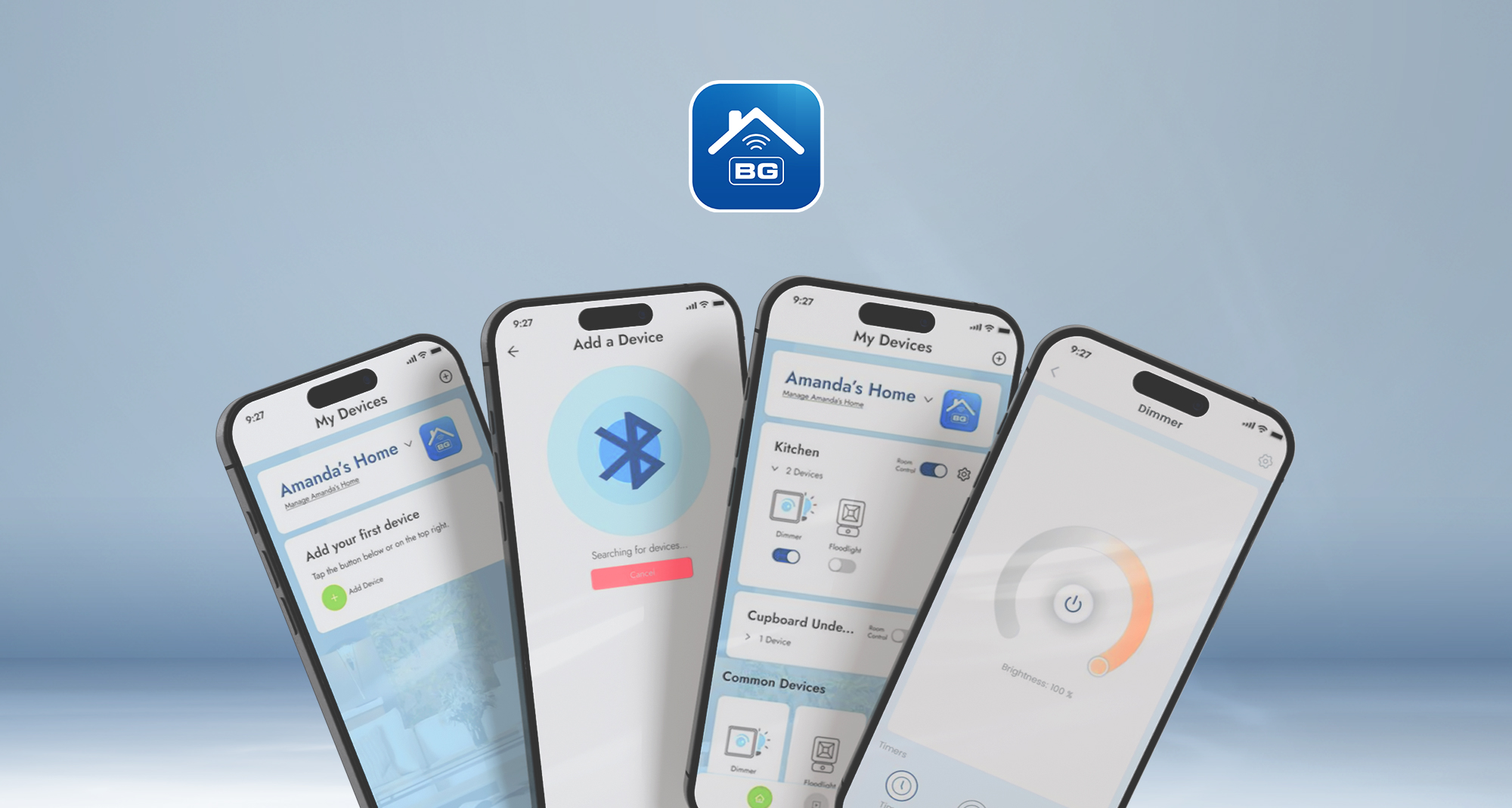

POWERED BY THE BG SMART APP
Your life connected,
your life smarter.
