PM54-01

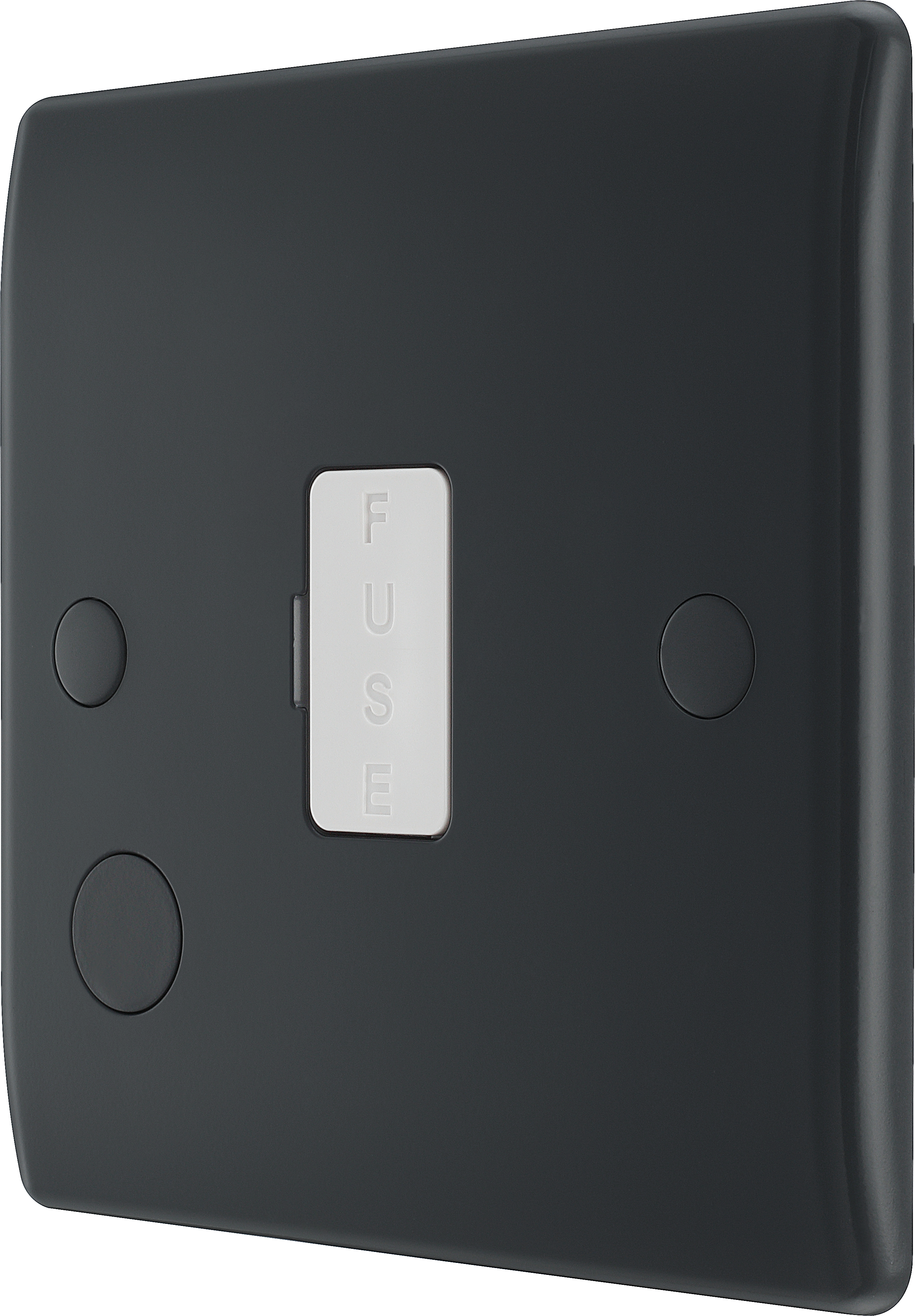

BG Part M 13A Unswitched Fused Connection Unit With Flex Outlet
13A Rated
Easy to install supplied with fixing screws and installation instructions

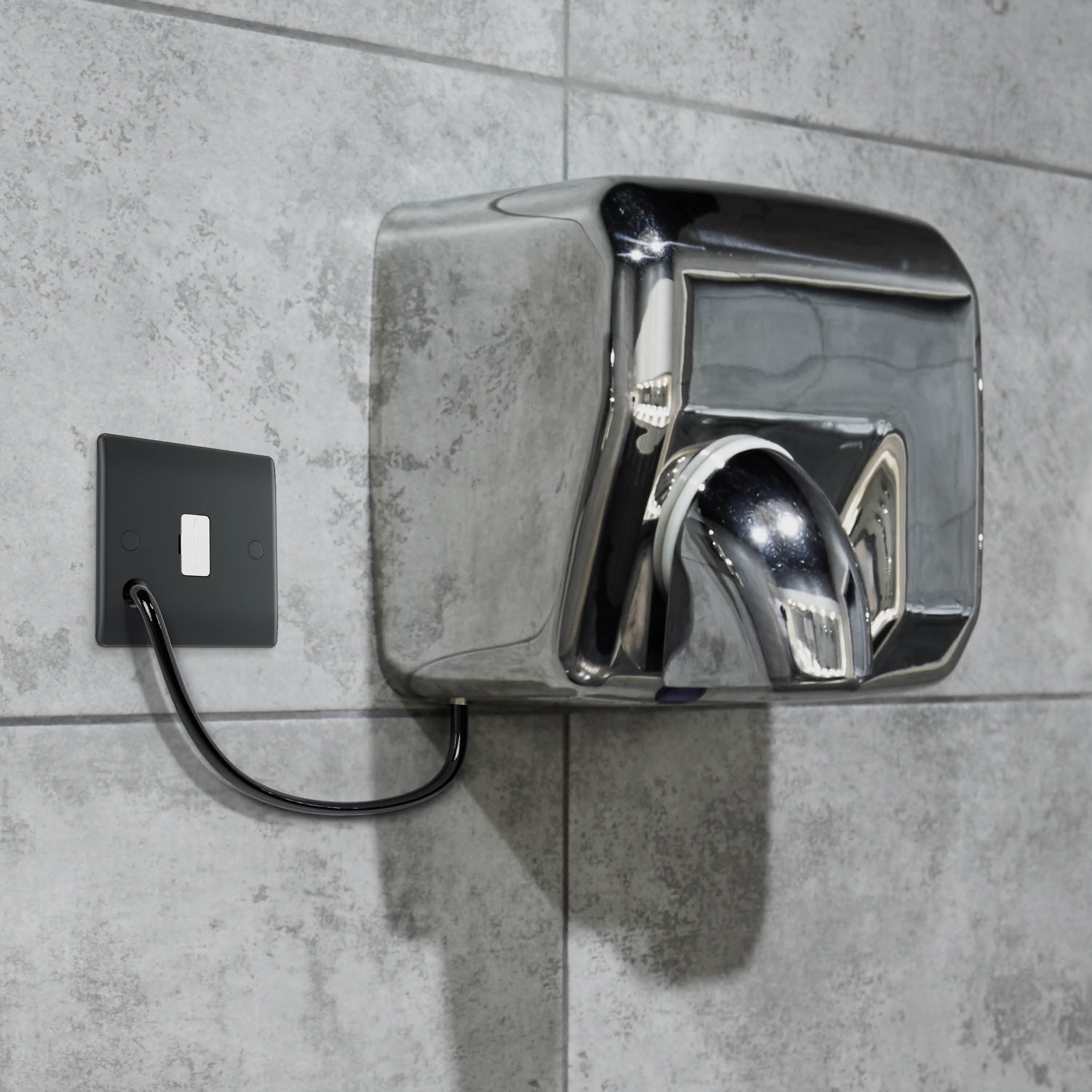

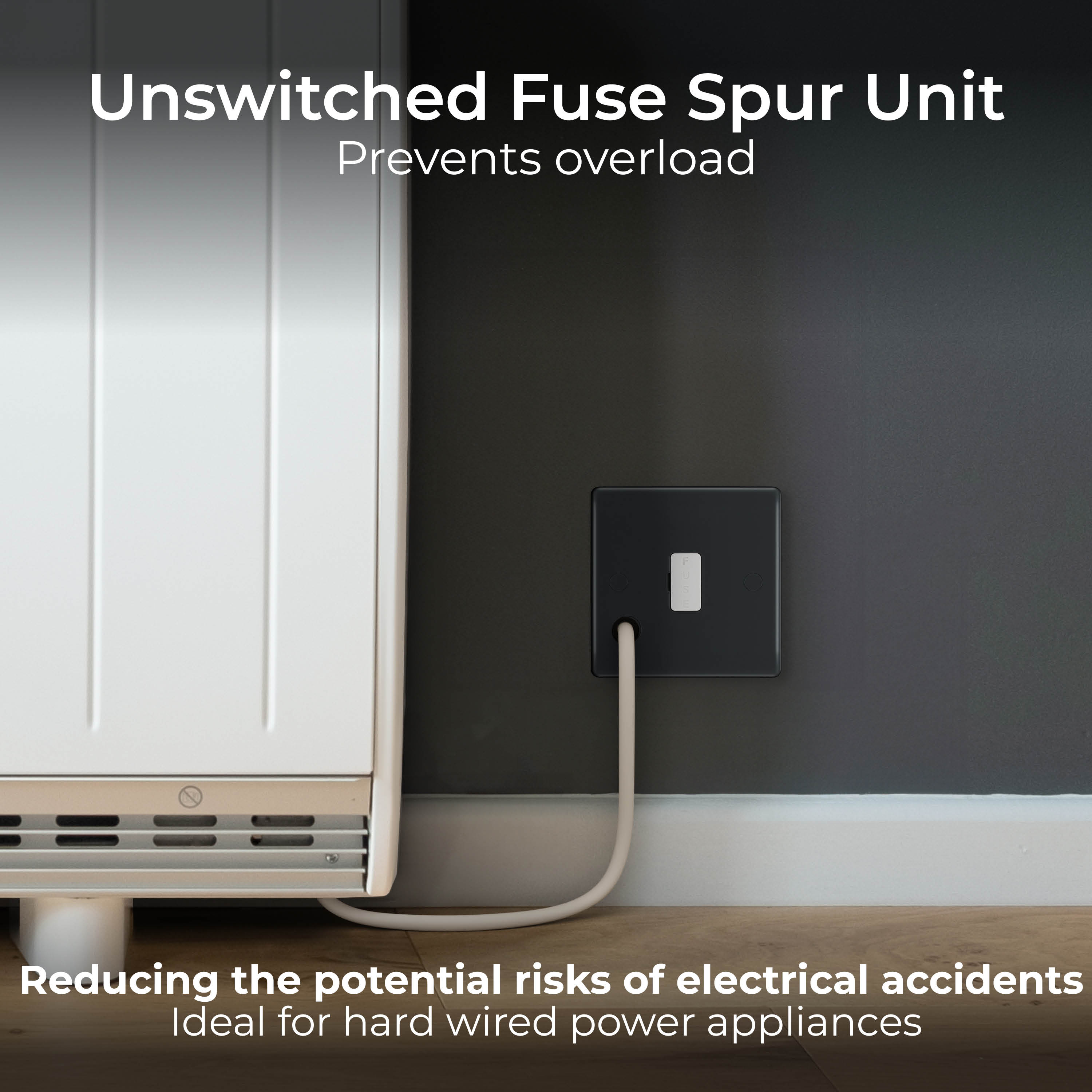

Ideal for spur circuits and hard wired power appliances

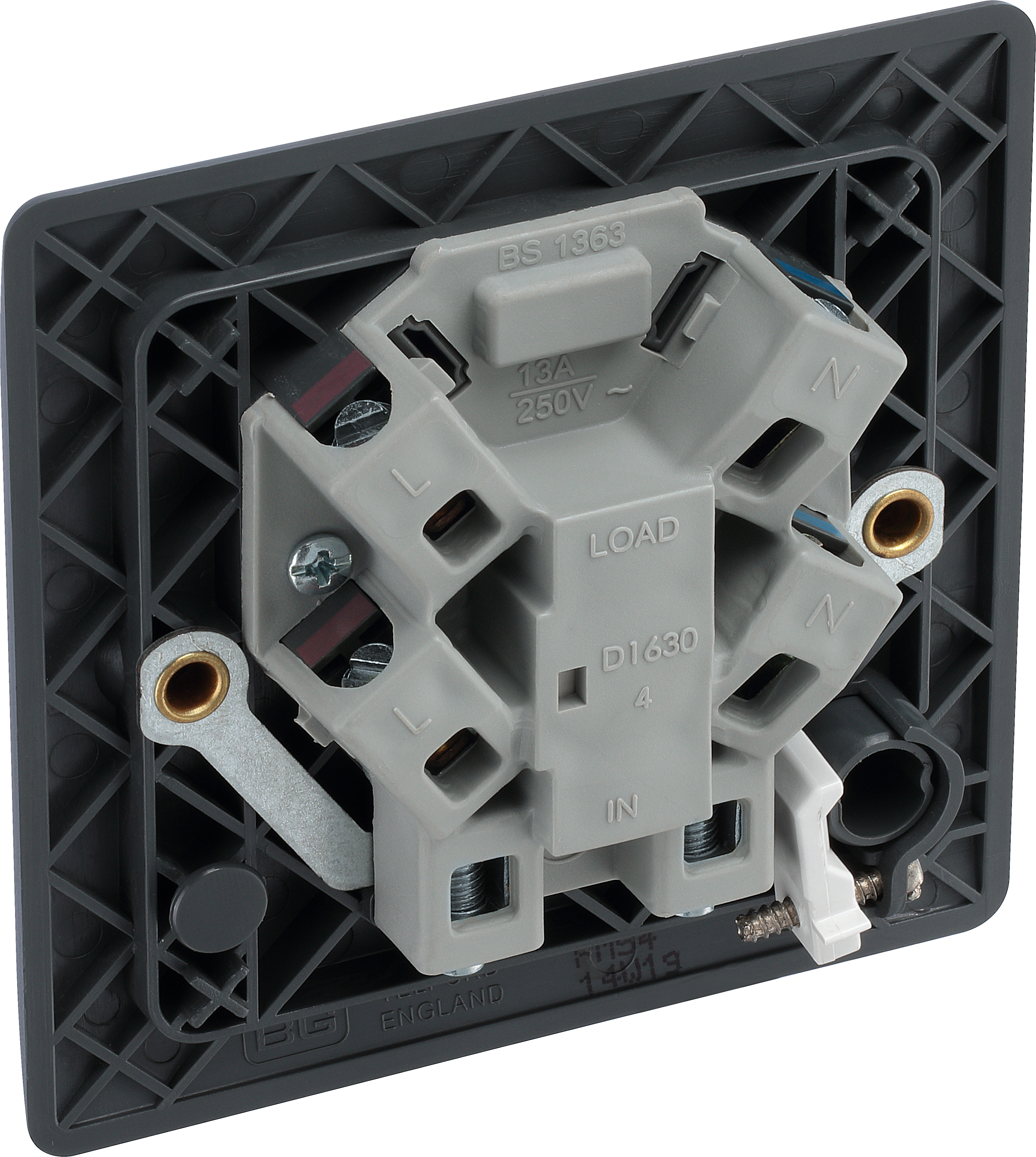

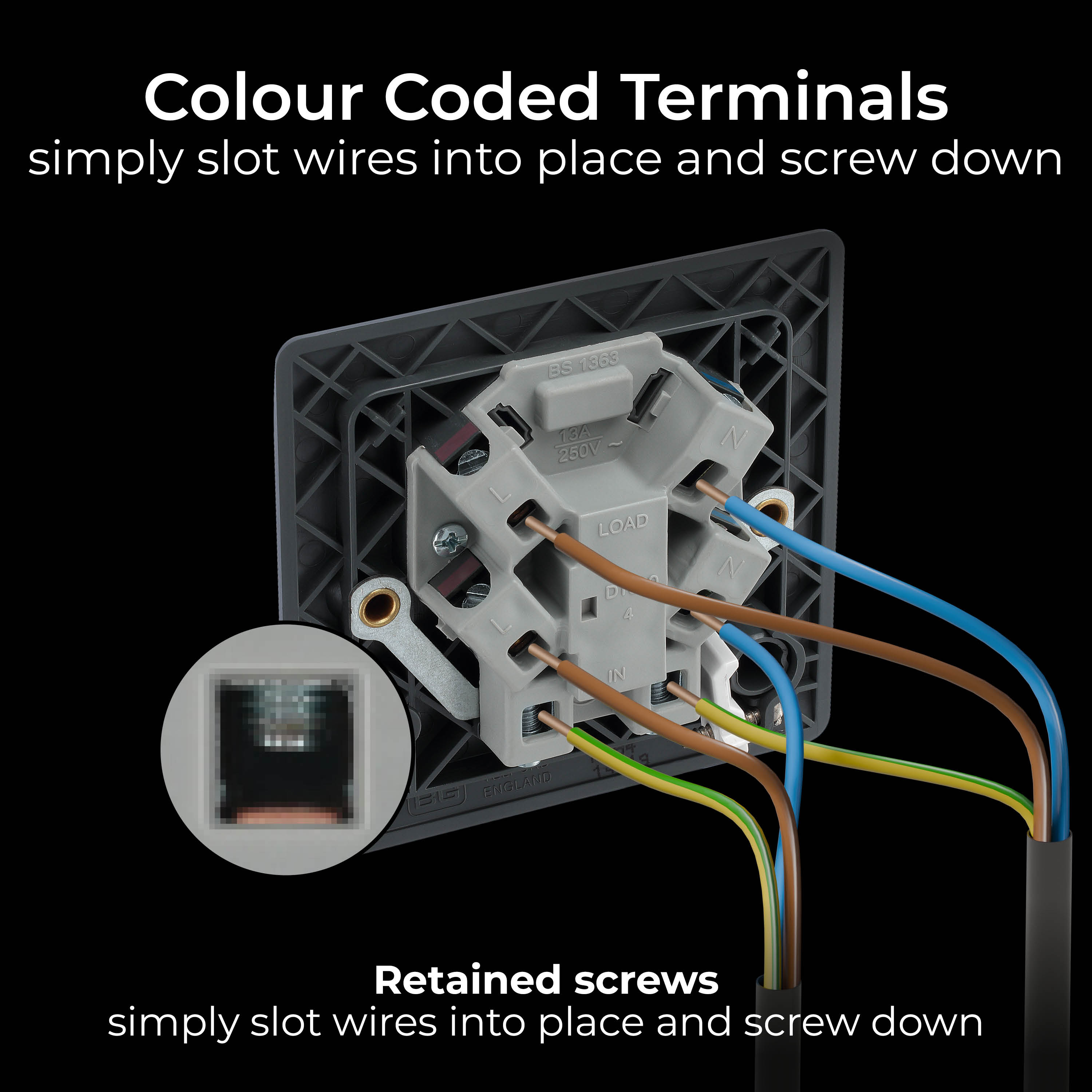

Angled colour coded terminals for ease of installation
Captive screws prevent screw loss

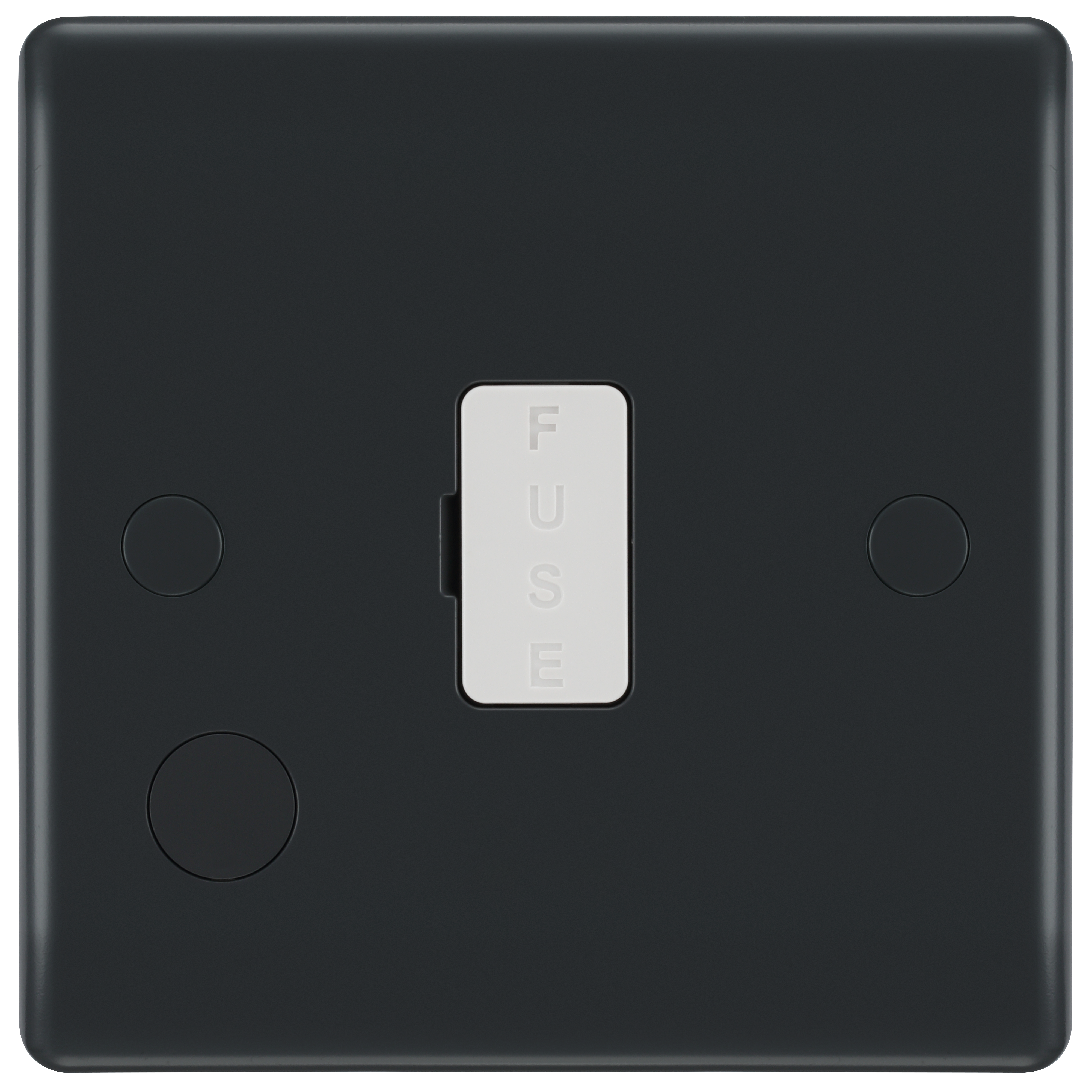

Slim and sleek polycarbonate front plate

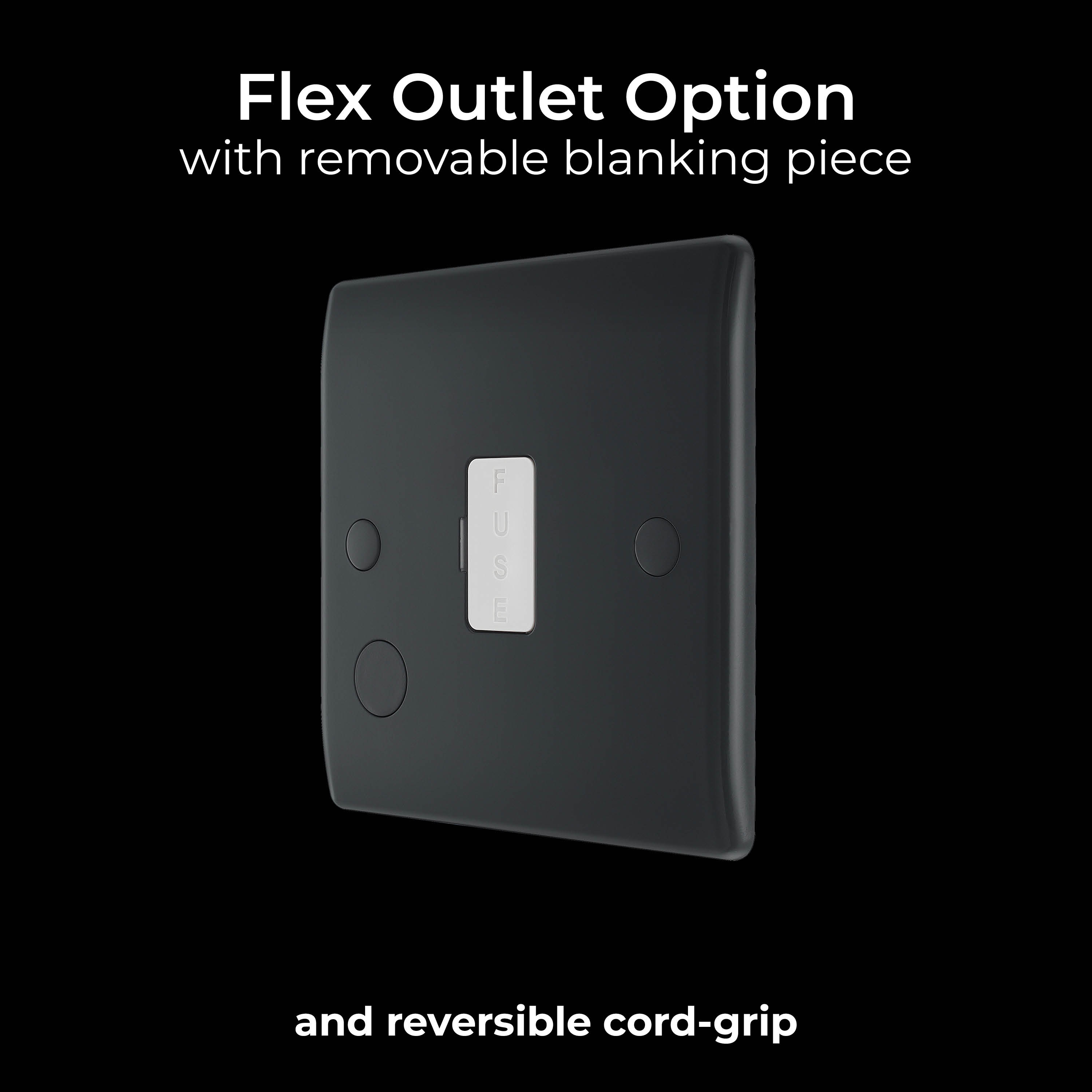

Flex outlet with removable blanking piece at the lower edge and a reversible cord grip

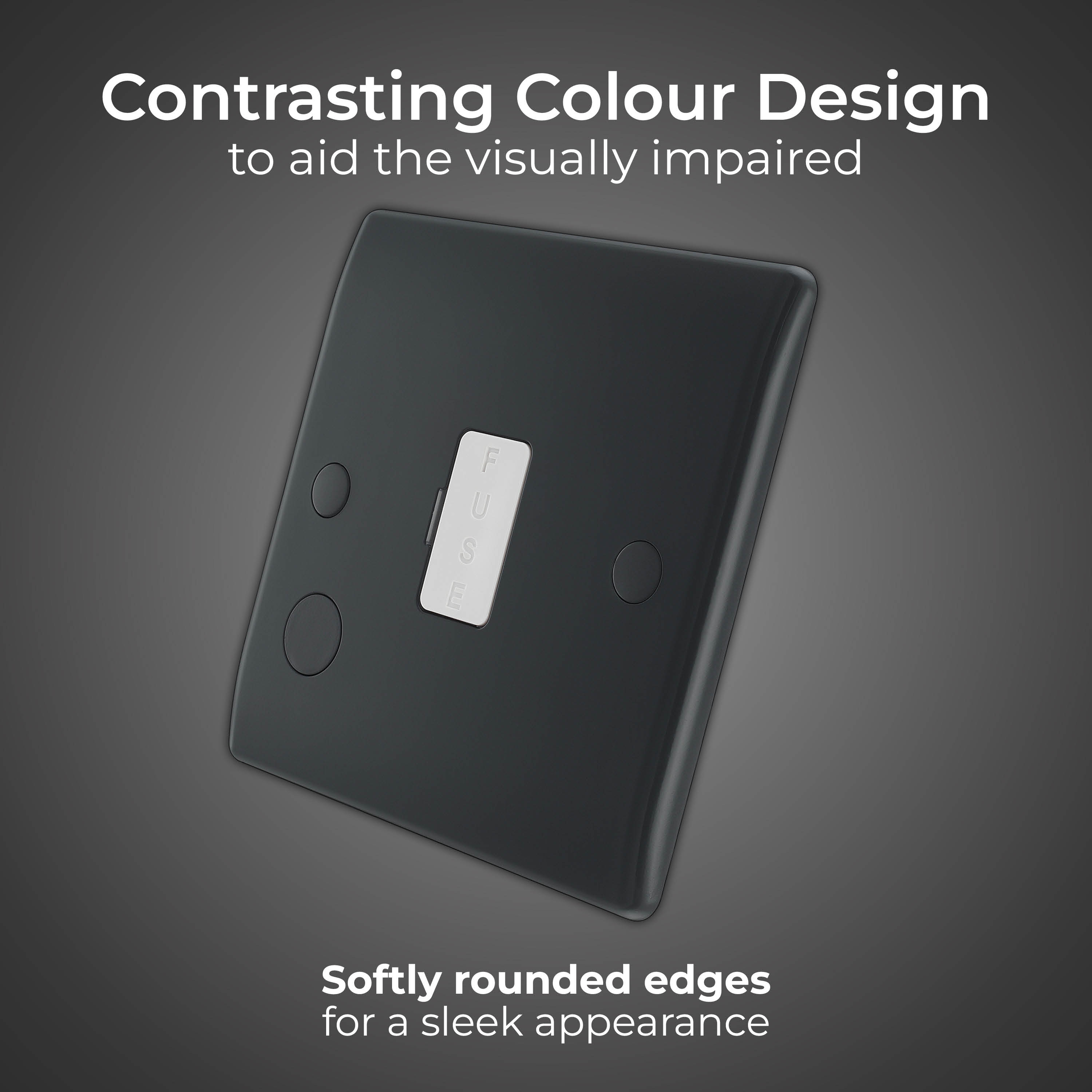

Contrasting graphite and white design to aid the visually impaired
Part M Approved
Certified to BS1363-4
| General Colour | Graphite |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Main Power Indicator | No |
| Minimum Box Depth (mm) | 35 |
| Terminal Capacity (mm²) | 3 x 2.5mm² |
| Fused | Yes |
| Fused Holder Colour | White |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Flex Out | Yes |
| Flex Out Position | Front Face |
| Supplied with Mounting Box | No |
| Cable Outlet | Yes |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled terminals |
| Terminals with Colour Coding Print | Yes |
| Number of Switches | 0 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | N/A |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 250 |
| Warranty (years) | 25 |
