PM803RD-01

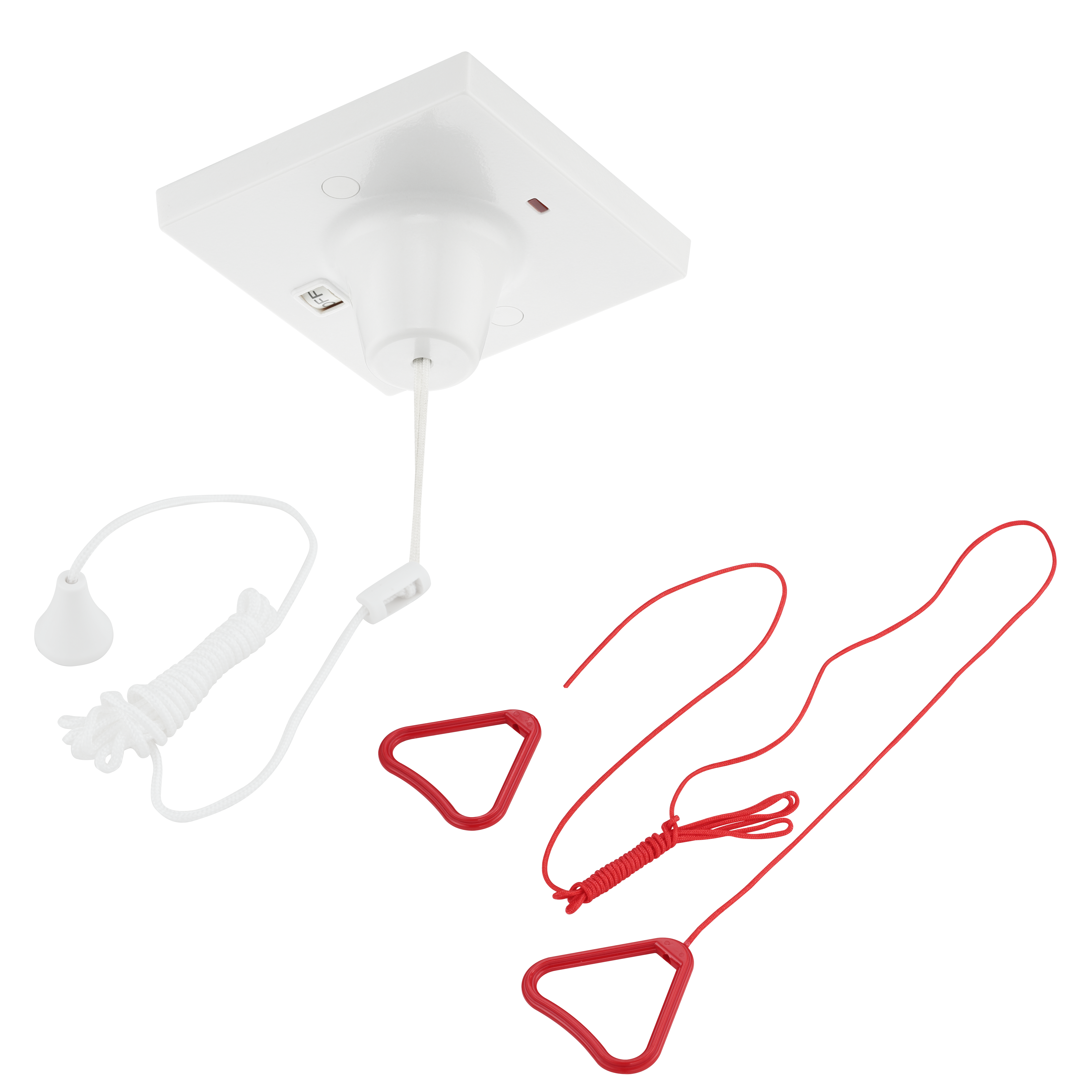

BG Part M 45A Ceiling Switch Double Pole, With Power Indicator, Red Cord And Bangles
45A Rated
Easy to install, supplied with fixing screws and installation instructions
Supplied with approximately 2 metres of white cord and 2 metres of red cord
Suitable for safe electrical isolation of shower units
Choice of cable entries
Earth terminal in base
Cord and handle should be a different to the background colour of the bathroom
large handle for easy grip
Certified to BS EN 60669-01
Part M Approved
| General Colour | White |
| Captive Terminal Screws | No |
| Backed-out Terminal Screws | No |
| Minimum Box Depth (mm) | 47 |
| Terminal Capacity (# x mm²) | 4 x 4 , 3 x 6.0, 1 x 16 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Terminal Arrangement | Not Applicable |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Style Type | Pull Cord |
| Switch Type (Ways & Poles) | Double Pole |
| Switch Location Position | Ceiling |
| Fixing Centres (mm) | W-60.2 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
