NBS222EM8G-01

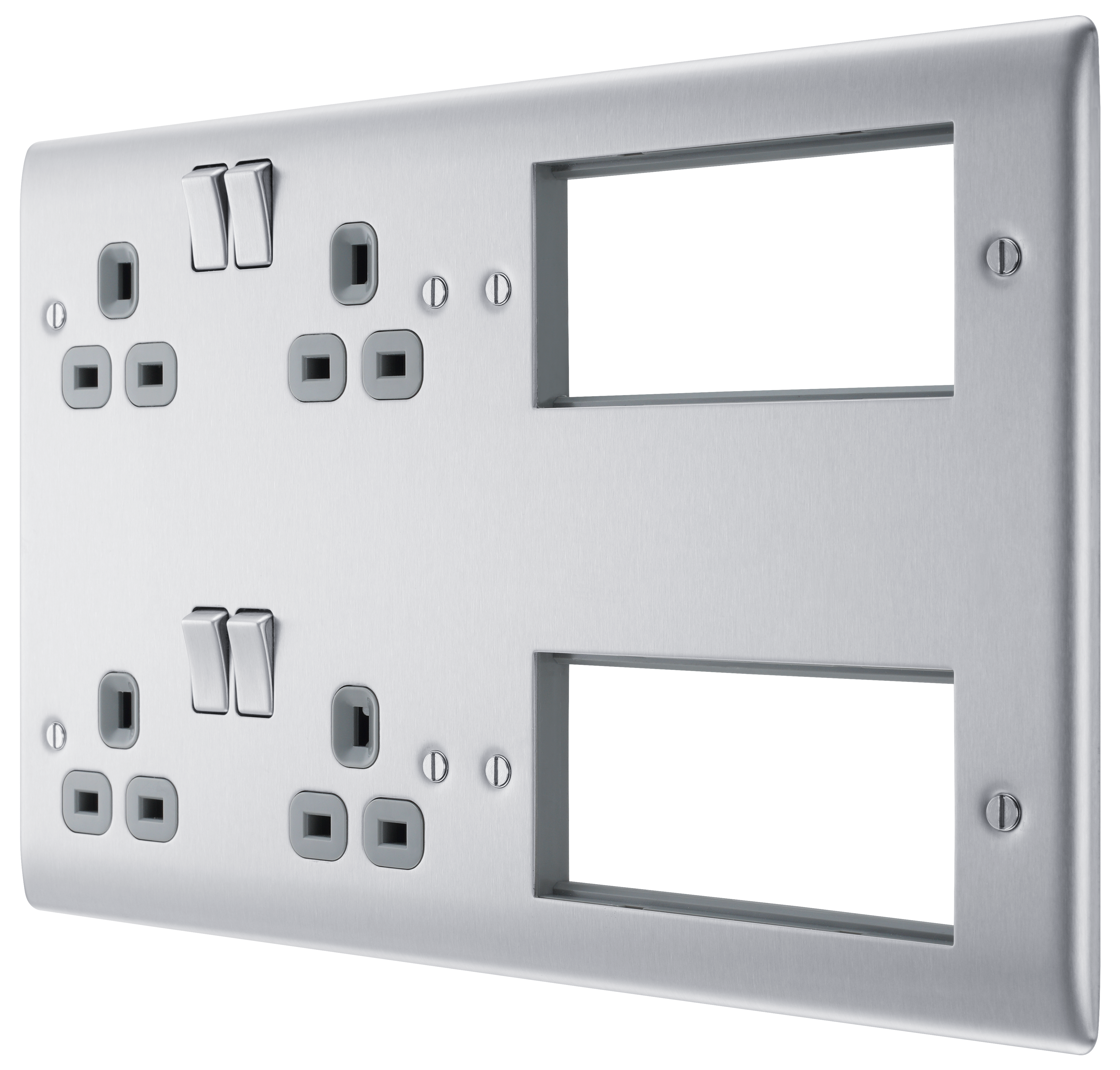

BG Nexus Metal Brushed Steel, Combination Plate, 2 x 13A Switched Socket + 8 Module Aperture, Grey Inserts
13A Rated
Easy to install, supplied with fixing screws and installation instructions
Allows customisation of socket combinations including power, telecom, data and co-axial solutions
For use with the BG Electrical Euro Module range
Angled in-line colour coded terminals provide easy access for quick installation
Captive screws prevent screw loss
Sleek and slim premium metal with softly rounded edges
Twin earth fitted as standard
Moisture control gasket prevents tarnishing from new plaster
| General Colour | Brushed Steel |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 47 |
| Terminal Capacity (# x mm²) | 2 x 6.0, 3 x 2.5, 3 x 4 |
| Front Plate Insert Colour | Grey |
| Anti-fingerprint Lacquer | Yes |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 4 |
| Terminal Arrangement | Angled, Inline |
| Terminals with Colour Coding Print | Yes |
| Number of Sockets | 4 |
| Socket Type | G-3P UK Ireland Hong Kong 220-240V 13A |
| Number of Switches | 4 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | Double Pole |
| Fixing Centres (mm) | W-120.6 X H-100 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 25 |
