MC531-01

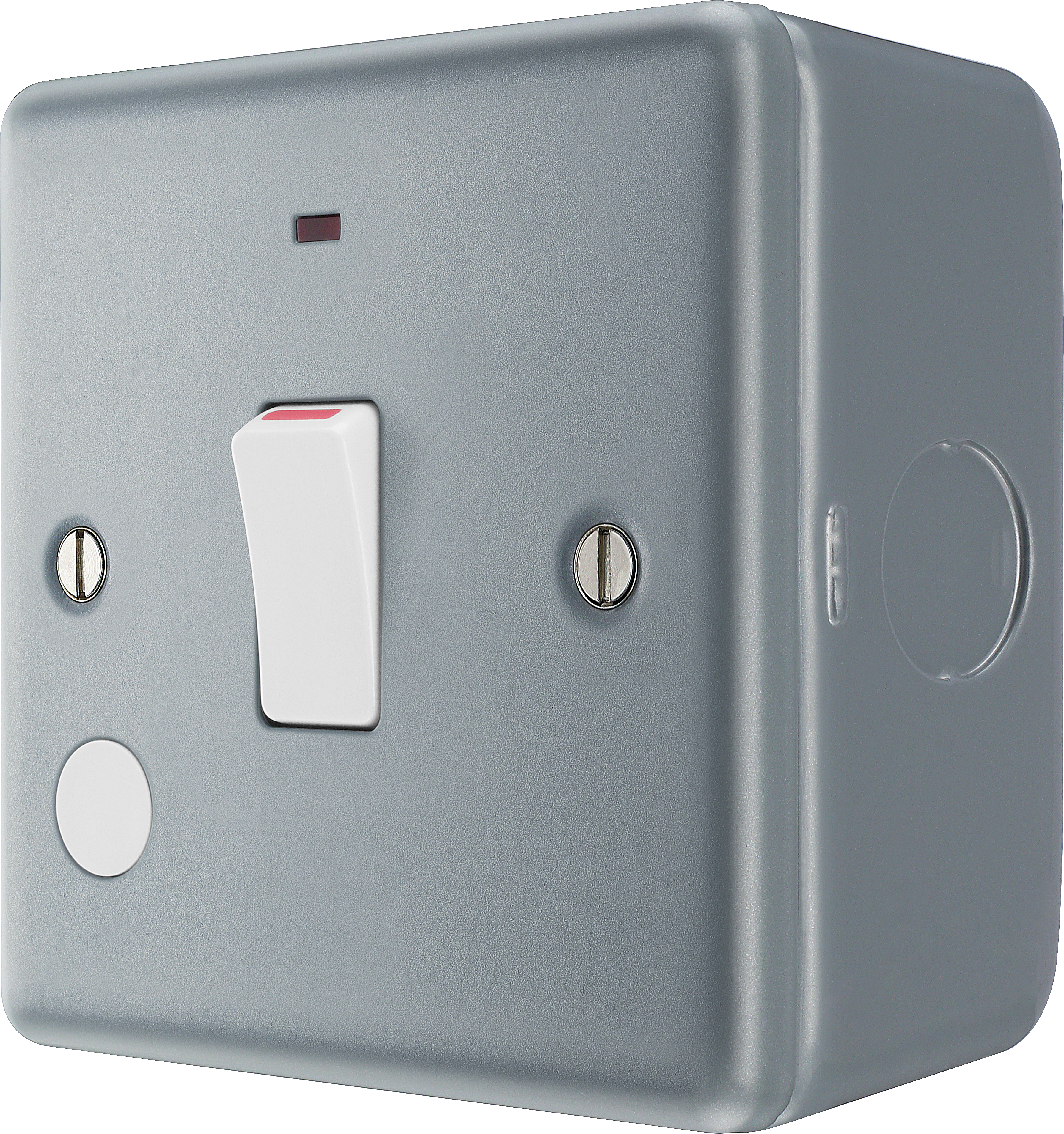

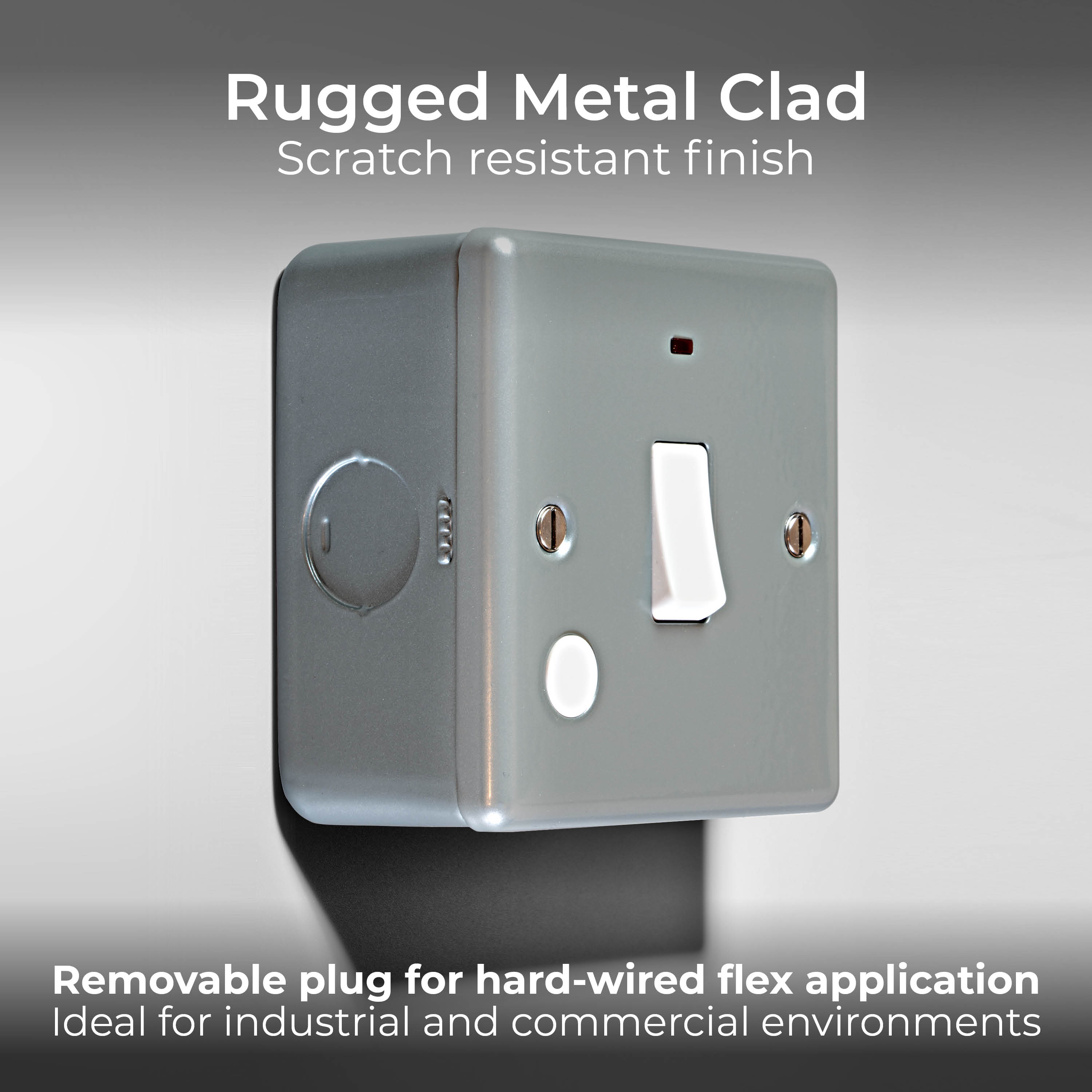

BG Metal Clad 20A Double Pole Switch With LED Indicator
20A Rated
Easy to install, supplied with fixing screws and installation instructions

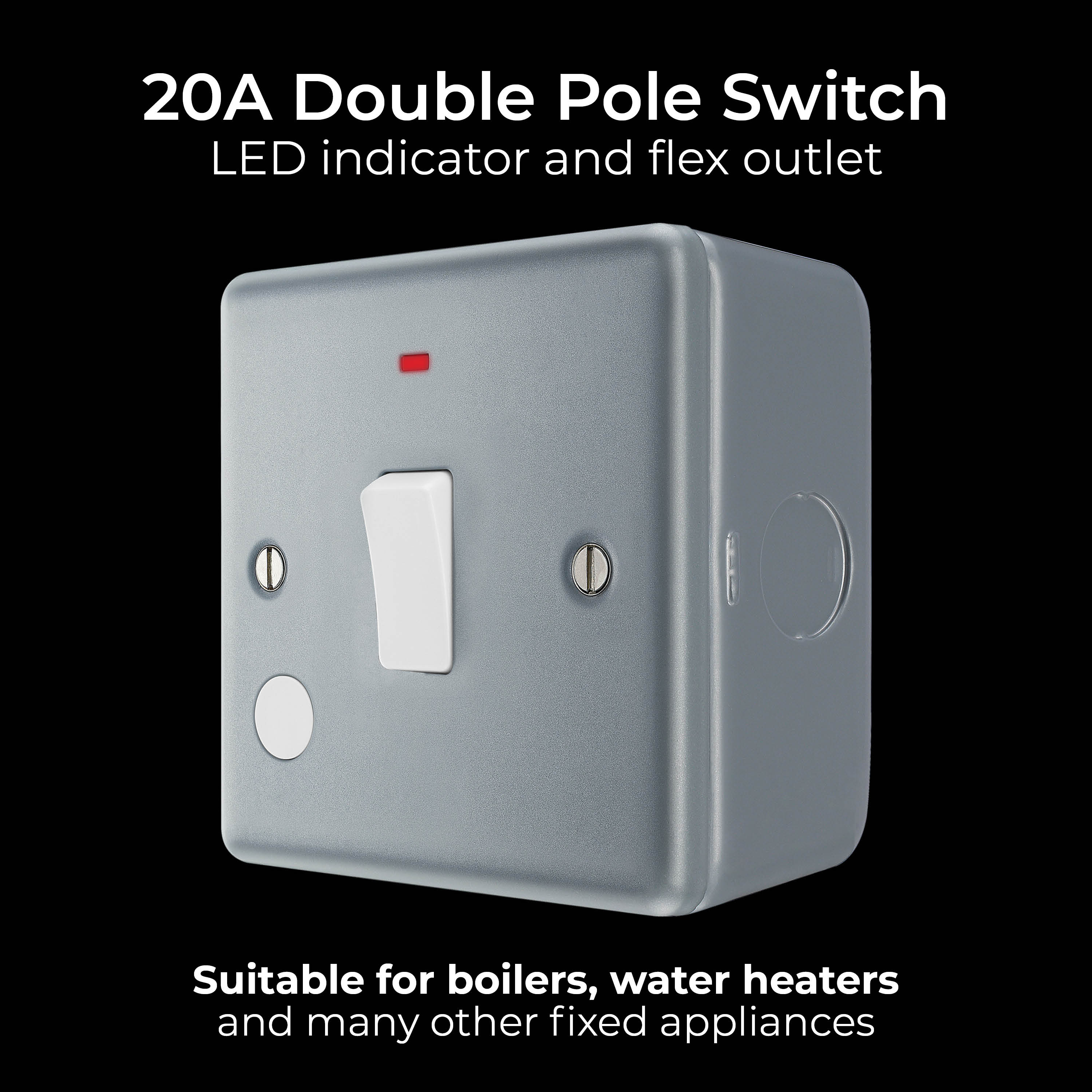

Suitable for use with refrigerators, water heaters, central heating boilers and many other fixed appliances

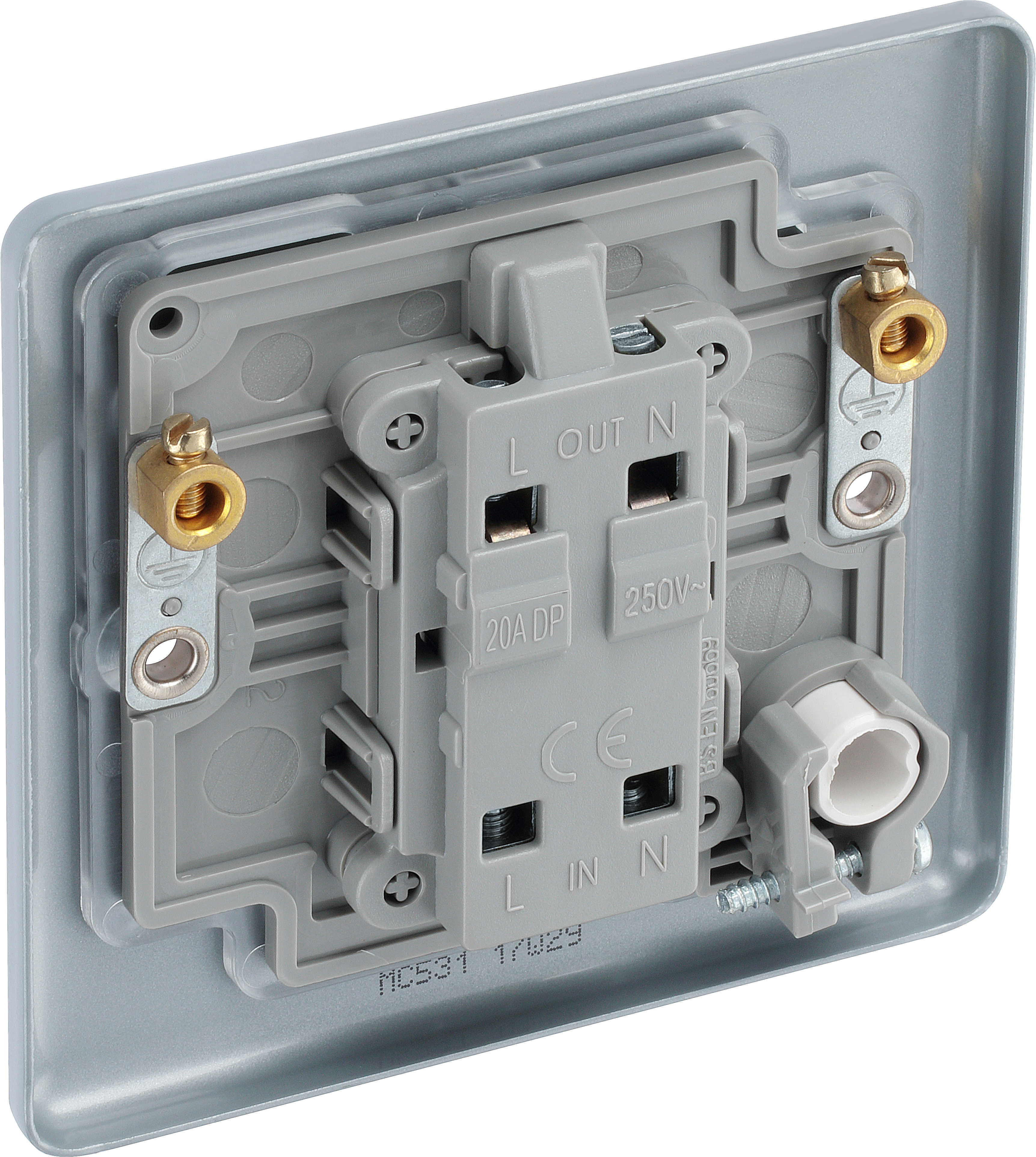

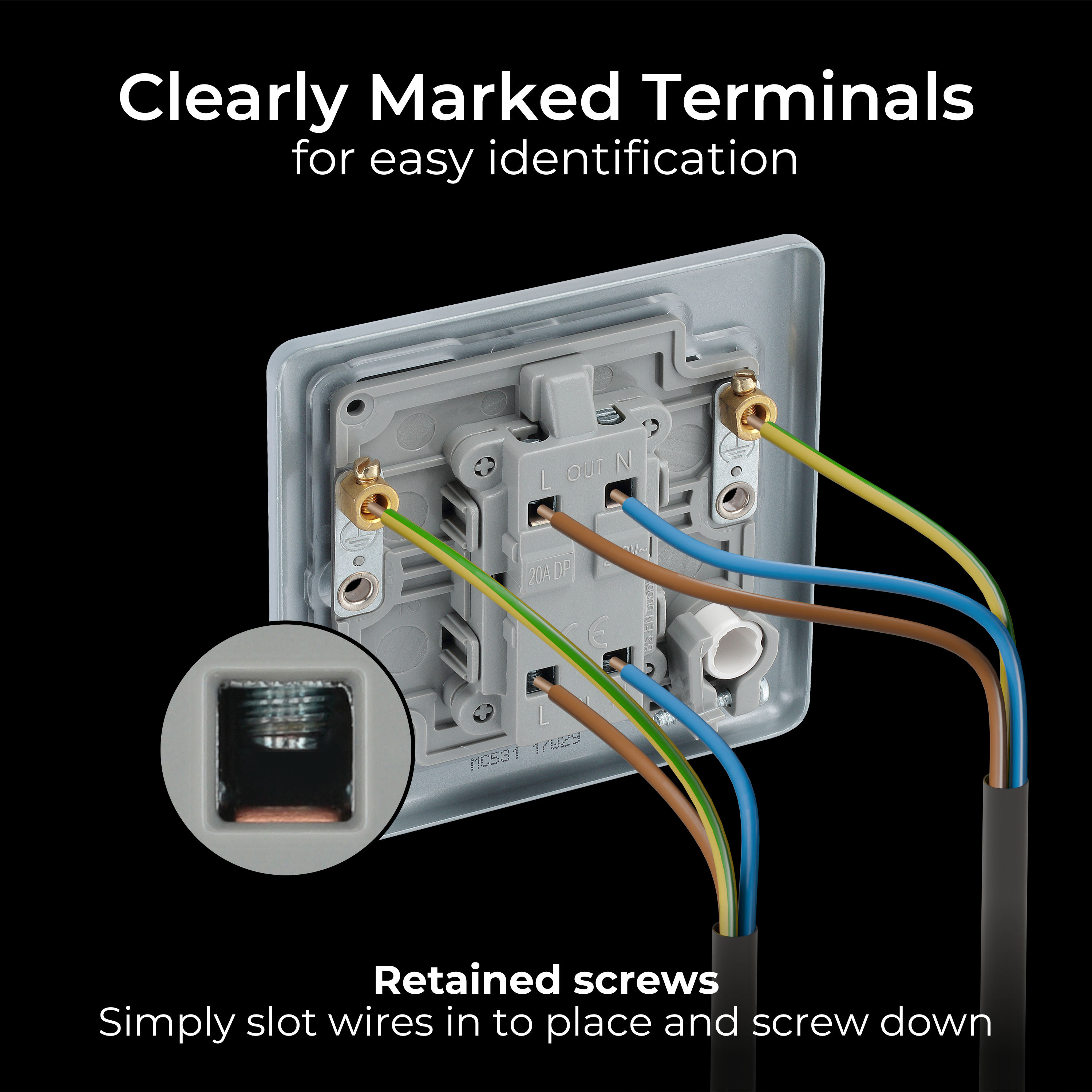

Captive, backed out terminal screws for fast installation and to prevent screw loss
Manufactured in heavy gauge steel and finished with epoxy powder coating

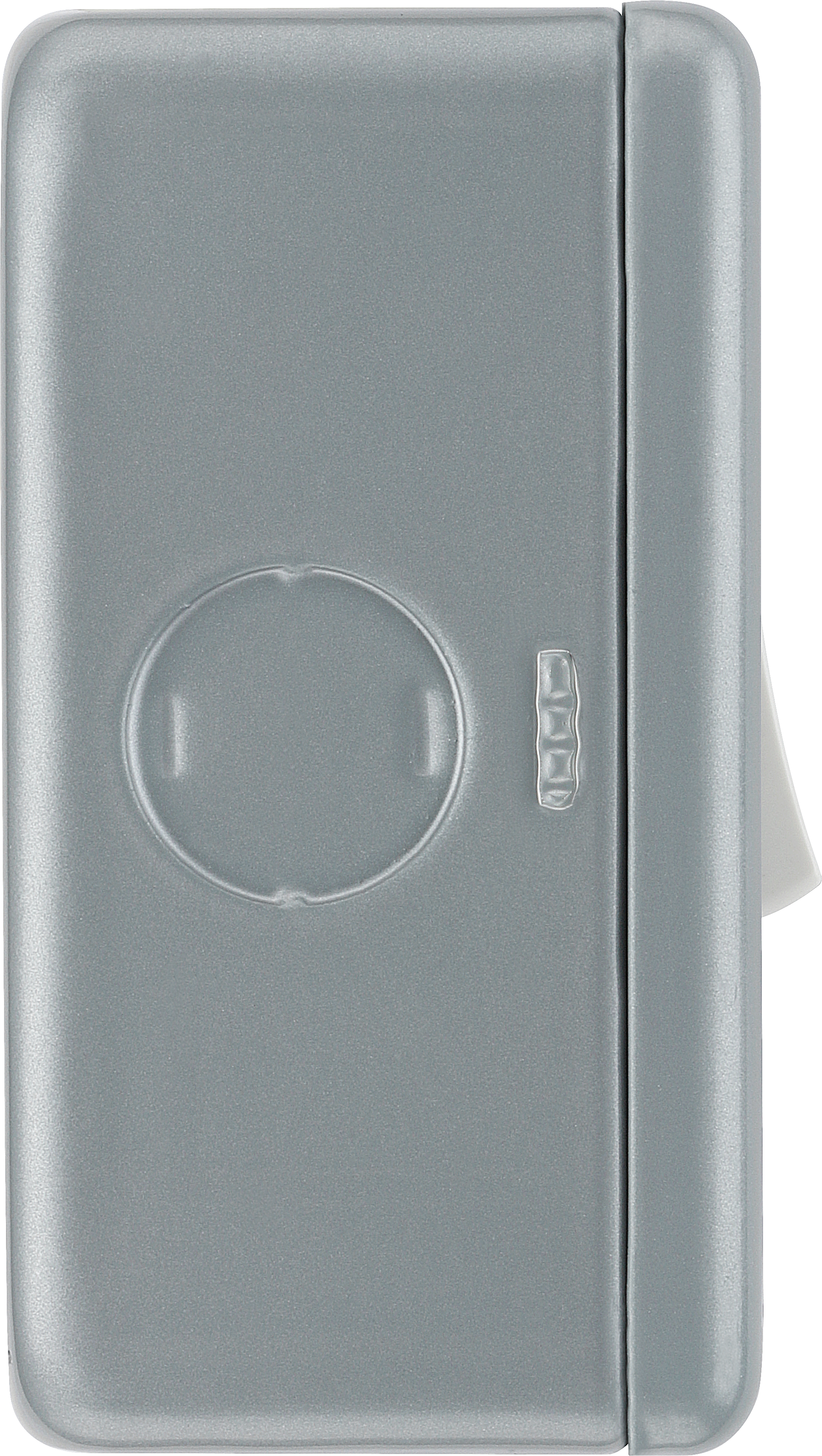

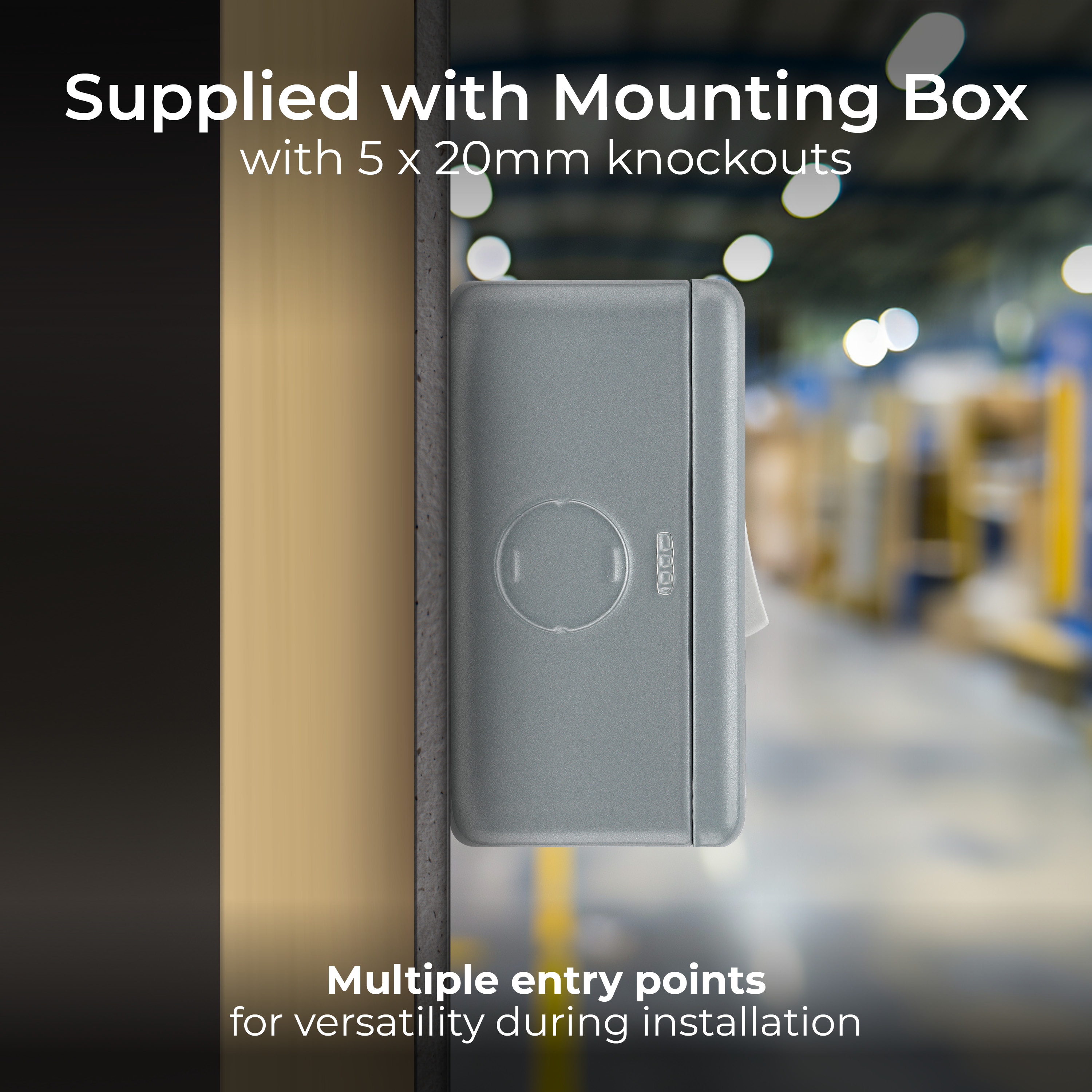

Mounting box with 1x 20mm knockouts in each side and rear face

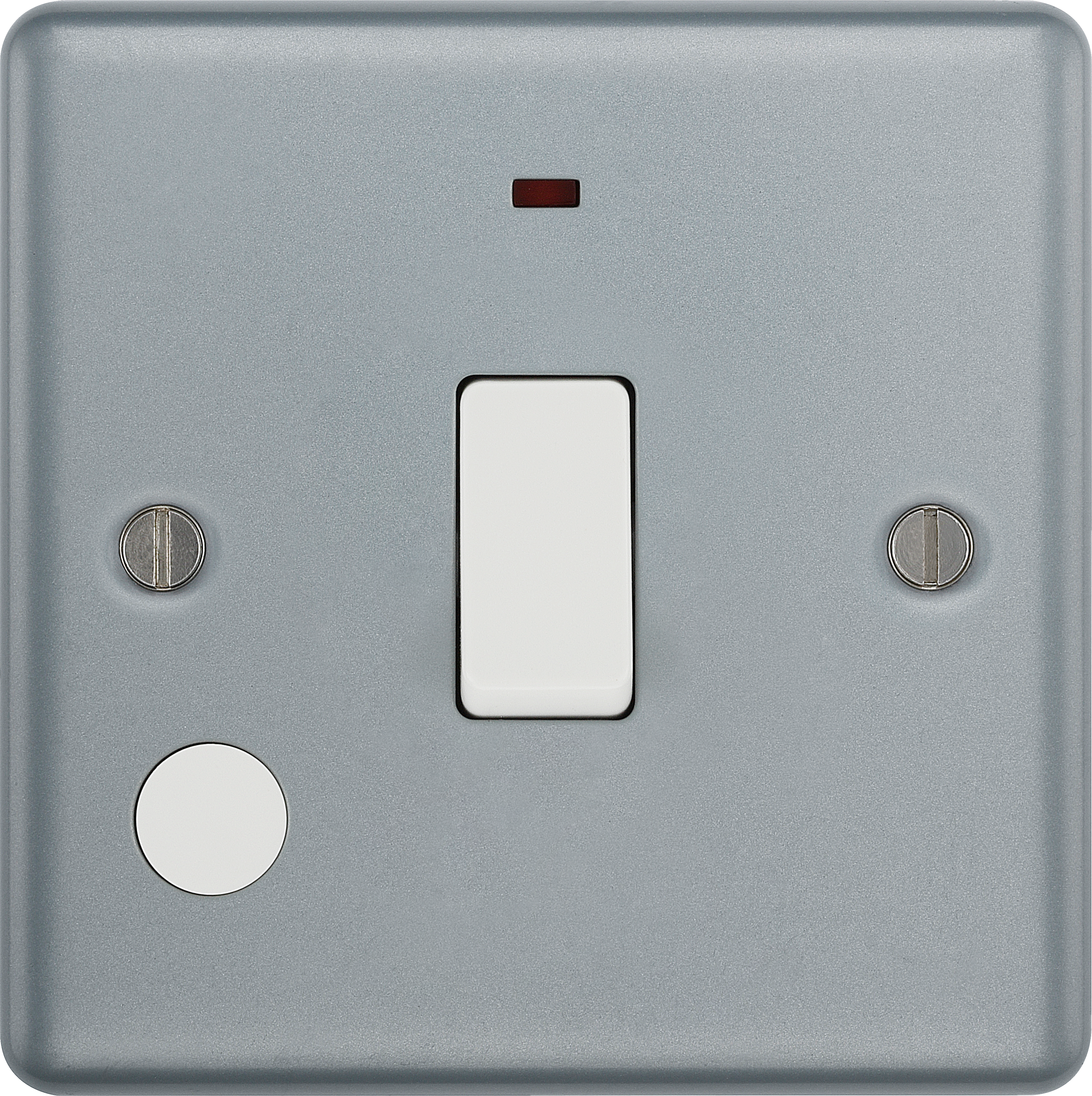

Flush LED Power Indicator
Rugged and scratch resistant, suitable for everyday use in commercial and industrial environments
Double Pole switching for the peace of mind of a safer installation
| General Colour | Grey |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | N/A |
| Terminal Capacity (N x mm²) | 2 x 2.5, 1 x 4, 1 x 6 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | No |
| Terminal Arrangement | N/A |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Double Pole |
| Switch Location Position | Wall |
| Fixing Centres (mm) | W-44.5 X H-44.5 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
