MC521-01

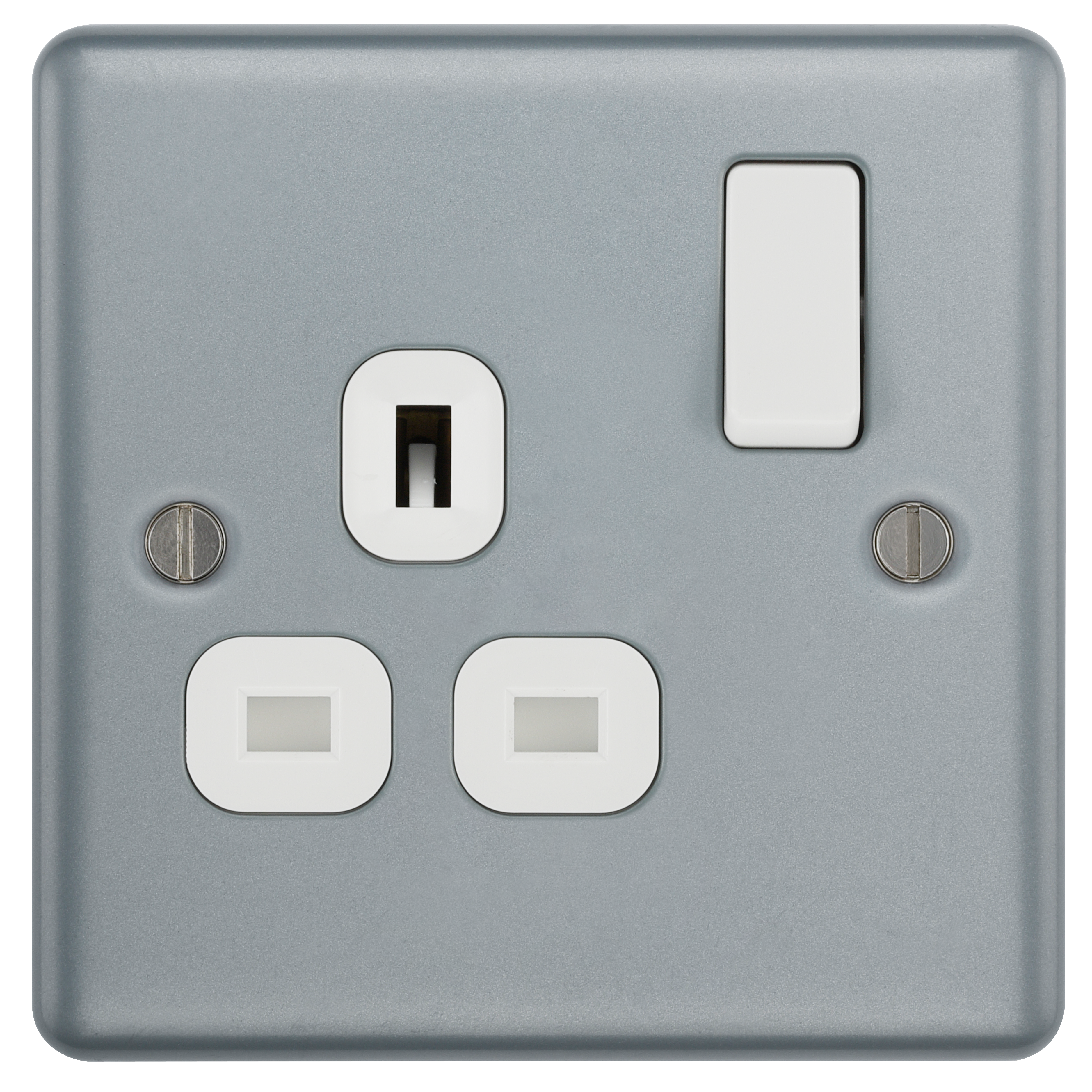

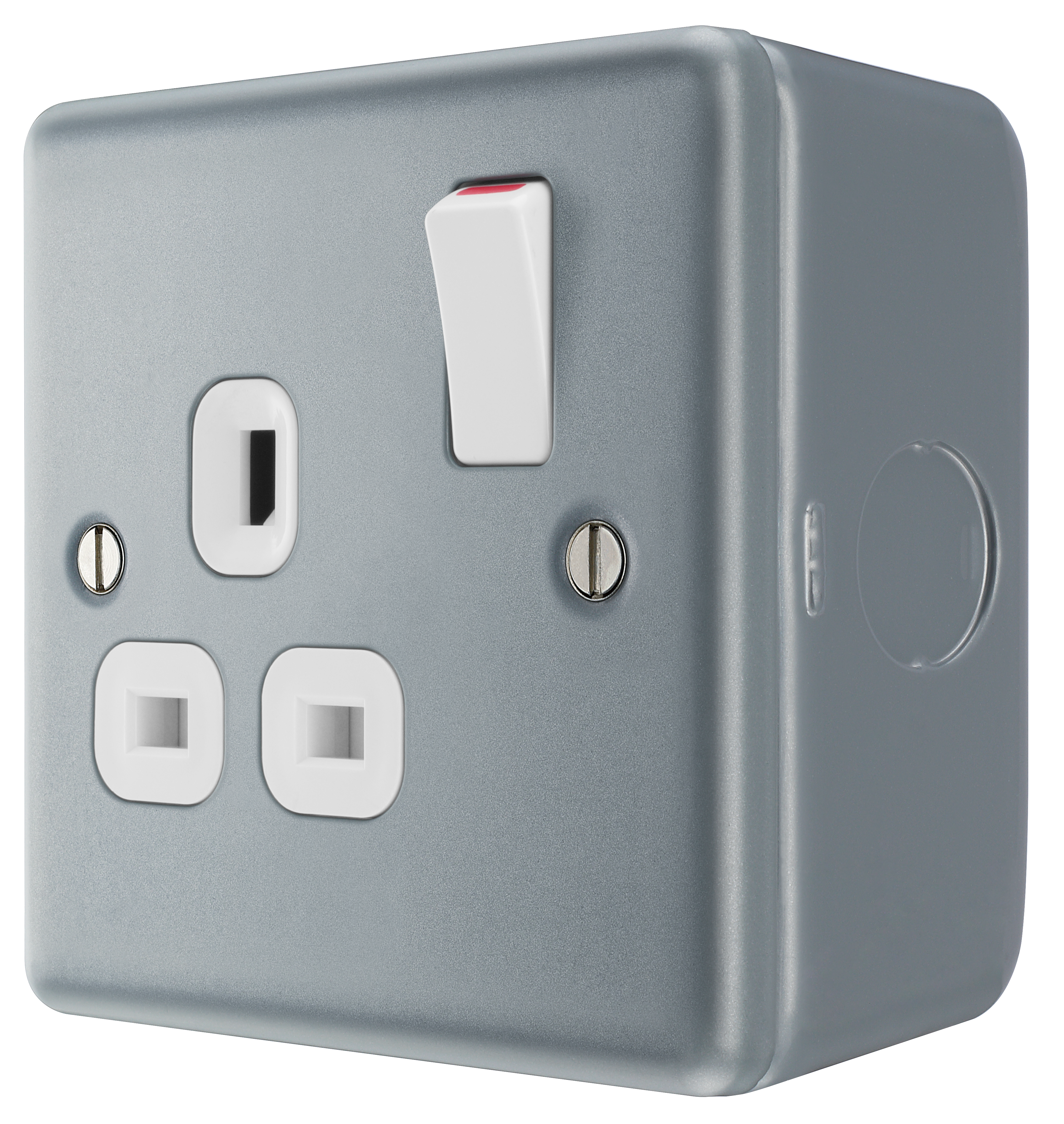

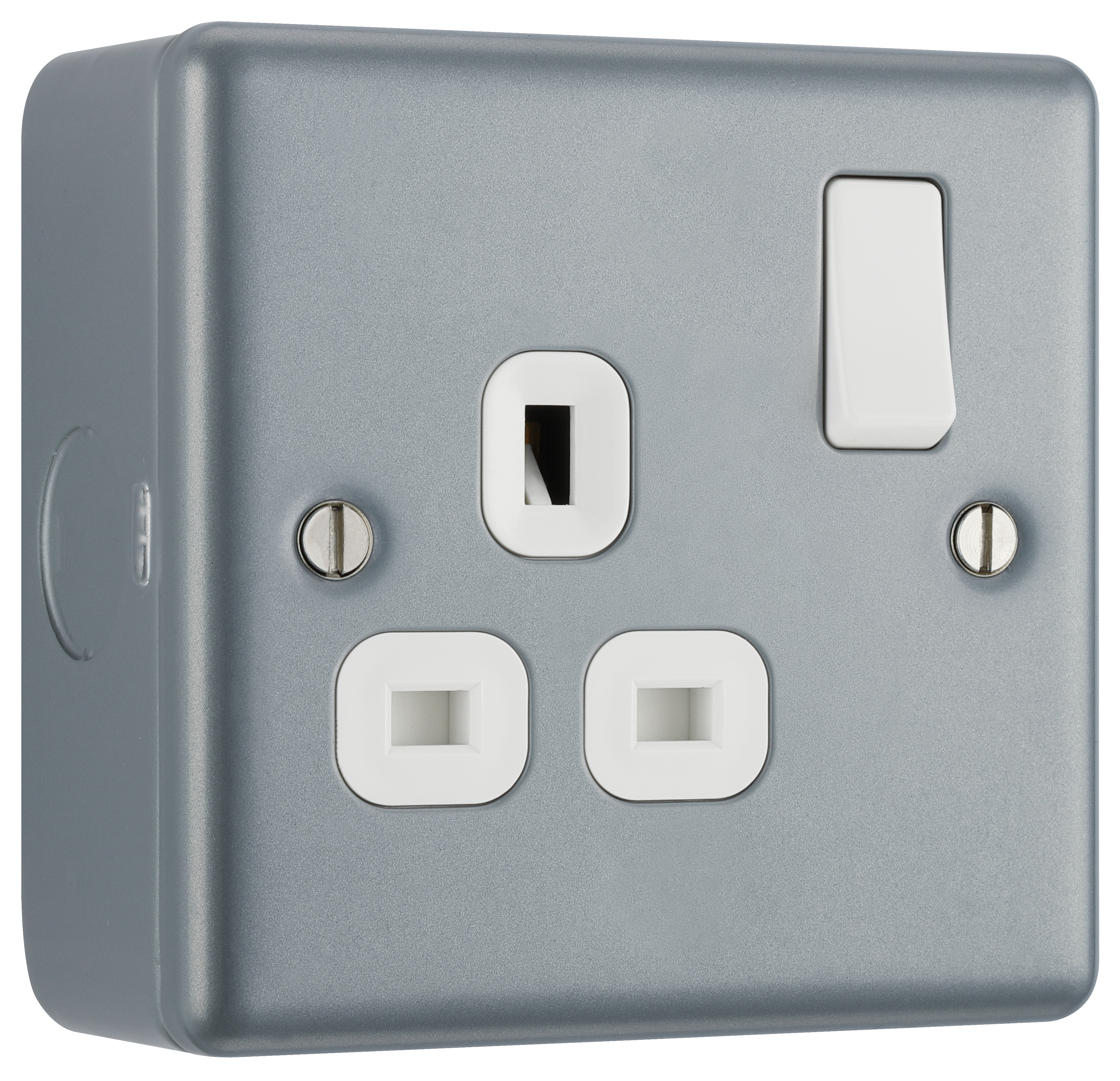

BG Metal Clad 13A Single Switched Socket
13A Rated
Easy to install, supplied with fixing screws and installation instructions

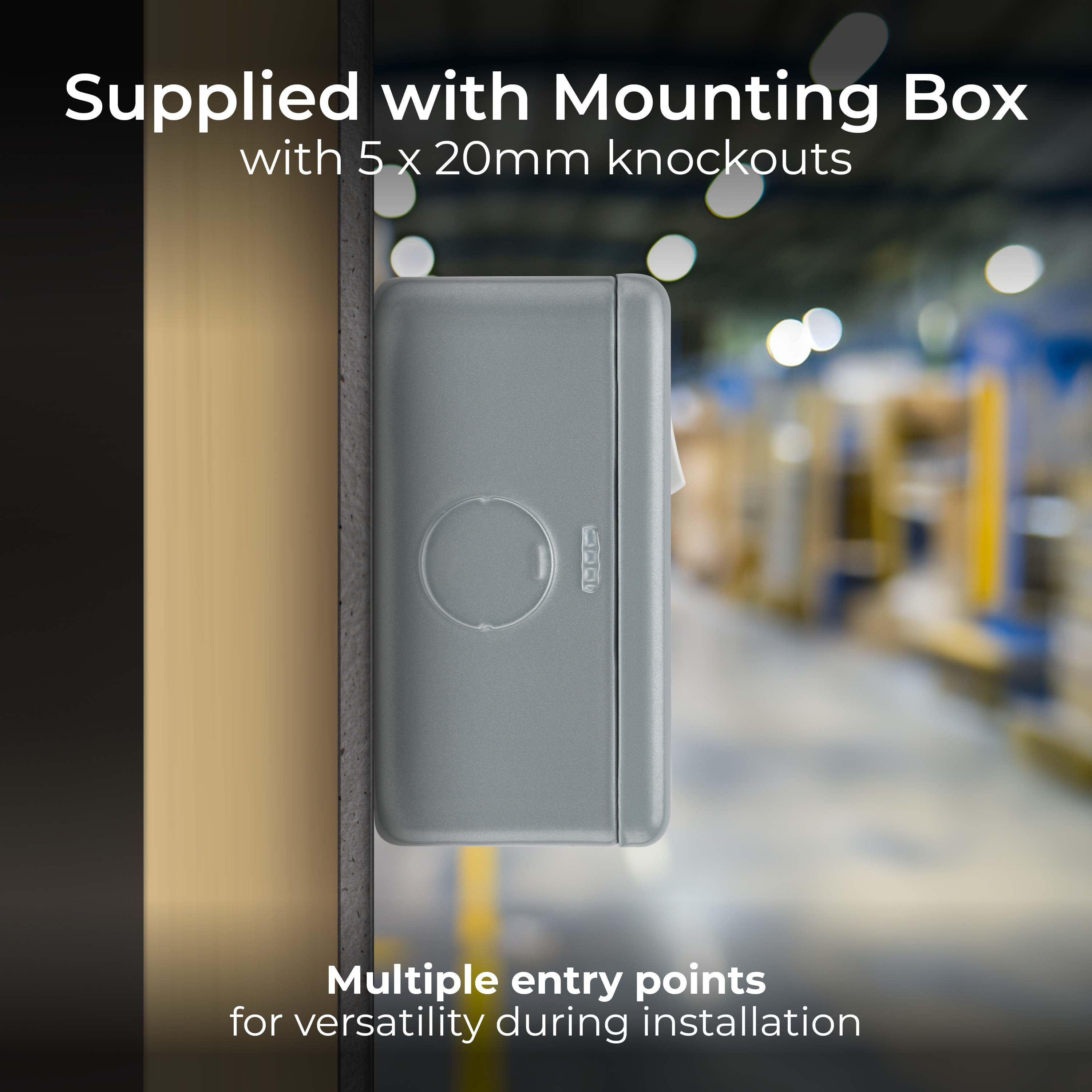

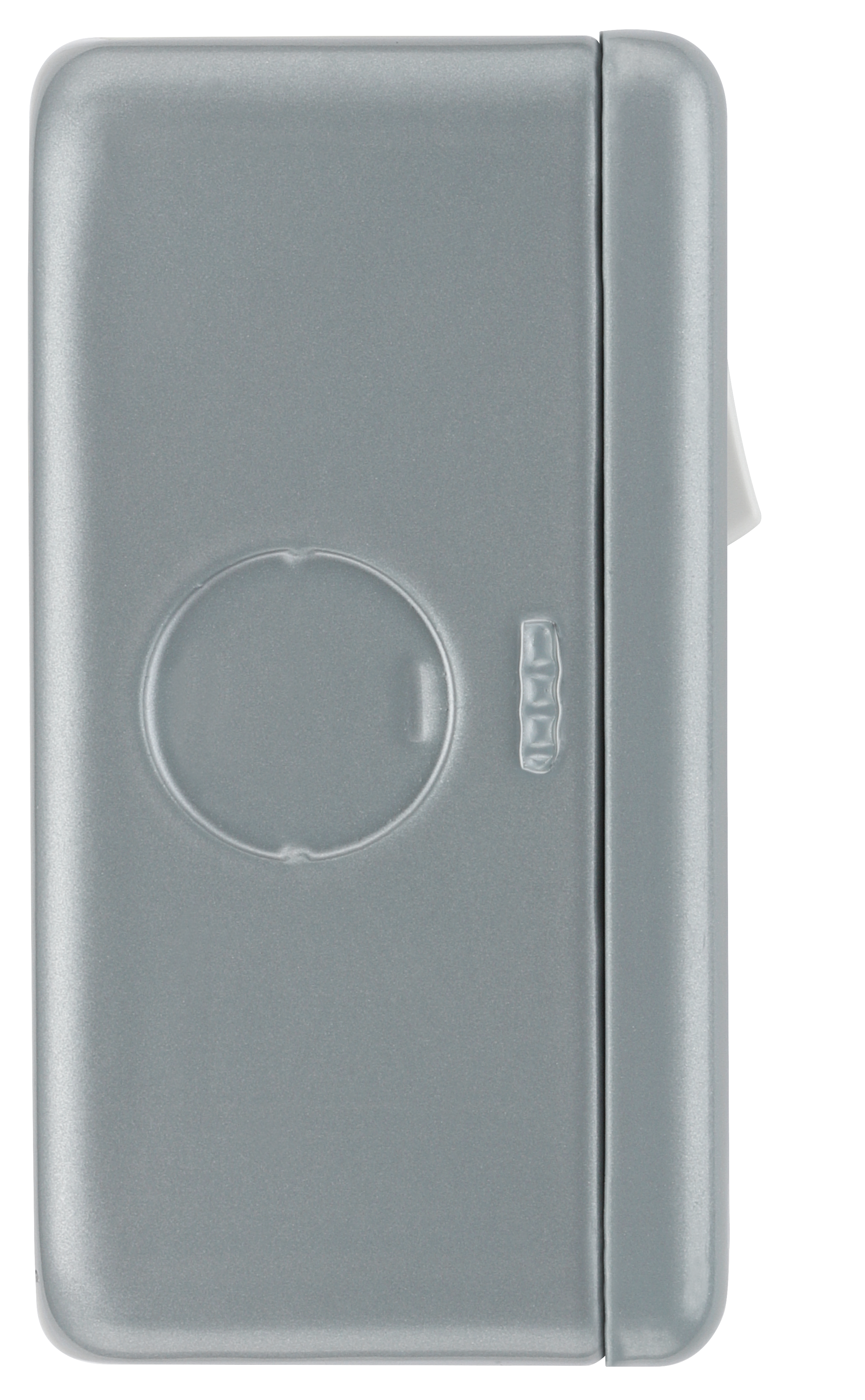

Multiple knock out metal box for versatility

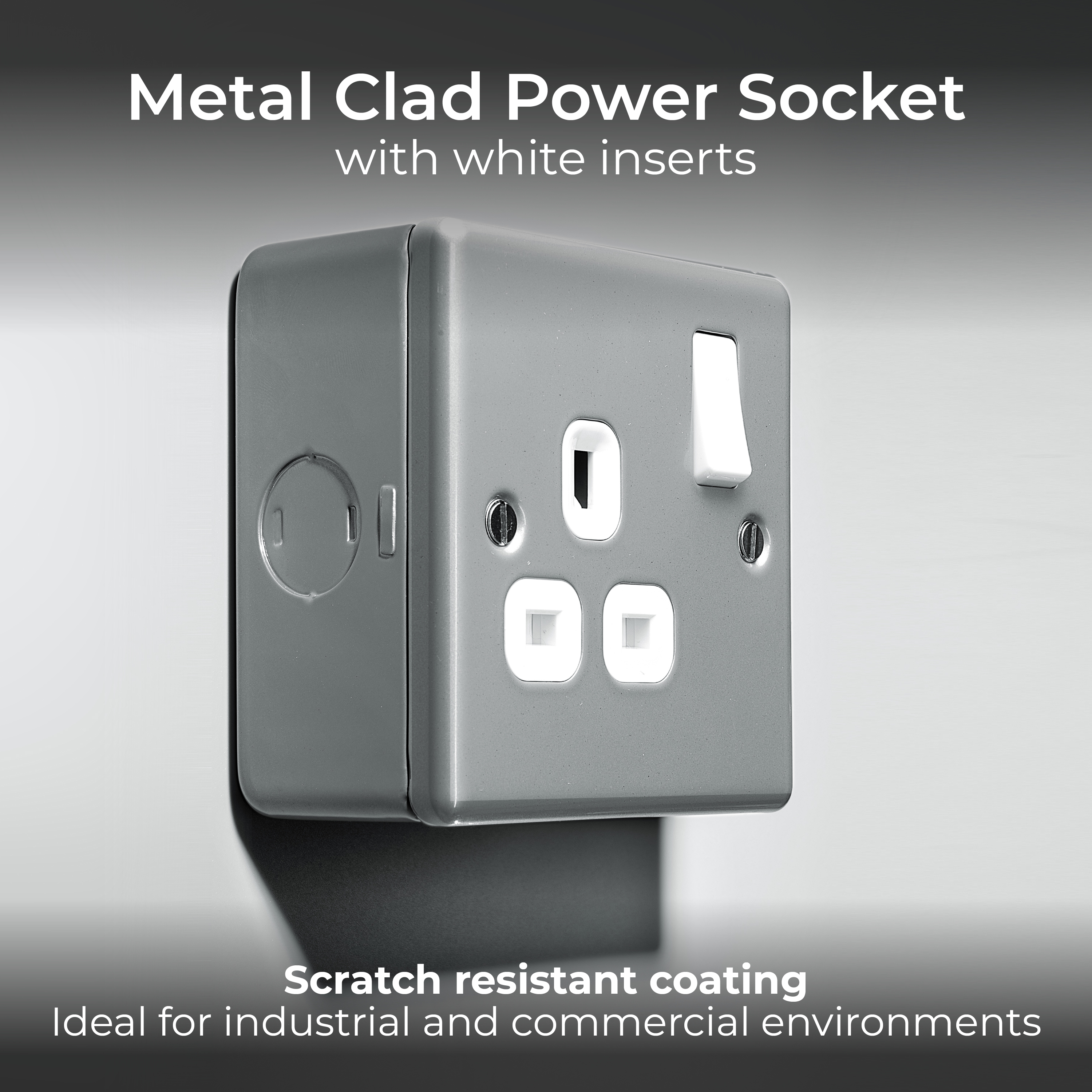

Durable scratch resistant epoxy powder coated finish
No visible plastic around switch
Ideal for commercial and industrial environments

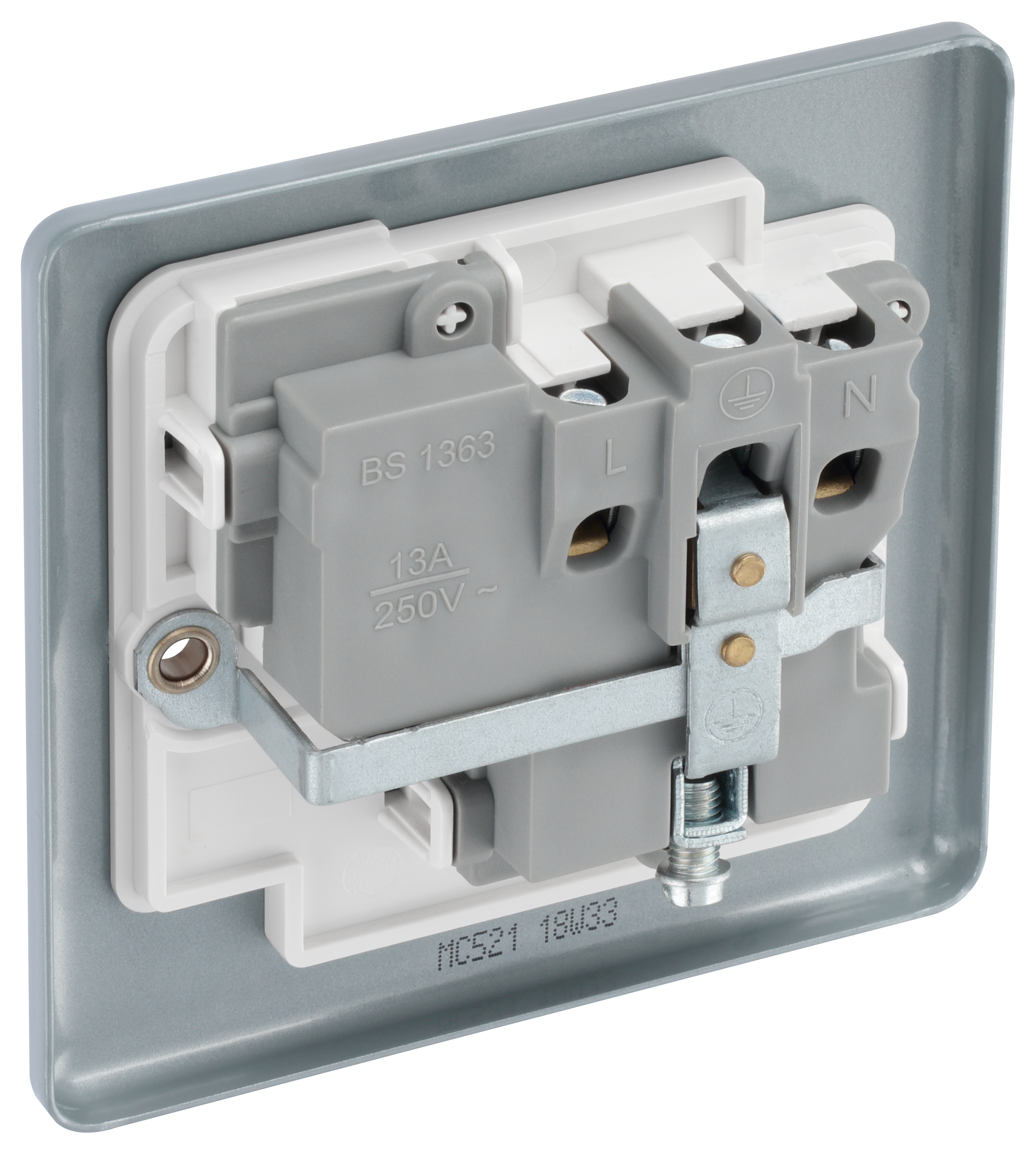

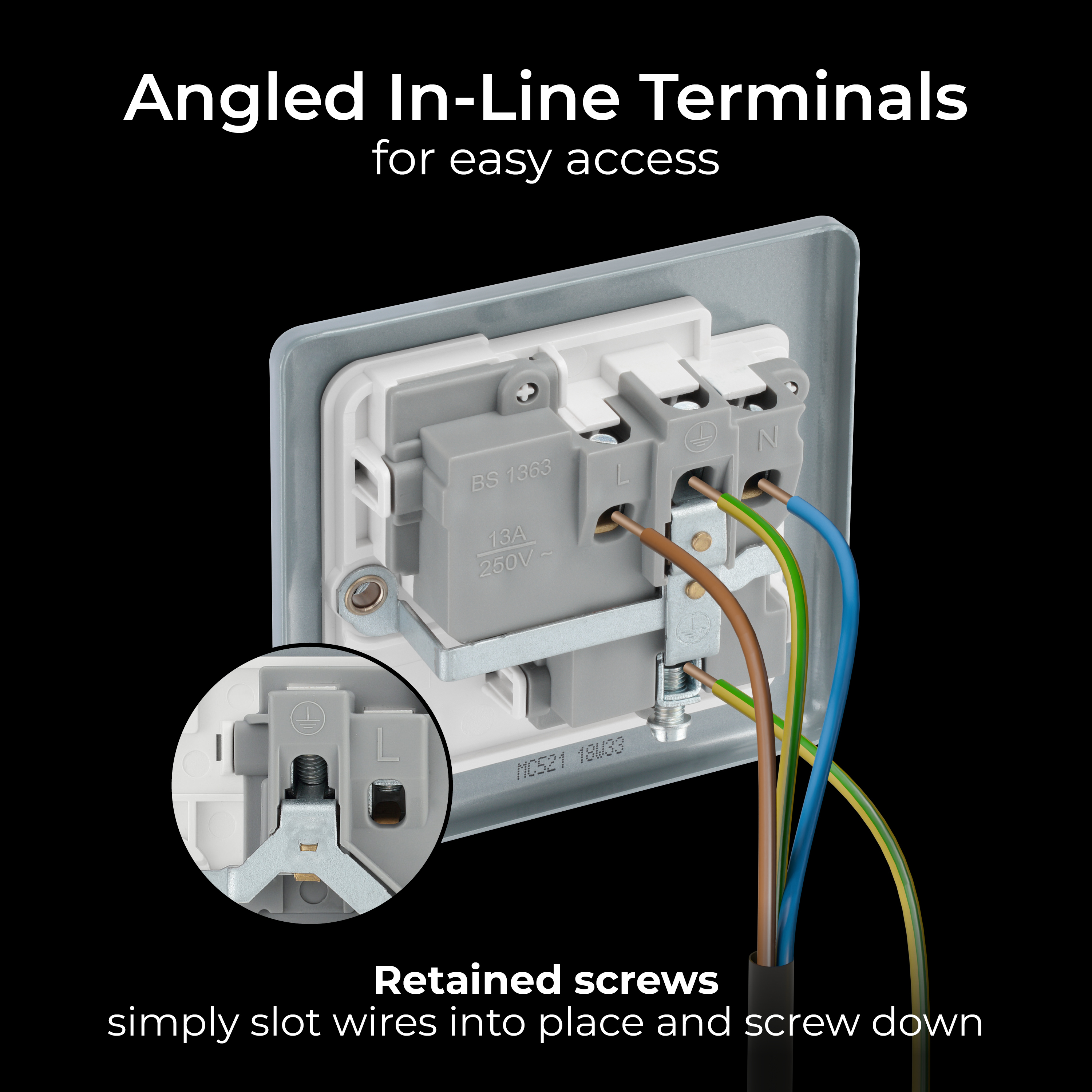

In-line terminals for straight forward installation
Captive screws prevent screw loss

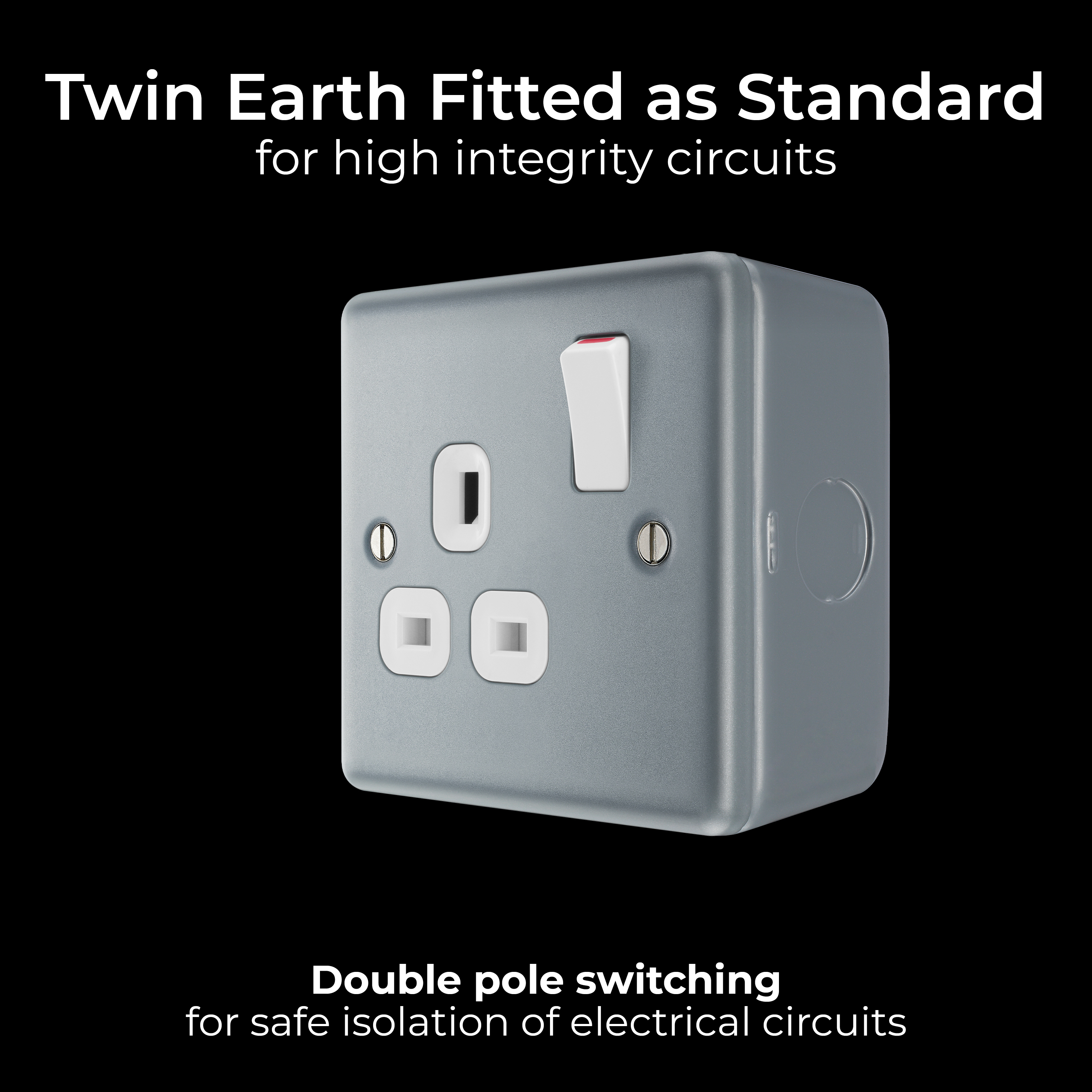

Twin earth fitted as standard for high integrity circuits
White insert
General Colour | Grey |
Captive Terminal Screws | Yes |
Backed-out Terminal Screws | Yes |
Minimum Box Depth (mm) | 25 |
Terminal Capacity (mm²) | 3 x 2.5mm² |
Front Plate Insert Colour | White |
Anti-fingerprint Lacquer | No |
Anti-microbial Property | No |
Fixing Screws Supplied | Yes |
Number of Earth Terminals | 2 |
Terminal Arrangement | Angled-in line terminals |
Terminals with Colour Coding Print | No |
Number of Sockets | 1 |
Socket Type | G-3P UK Ireland Hong Kong 220-240V 13A |
Number of Switches | 1 |
Screw Caps | No |
Switch Type (Ways & Poles) | Double Pole |
Fixing Centres (mm) | W-60.3 X H-44.5 |
IP Rating | IP20 |
Operating Voltage (V) | 220-240 |
Warranty (years) | 25 |
