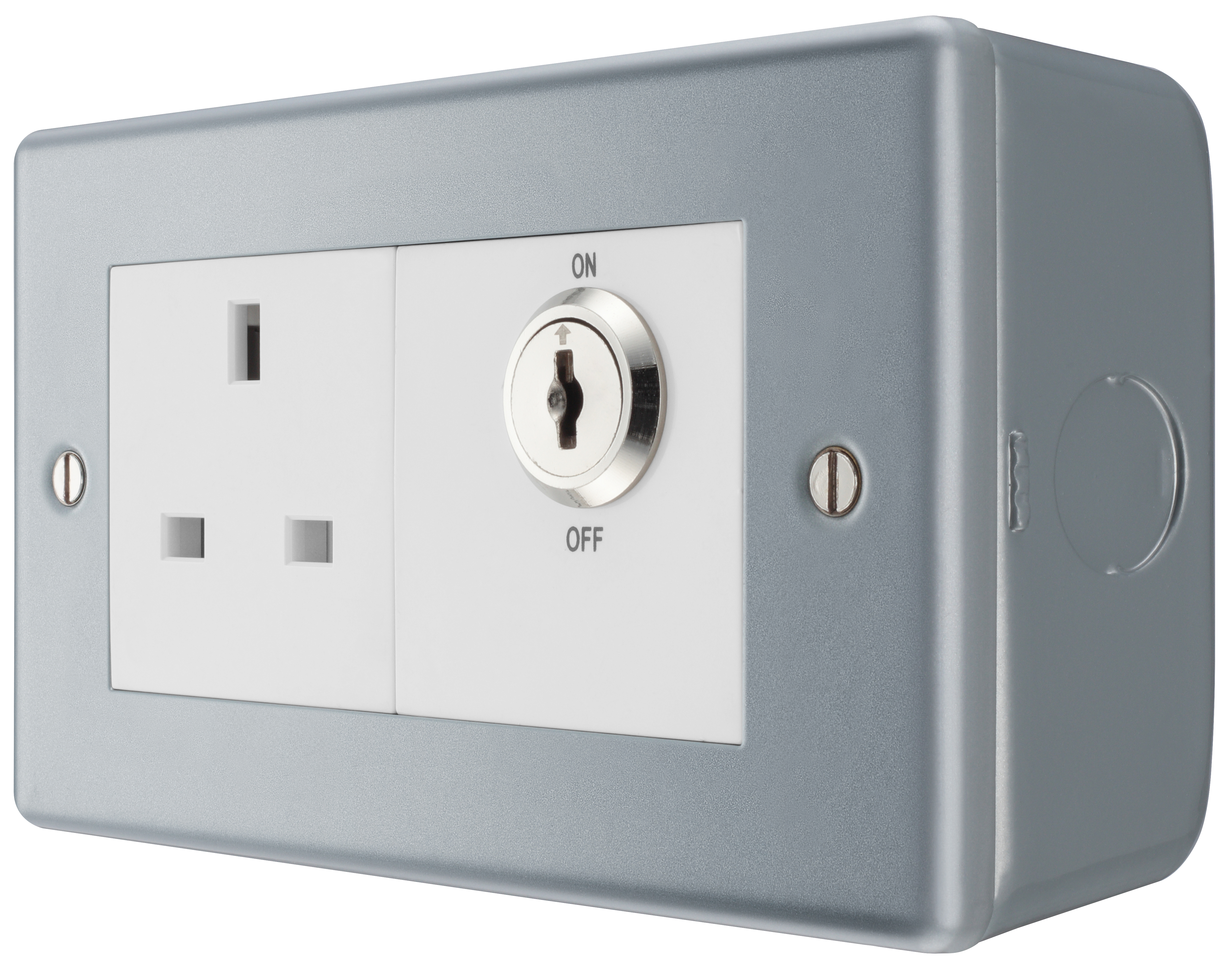

MC5SKYSWSW-01
BG Metal Clad 13A Key Controlled Socket, Double Pole
13A Rated
Easy to install, supplied with fixing screws and installation instructions
Electrical supply to socket is controlled by key activated DP switch to prevent unauthorised access
Lockable socket, supplied with two keys
A rugged, scratch resistant range, suitable for everyday use in commercial and industrial environments
Manufactured in heavy gauge steel for extra safety and finished with epoxy powder coating for added scratch resistance
Twin earth fitted as standard for high integrity circuits
Supplied as a kit of Euro module components
Captive screws prevent screw loss
Double Pole switching for the peace of mind of a safer installation
| General Colour | Grey |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | N/A |
| Terminal Capacity (# x mm²) | 3 x 2.5, 2 x 4 , 1 x 6 |
| Front Plate Insert Colour | White |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | No |
| Number of Earth Terminals | 3 |
| Terminal Arrangement | Not Applicable |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | Double Pole |
| Fixing Centres (mm) | W-105.4 X H-44.0 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 25 |
