MBNTDS-01

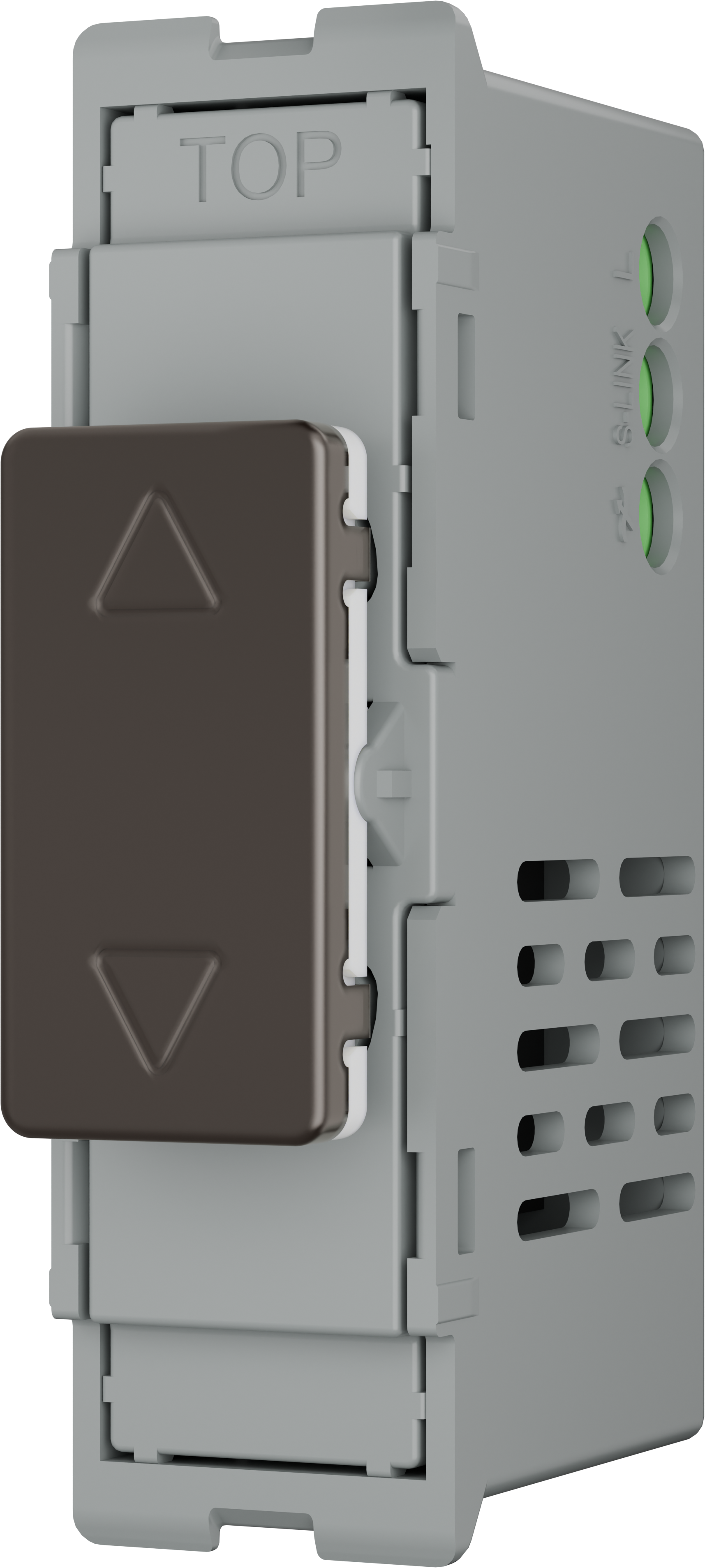

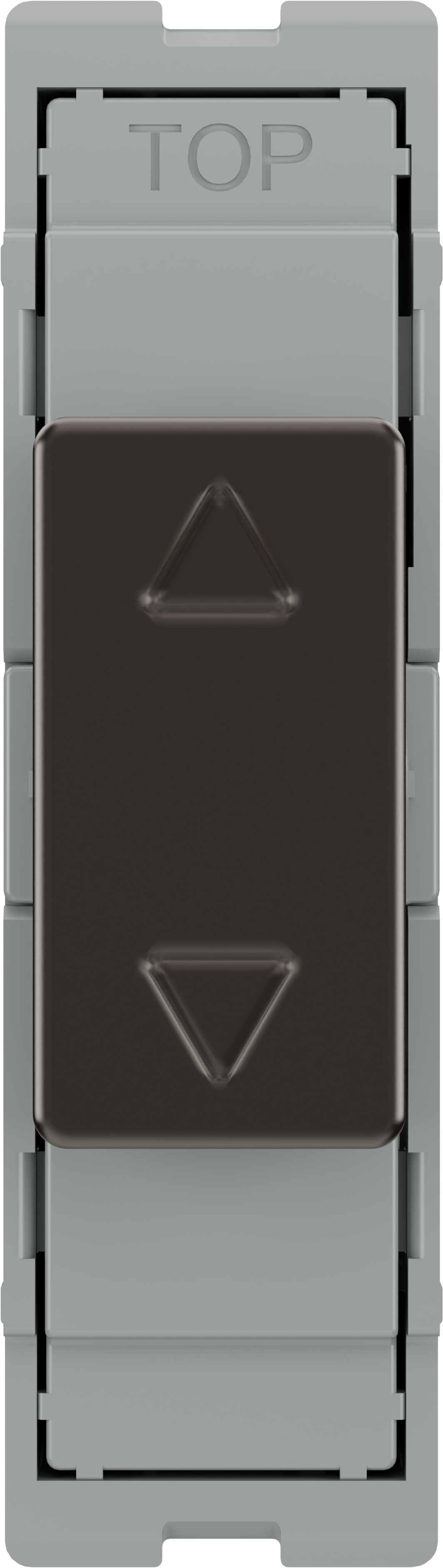

BG GridLite Secondary Touch Dimmer Switch Module, Black Nickel

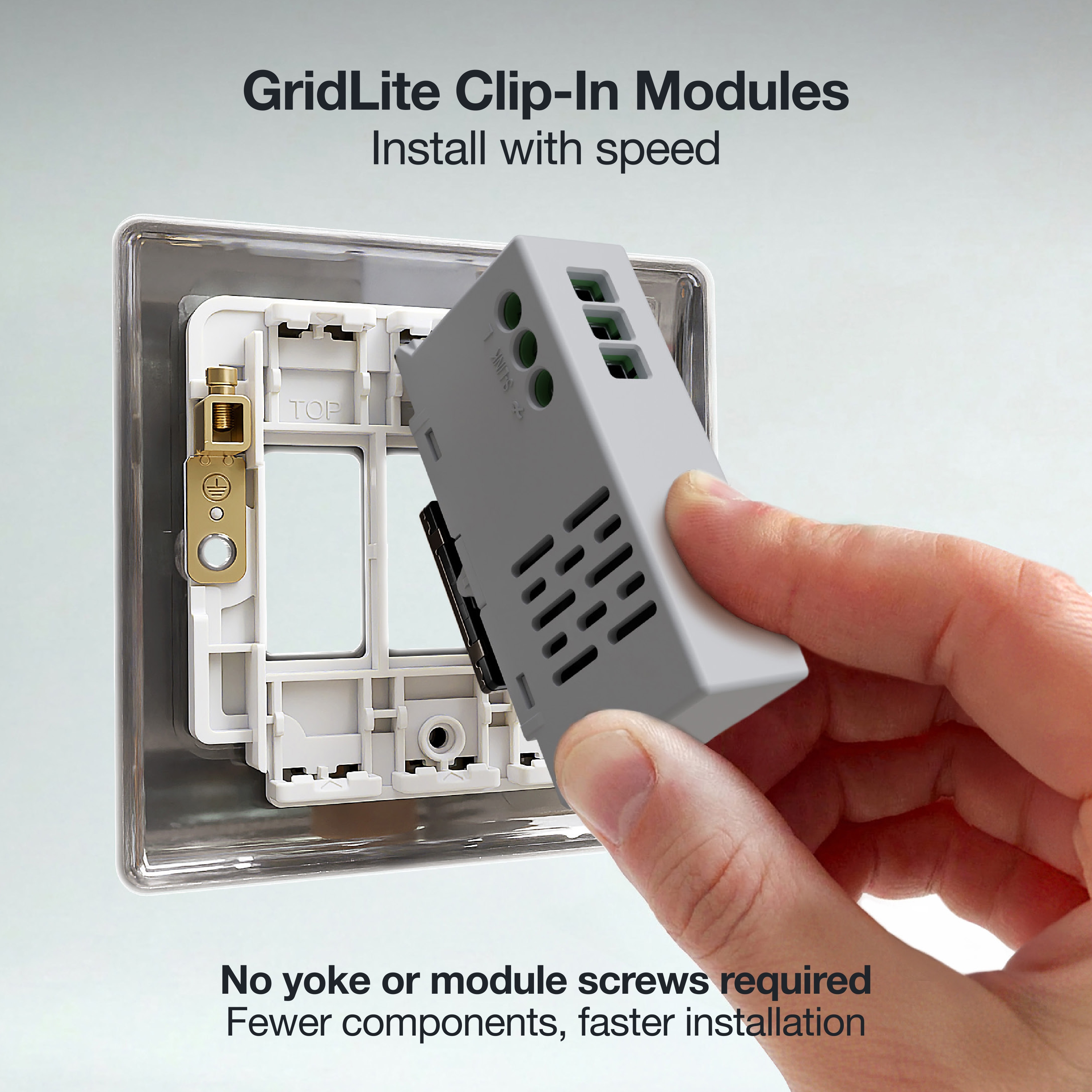

Clip-In Switch Module: Push-fit design snaps into BG GridLite front plates with no yoke or screws, reducing components and speeding up installation for a quicker, cleaner workflow.

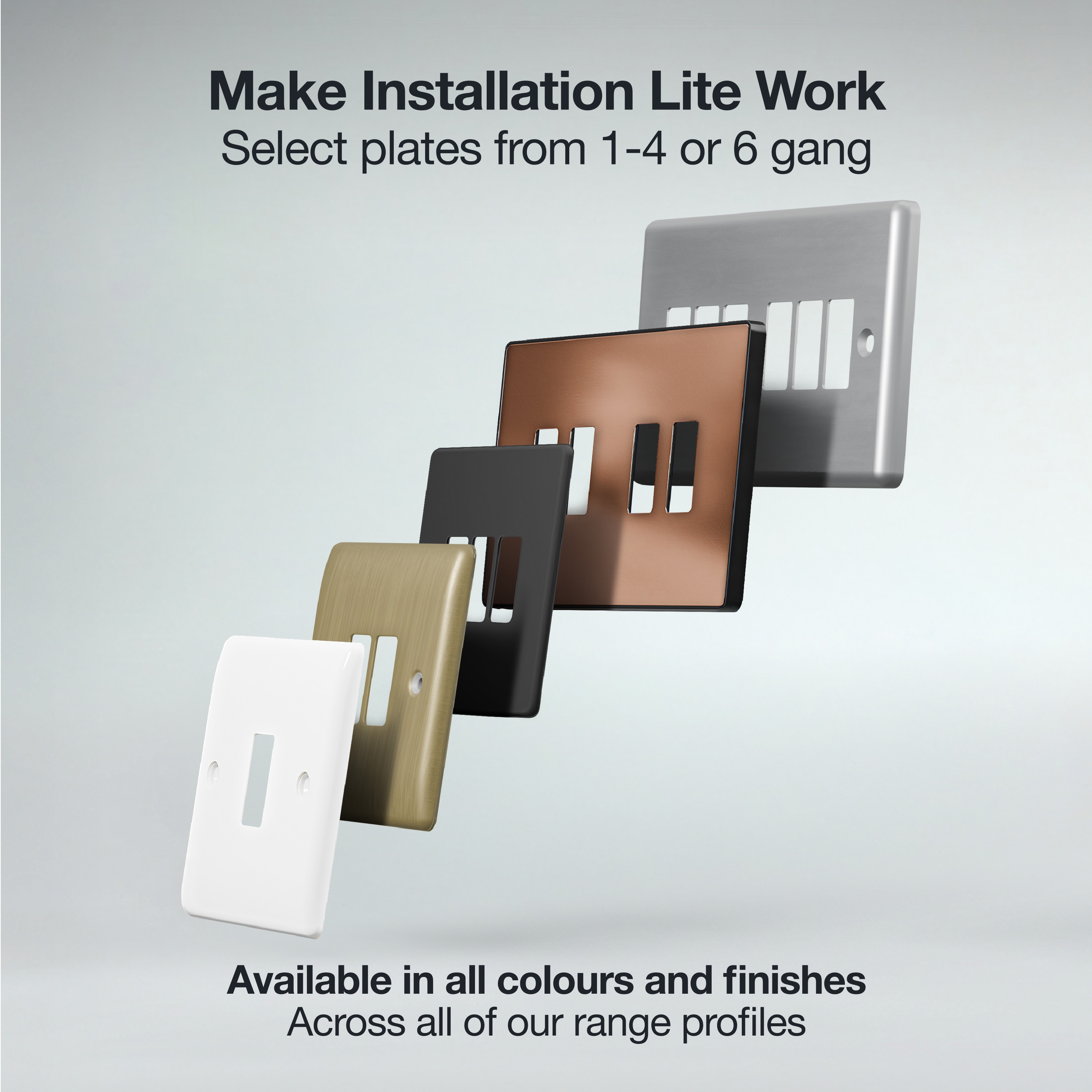

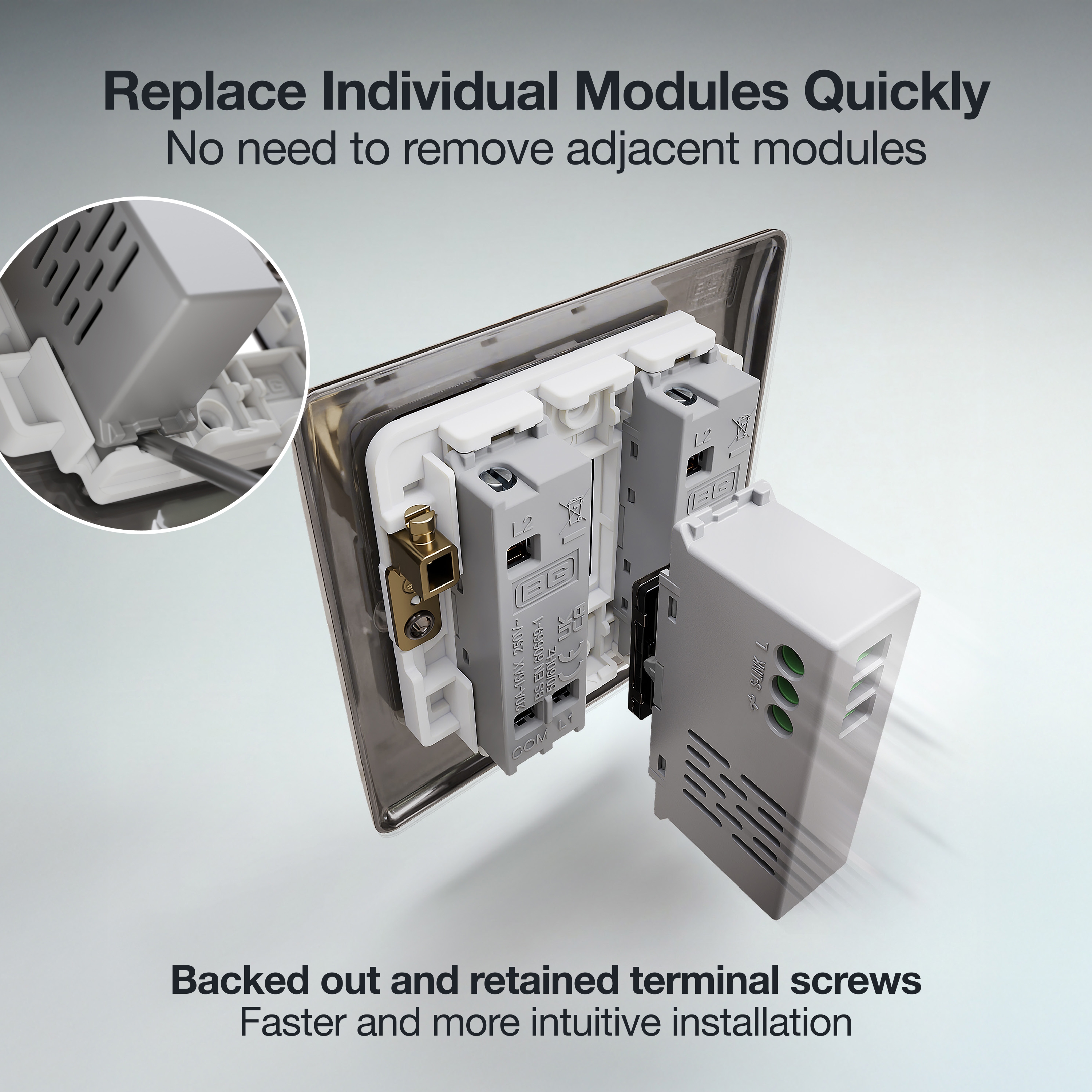

Independent Module Replacement: Each module can be swapped without removing adjacent units, making retrofits quicker, easier, and disruption-free. Interchangeable modules across BG GridLite ranges.

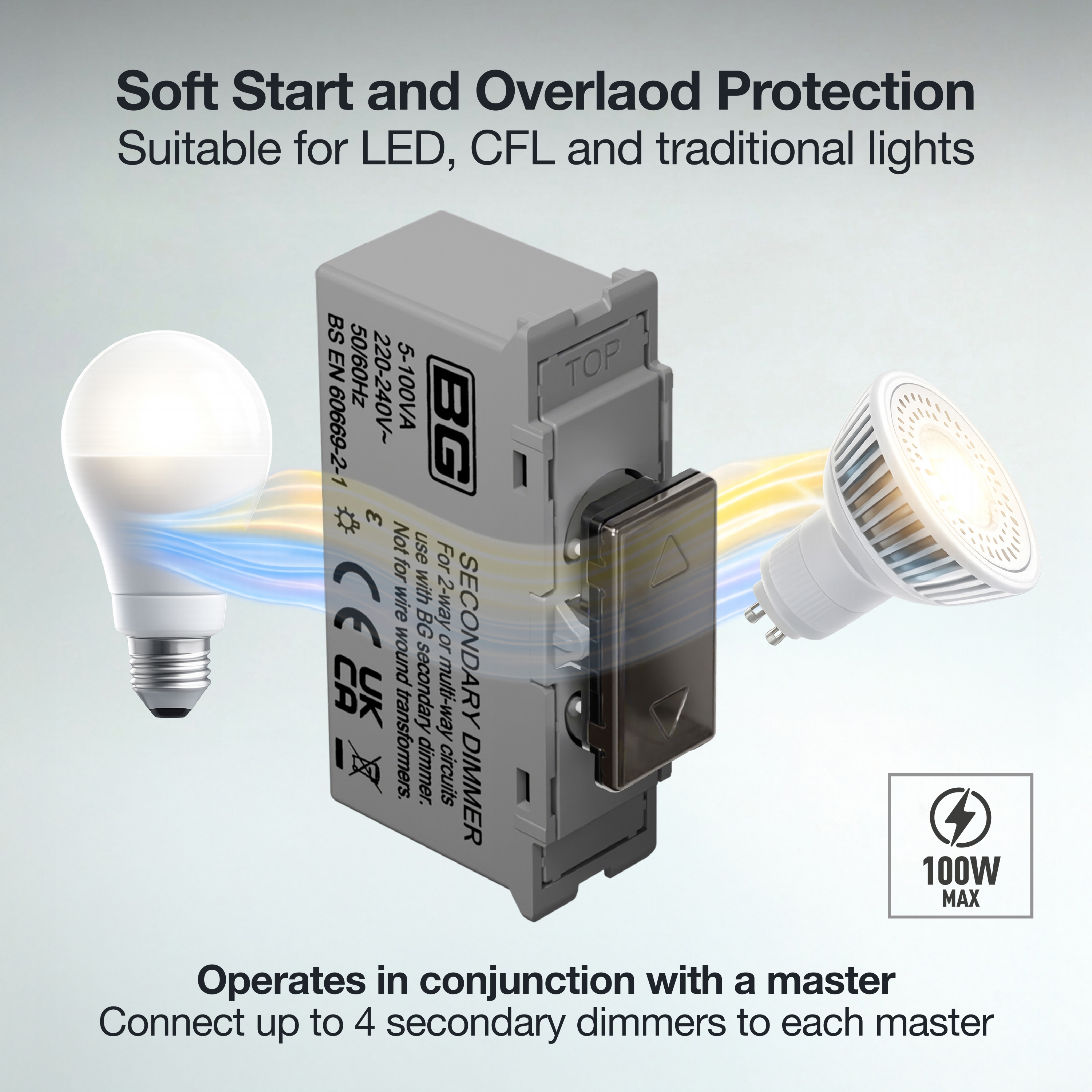

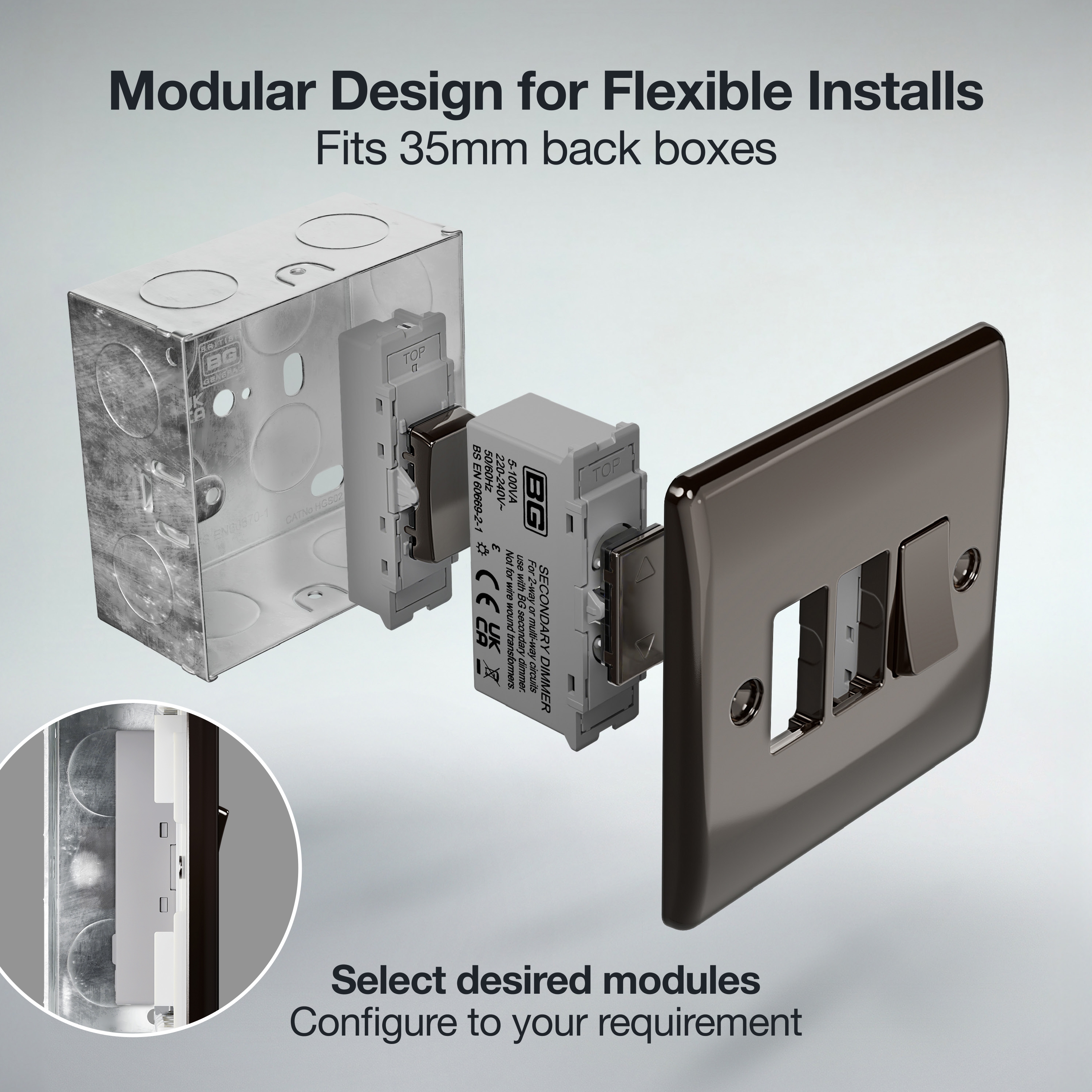

Secondary Touch Dimmer Module: Use with a BG GridLite master touch dimmer, it enables multi-point lighting control from multiple locations but cannot operate independently alone. Fits 35mm back boxes.
Trailing & Leading Edge Dimmer: With overload protection, soft-start for extended lamp life , smooth and silent operation. Compatible with LED halogen, CFL and incandescent lamps.

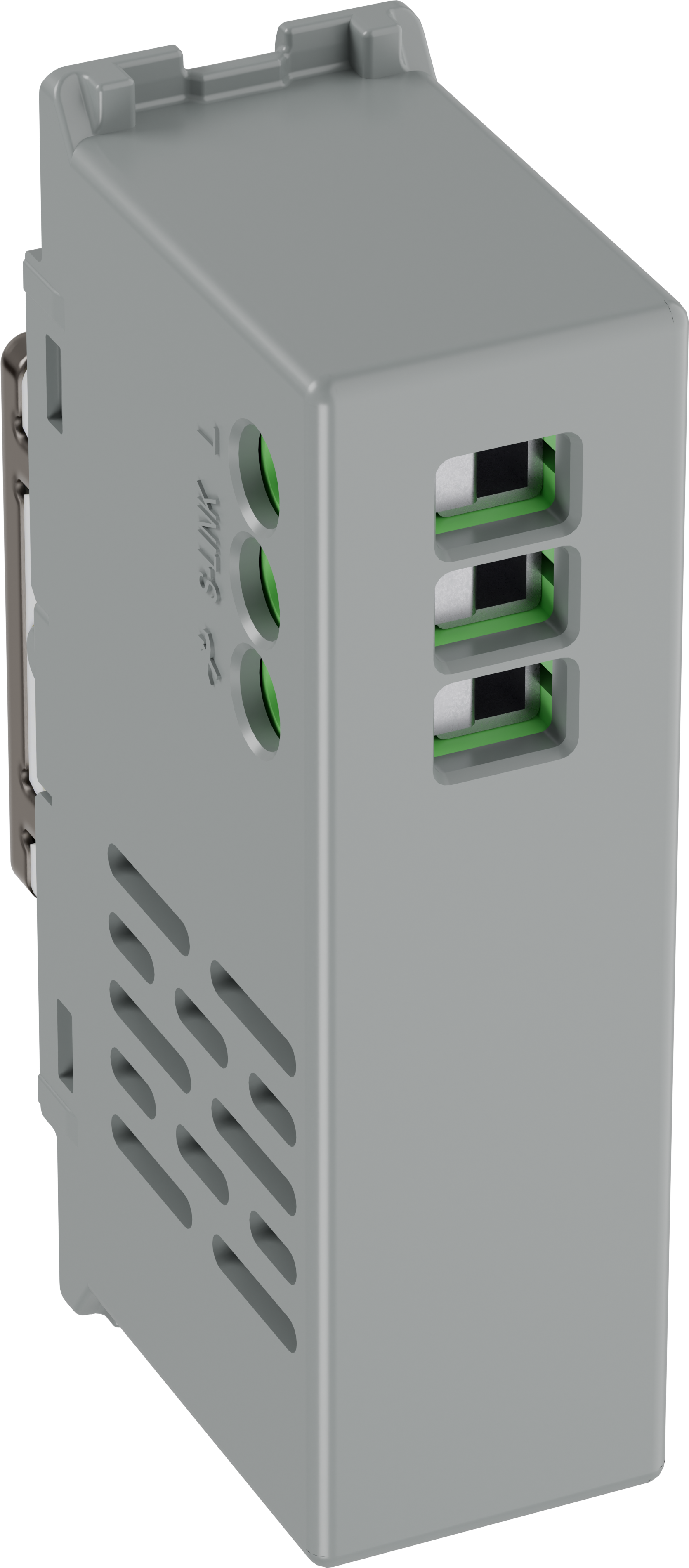

Easy Wiring: Clearly labelled terminals with backed-out retained screws to prevent screw loss. Fit 3 modules on a single square plate footprint freeing up wall space with a compact installation.
| General Colour | Black Nickel |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 35 |
| Terminal Capacity (# x mm²) | 2 x 1.5 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Not Applicable |
| Terminal Arrangement | Inline |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | Not Applicable |
| Switch Style Type | Touch |
| Switch Type (Ways & Poles) | Two Way |
| Switch Location Position | Wall |
| Fixing Centres (mm) | N/A |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 25 |
