MAB142-01

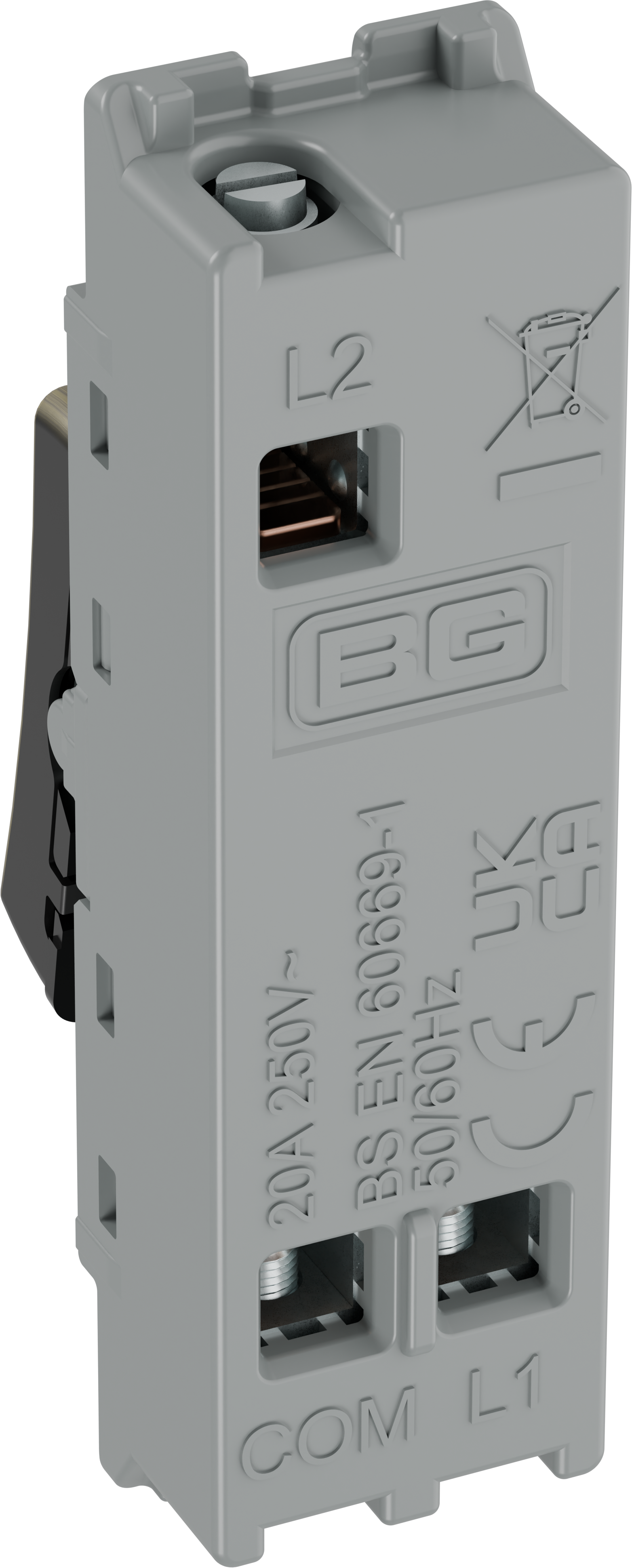

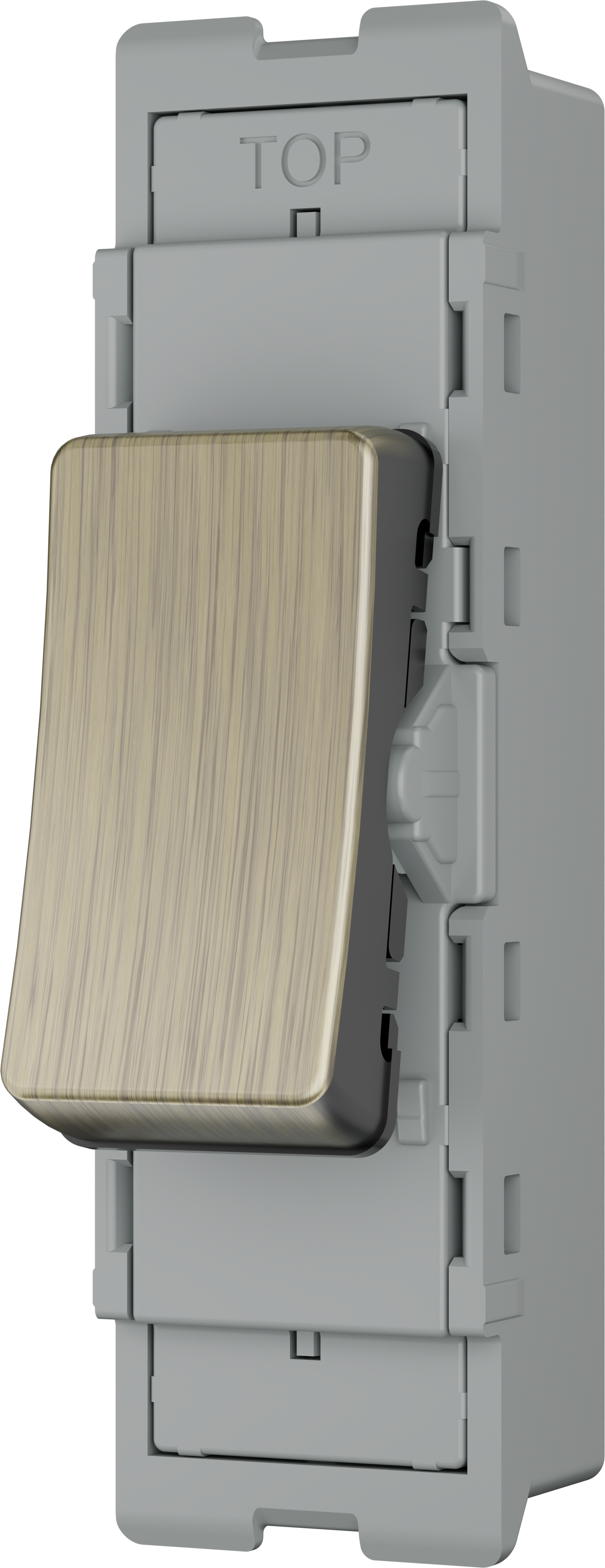

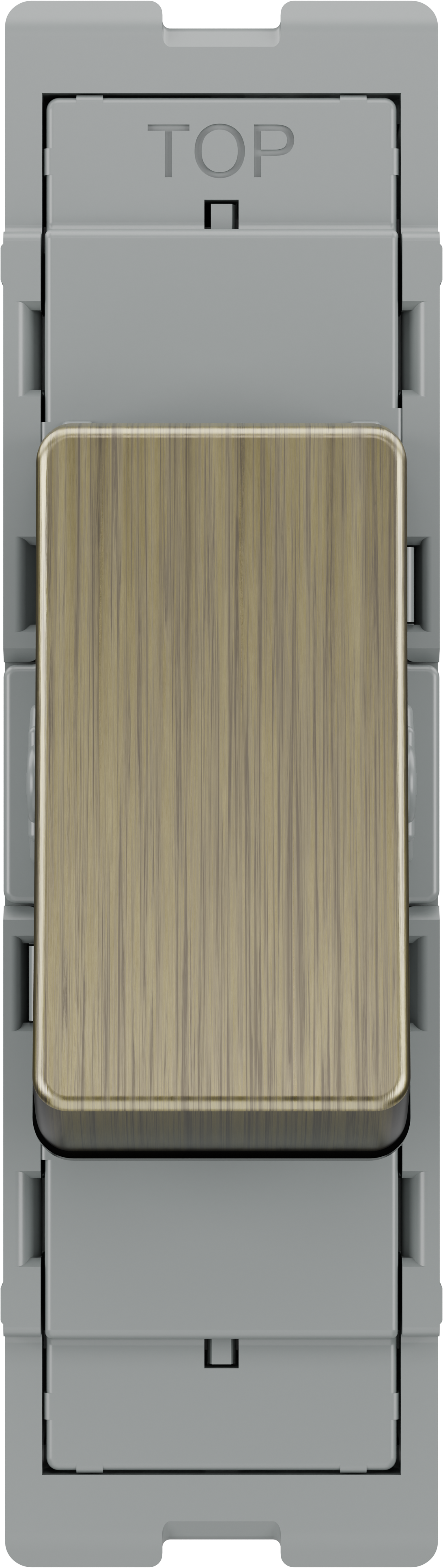

BG GridLite Retractive Switch Module, 2 Way, Antique Brass, 20A
Clip-In Switch Module: Push-fit design snaps into BG GridLite front plates with no yoke or screws, reducing components and speeding up installation for a quicker, cleaner workflow.
20A 2-Way Retractive Switch Module: With antique brass rocker. High-load rated and allows a second switch in the circuit. Ideal for controlled access areas.
Independent Module Replacement: Each module can be swapped without removing adjacent units, making retrofits quicker, easier, and disruption-free.
Easy Wiring: Clearly labelled terminals with backed-out retained screws to prevent screw loss. Fits standard 16mm back boxes, ideal for retro-fitting (3+ gangs will require 25mm minimum).
Versatility: Fit 3 modules on a 1-gang plate for compact, consistent installs, with interchangeable modules across BG GridLite ranges for seamless mixing, matching, and simplified stock management.
| General Colour | Antique Brass |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 16 |
| Terminal Capacity (# x mm²) | 2 x 2.5, 4 x 1.0, 1 x 4 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Not Applicable |
| Terminal Arrangement | Inline |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | Not Applicable |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Two Way |
| Switch Location Position | Wall |
| Fixing Centres (mm) | N/A |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | Retractive |
| Warranty (years) | 25 |
