RABDLT-01

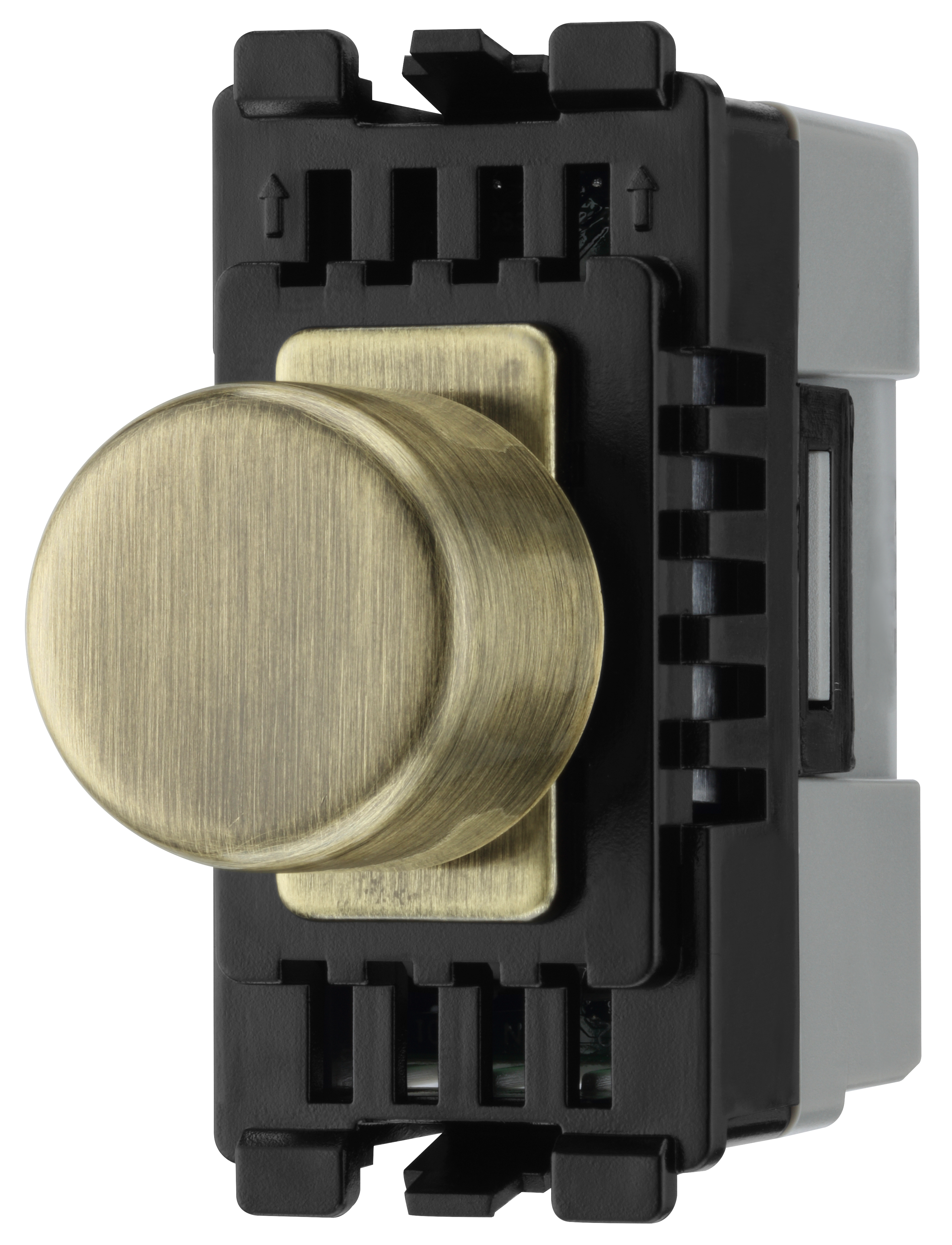

BG Grid Dual Intelligent Dimmer Switch, 2 Way, Antique Brass
Simple secure 'locate & clip' fitting to frame
Switchable Dimmer module for choice of trailing or leading
Soft start brings the lights to a set level in around 1 second and extends the life of lamps
Smooth dimming control with silent operation - no noise when dimming
Overload protection prevents failure if you mistakenly connect your dimmer to too many lights or transformers, and will turn the lights down or off until the load is corrected
Support for lower wattage lamps eliminates flicker
2 way push on/off with rotary control
Suitable for for dimmable LED, Halogen and Incandescent lamps
Captive backed out terminal screws for fast installation
Module to be installed with Grid frame and plate
| General Colour | Antique Brass |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (mm²) | 2 x 1.0mm², 2 x 1.5mm² |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | N/A |
| Terminal Arrangement | In Line Terminals |
| Number of Switches | 1 |
| Screw Caps | N/A |
| Switch Style Type | Rotary |
| Switch Type (Ways & Poles) | Two Way |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 25 |
